EN 60384-26:2010

SLOVENSKI STANDARD
01-december-2010
)LNVQLNRQGHQ]DWRUML]DHOHNWURQVNRRSUHPRGHO3RGURþQDVSHFLILNDFLMD
)LNVQLDOXPLQLMVNLHOHNWUROLWVNLNRQGHQ]DWRUMLVWUGQLPHOHNWUROLWRPL]SUHYRGQHJD
SROLPHUD,(&
Fixed capacitors for use in electronic equipment - Part 26: Sectional specification - Fixed
aluminium electrolytic capacitors with conductive polymer solid electrolyte (IEC 60384-
26:2010)
Festkondensatoren zur Verwendung in Geräten der Elektronik - Teil 26:
Rahmenspezifikation - Aluminium-Elektrolyt-Kondensatoren mit leitfähigem
Polymerfestkörper- Elektrolyten (IEC 60384-26:2010)
Condensateurs fixes utilisés dans les équipements électroniques - Partie 26:
Spécification intermédiaire - Condensateurs fixes électrolytiques en aluminium à
electrolyte solide en polymère conducteur (CEI 60384-26:2010)
Ta slovenski standard je istoveten z: EN 60384-26:2010
ICS:
31.060.50 Aluminijski elektrolitni Aluminium electrolytic
kondenzatorji capacitors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60384-26
NORME EUROPÉENNE
October 2010
EUROPÄISCHE NORM
ICS 31.060.50
English version
Fixed capacitors for use in electronic equipment -
Part 26: Sectional specification -
Fixed aluminium electrolytic capacitors with conductive polymer solid
electrolyte
(IEC 60384-26:2010)
Condensateurs fixes utilisés  Festkondensatoren zur Verwendung
dans les équipements électroniques - in Geräten der Elektronik -
Partie 26: Spécification intermédiaire - Teil 26: Rahmenspezifikation -
Condensateurs fixes électrolytiques Aluminium-Elektrolyt-Kondensatoren
en aluminium à electrolyte solide mit leitfähigem Polymerfestkörper-
en polymère conducteur Elektrolyten
(CEI 60384-26:2010) (IEC 60384-26:2010)

This European Standard was approved by CENELEC on 2010-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60384-26:2010 E

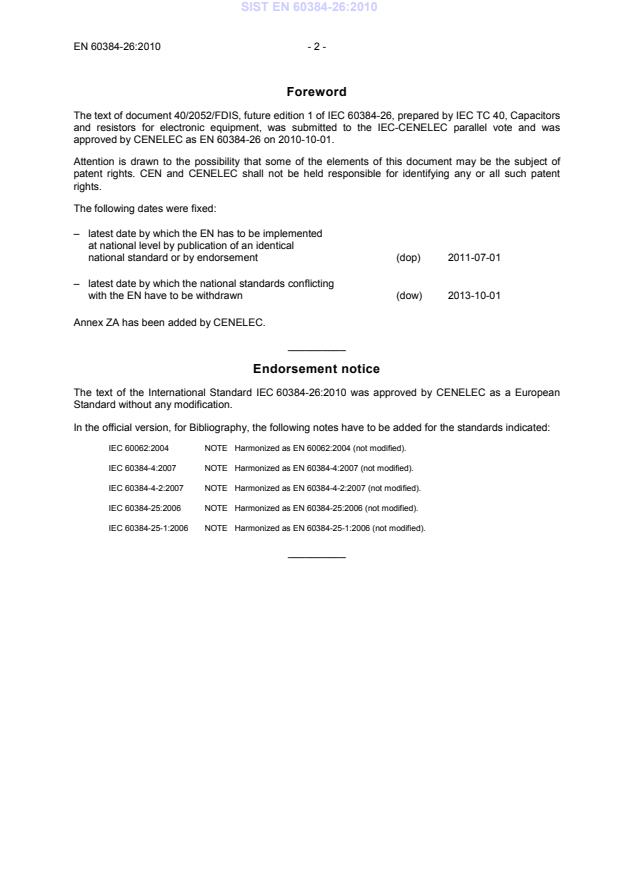

Foreword
The text of document 40/2052/FDIS, future edition 1 of IEC 60384-26, prepared by IEC TC 40, Capacitors
and resistors for electronic equipment, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 60384-26 on 2010-10-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-07-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-10-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60384-26:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60062:2004 NOTE  Harmonized as EN 60062:2004 (not modified).
IEC 60384-4:2007 NOTE  Harmonized as EN 60384-4:2007 (not modified).
IEC 60384-4-2:2007 NOTE  Harmonized as EN 60384-4-2:2007 (not modified).
IEC 60384-25:2006 NOTE  Harmonized as EN 60384-25:2006 (not modified).
IEC 60384-25-1:2006 NOTE  Harmonized as EN 60384-25-1:2006 (not modified).
__________
- 3 - EN 60384-26:2010
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60063 1963 Preferred number series for resistors and - -
+ A1 1967 capacitors
+ A2 1977
1)
IEC 60068-1 1988 Environmental testing - EN 60068-1 1994
Part 1: General and guidance
IEC 60068-2-14 2009 Environmental testing - EN 60068-2-14 2009
Part 2-14: Tests - Test N: Change of
temperature
IEC 60068-2-20 2008 Environmental testing - EN 60068-2-20 2008
Part 2-20: Tests - Test T: Test methods for
solderability and resistance to soldering heat
of devices with leads
IEC 60384-1 2008 Fixed capacitors for use in electronic EN 60384-1 2009
equipment -
Part 1: Generic specification
IEC 60410 1973 Sampling plans and procedures - -
for inspection by attributes
1)
EN 60068-1 includes A1 to IEC 60068-1 + corr. October 1988.

IEC 60384-26 ®
Edition1.0 2010-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 26: Sectional specification – Fixed aluminium electrolytic capacitors with
conductive polymer solid electrolyte

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 26: Spécification intermédiaire – Condensateurs fixes électrolytiques en
aluminium à électrolyte solide en polymère conducteur

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 31.060.50 ISBN 978-2-88912-165-6
– 2 – 60384-26 © IEC:2010
CONTENTS
FOREWORD.5
1 General .7
1.1 Scope.7
1.2 Object .7
1.3 Normative references .7
1.4 Information to be given in a detail specification .8
1.4.1 Outline drawings and dimensions .8
1.4.2 Mounting .8
1.4.3 Rating and characteristics .8
1.4.4 Marking .9
1.5 Terms and definitions .9
1.6 Marking .9
1.6.1 General .9
1.6.2 Marking on capacitor .9
1.6.3 Marking on package .9
1.6.4 Additional markings .9
2 Preferred rating and characteristics .10
2.1 Preferred characteristics .10
2.1.1 Preferred climatic categories .10
2.2 Preferred values of ratings .10
2.2.1 Nominal capacitance (C ) .10
N
2.2.2 Tolerance on nominal capacitance.10
2.2.3 Rated voltage (U ).10
R
2.2.4 Surge voltage .10
2.2.5 Rated temperature.11
3 Quality assessment procedures.11
3.1 Primary stage of manufacture.11
3.2 Structurally similar components.11
3.3 Declaration of conformity (basic requirements) .11
3.4 Test schedule and requirement for initial assessment (mandatory and
optional tests) .11
3.4.1 Qualification approval on the basis of the fixed sample size
procedures sampling .11
3.4.2 Tests .12
3.5 Quality conformance inspection.19
3.5.1 Formation of inspection lots.19
3.5.2 The schedule.20
3.5.3 Delayed delivery.20
3.5.4 Assessment levels.20
4 Test and measurement procedures.22
4.1 Pre-conditioning (if required) .22
4.2 Measuring conditions .22
4.3 Visual examination and check of dimensions.23
4.3.1 Visual examination .23
4.3.2 Requirements .23
4.4 Electrical tests.23
4.4.1 Leakage current .23

60384-26 © IEC:2010 – 3 –
4.4.2 Capacitance .23
4.4.3 Tangent of loss angle (tan δ) .24
4.4.4 Equivalent series resistance (ESR).24
4.5 Robustness of terminations .24
4.5.1 Initial measurement .24
4.6 Resistance to soldering heat .24
4.6.1 Initial measurement .24
4.6.2 Test conditions .24
4.6.3 Final inspection, measurements and requirements .25
4.7 Solderability .25
4.7.1 Test conditions .25
4.7.2 Final inspection, measurements and requirements .25
4.8 Rapid change of temperature .25
4.8.1 Initial measurement .25
4.8.2 Test conditions .25
4.8.3 Final inspection, measurements and requirements .25
4.9 Vibr
...
