EN 62776:2015

SLOVENSKI STANDARD
01-junij-2015
LED-sijalke z dvema vznožkoma za splošno razsvetljavo - Varnostne specifikacije
(IEC 62776:2014)
Double-capped LED lamps for general lighting services - Safety specifications
Ta slovenski standard je istoveten z: EN 62776:2015
ICS:
29.140.01 Žarnice na splošno Lamps in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62776
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2015
ICS 29.140.99
English Version
Double-capped LED lamps designed to retrofit linear fluorescent
lamps - Safety specifications
(IEC 62776:2014 + COR1:2015)
Lampes à LED à deux culots conçues pour remplacer des Zweiseitig gesockelte LED-Lampen als Ersatz (Retrofit) für
lampes à fluorescence linéaires - Spécifications de sécurité zweiseitig gesockelte Leuchtstofflampen -
(IEC 62776:2014 + COR1:2015) Sicherheitsanforderungen
(IEC 62776:2014 + COR1:2015)
This European Standard was approved by CENELEC on 2015-01-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62776:2015 E

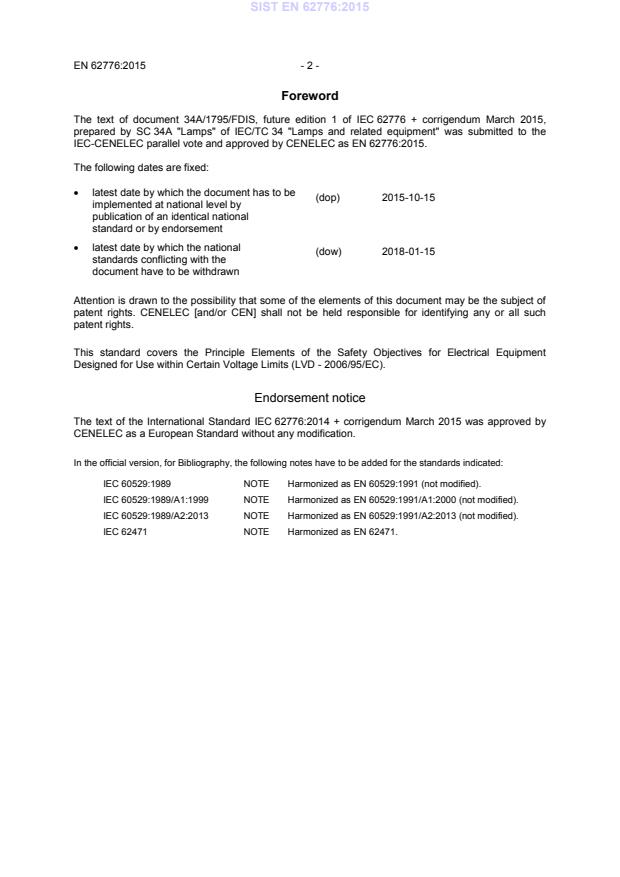

Foreword
The text of document 34A/1795/FDIS, future edition 1 of IEC 62776 + corrigendum March 2015,
prepared by SC 34A "Lamps" of IEC/TC 34 "Lamps and related equipment" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 62776:2015.

The following dates are fixed:
• latest date by which the document has to be
(dop) 2015-10-15
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national
(dow) 2018-01-15
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 62776:2014 + corrigendum March 2015 was approved by
CENELEC as a European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60529:1989 NOTE Harmonized as EN 60529:1991 (not modified).
IEC 60529:1989/A1:1999 NOTE Harmonized as EN 60529:1991/A1:2000 (not modified).
IEC 60529:1989/A2:2013 NOTE Harmonized as EN 60529:1991/A2:2013 (not modified).
IEC 62471 NOTE Harmonized as EN 62471.

- 3 - EN 62776:2015
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1  When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year
IEC 60061-1 - Lamp caps and holders together with EN 60061-1 -
gauges for the control of
interchangeability and safety -
Part 1: Lamp caps
IEC 60061-3 - Lamp caps and holders together with EN 60061-3 -
gauges for the control of
interchangeability and safety -
Part 3: Gauges
IEC 60061-4 - Lamp caps and holders together with EN 60061-4 -
gauges for the control of
interchangeability and safety -
Part 4: Guidelines and general
information
IEC 60081 - Double-capped fluorescent lamps - EN 60081 -
Performance specifications
IEC 60155 - Glow-starters for fluorescent lamps EN 60155 -
IEC 60360 - Standard method of measurement of EN 60360 -
lamp cap temperature rise
- -
IEC 60417-DB -  Graphical symbols for use on equipment
IEC 60598-1 - Luminaires - EN 60598-1 -
Part 1: General requirements and tests
IEC 60695-2-10 2013 Fire hazard testing - EN 60695-2-10 2013
Part 2-10: Glowing/hot-wire based test
methods - Glow-wire apparatus and
common test procedure
1)
IEC 60695-2-11 2000 Fire hazard testing - EN 60695-2-11
+ corr. January 2001 Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test
method for end-products
———————
1)
Superseded by EN 60695-2-11:2014 (IEC 60695-2-11:2014): DOW = 2017-03-13.

Publication Year Title EN/HD Year
IEC 60921 - Ballasts for tubular fluorescent lamps - EN 60921 -
Performance requirements
IEC 61195 - Double-capped fluorescent lamps - EN 61195 -
Safety specifications
2)
IEC 61347-1 2015 Lamp controlgear - EN 61347-1
201X
Part 1: General and safety requirements
IEC 61347-2-8 - Lamp controlgear - EN 61347-2-8 -
Part 2-8: Particular requirements for
ballasts for fluorescent lamps
IEC 62031 - LED modules for general lighting - Safety EN 62031 -
specifications
IEC 62504 - General lighting - Light emitting diode EN 62504 -
(LED) products and related equipment -
Terms and definitions
IEC/TR 62778 - Application of IEC 62471 for the - -
assessment of blue light hazard to light
sources and luminaires
3)
ISO 4046-4 Paper, board, pulps and related terms - - -
Vocabulary -
Part 4: Paper and board grades and
converted products
———————
2)
To be published.
3)
Withdrawn publication.
IEC 62776 ®
Edition 1.0 2014-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Double-capped LED lamps designed to retrofit linear fluorescent lamps – Safety

specifications
Lampes à LED à deux culots conçues pour remplacer des lampes à fluorescence

linéaires – Spécifications de sécurité

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 29.140.99 ISBN 978-2-8322-1939-3

– 2 – IEC 62776:2014 © IEC 2014
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements and general test requirements . 9
5 Marking . 10
5.1 Marking on the lamp . 10
5.2 Marking on the lamp, on the immediate lamp wrapping (or container) or in
the instructions . 12
5.3 Instruction manual . 12
5.3.1 General . 12
5.3.2 Declaration of the product . 12
5.3.3 Graphical instruction . 13
5.3.4 Mounting . 13
5.4 Compliance . 13
6 Interchangeability . 14
6.1 Interchangeability of the cap . 14
6.2 Mass . 14
6.3 Dimensions . 14
6.3.1 Requirements . 14
6.3.2 Dimensions at 25 °C (non-operating) . 14
6.3.3 Variation of dimension A due to self-heating at 25 °C . 15
6.3.4 Dimension B at minimum ambient temperature . 15
6.3.5 Dimension A at maximum ambient temperature . 15
6.3.6 Compliance . 15
6.4 Temperature . 15
6.4.1 Temperature requirement . 15
6.4.2 Power requirement . 16
6.4.3 Compliance . 16
6.5 Safety of the lamp in case a wrong starter-lamp combination is used . 16
7 Pin-safety during insertion . 16
8 Protection against accidental contact with live parts . 17
8.1 General . 17
8.2 Test to establish whether a conductive part may cause an electric shock
during operation . 17
8.3 Insulation resistance . 19
8.4 Electric strength . 19
9 Mechanical requirements for caps . 19
9.1 Construction and assembly . 19
9.2 Torque test on unused lamps . 19
9.3 Torque test after heat treatment . 20
9.4 Repetition of 8.2 . 20
10 Cap temperature rise . 20
11 Resistance to heat . 21

IEC 62776:2014 © IEC 2014 – 3 –
12 Resistance to flame and ignition . 22
13 Fault conditions . 22
13.1 General . 22
13.2 Testing under extreme electrical conditions . 22
13.3 Short-circuit across capacitors . 23
13.4 Fault conditions across electronic components . 23
13.5 Compliance . 23
13.6 Further require
...
