EN 62769-101-2:2015

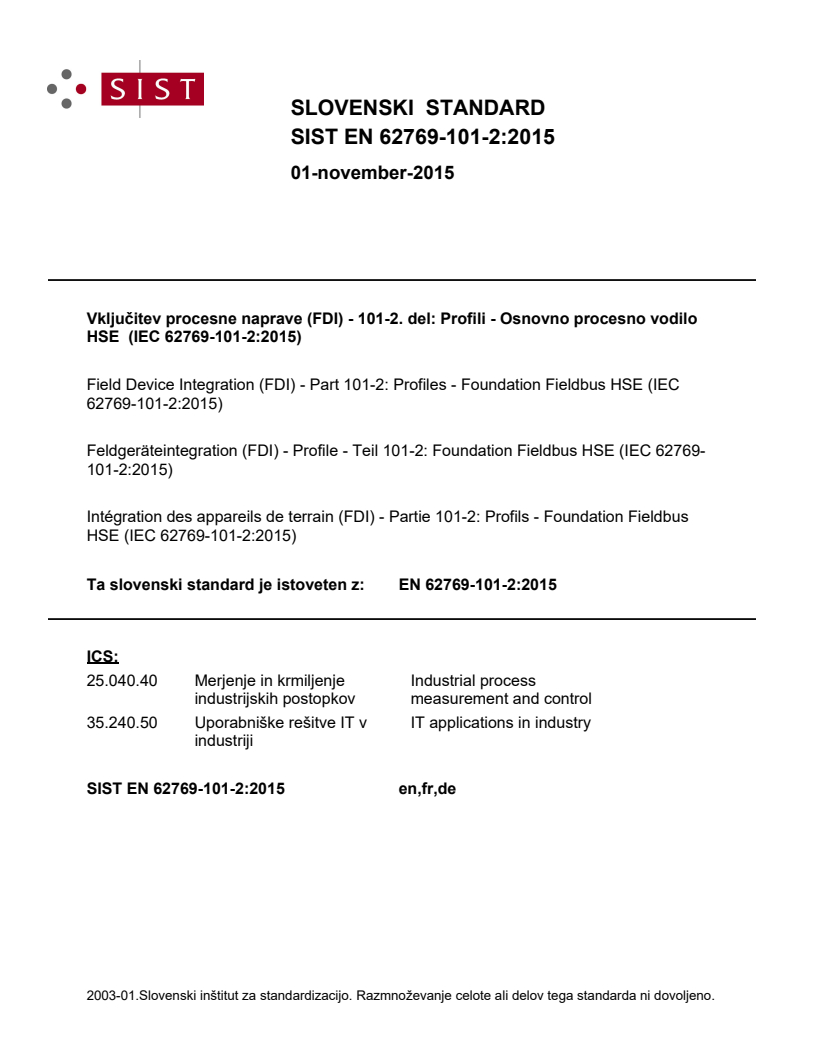

SLOVENSKI STANDARD
01-november-2015
9NOMXþLWHYSURFHVQHQDSUDYH)',GHO3URILOL2VQRYQRSURFHVQRYRGLOR
+6(,(&
Field Device Integration (FDI) - Part 101-2: Profiles - Foundation Fieldbus HSE (IEC
62769-101-2:2015)
Feldgeräteintegration (FDI) - Profile - Teil 101-2: Foundation Fieldbus HSE (IEC 62769-
101-2:2015)
Intégration des appareils de terrain (FDI) - Partie 101-2: Profils - Foundation Fieldbus
HSE (IEC 62769-101-2:2015)
Ta slovenski standard je istoveten z: EN 62769-101-2:2015
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

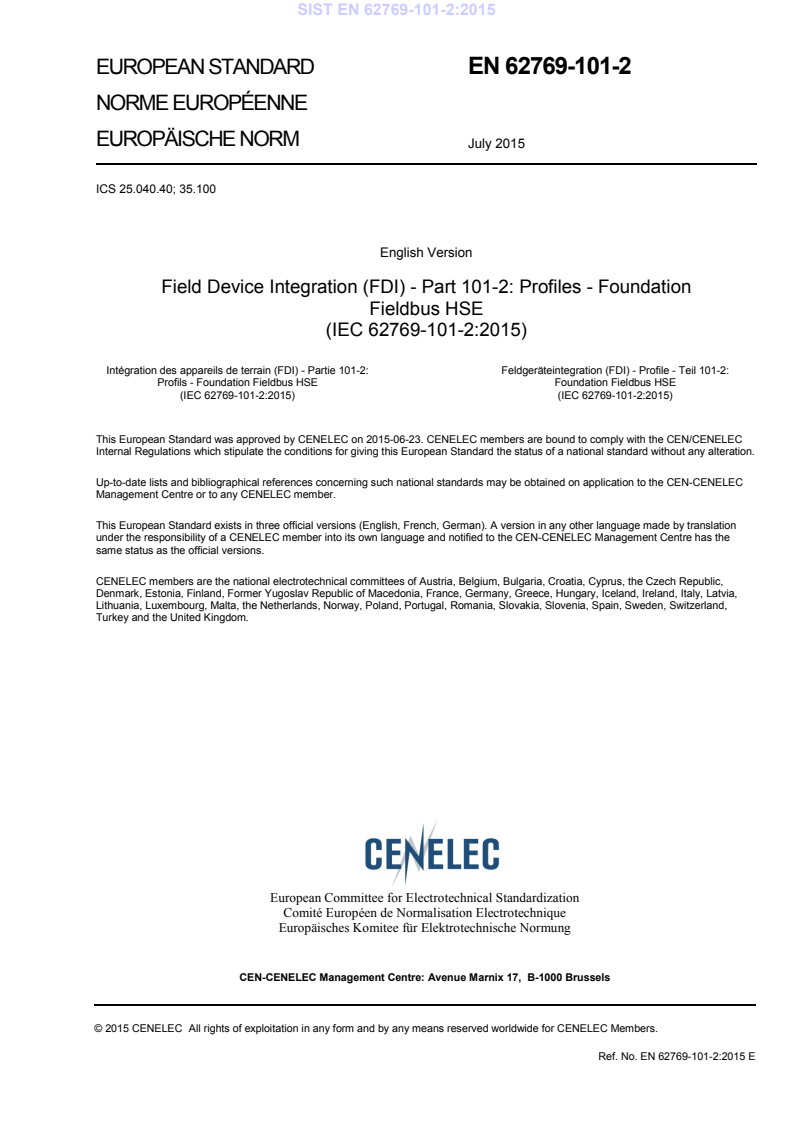

EUROPEAN STANDARD EN 62769-101-2

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2015
ICS 25.040.40; 35.100
English Version
Field Device Integration (FDI) - Part 101-2: Profiles - Foundation
Fieldbus HSE
(IEC 62769-101-2:2015)
Intégration des appareils de terrain (FDI) - Partie 101-2: Feldgeräteintegration (FDI) - Profile - Teil 101-2:
Profils - Foundation Fieldbus HSE Foundation Fieldbus HSE
(IEC 62769-101-2:2015) (IEC 62769-101-2:2015)
This European Standard was approved by CENELEC on 2015-06-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62769-101-2:2015 E

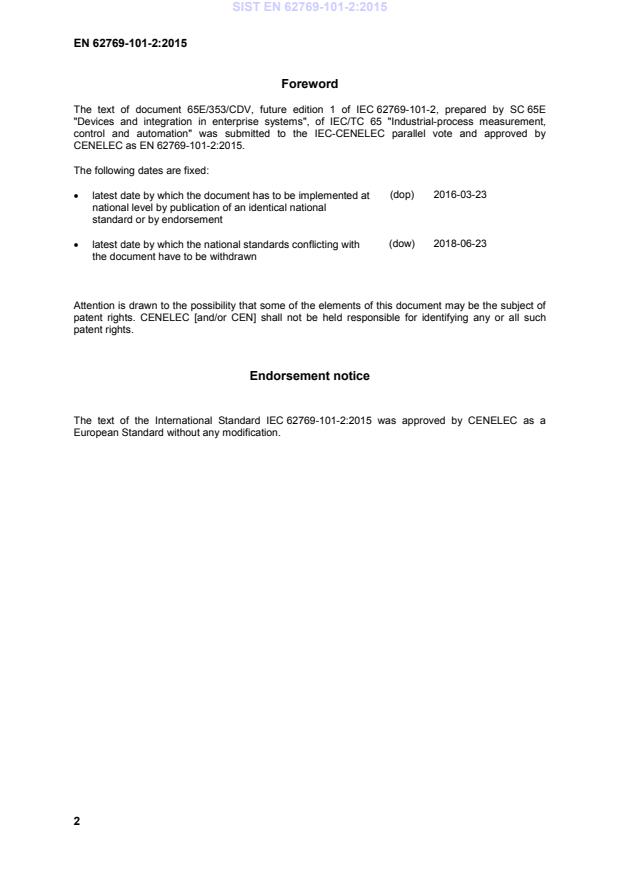

Foreword
The text of document 65E/353/CDV, future edition 1 of IEC 62769-101-2, prepared by SC 65E
"Devices and integration in enterprise systems", of IEC/TC 65 "Industrial-process measurement,
control and automation" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 62769-101-2:2015.
The following dates are fixed:
(dop) 2016-03-23
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2018-06-23
• latest date by which the national standards conflicting with
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62769-101-2:2015 was approved by CENELEC as a
European Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year

IEC 61784-1 -  Industrial communication networks - EN 61784-1 -
Profiles -- Part 1: Fieldbus profiles
IEC 61784-2 -  Industrial communication networks - EN 61784-2 -
Profiles - Part 2: Additional fieldbus profiles
for real-time networks based on ISO/IEC
8802-3
IEC 61804 series Function Blocks (FB) for process control EN 61804 series
IEC 62541-100 2015 OPC unified architecture - Part 100: Device EN 62541-100 2015
Interface
IEC 62769-2 -  Field Device Integration (FDI) - Part 2: FDI - -
Client
IEC 62769-3 -  Field Device Integration (FDI) - Part 3: FDI - -
Server
IEC 62769-4 -  Field Device Integration (FDI) - Part 4: FDI - -
Packages
IEC 62769-5 -  Field Device Integration (FDI) - Part 5: FDI - -
Information Model
IEC 62769-6 -  Field Device Integration (FDI) - Part 6: FDI - -
Technology Mapping
IEC 62769-7 -  Field Device Integration (FDI) - Part 7: FDI - -
Communication Devices
IEC 62769-101-1 -  Field Device Integration (FDI) - Part 101-1: - -
Profiles - Foundation Fieldbus H1

IEC 62769-101-2 ®
Edition 1.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Field Device Integration (FDI) –

Part 101-2: Profiles – Foundation Fieldbus HSE

Intégration des appareils de terrain (FDI) –

Partie 101-2: Profils – Foundation Fieldbus HSE

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100 ISBN 978-2-8322-2633-9

– 2 – IEC 62769-101-2:2015 © IEC 2015
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, abbreviated terms and acronyms . 8
3.1 Terms and definitions . 8
3.2 Abbreviated terms and acronyms . 8
4 Conventions . 8
4.1 EDDL syntax . 8
4.2 XML syntax . 8
5 Profile for CP 1/2 (FOUNDATION™ HSE) . 8
5.1 General . 8
5.2 Catalog profile . 8
5.2.1 Protocol support files . 8
5.2.2 CommunicationProfile definition . 9
5.2.3 Profile device . 9
5.2.4 Protocol version information . 9
5.3 Associating a Package with a CP 1/2 device . 9
5.3.1 Device type identification mapping . 9
5.3.2 Device type revision mapping . 10
5.4 Information Model mapping . 10
5.4.1 ProtocolType definition . 10
5.4.2 DeviceType mapping . 10
5.4.3 FunctionalGroup Identification definition . 10
5.4.4 BlockType property mapping . 11
5.4.5 Mapping to Block ParameterSet . 11
5.5 Topology elements . 11
5.5.1 ConnectionPoint definition . 11
5.5.2 Communication Device definition . 13
5.5.3 Communication service provider definition . 14
5.5.4 Network definition . 15
5.6 Methods . 15
5.6.1 Methods for FDI Communication Servers . 15
5.6.2 Methods for Gateways . 22
Annex A (normative) Topology scan schema . 23
A.1 General . 23
A.2 Network . 23
A.3 FoundationHSEAddressT . 23
A.4 FoundationHSEConnectionPointT . 23
A.5 FoundationHSENetworkT . 24
A.6 FoundationBlockIdentificationT . 24
A.7 FoundationIdentificationT . 25
Annex B (normative) Transfer service parameters . 27
Annex C (informative) Communication service arguments for Transfer Method . 28
Bibliography . 29

IEC 62769-101-2:2015 © IEC 2015 – 3 –

Table 1 – Capability File part . 9
Table 2 – CommunicationProfile definition . 9
Table 3 – Device type catalog mapping . 9
Table 4 – ProtocolType Foundation_HSE definition . 10
Table 5 – Inherited DeviceType property mapping . 10
Table 6 – Identification parameters . 11
Table 7 – Inherited BlockType property mapping. 11
Table 8 – ConnectionPointType ConnectionPoint_Foundation_HSE definition. 12
Table 9 – Communication device ParameterSet definition . 14
Table 10 – Method Connect arguments . 16
Table 11 – Method Disconect arguments . 17
Table 12 – Method Transfer arguments . 18
Table 13 – Method GetPublishedData arguments. 20
Table 14 – Method SetAddress arguments . 21
Table A.1 – Attributes of FoundationHSEConnectionPointT . 24
Table A.2 – Elements of FoundationHSEConnectionPointT . 24
Table A.3 – Elements of FoundationHSENetworkT . 24
Table A.4 – Attributes of FoundationBlockIdentificationT. 25
Table A.5 – Attributes of FoundationIdentificationT . 26

– 4 – IEC 62769-101-2:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIELD DEVICE INTEGRATION (FDI) –

Part 101-2: Profiles – Foundation Fieldbus HSE

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 62769-101-2 has been prepared by subcommittee 65E: Devices
and integration in enterprise systems, of IEC technical committee 65: Industrial-process
measurement, control and automation.
The text of this standard is based on the following documents:
CDV Report on voting
65E/353/CDV 65E/416/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62769 series, published under the general title Field Device
Integration (FDI), can be found on the IEC website.

IEC 62769-101-2:2015 © IEC 2015 – 5 –
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62769-101-2:2015 © IEC 2015
INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of patents concerning
a) Method for the Supplying and Installation of Device-Specific Functionalities, see Patent
Family DE10357276;
b) Method and device for accessing a functional module of automation system, see Patent
Family EP2182418;
c) Methods and apparatus to reduce memory requirements for process control system
US2013232186 ;
software applications, see Patent Family
d) Extensible Device Object Model, see Patent Family US12/893,680.
IEC takes no position concerning the evidence, validity and scope of this patent right.
The holders of these patent rights have assured the IEC that he/she is willing to negotiate
licences either free of charge or under reasonable and non-discriminatory terms and
conditions with applicants throughout the world. In this respect, the statement of the holder of
this patent right is registered with IEC. Information may be obtained from:
a) ABB Research Ltd
Claes Rytoft
Affolterstrasse 4
Zurich, 8050
Switzerland
b) Phoenix Contact GmbH & Co KG
Intellectual Property, Lycenses & Standards
Flachsmarktstrasse 8, 32825 Blomberg
Germany
c) Fisher Controls International LLC
John Dilger, Emerson Process Management LLLP
st
301 S. 1 Avenue, Marshaltown, Iowa 50158
USA
d) Rockwell Automation Technologies, Inc.
1 Allen-Bradley Drive
Mayfield Heights, Ohio 44124
USA
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line data bases of
patents relevant to their standards. Users are encouraged to consult the data bases for the
most up to date information concerning patents.

IEC 62769-101-2:2015 © IEC 2015 – 7 –
FIELD DEVICE INTEGRATION (FDI) –

Part 101-2: Profiles – Foundation Fieldbus HSE

1 Scope
This part of IEC 62769 specifies the IEC 62769 profile for IEC 61784-1, CP 1/2
(FOUNDATION™ Fieldbus HSE) .
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61784-1, Industrial communication networks - Profiles - Part 1: Fieldbus profiles
IEC 61784-2, Industrial communication networks - Profiles - Part 2: Additional fieldbus profiles
for real-time networks based on ISO/IEC 8802-3
IEC 61804 (all parts), Function blocks (FB) for process control
IEC 62541-100:2015, OPC Unified Architecture – Part 100: Device interface
IEC 62769-2, Field Device Integration (FDI) – Part 2: FDI Client
NOTE IEC 62769-2 is technically identical to FDI-2022.
IEC 62769-3, Field Device Integration (FDI) – Part 3: FDI Server
NOTE IEC 62769-3 is technically identical to FDI-2023.
IEC 62769-4, Field Device Integration (FDI) –Part 4: FDI Packages
NOTE IEC 62769-4 is technical identically to FDI-2024.
IEC 62769-5, Field Device Integration (FDI) – Part 5: FDI Information Model
NOTE IEC 62769-5 is technical identically to FDI-2025.
IEC 62769-6, Field Device Integration (FDI) – Part 6: FDI Technology Mapping
NOTE IEC 62769-6 is technical identically to FDI-2026.
IEC 62769-7, Field Device Integration (FDI) – Part 7: FDI Communication Devices
NOTE IEC 62769-7 is technical identically to FDI-2027.
______________
FOUNDATION™ Fieldbus is the trade name of the non-profit consortium Fieldbus Foundation. This information is given for the
convenience of users of this technical report and does not constitute an endorsement by IEC of the trademark holder or any
of its products. Compliance does not require use of the trade name. Use of the trade name requires permission of the trade
name holder.
– 8 – IEC 62769-101-2:2015 © IEC 2015
IEC 62769-101-1, Field Device Integration (FDI) – Part 101-1: Profiles – Foundation Fieldbus
H1
3 Terms, definitions, abbreviated terms and acronyms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61784-1,
IEC 61784-2, IEC 61804, IEC 62541-100, IEC 62769-2, IEC 62769-3, IEC 62769-4,
IEC 62769-5, IEC 62769-6, IEC 62769-7 and IEC 62769-101-1 apply.
3.2 Abbreviated terms and acronyms
For the purposes of this document, the following abbreviations apply:
CFF Common File format
CP communication profile (see IEC 61784-1 or IEC 61784-2)
CPF communication profile family (see IEC 61784-1 or IEC 61784-2)
EDD Electronic Device Description (see IEC 61804 series)
FB function block
IM Information Model
SMIB system management information base
VFD virtual field device
4 Conventions
4.1 EDDL syntax
This part of IEC 62769 specifies content for the EDD component that is part of FDI
Communication Packages. EDDL syntax uses the font Courier New. EDDL syntax is used
for method signature, variable, data structure and component declarations.
4.2 XML syntax
XML syntax examples use the font Courier New. The XML syntax is used to describe XML
document schema.
EXAMPLE:
5 Profile for CP 1/2 (FOUNDATION™ HSE)
5.1 General
This profile annex specifies the protocol specifics needed for FDI Packages describing
communication servers, gateways and devices.
5.2 Catalog profile
5.2.1 Protocol support files
5.2.1.1 Capability file
Each CP 1/2 FDI Device Package shall contain a capability file. The capability file part is
described in Table 1.
IEC 62769-101-2:2015 © IEC 2015 – 9 –
Table 1 – Capability File part
Parameter Description
Content Type txt/plain
Root Namespace Not applicable
Source Relationship http://fdi-cooperation.com/2010/relationships/attachment-protocol
Filename Use file extension .CFH

5.2.2 CommunicationProfile definition
IEC 62769-4 defines a CommunicationProfile enumeration type for the Catalog XML schema.
Table 2 defines the CP 1/2 specific values for this enumeration.
Table 2 – CommunicationProfile definition
CommunicationProfile Description
foundation_hse CP 1/2 device type

5.2.3 Profile device
Not supported in this standard.
5.2.4 Protocol version information
IEC 62769-4 defines an element type named InterfaceT for the Catalog XML Schema.
Element type InterfaceT contains an element named Version which is supposed to provide
version information about the applied communication protocol profile. The value follows the
IEC 62769-4 defined version information schema defined in element type VersionT.
The major version part of VersionT shall be set to the ITK_VER parameter. The minor and
builds parts shall be set to 0.
EXAMPLE For ITK_VER 5, the value for InterfaceT is 5.0.0.
5.3 Associating a Package with a CP 1/2 device
5.3.1 Device type identification mapping
CP 1/2 device types are uniquely identified by the parameters MANUFAC_ID, DEVICE_TYPE
and DEV_REV found in the Resource Block. These parameters are used to associate a given
device instance to an FDI Device Package. These parameters are mapped to the FDI Device
Package Catalog according to Table 3.
Table 3 – Device type catalog mapping
Catalog Element CP Mapping
Manufacturer element of InterfaceT (IEC 62769-4) MANUFAC_ID
String format “0xdddd” where dddd is the
MANUFAC_ID number in hexadecimal format.
DeviceModel element of InterfaceT String format DEVICE_TYPE
“0xdddd” where dddd is the DEVICE_TYPE number in
String format “0xdddd” where dddd is the
hexadecimal format. (IEC 62769-4)
DEVICE_TYPE number in hexadecimal format.
DeviceRevision element DEV_REV
ListOfSupportedDeviceRevisionsT (IEC 62769-4)
String format “x.0.0” where x is the DEV_REV in
decimal format (no leading zeros).

– 10 – IEC 62769-101-2:2015 © IEC 2015

5.3.2 Device type revision mapping
Each device type is identified per 5.3.1. A device may also include a parameter
COMPATIBILITY_REV from the Resource Block. This parameter specifies the lowest device
version (DEV_REV) that a new device can replace while maintaining compatibility with a prior
FDI Device Package.
5.4 Information Model mapping
5.4.1 ProtocolType definition
Table 4 defines the ProtocolType used to identify CP 1/2 network communications.
Table 4 – ProtocolType Foundation_HSE definition
Attribute Value
BrowseName Foundation_HSE
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Inherits the properties of ProtocolType defined in IEC 62541-100.

5.4.2 DeviceType mapping
Each device type inherits the properties of DeviceType. The mapping of the inherited
properties from DeviceType is defined in Table 5.
Table 5 – Inherited DeviceType property mapping
Property CP Mapping
SerialNumber DEV_ID (System Management Information Base)
RevisionCounter –1 (not defined)
Manufacturer MANUFAC_ID (Resource Block)
Model DEV_TYPE (Resource Block)
a
DeviceManual entry text string (not supported)
DeviceRevision DEV_REV (Resource Block)
SoftwareRevision SOFTWARE_REV (if available, otherwise –1)
HardwareRevision HARDWARE_REV (if available, otherwise –1)
a
Device manuals are exposed as attachments of the FDI Device Package.

5.4.3 FunctionalGroup Identification definition
As defined in IEC 62541-100, each device representation in the FDI Server hosted
Information Model shall contain a protocol specific FunctionalGroup called Identification. This
FunctionalGroup organizes variables found in the Resource Block of the device type instance.
The FunctionalGroup Identification for CP 1/2 is defined in Table 6.

IEC 62769-101-2:2015 © IEC 2015 – 11 –
Table 6 – Identification parameters
BrowseName VariableType Optional/Mandatory
MANUFAC_ID UInt32 Mandatory
DEV_TYPE UInt16 Mandatory
DEV_REV UInt8 Mandatory
HARDWARE_REV String Optional
SOFTWARE_REV String Optional
COMPATIBILITY_REV UInt8 Optional
CAPABILITY_LEV UInt8 Optional
ITK_VER UInt16 Mandatory
SIF_ITK_VER UInt16 Optional
FD_VER UInt16 Optional
5.4.4 BlockType property mapping
CP 1/2 device types are block-oriented according to IEC 62541-100. IEC 62769-5 specifies
the mapping of EDDL BLOCK_A elements to block types and instances.
The BLOCK_A maps as a subtype of the topology element BlockType and inherits the
properties as per IEC 62541-100. The mapping of the inherited properties of BlockType is
specified in Table 7.
Table 7 – Inherited BlockType property mapping
Property CP Mapping (Block’s ParameterSet)
RevisionCounter ST_REV
ActualMode MODE_BLK.ACTUAL
PermittedMode MODE_BLK.PERMITTED
NormalMode MODE_BLK.NORMAL
TargetMode MODE_BLK.TARGET
5.4.5 Mapping to Block ParameterSet
The ParameterSet is relative to each Block. The ParameterSet includes the
CHARACTERISTICS records of the block that contains all the parameters found in the
PARAMETERS, LOCAL_PARAMETERS and LIST_ITEMS.
The browse name of the parameters found in the PARAMETERS and LOCAL_PARAMETERS
is the member name in the respective lists. For example, ST_REV is the browse name of the
Static Revision parameter. LIST_ITEMS do not have member names; therefore the browse
name of each LIST in the LIST_ITEMS is the item name of the list.
5.5 Topology elements
5.5.1 ConnectionPoint definition
The ConnectionPoint type ConnectionPoint_Foundation_HSE shall be used to identify CP 1/2
network communication and is defined in Table 8. The ConnectionPoint_Foundation_HSE
type is a sub type of the abstract type ConnectionPointType defined in IEC 62541-100.

– 12 – IEC 62769-101-2:2015 © IEC 2015
The Address property can be an IPv4 or IPv6 address. For IPv4 addresses, the address shall
be stored in the last 4 octets and all other octets shall be set to zero.
The OrdinalNumber property reflects the position of the VFD within the SMIB VFD list. For
devices exposing multiple FB VFDs the OrdinalNumber property is mandatory to address the
FB VFD. For devices with a single FB VFD the OrdinalNumber property can be omitted.
Devices exposed as instances of type DeviceType define their Connection points as
components. Hence Devices with multiple FB VFDs shall contain multiple Connection points,
one per FB VFD.
Table 8 – ConnectionPointType ConnectionPoint_Foundation_HSE definition
Attribute Value
BrowseName ConnectionPoint_Foundation_HSE
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Inherits the properties of ConnectionPointType defined in IEC 62541-100.
HasProperty Variable Address Octet[16] PropertyType Mandatory
HasProperty Variable OrdinalNumber Int32 PropertyType Optional

The ConnectionPoint type ConnectionPoint_Foundation_HSE shall be described by an EDD
element contained in a Communication Device related FDI Package that can drive a CP 1/2
network. Actual ConnectionPoint_ConnectionPoint properties are declared by VARIABLE
constructs grouped together in a COLLECTION named
Foundation_HSE_ConnectionPoint_Properties.
COMPONENT ConnectionPoint_Foundation_HSE
{
LABEL
...
