EN 50117-2-3:2004

SLOVENSKI STANDARD
01-november-2005
Koaksialni kabli – 2-3. del: Področna specifikacija za kable v kabelskih razdelilnih
omrežjih – Razdelilni in povezovalni kabli za sisteme, ki delujejo v območju 5 MHz
do 1.000 MHz
Coaxial cables -- Part 2-3: Sectional specification for cables used in cabled distribution
networks - Distribution and trunk cables for systems operating at 5 MHz - 1 000 MHz
Koaxialkabel -- Teil 2-3: Rahmenspezifikation für Kabel für Kabelverteilanlagen -
Verteiler und Linienkabel für Systeme im Bereich von 5 MHz - 1 000 MHz
Câbles coaxiaux -- Partie 2-3: Spécification intermédiaire pour câbles utilisés dans les
réseaux de distribution câblés - Câbles de distribution et câbles principaux des systèmes
fonctionnant à 5 MHz - 1 000 MHz
Ta slovenski standard je istoveten z: EN 50117-2-3:2004
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50117-2-3
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2004

ICS 33.120.10
English version
Coaxial cables
Part 2-3: Sectional specification for cables
used in cabled distribution networks –
Distribution and trunk cables for systems
operating at 5 MHz - 1 000 MHz

Câbles coaxiaux Koaxialkabel
Partie 2-3: Spécification intermédiaire Teil 2-3: Rahmenspezifikation für Kabel
pour les câbles utilisés dans les réseaux für Kabelverteilanlagen –
de distribution câblés – Verteiler und Linienkabel für Systeme
Câbles de distribution im Bereich von 5 MHz - 1 000 MHz
et câbles principaux des systèmes
fonctionnant à 5 MHz - 1 000 MHz

This European Standard was approved by CENELEC on 2004-09-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50117-2-3:2004 E

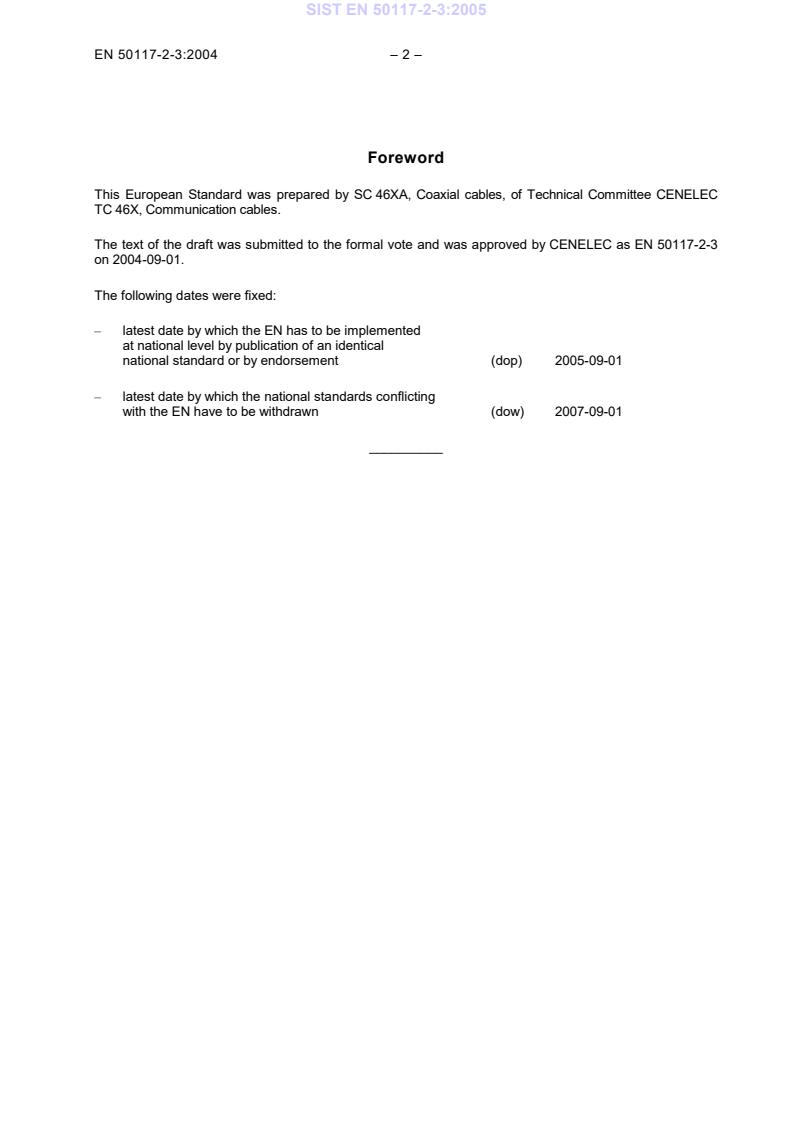

Foreword
This European Standard was prepared by SC 46XA, Coaxial cables, of Technical Committee CENELEC
TC 46X, Communication cables.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50117-2-3
on 2004-09-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-09-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-09-01
__________
– 3 – EN 50117-2-3:2004
Contents
1 Scope. 4
2 Normative references. 4
3 Definitions. 4
4 Requirements for cable construction. 5
4.1 General. 5
4.2 Inner conductor.5
4.3 Dielectric . 5
4.4 Outer conductor or screen . 5
4.5 Filling compounds. 5
4.6 Moisture barriers . 5
4.7 Wrapping layers . 5
4.8 Sheath. 5
4.9 Metallic protection . 6
4.10 Cable integral suspension strand (Messenger wire). 6
4.11 Oversheath. 6
4.12 Fauna proofing. 6
4.13 Chemical and/or environmental proofing . 6
4.14 Cable identification . 6
4.14.1 Sheath marking.6
4.14.2 Labelling. 6
5 Tests for completed cables . 7
5.1 Electrical tests . 7
5.1.1 Low-frequency and D.C. electrical measurements . 7
5.1.2 High-frequency electrical and transmission measurements . 7
5.2 Mechanical tests. 9
5.3 Environmental tests.10
5.4 Fire performance test methods . 11

Table 1 – Low-frequency and D.C. electrical measurements . 7
Table 2 – High-frequency electrical and transmission measurements. 7
Table 3 – Mechanical tests. 9
Table 4 – Environmental tests .10
Table 5 – Fire performance test methods . 11

1 Scope
This European Standard relates to EN 50117-1 and should be read in conjunction with this generic
specification. This specification applies to distribution and trunk cables for use in cabled distribution
1)
systems operating at temperature between -40 °C and +70 °C and at frequencies between 5 MHz and
1 000 MHz and complying with the requirements of EN 50083.
The purpose of this European Standard is to specify the applicable test methods and requirements for the
electrical, mechanical, environmental and fire performance of the cables.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
EN 50083 series Cable networks for television signals, sound signals and interactive services
EN 50117-1 Coaxial cables – Part 1: Generic specification
EN 50289-1-6 Communication cables – Specifications for test methods – Part 1-6: Electrical test
methods – Electromagnetic performance
EN 50289-3-9 Communication cables – Specifications for test methods – Part 3-9: Mechanical
test methods – Bending tests
2)
EN 50290-1-2 Communication cables – Part 1-2: Definitions
EN 50290-2-23 Communication cables – Part 2-23: Common design rules and construction –
PE insulation
EN 50290-2-24 Communication cables – Part 2-24: Common design rules and construction –
PE sheathing
EN 50290-2-25 Communication cables – Part 2-25: Common design rules and construction –
Polypropylene insulation compounds
EN 50290-2-27 Communication cables – Part 2-27: Common design rules and construction –
Halogen free flame retardant thermoplastic sheathing compounds
EN 50290-4-1 Communication cables – Part 4-1: General considerations for the use of cables –
Environmental conditions and safety aspects
EN 62153-1-1 Metallic telecommunication cable test methods – Part 1-1: Electrical –
Measurement of the pulse/step return loss in the frequency domain using the
Inverse Discrete Fourier Transformation (IDFT) (IEC 62153-1-1)
2)
Coaxial communication cables – Part 1-115: Electrical test methods – Test for
IEC 61196-1-115
pulse return loss (regularity of impedance)
3 Definitions
For the purposes of this European Standard, the definitions of EN 50290-1-2 and EN 50117-1 apply.

1)
This value is valid for applications without ampacity only.
2)
At draft stage.
– 5 – EN 50117-2-3:2004
4 Requirements for cable construction
4.1 General
Designing the cable, consideration should be paid to the maximum admissible current stated in the detail
specification. It is assumed that the raise if temperature of the inner conductor when submitted to the
maximum current under nominal ambient conditions does not affect the mechanical and electrical
properties of the cable (details are under study).
4.2 Inner conductor
The conductor shall meet the requirements of Subclause 4.2 of EN 50117-1, and shall be solid or tube.
Individual wires can be plain or metal coated. Dimensions shall be in accordance with the detailed
specification.
There shall be no joint made subsequent to the last drawing operation.
4.3 Dielectric
The dielectric material(s) shall be in accordance with Subclause 4.3 of EN 50117-1 and shall consist of
polyolefin materials, with EN 50290-2-23 (polyethylene), EN 50290-2-25 (polypropylene) or any relevant
part of EN 50290-2-XX. Dimensions shall be in accordance with the detail specification.
4.4 Outer conductor or screen
The construction and material of the outer conductor and/or screen shall meet the requirements of
Subclause 4.4, items c), e) or f) of EN 50117-1.
For constructions with metal foil and braid, braid angle shall be between 15° and 45°.
Dimensions shall be in accordance with the detail specification.
4.5 Filling compounds
When applicable filling compounds shall be in accordance with Subclause 4.5 of EN 50117-1.
When applicable filling compounds shall meet the requirements of the relevant detail specification.
4.6 Moisture barriers
Not applicable
4.7 Wrapping layers
Not applicable
4.8 Sheath
Sheath material(s) shall meet the requirements of EN 50290-2-24 for PE sheaths or EN 50290-2-27 for
halogen free flame retardant materials.
Sheaths of cables used in aerial or external applications shall meet the requirement of the UV resistance
test.
The sheath shall also meet the requirements of Subclause 4.8 of EN 50117-1.
Dimensions shall be in accordance with the detail specification.

4.9 Metallic protection
When applicable metallic protection shall be in accordance with Subclause 4.9 of EN 50117-1.
When applicable metallic protection shall meet the requirements of the relevant detail specification.
4.10 Cable integral suspension strand (Messenger wire)
When applicable messenger wires shall be in accordance with Subclause 4.10 of EN 50117-1.
When applicable messenger wires shall meet the requirements of the relevant detail specification.
4.11 Oversheath
When applicable oversheaths shall be in accordance with Subclause 4.11 of EN 50117-1.
When applicable oversheaths shall meet the requirements of the relevant detail specification.
4.12 Fauna proofing
When applicable fauna proofing shall be in accordance with Subclause 4.12 of EN 50117-1.
When applicable fauna proofing shall meet the requirements of the relevant detail specification.
4.13 Chemical and/or environmental proofing
Not applicable
4.14 Cable identification
Cable identification shall be in accordance with Subclause 4.14 of EN 50117-1.
4.14.1 Sheath marking
Sheath marking shall be achieved as a non-degradable embossing or print containing the following
minimum information:
– designation of the cable;
– attenuation value (in dB/100 m at 800 MHz, rounded);
– screening class;
– Euro-class;
– name of supplier.
EXAMPLE EN 50117-2-3 11 < XXX > Class A Euro-class C < YYY >
4.14.2 Labelling
Unless otherwise specified in the detail specification drums or coils shall be provided with a label with a
non-degradable print containing the following minimum information:
– designation of the cable;
– attenuation value (in dB/100 m at 800 MHz, rounded);
– screening class;
– Euro-class;
– name of supplier;
– 7 – EN 50117-2-3:2004
– batch part n
...
