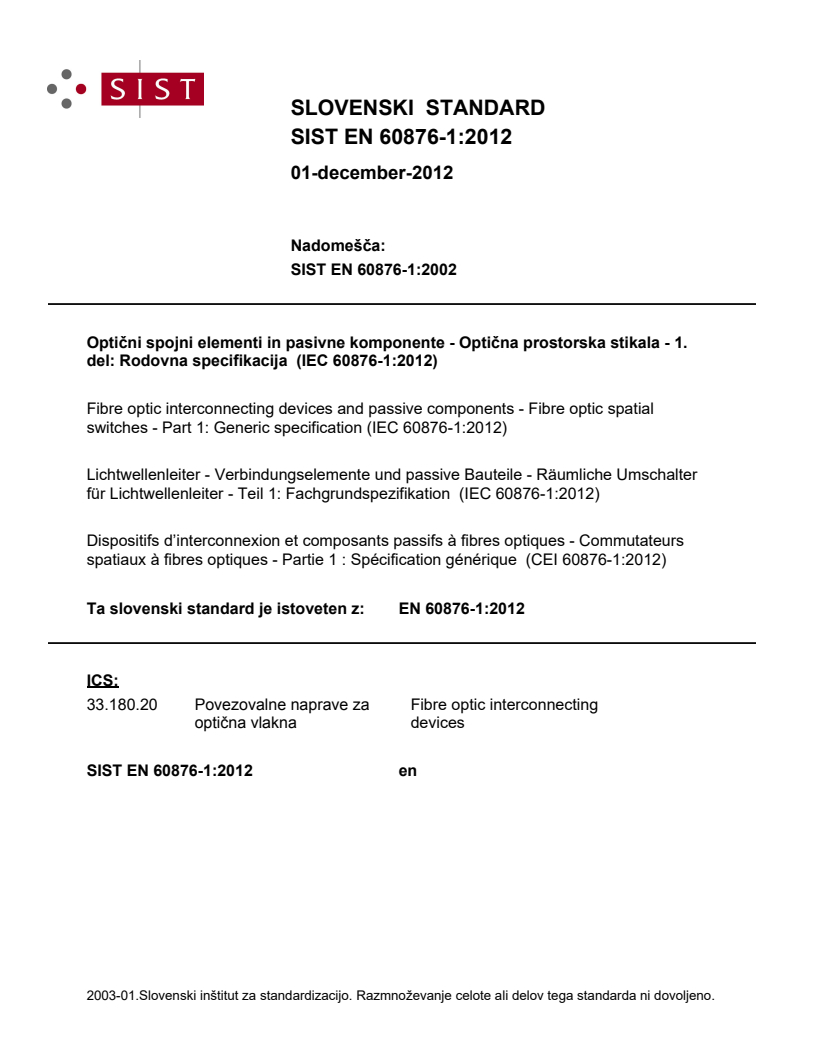

EN 60876-1:2012

SLOVENSKI STANDARD
01-december-2012
1DGRPHãþD
SIST EN 60876-1:2002
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH2SWLþQDSURVWRUVNDVWLNDOD
GHO5RGRYQDVSHFLILNDFLMD,(&
Fibre optic interconnecting devices and passive components - Fibre optic spatial
switches - Part 1: Generic specification (IEC 60876-1:2012)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Räumliche Umschalter
für Lichtwellenleiter - Teil 1: Fachgrundspezifikation (IEC 60876-1:2012)
Dispositifs d’interconnexion et composants passifs à fibres optiques - Commutateurs
spatiaux à fibres optiques - Partie 1 : Spécification générique (CEI 60876-1:2012)
Ta slovenski standard je istoveten z: EN 60876-1:2012
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

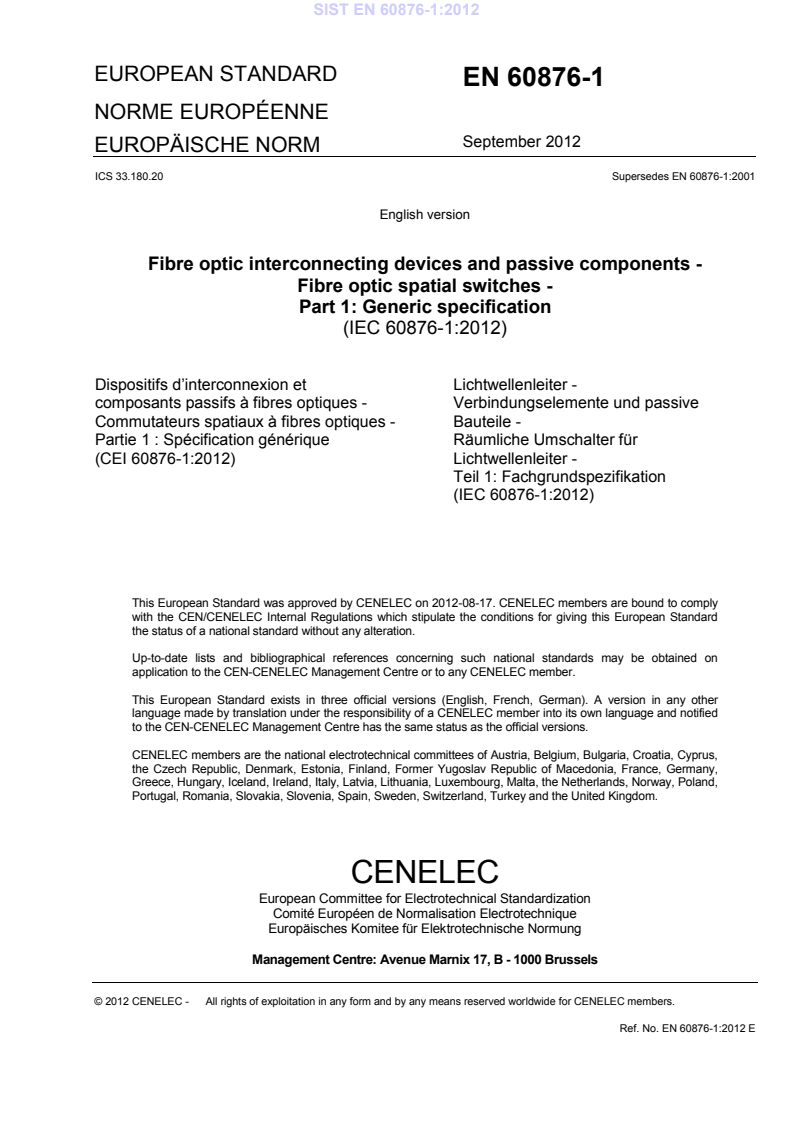

EUROPEAN STANDARD
EN 60876-1
NORME EUROPÉENNE
September 2012
EUROPÄISCHE NORM
ICS 33.180.20 Supersedes EN 60876-1:2001

English version
Fibre optic interconnecting devices and passive components -
Fibre optic spatial switches -
Part 1: Generic specification
(IEC 60876-1:2012)
Dispositifs d’interconnexion et Lichtwellenleiter -
composants passifs à fibres optiques - Verbindungselemente und passive
Commutateurs spatiaux à fibres optiques - Bauteile -
Partie 1 : Spécification générique Räumliche Umschalter für
(CEI 60876-1:2012) Lichtwellenleiter -
Teil 1: Fachgrundspezifikation
(IEC 60876-1:2012)
This European Standard was approved by CENELEC on 2012-08-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60876-1:2012 E

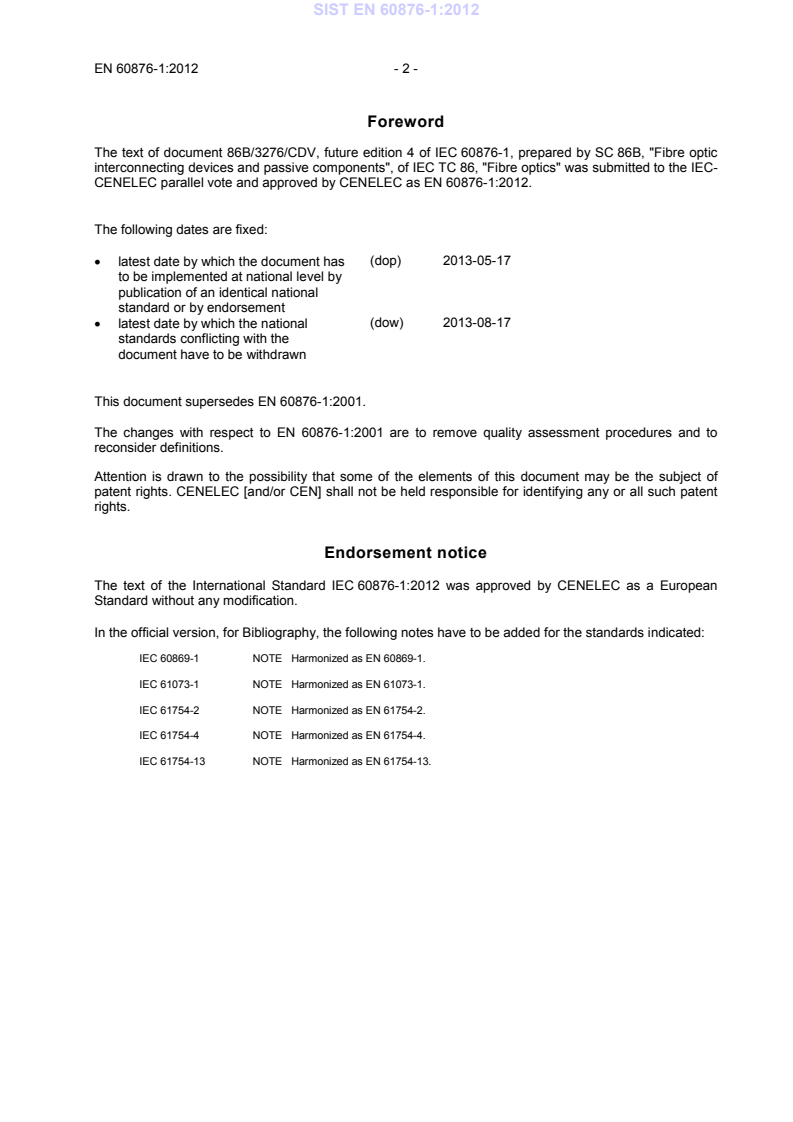

Foreword
The text of document 86B/3276/CDV, future edition 4 of IEC 60876-1, prepared by SC 86B, "Fibre optic
interconnecting devices and passive components", of IEC TC 86, "Fibre optics" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 60876-1:2012.

The following dates are fixed:
(dop) 2013-05-17
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2013-08-17
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60876-1:2001.
The changes with respect to EN 60876-1:2001 are to remove quality assessment procedures and to
reconsider definitions.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 60876-1:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60869-1 NOTE  Harmonized as EN 60869-1.
IEC 61073-1 NOTE  Harmonized as EN 61073-1.
IEC 61754-2 NOTE  Harmonized as EN 61754-2.
IEC 61754-4 NOTE  Harmonized as EN 61754-4.
IEC 61754-13 NOTE  Harmonized as EN 61754-13.

- 3 - EN 60876-1:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60027 Series Letter symbols to be used in electrical - -
technology
IEC 60050 Series International electrotechnical vocabulary - -

IEC 60617 Series Graphical symbols for diagrams - -

IEC 60695-11-5 - Fire hazard testing - EN 60695-11-5 -
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
IEC 60825-1 - Safety of laser products - EN 60825-1 -
Part 1: Equipment classification and
requirements
IEC 61300 Series Fibre optic interconnecting devices and EN 61300 Series
passive components - Basic test and
measurement procedures
IEC/TR 61930 - Fibre optic graphical symbology - -

IEC 62047-1 - Semiconductor devices - Micro- EN 62047-1 -
electromechanical devices -
Part 1: Terms and definitions
ISO 129-1 - Technical drawings - Indication of dimensions - -
and tolerances -
Part 1: General principles
ISO 286-1 - ISO system of limits and fits - - -
Part 1: Bases of tolerances, deviations and fits

ISO 1101 - Geometrical Product Specifications (GPS) - EN ISO 1101 -
Geometrical tolerancing - Tolerances of form,
orientation, location and run-out

ISO 8601 - Data elements and interchange formats - - -
Information interchange - Representation of
dates and times
IEC 60876-1 ®
Edition 4.0 2012-07
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components – Fibre optic

spatial switches –
Part 1: Generic specification
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
V
ICS 33.180.20 ISBN 978-2-83220-213-5

– 2 – 60876-1  IEC:2012(E)
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
3.1 Basic terms and definitions . 7
3.2 Component definitions . 7
3.3 Performance parameter definitions . 8
4 Requirements . 11
4.1 Classification . 11
4.1.1 General . 11
4.1.2 Type . 12
4.1.3 Style . 15
4.1.4 Variant . 16
4.1.5 Assessment level . 16
4.1.6 Normative reference extension . 16
4.2 Documentation . 17
4.2.1 Symbols . 17
4.2.2 Specification system . 17
4.2.3 Drawings . 19
4.2.4 Test and measurement . 19
4.2.5 Test reports . 20
4.2.6 Instructions for use . 20
4.3 Standardization system . 20
4.3.1 Interface standards . 20
4.3.2 Performance standards . 21
4.3.3 Reliability standards . 21
4.3.4 Interlinking . 22
4.4 Design and construction . 23
4.4.1 Materials . 23
4.4.2 Workmanship . 23
4.5 Quality . 23
4.6 Performance . 23
4.7 Identification and marking . 23
4.7.1 General . 23
4.7.2 Variant identification number . 23
4.7.3 Component marking . 24
4.7.4 Package marking . 24
4.8 Packaging . 24
4.9 Storage conditions . 24
4.10 Safety . 25
Annex A (informative) Example of switch technologies . 26
Bibliography . 31

Figure 1 – Representation of latency time, rise time, fall time, bounce time, and
switching time . 11

60876-1  IEC:2012(E) – 3 –
Figure 2 – Single-pole, single-throw switch . 13
Figure 3 – Transfer matrix for one input port and one output port . 13
Figure 4 – Single-pole, throw switch . 13
Figure 5 – Transfer matrix for one input port and N output ports . 13
Figure 6 – N-port matrix switch . 14
Figure 7 – Transfer matrix for N-ports switch . 14
Figure 8 – Four-port switch without crossover . 14
Figure 9 – Four-port switch with crossover . 15
Figure 10 – Configuration A, a device containing integral fibre optic pigtails without
connectors . 15
Figure 11 – Configuration B, a device containing integral fibre optic pigtails, with a
connector on each pigtail. 15
Figure 12 – Configuration C, a device containing a fibre optic connector as an integral
part of the device housing . 16
Figure 13 – Standards . 22
Figure A.1 – Example of 1×2 MO switch . 26
Figure A.2 – Example of mechanical switch (mirror driving type) . 27
Figure A.3 – Example of mechanical switch (fibre driving type) . 28
Figure A.4 – Example of MEMS switch . 28
Figure A.5 – Example of TO switch . 29
Figure A.6 – Output power of TO switch . 29
Figure A.7 – Example of switching response of TO switch. 30
Figure A.8 – 1×N and N×N examples of TO switch . 30

Table 1 – Example of a typical switch classification . 12
Table 2 – Transfer matrix of a four-port switch without crossover . 14
Table 3 – Transfer matrix of a four-port switch with crossover . 15
Table 4 – The IEC specification structure . 18
Table 5 – Standards interlink matrix . 23

– 4 – 60876-1  IEC:2012(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
FIBRE OPTIC SPATIAL SWITCHES –

Part 1: Generic specification
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60876-1 has been prepared by subcommittee SC86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This fourth edition cancels and replaces the third edition published in 2001. It constitutes a
technical revision. The changes with respect to the previous edition are to remove quality
assessment procedures and to reconsider definitions.

60876-1  IEC:2012(E) – 5 –
The text of this standard is based on the following documents:
CDV Report on voting
86B/3276/CDV 86B/3339/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 60876 series, published under the general title Fibre optic
interconnecting devices and passive components-Fibre optic spatial switches can be found on
the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication
indicates that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 60876-1  IEC:2012(E)
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
FIBRE OPTIC SPATIAL SWITCHES –

Part 1: Generic specification
1 Scope
This part of IEC 60876 applies to fibre optic switches possessing all of the following general
features:
– they are passive in that they contain no optoelectronic or other transducing elements;
– they have one or more ports for the transmission of optical power and two or more states in
which power may be routed or blocked between these ports;
– the ports are optical fibres or fibre optic connectors.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 60027 (all parts), Letter symbols to be used in electrical technology
IEC 60050 (all parts), International Electrotechnical Vocabulary (available at
)
IEC 60617 (all parts), Graphical symbols for diagrams (available at )
IEC 60695-11-5, Fire hazard testing – Part 11-5: Test flames – Needle-flame test method –
Apparatus, confirmatory test arrangement and guidance
IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures
IEC/TR 61930, Fibre optic graphical symbology
IEC 62047-1, Semiconductor devices – Micro-electromechanical devices – Part 1: Terms and
definitions
ISO 129-1, Technical drawings – Indication of dimensions and tolerances – Part 1: General
principles
ISO 286-1, Geometrical product specification (GPS) – ISO code system for tolerances on linear
sizes – Part 1: Basis of tolerances, deviations and fits
ISO 1101, Geometrical Product Specifications (GPS) – Geometrical tolerancing – Tolerances of
form, orientation, location and run-out

60876-1  IEC:2012(E) – 7 –
ISO 8601, Data elements and interchange formats – Information interchange – Representation
of dates and times
3 Terms and definitions
For the purposes of this part of IEC 60876, the definitions given in IEC 60050-731 apply,
together with the following definitions.
3.1 Basic terms and definitions
3.1.1
port
optical fibre or fibre optic connector attached to a passive component for the entry and/or exit
of optical power
3.1.2
transfer matrix
optical properties of a fibre optic switch can be defined in a n × n matrix of coefficients (n is the
number of ports)
Note 1 to entry: The T matrix represents the on-state paths (worst-case transmission) and the T° matrix represents
the off-state paths (worst-case isolation).
3.1.3
transfer coefficient
element t or t° of the transfer matrix
ij ij
Note 1 to entry: Each transfer coefficient t is the worst-case (minimum) fraction of power transferred from port i to
ij
port j for any state with path ij switched on. Each coefficient t° is the worst-case (maximum) fraction of power
ij
transferred from port i to port j for any state with path ij switched off.
3.1.4
logarithmic transfer matrix
a = –10 log t
ij ij
where
is the optical power reduction in decibels out of port j with unit power into port i, i.e.
a
ij
t is the transfer coefficient.
ij
Note 1 to entry: Similarly, for the off state, a° = –10 log t°
ij ij
3.2 Component definitions
3.2.1
optical switch
passive component processing one or more ports which selectively transmits, redirects or
blocks optical power in an optical fibre transmission line
3.2.2
switch state
particular optical configuration of a switch, whereby optical power is transmitted or blocked
between specific ports in a predetermined manner
3.2.3
actuation mechanism
physical means (mechanical, electrical, acoustic, optical, etc.) by which a switch is designed to
change between states
– 8 – 60876-1  IEC:2012(E)
3.2.4
actuation energy
input energy required to place a switch in a specific state
3.2.5
latching switch
switch that maintains its last state and specified performance level when the actuation energy
which initiated the change is removed
3.2.6
non-latching switch
switch that reverts to a home state or undefined state when the actuation energy which initiated
a change is removed
3.2.7
blocking
inability to establish a connection from a free input port to a free output port due to the
existence of some other established connection
Note 1 to entry: Blocking and various degrees of non-blocking operation functionalities are of various types.
“Strict-sense non-blocking” refers to a switch matrix in which it is always possible to establish a connection between
any free input port and any free output port irrespective of previously established connections.
“Wide-sense non-blocking” refers to a matrix in which it is always possible to establish a desired connection
provided that some systematic procedure is followed in setting up connections. Some multistage switching
architectures fall into this category.
“Rearrangeably non-blocking” refers to a switch matrix in which any free input port can be connected to any free
output port provided that other established connections are unconnected and then reconnected as part of making
the new connection.
3.2.8
magneto-optic effect switch
MO switch
optical switch which uses the magneto-optic effect (phenomenon of polarization state change
in transmitted light and reflected light due to a magnetic field)
3.2.9
mechanical switch
optical switch, which realises the switching function by driving of the movable part
3.2.10
micro-electromechanical system switch
MEMS switch
optical switch using MEMS technology, as defined in IEC 62047-1
3.2.11
thermo-optic effect switch
TO switch
optical switch which uses the thermo-optic effect (phenomenon of refractive index change
caused by temperature variation)
3.3 Performance parameter definitions
3.3.1
insertion loss
element a (where i ≠ j) of the logarithmic transfer matrix
ij
Note 1 to entry: It is the reduction in optical power between an input and output port of a passive component
expressed in decibels and is defined as follows:
a = –10 log (P /P )
ij j i
60876-1  IEC:2012(E) – 9 –
where
P is the optical power launched into the input port, and
i
P is the optical power received from the output port.
j
Note 2 to entry: The insertion loss values depend on the state of the switch.
3.3.2
return loss
element a (where i = j) of the logarithmic transfer matrix
ij
Note 1 to entry: It is the fraction of input power that is returned from the input port of a passive component and is
defined as follows:
RL = –10 log (P /P )
i refl i
where
P is the optical power launched into the input port, and
i
P is the optical power received back from the same port.
refl
Note 2 to entry: The return loss values depend on the state of the switch.
3.3.3
operating wavelength
λ
nominal wavelength at which a passive component is designed to operate with the specified
performance
3.3.4
latency time
3.3.4.1
latency time
t
l
elapsed time when the output power of a
specified output port reaches 10 % of its steady-state value of the output power from the time
the actuation energy is applied
SEE: Figure 1
3.3.4.2
latency time
t ’
l
elapsed time when the output power of a
specified output port reaches 90 % of its steady-state value of the output power from the time
the actuation energy is removed
SEE: Figure 1
3.3.5
rise time
elapsed time when the output power of the specified output port rises from 10 % of the steady-
state value to 90 % of the steady-state value
3.3.6
fall time
elapsed time when the output power of the specified output port falls from 90 % of the
steady-state value to 10 % of the steady-state value

– 10 – 60876-1  IEC:2012(E)
3.3.7
bounce time
3.3.7.1
bounce time
t
b
elapsed time when the output power of a
specified output port maintains between 90 % and 110 % of its steady-state value of the output
power from the first time the output power of a specified output port reaches to 90 % of its
steady-state value of the output power
SEE: Figure 1
3.3.7.2
bounce time
t ’
b
elapsed time when the output power of a
specified output port maintains between 0 % and 10 % of its steady-state value of the output
power from the first time the output power of a specified output port reaches to 10 % of its
steady-state value of the output power
SEE: Figure 1
3.3.8
switching time
3.3.8.1
switching time
t
s
the switching time is defined as follows:
= t + t + t
t
s l r b
where
t is latency time;
l
t  is rise time;
r
t is bounce time.
b
3.3.8.2
switching time
t ’
s
the switching time is defined as follows:
t ’ = t ’ + t + t ’
s l f b
where
t ’ is latency time;
l
t is fall time;
f
t ’ is bounce time.
b
60876-1  IEC:2012(E) – 11 –
Actuation energy supply
Output port power
110 % of steady-state
Power
Steady-state
90 % of steady-state
10 % of steady-state
t t ’
t t ’ t b Time
l t l f
r
b
t ’
t
s
s
t t ’ Swithing time
s, s
t t ’ Latency time
l, l
t  Rise time
r
t  Fall time
f
t , t ’ Bounce time
b b
IEC  1321/12
Figure 1 – Representation of latency time, rise time,
fall time, bounce time, and switching time
Note 1 to entry: In the case in which, for any reason, the steady-state power of the isolated state is not zero, all
the power levels leading to the definitions of latency time, rise time, fall time, bounce time, and thus of switching
time, should be normalized subtracting from them the steady-state power of the isolated state, before applying such
definitions.
3.3.9
switching time matrix
matrix of coefficients in which each coefficient S is the longest switching time to turn path ij on
ij
or off from any initial state
4 Requirements
4.1 Classification
4.1.1 General
Fibre optic spatial switches shall be classified based on the following:
– type;
– style;
– variant;
– assessment level;
– normative reference extensions.
Table 1 is an example of a switch classification.

– 12 – 60876-1  IEC:2012(E)
Table 1 – Example of a typical switch classification
Type:
1×2 mechanical switch
Style: – Configuration B
– IEC type A1 a fibre
– F-SMA connector
Variants: Means of mounting
Assessment level:
A
Normative reference extensions: .

4.1.2 Type
4.1.2.1 General
Switches are divided into types by their actuation mechanism, latching and topology (optical
switching function).
There are multiple actuation mechanisms of switches. The following is a non-exhaustive list of
examples of current technologies used in the industry:
– magneto-optic effect (MO);
– mechanical;
– micro-electromechanical system (MEMS);
– thermo-optic effect (TO).
Switches are divided into two types based on the latching function as follows:
– latching switch;
– non-latching switch.
There are an essentially infinite number of possible topologies. Each topology is illustrated by a
schematic diagram and defined by a unique transfer matrix.
The following device topologies include only those which are in common use within the industry
at present. The schematic diagrams which follow do not necessarily correspond to the physical
layout of the switch and its ports.
The examples given in 4.1.2.2 to 4.1.2.4 apply to unidirectional switches only, where t ≠ t . For

ij ji
bi-directional switches, t = t in each transfer matrix below.
ij ji
4.1.2.2 Single-pole, single-throw switch
Figure 2 shows a single-pole, single-throw switch.

60876-1  IEC:2012(E) – 13 –
Off
1 2
On
IEC  1322/12
Figure 2 – Single-pole, single-throw switch
This switch has one input port and one output port. Figure 3 shows the transfer matrix
describing the device.
t t 
11 21
T=
 
t t
 12 22
IEC  1323/12
Figure 3 – Transfer matrix for one input port and one output port
Ideally, t is 1 and the other coefficients are 0 when the switch is on. When the switch is off,
all coefficients are 0.
4.1.2.3 Single-pole, N-throw switch
Figure 4 shows a single-pole, N-throw switch.
.
.
.
.
N
+ 1
IEC  1324/12
Figure 4 – Single-pole, throw switch
This switch has one input port and N output ports. Figure 5 shows the transfer matrix
describing the device.
 t t ⋅ ⋅ ⋅ t 
11 12 1 N+1
 
t
 
 
⋅
T=
 
⋅ t ⋅
 ij 
 
⋅
 
t ⋅ t
 
 N+11 N+1N+1
IEC  1325/12
Figure 5 – Transfer matrix for one input port and N output ports
Ideally, in the first position of the switch, t is 1 and the other coefficients are 0. In the generic
i-th position of the switch, the t transfer coefficient is 1 and the others are 0.
1 i+1
4.1.2.4 N-port matrix switch
Figure 6 shows an N-port matrix switch.

– 14 – 60876-1  IEC:2012(E)
.  .  .  .
1 2 3 N
IEC  1326/12
Figure 6 – N-port matrix switch
This switch has N ports. Figure 7 shows the transfer matrix describing the device.
 t t ⋅ ⋅ ⋅ t 
11 12 1 N
 
t
 
 
⋅
T=
 
⋅ t ⋅
ij
 
 
⋅
 
t ⋅ t
 
N11 NN
 
IEC  1327/12
Figure 7 – Transfer matrix for N-ports switch
A 2×2 matrix switch is a particular case with two input and two output ports.
In one type, it is possible to have four positions with the transfer coefficients t and t always
14 23
zero while t and t have the values indicated in Table 2. Figure 8 shows a four-port switch
13 24
without crossover.
Table 2 – Transfer matrix of a four-port switch without crossover
Transfer coefficient State
1 2 3 4
t 1 0 1 0
t 1 1 0 0
1 3
State 1
4 State 4
1 3
State 2
4 State 3
IEC  1328/12
Figure 8 – Four-port switch without crossover
In another type, a four-port crossover switch or by-pass switch is described. This switch has
two input and two output ports. The transfer coefficients are indicated in Table 3. Figure 9
shows a four-port switch with crossover.

60876-1  IEC:2012(E) – 15 –
Table 3 – Transfer matrix of a four-port switch with crossover
Transfer coefficient State
1 2
1 0
t
t 1 0
t 0 1
t 0 1
1 3 State 1
2 4 State 2
IEC  1329/12
Figure 9 – Four-port switch with crossover
4.1.3 Style
Switches may be classified into styles based upon fibre type, connector type, cable type,
housing shape and dimensions and configuration.
The configuration of the switch ports is classified as follows.
Figure 10 shows the configuration A, device containing integral fibre optic pigtails without
connectors.
Switch
IEC  1330/12
Figure 10 – Configuration A, a device containing integral fibre optic pigtails
without connectors
Figure 11 shows the configuration B, a device containing integral fibre optic pigtails, with a
connector on each pigtail.
Switch
IEC  1331/12
Figure 11 – Configuration B, a device containing integral fibre optic pigtails,
with a connector on each pigtail
Figure 12 shows the configuration C, a device containing a fibre optic connector as an integral
part of the device housing.
– 16 – 60876-1  IEC:2012(E)
Switch
IEC  1332/12
Figure 12 – Configuration C, a device containing a fibre optic connector
as an integral part of the device housing
Configuration D is a device containing some combination of the interfacing features of the
preceding configurations.
4.1.4 Variant
The switch variant identifies those features which encompass structurally similar components.
Examples of features which define a variant include, but are not limited to the following:
– orientation of ports on housing;
– means for mounting.
4.1.5 Assessment level
Assessment level defines the inspection levels and the acceptable quality level (AQL) of groups
A and B and the periodicity of inspection of groups C and D. Detail specifications shall specify
one or more assessment levels, each of which shall be designated by a capital letter.
The following are the preferred levels.
Assessment level A
– group A inspection: inspection level II, AQL = 4 %
– group B inspection: inspection level II, AQL = 4 %
– group C inspection: 24-month periods
– group D inspection: 48-month periods
Assessment level B
– group A inspection: inspection level II, AQL = 1 %
– group B inspection: inspection level II, AQL = 1 %
– group C inspection: 18-month periods
– group D inspection: 36-month periods
Assessment level C
– group A inspection: inspection level II, AQL = 0,4 %
– group B inspection: inspection level II, AQL = 0,4 %
– group C inspection: 12-month periods
– group D inspection: 24-month periods
One additional assessment level may be added in the detail specification. When this is done,
the capital letter X shall be used.
4.1.6 Normative reference extension
Normative reference extensions are used to identify integrated independent standards
specifications or other reference documents into blank detail specifications.

60876-1  IEC:2012(E) – 17 –
Unless specified exception is noted, additional requirements imposed by an extension are
mandatory. Usage is primarily intended to merge associated components to form hybrid
devices, or integrated functional application requirements that are dependent on technical
expertise other than fibre optics.
Published reference documents produced by the ITU, consistent with the scope statements of
the relevant IEC specification series may be used as extensions. Published documents
produced by other regional standardization bodies such as ANSI, CENELEC, JIS, etc., may be
referenced in a bibliography attached to the generic specification.
Some spatial switch configurations require special qualification provisions which shall not be
imposed universally. This accommodates individual component design configurations,
specialized field tooling or specific application processes. In this case, requirements are
necessary to assure repeatable performance or adequate safety and provide additional
guidance for complete product specification and they shall be defined in the relevant
specification. These extensions are mandatory whenever they are used to prepare, assemble
or install a spatial switch either for field application usage or preparation of qualification test
specimens. The relevant specification shall clarify all stipulations. However, design and style-
dependent extensions shall not be imposed universally.
In the event of conflicting requirements, precedence, in descending order, shall be the generic
specification over mandatory extension, over blank detail, over detail specification, over
application-specific extension.
Examples of optical connector extensions are given as follows:
• using IEC 61754-4 and IEC 61754-2 to partially define a future IEC 60874 specification for
a duplex type SC/BFOC/2,5 hybrid connector adapter;
• using IEC 61754-13 and IEC 60869-1 to partially define a future IEC 60874 specification for
an integrated type FC preset attenuated optical connector;
• using IEC 61754-4 and IEC 61073-1 to partially define a future IEC 60874 specification for
a duplex SC receptacle incorporating integral mechanical splices.
Other examples of requirements for normative extensions are as follows.
• Some commercial or residential building applications may require direct reference to
specific safety codes and regulations or incorporate other specific material flammability or
toxicity requirements for specialized locations.
• Specialized field tooling may require an extension to implement specific ocular safety,
electrical shock, burn hazard avoidance requirements, or require isolation procedures to
prevent potential ignition of combustible gases.
4.2 Documentation
4.2.1 Symbols
Graphical and letter symbols shall, whenever possible, be taken from IEC 60027, IEC 60617
and IEC/TR 61930.
4.2.2 Specification system
4.2.2.1 General
This specification is part of the IEC specification system. Subsidiary specifications shall consist
of blank detail specifications and detail specifications. This system is shown in Table 4. There
are no sectional specifications for switches.

– 18 – 60876-1  IEC:2012(E)
Table 4 – The IEC specification structure
Specification level Examples of information to be included Applicable to
Assessment system rules
Inspection rules
Optical measurement methods
Environmental test methods
Sampling plans
Identification rules
Two or more component families
Basics
or sub-families
Marking standards
Dimensional standards
Terminology
Symbol standards
Preferred number series
SI units
Specific terminology
Specific symbols
Specific units
Preferred values
Generic Marking Component family
Quality assessment procedures
Selection of tests
Qualification approval procedures
Capability approval procedures
Quality conformance test schedule
Groups of types having a
Blank detail Inspection requirements
common test schedule
Information common to a number of types
Individual values
Specific information
Detail Individual type
Completed quality conformance test
schedules
4.2.2.2 Blank detail specification
Blank detail specifications are not, by themselves, a specification level. They are associated
with the generic specification.
Each blank detail specification shall contain:
– the minimum mandatory test schedules and performance requirements;
– one or more assessment levels;
– the preferred f
...
