EN 60300-3-4:2008

SLOVENSKI STANDARD
01-marec-2008
Upravljanje zagotovljivosti - 3-4. del: Vodilo za uporabo - Vodilo za specifikacijo
zahtev za zagotovljivost (IEC 60300-3-4:2007)
Dependability management -- Part 3-4: Application guide - Guide to the specification of
dependability requirements
Zuverlässigkeitsmanagement -- Teil 3-4: Anwendungsleitfaden - Anleitung zum
Festlegen von Zuverlässigkeitsforderungen
Gestion de la sûreté de fonctionnement -- Partie 3-4: Guide d'application - Spécification
d'exigences de sûreté de fonctionnement
Ta slovenski standard je istoveten z: EN 60300-3-4:2008
ICS:
03.120.01 Kakovost na splošno Quality in general
21.020 =QDþLOQRVWLLQQDþUWRYDQMH Characteristics and design of
VWURMHYDSDUDWRYRSUHPH machines, apparatus,
equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60300-3-4
NORME EUROPÉENNE
January 2008
EUROPÄISCHE NORM
ICS 03.100.40; 03.120.01
English version
Dependability management -
Part 3-4: Application guide -
Guide to the specification of dependability requirements
(IEC 60300-3-4:2007)
Gestion de la sûreté de fonctionnement -  Zuverlässigkeitsmanagement -
Partie 3-4: Guide d'application - Teil 3-4: Anwendungsleitfaden -
Spécification d'exigences de sûreté Anleitung zum Festlegen von
de fonctionnement Zuverlässigkeitsforderungen
(CEI 60300-3-4:2007) (IEC 60300-3-4:2007)

This European Standard was approved by CENELEC on 2007-12-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60300-3-4:2008 E

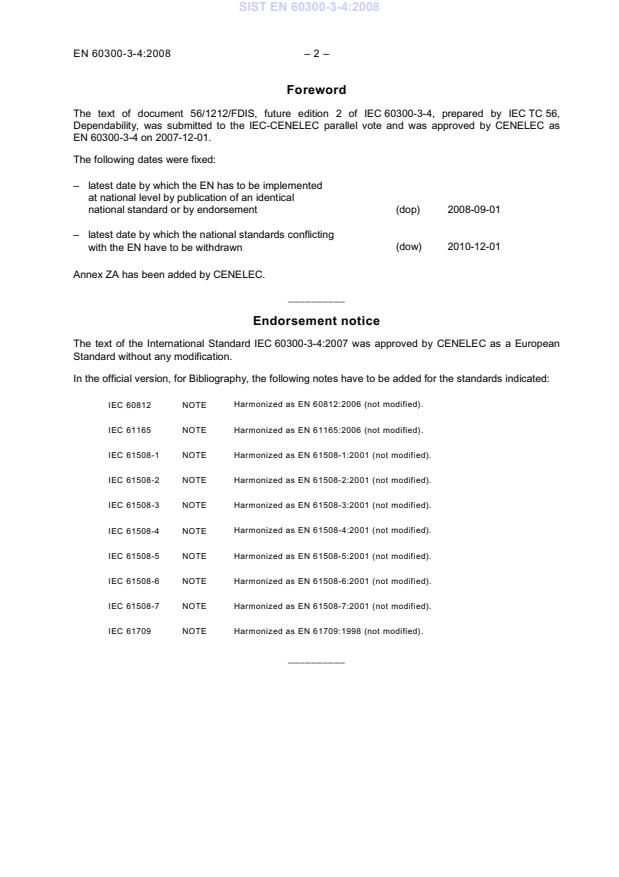

Foreword
The text of document 56/1212/FDIS, future edition 2 of IEC 60300-3-4, prepared by IEC TC 56,
Dependability, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60300-3-4 on 2007-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2008-09-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2010-12-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60300-3-4:2007 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60812 NOTE Harmonized as EN 60812:2006 (not modified).
IEC 61165 NOTE Harmonized as EN 61165:2006 (not modified).
IEC 61508-1 NOTE Harmonized as EN 61508-1:2001 (not modified).
Harmonized as EN 61508-2:2001 (not modified).
IEC 61508-2 NOTE
Harmonized as EN 61508-3:2001 (not modified).
IEC 61508-3 NOTE
IEC 61508-4 NOTE Harmonized as EN 61508-4:2001 (not modified).
IEC 61508-5 NOTE Harmonized as EN 61508-5:2001 (not modified).
IEC 61508-6 NOTE Harmonized as EN 61508-6:2001 (not modified).
IEC 61508-7 NOTE Harmonized as EN 61508-7:2001 (not modified).
Harmonized as EN 61709:1998 (not modified).
IEC 61709 NOTE
__________
– 3 – EN 60300-3-4:2008
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
1)
IEC 60050-191 – International Electrotechnical Vocabulary – –
(IEV) -
Chapter 191: Dependability and quality of
service
1) 2)
IEC 60300-1 – Dependability management - EN 60300-1 2003
Part 1: Dependability management systems

1) 2)
IEC 60300-2 – Dependability management - EN 60300-2 2004
Part 2: Guidelines for dependability
management
1) 2)
IEC 60300-3-1 – Dependability management - EN 60300-3-1 2004
Part 3-1: Application guide - Analysis
techniques for dependability - Guide on
methodology
1) 2)
IEC 60300-3-2 – Dependability management - EN 60300-3-2 2005
Part 3-2: Application guide - Collection of
dependability data from the field

1) 2)
IEC 60300-3-3 – Dependability management - EN 60300-3-3 2004
Part 3-3: Application guide - Life cycle costing

1)
IEC 60300-3-5 – Dependability management - – –
Part 3-5: Application guide - Reliability test
conditions and statistical test principles

1)
IEC 60300-3-10 – Dependability management - – –
Part 3-10: Application guide - Maintainability

1) 2)
IEC 60300-3-12 – Dependability management - EN 60300-3-12 2004
Part 3-12: Application guide - Integrated
logistic support
1) 2)
IEC 60300-3-14 – Dependability management - EN 60300-3-14 2004
Part 3-14: Application guide - Maintenance
and maintenance support
1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year
1)
IEC 60605-4 – Equipment reliability testing - – –
Part 4: Statistical procedures for exponential
distribution - Point estimates, confidence
intervals, prediction intervals and tolerance
intervals
1)
IEC 60605-6 – Equipment reliability testing - – –
Part 6: Tests for the validity and estimation of
the constant failure rate and constant failure
intensity
1) 2)
IEC 60706-2 – Maintainability of equipment - EN 60706-2 2006
Part 2: Maintainability requirements and
studies during the design and development
phase
1) 2)
IEC 60706-3 – Maintainability of equipment - EN 60706-3 2006
Part 3: Verification and collection, analysis
and presentation of data
1) 2)
IEC 60706-5 – Maintainability of equipment - EN 60706-5 2007
Part 5: Testability and diagnostic testing

1) 2)
IEC 61014 – Programmes for reliability growth EN 61014 2003

1) 2)
IEC 61025 – Fault Tree Analysis (FTA) EN 61025 2007

1)
IEC 61070 – Compliance test procedures for steady-state – –
availability
1) 2)
IEC 61078 – Analysis techniques for dependability - EN 61078 2006
Reliability block diagram and Boolean
methods
1)
IEC 61123 – Reliability testing - Compliance test plans for – –
success ratio
1) 2)
IEC 61124 – Reliability testing - Compliance tests for EN 61124 2006
constant failure rate and constant failure
intensity
1) 2)
IEC 61160 – Design review EN 61160 2005

1) 2)
IEC 61164 – Reliability growth - Statistical test and EN 61164 2004
estimation methods
IEC 61508 Series Functional safety of EN 61508 Series
electrical/electronic/programmable electronic
safety-related systems
1)
IEC 61649 – Goodness-of-fit tests, confidence intervals – –
and lower confidence limits for Weibull
distributed data
1) 2)
IEC 61703 – Mathematical expressions for reliability, EN 61703 2002
availability, maintainability and maintenance
support terms
1)
IEC 61710 – Power law model - Goodness-of-fit tests and – –
estimation methods
1)
IEC 61713 – Software dependability through the software – –
life-cycle processes - Application guide

– 5 – EN 60300-3-4:2008
Publication Year Title EN/HD Year
1)
IEC 62198 – Project risk management - Application – –
guidelines
1) 2)
IEC 62308 – Equipment reliability - Reliability assessment EN 62308 2006
methods
1) 2)
IEC 62347 – Guidance on system dependability EN 62347 2007
specifications
IEC 60300-3-4
Edition 2.0 2007-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Dependability management –
Part 3-4: Application guide – Guide to the specification of dependability
requirements
Gestion de la sûreté de fonctionnement –
Partie 3-4: Guide d'application – Spécification d'exigences de sûreté de
fonctionnement
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
W
CODE PRIX
ICS 03.100.40; 03.120.01 ISBN 2-8318-9308-9

– 2 – 60300-3-4 © IEC:2007
CONTENTS
FOREWORD.4
INTRODUCTION.6

1 Scope.7
2 Normative references .7
3 Terms and definitions .9
4 General considerations for dependability specifications .9
4.1 The need for dependability .9
4.2 Requirements and goals.11
4.3 Systems .11
4.4 Demonstration of achievement of requirements .13
4.4.1 Concept.13
4.4.2 Activities.14
4.5 Contracting for dependability.15
4.6 Types of specification.16
4.7 Derivation of dependability specifications .17
5 Dependability management .18
6 Availability.19
6.1 General .19
6.1.1 Choice of dependability characteristic.19
6.1.2 Relationship between availability, reliability and maintainability .19
6.2 Availability specifications.20
6.2.1 Quantitative requirements.20
6.2.2 Qualitative requirements.20
6.3 Provision of availability verification and validation .20
6.3.1 General .20
6.3.2 Verification and validation by testing.21
6.3.3 Verification and validation by analysis .21
7 Reliability .21
7.1 General .21
7.2 Reliability specification.22
7.2.1 Quantitative requirements.22
7.2.2 Qualitative requirements.23
7.3 Reliability verification and validation.24
7.3.1 General .24
7.3.2 Verification and validation by testing.24
7.3.3 Verification and validation by analysis .25
8 Maintainability .25
8.1 General .25
8.2 Maintainability specification.25
8.2.1 Quantitative requirements.25
8.2.2 Qualitative requirements.26
8.3 Maintainability verification and validation.26
9 Maintenance support .27
9.1 General .27
9.2 Maintenance support specification.27

60300-3-4 © IEC:2007 – 3 –
9.2.1 Quantitative requirements.27
9.2.2 Qualitative requirements.28
9.3 Maintenance support verification and validation .28

Annex A (informative) Reference standards for verification and validation techniques.29
Annex B (informative) Examples of reliability, maintainability, maintenance support
and availability requirements .31

Bibliography.33

Figure 1 – Relationship between cost and reliability.10
Figure 2 – System elements.12

Table A.1 – Techniques for dependability verification and validation through testing.29
Table A.2 – Techniques for dependability verification and validation through analysis.30

– 4 – 60300-3-4 © IEC:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
DEPENDABILITY MANAGEMENT –
Part 3-4: Application guide –
Guide to the specification of dependability requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as
“IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee
interested in the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates
closely with the International Organization for Standardization (ISO) in accordance with conditions determined
by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of
IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other
IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60300-3-4 has been prepared by IEC technical committee 56:
Dependability.
This second edition cancels and replaces the first edition published in 1996 and constitutes a
technical revision.
The main changes from the previous edition are as follows:
– the concept of systems has been included and the need to specify the dependability of the
system and not just the physical equipment has been stressed;
– the need for verification and validation of the requirement has been included;
– differentiation has been made between requirements, that can be measured and verified
and validated, and goals, which cannot;
– the content on availability, maintainability and maintenance support has been updated and
expanded to similar level of detail to reliability.

60300-3-4 © IEC:2007 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
56/1212/FDIS 56/1233/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60300 series, under the general title Dependability management
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 6 – 60300-3-4 © IEC:2007
INTRODUCTION
In many systems, reliability, maintainability and availability are essential performance
characteristics. These characteristics, together with maintenance support performance, are
known collectively as dependability.
In systems where any of the dependability characteristics are important, it is necessary that
these characteristics should be defined and specified in the same way as other system
characteristics such as technical performance, dimensions and mass.
The levels of reliability, maintainability, availability and maintenance support performance
achieved by a system depend on the conditions under which the system is used and also on
the mission profile of the system. When requirements for dependability characteristics are
specified, it is necessary to define the conditions of storage, transportation, installation and
use that will be applied to the system. It may be important to take account not only of the
conditions under which the system will operate, but also of the maintenance policy and
organization for maintenance support of the system.
In order to assess the values of the dependability characteristics achieved, it is necessary to
use statistical methods.
Dependability characteristics may be specified, like other performance characteristics, in
three different ways:
1) specifications written by the supplier;
2) specifications written by the purchaser;
3) specifications mutually agreed or written by the supplier and the purchaser.
This standard is applicable to all three types of specification.
This standard complements IEC 62347 which deals with the definitions of systems and their
constituent elements and how to define these so that the dependability requirements of each
element can be specified using this standard. The premise of IEC 62347 is to identify system
requirements by functions from a system engineering perspective. It provides a process for
transforming the purchaser’s view on system applications into a technical view for engineering
the system. IEC 62347 emphasises architectural and functional design for realisation of
functions with appropriate selection of hardware, software and human elements to achieve the
system dependability requirements relevant to the purchaser’s needs.

60300-3-4 © IEC:2007 – 7 –
DEPENDABILITY MANAGEMENT –
Part 3-4: Application guide –
Guide to the specification of dependability requirements

1 Scope
This part of IEC 60300 gives guidance on specifying the required dependability characteristics
in specifications, together with specifications of procedures and criteria for verification and
validation.
The guidance provided includes the following:
– advice on specifying quantitative and qualitative reliability, maintainability, availability and
maintenance support requirements;
– advice to purchasers of a system on how to ensure that the specified requirements will be
fulfilled by suppliers;
– advice to suppliers to help them to meet purchaser requirements.
Other documents, such as legislation and governmental regulation may also place
requirements on systems and these should be applied in addition to any specifications
derived in accordance with this standard.
NOTE 1 Whilst mainly addressing system and equipment level reliability, many of the techniques described in the
different parts of IEC 60300 may also be applied to products, items or at the component level. The term system is
used throughout this standard.
NOTE 2 This standard does not give guidance on the management of dependability programmes or on the various
activities necessary to fulfil stated availability, reliability, maintainability and maintenance support requirements.
For this general guidance, see other standards.
NOTE 3 Safety and environment specifications are not directly considered in this guide. However, much of the
guidance in this standard could also be applied to safety or environmental specification.
NOTE 4 Specifications for the dependability of a service are not considered in this guide. This includes the
provision of a service such as those provided through Public-Private Partnership procurements.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the reference cited applies. For undated references, the latest
edition of the referenced document (including any amendments) applies.
IEC 60050-191, International Electrotechnical Vocabulary (IEV) – Chapter 191: Dependability
and quality of service.
IEC 60300-1, Dependability management systems – Part 1: Dependability management
systems
IEC 60300-2, Dependability management – Part 2: Guidelines for dependability management
IEC 60300-3-1, Dependability management – Part 3-1: Application guide – Analysis
techniques for dependability – Guide on methodology
IEC 60300-3-2, Dependability management – Part 3-2: Application guide – Collection of
dependability data from the field

– 8 – 60300-3-4 © IEC:2007
IEC 60300-3-3, Dependability management – Part 3-3: Application guide – Life cycle costing
IEC 60300-3-5, Dependability management – Part 3-5: Application guide – Reliability test
conditions and statistical test principles
IEC 60300-3-10, Dependability management – Part 3-10: Application guide – Maintainability
IEC 60300-3-12, Dependability management – Part 3-12: Application guide – Integrated
logistic support
IEC 60300-3-14, Dependability management – Part 3-14: Application guide – Maintenance
and maintenance support
IEC 60605-4, Equipment reliability testing – Part 4: Statistical procedures for exponential
distribution – Point estimates, confidence intervals, prediction intervals and tolerance intervals
IEC 60605-6, Equipment reliability testing – Part 6: Tests for the validity and estimation of the
constant failure rate and constant failure intensity
IEC 60706-2, Maintainability of equipment – Part 2: Maintainability requirements and studies
during the design and development phase
IEC 60706-3, Maintainability of equipment – Part 3: Verification and collection, analysis and
presentation of data
IEC 60706-5, Maintainability of equipment – Part 5: Diagnostic testing
IEC 61014, Programmes for reliability growth
IEC 61025, Fault tree analysis (FTA)
IEC 61070, Compliance test procedures for steady-state availability
IEC 61078, Analysis techniques for dependability – Reliability block diagram and boolean
methods
IEC 61123, Reliability testing – Compliance test plans for success ratio
IEC 61124, Reliability testing – Compliance tests for constant failure rate and constant failure
intensity
IEC 61160, Design review
IEC 61164, Reliability growth – Statistical test and estimation methods
IEC 61508 (all parts), Functional safety of electrical/electronic/programmable electronic
safety-related systems
IEC 61649, Goodness-of-fit tests, confidence intervals and lower confidence limits for Weibull
distributed data
IEC 61703, Mathematical expressions for reliability, availability, maintainability and
maintenance support terms
IEC 61710, Power law model – Goodness-of-fit tests and estimation methods

60300-3-4 © IEC:2007 – 9 –
IEC 61713, Software dependability through the software life cycle processes – Application
guide
IEC 62198, Project risk management – Application guidelines
IEC 62308, Equipment Reliability – Reliability assessment methods
IEC 62347, Guidance on system dependability specifications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-191 and the
following apply.
NOTE Definitions of “dependability”, “availability (performance)”, “reliability (performance)”, “maintainability
(performance)”, “maintenance support”, “failure”, “fault”, “item”, “time to failure”, and “operating time between
failures” are given in IEC 60050-191.
3.1
verification
confirmation, through provision of objective evidence, that specified requirements have been
fulfilled
[ISO 9000:2005, definition 3.8.4 modified]
NOTE 1 In the context of this standard, verification is the activity of demonstrating for each phase of the relevant
life cycle, by analysis and/or tests, that, for the specific inputs, the deliverables meet in all respects the objectives
and requirements set for the specific phase.
NOTE 2 Example verification activities include:
– reviews on outputs (documents from all phases of the life cycle) to ensure compliance with the objectives and
requirements of the phase, taking into account the specific inputs to that phase;
– design reviews;
– tests and analysis performed on the designed systems to ensure that they perform according to their
specification;
– integration tests performed where different parts of a system are put together in a step-by-step manner and by
the performance of environmental tests to ensure that all the parts work together.
3.2
validation
confirmation, through the provision of objective evidence, that the requirements for a specific
intended use or application have been fulfilled
[ISO 9000:2005, definition 3.8.5 modified]
NOTE Validation is the activity of demonstrating that the system under consideration, before or after installation,
meets in all respects the requirements specification for that system. Therefore, for example, software validation
means confirming by examination and provision of objective evidence that the software satisfies the software
requirements specification.
4 General considerations for dependability specifications
4.1 The need for dependability
All systems exhibit some level of dependability, however often they might fail or require
maintenance. However, if a system fails too often it might not be available to perform when
required or it might cost too much to maintain. In addition, systems that fail repeatedly will get
a bad reputation with the user and are unlikely to be bought again once a replacement is

– 10 – 60300-3-4 © IEC:2007
required. On the other hand, designing and manufacturing systems with high levels of
reliability can be costly and it may not be possible to produce such a system at an economical
price. There is therefore a balance to be struck between low reliability systems that cost a lot
to maintain and high reliability systems that may be expensive to design and construct. This is
demonstrated by Figure 1, which shows the costs of design and operation for systems of
different reliability.
Life cycle costs
Total costs
Minimum cost
Design and
development and
Maintenance
production costs
costs
Reliability IEC  1724/07
Figure 1 – Relationship between cost and reliability
Figure 1 shows that there is a level of reliability for which the costs over the lifetime of the
system are minimized. If a system is Commercial Off The Shelf (COTS) (also known as off the
shelf or commercially produced components) this minimum cost level will change as the
design and development costs can be shared between many units. However, the optimum
reliability for a system may be affected by other issues such as the safety requirements or
system function and will not necessarily be the reliability corresponding to minimum life cycle
costs.
It is probably true that systems produced by those organizations that do not actively manage
dependability achieve levels of reliability much below the minimum life cycle cost point. An
investment in dependability design and construction can therefore repay itself in terms of the
combined development, manufacturing and operating costs for the system. IEC 60300-3-3
describes Life Cycle Costing and the relationships between dependability and cost.
Dependability includes a number of attributes that are specified differently. Within this
standard, dependability has been considered under four headings, as follows:
– availability;
– reliability (R(t)), including mean time to failure (MTTF), mean operating time between
failures (MTBF), Weibull or power law parameters;
– maintainability, including mean down time (MDT) and mean time to restoration (MTTR);
– maintenance support.
The dependability characteristics selected for specification should be related to the type and
mission of the system, the intended application and the criticality of the required function. For
example, only reliability requirements need to be specified if no maintenance actions are
intended.
Availability performance requirements are generally specified for systems where down time
could cause economic or other loss, through increased operating costs, or personnel injury or
loss of service, for example, large systems, production plants, medical equipment, safety
Costs
60300-3-4 © IEC:2007 – 11 –
equipment and military systems. Availability performance can be calculated from the system
configuration, its subsystems and their reliability performance and maintainability performance
requirements, if stated, and by taking into account the maintenance support performance.
Maintainability performance requirements should be specified for systems if the maintenance
costs contribute significantly to life-cycle cost or if maintenance is important for the purchaser.
Preventive and corrective maintenance requirements may be specified, if applicable.
NOTE The level of maintenance support is very often determined by the conditions of use and is not an intrinsic
requirement of the system itself.
Clauses 6, 7, 8 and 9 contain further information on when each of the dependability
characteristics would be the most appropriate.
The levels of dependability performance achieved by a system are strongly influenced by the
conditions in which it is designed, developed, installed and operated. Dependability is
therefore related to other attributes such as quality and the design and manufacturing
process. The dependability specification therefore should be part of the total system
specification and the interaction between the different attributes recognized and taken into
account.
4.2 Requirements and goals
It is important to distinguish between formal requirements in a specification, and goals, as the
method of acceptance is different.
A requirement is part of the specification that the purchaser considers is essential that the
system meets and for which the supplier has to provide evidence. This evidence may be
supplied before the system comes into service as part of the deliverables or once the system
is in service, through the application of incentives and penalties for meeting the requirements.
A goal is not a requirement but is the purchaser’s aspirations or aims and evidence of the
achievement of the goal either need not or cannot be provided.
For high availability or reliability systems, it may not be practicable to provide formal evidence
that the high level of availability or reliability has been achieved. The purchaser will need to
provide both the high availability and reliability goals, for which evidence cannot be provided,
and lower requirements for which evidence can be provided and make it clear which is which.
4.3 Systems
The specification of dependability should be at the system level. A system includes the
equipment (both hardware and software) as well as the humans who operate and maintain the
system and the procedures by which they operate and maintain it. The system also includes
the environment in which the system operates, as shown in Figure 2.

– 12 – 60300-3-4 © IEC:2007
HARDWARE
e.g. equipment,
premises, substances
Environment
Hardware
System
organisation
and
Humans
Software
management
SOFTWARE HUMANS
e.g. operators, users,
e.g. software, firmware
maintainers
PROCEDURES
e.g. operation, maintainance,
emergency procedures
IEC  1725/07
Figure 2 – System elements
Where, possible, all elements of a system should be included in a dependability specification
as a change in any one can have a significant effect upon the achieved dependability of the
system. For example, different operators of a system can misuse it or be more aggressive in
their usage and lead to more failures and therefore achieve lower reliability. However, there
may be instances where the supplier and purchaser have little or no control over subsequent
maintenance procedures or skills, such as a system within a motor car once sold to a member
of the public. The dependability requirements should recognise the particular circumstances
of the system being specified.
In addition, the dependability requirements should be linked to the operational or use profile
or the functional requirements of the system. The system should be defined in accordance
with IEC 62347, which contains details of how to define a system, its elements and the
criticality of each function so that the requirements for each element can be specified.
The dependability specification of a system should include the specification of the software
and human elements as well as the requirements of the hardware. The guidance in this
document may be applied to some aspects of the specification of software but specific
guidance may be found in IEC 61713 and the different parts of IEC 61508.
Systems occur at many levels and any system may itself be made up of other systems, often
referred to as a system of systems. For example, a bus is a system that includes the motor
vehicle, the driver and the driving procedures. The motor vehicle is made up of subsystems
that are themselves systems, for example the engine or gearbox, where the human input to
the gearbox involves the operation of the gearlever. The subsystems are made up of
components and equipment that can themselves be considered as systems and analysed
accordingly. This includes considering the interaction of the humans who use the subsystem,
how they do so and the manner in which different humans may subject the subsystem to
different operational stresses, for example different drivers will drive differently and subject
the gearbox to greater or lower loads.
The purchaser might set dependability requirements only at the highest level of system or
might decide that it is important that one of the subsystems does not dominate the achieved
reliability, and therefore also set requirements at lower levels. These lower level requirements
have to be consistent with the top-level requirements and they have to be measurable and

60300-3-4 © IEC:2007 – 13 –
achievable, or they will be goals and not requirements. For example, the contribution of the
subsystem to the overall system dependability has to be estimated before the requirements
can be apportioned to the subsystems. However, the apportionment to lower level subsystems
is not straightforward other than in series systems where all subsystems have a constant
failure rate. In other cases, such as systems with redundancy or where the failure rate
changes with time, refer to standards such as IEC 61025 and IEC 61078. IEC 60300-3-1 and
IEC 61703 give further guidance on the analysis of system dependability.
The type and nature of a system will affect the dependability specification. These include
repairable and non-repairable systems and single use devices. Repairable systems cover
those where failures can be repaired and the system returned to an operational state.
Examples of non-repairable systems include sealed systems, COTS systems, systems where
the cost of repair outweighs the cost of replacement, such as many consumer goods, and
systems at remote locations where the skills and spares are not available for the time at risk.
Single use devices include explosives, passenger air-bags and safety helmets.
Non-repairable systems have to be replaced rather than repaired and the maintainability and
maintenance support requirements will be fundamentally different. Also, MTBF will not be a
relevant measure for single use devices, where the correct measure would be reliability or
alternatively the probability of premature activation. The purchaser has to ensure that the
nature of the system and the effect that this can have upon the dependability requirements
are identified before the specification is written.
4.4 Demonstration of achievement of requirements
4.4.1 Concept
There are two elements to any specification; the dependability performance requirements and
the means by which the supplier has to demonstrate the achievement of the requirements to
the purchaser. This means that the supplier has to provide sufficient evidence to the
purchaser that the system meets its requirements to give the purchaser the confidence
needed to pay the agreed price. Providing additional evidence costs money and is one
element in the higher cost of higher reliability systems (see Figure 1) but, without these
activities, there is the possibility that the system will not meet its requirements.
There are two main elements; verification and validation. These are defined in ISO 9000 and
used for hardware as well as in the software industry as part of the software development
process or “v-model” (see IEC 61508) and may be explained as follows. Verification is the
process of providing evidence that the system, at any life cycle phase, meets its requirements
from the previous life cycle phase(s). Validation is the process of providing evidence that the
system meets the actual requirements, which might not always be reflected in the written
specification. Both are essential elements.
The level of verification and validation required by the purchaser depends upon the
confidence that the purchaser requires that the system will achieve the levels of dependability
specified. If the purchaser is willing to maintain a system when it fails in use, then a lower
level of evidence, and therefore confidence in the achieved dependability, may be acceptable.
This is because the provision of evidence costs money and the purchaser may be willing to
accept the risk that the system does not perform as required. The purchaser has to take a
ba
...
