EUROPEAN STANDARD EN 140100 NORME EUROPÉENNE
EUROPÄISCHE NORM February 2008
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2008 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 140100:2008 E
ICS 31.040.10 Supersedes EN 140100:1996 + A1:2001
English version
Sectional Specification:
Fixed low power film resistors
Spécification intermédiaire:
Résistances couche fixes
à faible dissipation
Rahmenspezifikation:
Schicht-Festwiderstände
niedriger Belastbarkeit
This European Standard was approved by CENELEC on 2007-10-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

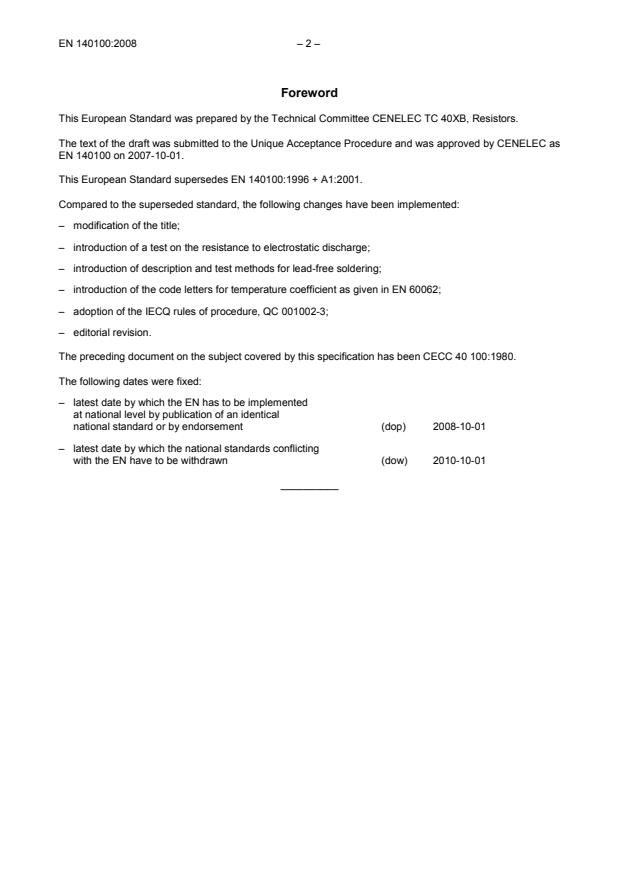

– introduction of description and test methods for lead-free soldering;
– introduction of the code letters for temperature coefficient as given in EN 60062; – adoption of the IECQ rules of procedure, QC 001002-3; – editorial revision. The preceding document on the subject covered by this specification has been CECC 40 100:1980. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2008-10-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-10-01 __________
– 3 – EN 140100:2008
Table of contents
1 General.4 1.1 Scope.4 1.2 Information to be specified in the detail specification.4 2 Preferred characteristics, ratings and severities for environmental
and overload tests.5 2.1 Preferred characteristics.5 2.1.1 Style and dimensions.5 2.1.2 Preferred climatic categories.6 2.1.3 Temperature coefficients of resistance.6 2.1.4 Limits of change of resistance.7 2.2 Preferred values of ratings.9 2.2.1 Rated resistance.9 2.2.2 Tolerances on rated resistance.9 2.2.3 Rated dissipation (in the mounted state).9 2.2.4 Limiting element voltage.9 2.2.5 Insulation resistance (insulated styles only).9 2.2.6 Insulation voltage (insulated styles only).9 2.2.7 Combinations of tolerance on rated resistance and temperature coefficient.9 2.3 Preferred test severities.10 2.3.1 Damp heat, steady state.10 2.3.2 Vibration.10 2.3.3 Low air pressure.10 2.3.4 Rapid change of temperature.10 2.3.5 Solderability.10 2.3.6 Resistance to soldering heat.11 2.3.7 Overload.11 2.3.8 Single pulse high voltage overload.12 2.3.9 Periodic electric overload.12 2.3.10 Resistance to electrostatic discharge.12 2.3.11 Flammability.12 2.4 Preparation of specimen.12 2.4.1 Drying.12 2.4.2 Mounting of components on a test rack.12 2.4.3 Mounting of components on test boards.13 3 Quality assessment procedures.14 3.1 General.14 3.1.1 Structurally similar components.14 3.1.2 Formation of inspection lots.14 3.2 Qualification approval on the basis of the fixed sample size procedure.14 3.3 Quality conformance inspection.15 3.4 Technology approval.15 3.5 Assessed process average procedures.15 3.6 Delayed delivery.15 Annex A (normative) Fixed sample size Qualification Approval and Quality Conformance Inspection
test schedule for fixed low power resistors.16 Annex B (informative) Letter symbols and abbreviations.25 Bibliography.27

When products approved to the detail specification may have different ranges, the following statement should be added: “The range of values available in each style is given in the register of approvals, available e.g. on the website www.iecq.org.“ f) Tolerances on rated resistance See 2.2.2. NOTE 2
When products approved to the detail specification may have different ranges, the following statement should be added: “The range of values available in each style is given in the register of approvals, available e.g. on the website www.iecq.org.“ g) Temperature coefficient of resistance See 2.1.3. For preferred combinations of temperature coefficient and tolerance on rated resistance see 2.2.7.

– 5 – EN 140100:2008
h) Rated dissipation at 70 °C See 2.2.3. The mounting conditions are as described in 2.4.2. or 2.4.3 The detail specification shall state the maximum dissipation at temperatures other than 70 °C, e.g. the derating, either in a diagram or in the form of a statement. The category dissipation shall be zero. All break points shall be verified by tests. i) Limiting element voltage See 2.2.4 and EN 60115-1, 2.2.16. j) Insulation voltage (insulated styles only) See 2.2.6 and EN 60115-1, 2.2.17. k) Insulation resistance (insulated styles only) See 2.2.5. l) Marking The resistor shall be marked with the rated resistance according to EN 60062, Clause 3, and as many of the remaining items listed in EN 60115-1, 2.4.1.
All the required information shall be marked on the package. m) Ordering information The detail specification shall specify that the following information is required as a minimum when ordering resistors:
–
the number of the detail specification and style reference;
–
the rated resistance according to EN 60062;
–
the tolerance on rated resistance according to EN 60062;
–
the temperature coefficient of resistance according to EN 60062. The detail specification may include additional information (which is not normally required to be verified by the inspection procedure), such as circuit diagrams, curves, drawings and notes needed for the clarification of the detail specification. 2 Preferred characteristics, ratings and severities for environmental and overload tests 2.1 Preferred characteristics The values given in detail specifications shall preferably be selected from the following: 2.1.1 Style and dimensions
Figure 1 – Outline and dimensions The preferred styles and dimensions are given in Table 1.

min. max. min. max.
min. A 0204
3,0
4,0 1,3 1,9 0,4 / 0,5 21 B 0207
5,0
6,5 2,0 2,5 0,6 21 C 0411
7,5 10,7 3,0 4,0 0,6 / 0,7 21 D 0414 10,0 12,0 3,6 4,1 0,8 21 E 0617 13,0 16,5 4,7 6,1 0,8 21 a
For information only. b
Nominal diameter, permissible tolerance according to IEC 60301. c
Minimum length applies to the free lead length in tape packing according to EN 60286-1 only. When protective coating is permitted to extend on the terminations, the permissible excess length shall be given in the detail specification.
2.1.2 Preferred climatic categories The resistors covered by the document are classified into climatic categories according to the general rules given in EN 60068-1, Annex A. The lower and upper category temperature shall be chosen from EN 60068-2-1 and EN 60068-2-2 respectively and should preferrably be selected from the lists below. The duration of the damp heat, steady state test shall be selected from the list below – Lower Category Temperature (LCT): -55 °C; -40 °C and -10 °C, – Upper Category Temperature (UCT): +85 °C; +125 °C; +155 °C; +175 °C and +200 °C, – duration of damp heat, steady state test: 10 days; 21 days; 56 days. The severities for the climatic tests are ruled by the lower and upper category temperatures.
2.1.3 Temperature coefficients of resistance The limits of resistance change due to variation of temperature within the range of defined category temperatures are given in Table 2.

– 7 – EN 140100:2008
Table 2 – Temperature coefficients and permitted change of resistance Temperature coefficient Limit of resistance change ∆R/R % ppm/K Code LCT / Reference temperature°C Reference temperature / UCT °C
a b -55 / 20 -40 / 20 -10 / 2020 / 85 20 / 125 20 / 155 20 / 175 20 / 200 ± 1 000 W A ± 7,5 ± 6,0 ± 3,0 ± 6,5
± 10,5
± 13,5
± 15,5
± 18,0
± 500 V
± 3,75 ± 3,0 ± 1,5 ± 3,25
± 5,25
± 6,75
± 7,75
± 9,0
± 250 U A, V ± 1,875 ± 1,5 ± 0,75 ± 1,625
± 2,625
± 3,375
± 3,875
± 4,5
± 100 S B, K ± 0,750 ± 0,6 ± 0,30 ± 0,650
± 1,050
± 1,350
± 1,550
± 1,8
± 50 R C ± 0,375 ± 0,3 ± 0,15 ± 0,325
± 0,525
± 0,675
± 0,775
± 0,9
± 25 Q D, E ± 0,188 ± 0,15 ± 0,075 ± 0,163
± 0,263
± 0,338
± 0,388
± 0,45
± 15 P E, T ± 0,113 ± 0,09 ± 0,045 ± 0,098
± 0,158
± 0,203
± 0,233
± 0,27
± 10 N
± 0,075 ± 0,060 ± 0,030 ± 0,065
± 0,105
± 0,135
± 0,155
± 0,18
± 5 M
± 0,038 ± 0,030 ± 0,015 ± 0,033
± 0,053
± 0,068
± 0,078
± 0,09
± 2 L
± 0,015 ± 0,012 ± 0,006 ± 0,013
± 0,021
± 0,027
± 0,031
± 0,036
± 1 K
± 0,008 ± 0,006 ± 0,003 ± 0,007
± 0,011
± 0,014
± 0,016
± 0,018 a
Code letters according to EN 60062. b
Historical code letters used in CECC 40 101-xxx detail specifications, for information only.
If measurements are required at additional temperatures, these shall be specified in the detail specification. If asymmetric temperature coefficients are required, the respective limits of resistance change shall be specified in the detail specification, with the code letter for the larger temperature coefficient value applied.
2.1.4 Limits of change of resistance Tables 3a and 3b list preferred limits for resistance change for all tests listed in the heading. To classify the performance of resistors, they will be assigned to stability classes as listed below.

Endurance at 70 °C Stability class EN 60115-1, 4.23 Climatic sequence 4.24 Damp heat, steady state 4.25.3
Endurance at
upper category
temperature 1 000 h Extended, 8 000 h EN 60115-1, 4.13 Overload 4.16 Robustness of terminations 4.18 Resistance to soldering heat 4.19 Rapid change of temperature, 5 cycles 4.22 Vibration 10 ± (10 % R + 0,5 Ω) ± (10 % R + 0,5 Ω) ± (20 % R + 0,5 Ω) ± (2 % R + 0,1 Ω) 5 ± (5 % R + 0,1 Ω) ± (5 % R + 0,1 Ω) ± (10 % R + 0,1 Ω) ± (1 % R + 0,05 Ω) 2 ± (2 % R + 0,1 Ω) ± (2 % R + 0,1 Ω) ± (5 % R + 0,1 Ω) ± (0,5 % R + 0,05 Ω) 1 ± (1 % R + 0,05 Ω) ± (1 % R + 0,05 Ω) ± (2 % R + 0,05 Ω) ± (0,25 % R + 0,05 Ω)0,5 ± (0,5 % R + 0,05 Ω) ± (0,5 % R + 0,05 Ω) ± (1 % R + 0,05 Ω) ± (0,1 % R + 0,01 Ω) 0,25 ± (0,25 % R + 0,05 Ω) ± (0,25 % R + 0,05 Ω) ± (0,5 % R + 0,05 Ω) ± (0,05 % R + 0,01 Ω)0,1 ± (0,1 % R + 0,02 Ω)
± (0,1 % R + 0,02 Ω) ± (0,25 % R + 0,02 Ω) ± (0,05 % R + 0,01 Ω)0,05 ± (0,05 % R + 0,01 Ω)
± (0,05 % R + 0,01 Ω) ± (0,1 % R + 0,01 Ω) ± (0,025 % R + 0,01 Ω)
Table 3b - Limits for change of resistance at tests Limit of resistance change ∆R Stability class EN 60115-1, 4.19 Rapid change of temperature, ≥ 100 cycles EN 60115-1, 4.27 Single pulse high voltage overload test EN 60115-1, 4.19 Periodic electric overload EN 60115-1, 4.40 Electrostatic discharge a 10 5 2 ± (1 % R + 0,05 Ω) ± (1 % R + 0,05 Ω) ± (2 % R + 0,05 Ω) ± (1 % R + 0,05 Ω) 1 0,5 ± (0,5 % R + 0,05 Ω) 0,25 0,1 0,05 ± (0,25 % R + 0,05 Ω) ± (0,5 % R + 0,05 Ω) ± (1 % R + 0,05 Ω) ± (0,5 % R + 0,05 Ω) a
Human Body Model (HBM) according to EN 61340-3-1, 3 positive + 3 negative discharges.

– 9 – EN 140100:2008
2.2 Preferred values of ratings The following values are preferred values to be used in the detail specification. 2.2.1 Rated resistance See EN 60115-1, 2.3.2. and 0 Ω (Jumper). 2.2.2 Tolerances on rated resistance The preferred tolerances on rated resistance are: ± 10 %; ± 5 %; ± 2 %; ± 1 %; ± 0,5 %; ± 0,25 %; ± 0,1 %; ± 0,05 %; ± 0,02 % and ± 0,01 %. For for 0 Ω resistors the preferred values for the maximum residual resistance are: 50 mΩ; 20 mΩ and 10 mΩ. 2.2.3 Rated dissipation (in the mounted state) The preferred values of rated dissipation are: 0,063 W; 0,125 W; 0,25 W; 0,5 W; 1 W; 2 W and 3 W.
2.2.4 Limiting element voltage The preferred values of limiting element voltage Umax d.c. or a.c. (r.m.s.) are: 50 V; 100 V; 200 V; 300 V; 500 V; 750 V and 1 000 V.
2.2.5 Insulation resistance (insulated styles only) The insulation resistance shall be not less than 1 GΩ after dry heat tests and not less than 100 MΩ after climatic tests. 2.2.6 Insulation voltage (insulated styles only) Unless otherwise specified in the detail specification the insulation voltage shall never be less than the peak voltage that can be applied continuously to the element; it shall therefore be not less than √2 times the limiting element voltage. The preferred values of insulation voltage Uins d.c. or a.c. (peak) are: 75 V; 150 V; 300 V; 500 V; 750 V; 1 100 V and 1 500 V. 2.2.7 Combinations of tolerance on rated resistance and temperature coefficient The preferred combinations of tolerance on rated resistance and temperature coefficient are: TC 250 / 5 %; TC 100 / 1 %; TC 50 / 1 %; TC 25 / 0,5 %; TC 25 / 0,1 %; TC 15 / 0,1 %. NOTE
TC 250 = ± 250 ppm/K.
The severities given in detail specifications shall preferably be chosen from the following: 2.3.1 Damp heat, steady state According to EN 60068-2-78 with the following details: – temperature (40 ± 2) °C; – relative humidity (93 ± 3) %; – duration see 2.1.2. 2.3.2 Vibration Endurance by sweeping according to EN 60068-2-6, 8.2.1 with the specimen mounted in such a way that they are not exposed to resonances, and with the following details: – frequency range: 10 Hz to 2 000 Hz; – amplitude: 1,5 mm or 200 m/s², whichever is the less severe; – duration: 10 sweep cycles in each axis. 2.3.3 Low air pressure As part of the climatic sequence according to EN 60115-1, 4.23.5 with the following detail: – air pressure 1 kPa (10 mbar). 2.3.4 Rapid change of temperature As part of a sequence of climatic and mechanical tests in Group 5 for Qualification approval and in Group C1 for Quality conformance inspection, Test Na of EN 60068-2-14 shall be applied with the following details: – lower temperature LCT;
– higher temperature UCT;
– number of cycles 5. In addition, as an individual test for Qualification approval and for Quality conformance inspection, Test Na of EN 60068-2-14 shall be applied with the following details: – lower temperature LCT;
– higher temperature UCT;
– number of cycles preferred values are 100; 200; 500 and 1 000. 2.3.5 Solderability The solderable termination surface of the resistors shall be compatible with both, traditional SnPb solder and lead-free solder, unless explicitly stated otherwise in the relevant detail specification. Therefore solderability testing is required for both soldering processes.
...
