EN 140402-801:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bauartspezifikation: Oberflächenmontierbare drahtgewickelte Festwiderstände (SMD) niedriger Belastbarkeit - Rechteckig - Stabilitätsklassen 0,5; 1; 2Spécification particulière: Résistances fixes bobinées à faible dissipation pour montage en surface (CMS) - Rectangulaire - Catégories de stabilité 0,5; 1; 2Detail specification: Fixed low power wirewound surface mount (SMD) resistors - Rectangular - Stability classes 0,5; 1; 231.040.10Fiksni uporFixed resistorsICS:Ta slovenski standard je istoveten z:EN 140402-801:2015SIST EN 140402-801:2015en01-junij-2015SIST EN 140402-801:2015SLOVENSKI
STANDARDSIST EN 140402-801:20061DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 140402-801
April 2015 ICS 31.040.10
Supersedes
EN 140402-801:2005English Version
Detail specification: Fixed low power wirewound surface mount (SMD) resistors - Rectangular - Stability classes 0,5; 1; 2
Spécification particulière: Résistances fixes bobinées à faible dissipation pour montage en surface (CMS) - Rectangulaire - Catégories de stabilité 0,5; 1; 2
Bauartspezifikation: Oberflächenmontierbare drahtgewickelte Festwiderstände (SMD) niedriger Belastbarkeit - Rechteckig - Stabilitätsklassen 0,5; 1; 2 This European Standard was approved by CENELEC on 2014-12-15. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 140402-801:2015 ESIST EN 140402-801:2015

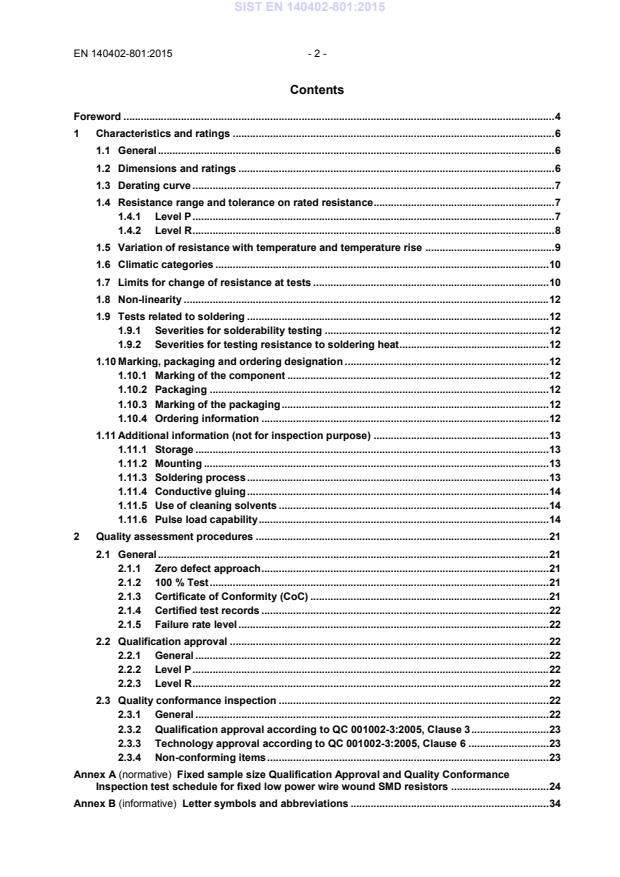

Contents Foreword . 4 1 Characteristics and ratings . 6 1.1 General . 6 1.2 Dimensions and ratings . 6 1.3 Derating curve . 7 1.4 Resistance range and tolerance on rated resistance . 7 1.4.1 Level P . 7 1.4.2 Level R . 8 1.5 Variation of resistance with temperature and temperature rise . 9 1.6 Climatic categories . 10 1.7 Limits for change of resistance at tests . 10 1.8 Non-linearity . 12 1.9 Tests related to soldering . 12 1.9.1 Severities for solderability testing . 12 1.9.2 Severities for testing resistance to soldering heat . 12 1.10 Marking, packaging and ordering designation . 12 1.10.1 Marking of the component . 12 1.10.2 Packaging . 12 1.10.3 Marking of the packaging . 12 1.10.4 Ordering information . 12 1.11 Additional information (not for inspection purpose) . 13 1.11.1 Storage . 13 1.11.2 Mounting . 13 1.11.3 Soldering process . 13 1.11.4 Conductive gluing . 14 1.11.5 Use of cleaning solvents . 14 1.11.6 Pulse load capability . 14 2 Quality assessment procedures . 21 2.1 General . 21 2.1.1 Zero defect approach . 21 2.1.2 100 % Test . 21 2.1.3 Certificate of Conformity (CoC) . 21 2.1.4 Certified test records . 22 2.1.5 Failure rate level . 22 2.2 Qualification approval . 22 2.2.1 General . 22 2.2.2 Level P . 22 2.2.3 Level R . 22 2.3 Quality conformance inspection . 22 2.3.1 General . 22 2.3.2 Qualification approval according to QC 001002-3:2005, Clause 3 . 23 2.3.3 Technology approval according to QC 001002-3:2005, Clause 6 . 23 2.3.4 Non-conforming items . 23 Annex A (normative)
Fixed sample size Qualification Approval and Quality Conformance Inspection test schedule for fixed low power wire wound SMD resistors . 24 Annex B (informative)
Letter symbols and abbreviations . 34 SIST EN 140402-801:2015

- 3 - EN 140402-801:2015 B.1 Letter symbols . 34 B.2 Abbreviations . 35 Annex C (normative)
Normative references . 36 Annex D (normative)
Mounting of components. 37 D.1 Layout for mechanical tests . 37 D.2 Layout for electrical test. 38 Bibliography . 39
Foreword This document (EN 140402-801:2015) has been prepared by CLC/TC 40XB "Resistors". The following dates are fixed:
• latest date by which this document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2015-12-15 • latest date by which the national standards conflicting with this document have to be withdrawn (dow) 2017-12-15
This European Standard supersedes EN 140402-801:2005. Preceding document on the subject covered by this specification has been: – CECC 40 402-801:2000-02. EN 140402-801:2015 includes the following significant technical changes with respect to EN 140402-801:2005: – adoption of P70 as the rated dissipation, leaving the prior used P25 as an additional information; – for style RW1607M, increase of P70 to 2,4 W, with P25 = 3,0 W; – introduction of a test on the resistance to electrostatic discharge (ESD) in 1.7 and Annex A; – introduction of code letters for the temperature coefficient (TCR) as in EN 60062:2005; – revision of ordering information in 1.10.4; – adoption of the IECQ rules of procedure according to QC 001002-3:2005; – revision of the sample quantities and the sequence of tests in Annex A; – editorial revision. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights. This specification is part of a series of documents describing fixed low power wire wound surface mount (SMD) resistors as follows: – EN 60115-1, Fixed resistors for use in electronic equipment — Part 1: Generic specification (IEC 60115-1, modified) – EN 60115-8, Fixed resistors for use in electronic equipment — Part 8: Sectional specification — Fixed surface mount resistors (IEC 60116-8, modified) – This detail specification. Any detail specification within this series is written on the basis of
– EN 140402, Blank Detail Specification: Fixed low power wirewound surface mount (SMD) resistors. __________ SIST EN 140402-801:2015

- 5 - EN 140402-801:2015
Specification available from CENELEC Central Secretariat,
Avenue Marnix 17, B – 1000 Brussels,
or from the National Committees members of CENELEC EN 140402-801
Electronic components of assessed quality in accordance with: EN 60115-1:2011 EN 60115-8:2012 EN 140402:2015 Issue 2 April 2015
Other shapes are permitted within the given dimensions. Figure 1 — Outline and dimensions (see Table 1) Fixed low power wire wound resistors with rectangular base for surface mounting. Style: RW Wire wound, insulated resistor with end terminations for application on printed board and flexible foils. Assessment level EZ a Level P: with 100 %-test Level R: with failure rate level
and 100 %-test Stability classes 0,5; 1 and 2 a See 2.1.1 for an explanation on the assessment level EZ. SIST EN 140402-801:2015

1 Characteristics and ratings 1.1 General Various parameters of this component are precisely defined in this specification. Unspecified parameters may vary from one component to another. 1.2 Dimensions and ratings The shape and dimensions of the resistors covered by this specification are shown in Figure 1, with the specific styles and their respective dimensions given in Table 1. Other shapes are permissible within the given dimensions. Table 1 — Style and dimensions Style a Length L
mm Width W
mm Height H
mm Termination width D mm Termination seating length J mm Mass b
mg metric inch b min. max. min. max. min. max. min. max. min. max. max. RW0503M RW2012 4,6 5,6 2,0 3,6 2,0 3,6 1,0 2,0 0,7 1,4
120 RW0704M RW2515 5,7 8,0 3,0 4,5 2,4 4,5 1,0 3,0 0,8 1,6
250 RW1107M RW4527 9,8 12,5 5,5 7,5 3,9 6,0 1,8 5,6 1,4 2,8
1 000 RW1607M RW6927 14,5 19,0 5,5 7,5 5,5 7,5 3,0 5,8 1,4 2,8
2 000 a The given styles correspond to the historical styles of the prior CECC 40 402-801 as follows: Style Historic style RW0704M RW1 RW1107M RW2 RW1607M RW3 b
For information only.
NOTE
Information about manufacturers who have components qualified to this detail specification is available in the approvals section of the website http://www.iecq.org. Table 2 — Ratings Style Rated dissipation Maximum dissipation a Limiting element voltage d.c. or a.c. (r.m.s.) b Insulation voltage d.c. or a.c. (peak)
P70 W P25 W Umax V Uins V
1 min continuous RW0503M 0,6 0,75 28 500 75 RW0704M 0,8 1,0 50 500 75 RW1107M 1,6 2,0 112 500 75 RW1607M 2,4 3,0 200 500 75 a
For information only. b
For all resistance ranges given in Tables 3 and 4, the applicable voltage is determined by the rated or maximum dissipation and not limited by the limiting element voltage. SIST EN 140402-801:2015

- 7 - EN 140402-801:2015 1.3 Derating curve The permissible dissipation of resistors covered by this detail specification is the rated dissipation as given in Table 2, whi
...
