Standards Content (Sample)

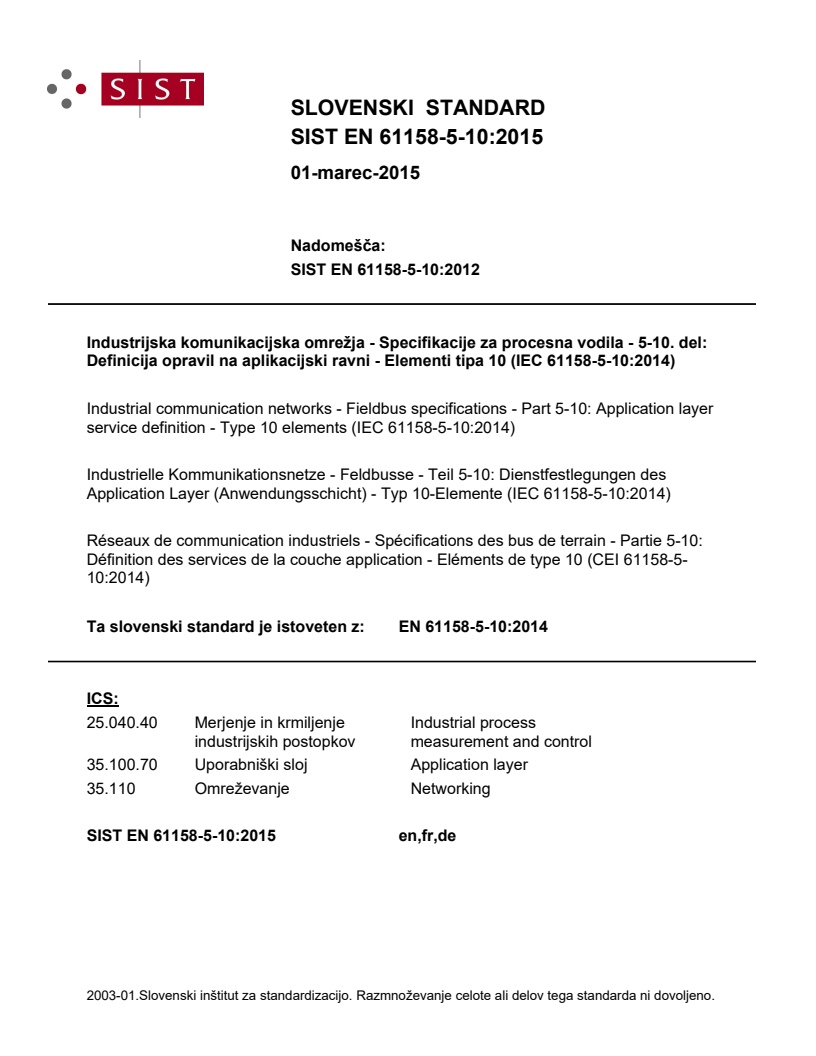

SLOVENSKI STANDARD
01-marec-2015
1DGRPHãþD
SIST EN 61158-5-10:2012
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 5-10. del:
Definicija opravil na aplikacijski ravni - Elementi tipa 10 (IEC 61158-5-10:2014)
Industrial communication networks - Fieldbus specifications - Part 5-10: Application layer
service definition - Type 10 elements (IEC 61158-5-10:2014)
Industrielle Kommunikationsnetze - Feldbusse - Teil 5-10: Dienstfestlegungen des
Application Layer (Anwendungsschicht) - Typ 10-Elemente (IEC 61158-5-10:2014)
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 5-10:
Définition des services de la couche application - Eléments de type 10 (CEI 61158-5-
10:2014)
Ta slovenski standard je istoveten z: EN 61158-5-10:2014
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.70 Uporabniški sloj Application layer
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

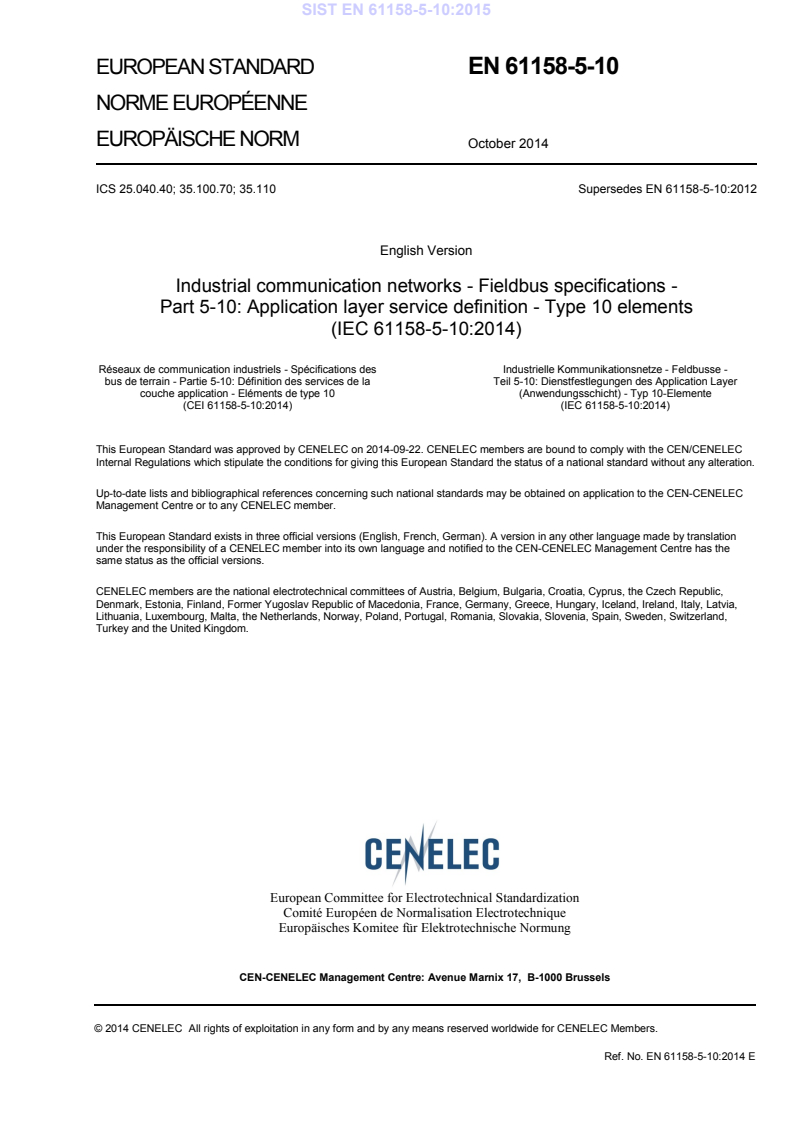

EUROPEAN STANDARD EN 61158-5-10
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 25.040.40; 35.100.70; 35.110 Supersedes EN 61158-5-10:2012
English Version
Industrial communication networks - Fieldbus specifications -
Part 5-10: Application layer service definition - Type 10 elements
(IEC 61158-5-10:2014)
Réseaux de communication industriels - Spécifications des Industrielle Kommunikationsnetze - Feldbusse -
bus de terrain - Partie 5-10: Définition des services de la Teil 5-10: Dienstfestlegungen des Application Layer
couche application - Eléments de type 10 (Anwendungsschicht) - Typ 10-Elemente
(CEI 61158-5-10:2014) (IEC 61158-5-10:2014)
This European Standard was approved by CENELEC on 2014-09-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61158-5-10:2014 E

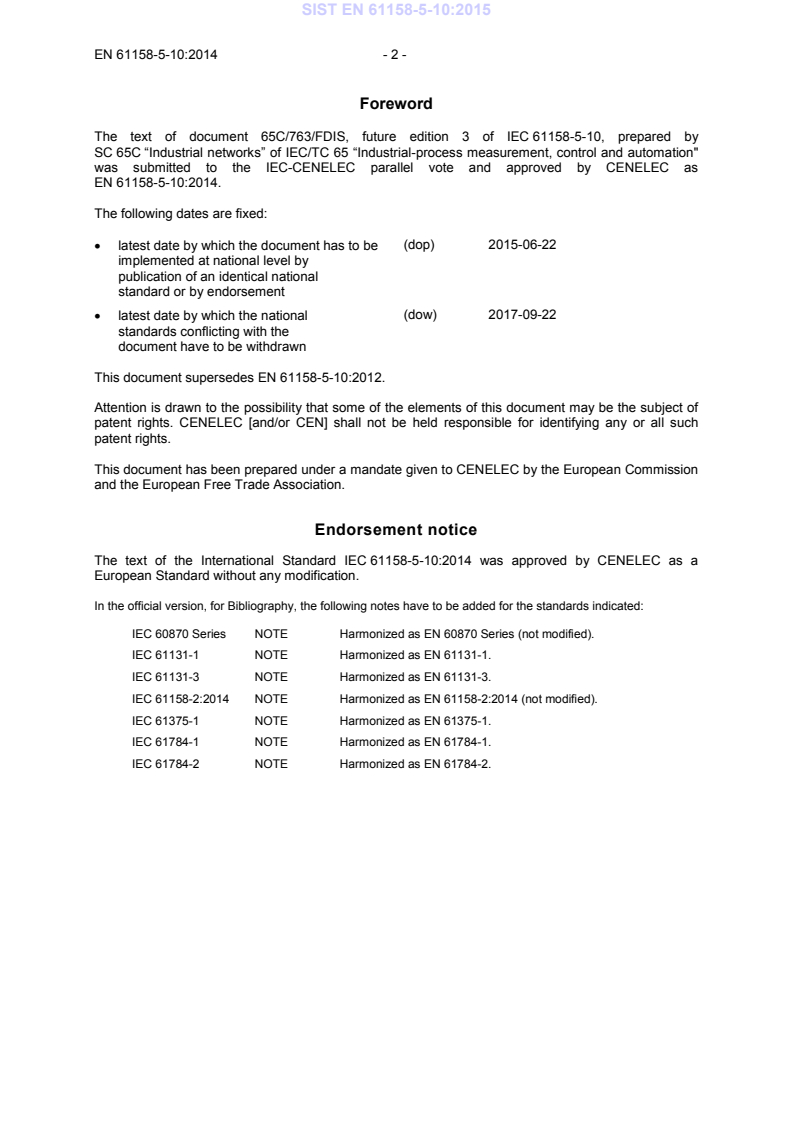

Foreword
The text of document 65C/763/FDIS, future edition 3 of IEC 61158-5-10, prepared by
SC 65C “Industrial networks” of IEC/TC 65 “Industrial-process measurement, control and automation"
was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be (dop) 2015-06-22
implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2017-09-22
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61158-5-10:2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 61158-5-10:2014 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60870 Series NOTE Harmonized as EN 60870 Series (not modified).
IEC 61131-1 NOTE Harmonized as EN 61131-1.
IEC 61131-3 NOTE Harmonized as EN 61131-3.
IEC 61158-2:2014 NOTE Harmonized as EN 61158-2:2014 (not modified).
IEC 61375-1 NOTE Harmonized as EN 61375-1.
IEC 61784-1 NOTE Harmonized as EN 61784-1.
IEC 61784-2 NOTE Harmonized as EN 61784-2.
- 3 - EN 61158-5-10:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year
IEC 61158-1 2014 Industrial communication networks - EN 61158-1 2014
Fieldbus specifications -
Part 1: Overview and guidance for the
IEC 61158 and IEC 61784 series
IEC 61158-5-3 2014 Industrial communication networks - EN 61158-5-3 2014
Fieldbus specifications -
Part 5-3: Application layer service
definition - Type 3 elements
1)
IEC 61158-6-3 2014 Industrial communication networks - EN 61158-6-3 -
Fieldbus specifications -
Part 6-3: Application layer protocol
specification - Type 3 elements
1)
IEC 61158-6-10 2014 Industrial communication networks - EN 61158-6-10 -
Fieldbus specifications -
Part 6-10: Application layer protocol
specification - Type 10 elements
IEC 61800-7-203 2007 Adjustable speed electrical power drive EN 61800-7-203 2008
systems -
Part 7-203: Generic interface and use
of profiles for power drive systems -
Profile type 3 specification
IEC 62439-2 - Industrial communication networks - High EN 62439-2 -
availability automation networks -
Part 2: Media Redundancy Protocol (MRP)
ISO/IEC 646 - Information technology - ISO 7-bit coded - -
character set for information interchange
ISO/IEC 7498-1 - Information technology - Open Systems - -
Interconnection - Basic reference model:
The basic model
ISO/IEC 8822 - Information technology - Open Systems - -
Interconnection - Presentation service
definition
1)
To be published.
Publication Year Title EN/HD Year
ISO/IEC 8824-1 - Information technology - Abstract Syntax - -
Notation One (ASN.1): Specification of
basic notation
ISO/IEC 9545 - Information technology - Open Systems - -
Interconnection - Application layer
structure
ISO/IEC 10646 - Information technology - Universal Coded - -
Character Set (UCS)
ISO/IEC 10731 - Information technology - Open Systems - -
Interconnection - Basic Reference Model -
Conventions for the definition of OSI
services
ISO/IEC 15802-1 - Information technology - - -
Telecommunications and information
exchange between systems - Local and
metropolitan area networks - Common
specifications -
Part 1: Medium Access Control (MAC)
service definition
ISO 8601 - Data elements and interchange formats - - -
Information interchange - Representation
of dates and times
IEEE 754 - IEEE Standard for Floating-Point - -
Arithmetic
IEEE 802 - IEEE Standard for Local and Metropolitan - -
Area Networks: Overview and Architecture
IEEE 802.1AB 2005 IEEE Standard for Local and metropolitan - -
area networks Station and Media Access
Control Connectivity Discovery
IEEE 802.1AS - IEEE Standard for Local and Metropolitan - -
Area Networks - Timing and
Synchronization for Time-Sensitive
Applications in Bridged Local Area
Networks
IEEE 802.1D - IEEE Standard for local and metropolitan - -
area networks - Media Access Control
(MAC) Bridges
IEEE 802.1Q - IEEE Standard for Local and metropolitan - -
area networks - Media Access Control
(MAC) Bridges and Virtual Bridges
IEEE 802.3 - IEEE Standard for Information technology - - -
Telecommunications and information
exchange between systems - Local and
metropolitan area networks - Specific
requirements -
Part 3: Carrier Sense Multiple Access with
Collision Detection (CSMA/CD) Access
Method and Physical Layer Specifications
IETF RFC 768 - User Datagram Protocol - -
- 5 - EN 61158-5-10:2014
Publication Year Title EN/HD Year
IETF RFC 791 - Internet Protocol - DARPA Internet - -
Program Protocol Specification
IETF RFC 792 - Internet Control Message Protocol - -
An Ethernet Address Resolution Protocol -
IETF RFC 826 - - -
or - Converting Network Protocol
Addresses to 48.bit Ethernet Address for
Transmission on Ethernet Hardware
IETF RFC 1034 - Domain names - concepts and facilities - -
IETF RFC 1112 - Host Extensions for IP Multicasting - -
IETF RFC 1573 - Evolution of the Interfaces Group of MIB-II - -
IETF RFC 2131 - Dynamic Host Configuration Protocol - -
IETF RFC 2020 - IEEE 802.12 Interface MIB - -
IETF RFC 2132 - DHCP Options and BOOTP Vendor - -
Extensions
IETF RFC 2365 - Administratively Scoped IP Multicast - -
IETF RFC 2674 - Definitions of Managed Objects for Bridges - -
with Traffic Classes, Multicast Filtering and
Virtual LAN Extensions
IETF RFC 2737 - Entity MIB (Version 2) - -
IETF RFC 2863 - The Interfaces Group MIB - -
IETF RFC 3330 - Special-Use IPv4 Addresses - -
IETF RFC 3418 - Management Information Base (MIB) for - -
the Simple Network Management Protocol
(SNMP)
IETF RFC 3490 - Internationalizing Domain Names in - -
Applications (IDNA)
IETF RFC 3621 - Power Ethernet MIB - -
IETF RFC 4836 - Definitions of Managed Objects for IEEE - -
802.3 Medium Attachment Units (MAUs)
IETF RFC 5905 - Network Time Protocol Version 4: Protocol - -
and Algorithms Specification
The Open Group - - Technical Standard DCE1.1: Remote - -
Publication C706 Procedure Call
IEC 61158-5-10 ®
Edition 3.0 2014-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial communication networks – Fieldbus specifications –
Part 5-10: Application layer service definition – Type 10 elements
Réseaux de communication industriels – Spécifications des bus de terrain –
Partie 5-10: Définition des services de la couche application – Eléments
de type 10
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XH
ICS 25.040.40; 35.100.70; 35.110 ISBN 978-2-8322-1736-8
– 2 – IEC 61158-5-10:2014 © IEC 2014
CONTENTS
FOREWORD . 13
INTRODUCTION . 15
1 Scope . 16
1.1 General . 16
1.2 Specifications . 17
1.3 Conformance . 17
2 Normative references . 17
3 Terms, definitions, abbreviations, symbols and conventions . 19
3.1 Referenced terms and definitions . 20
3.2 Additional terms and definitions for decentralized periphery . 20
3.3 Additional terms and definitions for media redundancy . 28
3.4 Abbreviations and symbols . 29
3.5 Conventions . 31
4 Concepts . 37
5 Data type ASE . 38
5.1 General . 38
5.2 Formal definition of data type objects . 43
5.3 FAL defined data types . 44
5.4 Data type ASE service
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
