EN 61784-5-6:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Industrijska komunikacijska omrežja - Profili - 5-6. del: Inštalacija procesnih vodil - Inštalacijski profili za CPF 6
(IEC 61784-5-6:2010)Industrielle Kommunikationsnetze - Profile - Teil 5-6: Feldbusinstallation - Installationsprofile für die Kommunikationsprofilfamilie 6
(IEC 61784-5-6:2010)Réseaux de communication industriels - Profils - Partie 5-6: Installation des bus de terrain - Profils d'installation pour CPF 6 (CEI 61784-5-6:2010)Industrial communication networks - Profiles - Part 5-6: Installation of fieldbuses - Installation profiles for CPF 6 (IEC 61784-5-6:2010)35.100.05UHãLWYHMultilayer applications25.040.40Merjenje in krmiljenje industrijskih postopkovIndustrial process measurement and controlICS:Ta slovenski standard je istoveten z:EN 61784-5-6:2012SIST EN 61784-5-6:2012en01-junij-2012SIST EN 61784-5-6:2012SLOVENSKI

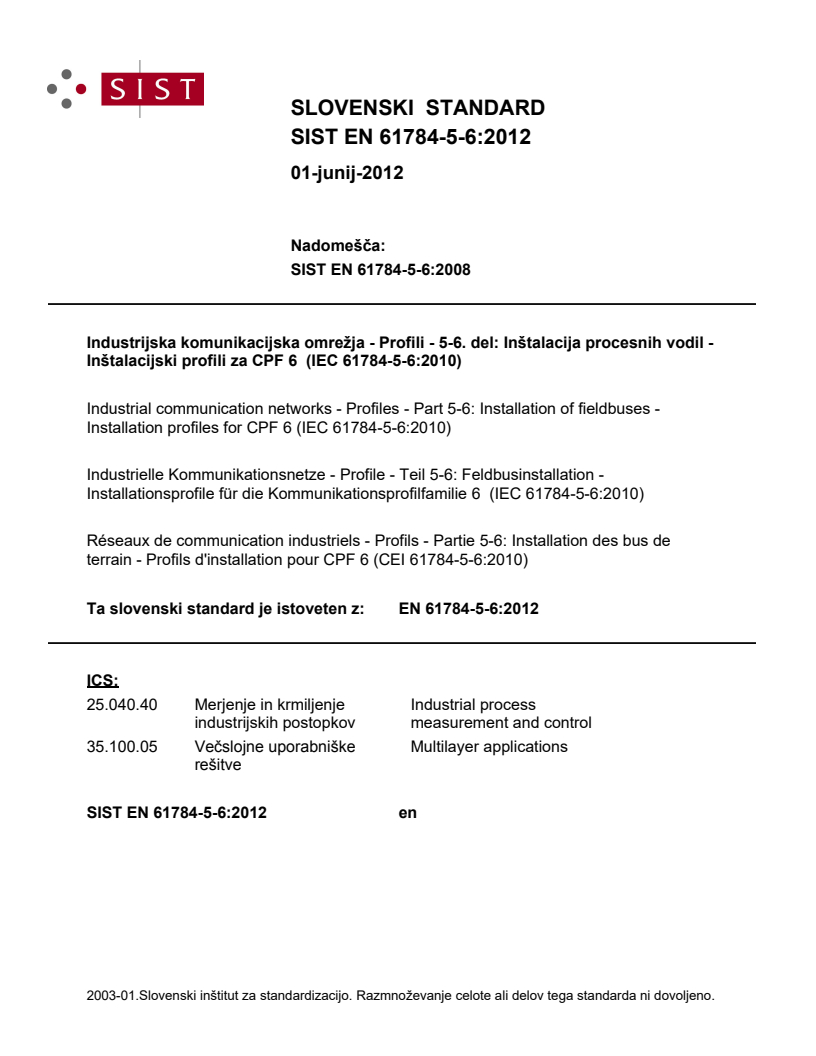

STANDARDSIST EN 61784-5-6:20081DGRPHãþD

EUROPEAN STANDARD EN 61784-5-6 NORME EUROPÉENNE
EUROPÄISCHE NORM April 2012
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61784-5-6:2012 E
ICS 25.040.40; 35.100.40 Supersedes EN 61784-5-6:2008
English version
Industrial communication networks -
Profiles -
Part 5-6: Installation of fieldbuses -
Installation profiles for CPF 6 (IEC 61784-5-6:2010)
Réseaux de communication industriels -
Profils -
Partie 5-6: Installation des bus de terrain - Profils d'installation pour CPF 6 (CEI 61784-5-6:2010)
Industrielle Kommunikationsnetze -
Profile -
Teil 5-6: Feldbusinstallation -
Installationsprofile für die Kommunikationsprofilfamilie 6 (IEC 61784-5-6:2010)
This European Standard was approved by CENELEC on 2011-10-19. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

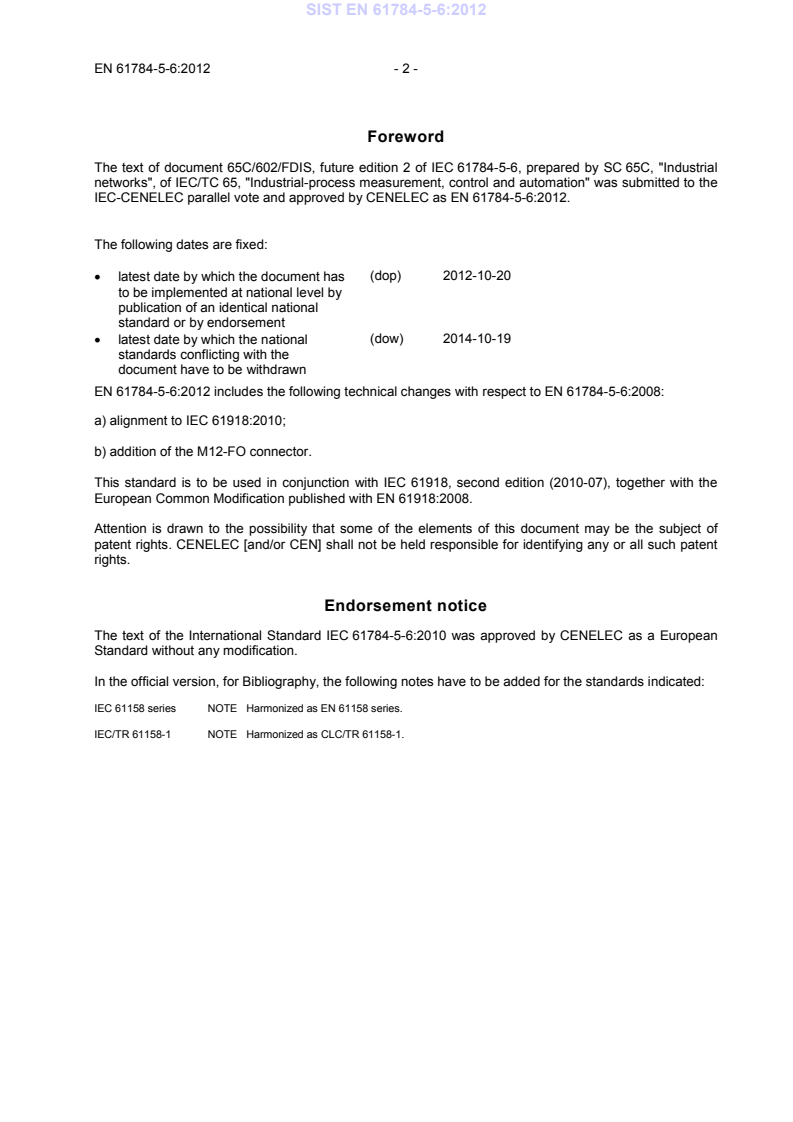

Foreword The text of document 65C/602/FDIS, future edition 2 of IEC 61784-5-6, prepared by SC 65C, "Industrial networks", of IEC/TC 65, "Industrial-process measurement, control and automation" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61784-5-6:2012.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2012-10-20 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2014-10-19
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Endorsement notice The text of the International Standard IEC 61784-5-6:2010 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 61158 series NOTE
Harmonized as EN 61158 series. IEC/TR 61158-1 NOTE
Harmonized as CLC/TR 61158-1. SIST EN 61784-5-6:2012

- 3 - EN 61784-5-6:2012 Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60189-1 2007 Low-frequency cables and wires with PVC insulation and PVC sheath -
Part 1: General test and measuring methods - -
IEC 60794-1-2 2003 Optical fibre cables -
Part 1-2: Generic specification - Basic optical cable test procedures EN 60794-1-2 2003
IEC 61156-1 2007 Multicore and symmetrical pair/quad cables for digital communications -
Part 1: Generic specification - -
IEC 61156-5 - Multicore and symmetrical pair/quad cables for digital communications -
Part 5: Symmetrical pair/quad cables with transmission characteristics up to 1 000 MHz -Horizontal floor wiring - Sectional specification- -
IEC 61918
2010 Industrial communication networks - Installation of communication networks in industrial premises - -
IEC 61784-5-6Edition 2.0 2010-07INTERNATIONAL STANDARD
Industrial communication networks – Profiles –
Part 5-6: Installation of fieldbuses – Installation profiles for CPF 6
INTERNATIONAL ELECTROTECHNICAL COMMISSION XICS 25.040.40; 35.100.40 PRICE CODEISBN 978-2-88912-054-3
– 2 – 61784-5-6 © IEC:2010(E) CONTENTS FOREWORD.4 INTRODUCTION.6 1 Scope.7 2 Normative references.7 3 Terms, definitions and abbreviated terms.7 4 CPF 6: Overview of installation profiles.7 5 Installation profile conventions.7 6 Conformance to installation profiles.8 Annex A (normative)
CPF 6 Type 8 network specific installation profile.10 Annex B (normative)
CPF 6 Ethernet network specific installation profile.34 Bibliography.50
Figure 1 – Standards relationships.6 Figure A.1 – Type 8 network structure example.14 Figure A.2 – Example of a Type 8 network configuration.15 Figure A.3 – Sub-D connector pin assignments.29 Figure A.4 – M23 circular connector pin assignments.29 Figure A.5 – M12 circular connector pin assignments.30 Figure A.6 – Terminal connector at the device.30 Figure B.1 – Plug connector interface M12-FO.43 Figure B.2 – Adaptor connector interface M12-FO.44 Figure B.3 – Terminal connector at the device.48
Table A.1 – Basic network characteristics for balanced cabling not based on Ethernet.16 Table A.2 – Network characteristics for optical fibre cabling.17 Table A.3 – Information relevant to balanced cable: fixed cables.18 Table A.4 – Information relevant to balanced cable: cords.19 Table A.5 – Remote bus fibre optic cable length.21 Table A.6 – Connectors for copper cabling CPs not based on Ethernet.22 Table A.7 – Optical fibre connecting hardware.22 Table A.8 – Relationship between FOC and fibre types (Type 8 networks).23 Table A.9 – Colour code for balanced cables used by Type 8 networks.24 Table A.10 – Parameters for balanced cables.27 Table A.11 – Parameters for silica optical fibre cables.27 Table A.12 – Parameters for POF optical fibre cables.27 Table A.13 – Parameters for hard clad silica optical fibre cables.28 Table A.14 – Pin assignment of the terminal connector.30 Table B.1 – Network characteristics for balanced cabling based on Ethernet.37 Table B.2 – Network characteristics for optical fibre cabling.37 Table B.3 – Information relevant to balanced cable: fixed cables.39 Table B.4 – Information relevant to balanced cable: cords.40 Table B.5 — Information relevant to optical fibre cables.41 SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 3 – Table B.6 – Connectors for balanced cabling CPs based on Ethernet.42 Table B.7 – Optical fibre connecting hardware.42 Table B.8 – Relationship between FOC and fibre types (CP 6/2 Ethernet network).45 Table B.9 – Parameters for balanced cables.47 Table B.10 – Parameters for silica optical fibre cables.47 Table B.11 – Parameters for POF optical fibre cables.47 Table B.12 – Parameters for hard clad silica optical fibre cables.48
– 4 – 61784-5-6 © IEC:2010(E) INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-6: Installation of fieldbuses –
Installation profiles for CPF 6
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61784-5-6 has been prepared by subcommittee 65C: Industrial networks, of IEC technical committee 65: Industrial-process measurement, control and automation. This second edition cancels and replaces the first edition published in 2007. This edition constitutes a technical revision. This edition includes the following technical changes with respect to the previous edition: a) alignment to IEC 61918:2010; b) addition of the M12-FO connector. This standard is to be used in conjunction with IEC 61918:2010. The text of this standard is based on the following documents: SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 5 – FDIS Report on voting 65C/602/FDIS 65C/616/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. A list of all parts of the IEC 61784-5 series, published under the general title Industrial communication networks – Profiles – Installation of fieldbuses, can be found on the IEC website. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended. A bilingual version of this publication may be issued at a later date.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it contains colours which are considered to be useful for the correct understanding of its contents. Users should therefore print this document using a colour printer.
– 6 – 61784-5-6 © IEC:2010(E) INTRODUCTION This International Standard is one of a series produced to facilitate the use of communication networks in industrial control systems. IEC 61918:2010 provides the common requirements for the installation of communication networks in industrial control systems. This installation profile standard provides the installation profiles of the communication profiles (CP) of a specific communication profile family (CPF) by stating which requirements of IEC 61918 fully apply and, where necessary, by supplementing, modifying, or replacing the other requirements (see Figure 1). For general background on fieldbuses, their profiles, and relationship between the installation profiles specified in this standard, see IEC/TR 61158-1. Each CP installation profile is specified in a separate annex of this standard. Each annex is structured exactly as the reference standard IEC 61918 for the benefit of the persons representing the roles in the fieldbus installation process as defined in IEC 61918 (planner, installer, verification personnel, validation personnel, maintenance personnel, administration personnel). By reading the installation profile in conjunction with IEC 61918, these persons immediately know which requirements are common for the installation of all CPs and which are modified or replaced. The conventions used to draft this standard are defined in Clause 5. The provision of the installation profiles in one standard for each CPF (for example IEC 61784-5-6 for CPF 6), allows readers to work with standards of a convenient size. INDUSTRIAL PREMISESISO/IEC
24702OFFICE PREMISESISO/IEC
11801ISO/IEC14763-2IEC 61918(Common requirements)IEC
61158 seriesandIEC 61784-1, -2GENERIC CABLINGBETWEENAUTOMATIONISLANDSAPPLICATION-SPECIFICCABLINGWITHINAUTOMATIONISLANDSBETWEENAUTOMATIONISLANDSDESIGNPLANNING AND INSTALLATIONInstallation ProfilesIEC 61784-5 series(Selection +Add/Repl/Mod)Common structureData centre AnnexHomeAnnexOfficesAnnexIndustrialAnnexISO/IEC
15018ISO/IEC
24764HOMES DATA CENTRES Figure 1 – Standards relationships
61784-5-6 © IEC:2010(E) – 7 – INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-6: Installation of fieldbuses –
Installation profiles for CPF 6
1 Scope This part of IEC 61784 specifies the installation profiles for CPF 6 (INTERBUS)1. The installation profiles are specified in the annexes. These annexes are read in conjunction with IEC 61918:2010. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 61918:2010, Industrial communication networks – Installation of communication networks in industrial premises The normative references of IEC 61918:2010, Clause 2, apply. For profile specific normative references, see Clauses A.2 and B.2. 3 Terms, definitions and abbreviated terms For the purposes of this document, the terms, definitions and abbreviated terms of IEC 61918:2010, Clause 3, apply. For profile specific terms, definitions and abbreviated terms see Clauses A.3 and B.3. 4 CPF 6: Overview of installation profiles CPF 6 consists of seven communication profiles (see IEC 61784-1 for CP 6/1, CP 6/2, CP 6/3, see 61784-2 for CP 6/4, CP 6/5, CP 6/6, see 61784-3-6 for FSCP 6/7). The CPF 6 Type 8 network (non Ethernet based) installation profile is specified in Annex A.
The CP 6/2 Ethernet specific installation profile file is specified in Annex B. 5 Installation profile conventions The numbering of the clauses and subclauses in the annexes of this standard corresponds to the numbering of IEC 61918 main clauses and subclauses. ——————— 1
INTERBUS is a trade name of INTERBUS Club, an independent organisation of users and vendors of INTERBUS products. This information is given for the convenience of users of this International Standard and does not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance to this profile does not require use of the trade name INTERBUS. Use of the trade name INTERBUS requires permission of the trade name holder. SIST EN 61784-5-6:2012

– 8 – 61784-5-6 © IEC:2010(E) The annex clauses and subclauses of this standard supplement, modify, or replace the respective clauses and subclauses in IEC 61918. Where there is no corresponding subclause of IEC 61918 in the normative annexes in this standard, the subclause of IEC 61918 applies without modification. The annex heading letter represents the installation profile assigned in Clause 4. The annex (sub)clause numbering following the annex letter shall represent the corresponding (sub)clause numbering of IEC 61918. EXAMPLE “Annex B.4.4” in IEC 61784-5-3 means that CP 3/2 specifies the Subclause 4.4 of IEC 61918. All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each normative installation profile annex. If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause applies. If in a (sub)clause it is written “Not applicable”, then the corresponding IEC 61918 (sub)clause does not apply. If in a (sub)clause it is written “Addition:”, then the corresponding IEC 61918 (sub)clause applies with the additions written in the profile. If in a (sub)clause it is written “Replacement:”, then the text provided in the profile replaces the text of the corresponding IEC 61918 (sub)clause. NOTE A replacement can also comprise additions. If in a (sub)clause it is written “Modification:”, then the corresponding IEC 61918 (sub)clause applies with the modifications written in the profile. If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written “(Sub)clause x has addition:” (or “replacement:”) or “(Sub)clause x is not applicable.”, then (sub)clause x becomes valid as declared and all the other corresponding IEC 61918 (sub)clauses apply. 6 Conformance to installation profiles Each installation profile within this standard includes part of IEC 61918:2010. It may also include defined additional specifications. A statement of compliance to an installation profile of this standard shall be stated2 as either Compliance to IEC 61784-5-6:2010 3 for CP 6/m or Compliance to IEC 61784-5-6 (Ed.2.0) for CP 6/m where the name within the angle brackets < > is optional and the angle brackets are not to be included. The m within CP 6/m shall be replaced by the profile number 1 to 2. NOTE The name may be the name of the profile, for example INTERBUS. If the name is a trade name then the permission of the trade name holder shall be required. ——————— 2
In accordance with ISO/IEC Directives 3 The date should not be used when the edition number is used. SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 9 – Product standards shall not include any conformity assessment aspects (including quality management provisions), neither normative nor informative, other than provisions for product testing (evaluation and examination). SIST EN 61784-5-6:2012

– 10 – 61784-5-6 © IEC:2010(E) Annex A
(normative)
CPF 6 Type 8 network specific installation profile
A.1 Installation profile scope Addition: This standard specifies the installation profile for CPF 6 Type 8 networks and the related Communication Profiles: • CP 6/1, CP 6/2, CP 6/3 - specified in IEC 61784-1;
• CP 6/4, CP 6/5, CP 6/6 - specified in IEC 61784-2;
• FSCP 6/7 - specified in IEC 61784-3-6. A.2 Normative references
Addition: IEC 60794-1-2:2003, Optical fibre cables – Part 1-2: Generic specification - Basic optical cable test procedures IEC 61156-1:2007, Multicore and symmetrical pair/quad cables for digital communications – Part 1: Generic specification IEC 61156-5 - Ed. 1.0, Multicore and symmetrical pair/quad cables for digital communications – Part 5: Symmetrical pair/quad cables with transmission characteristics up to 600 MHz – Horizontal floor wiring – Sectional specification IEC 60189-1:2007, Low-frequency cables and wires with PVC insulation and PVC sheath – Part 1: General test and measuring methods A.3 Installation profile terms, definitions, and abbreviated terms A.3.1 Terms and definitions Addition: A.3.1.1
bus coupler a device that divides the Type 8 network into segments by opening the ring and integrating another ring at this point A.3.1.2
local bus a ring segment of a Type 8 network with alternate media specifications, which is coupled to a remote bus device via a bus coupler
A.3.1.3
local bus device device that operates as a slave on a local bus SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 11 – A.3.1.4
master device that controls the data transfer on the Type 8 network and initiates the media access of the slaves by sending messages and that constitutes the interface to the control system A.3.1.5
remote bus
a ring segment of a network
A.3.1.6
remote bus
device operating as a slave on a remote bus A.3.1.7
remote bus link connection of two remote bus devices A.3.1.8
ring segment one section of a Type 8 network A.3.1.9
slave a device that accesses the medium only after it has been initiated by the preceding slave or master A.3.2 Abbreviated terms Addition: BC Bus coupler
COM Ground line /DI Incoming interface: send data line –
Outgoing interface: receive data line – DI Incoming interface: send data line +
Outgoing interface: receive data line + /DO Incoming interface: receive data line –
Outgoing interface: send data line - DO Incoming interface: receive data line +
Outgoing interface: send data line + PELV Protective Extra Low Voltage SELV Safety Extra Low Voltage A.3.3 Conventions for installation profiles Not applicable. SIST EN 61784-5-6:2012

– 12 – 61784-5-6 © IEC:2010(E) A.4 Installation planning A.4.1 Introduction
A.4.1.1 Objective A.4.1.2 Cabling in industrial premises A.4.1.3 The planning process A.4.1.4 Specific requirements for CPs Not applicable. A.4.1.5 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.2 Planning requirements A.4.2.1 Safety A.4.2.1.1 General A.4.2.1.2 Electric safety Addition: Power distribution system shall comply with IEC 60364-1 312.2.1 TN-S systems, i.e. earthed by bonding of bodies with separated conductors for neutral (N) and protection earth (PE). Otherwise there are additional efforts necessary to avoid currents on the shield, i.e. an a.c. earthed system on one end in a network with balanced cables or a network built with FO-cables. For networks built with OF-cables the power distribution system should comply with IEC 60364-1 312.2.1 TN S systems. PELV is the default version for the power supply with extra-low-voltage, but SELV may also be used. Temporary connected devices shall be powered by PELV or SELV. A.4.2.1.3 Functional safety A.4.2.1.4 Intrinsic safety Not applicable. A.4.2.1.5 Safety of optical fibre communication systems A.4.2.2 Security A.4.2.3 Environmental considerations and EMC A.4.2.3.1 Description methodology
A.4.2.3.2 Use of the described environment to produce a bill of material
Addition: To make fieldbus installation work easier for inexperienced planners, the user shall determine suitability of the components for the targeted environment through agreements with the component providers. The planner shall also observe the related technical data from the active devices. Depending on the expected environment he should define additional requirements. SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 13 – The planner shall take into account the mating or terminating interface of devices to be connected to the fieldbus network. The planner also shall take care about the environmental conditions of the whole Type 8 network and select suitable mitigation techniques in addition to meet the respective requirements. Products necessary for mitigation also shall be mentioned in the bill of material. A.4.2.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.3 Network capabilities A.4.3.1 Network topology A.4.3.1.1 Common description A.4.3.1.2 Basic physical topologies for passive networks Not applicable. A.4.3.1.3 Basic physical topologies for active networks
Replacement: For Type 8 networks only the ring topology specified in IEC 61158-2:2007 shall be used. NOTE The Type 8 ring topology is achieved with specific cables and resembles a linear tree topology. Futher explanation of the physical layer of Type 8 networks can be found in IEC 61158-2. A.4.3.1.4 Combination of basic topologies Replacement: The combination of several topologies may also be used according to A.4.3.1.5 A.4.3.1.5 Specific requirements for CPs Addition: The general structure is a ring topology with special cables to build tree like configurations. Bus couplers allow a branch from the remote bus to the local bus or to a further remote bus. Figure A.1 shows a Type 8 network structure example. There is no limit for the sub-leveling of remote buses. Only one local bus can be connected to a remote bus. A maximum from 63 devices can be connected to one local bus. SIST EN 61784-5-6:2012

– 14 – 61784-5-6 © IEC:2010(E)
Figure A.1 – Type 8 network structure example The remote bus link length (i.e. the cable between two devices on a remote bus link) shall be between 0 m and the maximum length for the used bit rate (see Table A.1). The local bus link length (i.e. the cable between two devices on a local bus link) shall be between 0 m and 10 m. Figure A.2 shows a Type 8 network configuration example with bus length indications.
BC a w2w2w1 w1 w2 w2 w2 w2 Master w Slave BC Slave Slave Slave Slave w2 Bus level 0 Bus level 1 aw1w2incoming interface of a slave first outgoing interface of a slave second outgoing interface of a slave woutgoing interface of the master KeyThe ring segment level is increased when the devicesare connected to w1.a a a a a a SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 15 – SlaveBCSlaveBCSlaveSlaveBCSlaveBCSlave Bus segment (max. 400 m)Remote bus (max. 12,8 km)Local bus branchRemote bus branchMasterRemote bus branch Figure A.2 – Example of a Type 8 network configuration
A.4.3.1.6 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.3.2 Network characteristics SIST EN 61784-5-6:2012

– 16 – 61784-5-6 © IEC:2010(E) A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Table A.1 provides values based on the template given in IEC 61918:2010, Table 1. Table A.1 – Basic network characteristics for balanced cabling not based on Ethernet Characteristic Type 8 network Basic transmission technology Type 8 Length / transmission speed
Segment length
m 500 kbit/s 400 m between nodes
a 2 Mbit/s 150 m between nodes
a
8 Mbit/s 125 m between nodes
a 16 Mbit/s 100 m between nodes
a Maximum capacity Max. No.
Devices / segment Remote Bus: 256
b
Local Bus: 63
b Number of devices / network
Remote Bus: 256
b
Local Bus: 256
b a The maximum length of a Type 8 network depends on the number of devices supported by the master and could be calculated by multiplication of link length by the number of devices. b The maximum number of all device in one Type 8 network is limited to 256.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Not applicable. A.4.3.2.4 Network characteristics for optical fibre cabling Replacement: Table A.2 provides values based on the template given in IEC 61918:2010, Table 3. SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 17 – Table A.2 – Network characteristics for optical fibre cabling Type 8 network Optical fibre type Description Standard IEC 60793-2-50; Type B1 Nominal transmission wavelength (nm) 1 310 nm Attenuation coefficient at
≤ 0,5 dB/km Alternative description Mode field
diameter (μm) 9 … 10 Cladding diameter (μm)
125 Minimum length (m) 0 Single mode silica Maximum length (m) 15 000 Standard IEC 60793-2-10; Type A1a Nominal transmission wavelength (nm) 1 300 nm Attenuation coefficient at
≤ 0,7 dB/km Modal bandwidth (MHz × km) at
600 Alternative description Core diameter (μm) 50 Cladding diameter (μm) 125 NA 0,20 Minimum length (m) 0 Multimode silica Maximum length (m) 3 000 Standard IEC 60793-2-10; Type A1b Nominal transmission wavelength (nm) 1 300 nm Attenuation coefficient at
≤ 0,7 dB/km Modal bandwidth (MHz × km) at
600 Alternative description Core diameter (μm) 62,5 Cladding diameter (μm) 125 NA 0,2 Minimum length (m) 0 Multimode silica Maximum length (m) 3 000 Standard
IEC 60793-2-40; Type A4a Nominal transmission wavelength (nm) 650 nm Attenuation coefficient at
≤ 170 dB/km Modal bandwidth (MHz × km) at
≥ 10 MHz × 100m Alternative description Core diameter (μm) 980 Cladding diameter (μm) 1 000 NA 0,5 ± 0,05 Minimum length (m) 0 POF Maximum length (m) 70 Standard
IEC 60793-2-30; Type A3c Nominal transmission wavelength (nm) 650 nm Attenuation coefficient at
≤ 10 dB/km Modal bandwidth (MHz × km) at
≥ 17 MHz × km Alternative description Core diameter (μm) 200 Cladding diameter (μm) 230 NA 0,37 Minimum Length (m) 0 Plastic clad silica Maximum Length (m) 400
– 18 – 61784-5-6 © IEC:2010(E) A.4.3.2.5 Specific network characteristics Not applicable. A.4.3.2.6 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.4 Selection and use of cabling components A.4.4.1 Cable selection A.4.4.1.1 Common description A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet based CPs
Not applicable. A.4.4.1.2.2 Copper cables for non Ethernet based CPs
Replacement: Table A.3 and
Table A.4 provide values based on the template given in IEC 61918:2010, Table 4 and Table 5. Table A.3 – Information relevant to balanced cable: fixed cables
Characteristic Type 8 network
Nominal impedance of cable (tolerance) 120 Ω ± 20 % at f= 0,064 MHz 100 Ω ± 15 Ω at f > 1 MHz Test method IEC 61156-1, 6.3.1 DCR of conductors max. 9,6 Ω / 100 m Test method IEC 60189-1, 8.1 DCR of shield Not defined Number of conductors 3 × 2, twisted pair Shielding Yes Colour code for conductor DO = yellow /DO = green DI = gray /DI = pink COM = brown Jacket colour requirements Green, RAL 6017 Jacket material Application dependant Resistance to harsh environment (e.g. UV, oil resist, LS0H)Cable types for different applications available Agency ratings Cable types with different ratings available Cross section min. 0,20 mm2
61784-5-6 © IEC:2010(E) – 19 – Characteristic Type 8 network
Dielectric strength - Conductor/conductor - Conductor/shield
1 000 Vr.m.s, 1 min 1 000 Vr.m.s, 1 min Test method IEC 60189-1, .8.2 Insulation resistance
(after dielectric strength test) min 150 MΩ for a cable of 1 km in length Test method IEC 60189-1, 8.3 Maximum transfer impedance - at 30 MHz
250 mΩ/m
Mutual capacitance (at 800 Hz) Max 60 nF for a cable of 1 km in length Test method IEC 60189-1, 8.4 Min. near end cross talk loss (NEXT) for a cable of 100 m - at 0,772 MHz - at 1 MHz - at 2 MHz - at 4 MHz - at 8 MHz - at 10 MHz - at 16 MHz - at 20 MHz
61 dB 59 dB 55 dB 50 dB 46 dB 44 dB 41 dB 40 dB Test method IEC 61156-1, 6.3.5 Max. attenuation for a cable of 100 m
- at 0,256 MHz - at 0,772 MHz - at 1 MHz - at 4 MHz - at 10 MHz - at 16 MHz - at 20 MHz
1,5 dB 2,4 dB 2,7 dB 5,2 dB 8,4 dB 11,2 dB 11,9 dB Test method IEC 61156-1, 6.3.3
Table A.4 – Information relevant to balanced cable: cords
Characteristic Type 8 network
Nominal impedance of cable (tolerance) 120 Ω ± 20 % at f= 0,064 MHz 100 Ω ± 15 Ω at f > 1 MHz Test method IEC 61156-1, 6.3.1 DCR of conductors max. 9,6 Ω / 100 m Test method IEC 60189-1, 8.1 DCR of shield Not defined Number of conductors 3 × 2, twisted pair Shielding Yes SIST EN 61784-5-6:2012

– 20 – 61784-5-6 © IEC:2010(E) Characteristic Type 8 network
Colour code for conductor DO = yellow /DO = green DI = gray /DI = pink COM = brown Jacket colour requirements Green, RAL 6017 Jacket material Application dependant Resistance to harsh environment (e.g. UV, oil resist, LS0H)Cable types for different applications available Agency ratings Cable types with different ratings available Cross section min. 0,20 mm2
Dielectric strength - Conductor/conductor - Conductor/shield
1 000 Vr.m.s, 1 min 1 000 Vr.m.s, 1 min Test method IEC 60189-1, 8.2 Insulation resistance
(after dielectric strength test) min 150 MΩ for a cable of 1 km in length Test method IEC 60189-1, 8.3 Maximum transfer impedance - at 30 MHz
250 mΩ/m Mutual capacitance (at 800 Hz) Max 60 nF for a cable of 1 km in length Test method IEC 60189-1, 8.4 Min. near end cross talk loss (NEXT) for a cable of 100 m - at 0,772 MHz - at 1 MHz - at 2 MHz - at 4 MHz - at 8 MHz - at 10 MHz - at 16 MHz - at 20 MHz
61 dB 59 dB 55 dB 50 dB 46 dB 44 dB 41 dB 40 dB Test method IEC 61156-1, 6.3.5 Max. attenuation for a cable of 100 m
- at 0,256 MHz - at 0,772 MHz - at 1 MHz - at 4 MHz - at 10 MHz - at 16 MHz - at 20 MHz
1,5 dB 2,4 dB 2,7 dB 5,2 dB 8,4 dB 11,2 dB 11,9 dB Test method IEC 61156-1, 6.3.3
A.4.4.1.3 Cables for wireless installation A.4.4.1.4 Optical fibre cables Addition: SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 21 – The cable shall be according to IEC 61158-2, 27.7.2 and 28.1. Polymer optical fibre cable shall be detailed according to IEC 61158-2, 28.6.2. Polymer clad optical fibre cable shall be detailed according to IEC 61158-2, 28.6.3. A.4.4.1.5 Special purpose balanced and optical fibre cables
Addition: The specification from additional mechanical data depends on the application. The electrical or optical data apply also for specific cabling (see Table A.5). Table A.5 – Remote bus fibre optic cable length Fibre type Minimum length Maximum length Polymer optical fibre 0 m 50 m (see notes 1, 2) Plastic clad silica fibre 0 m 300 m (see notes 1, 2) NOTE 1 This does not exclude longer distances between two devices e.g. by using receive circuits with a lower minimum optical receiver sensitivity than specified. NOTE 2 The maximum length may be reduced in cases where special cables with higher attenuation than the standard cables specified are used.
A.4.4.1.6 Specific requirements for CPs
Addition: The specification from additional mechanical data depends on the application. The electrical or optical data apply also for specific cabling. A.4.4.1.7 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.4.2 Connecting hardware selection A.4.4.2.1 Common description A.4.4.2.2 Connecting hardware for balanced cabling CPs based on Ethernet Not applicable. A.4.4.2.3 Connecting hardware for copper cabling CPs not based on Ethernet Replacement: Table A.6 provides values based on the template given in IEC 61918:2010, Table 8. SIST EN 61784-5-6:2012

– 22 – 61784-5-6 © IEC:2010(E) Table A.6 – Connectors for copper cabling CPs not based on Ethernet
IEC 60807-2 or IEC 60807-3 IEC 60947-5-2 or IEC 61076-2-101 IEC 61169-8 ANSI/NFPA T3.5.29 R1-2003
Others
Sub-D M12-5 with
A-coding M12-5 with B-coding M12-n withX-coding Coaxial (BNC) M 18 7/8-16 UN-2B THD Open style Terminal block M23, 9 pos CPF 6 Type 8 net work
Yes No Yes No No No No Yes Yes Yes a NOTE For M12-5 connectors, there are many applications using these connectors that are not compatible and when mixed may cause damage to the applications. a Hybrid connector as specified in IEC 61158-2, Annex M.3 A.4.4.2.4 Connecting hardware for wireless installation
A.4.4.2.5 Connecting hardware for optical fibre cabling
Replacement: Table A.7 provides values based on the template given in IEC 61918:2010 Table 9. Table A.7 – Optical fibre connecting hardware
IEC 61754-2 IEC 61754 -4 IEC 61754 -24 IEC 61754 -24-21 IEC 61754 -20 IEC 61754 -22 Others
BFOC 2,5 SC SC-RJ Sealed SC-RJ LC F-SMA Hybrid connec tor M12-FO CPF 6 Type 8 network Yes No Yes Yes No Yes Yes a Yes b NOTE IEC 61754 series define the optical fibre connector mechanical interfaces; performance specifications for optical fibre connectors terminated to specific fibre types are standardised in IEC 61753 series. a
As specified in IEC 61158-2, Annex M.3 b As defined in Figure B.1 and Figure B.2 of this standard. The M12-FO connector is under consideration for inclusion in the IEC 61754-24 series.
Replacement: Table A.8 provides values based on the template given in IEC 61918:2010, Table 10. SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 23 – Table A.8 – Relationship between FOC and fibre types (Type 8 networks)
Fibre type
9.10/125 m single mode silica 50/125 m multimode silica 62,5/125 m multimode silica
980/1 000 m step index POF 200/230 m step index hard clad silica Others BFOC/2,5 No No Yes No Yes No SC No No No No No No SC-RJ Yes Yes Yes Yes Yes No LC No No No No No No F-SMA No No No Yes Yes No Hybrid connector No No No Yes Yes No M12-FO Yes Yes Yes Yes Yes No
A.4.4.2.6 Specific requirements for CPs
Not applicable. A.4.4.2.7 Specific requirements for generic cabling in accordance with ISO/IEC 24702
Not applicable. A.4.4.3 Connections within a channel/permanent link A.4.4.3.1 Common description Not applicable. A.4.4.3.2 Balanced cabling connections and splices for CPs based on Ethernet Not applicable. A.4.4.3.3 Copper cabling connections and splices for CPs not based on Ethernet
A.4.4.3.3.1 Common description
Addition: Refer to manufacturers data sheet regarding the number of allowed connections. The number of allowed connections, adaptors and splices relates to the maximum channel attenuation. A.4.4.3.3.2 Connections minimum distance
A.4.4.3.3.3 Copper cabling splices A.4.4.3.3.4 Copper cabling bulkhead connections
A.4.4.3.3.5 Copper cabling J-J adaptors
A.4.4.3.4 Optical fibre cabling connections and splices for CPs based on Ethernet
Not applicable. SIST EN 61784-5-6:2012

– 24 – 61784-5-6 © IEC:2010(E) A.4.4.3.5 Optical fibre cabling connections and splices for CPs not based on Ethernet
Addition: The number of allowed connections and splices relates to the maximum channel attenuation. A.4.4.3.6 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. A.4.4.4 Terminators Not applicable. A.4.4.5 Device location and connection A.4.4.5.1 Common description A.4.4.5.2 Specific requirements for CPs
Not applicable. A.4.4.5.3 Specific requirements for wireless installation
A.4.4.5.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702
Not applicable. A.4.4.6 Coding and labelling A.4.4.6.1 Common description A.4.4.6.2 Additional requirements for CPs A.4.4.6.3 Specific requirements for CPs Addition: For balanced cables, the signal wires shall comply with colour codes specified in Table A.9. Table A.9 – Colour code for balanced cables used by Type 8 networks Signal Colour code DO YE /DO GN DI GY /DI PK COM BN
A.4.4.6.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702 Not applicable. SIST EN 61784-5-6:2012

61784-5-6 © IEC:2010(E) – 25 – A.4.4.7 Earthing and bonding of equipment and devices and shielded cabling A.4.4.7.1 Common description A.4.4.7.1.1 Basic requirements
Replacement: Earth potential differences between cabling end points will induce noise in the cabling system. This is especially true in shielded cabling systems. Controlling earth currents is extremely important in reducing interference caused by earth offsets. Shield currents shall be mitigated by using a proper earthing system and or proper shield termination techniques as defined in this standard and the relevant CPs. If this requirement cannot be met, then alternate media, such as optical fibre cables, or wireless, shall be considered. UTP cables shall not be used. A.4.4.7.1.2 Planner tasks
A.4.4.7.1.3 Methods for controlling potential differences in the earth system
A.4.4.7.1.4 Selection of the earthing and bonding systems
A.4.4.7.2 Bonding and earthing of enclosures and pathways A.4.4.7.2.1 Equalisation and earthing conductor sizing and l
...
