EN 12977-2:2012
(Main)Thermal solar systems and components - Custom built systems - Part 2: Test methods for solar water heaters and combisystems
Thermal solar systems and components - Custom built systems - Part 2: Test methods for solar water heaters and combisystems
This European Standard applies to small and large custom built solar heating systems with liquid heat transfer medium for residential buildings and similar applications, and gives test methods for verification of the requirements specified in EN 12977 1.
This document also includes a method for thermal performance characterization and system performance prediction of small custom built systems by means of component testing and system simulation.
Furthermore, this document contains methods for thermal performance characterization and system performance prediction of large custom built systems.
This document applies to the following types of small custom built solar heating systems:
- systems for domestic hot water preparation only;
- systems for space heating only;
- systems for domestic hot water preparation and space heating;
- others (e.g. including cooling).
This document applies to large custom built solar heating systems, primarily to solar preheat systems, with one or more storage vessels, heat exchangers, piping and automatic controls and with collector array(s) with forced circulation of fluid in the collector loop.
This document does not apply to
- systems with a store medium other than water (e.g. phase- change materials),
- thermosiphon systems,
- integral collector-storage (ICS) systems.
Thermische Solaranlagen und ihre Bauteile - Kundenspezifisch gefertigte Anlagen - Teil 2: Prüfverfahren für solar betriebene Warmwasserbereiter und Kombinationssysteme
Diese Europäische Norm gilt für kleine und große kundenspezifisch gefertigte thermische Solaranlagen mit flüssigem Wärmeträgermedium, die für den Einsatz in Wohnbauten und ähnliche Anwendungsfälle vorgese-hen sind, und gibt Prüfverfahren für die Verifizierung der Erfüllung der in EN 12977-1 festgelegten Anfor-derungen an. Dieses Dokument enthält auch ein Verfahren für die Charakterisierung der Wärmeleistung und die Vorher-sage der zu erwartenden Anlagenleistung kleiner kundenspezifisch gefertigter Anlagen durch Bauteilprüfung und Anlagensimulation. Darüber hinaus enthält dieses Dokument Verfahren für die Charakterisierung der Wärmeleistung und die Vorhersage der zu erwartenden Anlagenleistung großer kundenspezifisch gefertigter Anlagen. Dieses Dokument gilt für die folgenden Typen kleiner kundenspezifisch gefertigter thermischer Solaranlagen:
- ausschließlich für die häusliche Warmwasserbereitung verwendete Anlagen;
- ausschließlich für die Raumheizung verwendete Anlagen;
- für häusliche Warmwasserbereitung und Raumheizung verwendete Anlagen;
- sonstige Anlagen (z. B. einschließlich Kühlung). Dieses Dokument gilt für große kundenspezifisch gefertigte thermische Solaranlagen, hauptsächlich für solare Vorwärmanlagen mit einem oder mehreren Speichern, Wärmeaustauschern, Rohrleitungen und automati-schen Reglern und einer oder mehreren Kollektorgruppen mit erzwungener Umwälzung des Fluids im Kollek-torkreislauf.
EN 12977-2:2012 (D)Dieses Dokument gilt nicht für
- Anlagen, die ein anderes Speichermedium als Wasser verwenden (z. B. Material für Phasenumwand-lung),
- Thermosiphon-Anlagen,
- integrierte Kollektor-Speicher(ICS)-Anlagen.
Installations solaires thermiques et leurs composants - Installations assemblées à façon - Partie 2: Méthodes d'essai pour chauffe-eau solaires et installations solaires combinées
La présente Norme européenne s’applique aux petites et grandes installations de chauffage solaire
assemblées à façon, à liquide caloporteur, utilisées dans les bâtiments résidentiels et applications similaires,
et il présente des méthodes d’essai permettant de vérifier les exigences spécifiées dans le EN 12977-1.
Le présent document comprend également une méthode de caractérisation des performances thermiques et
de prévision des performances des petites installations assemblées à façon à l’aide d’essais des composants
et de simulation de l’installation.
Par ailleurs, le présent document contient des méthodes pour la caractérisation des performances thermiques
et la prévision des performances des grandes installations assemblées à façon.
Le présent document s’applique aux types suivants de petites installations de chauffage solaire assemblées à
façon :
- installations pour la production d’eau chaude sanitaire exclusivement ;
- installations pour le chauffage des locaux uniquement ;
- installations pour la production d’eau chaude sanitaire et le chauffage des locaux ;
- autres (par exemple, y compris le refroidissement).
Le présent document s’applique aux grandes installations de chauffage solaire assemblées à façon,
principalement aux installations à préchauffage, munies d’une ou de plusieurs cuves de stockage, échangeurs
de chaleur, canalisations et dispositifs de régulation automatique, et d’un ou de plusieurs champs de capteurs
à circulation forcée de fluide dans la boucle de captage.
Le présent document ne s’applique pas aux :
- installations ayant un autre milieu de stockage que l’eau (par exemple, matériaux à changement de
phase) ;
- installations à thermosiphon ;
- installations à capteurs autostockeurs (ICS).
Toplotni sončni sistemi in sestavni deli - Neserijsko izdelani sistemi - 2. del: Preskusne metode za sončne grelnike vode in kombinirane sisteme
Ta evropski standard se uporablja za majhne in velike neserijsko izdelane sončne ogrevalne sisteme s tekočim sredstvom za prenos toplote za stanovanjske zgradbe in podobne uporabe ter določa preskusne metode za preverjanje zahtev iz standarda FprEN 12977-1. Dokument vsebuje tudi metodo za definicijo toplotne učinkovitosti in predvidevanje sistemske učinkovitosti majhnih neserijsko izdelanih sistemov s pomočjo preskušanja sestavnih delov in simulacije sistema. Poleg tega dokument vsebuje metode za definicijo toplotne učinkovitosti in predvidevanje sistemske učinkovitosti velikih neserijsko izdelanih sistemov. Ta dokument se uporablja za naslednje vrste majhnih neserijsko izdelanih sončnih ogrevalnih sistemov: sisteme za pripravo tople vode v gospodinjstvih, sisteme, namenjene le za segrevanje prostorov, sisteme za pripravo tople vode v gospodinjstvih in segrevanje prostorov ter druge sisteme (npr. vključno s hlajenjem). Ta dokument se uporablja za velike neserijsko izdelane sončne ogrevalne sisteme, predvsem za sončne predogrevalne sisteme, z eno ali več posodami za shranjevanje, toplotnimi prenosniki, ocevjem in samodejnim krmiljenjem ter kolektorskimi polji s prisilnim kroženjem tekočine v zanki kolektorja. Ta dokument se ne uporablja za sisteme, ki kot sredstvo shranjevanja uporabljajo druga sredstva namesto vode (npr. fazno spremenljive materiale), termosifonske sisteme in sisteme integralnega kolektorskega shranjevanja (ICS).
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermische Solaranlagen und ihre Bauteile - Kundenspezifisch gefertigte Anlagen - Teil 2: Prüfverfahren für solar betriebene Warmwasserbereiter und KombinationssystemeInstallations solaires thermiques et leurs composants - Installations assemblées à façon -
Partie 2: Méthodes d'essai pour chauffe-eau solaires et installations solaires combinéesThermal solar systems and components - Custom built systems - Part 2: Test methods for solar water heaters and combisystems91.140.65Oprema za ogrevanje vodeWater heating equipment91.140.10Sistemi centralnega ogrevanjaCentral heating systems27.160Solar energy engineeringICS:Ta slovenski standard je istoveten z:EN 12977-2:2012SIST EN 12977-2:2012en,fr,de01-julij-2012SIST EN 12977-2:2012SLOVENSKI
STANDARDSIST-TS CEN/TS 12977-2:20101DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12977-2
April 2012 ICS 27.160 Supersedes CEN/TS 12977-2:2010English Version
Thermal solar systems and components - Custom built systems - Part 2: Test methods for solar water heaters and combisystems
Installations solaires thermiques et leurs composants - Installations assemblées à façon - Partie 2: Méthodes d'essai pour chauffe-eau solaires et installations solaires combinées
Thermische Solaranlagen und ihre Bauteile - Kundenspezifisch gefertigte Anlagen - Teil 2: Prüfverfahren für solar betriebene Warmwasserbereiter und Kombinationssysteme This European Standard was approved by CEN on 19 February 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12977-2:2012: ESIST EN 12977-2:2012

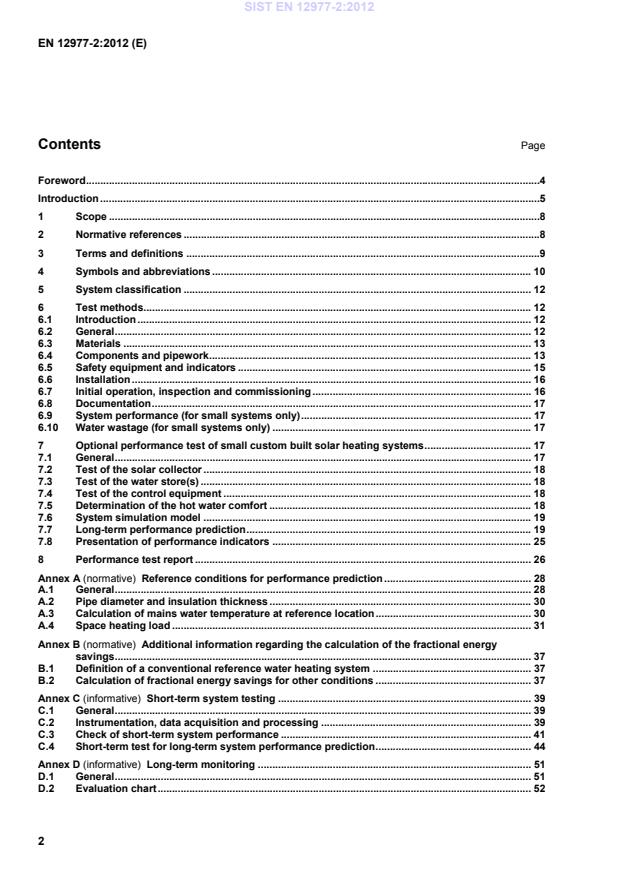

Reference conditions for performance prediction . 28A.1General . 28A.2Pipe diameter and insulation thickness . 30A.3Calculation of mains water temperature at reference location . 30A.4Space heating load . 31Annex B (normative)
Additional information regarding the calculation of the fractional energy savings . 37B.1Definition of a conventional reference water heating system . 37B.2Calculation of fractional energy savings for other conditions . 37Annex C (informative)
Short-term system testing . 39C.1General . 39C.2Instrumentation, data acquisition and processing . 39C.3Check of short-term system performance . 41C.4Short-term test for long-term system performance prediction . 44Annex D (informative)
Long-term monitoring . 51D.1General . 51D.2Evaluation chart . 52SIST EN 12977-2:2012
Determination of water wastage . 53Bibliography . 54 Figures Figure 1 — Energy balance for one-store and two-store solar-plus-supplementary systems . 21Figure 2 — Comparison of the gross auxiliary energy demand of the solar heating system, Qaux, to the gross energy demand of the conventional heating system, Qconv . 22Figure 3 — Energy balance for solar only systems . 24Figure 4 — Energy balance for solar preheat systems . 25Figure C.1 — Principle of the short term system performance check: Check and intercomparison of useful energy gain . 41Figure C.2 — Principle of the short-term test and of the subsequent long term system performance prediction . 45Figure C.3 — Example of the predicted performance dependence on load level and irradiation for a solar domestic hot water heating system (see [8]) . 50 Tables Table 1 — Division for factory made and custom built solar heating systems . 6Table 2 — Symbols, definition and unit (1 of 2) . 10Table 2 — Symbols, definition and unit (2 of 2) . 11Table 3 — Presentation of system performance indicators for solar-plus-supplementary systems . 26Table 4 — Presentation of system performance indicators for solar-only and solar preheat systems . 26Table A.1 — Reference conditions for performance presentation (1 of 2) . 28Table A.1 — Reference conditions for performance presentation (2 of 2) . 29Table A.2 — External pipe diameter and insulation thickness for forced-circulation systems . 30Table A.3 — Data for calculation of the mains water temperature at the reference locations . 31Table A.4 — Space heating load file for Stockholm. 32Table A.5 — Space heating load file for Davos . 33Table A.6 — Space heating load file for Würzburg (1 of 2) . 34Table A.6 — Space heating load file for Würzburg (2 of 2) . 35Table A.7 — Space heating load file for Athens – Example to be updated . 36Table C.1 — Variables to be measured and corresponding maximum sampling intervals . 43Table C.2 — Variables to be measured during system test, and corresponding maximum sampling intervals . 46Table C.3 — Range of variations of the driving variables to be scanned during a test outdoors . 47Table C.4 — Permissible standard deviation for secondary collector parameters . 49 SIST EN 12977-2:2012
...
