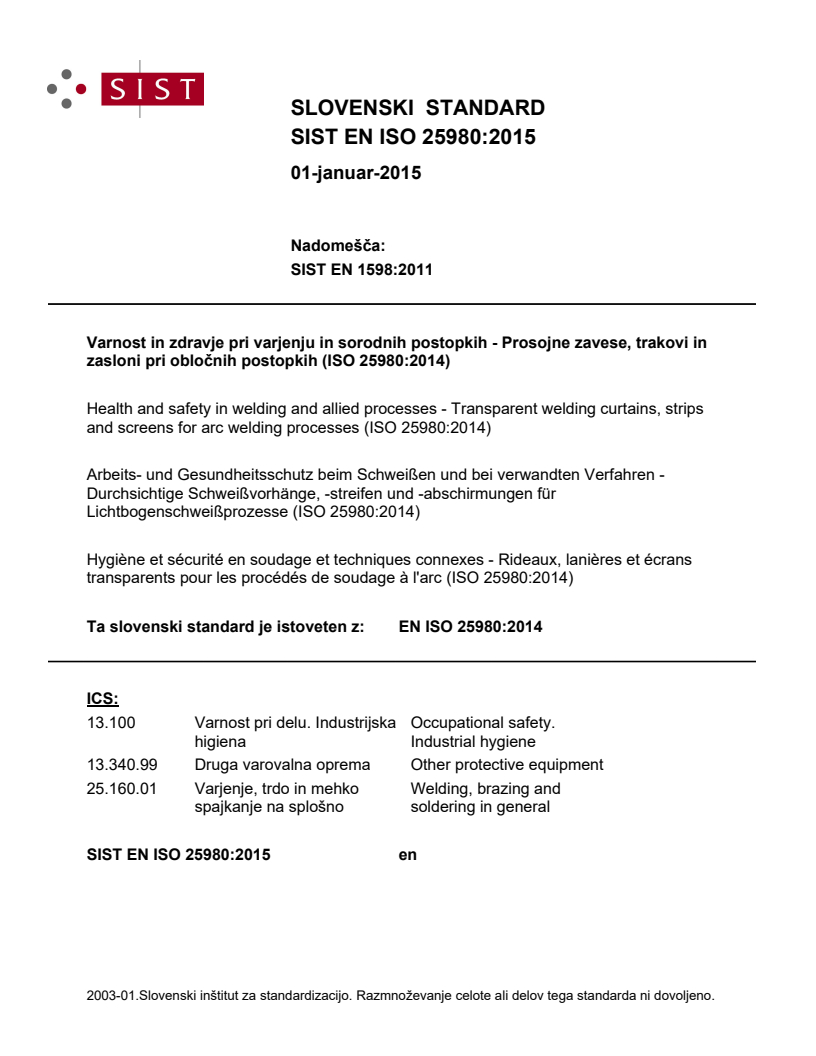

EN ISO 25980:2014

SLOVENSKI STANDARD
01-januar-2015
1DGRPHãþD
SIST EN 1598:2011
9DUQRVWLQ]GUDYMHSULYDUMHQMXLQVRURGQLKSRVWRSNLK3URVRMQH]DYHVHWUDNRYLLQ
]DVORQLSULREORþQLKSRVWRSNLK,62
Health and safety in welding and allied processes - Transparent welding curtains, strips
and screens for arc welding processes (ISO 25980:2014)
Arbeits- und Gesundheitsschutz beim Schweißen und bei verwandten Verfahren -
Durchsichtige Schweißvorhänge, -streifen und -abschirmungen für
Lichtbogenschweißprozesse (ISO 25980:2014)
Hygiène et sécurité en soudage et techniques connexes - Rideaux, lanières et écrans
transparents pour les procédés de soudage à l'arc (ISO 25980:2014)
Ta slovenski standard je istoveten z: EN ISO 25980:2014
ICS:
13.100 Varnost pri delu. Industrijska Occupational safety.
higiena Industrial hygiene
13.340.99 Druga varovalna oprema Other protective equipment
25.160.01 Varjenje, trdo in mehko Welding, brazing and
spajkanje na splošno soldering in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

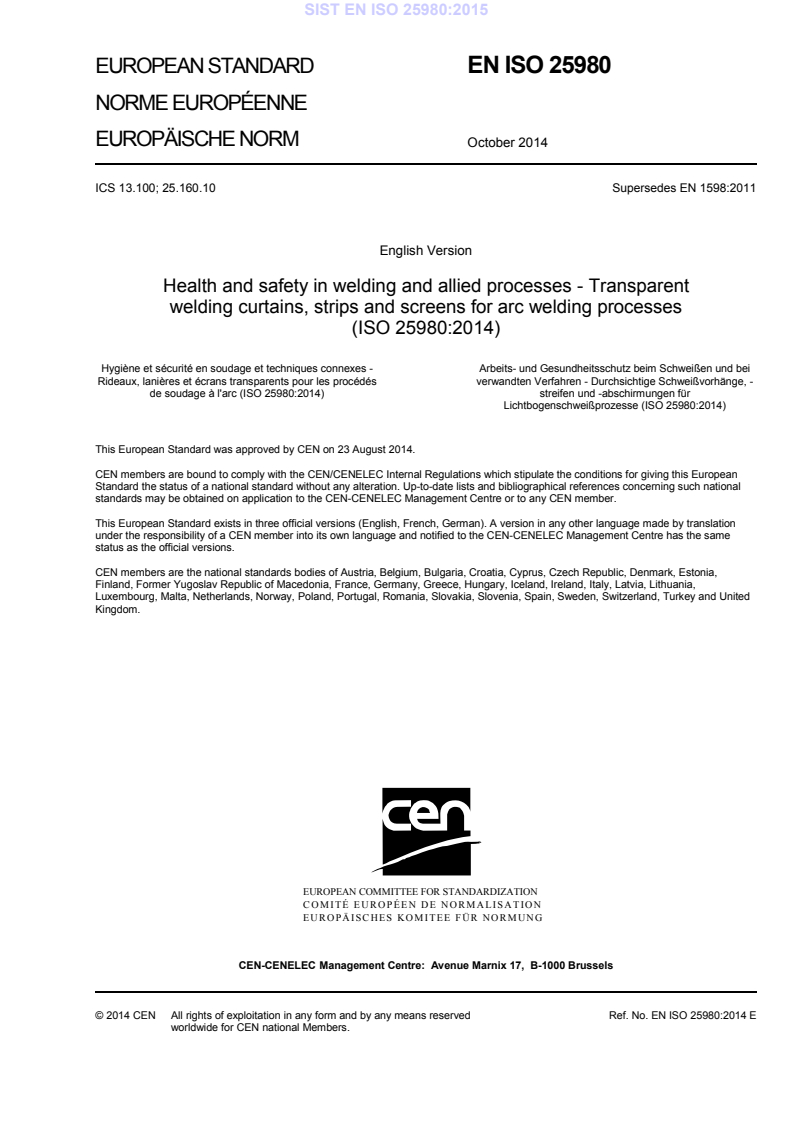

EUROPEAN STANDARD
EN ISO 25980
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 13.100; 25.160.10 Supersedes EN 1598:2011
English Version
Health and safety in welding and allied processes - Transparent
welding curtains, strips and screens for arc welding processes
(ISO 25980:2014)
Hygiène et sécurité en soudage et techniques connexes - Arbeits- und Gesundheitsschutz beim Schweißen und bei
Rideaux, lanières et écrans transparents pour les procédés verwandten Verfahren - Durchsichtige Schweißvorhänge, -
de soudage à l'arc (ISO 25980:2014) streifen und -abschirmungen für
Lichtbogenschweißprozesse (ISO 25980:2014)
This European Standard was approved by CEN on 23 August 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 25980:2014 E
worldwide for CEN national Members.

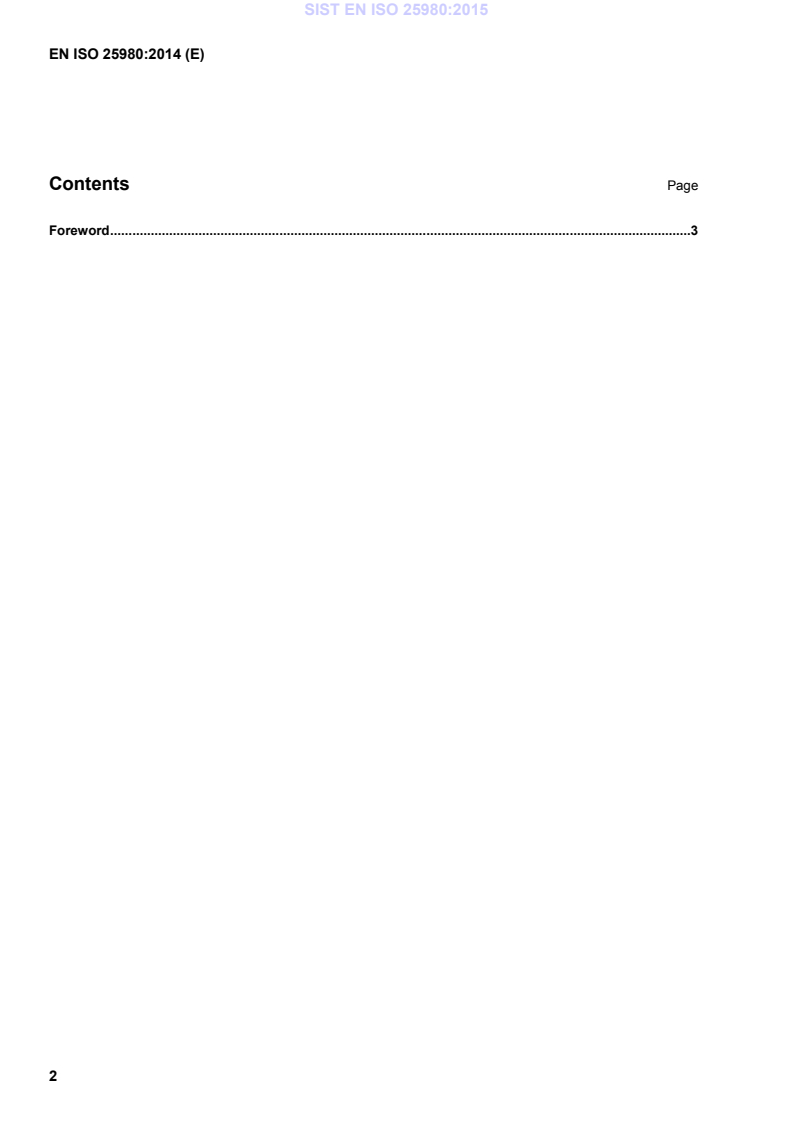

Contents Page
Foreword .3

Foreword
This document (EN ISO 25980:2014) has been prepared by Technical Committee ISO/TC 44 "Welding and
allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding” the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2015, and conflicting national standards shall be withdrawn at the
latest by April 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1598:2011.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 25980:2014 has been approved by CEN as EN ISO 25980:2014 without any modification.
INTERNATIONAL ISO
STANDARD 25980
First edition
2014-10-01
Health and safety in welding and
allied processes — Transparent
welding curtains, strips and screens
for arc welding processes
Hygiène et sécurité en soudage et techniques connexes — Rideaux,
lanières et écrans transparents pour les procédés de soudage à l’arc
Reference number
ISO 25980:2014(E)
©
ISO 2014
ISO 25980:2014(E)
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

ISO 25980:2014(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 1
4.1 General . 1
4.2 Transmittance . 2
4.3 Reflectance . 3
4.4 UV-Stability . 3
4.5 Resistance to ignition . 3
4.6 Eyelet strength . 5
5 Marking . 6
6 Information for users . 7
Bibliography . 8
ISO 25980:2014(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 44, Welding and allied processes, Subcommittee
SC 9, Health and safety.
iv © ISO 2014 – All rights reserved

INTERNATIONAL STANDARD ISO 25980:2014(E)
Health and safety in welding and allied processes —
Transparent welding curtains, strips and screens for arc
welding processes
1 Scope
This International Standard specifies safety requirements for transparent welding curtains, strips, and
screens to be used for shielding of work places from their surroundings where arc welding processes are
used. They are designed to protect people who are not involved in the welding process from hazardous
radiant emissions from welding arcs and spatter.
Welding curtains, strips, and screens specified in this International Standard are not intended to replace
welding filters. For intentional viewing of welding arcs other means of protection are used.
This International Standard is not applicable for welding processes where laser radiation is used.
NOTE Darker welding curtains or screens are advisable for mutual separation of adjacent work places for
reasons of comfort.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 4007:2012, Personal protective equipment — Eye and face protection — Vocabulary
ISO 11664-2:2007, Colorimetry — Part 2: CIE standard illuminants
EN 167, Personal eye-protection — Optical test methods
EN 168, Personal eye-protection — Non-optical test methods
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4007 and the following apply.
3.1
transparent
characteristic of welding curtains, strips, and screens that admit visibility to the working place without
implying to be glass clear
3.2
hazard level
G
dimensionless number representing the risk exposition to visible and near IR radiations
4 Requirements
4.1 General
For transparent welding curtains, strips, and screens consisting of different materials, all requirements
for the whole material combination shall be met.
ISO 25980:2014(E)
For optical test methods, see EN 167.
After preparation, the test specimens shall be maintained at a temperature of (23 ± 5) °C and relative
humidity of (65 ± 10) % for a minimum of 16 h before testing.
4.2 Transmittance
The luminous transmittance, r, based on the spectral distribution of CIE standard illuminant A according
−6
to ISO 4007 shall be greater than 1 × 10 scattered light diffused within 1° to the direction of the
incident radiation shall be included in the measurement.
The spectral transmittance in the wavelength range between 210 nm and 313 nm shall be less than
−5 −2
2 × 10 , in the wavelength range between 313 nm and 400 nm less than 3 × 10 .
In the wavelength range from 400 nm to 1 400 nm the hazard level G shall be less than 1.
The hazard level is defined by
1 1400
G= G λτ⋅ λλ⋅Δ (1)
() ()
∑ ii
λ =400
C i
where
λ is the individual wavel
...
