EN 14035-8:2004
(Main)Fireworks - Part 8: Bengal sticks - Specification and test methods
Fireworks - Part 8: Bengal sticks - Specification and test methods
This document specifies requirements for the construction, performance, primary packaging and labelling of Bengal sticks and the corresponding test methods. It is applicable to fireworks which are classified as Bengal sticks in categories 1 and 2 in EN 14035-2 and which are contained in a primary pack.
It is not applicable to Bengal sticks containing pyrotechnic composition that includes any of the following substances:
- arsenic or arsenic compounds;
- mixtures containing a mass fraction of chlorates greater than 80 %;
- mixtures of chlorates with metals;
- mixtures of chlorates with red phosphorus;
- mixtures of chlorates with potassium hexacyanoferrate(II);
- mixtures of chlorates with sulfur;
- mixtures of chlorates with sulfides;
- lead or lead compounds;
- mercury compounds;
- white phosphorus;
- picrates or picric acid;
- potassium chlorate with a mass fraction of bromates greater than 0,15 %;
- sulfur with an acidity, expressed in mass fraction of sulphuric acid, greater than 0,002 %;
- zirconium with a particle size of less than 40 mm.
NOTE In EN 14035-2, Bengal sticks are classified as follows:
- brief description: wooden stick partially coated (along one end) with slow-burning pyrotechnic composition and designed to be held in the hand;
- principal effects: emission of coloured flames and sparks.
Schemes for type testing of Bengal sticks and batch testing of Bengal sticks are specified in annex A and annex B respectively.
Requirements for construction, performance, labelling, sampling and testing of Bengal sticks
Feuerwerkskörper - Teil 8: Bengalfackeln - Anforderungen und Prüfverfahren
Dieses Dokument legt Anforderungen an die Konstruktion, Funktion, kleinste Verpackungseinheit und Beschriftung von Bengalfackeln und die entsprechenden Prüfverfahren fest. Es gilt für Feuerwerkskörper, die als Bengalfackeln in die Kategorien 1 und 2 in der EN 14035-2 eingruppiert sind und die sich in einer Ursprungsverpackung befinden.
Es gilt nicht für Bengalfackeln, die pyrotechnischen Satz enthalten, in dem eine der nachfolgend aufgeführten Substanzen enthalten ist:
Arsen und Arsenverbindungen,
Blei und Bleiverbindungen,
Kaliumchlorat mit einem Massenanteil an Bromaten von mehr als 0,15 %,
Mischungen mit einem Massenanteil an Chloraten von mehr als 80 %,
Mischungen von Chloraten mit Metallen,
Mischungen von Chloraten mit rotem Phosphor,
Mischungen von Chloraten mit Kaliumhexacyanoferrat(II),
Mischungen von Chloraten mit Schwefel,
Mischungen von Chloraten mit Sulfiden,
Pikrate und Pikrinsäure,
Quecksilberverbindungen,
weißer Phosphor,
Schwefel mit einem Massenanteil an freier Säure (angegeben als H2SO4) von mehr als 0,002 %,
Zirkon mit einer Korngröße von weniger als 40 mm.
ANMERKUNG In EN 14035-2 sind Bengalfackeln wie folgt klassifiziert:
Kurzbeschreibung: Holzstab, der teilweise (an einem Ende) mit einem langsam abbrennenden pyrotechnischen Satz überzogen ist und der zum Halten in der Hand vorgesehen ist;
Hauptwirkungen: Erzeugung von farbigen Flammen und Funken.
Übersichten für die Typ-Prüfung von Bengalfackeln und die Los-Prüfung von Bengalfackeln sind in Anhang A beziehungsweise Anhang B angegeben.
Artifices de divertissement - Partie 8: Baguettes Bengale - Spécifications et méthodes d'essai
Le présent document spécifie les exigences relatives à la construction, aux performances à l'emballage primaire et à l'étiquetage des baguettes Bengale ainsi que les méthodes d'essai correspondantes. Elle s'applique aux artifices de divertissement qui sont classés comme baguettes Bengale de catégories 1 et 2 dans l'EN 14035-2 et qui sont contenus dans un emballage primaire.
Elle ne s'applique pas aux baguettes Bengale dont la composition pyrotechnique comprend l'une des substances suivantes :
¾ arsenic ou composés d'arsenic ;
¾ mélanges contenant une fraction en masse de chlorates supérieure à 80 % ;
¾ mélanges de chlorates et de métaux ;
¾ mélanges de chlorates et de phosphore rouge ;
¾ mélanges de chlorates et d'hexacyanoferrate(II) de potassium ;
¾ mélanges de chlorates et de soufre ;
¾ mélanges de chlorates et de sulfures ;
¾ plomb ou composés de plomb ;
¾ composés de mercure ;
¾ phosphore blanc ;
¾ picrates ou acide picrique ;
¾ chlorate de potassium comprenant une fraction en masse de bromates supérieure à 0,15 % ;
¾ soufre ayant une acidité, exprimée en fraction en masse d'acide sulfurique, supérieure à 0,002 % ;
¾ zirconium ayant une taille de particule inférieure à 40 mm ;
NOTE Dans l'EN 14035-2, les baguettes Bengale sont classées comme suit :
¾ description abrégée : Baguette en bois partiellement recouverte (à une extrémité) de composition pyrotechnique à combustion lente et conçue pour être tenue dans la main ;
¾ effets principaux : Émission de flammes et/ou d'étincelles colorées.
Les schémas d'essais de type et d'essais de lot des baguettes Bengale sont respectivement spécifiés dans l'Annexe A et l'Annexe B.
Ognjemet – 8. del: Bengalske bakle – Specifikacija in preskusne metode
General Information
- Status
- Withdrawn
- Publication Date
- 17-Aug-2004
- Withdrawal Date
- 28-Sep-2010
- Technical Committee
- CEN/TC 212 - Fireworks
- Drafting Committee
- CEN/TC 212 - Fireworks
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 29-Sep-2010
- Completion Date
- 29-Sep-2010
Relations
- Replaced By
EN 15947-4:2010 - Pyrotechnic articles - Fireworks, Categories 1, 2 and 3 - Part 4: Test methods - Effective Date
- 08-Jun-2022
- Effective Date
- 08-Jun-2022
- Effective Date
- 08-Jun-2022
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Eurofins Food Testing Global
Global leader in food, environment, and pharmaceutical product testing.
Intertek Bangladesh
Intertek certification and testing services in Bangladesh.
Intertek Textile Testing
Global textile testing and certification.
Sponsored listings
Frequently Asked Questions
EN 14035-8:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Fireworks - Part 8: Bengal sticks - Specification and test methods". This standard covers: This document specifies requirements for the construction, performance, primary packaging and labelling of Bengal sticks and the corresponding test methods. It is applicable to fireworks which are classified as Bengal sticks in categories 1 and 2 in EN 14035-2 and which are contained in a primary pack. It is not applicable to Bengal sticks containing pyrotechnic composition that includes any of the following substances: - arsenic or arsenic compounds; - mixtures containing a mass fraction of chlorates greater than 80 %; - mixtures of chlorates with metals; - mixtures of chlorates with red phosphorus; - mixtures of chlorates with potassium hexacyanoferrate(II); - mixtures of chlorates with sulfur; - mixtures of chlorates with sulfides; - lead or lead compounds; - mercury compounds; - white phosphorus; - picrates or picric acid; - potassium chlorate with a mass fraction of bromates greater than 0,15 %; - sulfur with an acidity, expressed in mass fraction of sulphuric acid, greater than 0,002 %; - zirconium with a particle size of less than 40 mm. NOTE In EN 14035-2, Bengal sticks are classified as follows: - brief description: wooden stick partially coated (along one end) with slow-burning pyrotechnic composition and designed to be held in the hand; - principal effects: emission of coloured flames and sparks. Schemes for type testing of Bengal sticks and batch testing of Bengal sticks are specified in annex A and annex B respectively. Requirements for construction, performance, labelling, sampling and testing of Bengal sticks
This document specifies requirements for the construction, performance, primary packaging and labelling of Bengal sticks and the corresponding test methods. It is applicable to fireworks which are classified as Bengal sticks in categories 1 and 2 in EN 14035-2 and which are contained in a primary pack. It is not applicable to Bengal sticks containing pyrotechnic composition that includes any of the following substances: - arsenic or arsenic compounds; - mixtures containing a mass fraction of chlorates greater than 80 %; - mixtures of chlorates with metals; - mixtures of chlorates with red phosphorus; - mixtures of chlorates with potassium hexacyanoferrate(II); - mixtures of chlorates with sulfur; - mixtures of chlorates with sulfides; - lead or lead compounds; - mercury compounds; - white phosphorus; - picrates or picric acid; - potassium chlorate with a mass fraction of bromates greater than 0,15 %; - sulfur with an acidity, expressed in mass fraction of sulphuric acid, greater than 0,002 %; - zirconium with a particle size of less than 40 mm. NOTE In EN 14035-2, Bengal sticks are classified as follows: - brief description: wooden stick partially coated (along one end) with slow-burning pyrotechnic composition and designed to be held in the hand; - principal effects: emission of coloured flames and sparks. Schemes for type testing of Bengal sticks and batch testing of Bengal sticks are specified in annex A and annex B respectively. Requirements for construction, performance, labelling, sampling and testing of Bengal sticks
EN 14035-8:2004 is classified under the following ICS (International Classification for Standards) categories: 71.100.30 - Explosives. Pyrotechnics and fireworks. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14035-8:2004 has the following relationships with other standards: It is inter standard links to EN 15947-4:2010, EN 15947-5:2010, EN 15947-3:2010, EN 4840-101:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14035-8:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

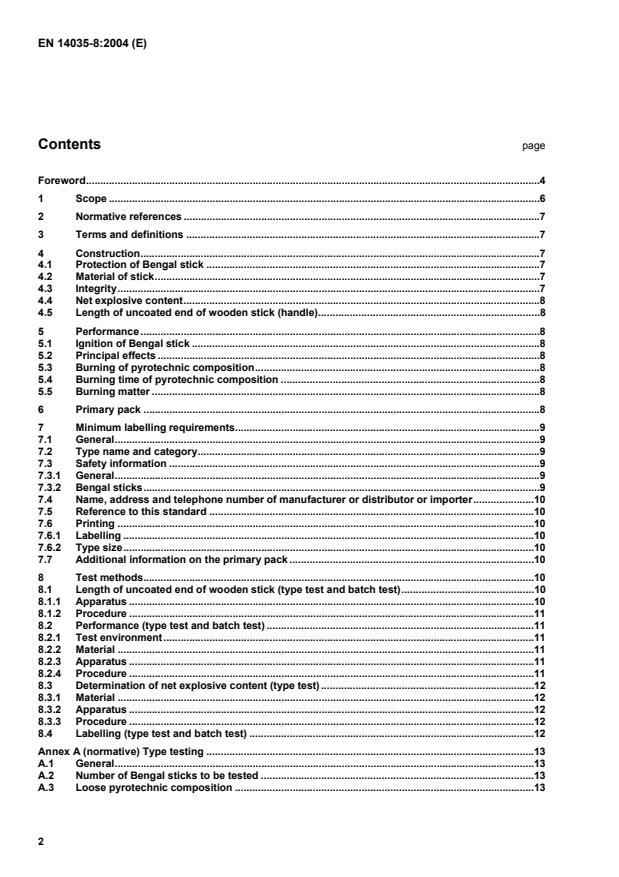

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fireworks - Part 8: Bengal sticks - Specification and test methodsOgnjemet – 8. del: Bengalske bakle – Specifikacija in preskusne metodeArtifices de divertissement - Partie 8: Baguettes Bengale - Spécifications et méthodes d'essaiFeuerwerkskörper - Teil 8: Bengalfackeln - Anforderungen und PrüfverfahrenTa slovenski standard je istoveten z:EN 14035-8:2004SIST EN 14035-8:2004en71.100.30ICS:SLOVENSKI
STANDARDSIST EN 14035-8:200401-november-2004
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14035-8August 2004ICS 71.100.30English versionFireworks - Part 8: Bengal sticks - Specification and testmethodsArtifices de divertissement - Partie 8: Baguettes Bengale -Spécifications et méthodes d'essaiFeuerwerkskörper - Teil 8: Bengalfackeln - Anforderungenund PrüfverfahrenThis European Standard was approved by CEN on 14 June 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14035-8:2004: E
EN 1783, Matches - Performance requirements, safety and classification. EN 14035-1:2003, Fireworks — Part 1: Terminology. EN 14035-2, Fireworks — Part 2: Categorisation. EN 20187, Paper, board and pulps - Standard atmosphere for conditioning and testing and procedure for monitoring the atmosphere and conditioning of samples (ISO 187:1990). EN ISO 536, Paper and board - Determination of grammage (ISO 536:1995). EN ISO 845, Cellular plastics and rubbers — Determination of apparent (bulk) density (ISO 845:1988). EN ISO 868, Plastics and ebonite - Determination of indentation hardness by means of a durometer (Shore hardness) (ISO 868:2003). EN ISO 2439, Flexible cellular polymeric materials - Determination of hardness (indentation technique) (ISO 2439:1997, including Technical Corrigendum 1:1998). ISO 2859-1, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection. 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 14035-1:2003 apply. 4 Construction NOTE Bengal sticks usually do not have an initial fuse (producing the principal effects immediately after ignition). 4.1 Protection of Bengal stick The Bengal stick shall be contained in a primary pack conforming to 6. Conformity to this requirement shall be verified by visual examination. 4.2 Material of stick The stick of a Bengal stick shall be made of wood. Conformity to this requirement shall be verified by visual examination. 4.3 Integrity The wooden stick shall have no splits. Conformity to this requirement shall be verified by visual examination.
— of his authorized distributor; or — if the manufacturer is not established in a CEN member country, of the importer in a CEN member country. The address shall comprise at least the town and the country. 7.5 Reference to this standard A primary pack shall be marked with the words 'Contents conform to EN 14035-8’. 7.6 Printing 7.6.1 Labelling Labelling shall be clearly visible, easily legible, indelible and on a single-colour background. NOTE Printing errors which are not misleading should not be classified as faults. 7.6.2 Type size When measured in accordance with 8.4, the type sizes shall be such that the height of the characte
...
