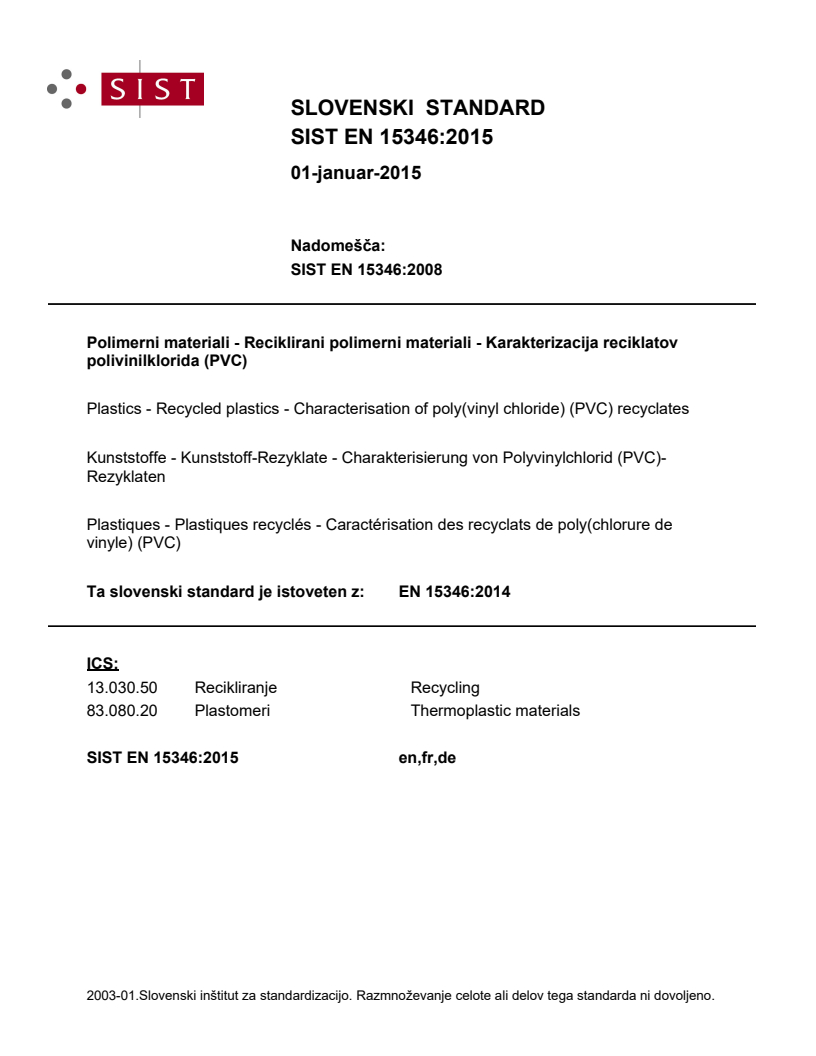

EN 15346:2014

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Polimerni materiali - Reciklirani polimerni materiali - Karakterizacija reciklatov polivinilklorida (PVC)Kunststoffe - Kunststoff-Rezyklate - Charakterisierung von Polyvinylchlorid (PVC)-RezyklatenPlastiques - Plastiques recyclés - Caractérisation des recyclats de poly(chlorure de vinyle) (PVC)Plastics - Recycled plastics - Characterisation of poly(vinyl chloride) (PVC) recyclates83.080.20PlastomeriThermoplastic materials13.030.50RecikliranjeRecyclingICS:Ta slovenski standard je istoveten z:EN 15346:2014SIST EN 15346:2015en,fr,de01-januar-2015SIST EN 15346:2015SLOVENSKI
STANDARDSIST EN 15346:20081DGRPHãþD

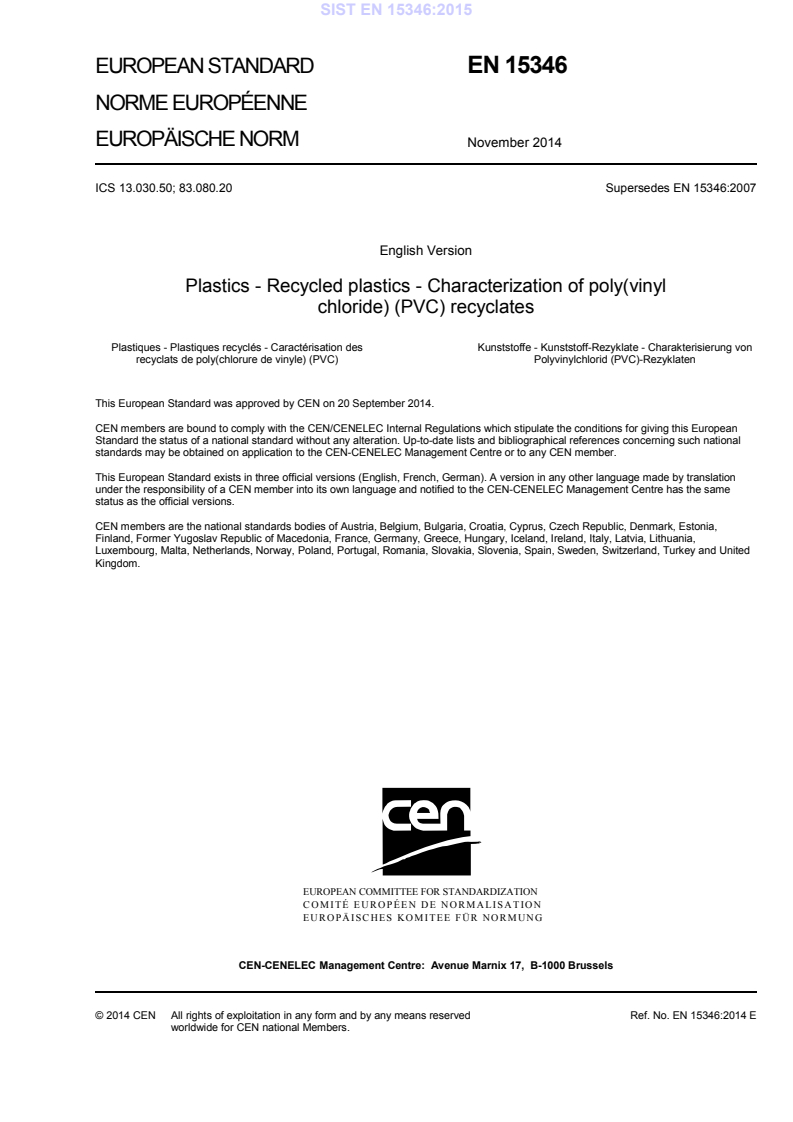

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15346
November 2014 ICS 13.030.50; 83.080.20 Supersedes EN 15346:2007English Version
Plastics - Recycled plastics - Characterization of poly(vinyl chloride) (PVC) recyclates
Plastiques - Plastiques recyclés - Caractérisation des recyclats de poly(chlorure de vinyle) (PVC)
Kunststoffe - Kunststoff-Rezyklate - Charakterisierung von Polyvinylchlorid (PVC)-Rezyklaten This European Standard was approved by CEN on 20 September 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15346:2014 ESIST EN 15346:2015

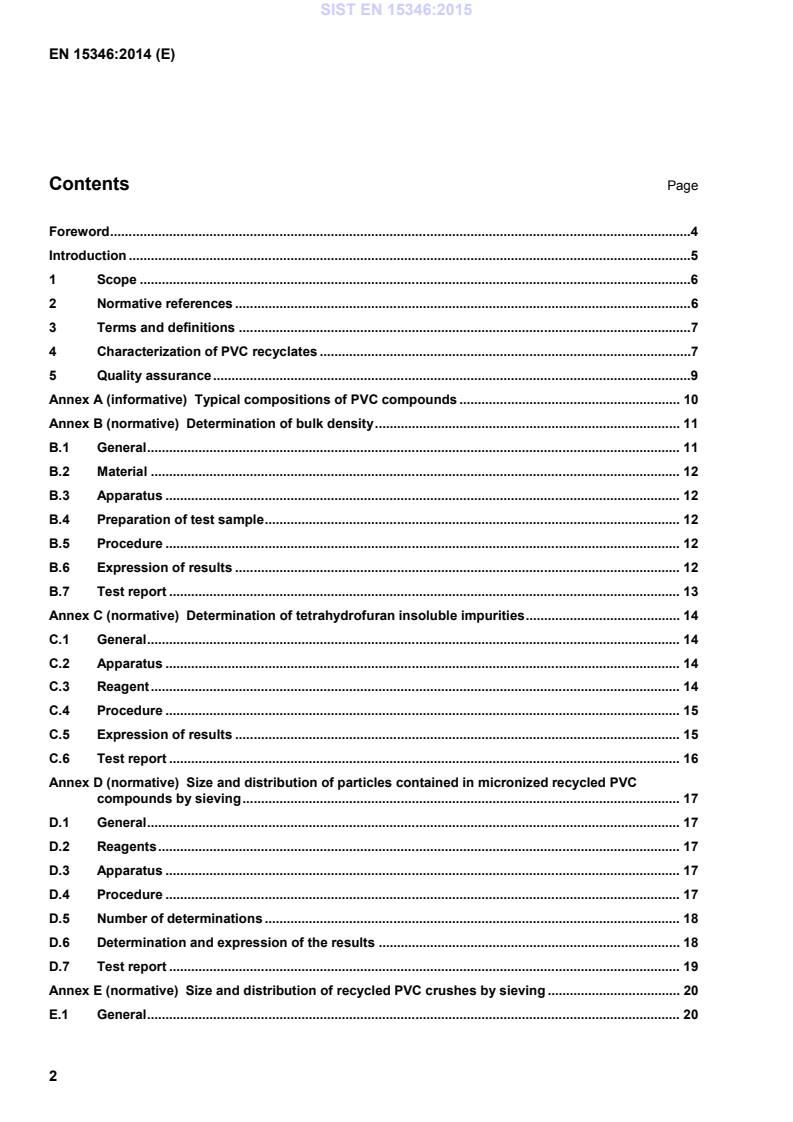

Typical compositions of PVC compounds . 10 Annex B (normative)
Determination of bulk density . 11 B.1 General . 11 B.2 Material . 12 B.3 Apparatus . 12 B.4 Preparation of test sample . 12 B.5 Procedure . 12 B.6 Expression of results . 12 B.7 Test report . 13 Annex C (normative)
Determination of tetrahydrofuran insoluble impurities . 14 C.1 General . 14 C.2 Apparatus . 14 C.3 Reagent . 14 C.4 Procedure . 15 C.5 Expression of results . 15 C.6 Test report . 16 Annex D (normative)
Size and distribution of particles contained in micronized recycled PVC compounds by sieving . 17 D.1 General . 17 D.2 Reagents . 17 D.3 Apparatus . 17 D.4 Procedure . 17 D.5 Number of determinations . 18 D.6 Determination and expression of the results . 18 D.7 Test report . 19 Annex E (normative)
Size and distribution of recycled PVC crushes by sieving . 20 E.1 General . 20 SIST EN 15346:2015

Fitness for processing of PVC recyclates by calendering . 23 F.1 General . 23 F.2 Apparatus . 23 F.3 Procedure . 23 Annex G (normative)
Fitness for processing of PVC recyclates by extrusion . 25 G.1 General . 25 G.2 Apparatus . 25 G.3 Procedure . 25 Bibliography . 26
of compounds and products based on vinyl chloride homopolymers and copolymers to evolve hydrogen chloride and any other acidic products at elevated -m) EN ISO 182-4, ency of compounds and products based on vinyl chloride homopolymers and copolymers to evolve hydrogen chloride and any other acidic products at elevated -4) EN ISO 306,
bfpl mMp) EN ISO 472,
EN ISO 527-1, -1) EN ISO 527-2, extrusion plastics bfpl olq-l) EN ISO 868, hardness) bfpl rpr) EN ISO 1183-1, mining the density of non-methodf liquid pyknometer method and titration method bfpl 11rm-1) SIST EN 15346:2015

ISO 182-1, Plastics — aetermination of the tendency of compounds and products based on vinyl chloride homopolymers and copolymers to evolve hydrogen chloride and any other acidic products at elevated temperatures — Part 1: Congo red method ISO 565, Test sieves — Metal wire clothf perforated metal plate and electroformed sheet — Nominal sizes of openings 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 472 and CEN/TR 15353 and the following apply. 3.1 sieve retention percentage of the recycled test sample retained on a sieve at the end of the test Note 1 to entry: The sieve retention is expressed in per cent (mass fraction). 3.2 container retention percentage of recycled material retained in the container at the bottom of a stack of sieves, or under a single sieve, at the end of the test compared to the mass of the sample tested 3.3 average particulate dimension single value of size, expressed to the nearest 0,001 mm, representing the dominant particle size for the whole test sample 4 Characterization of PVC recyclates A single batch is the quantity of recyclate that has homogeneous characteristics within the specified tolerances. The characteristics of PVC recyclates, given in Table 1, are divided into two types: — required characteristics needed to characterize PVC recyclates in general, and required for all recyclates; — optional characteristics needed to characterize PVC recyclates according to customer specifications and applications. These characteristics shall be assessed by using the test methods given in Table 1. A certificate of analysis giving the test results for each batch of recyclates shall be provided by the supplier to the purchaser upon request. NOTE Typical compositions of PVC compounds are given in Annex A. SIST EN 15346:2015

Ash content % EN ISO 3451-5 Method A X X Linked with filler and mineral content Colour
Visual Inspection X X e.g. natural colour, single, mixed Hardness
EN ISO 868
X For calendering stiffness may be evaluated instead of hardness. See Annex F. Impurities % Annex C X X An alternative method agreed by both parties may also be used. Particle size and distribution g, % Annex D a Annex E b X X Size distribution is needed for materials with a low particle size. Shape
Visual X X e.g. micronized material, pellets, particles Optional Dry flow rate s EN ISO 6186 O O Recommended for micronized materials or small particle size recyclates Density kg/m3 EN ISO 1183-1 Method A O O
Fitness of processing of PVC recyclates — by calendering — by extrusion
Annex F Annex G O O O O
Residual humidity % EN 12099 c O O Weight loss, 105 °C Tensile stress at yield MPa EN ISO 527-1 EN ISO 527-2 O O
Tensile strain at break % EN ISO 527-1 EN ISO 527-2 O O Elongation Thermal stability min ISO 182-1 EN ISO 182-2 EN ISO 182-3 EN ISO 182-4 O O Linked to stabilizer content Specify which is used.
Vicat softening temperature °C EN ISO 306 Method B50 O
Typical compositions of PVC compounds Resins of vinyl chloride are always converted as compounds that composition depends upon the application. Typical compositions of compounds are given in Table A.1. PVC recyclates are made from these compounds. Table A.1 — Typical compositions of PVC compounds Dimensions in phr (parts per hundred parts of resin) Application PVC resin Plasticizer Filler range Other additives a Rigid packaging 100 0 0 5 to 20 Flexible packaging 100 20 to 40 0 1 to 20 Plastic piping components for pressure applications 100 0 2 to 5 4 Plastic piping components for non-pressure applications 100 0 0 to 20 3 to 5 Windows and doors 100 0 5 to 10 7 to 16 Other profiles 100 0 0 to 40 5 to 15 Cables 100 30 to 60 0 to 50 b 3 to 10 Flooring 100 25 to 50 0 to 300 2 to 5 Sheets 100 40 to 70 0 to 30 2 to 10 Coated fabrics 100 40 to 90 0 to 30 7 to 20 c a Such as stabilizers, impact modifiers, lubricants, etc. b Bedding up to about 250 phr. c Synthetic textile fibres included. SIST EN 15346:2015

Determination of bulk density B.1 General This test method specifies a method of determining the bulk density, i.e. the mass per unit of volume, of loose material (powder or granular material) that can be poured from a funnel of specific design. When the method is applied to relatively coarse materials, rather variable results might be obtained, owing to the error introduced when a straightedge blade is drawn across the top of the cylinder. A knowledge of bulk density is of limited value in estimating the relative fluffiness or bulk of moulding materials, unless their densities in the moulded condition are approximately the same. It therefore gives a fairly good idea of stability of mixing, presence of humidity and stability between batches (consistency).
Key 1 volume of ap
...
