EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15014October 2007ICS 23.040.20; 23.040.45 English VersionPlastics piping systems - Buried and above ground systems forwater and other fluids under pressure - Performancecharacteristics for pipes, fittings and their jointsSystèmes de canalisations en plastique - Systèmesenterrés et aériens pour eau et autres fluides avec pression- Caractéristiques de performance pour tubes, raccords etleurs assemblagesKunststoff-Rohrleitungssysteme - Erd- und oberirdischverlegte Druckrohrleitungssysteme für Wasser und andereFlüssigkeiten - Eigenschaften für die Gebrauchstauglichkeitvon Rohren, Formstücken und deren VerbindungenThis European Standard was approved by CEN on 23 August 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15014:2007: E

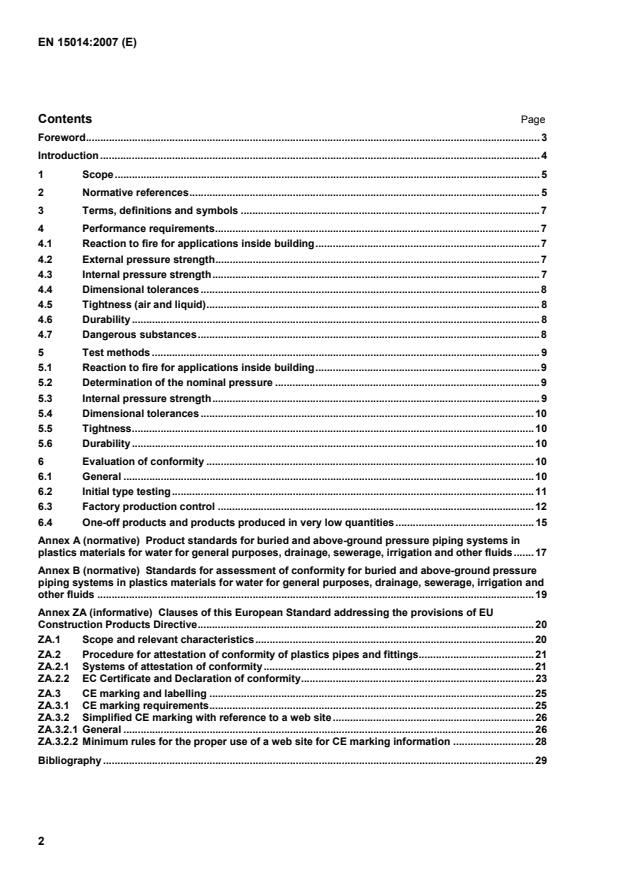

Product standards for buried and above-ground pressure piping systems in plastics materials for water for general purposes, drainage, sewerage, irrigation and other fluids.17 Annex B (normative)
Standards for assessment of conformity for buried and above-ground pressure piping systems in plastics materials for water for general purposes, drainage, sewerage, irrigation and other fluids.19 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of EU Construction Products Directive.20 ZA.1 Scope and relevant characteristics.20 ZA.2 Procedure for attestation of conformity of plastics pipes and fittings.21 ZA.2.1 Systems of attestation of conformity.21 ZA.2.2 EC Certificate and Declaration of conformity.23 ZA.3 CE marking and labelling.25 ZA.3.1 CE marking requirements.25 ZA.3.2 Simplified CE marking with reference to a web site.26 ZA.3.2.1 General.26 ZA.3.2.2 Minimum rules for the proper use of a web site for CE marking information.28 Bibliography.29

Material independent
Specific solutions
For the harmonisation of pressure plastics piping systems (this European Standard) the following applies:
For pipes and fittings
For valves Figure 1
Compliance of pipes, fittings and their joints with this document does not confer a presumption of fitness of the product for the transport of water intended for human consumption within the meaning of the Directive 89/106/EEC. However, until the operation of the envisaged European Acceptance Scheme for construction products in contact with water intended for human consumption and the revision of this standard, products conforming to this standard could be used for the transport of water intended for human consumption if they conform to the relevant national, regional or local regulatory provisions or recommendations applicable in the place of use. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 681-1,
Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage applications — Part 1: Vulcanized rubber EN 681-2,
Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage applications — Part 2: Thermoplastic elastomers EN 681-4,
Elastomeric seals — Materials requirements for pipe joint seals used in water and drainage applications — Part 4: Cast polyurethane sealing elements EN 713,
Plastics piping systems — Mechanical joints between fittings and polyolefin pressure pipes — Test method for leaktightness under internal pressure of assemblies subjected to bending EN 715,
Thermoplastics piping systems — End-load bearing joints between small diameter pressure pipes and fittings — Test method for leaktightness under internal water pressure, including end thrust EN 911,
Plastics piping systems — Elastomeric sealing ring type joints and mechanical joints for thermoplastics pressure piping — Test method for leaktightness under external hydrostatic pressure EN 1394,
Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the apparent initial circumferential tensile strength EN 1796,
Plastics piping systems for water supply with or without pressure — Glass-reinforced thermosetting plastics (GRP) based on unsaturated polyester resin (UP) EN 13501-1,
Fire classification of construction products and
building elements — Part 1: Classification using test data from reaction to fire tests EN 14364,
Plastics piping systems for drainage and sewerage with or without pressure — Glass-reinforced thermosetting plastics (GRP) based on unsaturated polyester resin (UP) — Specifications for pipes, fittings and joints EN 15012:2007,
Plastics piping systems — Soil and waste discharge systems within the building structure — Performance characteristics for pipes, fittings and their joints

Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the resistance to internal pressure — Part 1: General method (ISO 1167-1:2006) EN ISO 1167-2,
Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the resistance to internal pressure — Part 2: Preparation of pipe test pieces (ISO 1167-2:2006) prEN ISO 1167-3:2005,
Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the resistance to internal pressure — Part 3: Preparation of components
(ISO/DIS 1167-3:2005) prEN ISO 1167-4:2006,
Thermoplastics pipes, fittings and assemblies for the conveyance of fluids — Determination of the resistance to internal pressure — Part 4: Preparation of assemblies
(ISO/DIS 1167-4:2006) EN ISO 3126,
Plastics piping systems — Plastics components — Determination of dimensions (ISO 3126:2005) EN ISO 9001:2000,
Quality management systems — Requirements (ISO 9001:2000) EN ISO 9080,
Plastics piping and ducting systems — Determination of the long-term hydrostatic strength of thermoplastics materials in pipe form by extrapolation (ISO 9080:2003) EN ISO 12162,
Thermoplastics materials for pipes and fittings for pressure applications — Classification and designation — Overall service (design) coefficient (ISO 12162:1995) EN ISO 13783,
Plastics piping systems — Unplasticized poly(vinyl chloride) (PVC-U) end-load-bearing double socket joints — Test method for leaktightness and strength while subjected to bending and internal pressure (ISO 13783:1997) EN ISO 13846,
Plastics piping systems — End-load-bearing and non-end-load-bearing assemblies and joints for thermoplastics pressure piping — Test method for long-term leaktightness under internal water pressure (ISO 13846:2000) ISO 161-1,
Thermoplastics pipes for the conveyance of fluids — Nominal outside diameters and nominal pressures — Part 1: Metric series ISO 17456,
Plastics piping systems — Multilayer pipes — Determination of long-term strength ISO 21004,
Plastics piping systems — Multilayer pipes and their joints, based on thermoplastics, for water supply

For plastic piping systems conveying water it corresponds to the maximum continuous operating pressure in bar, which can be sustained with water at 20 °C for thermoplastics and 35 °C for thermosetting materials, based on the minimum design coefficient. 4 Performance requirements 4.1 Reaction to fire for applications inside building Where subject to regulatory requirements, the product shall be tested and classified in accordance with 5.1. 4.2 External pressure strength The external pressure strength of pressure piping systems is deemed to be satisfied by the internal pressure strength as given in 4.3. 4.3 Internal pressure strength 4.3.1 Determination of nominal pressure PN For thermoplastics materials the internal pressure strength of the pipe and fitting shall be determined in accordance with 5.2.1 and shall be declared by the manufacturer as nominal pressure PN in accordance with ISO 161-1 and including PN 25 where applicable. The overall service (design) coefficient shall not be less than that specified in EN ISO 12162 for the relevant material. For thermosetting materials the internal pressure strength of the pipe or fitting shall be tested in accordance with 5.2.2 and shall be declared by the manufacturer as nominal pressure in accordance with EN 1796 or EN 14364. For multilayer pipes the internal pressure strength shall be tested and declared by the manufacturer in accordance with 5.2.3.

c) in the absence of a) and b) reference to an International Standard, or d) in the absence of a), b), and c), by stating the values of his own specification and associated jointing method. Dimensions shall be measured in accordance with 5.4 and shall be within the declared tolerances. 4.5 Tightness (air and liquid) For products in accordance with this standard, leaktightness is required. Products covered by one of the standards listed in Annex A and having passed the type testing in accordance with the assessment of conformity part, are deemed to be leaktight (for standards with separate assessment of conformity parts see Annex B). Sealing rings (and gaskets) shall conform to EN 681-1, EN 681-2 or EN 681-4, as applicable. Pipe connections shall be tested in accordance with 5.5. No leakage shall occur during the test period. 4.6 Durability 4.6.1 Durability of pipes and fittings Pipes and fittings meeting the requirements of 4.3.1 are deemed to have a reasonable economic working life. NOTE The piping components are expected to last at least the lifetime of the network where they are installed. If the nature of the fluid is different from water or this fluid or water has a higher temperature than 20 °C (35 °C for thermosetting materials), guidance for de-rating the pressure shall be in accordance with the appropriate following standards: EN 1778 [13], EN 1452-2 [12] for PVC-U, ISO 13761[14] for PE, EN 1796 and EN 14364 for thermosetting materials and ISO 17456 or ISO 21004 for multilayer piping systems. Instead of de-rating the pressure, a shorter lifetime may be declared. 4.6.2 Durability of elastomeric sealing joints The tightness of elastomeric sealing joints is deemed to be durable if the sealing element conforms to
EN 681-1, EN 681-2 or EN 681-4, as applicable. 4.7 Dangerous substances Attention is drawn to NOTE 1 and NOTE 2 in ZA.1.

100 ≤ dn < 600 2 63 < dn
≤ 225 dn ≥ 600 and dn × [PN]0,5 ≤ 3 8003 225 < dn ≤ 630 dn ≥ 600 and dn × [PN]0,5 > 3 8004 dn > 630 —
b) Fitting groups for thermoplastics piping components as given in Table 2. NOTE 2 Fitting groups are currently not available for thermosetting piping components. Table 2 — Fitting groups Fitting group Thermoplastics piping components 1 Bends and elbows 2 Branches
3 Other fittings
6.2 Initial type testing 6.2.1 General Relevant type tests shall be carried out on new products and whenever there is a change in design, in material and/or in production method, other than routine in-process adjustment and extension of the product range (see Table 3). A change of supplier of a material or stabiliser does not lead to a change in performance if the chemical composition remains the same. Material modifications within certain limits are not considered as a change of material. Guidance for these limits can be found in the standards given in Annex B. For tests previously performed in accordance with the provisions of the standards listed in Annex A, or the recognized European specification, as applicable, (same product, same characteristic(s), same test method, same system of attestation etc.) the results may be taken into account. All characteristics given in Clause 4 shall be subject to calculation and/or initial type testing, except 4.6.2 where the characteristics of the components used have already been determined by the component manufacturer on the basis of conformity with other product standards. However this does not relieve the manufacturer of the piping system from the responsibility of ensuring that the system conforms to the requirements of this document. 6.2.2 Initial type test requirements The initial type testing of the characteristics according to Clause 4 shall be performed in accordance with the sampling procedure given under type tests (TT) of the applicable product specific standards for assessment of conformity as given in Annex B. If the standard does not contain one or more of the characteristics, then testing as given in Table 3 shall apply. For products where no such standard exists Table 3 shall apply.

M is change of material;
E is extension of the product range with new size group or fitting group.
+ denotes testing relevant for the characteristic-occurrence-combination. b Only obligatory if subject to regulatory requirements applicable in the place of use (see also Table ZA.2). c In case of single burning item (SBI) test the vertical part shall be size 110 and the horizontal part size 40, which will then be representative for all dimensions.
Test reports shall be kept by the manufacturer for at least 10 years after discontinuation of the product. 6.3 Factory production control 6.3.1 General The manufacturer shall establish, document and maintain an FPC system to ensure that the products placed on the market conform to the stated performance characteristics. The FPC system shall consist of procedures, regular inspections and tests and/or assessments and the use of the results to control raw and other incoming materials or components, equipment, the production process and the product. If the manufacturer has the component designed, manufactured, assembled, packed, processed and labelled by subcontracting, FPC of the original manufacturer may be taken into account. However, where subcontracting takes place, the manufacturer shall retain the overall control of the component and ensure that he receives all the information that is necessary to fulfil his responsibilities according to this European Standard. The manufacturer who subcontracts all of his activities may in no circumstances discharge himself of his responsibilities to a subcontractor. All the elements, requirements and provisions adopted by the manufacturer shall be documented in a systematic manner in the form of written policies and procedures. This production control system documentation shall ensure a common understanding of conformity evaluation and enable the achievement of the required component characteristics and the effective operation of the production control system to be checked.

EN ISO 1167-2, -3, -4 as appropriate with a test pressure/stress level related to the wall thickness for pipes and the PN for fittingsb
For thermosetting products: EN 1394 Internal pressure strength 4.3.2 For multilayer pipes: EN ISO 1167-1 and
EN ISO 1167-2, -3, -4 as appropriate with a test pressure/stress level as specified in ISO 21004 Once/batch
Pass/fail Dimensional tolerances 4.4 EN ISO 3126 or according to the manufacturers quality plan Once/batch Pass/fail Tightness of joints 4.5 Indirect testing: see dimensional toleranc
...
