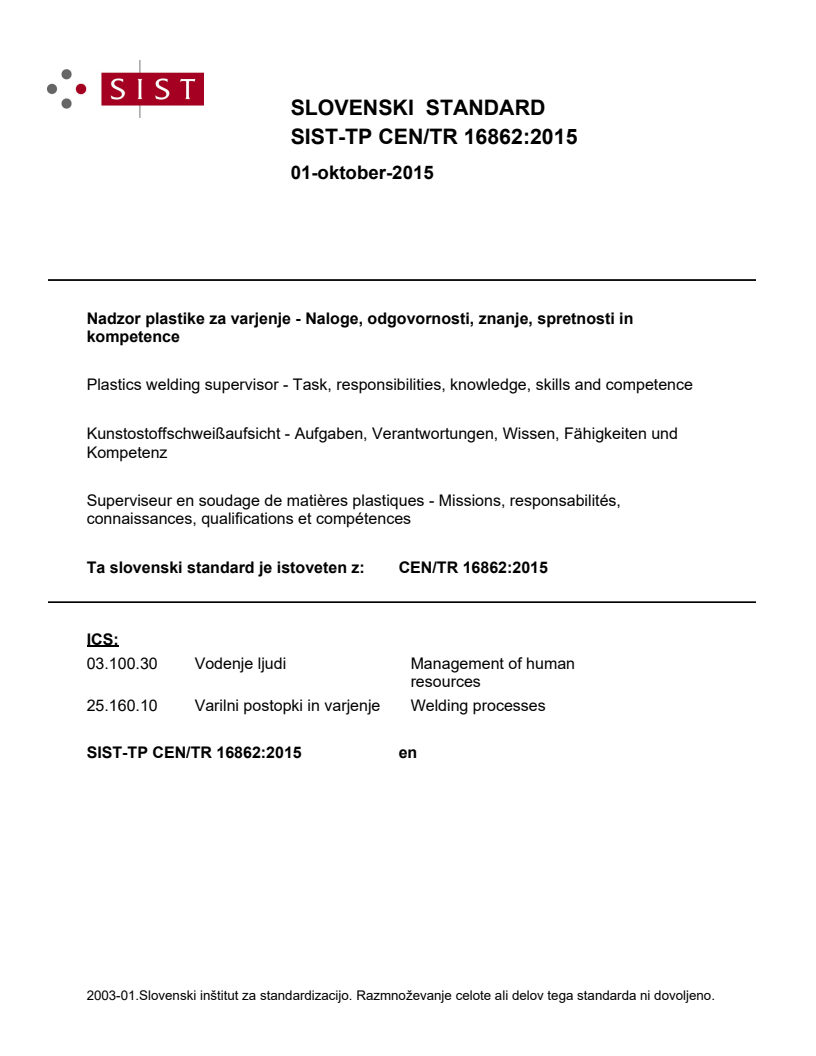

CEN/TR 16862:2015

SLOVENSKI STANDARD
01-oktober-2015
Nadzor plastike za varjenje - Naloge, odgovornosti, znanje, spretnosti in
kompetence
Plastics welding supervisor - Task, responsibilities, knowledge, skills and competence
Kunstostoffschweißaufsicht - Aufgaben, Verantwortungen, Wissen, Fähigkeiten und
Kompetenz
Superviseur en soudage de matières plastiques - Missions, responsabilités,
connaissances, qualifications et compétences
Ta slovenski standard je istoveten z: CEN/TR 16862:2015
ICS:
03.100.30 Vodenje ljudi Management of human
resources
25.160.10 Varilni postopki in varjenje Welding processes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

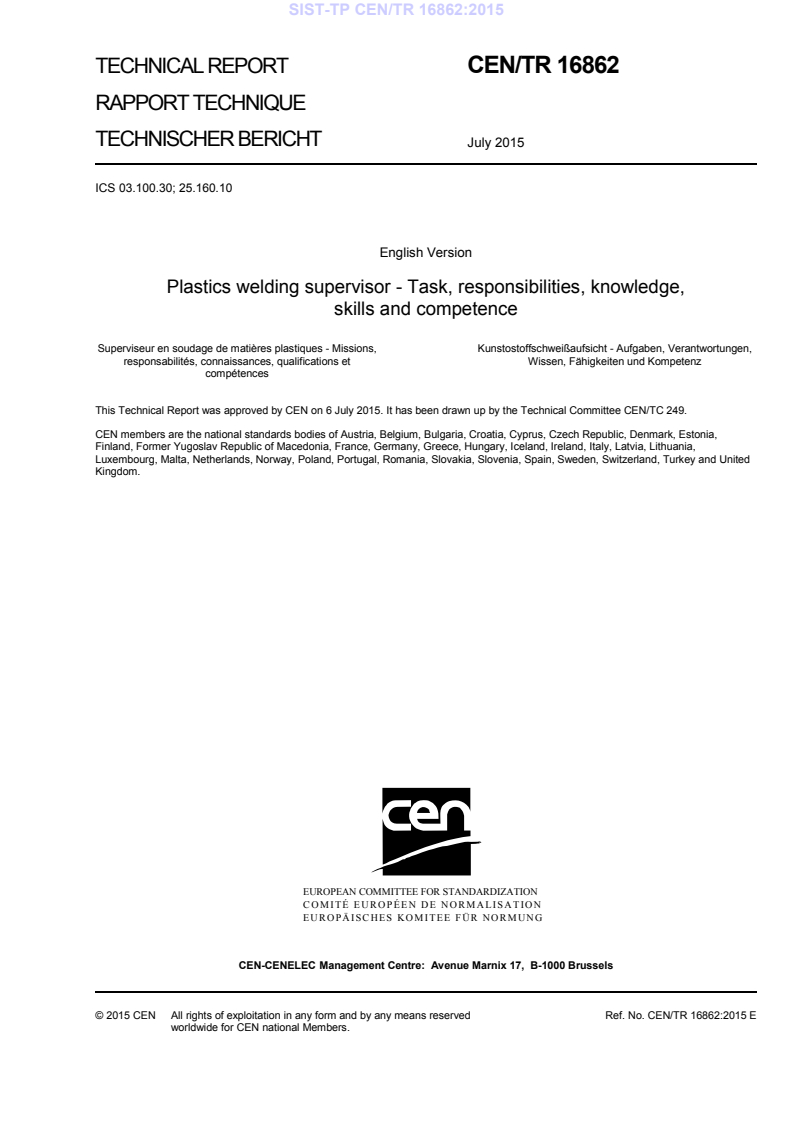

TECHNICAL REPORT
CEN/TR 16862
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
July 2015
ICS 03.100.30; 25.160.10
English Version
Plastics welding supervisor - Task, responsibilities, knowledge,
skills and competence
Superviseur en soudage de matières plastiques - Missions, Kunstostoffschweißaufsicht - Aufgaben, Verantwortungen,
responsabilités, connaissances, qualifications et Wissen, Fähigkeiten und Kompetenz
compétences
This Technical Report was approved by CEN on 6 July 2015. It has been drawn up by the Technical Committee CEN/TC 249.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 16862:2015 E
worldwide for CEN national Members.

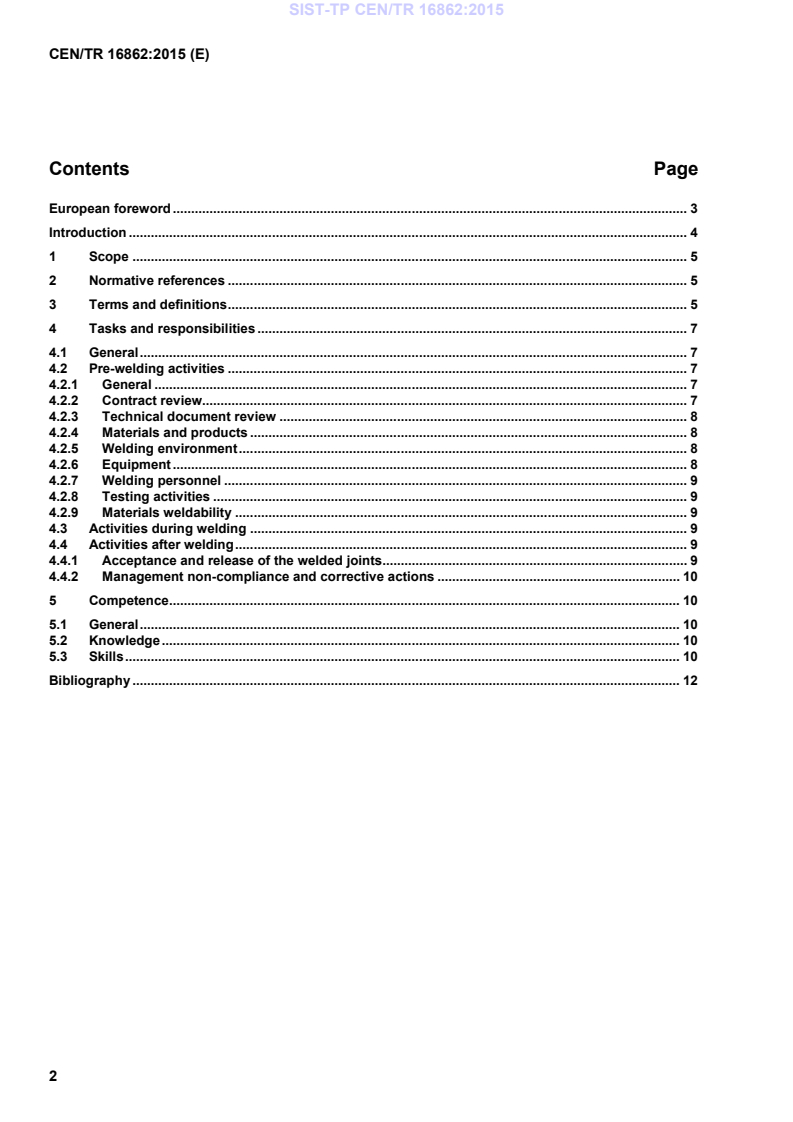

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Tasks and responsibilities . 7
4.1 General . 7
4.2 Pre-welding activities . 7
4.2.1 General . 7
4.2.2 Contract review. 7
4.2.3 Technical document review . 8
4.2.4 Materials and products . 8
4.2.5 Welding environment . 8
4.2.6 Equipment . 8
4.2.7 Welding personnel . 9
4.2.8 Testing activities . 9
4.2.9 Materials weldability . 9
4.3 Activities during welding . 9
4.4 Activities after welding . 9
4.4.1 Acceptance and release of the welded joints . 9
4.4.2 Management non-compliance and corrective actions . 10
5 Competence . 10
5.1 General . 10
5.2 Knowledge . 10
5.3 Skills . 10
Bibliography . 12

European foreword
This document (CEN/TR 16862:2015) has been prepared by Technical Committee CEN/TC 249 "Plastics",
the secretariat of which is held by NBN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
Introduction
Welding is a special process that requires the coordination of activities related to quality, including
construction, testing and maintenance in order to ensure confidence in the reliability of welded structures and
their behaviour in service. This Technical Report defines the tasks and responsibilities, knowledge, skills, and
competence necessary to carry out the role of "plastic welding supervisor".
The use of this Technical Report helps an organization to provide evidence of sound management and may,
therefore, represent a technical credential for the achievement of the welded product’s performance
requirements.
1 Scope
This Technical Report identifies the quality related responsibilities and tasks included in the supervision of
activities related to the welding of products and semi-finished products made of thermoplastic materials and
provides guidelines to ensure the quality of the supervision.
The fundamental aspects of this Technical Report are the following:
— definition of tasks and responsibilities;
— definition of the required knowledge, skills and competence.
The plastic welding supervisor (PWS) should be employed by the organization involved in the welding
activities. This Technical Report applies to all thermoplastic welding processes.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN ISO 9000, Quality management systems — Fundamentals and vocabulary (ISO 9000)
EN ISO/IEC 17000, Conformity assessment — Vocabulary and general principles (ISO/IEC 17000)
ISO 3834-1, Quality requirements for fusion welding of metallic materials — Part 1: Criteria for the selection of
the appropriate level of quality requirements
3 Terms and definitions
For the purpose of this document, the terms and definitions given in EN ISO 9000, ISO 3834-1 and
ISO/IEC 17000 and the following apply.
3.1
competence
demonstrated ability to apply knowledge, skills and personal, social and/or methodological abilities, in work or
study situations and in professional and personal development
Note 1 to entry: In the context of the European Qualifications Framework, competence is described in terms of
responsibility and autonomy.
3.2
conformity
fulfilment of a requirement
3.3
construction
product, structure or any other object welded
3.4
construction plan
document for a specific project, product, process or contract, which specifies the procedures and associated
resources that must be used, by whom and when
3.5
contract
binding agreement
3.6
corrective action
action to eliminate the cause of a detected non-conformity or other undesirable situation
3.7
knowledge
body of facts, principles, theories and practices that is related to a field of work or study
Note 1 to entry: In the context of the European Qualifications Framework, knowledge is described as theoretical and/or
factual.
3.8
organization
group of people and facilities, with an arrangement of responsibilities, authorities and relationships
3.9
plastics welding supervisor
PWS
person responsible and competent to perform the welding supervision activities
3.10
process
set of interrelated
...
