Gully tops and manhole tops for vehicular and pedestrian areas - Part 6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U)

This European Standard applies to manhole tops and gully tops made of Polypropylene (PP), Polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U) by a moulding or extrusion process, with a clear opening up to and including 1 000 mm for covering gullies, manholes and inspection chambers for installation within areas subjected to pedestrian and/or vehicular traffic.
It is applicable to manhole tops and gully tops for use in
-   areas which can only be used by pedestrians and pedal cyclists (class A 15), and
-   pedestrian areas and comparable areas, car parks or car parking decks (class B 125).
This European Standard gives guidance for combinations of covers/grating made of PP, PE or PVC–U with frames according to EN 124 2, EN 124 3, EN 124 4 and EN 124 5.
This European Standard is not applicable in isolation but only in combination with EN 124 1.
This European Standard is not applicable to:
-   rodding point covers according to EN 13598 1;
-   gratings/covers as part of prefabricated drainage channels according to EN 1433;
-   floor and roof gullies in buildings which are specified in EN 1253 (all parts);
-   surface boxes.

Aufsätze und Abdeckungen für Verkehrsflächen - Teil 6: Aufsätze und Abdeckungen aus Polypropylen (PP), Polyethylen (PE) oder weichmacherfreiem Polyvinylchlorid (PVC-U)

Diese Europäische Norm gilt für Aufsätze und Abdeckungen aus Polypropylen (PP), Polyethylen (PE) oder weichmacherfreiem Polyvinylchlorid (PVC-U), die durch Formen oder Extrusion hergestellt werden, mit einer lichten Weite bis einschließlich 1 000 mm zum Abdecken von Abläufen und Einsteig- und Kontrollschächten, Schächten und Inspektionsöffnungen in Flächen, die für Fußgänger- und/oder Fahrzeugverkehr bestimmt sind.
Sie gilt für Abdeckungen und Aufsätze zum Einbau in
-   Flächen, die ausschließlich von Fußgängern und Radfahrern benutzt werden können (Klasse A 15),
-   Fußgängerzonen und vergleichbare Flächen, PKW Parkflächen oder PKW-Parkdecks (Klasse B 125).
Diese Europäische Norm enthält außerdem Leitlinien für Kombinationen aus Deckeln/Rosten aus PP, PE oder PVC-U und Rahmen nach Fpr EN 124-2, FprEN 124-3, FprEN 124-4 undbis Fpr EN 124-5.
Diese Europäische Norm gilt nicht als alleinstehendes Dokument, sondern ausschließlich in Verbindung mit FprEN 124-1.
Diese Europäische Norm gilt nicht für:
-   Abdeckungen von Reinigungsöffnungen nach EN 13598-1;
-   Roste/Deckel als Teil vorgefertigter Entwässerungsrinnen nach EN 1433;
-   BodenDach- und DachBodenabläufe in Gebäuden, wie in EN 1253 (alle Teile) festgelegt;
-   Straßenkappen.

Dispositifs de couronnement et de fermeture pour les zones de circulation utilisées par les piétons et les véhicules - Partie 6 : Dispositifs de couronnement et de fermeture en polypropylène (PP), polyéthylène (PE) ou polychlorure de vinyle non plastifié (PVC-U)

La présente Norme européenne s’applique aux dispositifs de fermeture et de couronnement fabriqués en polypropylène (PP), en polyéthylène (PE) ou en polychlorure de vinyle non plastifié (PVC-U) par un procédé de moulage ou d'extrusion, avec une cote de passage inférieure ou égale à 1 000 mm pour la fermeture des ouvertures des avaloirs, des regards de visite et des boîtes d'inspection ou de branchement installés dans des zones soumises à la circulation des piétons et/ou de véhicules.
Elle est applicable aux dispositifs de fermeture et de couronnement à utiliser dans
-   les zones susceptibles d’être utilisées exclusivement par des piétons et des cyclistes (classe A 15), et
-   les zones piétonnes et zones comparables, aires de stationnement ou parkings à étages pour voitures (Classe B 125).
La présente Norme européenne fournit également des lignes directrices pour les combinaisons de tampons/grilles fabriquées en PP, PE ou PVC-U avec des cadres conformément aux FprEN 124 2, FprEN 124 3, FprEN 124 4 et FprEN 124 5.
La présente Norme européenne n'est pas applicable individuellement, mais uniquement en association avec le FprEN 124 1.
La présente Norme européenne ne s’applique pas :
-   aux points de curage à conformes à l'EN 13598 1 ;
-   aux grilles/tampons faisant partie des caniveaux hydrauliques préfabriqués conformes à l'EN 1433 ;
-   aux avaloirs de sol de toiture dans les bâtiments qui sont spécifiés dans l'EN 1253 (toutes les parties) ;
-   aux bouches à clé.

Pokrovi za odtoke in jaške na voznih površinah in površinah za pešce - 6. del: Pokrovi za odtoke in jaške iz polipropilena (PP), polietilena (PE) ali nemehčanega polivinilklorida (PVC-U)

Ta standard se uporablja za pokrove za odtoke in jaške s svetlo odprtino do vključno 500 mm, ki so nameščeni na območjih s površino za pešce in/ali vozno površino. Uporablja se za pokrove za odtoke in jaške ter rešetke za razred A15 in razred B125 iz polipropilena (PP), polivinilklorida (PVC-U) ali polietilena (PE) s procesi za oblikovanje ali ekstrudiranje.  Ta standard se ne uporablja za pokrove za jaške in odtoke, pri katerih lahko med uporabo nastane specifična statična elektrika. 6. del se ne uporablja samostojno, ampak samo v kombinaciji s standardom EN 124-1. Ne uporablja se za rešetke v okviru predizdelane padavinske kanalizacije v skladu s standardom EN 1433 ali za talne odtoke in strešne žlebove v stavbah, ki so navedeni v standardu EN 1253-1, ter za površinske škatle.

General Information

Status
Published
Publication Date
09-Jun-2015
ICS
93.080.30 - Road equipment and installations
Technical Committee
CEN/TC 165 - Waste water engineering
Drafting Committee
CEN/TC 165/WG 4 - Gullies and tops a.s.o.
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
11-Jun-2021
Completion Date
14-Apr-2025
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
88/379/EEC - Classification, packaging and labelling of dangerous preparations
89/106/EEC - Construction products
Mandate
M/118 REV1 - Addendum to mandate to CEN and CENELEC concerning the execution of standardisation work for harmonised standards on mandate M/118 waste water engineering products
Ref Project
SIST EN 124-6:2015 - Gully tops and manhole tops for vehicular and pedestrian areas - Part 6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U)

Relations

Replaces
EN 124:1994 - Gully tops and manhole tops for vehicular and pedestrian areas - Design requirements, type testing, marking, quality control
Effective Date
08-Jun-2022

Overview

EN 124-6:2015 is the CEN European Standard that specifies requirements for gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC‑U). It covers moulded or extruded covers with a clear opening up to and including 1 000 mm intended for installation in areas subject to pedestrian and/or vehicular traffic. EN 124‑6:2015 is intended to be used in combination with EN 124‑1 (general definitions, classification, design and test methods) and provides material‑specific guidance for plastic covers used in classes A 15 (pedestrians and pedal cyclists) and B 125 (pedestrian areas, car parks, parking decks).

Key topics and technical requirements

EN 124‑6:2015 focuses on practical performance and conformity topics rather than prescribing manufacturing recipes. Key technical topics include:

  • Scope and application: clear opening ≤ 1 000 mm; use classes A 15 and B 125; applies to moulding and extrusion processes.
  • Material characteristics: requirements for PP, PE and PVC‑U, including compatibility when combined with other frame materials.
  • UV stability and additives: guidance on artificial weathering resistance (e.g., carbon black for PE/PP and titanium dioxide for PVC‑U) to ensure long‑term outdoor durability.
  • Mechanical performance: testing for deflection under load, impact resistance, and effect of heating (thermal behaviour) to ensure covers meet service loads.
  • Durability and dangerous substances: longevity considerations and limits on hazardous substances in line with regulatory requirements.
  • Testing and conformity: type testing procedures, factory production control (FPC), and assessment and verification of constancy of performance (AVCP).
  • Marking and designation: rules for product identification, CE marking and Declaration of Performance under CPR (see informative Annex ZA).

The standard explicitly excludes certain items such as rodding point covers (EN 13598‑1), gratings in prefabricated drainage channels (EN 1433), floor and roof gullies (EN 1253) and surface boxes.

Applications

Typical practical applications for EN 124‑6 compliant products:

  • Gully tops and manhole covers for pedestrian zones, cycleways and public squares (Class A 15)
  • Covers for car parks, parking decks and comparable pedestrian/vehicular areas (Class B 125)
  • Use in street drainage and inspection chambers where lightweight, corrosion‑resistant plastic covers are preferred
  • Combination with frames produced to EN 124‑2 to EN 124‑5 for hybrid assemblies

Keywords: EN 124‑6:2015, gully tops, manhole tops, polypropylene, polyethylene, PVC‑U, pedestrian areas, vehicular areas, CE marking, AVCP

Who will use this standard

  • Manufacturers of plastic gully/manhole covers (PP, PE, PVC‑U)
  • Product designers and injection‑moulding or extrusion engineers
  • Specifiers, civil and drainage engineers, highway authorities and architects
  • Test laboratories and conformity assessment bodies
  • Procurement teams requiring CE‑marked drainage covers for A 15 / B 125 installations

Related standards

  • EN 124‑1:2015 (general principles, tests)
  • EN 124‑2 / EN 124‑3 / EN 124‑4 / EN 124‑5 (frames and other materials)
  • EN 13598 series, EN 1253, EN 1433 (related drainage and inspection standards)

Frequently Asked Questions

EN 124-6:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Gully tops and manhole tops for vehicular and pedestrian areas - Part 6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U)". This standard covers: This European Standard applies to manhole tops and gully tops made of Polypropylene (PP), Polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U) by a moulding or extrusion process, with a clear opening up to and including 1 000 mm for covering gullies, manholes and inspection chambers for installation within areas subjected to pedestrian and/or vehicular traffic. It is applicable to manhole tops and gully tops for use in - areas which can only be used by pedestrians and pedal cyclists (class A 15), and - pedestrian areas and comparable areas, car parks or car parking decks (class B 125). This European Standard gives guidance for combinations of covers/grating made of PP, PE or PVC–U with frames according to EN 124 2, EN 124 3, EN 124 4 and EN 124 5. This European Standard is not applicable in isolation but only in combination with EN 124 1. This European Standard is not applicable to: - rodding point covers according to EN 13598 1; - gratings/covers as part of prefabricated drainage channels according to EN 1433; - floor and roof gullies in buildings which are specified in EN 1253 (all parts); - surface boxes.

This European Standard applies to manhole tops and gully tops made of Polypropylene (PP), Polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U) by a moulding or extrusion process, with a clear opening up to and including 1 000 mm for covering gullies, manholes and inspection chambers for installation within areas subjected to pedestrian and/or vehicular traffic. It is applicable to manhole tops and gully tops for use in - areas which can only be used by pedestrians and pedal cyclists (class A 15), and - pedestrian areas and comparable areas, car parks or car parking decks (class B 125). This European Standard gives guidance for combinations of covers/grating made of PP, PE or PVC–U with frames according to EN 124 2, EN 124 3, EN 124 4 and EN 124 5. This European Standard is not applicable in isolation but only in combination with EN 124 1. This European Standard is not applicable to: - rodding point covers according to EN 13598 1; - gratings/covers as part of prefabricated drainage channels according to EN 1433; - floor and roof gullies in buildings which are specified in EN 1253 (all parts); - surface boxes.

EN 124-6:2015 is classified under the following ICS (International Classification for Standards) categories: 93.080.30 - Road equipment and installations. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 124-6:2015 has the following relationships with other standards: It is inter standard links to EN 124:1994. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 124-6:2015 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 88/379/EEC, 89/106/EEC; Standardization Mandates: M/118 REV1. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

You can purchase EN 124-6:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

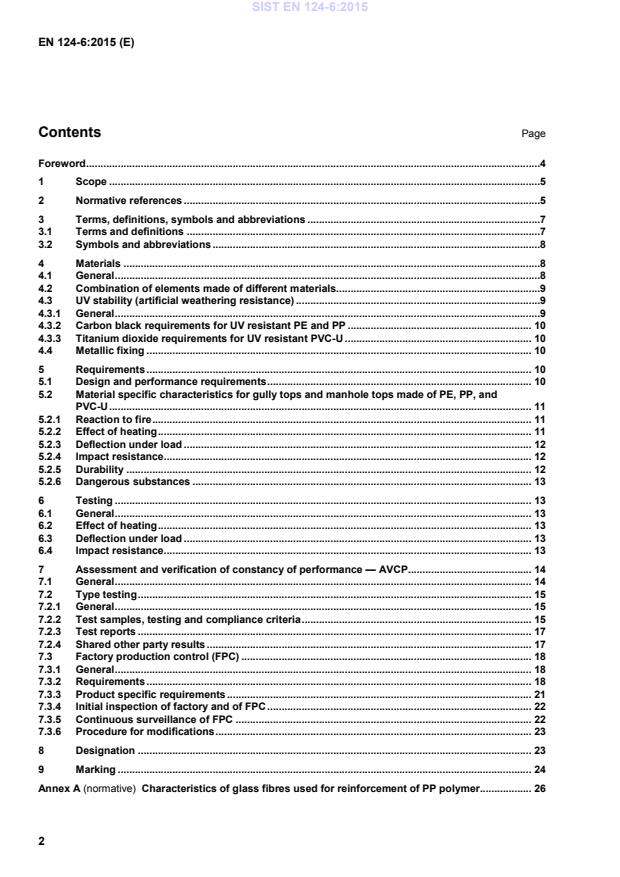

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aufsätze und Abdeckungen für Verkehrsflächen - Teil 6: Aufsätze und Abdeckungen aus Polypropylen (PP), Polyethylen (PE) oder weichmacherfreiem Polyvinylchlorid (PVC-U)Dispositifs de couronnement et de fermeture pour les zones de circulation utilisées par les piétons et les véhicules - Partie 6 : Dispositifs de couronnement et de fermeture en polypropylène (PP), polyéthylène (PE) ou polychlorure de vinyle non plastifié (PVC-U)Gully tops and manhole tops for vehicular and pedestrian areas - Part 6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U)93.080.30Cestna oprema in pomožne napraveRoad equipment and installationsICS:Ta slovenski standard je istoveten z:EN 124-6:2015SIST EN 124-6:2015en,fr,de01-september-2015SIST EN 124-6:2015SLOVENSKI
STANDARDSIST EN 124:19961DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 124-6
June 2015 ICS 93.080.30 Supersedes EN 124:1994English Version
Gully tops and manhole tops for vehicular and pedestrian areas -Part 6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly(vinyl chloride) (PVC-U)
Dispositifs de couronnement et de fermeture pour les zones de circulation utilisées par les piétons et les véhicules - Partie 6 : Dispositifs de couronnement et de fermeture en polypropylène (PP), polyéthylène (PE) ou polychlorure de vinyle non plastifié (PVC-U)
Aufsätze und Abdeckungen für Verkehrsflächen - Teil 6: Aufsätze und Abdeckungen aus Polypropylen (PP), Polyethylen (PE) oder weichmacherfreiem Polyvinylchlorid (PVC-U) This European Standard was approved by CEN on 12 March 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 124-6:2015 ESIST EN 124-6:2015

Characteristics of glass fibres used for reinforcement of PP polymer. 26 SIST EN 124-6:2015

Test of deflection under load . 27 B.1 Test samples . 27 B.2 Deflection test load, FD . 27 B.3 Apparatus . 27 B.3.1 Testing machine . 27 B.3.2 Test blocks . 27 B.3.3 Deflection measurement device(s) . 27 B.4 Procedure . 27 B.4.1 Procedure for testing rectangular and circular covers/gratings . 27 B.4.2 Procedure for testing multiple and triangular covers/gratings . 28 B.4.3 Observations and reporting . 28 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 29 ZA.1 Scope and relevant characteristics . 29 ZA.2 Procedures for AVCP of gully tops and manhole tops made of PP, PE or PVC-U) . 31 ZA.2.1 Systems of AVCP . 31 ZA.2.2 Declaration of performance (DoP) . 33 ZA.3 CE marking and labelling. 35 Bibliography . 38
Test load FD
Deflection test load Pb
Frame bearing pressure PVC-U Unplasticized poly(vinyl chloride) PP
Polypropylene PE Polyethylene 4 Materials 4.1 General Each component of manhole tops, gully tops and gratings complying with this European Standard shall be manufactured from one single material according to Table 1. Glass fibres shall not be added to PVC-U and PE materials. All materials shall be UV stabilized (see 4.3). Guidance shall be given in the manufacturers installation guide how to avoid exposure to high temperatures by hot bitumen or asphalt. Table 1 — Materials for thermoplastic manhole tops and gully tops Material Material requirements according to Unplasticized poly(vinyl chloride) (PVC-U) EN 1401–1, EN 13476–2, EN 13476–3, EN 13598–1, EN 13598–2, EN 12200–1 Polypropylene (PP) EN 1852–1, EN 13476–2, EN 13476–3, EN 13598–1, EN 13598–2, EN 14758–1, EN 124–6:2015, Annex A Polyethylene (PE) EN 12666–1, EN 13476–2, EN 13476–3, EN 13598–1, EN 13598–2, SIST EN 124-6:2015

according to EN 124–1:2015, Clause Class A 15 Class B 125 Related to the design Vents in covers 6.1 8.4.1 x x Clear opening of manhole tops for man entry 6.2 8.4.2 x x Clearance 6.4 8.4.4 x x Handling of covers and gratings 6.7 8.4.7 x x Slot dimensions of gratings 6.8 8.4.8 x x Positioning of covers and gratings 6.10 8.4.10 x x Flatness 6.11 8.4.11 x x Concaveness of gratings 6.12 8.4.12 x x Surface conditions 6.13 8.4.13 x x Manhole tops with sealing feature 6.14 Visual inspection of presence of anchors x x Frame bearing area 6.15 8.4.14 x x Opening angle of hinged covers/gratings 6.17 8.4.16 x x Appearance 7.1 Visual inspection x x Related to the performance Load bearing capacity 7.2 8.3 x x Permanent set 7.3 8.2 x x Securing of the cover/grating within the frame 6.6 a) - x x Skid resistance 7.4 8.4.13 x x Child safety 7.5 8.5 x X x To be applied. SIST EN 124-6:2015

5.2.2 Test temperature (150 ± 2) °C EN ISO 580:2005, Method A Heating time: Thickness of sample ≤ 10 mm Thickness of sample > 10 mm
30 min 60 min a Large test pieces may be cut to fit the oven. 6.3 Deflection under load Deflection under load shall be tested in accordance with Annex B. 6.4 Impact resistance Complete manhole tops and gully tops shall be tested. The test specimen shall be supported during the test, in such a way that represents the intended installation on site. NOTE It is not always feasible to include bedding mortar (for instance around the outside flange). The test conditions shall be in accordance with Table 5. SIST EN 124-6:2015
...
