EN 14830:2006

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermoplastics inspection chamber and manhole bases - Test methods for buckling resistancePlastomerni revizijski jaški in vstopne baze – Preskusne metode za odpornost proti uklonuÉléments de fond de boîtes d'inspection et de branchement et de regards en thermoplastique - Méthodes d'essai de résistance au flambageBöden von Kontroll- und Einsteigschächten aus thermoplastischen Kunststoffen - Prüfverfahren für die Widerstandsfähigkeit gegen EinbeulenTa slovenski standard je istoveten z:EN 14830:2006SIST EN 14830:2007en93.030Zunanji sistemi za odpadno vodoExternal sewage systems93.025Zunanji sistemi za prevajanje vodeExternal water conveyance systemsICS:SLOVENSKI
STANDARDSIST EN 14830:200701-januar-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14830October 2006ICS 93.025; 93.030 English VersionThermoplastics inspection chamber and manhole bases - Testmethods for buckling resistanceÉléments de fond de boîtes d'inspection et de branchementet de regards en thermoplastique - Méthodes d'essai derésistance au flambageBöden von Kontroll- und Einsteigschächten austhermoplastischen Kunststoffen - Prüfverfahren für dieWiderstandsfähigkeit gegen EinbeulenThis European Standard was approved by CEN on 28 August 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14830:2006: E

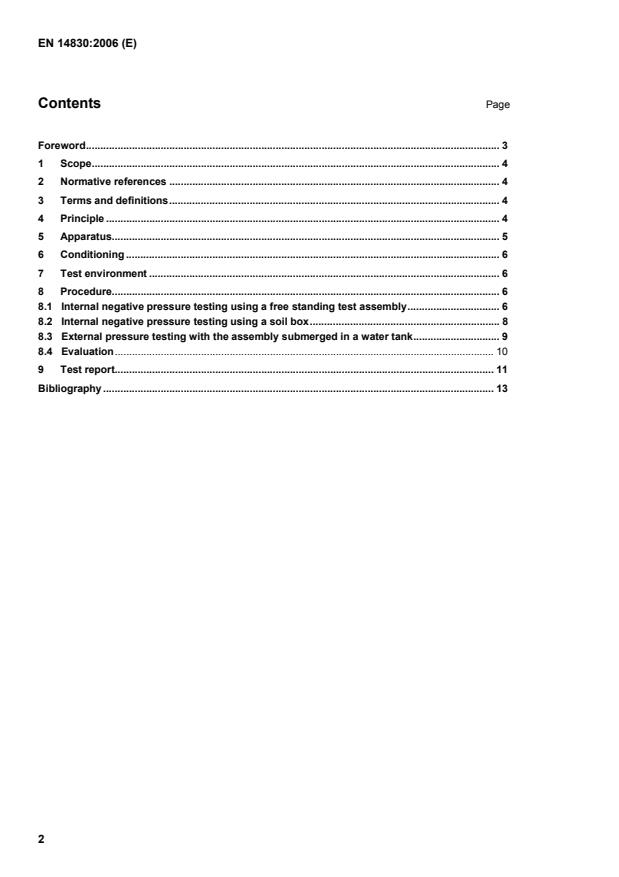

Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.4 4 Principle.4 5 Apparatus.5 6 Conditioning.6 7 Test environment.6 8 Procedure.6 8.1
Internal negative pressure testing using a free standing test assembly.6 8.2
Internal negative pressure testing using a soil box.8 8.3
External pressure testing with the assembly submerged in a water tank.9 8.4
Evaluation.10 9 Test report.11 Bibliography.13

CEN/TC 155 ”Plastics piping systems and ducting systems”, the secretariat of which is held by NEN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2007, and conflicting national standards shall be withdrawn at the latest by April 2007. The relevant performance requirements are contained within the referring standard(s) concerned. This European Standard is one of a series of standards on test methods that support System Standards for plastics piping systems and ducting systems. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

This is intended as a test of the durability and structural integrity of manhole and inspection chamber bases supporting product standards prEN 13598-2 [1] and prEN 15229 [2]. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ENV 1046:2001,
