EN 13081:2001
(Main)Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler
Tanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler
This European standard covers the equipment to be used to achieve a satisfactory connection between the static installation and a tank transporting dangerous substances for the effective transfer of vapours (vapour recovery). This standard specifies the performance requirements and the critical dimensions of the vapour recovery adaptor fitted to the road tanker and the matching coupler fitted to a hose or to pipework connecting with the static installation. It also specifies the tests necessary to verify the compliance of the equipment with the requirements of this standard.
Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die Gassammelleitung
1 Anwendungsbereich
Diese Europäische Norm behandelt Ausrüstungen, die verwendet werden sollen, um eine einwandfreie
Verbindung zwischen einer ortsfesten Tankanlage und einem Tank, der gefährliche Güter befördert, zur
wirkungsvollen Gasrückführung herzustellen.
In dieser Norm sind die Leistungsanforderungen und die entscheidenden Maße der VKG-Kupplung am
Transporttank und der MKG-Kupplung am Rohrleitungssystem der ortsfesten Tankanlage festgelegt.
Weiterhin sind die Prüfungen festgelegt, mit denen nachgewiesen werden kann, ob die Ausrüstung den
Anforderungen dieser Norm entspricht. Die in dieser Norm beschriebene Ausrüstung ist zum Umfüllen
flüssiger Erdölerzeugnisse und anderer gefährlicher Güter der Klasse 3 des ADR Europäisches Über-einkommen
über die internationale Beförderung gefährlicher Güter auf der Straße (entzündbare flüs-sige
Stoffe) geeignet, deren Dampfdruck bei 50 °C max. 110 kPa beträgt (einschließlich Ottokraftstoff)
und die nicht als giftig oder ätzend eingestuft sind.
Citernes de transport de matières dangereuses - Equipement de service pour citernes - Adaptateur et coupleur pour la récupération des vapeurs
Domaine d'application
La présente norme européenne traite des équipements à utiliser pour assurer un raccordement satisfaisant entre l'installation fixe et un camion-citerne destiné à transporter des matières dangereuses, pour transférer efficacement les vapeurs.
La présente norme spécifie les performances requises et les dimensions essentielles de l'adaptateur pour la récupération des vapeurs monté sur le camion-citerne et du coupleur correspondant monté sur le flexible ou sur le tuyau de raccordement de l'installation fixe. Elle spécifie également les essais à réaliser pour vérifier la conformité des équipements à la présente norme. Les équipements spécifiés par la présente norme conviennent à une utilisation avec des produits pétroliers liquides et autres matières dangereuses de la classe 3 de l'ADR - Accord européen relatif au transport international des marchandises dangereuses par route (liquides inflammables) dont la tension de vapeur ne dépasse pas 110 kPa à 50 °C (y compris l'essence) et qui n'entrent pas dans la sous classification des produits toxiques ou corrosifs.
Rezervoarji za transport nevarnega blaga - Oprema za upravljanje rezervoarjev - Prilagoditev priključka za zbiralnik pare
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tanks für die Beförderung gefährlicher Güter - Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die GassammelleitungCiternes de transport de matieres dangereuses - Equipement de service pour citernes - Adaptateur et coupleur pour la récupération des vapeursTanks for transport of dangerous goods - Service equipment for tanks - Vapour collection adaptor and coupler23.040.60Prirobnice, oglavki in spojni elementiFlanges, couplings and joints23.020.20Posode in vsebniki, montirani na vozilaVessels and containers mounted on vehicles13.300Varstvo pred nevarnimi izdelkiProtection against dangerous goodsICS:Ta slovenski standard je istoveten z:EN 13081:2001SIST EN 13081:2002en01-maj-2002SIST EN 13081:2002SLOVENSKI
STANDARD
SIST EN 13081:2002
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13081March 2001ICS 13.300; 23.020.10; 23.020.20; 23.040.60English versionTanks for transport of dangerous goods - Service equipment fortanks - Vapour collection adaptor and couplerCiternes de transport de matières dangereuses -Equipement de service pour citernes - Adaptateur etcoupleur pour la récupération des vapeursTanks für die Beförderung gefährlicher Güter -Bedienungsausrüstung von Tanks - VKG- und MKG-Kupplungen für die GassammelleitungThis European Standard was approved by CEN on 4 February 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13081:2001 ESIST EN 13081:2002

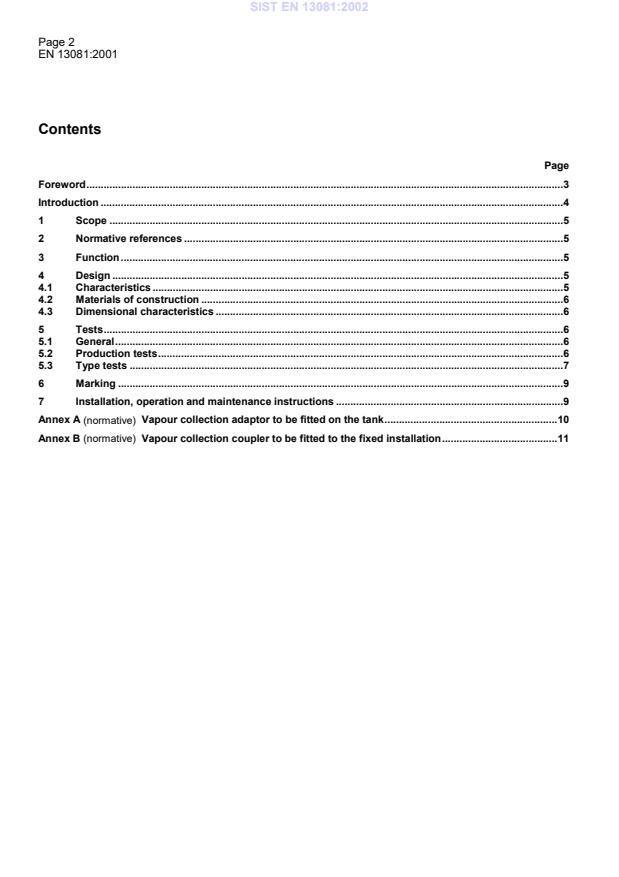

Page 2EN 13081:2001ContentsPageForeword.3Introduction.41Scope.52Normative references.53Function.54Design.54.1Characteristics.54.2Materials of construction.64.3Dimensional characteristics.65Tests.65.1General.65.2Production tests.65.3Type tests.76Marking.97Installation, operation and maintenance instructions.9Annex A (normative)
Vapour collection adaptor to be fitted on the tank.10Annex B (normative)
Vapour collection coupler to be fitted to the fixed installation.11SIST EN 13081:2002
Page 3EN 13081:2001ForewordThis European Standard has been prepared by Technical Committee CEN/TC 296 "Tanks for transport ofdangerous goods", the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by September 2001, and conflicting national standards shall be withdrawn at thelatest by September 2001.This European Standard has been submitted for reference into the RID and/or in the technical annexes of the ADR.Therefore in this context the standards listed in the normative references and covering basic requirements of theRID/ADR not addressed within the present standard are normative only when the standards themselves arereferred to in the RID and/or in the technical annexes of the ADR.This European standard forms part of a coherent standards programme comprising the following standards :Tanks for transport of liquid dangerous goods with vapour pressure not exceeding 110 kPa (absolutepressure) at 50 °C and petrol - Service EquipmentEN 13081:2001, Vapour collection adaptor and couplerEN 13082:2001, Vapour transfer valveEN 13083:2001, Adaptor for bottom loading and unloadingprEN 13308:1998, Non-pressure balanced footvalveprEN 13314:1998, Fill hole coverprEN 13315:1998, Gravity discharge couplerprEN 13316:1998, Pressure balanced footvalveprEN 13317:1998, Manhole cover assemblyprEN 13922:2000, Level detection - Secondary shut off control systemWI 00296009, Pressure and vacuum breather ventWI 00296010, Emergency pressure relief valveWI 00296015, Operating conditions and safety interlocksWI 00296017, Product recognitionAccording to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden,Switzerland and the United Kingdom.SIST EN 13081:2002
Page 4EN 13081:2001IntroductionThe European Directive 94/63/EC on Volatile Organic Compounds (VOC) emissions lays down the obligation tolimit the emission into the atmosphere of vapour created at the time of loading and unloading of petrol by tanks.To achieve this result, it is necessary to establish a vapour tight path between the transport tank, petrol storagetank, service-station tank, and the vapour recovery unit when conducting loading and unloading operations.The vapour collection adaptor and coupler, subject of this standard, form part of the equipment which ensures thisclosed transfer path by making it possible to connect the vapour system of the tank to that of the fixed installation.SIST EN 13081:2002
Page 5EN 13081:20011 ScopeThis European standard covers the equipment to be used to achieve a satisfactory connection between the fixedinstallation and a tank transporting dangerous substances for the effective transfer of vapour.This standard specifies the performance requirements and the critical dimensions of the vapour recovery adaptorfitted to the tank and the mating coupler fitted to a hose or to pipework connected to the fixed installation. It alsospecifies the tests necessary to verify the compliance of the equipment with this standard. The equipment specifiedby this standard is suitable for use with liquid petroleum products and other dangerous substances of Class 3 ofADR – European Agreement concerning the international carriage of dangerous goods by road (flammable liquids)which have a vapour pressure not exceeding 110 kPa, at 50 °C (incl
...
