This document gives the safety requirements and measures for stationary and displaceable
— surface planing machines, also called jointers,
— thickness planing machines, also called planers or single surface planers,
— combined surface/thickness planing machines
with fixed cutterblock position, with an integrated feed in thicknessing mode, with or without demountable power feed device in planing mode and with manual loading and unloading of the work-piece, hereinafter referred to as "machines". The machines are designed to cut solid wood and material with similar physical characteristics to wood.
NOTE 1 For the definitions of stationary and displaceable machines, see ISO 19085‑1:2017, 3.4 and 3.5.
It deals with all significant hazards, hazardous situations and events as listed in Clause 4 relevant to these machines when they are operated, adjusted and maintained as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse. Also, transport, assembly, dismantling, disabling and scrapping phases are taken into account.
NOTE 2 For relevant but not significant hazards, e.g. sharp edges of the machine frame, see ISO 12100.
It is also applicable to surface planing machines and combined surface/thickness planing machines fitted with an optional mortising device, whose hazards have been dealt with.
This document does not apply to:
a) machines with more than one cutterblock;
b) machines with mortising unit driven by a separate motor;
c) machines where the cutterblock is adjustable for depth of cut setting in thicknessing mode;
d) machines where the conversion from planing to thicknessing mode or vice versa is achieved by mounting or demounting parts/units;
e) machines where surfacing and thicknessing can be performed on the same section of the cutterblock at the same time;
f) machines intended for use in potentially explosive atmosphere;
g) machines manufactured before the date of its publication as an international standard;
h) displaceable machines with a maximum planing width of ≤330 mm.
NOTE 3 Transportable motor-operated electric tools are dealt with in IEC 62841‑1:2014 and IEC 61029‑2‑3:1993.
Holzbearbeitungsmaschinen - Sicherheit - Teil 7: Abrichthobel-, Dickenhobel-, kombinierte Abricht- und Dickenhobelmaschinen (ISO 19085-7:2019)
Dieses Dokument stellt Sicherheitsanforderungen und Maßnahmen zur Verfügung für stationäre und verschiebbare
— Abrichthobelmaschinen, auch Abrichte genannt,
— Dickenhobelmaschinen, auch Dickte genannt,
— kombinierte Abricht- und Dickenhobelmaschinen
mit fester Messerwellenposition, mit integriertem Vorschub in der Betriebsart Dickenhobeln, mit oder ohne abnehmbarer Vorschubeinrichtung in der Betriebsart Abrichthobeln und mit Handbeschickung und Handentnahme des Werkstücks, im Folgenden „Maschinen“ genannt. Die Maschinen sind für das Bearbeiten von Massivholz und Werkstoffen mit ähnlichen physikalischen Eigenschaften wie Holz konzipiert.
ANMERKUNG 1 Hinsichtlich der Definition von stationären und verschiebbaren Maschinen siehe ISO 19085-1:2017, 3.4 und 3.5.
Es behandelt alle im Abschnitt 4 aufgeführten signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse, die auf diese Maschinen zutreffen, wenn sie bestimmungsgemäß und entsprechend den vom Hersteller vorgesehenen Bedingungen verwendet, eingestellt und gewartet werden, einschließlich des vernünftigerweise vorhersehbaren Fehlgebrauchs. Ferner werden die Phasen Transport, Montage, Demontage, Rückbau und Verschrottung berücksichtigt.
ANMERKUNG 2 Hinsichtlich zutreffender aber nicht signifikanter Gefährdungen, z. B. scharfe Kanten des Maschinengestells, siehe ISO 12100.
Es gilt auch für Abrichthobelmaschinen und kombinierte Abricht-/Dickenhobelmaschinen, die mit einer optionalen Einrichtung zum Langlochbohren, deren Gefahren behandelt wurden, ausgestattet sind.
Dieses Dokument gilt nicht für:
a) Maschinen mit mehr als einer Messerwelle;
b) Maschinen mit einer von einem gesonderten Motor angetriebenen Langlochbohreinrichtung;
c) Maschinen, bei denen die Messerwelle zur Einstellung der Schnitttiefe in der Betriebsart Dickenhobeln einstellbar ist;
d) Maschinen, bei denen die Umstellung von der Betriebsart Abrichthobeln in die Betriebsart Dickenhobeln oder umgekehrt durch das Einbauen oder Entfernen von Teilen/Einheiten ausgeführt wird;
e) Maschinen, bei denen das Abrichthobeln und Dickenhobeln auf demselben Abschnitt der Messerwelle gleichzeitig durchgeführt werden kann;
f) Maschinen, die zur bestimmungsgemäßen Verwendung in potentiell explosiven Atmosphären vorgesehen sind;
g) Maschinen, die vor dem Datum seiner Veröffentlichung als Internationale Norm hergestellt wurden;
h) verschiebbare Maschinen mit einer größten Hobelbreite ≤ 330 mm.
ANMERKUNG 3 Transportable, motorbetriebene Elektrowerkzeuge sind in IEC 62841-1:2014 und IEC 61029-2-3:1993 behandelt.
Machines à bois - Sécurité - Partie 7: Machines à dégauchir, à raboter et machines combinées à dégauchir/raboter (ISO 19085-7:2019)
Le présent document donne les exigences et les mesures de sécurité pour les machines fixes et transportables:
— à dégauchir, également appelées dégauchisseuses,
— à raboter, également appelées raboteuses,
— combinées à dégauchir/raboter
à porte-outil en position fixe, à avance intégrée en mode rabotage, avec ou sans dispositif d'avance mécanisée démontable en mode dégauchissage et à chargement et déchargement manuels de la pièce, ci-après désignées «machines». Les machines sont conçues pour la coupe de bois massif et de matériaux ayant des caractéristiques physiques similaires à celles du bois.
NOTE 1 Pour les définitions de machines fixes et transportables, voir l'ISO 19085-1:2017, 3.4 et 3.5.
Il traite de tous les phénomènes dangereux, situations dangereuses et événements dangereux significatifs énumérés à l'Article 4 concernant ces machines lorsqu'elles sont utilisées, réglées et entretenues comme prévu et dans les conditions prévues par le fabricant, incluant une mauvaise utilisation raisonnablement prévisible. Les phases de transport, d'assemblage, de démontage, de mise hors service et de mise au rebut sont également prises en compte.
NOTE 2 Pour les phénomènes dangereux pertinents mais non significatifs, par exemple, les arêtes vives du bâti de la machine, voir l'ISO 12100.
Il est également applicable aux machines à dégauchir et aux machines combinées à dégauchir/à raboter équipées d'un dispositif de mortaisage optionnel dont les phénomènes dangereux ont été traités.
Le présent document ne s'applique pas:
a) aux machines comportant plusieurs porte-outils;
b) aux machines comportant une unité de mortaisage entraînée par un moteur séparé;
c) aux machines dont le porte-outil est réglable pour le réglage de la profondeur de passe en mode rabotage;
d) aux machines dont le passage du mode dégauchissage au mode rabotage ou inversement est réalisé par montage ou démontage de parties/unités;
e) aux machines où le dégauchissage et le rabotage peuvent être réalisés sur la même section de l'outil en même temps;
f) aux machines prévues pour une utilisation en atmosphère explosible;
g) aux machines fabriquées avant sa date de publication comme Norme internationale;
h) aux machines transportables ayant une largeur maximale de travail ≤ 330 mm.
NOTE 3 Les outils électriques transportables à moteur sont traités dans l'IEC 62841-1:2014 et dans l'IEC 61029-2-3:1993.
Lesnoobdelovalni stroji - Varnost - 7. del: Poravnalni, debelinski in kombinirani skobeljni stroji (ISO 19085-7:2019)
Ta dokument obravnava vse večje nevarnosti, nevarne razmere in dogodke iz točke 4 v zvezi s stacionarnimi in premestljivimi – poravnalnimi skobeljnimi stroji, – debelinskimi skobeljnimi stroji, – kombiniranimi skobeljnimi stroji z vgrajenim podajalnikom v debelinskem načinu (s snemljivo napajalno enoto v skobeljnem načinu ali brez nje) ter ročnim nalaganjem in razlaganjem obdelovanca.
General Information
Relations
Standards Content (Sample)

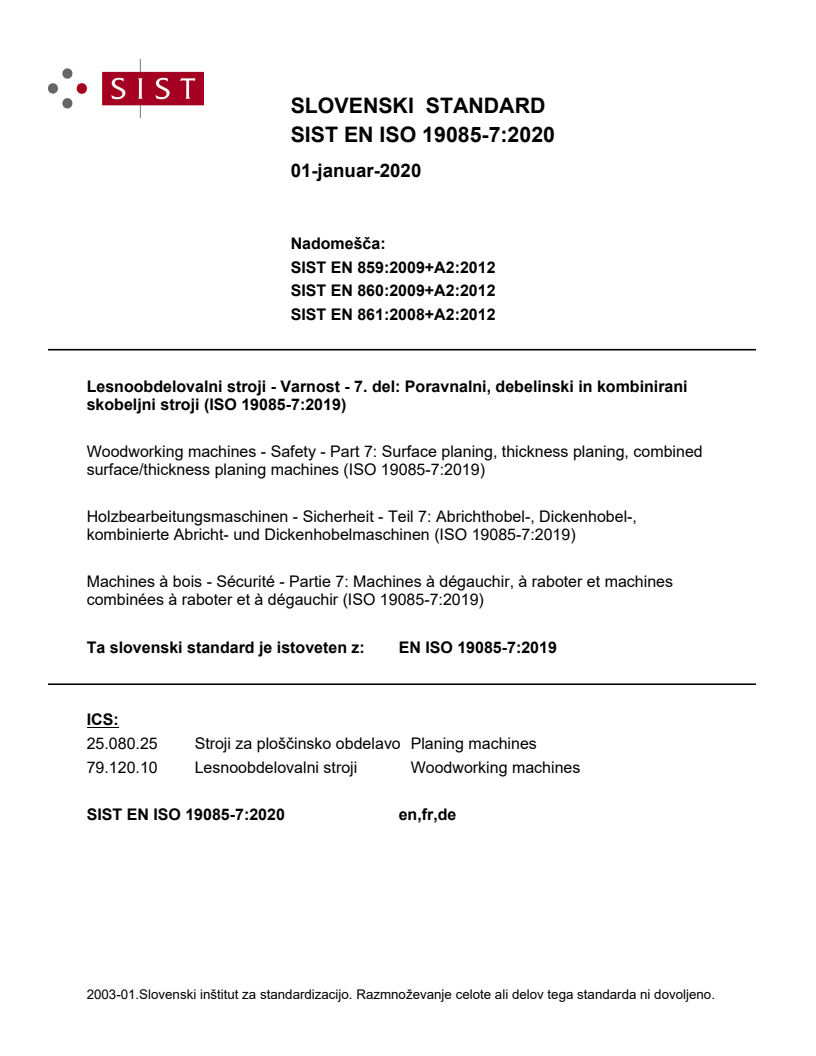

SLOVENSKI STANDARD
01-januar-2020
Nadomešča:
SIST EN 859:2009+A2:2012
SIST EN 860:2009+A2:2012
SIST EN 861:2008+A2:2012
Lesnoobdelovalni stroji - Varnost - 7. del: Poravnalni, debelinski in kombinirani
skobeljni stroji (ISO 19085-7:2019)
Woodworking machines - Safety - Part 7: Surface planing, thickness planing, combined
surface/thickness planing machines (ISO 19085-7:2019)
Holzbearbeitungsmaschinen - Sicherheit - Teil 7: Abrichthobel-, Dickenhobel-,
kombinierte Abricht- und Dickenhobelmaschinen (ISO 19085-7:2019)
Machines à bois - Sécurité - Partie 7: Machines à dégauchir, à raboter et machines
combinées à raboter et à dégauchir (ISO 19085-7:2019)
Ta slovenski standard je istoveten z: EN ISO 19085-7:2019
ICS:
25.080.25 Stroji za ploščinsko obdelavo Planing machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 19085-7
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 13.110; 79.120.10 Supersedes EN 859:2007+A2:2012, EN
860:2007+A2:2012, EN 861:2007+A2:2012
English Version

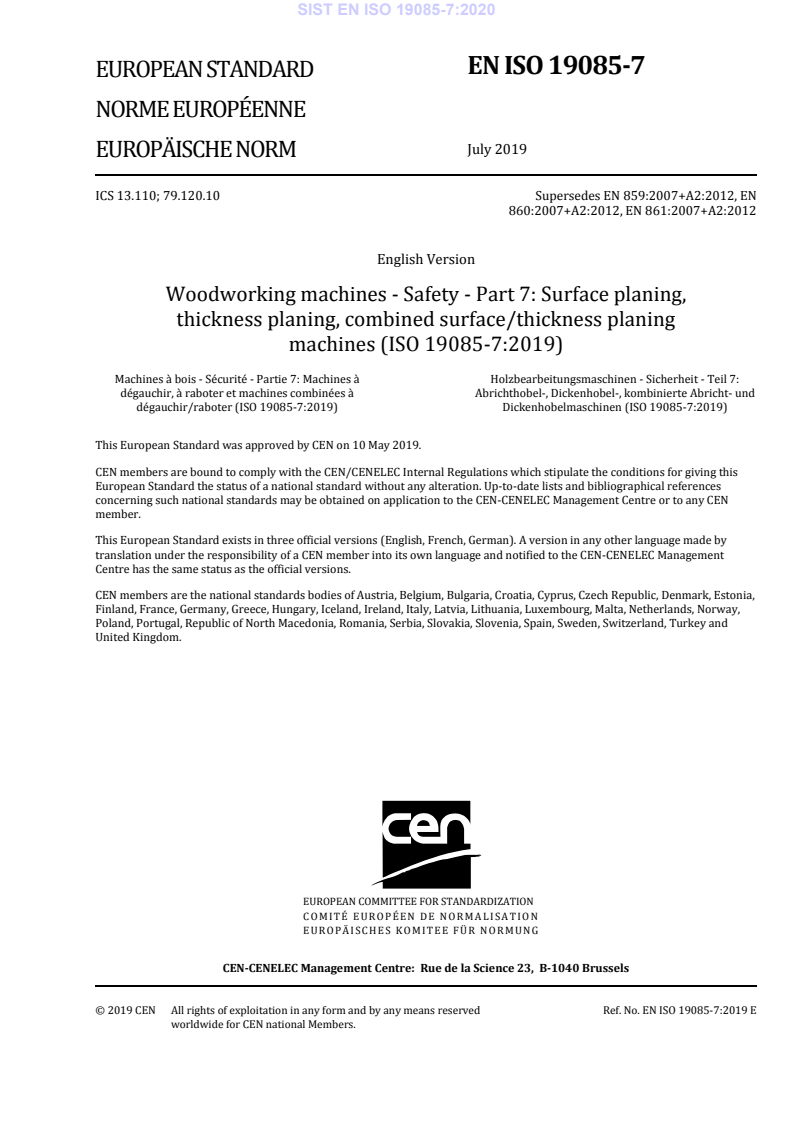

Woodworking machines - Safety - Part 7: Surface planing,
