EUROPEAN STANDARD
EN 860:2007+A2
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2012
ICS 79.120.10 Supersedes EN 860:2007+A1:2009
English Version
Safety of woodworking machines - One side thickness planing
machines
Sécurité des machines pour le travail du bois - Machines à Sicherheit von Holzbearbeitungsmaschinen -
raboter sur une face Dickenhobelmaschinen für einseitige Bearbeitung
This European Standard was approved by CEN on 10 May 2007 and includes Amendment 1 approved by CEN on 16 July 2009 and
Amendment 2 approved by CEN on 20 May 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 860:2007+A2:2012: E
worldwide for CEN national Members.

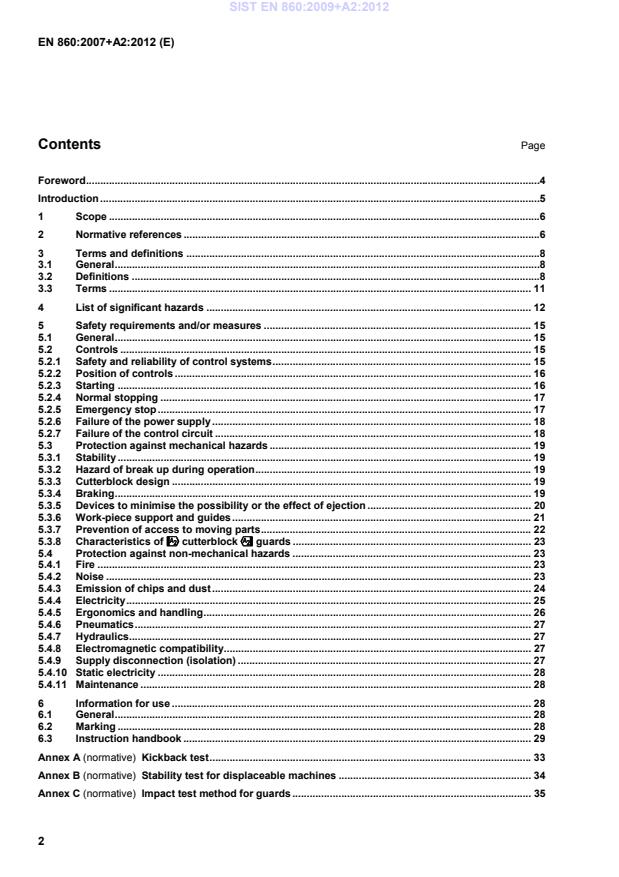

Contents Page
Foreword .4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .8
3.1 General .8
3.2 Definitions .8
3.3 Terms . 11
4 List of significant hazards . 12
5 Safety requirements and/or measures . 15
5.1 General . 15
5.2 Controls . 15
5.2.1 Safety and reliability of control systems . 15
5.2.2 Position of controls . 16
5.2.3 Starting . 16
5.2.4 Normal stopping . 17
5.2.5 Emergency stop . 17
5.2.6 Failure of the power supply . 18
5.2.7 Failure of the control circuit . 18
5.3 Protection against mechanical hazards . 19
5.3.1 Stability . 19
5.3.2 Hazard of break up during operation . 19
5.3.3 Cutterblock design . 19
5.3.4 Braking . 19
5.3.5 Devices to minimise the possibility or the effect of ejection . 20
5.3.6 Work-piece support and guides . 21
5.3.7 Prevention of access to moving parts . 22
5.3.8 Characteristics of ##cutterblock$$ guards . 23
## $$
5.4 Protection against non-mechanical hazards . 23
5.4.1 Fire . 23
5.4.2 Noise . 23
5.4.3 Emission of chips and dust . 24
5.4.4 Electricity . 25
5.4.5 Ergonomics and handling . 26
5.4.6 Pneumatics . 27
5.4.7 Hydraulics . 27
5.4.8 Electromagnetic compatibility . 27
5.4.9 Supply disconnection (isolation) . 27
5.4.10 Static electricity . 28
5.4.11 Maintenance . 28
6 Information for use . 28
6.1 General . 28
6.2 Marking . 28
6.3 Instruction handbook . 29
Annex A (normative) Kickback test . 33
Annex B (normative) Stability test for displaceable machines . 34
Annex C (normative) Impact test method for guards . 35
C.1 General . 35
C.2 Test method . 35
C.2.1 Preliminary remarks . 35
C.2.2 Testing equipment . 35
C.2.3 Projectile for guards . 35
C.2.4 Sampling. 35
C.2.5 Test procedure . 35
C.3 Results . 36
C.4 Assessment . 36
C.5 Test report . 36
C.6 Test equipment for impact test . 36
Annex D (normative) Braking tests . 40
D.1 Conditions for all tests . 40
D.2 # #Un-braked$$ run-down time . 40
## $$
D.3 Braked run-down time . 40
Annex ZA (informative) !Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"""" . 42
Bibliography . 46

Foreword
This document (EN 860:2007+A2:2012) has been prepared by Technical Committee CEN/TC 142
“Woodworking machines - Safety”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2012, and conflicting national standards shall be withdrawn
at the latest by December 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1, approved by CEN on 2009-07-16 and Amendment 2, approved by
CEN on 2012-05-20.
This document supersedes #EN 860:2007+A1:2009$.
The start and finish of text introduced or altered by amendment is indicated in the text by tags ! " and
#$.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of the Machinery Directive.
#For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.$
Organisation contributing to the preparation of the European Standard include the European Association of
Manufacturer of Woodworking Machines "EUMABOIS".
The European Standards produced by CEN/TC 142 are particular to woodworking machines and complement
the relevant A and B standards on the subject of general safety (see introduction of
#EN ISO 12100:2010$ for a description of A, B and C standards).
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.

Introduction
This document has been prepared to be a harmonised standard to provide one means of conforming to the
essential safety requirements of the Machinery Directive, and associated EFTA regulations.
This document is a type C standard as defined in #EN ISO 12100:2010$.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of other standards, for machines that
have been designed and built according to the provisions of this type C standard.
The requirements of this document are directed to manufacturers and their authorised representatives of one
side thickness planing machines. They are also useful for designers and importers.
This document also includes provisions and examples of information to be provided by the manufacturer to
the user.
Common requirements for tooling are given in #EN 847-1:2005+A1:2007$.
1 Scope
This document !specifies all significant" hazards, hazardous situations and events as listed in Clause 4,
relevant to stationary and displaceable one side thickness planing machines fitted with an integrated feed and
with cutterblock fixed in position and manual loading and unloading of the work-piece, hereinafter referred to
as "machines", designed to cut solid wood, chipboard, fibreboard and plywood when they are used as
intended and under the conditions foreseen by the manufacturer #including reasonably foreseeable
misuse$.
#Machines which are designed to work wood based materials may also be used for working hardened
plastic materials with similar physical characteristics as wood.$
This document does not apply to:
a) machines set up on a bench or a table similar to a bench, which is intended to carry out work in a
stationary position, capable of being lifted by one person by hand;
NOTE 1 Transportable motor-operated electric tools are dealt with in #EN 61029-1:2009$ together with
#EN 61029-2-3:2011$.
b) hand held planers or any adaptation permitting their use in a different mode, i.e. bench mounting;
NOTE 2 Hand-held motor-operated electric tools are dealt with in #EN 60745-1:2009$ together with
#EN 60745-2-14:2009$.
c) thickness planing machines where the cutterblock is adjustable for depth of cut setting.
This document is not applicable to one side thickness planning machines fitted with an integrated feed and
with cutterblock fixed in position which are manufactured before the date of its publication as EN.
NOTE 3 Machines covered by this European Standard are listed under #3 of Annex IV$ of the Machinery Directive.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
#EN 847-1:2005+A1:2007$, Tools for woodworking — Safety requirements — Part 1: Milling tools,
circular saw blades
#deleted text$
#EN 1005-4:2005+A1:2008$, Safety of machinery — Human physical performance — Part 4: Evaluation
of working postures and movements in relation to machinery
#EN 1037:1995+A1:2008$, Safety of machinery — Prevention of unexpected start-up
#EN 1088:1995+A2:2008$, Safety of machinery — Interlocking devices associated with guards —
Principles for design and selection
EN 50178:1997, Electronic equipment for use in power installations
EN 50370-1:2005, Electromagnetic compatibility (EMC) — Product family standard for machine tools —
Part 1: Emission
EN 50370-2:2003, Electromagnetic compatibility (EMC) — Product family standard for machine tools —
Part 2: Immunity
EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:2005, modified)
1)
EN 60439-1:1999 , Low-voltage switchgear and controlgear assemblies — Part 1: Type-tested and partially
type-tested assemblies (IEC 60439-1:1999)
2)
EN 60529:1991 , Degrees of protection provided by enclosures (IP code) (IEC 60529:1989)
EN 61496-1:2004, Safety of machinery — Electro-sensitive protective equipment — Part 1: General
requirements and tests (IEC 61496-1:2004, modified)
#deleted text$
#EN 61800-5-2:2007, Adjustable speed electrical power drive systems — Part 5-2: Safety requirements —
Functional (IEC 61800-5-2:2007)$
#EN ISO 3743-1:2010$, #Acoustics — Determination of sound power levels and sound energy levels of
noise sources using sound pressure — Engineering methods for small movable sources in reverberant fields
— Part 1: Comparison method for a hard-walled test room (ISO 3743-1:2010)$
#EN ISO 3743-2:2009$, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Engineering methods for small, movable sources in reverberant fields — Part 2: Methods for
special reverberant test rooms (ISO 3743-2:1994)
#EN ISO 3744:2010$, #Acoustics — Determination of sound power levels and sound energy levels of
noise sources using sound pressure — Engineering methods for an essentially free field over a reflecting
plane (ISO 3744:2010)$
#EN ISO 3745:2009$, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Precision methods for anechoic and semi-anechoic rooms (ISO 3745:2003)
#EN ISO 3746:2010$, #Acoustics — Determination of sound power levels and sound energy levels of
noise sources using sound pressure — Survey method using an enveloping measurement surface over a
reflecting plane (ISO 3746:2010)$
#EN ISO 4413:2010, Hydraulic fluid power — General rules and safety requirements for systems and their
components (ISO 4413:2010)
EN ISO 4414:2010, Pneumatic fluid power — General rules and safety requirements for systems and their
components (ISO 4414:2010)$
#EN ISO 4871:2009$, Acoustics — Declaration and verification of noise emission values of machinery
and equipment (ISO 4871:1996)
#EN ISO 9614-1:2009$, Acoustics — Determination of sound power levels of noise sources using sound
intensity — Part 1: Measurement at discrete points (ISO 9614-1:1993)
#EN ISO 11202:2010$, #Acoustics — Noise emitted by machinery and equipment — Determination of
emission sound pressure levels at a work station and at other specified positions applying approximate
environmental corrections (ISO 11202:2010)$

1)
#EN 60439-1:1999 is impacted by EN 60439-1:1999/A1:2004.$
2)
#EN 60529:1991 is impacted by EN 60529:1991/A1:2000.$
#EN ISO 11204:2010$, #Acoustics — Noise emitted by machinery and equipment — Determination of
emission sound pressure levels at a work station and at other specified positions applying accurate
environmental corrections (ISO 11204:2010)$
#EN ISO 11688-1:2009$, Acoustics — Recommended practice for the design of low-noise machinery and
equipment — Part 1: Planning (ISO/TR 11688-1:1995)
#EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)$
)
!EN ISO 13849-1:2008" , Safety of machinery — Safety-related parts of control systems — Part 1:
General principles for design (ISO 13849-1:2006)
!EN ISO 13849-2:2008", Safety of machinery — Safety-related parts of control systems — Part 2:
Validation (ISO 13849-2:2003)
HD 22.4 S4:2004, Cables of rated voltages up to and including 450/750 V and having crosslinked insulation —
Part 4: Cords and flexible cables
ISO 7568:1986, Woodworking machines — Thickness planing machines with rotary cutterblock for one-side
dressing — Nomenclature and acceptance conditions
ISO 7960:1995, Airborne noise emitted by machine tools — Operating conditions for woodworking machines
3 Terms and definitions
3.1 General
For the purposes of this document, the terms and definitions given in #EN ISO 12100:2010$ and the
following apply:
3.2 Definitions
3.2.1
one side thickness planing machine
machine designed for cutting off layers of the upper surface of a work-piece by a cutterblock rotating around a
horizontal axis, mounted at right angles to the infeed direction above the table designed to position and
support the work-piece
NOTE The cutterblock is a cylindrical shaped complex tool equipped with blades with horizontal straight cutting line
that cuts while rotating (see also #EN 847-1:2005+A1:2007$ for a description of the complex tool). The work-piece is
fed into the machine against the direction of the cut
3.2.2
table
table used to support the work-piece at the machine which may comprise an assembly of rollers, belts or other
fixed or moving mechanical elements
3.2.3
cutterblock
machine component designed to hold the cutting knives or cutting blades

)
!EN ISO 13849-1:2006 superseded EN 954-1:1996."
3.2.4
tool
complex tool as defined in #EN 847-1:2005+A1:2007$ which consists of the cutterblock, the cutting
blades and their fixings
3.2.5
integrated feed
feed mechanism for the work-piece which is integrated with the machine and where the work-piece is held and
controlled mechanically during the machining operation
3.2.6
loading of a one side thicknessing machine
manual placing of the work-piece to an integrated feed device consisting in feed rollers
3.2.7
stationary machine
machine designed to be located on or fixed to the floor or other parts of the structure of the premises and to
be stationary during used
3.2.8
displaceable machine
machine which is located on the floor, stationary during use and equipped with a device, normally wheels,
which allows it to be moved between locations
3.2.9
kickback
particular form of ejection describing the uncontrolled movement of the work-piece or parts of it or parts of the
machine opposite to the direction of feed during processing
3.2.10
anti-kickback device
device which either reduces the possibility of kickback or arrests the motion during kickback of the work-piece
parts of it
3.2.11
run-down time
elapsed time from the actuation of the stop control device to cutterblock stand still
3.2.12
run-up time
elapsed time from the actuation of the start control device until the spindle reaches the actual speed related to
the intended speed
3.2.13
information from the supplier
statement, sales literature, leaflet or other documents in which a manufacturer (or supplier) declares either the
characteristics of e.g. a material or product or the conformity of the material or product to a relevant standard
3.2.14
machine actuator
power mechanism used to effect motion of the machine
#deleted text$
####3.2.15
embedded software (SRESW)
software that is part of the system supplied by the control manufacturer and which is not accessible for
modification by the user of the machinery.
NOTE 1 Firmware or system software are examples of embedded software (EN ISO 13849-1:2008, 3.1.37).$
NOTE 2 Manufacturer means manufacturer of the system.
NOTE 3 For example the operating system of a speed monitoring device.
####3.2.16
application software (SRASW)
software specific to the application, implemented by the machine manufacturer, and generally containing logic
sequences, limits and expressions that control the appropriate inputs, outputs, calculations and decisions
necessary to meet the SRP/CS requirements
[EN ISO 13849-1:2008, 3.1.36]$
####3.2.17$$$$
safety related part of a control system (SRP/CS)
part or subpart(s) of a control system that responds to #safety related$ input signals and generates
safety-related output signals.
#NOTE 1$ The combined safety-related parts of a control system start at the point where the safety-related signals are
initiated (including e.g. the actuating cam and the roller of the position switch) and end at the output of the power control
elements (including e.g. the main contacts of the contactor). This also includes monitoring systems (3.1 of
!EN ISO 13849-1:2008")
#NOTE 2 If monitoring systems are used for diagnostics, they are also considered as SRP/CS.
[EN ISO 13849-1:2008, 3.1.1]$
##3.2.18
##
performance level PL
discrete level used to specify the ability of safety-related parts of control systems to perform a safety function
under foreseeable conditions
[EN ISO 13849-1:2008, 3.1.23]$
3.3 Terms
The names of the main parts of the machine are shown in Figure 1 and Figure 2.

Key
1 infeed table
2 anti-kickback fingers
3 upper guard
4 controls panel
5 table lifting system
6 extraction hood
Figure 1 — Example of a one side thickness planing machine

Key
1 anti kickback fingers
2 stop for the rotation of the finger
3 infeed roller
4 outfeed roller
5 cutterblock
6 direction of feed
Figure 2 — Example of the internal of a one side thickness planing machine
4 List of significant hazards
This clause contains !all significant" hazards, hazardous situations and events (see
#EN ISO 12100:2010$), #deleted text$ identified by risk assessment as significant for the machines
as defined in the scope and which require action to eliminate or reduce the risk. This document deals with
these significant hazards by defining safety requirements and/ or measures or by reference to relevant
standards.
#These hazards are listed in Table 1:$

####
Table 1 — List of significant hazards
Hazards, hazardous situations and hazardous Relevant
No events EN ISO clause of this
12100:2010 document
1 Mechanical hazards related to:

- machine parts or work-pieces due to:

6.2.2.1, 6.2.2.2,
5.3.1, 5.3.2,
6.3
5.3.3
a) shape;
b) relative location; 5.3.3, 5.3.5
c) mass and stability (potential energy of elements 5.3.1
which may move under the effect of gravity);
d) mass and velocity (kinetic energy of elements in 5.3.7
controlled or uncontrolled motion);
e) mechanical strength; 5.3.2, 5.3.3,
5.3.7, Annex A
- accumulation of energy inside the machinery by:
6.2.10, 6.3.5.4
f) liquids and gases under pressure. 5.4.5, 5.4.6,
5.4.7
1.1 Crushing hazard 5.3.7
1.2 Shearing hazard 5.3.7
5.3.7, 6.3
1.3 Cutting or severing hazard
1.4 Entanglement hazard 5.3.3,
1.5 Drawing-in or trapping hazard 5.3.7
1.6 Impact hazard 5.3.7
5.4.6
1.9 High pressure air ejection hazard 6.2.10
2 Electrical hazards due to:
6.2.9, 6.3.5.4
2.1 Contact of persons with live parts (direct contact) 5.4.4
6.2.9
2.2 Contact of persons with parts which have become live 5.4.4
under faulty conditions (indirect contact)
4 Hazards generated by noise, resulting in:
6.2.2.2, 6.3
4.1 Hearing loss (deafness), other physiological disorders 5.4.2
(loss of balance, loss of awareness)
4.2 Interference with speech communication, acoustic 5.4.2
signals
to be continued
Table 1 — List of significant hazards (continued)
Hazards, hazardous situations and hazardous Relevant clause
No events EN ISO 12100:2010 of this
document
7 Hazards generated by materials and substances (and their constituent elements) processed or
used by the machinery
6.2.3, 6.2.4
7.1 Hazards from contact with or inhalation of harmful fluids 5.4.3
and dusts
6.2.4
7.2 Fire hazard 5.4.1
8 Hazards generated by neglecting ergonomic principles in machinery design:
6.2.7, 6.2.8,
5.2.2, 5.4.5, 6.3
8.1 Unhealthy postures or excessive effort
6.2.11.12, 6.3.5.5,
6.3.5.6
6.2.8.3
8.2 Hand-arm or foot-leg anatomy 5.2.2, 5.3.6
6.2.8.6
8.4 Local lighting 6.3
6.2.8, 6.2.11.8,
8.6 Human error, human behaviour 6.3
6.2.11.10, 6.3.5.2,
6.4
6.2.8.7, 6.2.11.8
8.7 Design, location or identification of manual controls 5.2.2
6.2.8, 6.4.2
8.8 Design or location of visual display units 5.4.5, 5.4.9, 6.1,
6.2
9 Combination of hazards 5.2.3, 5.2.5,
6.3.2.1
5.2.7, 5.3.8,
5.4.9
10 Unexpected start-up, unexpected overrun/overspeed (or any similar malfunction) from:
6.2.11, 6.3.5.4
10.1 Failure/disorder of the control system 5.2.1, 5.2.2,
5.2.3, 5.2.4,
5.2.5, 5.2.6,
5.2.7
6.2.11.4
10.2 Uncontrolled restoration of energy supply after an 5.2.6
interruption
6.2.11.11
5.4.4, 5.4.8
10.3 External influences on electrical equipment
10.5 Errors in the software 6.2.11.7 5.2.1
6.2.8, 6.2.11.8,
10.6 Errors made by the operator (due to mismatch of 5.4.5, 6.3
6.2.11.10, 6.3.5.2,
machinery with human characteristics and abilities, see
6.4
8.6)
to be continued
Table 1 — List of significant hazards (concluded)
Hazards, hazardous situations and hazardous Relevant clause
No events EN ISO 12100:2010 of this
document
11 Impossibility of stopping the machine in the best 6.2.11.1, 6.2.11.3, 5.2.4, 5.2.5,
possible conditions 6.3.5.2 5.3.4
13 Failure of the power supply 6.2.11.1, 6.2.11.4 5.2.6
14 Failure of the control circuit 6.2.11, 6.3.5.4
5.2.1, 5.2.7,
5.3.4
15 Errors of fitting 6.2.7, 6.4.5 6.2
16 Break-up during operation 6.2.3, 6.2.3.10 5.3.2, Annex A
17 Falling or ejected objects or fluids 6.2.3, 6.2.10 5.3.2, 5.3.3,
5.3.5
18 Loss of stability / overturning of machinery 6.3.2.6
5.3.1, Annex B
$
5 Safety requirements and/or measures
5.1 General
The machine shall comply with the safety requirements and/or protective measures of Clause 5.
#In addition, the machine should be designed according to the principles of EN ISO 12100:2010 for hazards
relevant but not significant, which are not dealt with by this document (e.g. sharp edges of the machine
frame).$
#For guidance in connection with risk reduction by design see EN ISO 12100:2010, 6.2 and for
safeguarding measures see EN ISO 12100:2010, 6.3.$
5.2 Controls
5.2.1 Safety and reliability of control systems
#deleted text$
For the purpose of this document safety related part of a control system means the system from the initial
actuator or position detector or sensor up to and including the power control element of the final machine
actuator, e.g. motor or brake. Safety related parts of the control system of this machine comprise parts
concerning the following functions and they shall fulfil #at least the requirements of the PL given below in
accordance with the requirements of EN ISO 13849-1:2008:$
 starting: #PL=c$ (see 5.2.3, 5.3.4.2);
 normal stopping: #PL=c$ (see 5.2.4);
 emergency stop: #PL=c$ (see 5.2.5);
 interlocking: #PL=c$ (see 5.2.3, 5.2.6, 5.3.7, 5.3.4.2, 5.3.7.1 and 5.3.7.2);
#deleted text$
 braking: #PL=b or PL=c$ (see 5.3.4);
 preventing of unexpected start up in the event of power supply failure: #PL=c$ (see 5.2.6 and 5.2.7);
 brake release: #PL=c$ (see 5.3.4.1, 5.3.4.2);
#deleted text$
 interlocking between the feed drive motor and the cutterblock drive motor: #PL=c$ (see 5.2.3);
 hold to run control: #PL=c$ (see 5.2.3);
 thicknessing table powered #adjustment initiation$: #PL=c$ (see 5.2.3).
#deleted text$
Verification: By checking the relevant drawings and/or circuit diagrams and inspection of the machine.
#deleted text$
5.2.2 Position of controls
The electrical control actuator for starting, normal stopping, emergency stop and powered table adjustment (if
fitted) shall be located at least 600 mm from the floor and at the infeed side.
An additional emergency stop actuator, if required in accordance to 5.2.5, shall be located at least 600 mm
from the floor and at the outfeed side.
Verification: By checking the relevant drawings, measurement and inspection of the machine.
5.2.3 Starting
Before starting or restarting the machine all the safeguards shall be in place and functional. This is achieved
by the interlocking arrangement described in 5.3.7. Start or restart shall only be possible by actuation of the
start control device provided for that purpose.
For electrically operated machines the requirements of 9.2.5.2 of EN 60204-1:2006 shall apply and in addition:
a) for the purpose of this document "operation" means rotation of the cutterblock and/or the integrated feed
and/or powered adjustment;
b) #start of the feed motor shall be possible only where the cutterblock drive motor is running e.g. by using
a time delay conforming to PL=b in accordance with the requirements of EN ISO 13849-1:2008. For a
machine with one motor only the start of the feed shall be possible only if the cutterblock drive is
running;$
c) design of the control #systems$ shall be such as to satisfy the starting sequence requirements. If a
time delay device is used the time delay shall be at least equal to the run-up time. The time delay shall be
fixed or the time delay device adjustment shall be sealed.
#When adjustment of the table is powered, the control shall be via a hold to run control or a preset
electronic control.
For machines with table adjustment via a preset electronic control:
− adjustment for the table shall be initiated by a start command (e.g. push button) the control
system of which conforms to at least PL=c in accordance with the requirements of
EN ISO 13849-1:2008;
− at the end of programmed adjustment the power shall be cut to the actuator in at least PL=b. A
new initiation shall be necessary to perform additional adjustment.
The safety related part of the control systems (also see 5.2.1) for start and restart of the machine and for the
interlocking between the cutterblock drive motor and the feed motor shall be at least PL=c in accordance with
the requirements of EN ISO 13849-1:2008.
The safety related part of the control system (also see 5.2.1) for hold-to-run control shall be PL=c in
accordance with the requirements of EN ISO 13849-1:2008.$
Verification: By checking the relevant drawings and/or circuit diagrams, inspection of the machine and relevant
functional testing of the machine.
5.2.4 Normal stopping
The machine shall be fitted with a stop control system, where by the machine can be brought safely to a
complete stop. The stopping action shall include disconnection from energy supply of all machine actuators
and actuate the brake (if fitted see 5.3.4).
#For normal stopping of PDS(SR) (power drive system, safety related) see 4.2.2.2 "safe torque off (STO)”
and 4.2.2.3 “safe stop 1 (SS1)” of EN 61800-5-2:2007.$
The normal stop control system shall be of:
a) category 1 in accordance with the requirements in 9.2.2 of EN 60204-1:2006 where the machine is fitted
with an electric brake, or
b) category 0 in accordance with the requirements in 9.2.2 of EN 60204-1:2006 where the machine is fitted
#with a spring operated mechanical brake$ or the brake is not fitted;
For a category 1 normal stop control system, the stopping sequence shall be:
1) cut at the same time power to integrated feed if driven by a separate motor and to the cutterblock
motor and to the table adjustment if under preset electronic control; and apply the brake;
2) cut power to the brake after the #cutterblock$ has come to rest e.g. by a time delay of fail safe
technique e.g. of capacity type conforming to #at least PL=c in accordance with the requirements
of EN ISO 13849-1:2008$.
The design of the control #systems$ shall be such as to satisfy the normal stopping sequence
requirements. If a time delay device is used the time delay shall be at least equal to the braking time. The time
delay shall be fixed or the time delay adjustment device shall be sealed.
#The safety related part of the control systems (also see 5.2.1) for normal stopping shall be at least PL=c in
accordance with the requirements of EN ISO 13849-1:2008.$
Verification: By checking the relevant drawings and/or circuits diagrams, inspection of the machine and
relevant functional testing of the machine.
5.2.5 Emergency stop
An emergency stop device shall be provided and be accessible from the operator's position at the infeed side
of the machine. #As an exception an emergency stop is not required for machines with only one motor and
where the normal stop control is not shrouded and is easily accessible from the operator's positions.$
#For emergency stop of PDS(SR) see 4.2.2.2 "safe torque off (STO)” and 4.2.2.3 “safe stop 1 (SS1)” of
EN 61800-5-2:2007.$
For machines with separate feed motors and/or a working width greater than 500 mm and /or with preset
electronic control for adjusting the height of the thicknessing table, a second emergency stop device
accessible at the outfeed shall be provided.
#If the machine is fitted with a spring operated mechanical brake$ without integrated feed driven by a
separate motor and/or without guard locking the emergency stop function shall conform to category 0 in
accordance with the requirements in 4.1.4 of #EN ISO 13850:2008$ and the emergency stop control
circuit shall conform to category 0 in accordance with the requirements in 9.2.2 of EN 60204-1:2006 and shall
fulfil the requirements of 9.2.5.4.2 of EN 60204-1:2006.
#If the machine is fitted with any other type of brake e.g. an electrical brake$ and/or with integrated feed
driven by a separate motor and/or guard locking the emergency stop function shall conform to category 1 in
accordance with the requirements in 4.1.4 of #EN ISO 13850:2008$ and the emergency stop control
circuit shall conform to category 0 in accordance with the requirements in 9.2.2 of EN 60204-1:2006 and shall
fulfil the requirements of 9.2.5.4.2 of EN 60204-1:2006.
The emergency stop devices shall conform to 10.7 of EN 60204-1:2006 and shall be at any time of self
latching type.
When initiated the emergency stopping sequence shall be the same as for normal stopping (see 5.2.4).
The design of the #control systems$ shall be such as to satisfy the emergency stopping sequence
requirements. If a time delay device is used the time delay shall be at least the maximum run-down time.
Either the time delay shall be fixed or the time delay adjustment device shall be sealed.
#The safety related part of the control systems (also see 5.2.1) for emergency stop shall be at least PL=c in
accordance with the requirements of EN ISO 13849-1:2008.$
Verification: By checking the relevant drawings and/or circuits diagrams, inspection of the machine and
relevant functional testing of the machine.
5.2.6 Failure of the power supply
The restoration of the energy supply after a supply interruption shall not result in a restart of any machine
actuator in accordance with the requirements of #EN 1037:1995+A1:2008$. For electrically driven
machines this is achieved e.g. by providing an #under-voltage protection$ at a predetermined #under-
voltage$ level in accordance with the requirements in 7.5, paragraphs 1 and 3 of EN 60204-1:2006.
In the case of pneumatic and/or hydraulic supply interruption and where a dangerous movement is possible
after the restoration of the supply pressure re-starting of any dangerous movement of the machine shall be
prevented.
Verification: By checking the relevant drawings and/or circuit diagrams, inspection of the machine and relevant
functional testing of the machine.
5.2.7 Failure of the control circuit
The requirements of Clause 6 of #EN 1037:1995+A1:2008$ shall apply and in addition:
The control circuits shall be designed so that a line rupture in any circuit (e.g. broken wire, pipe or hose) will
not result in the loss of a safety function e.g. involuntary start in accordance with EN 60204-1:2006,
#EN ISO 4413:2010$ and #EN ISO 4414:2010$.
For requirements for the control circuits see 5.2.1.
Verification: By checking the relevant drawings and/or circuit diagrams, inspection of the machine and relevant
functional testing of the machine.
5.3 Protection against mechanical hazards
5.3.1 Stability
It shall be possible to fix stationary machines to a suitable stable structure e.g. floor. Facilities for fixing are e.g.
fixing holes or the necessary fixing devices in the machine frame (also see 6.3 f)).
Displaceable machines shall have the facility to make them stable during
...
