TECHNICAL REPORT
CEN/TR 15120
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
May 2013
ICS 13.300; 23.020.20 Supersedes CEN/TR 15120:2005
English Version
Tanks for transport of dangerous goods - Guidance and
recommendations for loading, transport and unloading
Citernes destinées au transport de matières dangereuses - Tanks für die Beförderung gefährlicher Güter - Leitlinien
Lignes directrices et recommandations pour le chargement, und Empfehlungen für Ausfüllung, Beförderung und
le transport et le déchargement Entladung

This Technical Report was approved by CEN on 28 January 2013. It has been drawn up by the Technical Committee CEN/TC 296.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15120:2013: E
worldwide for CEN national Members.

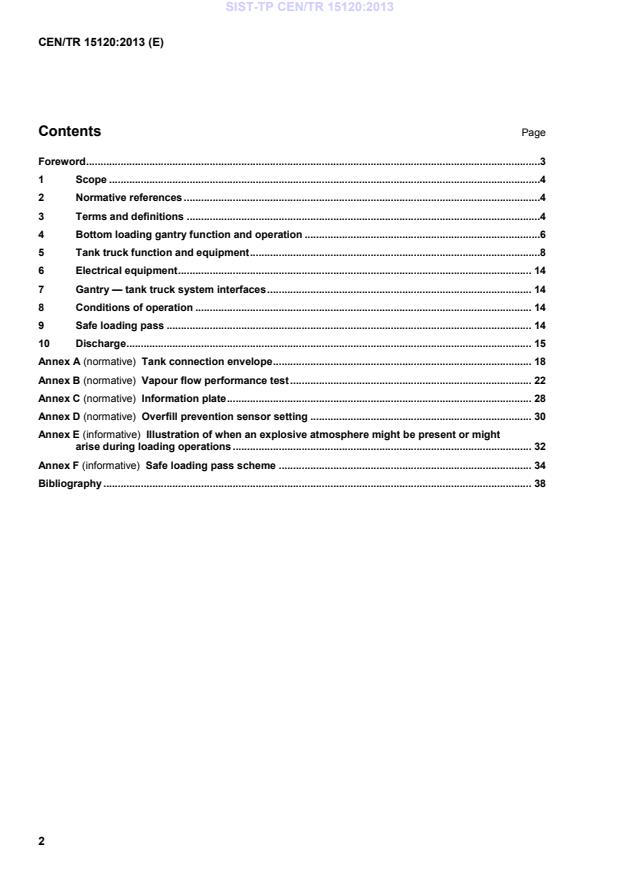

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Bottom loading gantry function and operation .6
5 Tank truck function and equipment .8
6 Electrical equipment . 14
7 Gantry — tank truck system interfaces . 14
8 Conditions of operation . 14
9 Safe loading pass . 14
10 Discharge . 15
Annex A (normative) Tank connection envelope . 18
Annex B (normative) Vapour flow performance test . 22
Annex C (normative) Information plate . 28
Annex D (normative) Overfill prevention sensor setting . 30
Annex E (informative) Illustration of when an explosive atmosphere might be present or might
arise during loading operations . 32
Annex F (informative) Safe loading pass scheme . 34
Bibliography . 38

Foreword
This document (CEN/TR 15120:2013) has been prepared by Technical Committee CEN/TC 296 “Tanks for
the transport of dangerous goods”, the secretariat of which is held by AFNOR.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TR 15120:2005.
The main changes compared to the previous edition are:
 additional statement concerning spray deflectors added to 5.2.1;
 additional statement concerning pressure balanced footvalve pressure relieving added to 5.3.3;
 new section 5.3.4 concerning cap for loading and unloading adaptor added;
 additional statement clarifying where 5.5 kPa pressure shall be measured in 5.4.1;
 reference to EN12971 removed from 5.4.1;
 flame arrester specification updated to meet latest standards in 5.4.5;
 additional statement concerning positioning of an overfill probe added to 5.5.1;
 Annex A – statement concerning height of loading adaptors changed to reflect Directive 94/63/EC;
 Annex A – additional statement defining minimum adaptor spacing added.

1 Scope
This Technical Report provides guidance and recommendations to enable the transfer of product and vapour
between the loading gantry, the tank truck and the service station.
The European Parliament and Council Directive 94/63/EC (VOC Directive) requires operators to ensure that
petroleum vapours are not emitted into the atmosphere during loading and unloading. The recommendations
and guidance given in this document are intended to assist users in meeting the requirements of this
Directive.
This Technical Report acknowledges that, for climatic and logistical reasons, alternative technical solutions
are commonly used in the Arctic Region.
This Technical Report gives guidance and recommendations for loading at terminals and discharge at service
stations or customer premises of tank trucks transporting dangerous substances of Class 3 of ADR -
European Agreement concerning the International Carriage of Dangerous Goods by Road – (flammable
liquids) which have a vapour pressure not exceeding 110 kPa at 50 °C and petrol, and which have no
sub-classification as toxic or corrosive.
2 Normative references
The following documents, in whole in part, are normatively referenced in this document and are indispensable
for its application. For dated references, only the edition cited applies. For undated references, the latest
edition of the referenced document (including any amendments) applies.
EN 12972, Tanks for transport of dangerous goods — Testing, inspection and marking of metallic tanks
EN 14564:2013, Tanks for transport of dangerous goods — Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 14564:2013 and the following apply.
3.1
arctic region
region comprising Finland, Norway and Sweden
3.2
authorisation to load
authorisation of a tank truck loader by a terminal operator to load the required goods into the tank truck
following the verification of his or her competence including any required certification and its associated
validity
3.3
driver
person in charge of the tank truck, having responsibility for driving and who might or might not also be
responsible for its loading and/or discharge
3.4
overfill
filling of a tank truck or one or more of its compartments to the extent that the total volume loaded into a
compartment exceeds the maximum permitted volume
3.5
overfill prevention system
gantry-mounted controller connected to sensors mounted at a pre-determined high level in a tank truck that
will, in the event that a sensor detects liquid, signal the gantry control valve to cease loading flow in order to
prevent the overfilling of the tank truck
3.6
overloading
loading of a tank truck such that its total weight exceeds that permitted by local road regulations, or the load
imposed by one or more axles exceeds the local maximum authorised weight for that axle
3.7
tank truck
truck which conforms to the definition of either tank-vehicle, demountable tank, tank container or tank swap
body given in EN 14564
3.8
safe loading pass
permit issued to a tank truck upon verification by inspection that its design and maintenance satisfy safety and
gantry compatibility requirements
3.9
tank truck loader
person responsible for loading the tank truck in accordance with the load plan
Note 1 to entry: The tank truck loader is sometimes called the filler.
3.10
tank truck operator
legal entity/company that provides funds, tank trucks and personnel in order to transport dangerous goods as
described in Clause 1
3.11
terminal operator
person or company in charge of terminal operations, including the responsibility for storage, handling, loading
of dangerous goods and providing the information with regard to the specifications of the product to be loaded
3.12
maximum permitted volume
maximum volume of the compartment, or in total
Note 1 to entry: Maximum permitted volume means the same as the term "degree of filling", which is used in the
European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR).
3.13
frustrated delivery
delivery where the driver is unable to unload the intended volume
4 Bottom loading gantry function and operation
4.1 Gantry loading equipment
4.1.1 General
Arrangements to permit loading of tank trucks, equipped according to this document, should be available on at
least one gantry at each arctic loading facility.
4.1.2 Overfill prevention system
Loading gantries should have meters to determine the volume loaded into a tank truck compartment. The
primary overfill prevention system should comprise the pre-setting of the gantry loading meter by the tank
truck loader for each tank truck compartment separately before it is loaded.
4.1.3 Level detection — Secondary shut off (overfill prevention) system
The gantry-based components of the overfill prevention system should conform to EN 13922. The plug should
be able to connect with the connector within the tank connection envelope as described in Annex A. It should
be considered as a secondary overfill prevention system in the event that the primary volume limiting system
(meter pre-set) does not operate.
NOTE In the arctic region, 2-wire thermistor sensors with a positive temperature coefficient conforming to national
standards and individual tank truck mounted shut-off devices are commonly used.
4.1.4 Coupler for bottom loading
Couplers for bottom loading should be operationally compatible with adaptors for bottom loading and should
be able to connect with them within the tank connection envelope as described in Annex A.
Where tank trucks fitted with valves which can be closed against product flow are loaded, a surge pressure
of 2 500 kPa should not compromise the integrity or functions of the coupler.
In order to prevent the accumulation of any electrostatic charge, there should be electrical resistance of less
than 10 ohms across a metallic coupler and adaptor, and less than 10 ohms in other cases, when connected.
NOTE In the arctic region, couplers for bottom loading with the same functionality but able to connect with an adaptor
for bottom loading with a reduced diameter are commonly used.
4.1.5 Vapour collection system
The vapour collection coupler should conform to EN 13081 and should be able to connect with the vapour
collection adaptor within the tank connection envelope as described in Annex A.
NOTE In the arctic region, a vapour collection coupler with the same functionality but with a reduced diameter are
commonly used.
4.1.6 Drive away restriction
A system to prevent unauthorised movement of a tank truck may be provided.
4.2 Loading conditions
4.2.1 Maximum loading rates per loading arm
The maximum loading rate per loading arm should not exceed the values given in Table 1.
It is recommended that the tank truck be suitable for high speed loading (see 5.2.1).
NOTE Table 1 has been adapted from CLC/TR 50404 and gives the flow rates for diameters of pipe used in loading
systems, including tank truck pipework, such that the accumulation of the electrostatic charge on the surface of the liquid
does not exceed acceptable limits. The reduced values given in brackets apply to non high speed loading tank trucks.
Maximum loading rates (vd < 0,5) are given for design purposes; loading rates may be reduced for safety
reasons depending upon specific circumstances.
Table 1 — Conductivity
Conductivity
pS/m
Known > 50 Known > 10 Known < 10, or unknown
Product class
max. loading rate max. loading rate max. loading rate
and sulphur
content
l/min l/min l/min
a
[S] mg/kg
c b
DN v × d DN DN v × d DN DN
v × d DN
80 mm 100 mm 80 mm 100 mm 80 mm 100 mm
Gasoline (any S 1 900 2 400 1 900 2 400 1 900 2 400
< 0,5 < 0,5 < 0,5
d
level)
(< 0,38) (1 400) (1 800)
Diesel or gasoil 1 900 2 400 1 900 2 400 1 900 2 400
< 0,5 < 0,5 < 0,5
with S > 50 and
(< 0,38) (1 400) (1 800)
all other fuels
Diesel or gasoil < 0,5 1 900 2 400 < 0,5 1 900 2 400 < 0,35 1 300 1 650
with S < 50
(1 400) (1 800) (940) (1 200)
(< 0,38) (< 0,25)
NOTE 1 Flow rates given in this table prevent the accumulation of the electrostatic charge on the surface of
the liquid reaching unacceptable levels.
NOTE 2 Information on product sulphur content and conductivity would normally be provided by the terminal
operator.
NOTE 3 Values in brackets apply to non high speed loading tank-vehicles.
NOTE 4 The maximum loading rates given in Table 1 may be reduced for safety reasons depending upon
specific circumstances.
NOTE 5 DN = d × 1 000.
a
mg/kg = mass fraction (ppm).
b
DN = diameter (nominal) of loading pipe (mm).
c
v × d = flow velocity in metres per second [m/sec] × nominal internal pipe diameter in metres [m].
d
Reduced flow rates are applicable in arctic or severe winter conditions.

4.2.2 Maximum liquid pressure
Where systems include valves that can be closed against the loading flow, including pressure-balanced
valves, it should be ensured that:
 the maximum static pressure in the pipework upstream of the isolating valve does not exceed 1 Mpa;
 pressure-balanced footvalves conform to EN 13316.
4.2.3 Maximum vapour back pressure
The maximum back-pressure created by the gantry vapour recovery system should be 5,5 kPa (55 mbar).
NOTE The maximum back pressure of 5,5 kPa is a requirement of the VOC Directive 94/63/EC.
Controls may be provided to ensure that this maximum back pressure is not exceeded.
4.3 Loading operations
Before loading is permitted, procedures should exist to ensure that there is authorisation to load and to
accommodate the loading of both empty and not-empty compartments. For not-empty compartments, the
volume and grade of the retained goods should be determined prior to loading.
If the surface on which the tank truck is standing is not conductive (see CLC/TR 50404 for guidance), the tank
truck should be bonded to earth before any operation (e.g. opening fill covers, connecting loading couplers) is
carried out. The bonding resistance between the tank truck and the gantry should be 10 ohms or less.
Procedures should exist to ensure that overloading does not occur.
5 Tank truck function and equipment
5.1 Tank truck compartment – Compartment identification
The tank truck compartments should be clearly identified with the numbering starting from the front of the tank
(see Annex C).
5.2 Tank truck compartment — Control of static electricity
5.2.1 General
As an electrostatic charge is generated within the dangerous goods whenever they are being loaded into a
tank truck, precautions should be taken to ensure the safe dissipation of the charge.
Metal-to-metal connections should have an electrical continuity of 10 ohms or less.
Non-metallic conductive components should be installed such that electrical continuity of 10 ohms or less
exists across the interface to the adjacent component.
Where the functionality of an electrical system requires one or more insulating blocks to be inserted between
components, it should be ensured that the electrical continuity across the components does not exceed
10 ohms.
The tank should be mounted such that there is electrical continuity of 10 ohms or less between the tank and
wheel rims and 10 ohms or less between the tank and a conductive road surface.
Spray deflectors or other methods should be used to minimise spraying and jetting of liquid from the
footvalves during the loading process.
5.2.2 Central conductor
Tank trucks where all compartments meet the criteria given in the following list may be referred to as high
speed loading tank trucks. Other tank trucks should be deemed as non high speed loading tank trucks
(see 4.2.1 for effect on loading rates). Every tank truck should carry either a document or an indelibly marked
plate (see Annex C) or both identifying whether it is a high speed loading tank truck or a non high speed
loading tank truck.
For high speed loading tank trucks, compartments and any chamber therein should:
a) have a nominal capacity < 2 000 l; or
b) have a nominal capacity ≥ 2 000 l and ≤ 15 000 l, and be equipped with
1) at least one full height baffle or surge plate; or
2) at least one central conductor, so that no part of the liquid surface, in plan view, is > 0,8 m from one
of the conductors or the tank shell; or
c) have a nominal capacity > 15 000 l.
NOTE A chamber is the space created in a compartment when that compartment is subdivided by baffles or surge
plates into spaces of smaller capacity (as per CLC/TR 50404).
A central conductor should be an electrically continuous metallic uninsulated cable, wire or tube, which has
electrical continuity with the tank shell of ≤ 10 ohms.
If a cable or wire, the central conductor should:
 have a diameter ≥ 2 mm and ≤ 10 mm, or ≥ 50 mm;
 be fixed to the roof and to the floor of the compartment or chamber; and
 have sufficient strength to withstand flexing caused by loading and transport operations, including its end
fittings and attachments.
If a tube (which may be a dip, drain, service or vapour recovery tube), the central conductor should:
 have a diameter ≥ 50 mm; and
 be fixed to the roof of the compartment or chamber and continued to the floor or vice versa.
A central conductor should not retain product.
Any overfill or other probe in a compartment should be fitted < 0,5 m from a compartment division, or a baffle,
surge plate or central conductor.
5.3 Tank truck loading equipment
5.3.1 Tank contents determination
Provision should be made for determining the empty or not-empty condition of each tank truck compartment
prior to loading.
A plate, as shown in Annex C, should be fitted adjacent to the adaptor showing the maximum permissible
filling volume of each compartment.
5.3.2 Adaptor for bottom loading and unloading
The bottom loading adaptor should conform to EN 13083. If the system is fitted with valves which can be
closed against the loading flow, e.g. pressure balanced footvalves conforming to EN 13316, a surge pressure
of 2 500 kPa should not compromise the integrity or functions of the adaptor/coupler.
NOTE In the arctic region, bottom loading adaptors with the same functionality but with a reduced diameter are
commonly used.
The adaptors should be located as described in Annex A to allow the connection of couplers.
5.3.3 Footvalves
Non-pressure balanced footvalves should conform to EN 13308.
Pressure balanced footvalves should conform to EN 13316.
Before the footvalve in the tank compartment is opened, the vapour transfer valve should be open. The
footvalve should be open before loading commences.
The footvalve should be closed before the loading or discharge connections are broken.
For pipe systems with pressure balanced footvalves, a pressure relieving device should be installed between
the footvalve and loading/unloading adaptor to prevent over-pressurisation of the pipeline from thermal
expansion of the liquid.
5.3.4 Cap for the bottom loading/unloading adaptor
The drip cap fitted to the bottom loading/unloading adaptor should conform to EN16249.
5.4 Vapour collection system
5.4.1 General conditions
In order to ensure that vapour is not emitted to atmosphere when the terminal vapour collection system
generates a back-pressure of up to 5,5 kPa, care should be taken when designing, operating and maintaining
the vapour collection system of the tank truck.
Vents fitted to the compartment, vapour manifold and vapour pipework should be designed and controlled
such that vapours from the storage installations at the service stations or terminals are retained, except for the
release of internal overpressure and vacuum through the pressure and breather vents (EN 14595).
NOTE 1 The release of internal overpressure and vacuum through the pressure and vacuum breather vents
(EN 14595) is a requirement of Directive 94/63 on the control of volatile organic compound (VOC) emissions.
NOTE 2 The vapour collection systems of tank trucks differ depending on whether:
type 1: the pressure and vacuum breather vents exhaust directly to atmosphere; or
type 2: the pressure and vacuum breather vents exhaust into the vapour collection manifold.
To load the maximum number of compartments simultaneously without vapours escaping into the
atmosphere, the following should be taken into account:
 the pressure drop of all components installed in the vapour collection system;
 the pressure drop of vapour collection pipework;
 the maximum permitted back pressure of 5,5 kPa (55 mbar).
To allow bottom loading gantries to collect all vapours displaced from a tank truck being loaded, the vapour
collection system should be leakproof in accordance with EN 12972.
5.4.2 Vapour collection manifold
A vapour collection manifold should be used when loading or unloading a tank truck with more than one
compartment. Where the coaming is used as a vapour manifold, it should be considered as part of the vapour
pipework.
A common manifold is suitable for vapour collection when loading or unloading and may be either a separate
pipe or the rollover coaming.
The vapour transfer valves should seal the vapour collection manifold from the compartments during
transport, except where they incorporate a pressure and vacuum breather vent. Whichever system is used,
the manifold should be sealed to atmosphere when a vapour recovery coupler is connected.
The vapour collection system should be provided with a facility to detect the presence of liquid (e.g. sight
glass). Where necessary it should be adequately protected against possible over-pressure due to thermal
expansion.
5.4.3 Vapour transfer valves
The vapour transfer valves should conform to EN 13082.
Vapour transfer valves should be open before loading or discharge commences.
5.4.4 Pressure and vacuum breather vents
Each compartment should be fitted with a pressure and vacuum breather vent conforming to EN 14595. The
pressure breathing capacity should be sufficient to ensure that the maximum working pressure of the tank is
not exceeded. The vacuum breathing capacity should be sufficient to ensure that the maximum vacuum rating
of the tank is not exceeded under either a gravity or a pumped discharge.
5.4.5 Flame arresters
In order to protect the tank and its contents, together with any vapour pipework, from possible ignition
sources, a flame arrester should be fitted to all valves which can breathe directly to atmosphere (excluding the
emergency pressure relief valve according to EN 14596 where fitted).
Flame arresters should be of the "end of line deflagration flame arrester" type, that meet the requirements of
ISO 16852:2008, 7.3.2.1 Flame Transmission Test, referred to in section 6.9, Table 5 for gas group IIA.
For 100 % ethanol and petroleum fuels containing more than 90 % ethanol, then the test shall be as above but
for gas group IIB(1).
5.4.6 Vapour collection adaptor
The vapour collection adaptor should conform to EN 13081.
The adaptor should be operationally compatible with the coupler for vapour recovery and should be located
within the tank connection envelope as described in Annex A.
NOTE In the arctic region, a vapour collection adaptor with the same functionality but with a reduced diameter are
commonly used.
5.4.7 Interlocks
Interlocks should be provided on the tank truck to ensure that:
 the vapour collection coupler is connected to the vapour collection adaptor before loading can
commence;
 the vapour transfer valve is open before loading of the relevant tank compartment can commence.
The interlocks should be linked into the level detection/secondary shut-off system according to EN 13922 such
that the permissive signal is not obtained if these conditions are not met.
5.4.8 Vapour flow performance test/calculation
The maximum number of tank compartments that may be loaded simultaneously without vapour release
should be identified on a plate permanently attached to the tank truck (see Annex C).
The maximum number of tank compartments that may be loaded simultaneously should be determined for the
tank truck types given in 5.4.1 as follows:
a) For type 1 tank trucks, the test method in Annex B should be used, unless a new, untested type 1 tank
truck presents only minor changes from a previously tested type 1 tank truck design, in which case a
calculation method may alternatively be used.
NOTE Minor changes can be considered to be where:
 the number of compartments is not increased;
 the pipework bore and coaming cross section are not reduced;
 all intersections of pipework are identical in form;
 the internal surfaces of the pipework and coaming are identical in form;
 there are an equal or lower number of compartment vapour lines entering the coaming manifold on a given side of
the entrance into the vapour downpipe;
 the vapour transfer vent valves are the same make and type;
 the vapour adaptor is the same make and type.
b) For type 2 tank trucks, either the test method in Annex B or a calculation method can be used.
5.5 High level detection
5.5.1 Overfill prevention sensor
In each tank compartment, an overfill prevention sensor conforming to EN 13922 should be mounted and
should be set in accordance with Annex D to prevent liquid being loaded into the body of the transfer valve.
Tank compartments should be individually calibrated to ensure the correct setting of the sensor and
verification of the net ullage.
Any overfill prevention sensor should be installed < 0,5 m from a compartment division, baffle, surge plate or
central conductor.
The dimension from the sensor reference plane to the sensor trigger level may be identified on a plate
permanently attached adjacent to the tank manufacturer’s identification plate (see Annex C).
5.5.2 Gantry connection — Socket location
The 10 pin socket should be located within the tank connection envelope in accordance with Annex A.
5.6 Other tank truck equipment
5.6.1 Manhole cover assembly
Manhole cover assemblies (if fitted) should conform to EN 13317.
5.6.2 Fill hole cover
Fill hole covers (if fitted) should conform to EN 13314.
5.6.3 Emergency pressure relief valve
Emergency pressure relief valves (if fitted) should conform to EN 14596.
5.7 Tank truck safety systems
5.7.1 Earthing/bonding
A static earth bond should be provided, conforming to EN 13922:2003, 6.2.1.
NOTE In the arctic region where the alternative 2 wire PTC thermistor is used, separate static earth bonding is
commonly used.
5.7.2 Pressure switch
Where footvalves and/or vapour transfer valves are air operated, a pressure switch that detects low air
pressure should be fitted to the operating system such that, if the air pressure is or falls below 110 % of the
minimum operating pressure of the valves, its contacts should open and the permissive signal to the level
detection/secondary shut-off system according to EN 13922 is not obtained or is lost.
Where the interlock fitted to the vapour collection adaptor is also pneumatic (see 5.4.7), the pressure switch
may be connected to both.
5.7.3 Tank truck immobilisation
When loading or unloading a tank truck, the parking brake should be applied.
An interlock system may be provided:
 to prevent any connection between the tank truck and the gantry being made until the tank truck is
immobilised;
 to prevent unauthorised movement of the tank truck until all gantry connections to it have been removed.
6 Electrical equipment
Equipment not certified for use in a potentially explosive atmosphere should be isolated prior to loading and
discharge and may be re-energised once it is safe to do so, e.g. when all loading arms have been
disconnected and stowed, and no spillage or vapour cloud is present.
NOTE 1 Terminal operators are obliged to carry out an area classification of the site using an accepted code in
accordance with the provisions of the ATEX European Directives 1999/92/EC and 94/9/EC and to select suitable
equipment for use in those areas. Equipment certified for use in a potentially explosive atmosphere can be energised
during the loading and discharge operations provided the equipment certification satisfies the area classification.
NOTE 2 Annex E shows when an explosive atmosphere may be present or may arise during loading operations.
7 Gantry — tank truck system interfaces
Electronic/automatic product recognition systems, where fitted, should conform to EN 14116.
8 Conditions of operation
8.1 Weather conditions
Loading and discharge operations should not be carried out during electrical storms.
8.2 Switch loading
Where switch loading is practised (the loading of a distillate product into a tank truck compartment that has
previously carried petrol and vice versa), no unacceptable contamination should occur due to product
remaining in the compartments and/or pipework of the tank truck.
8.3 Leak monitoring
The tank truck loader/driver should stop any loading or unloading operation if leakage of liquid or vapour is
detected.
9 Safe loading pass
Every tank truck should have a safe loading pass.
NOTE An example of a model safe loading pass scheme is shown in Annex F.
The following should be documented for the purposes of a safe loading pass:
a) certification of conformity of the overfill prevention system to EN 13922;
b) overfill prevention system probe setting dimensions;
c) certification of maximum number of tank compartments that may be loaded simultaneously;
d) identification of tank truck type (type 1 or type 2);
e) pressure/vacuum breather vent settings (for vapour collection system on type 1 tank);
f) type of footvalves fitted (pressure balanced or non pressure balanced);
g) leakproofness of vapour collection system;
h) identification of high speed loading or non high speed loading tank truck.
10 Discharge
10.1 Site assessment
An assessment of the receiving facilities should be carried out before the first delivery to a service station,
following a repair or modification which might affect the delivery and on a regular basis thereafter. The
assessment should include:
 access to and egress from the service station;
 access to and suitability of connections;
 grade marking;
 storage tank capacity;
 electrical continuity of pipework and tankage;
 contents measurement;
 overfill prevention system;
 manifolding of pipework;
 venting system;
 flow restriction of liquid and vapour;
 containment of spillage;
 site specific procedures to be followed.
10.2 Control of electrical conductivity
In order to ensure that static electricity is dissipated, the electrical resistance between
 the filling connection and earth bonding of the service station, and
 the service station filling connection and hoses through the adaptors/couplers
should be less than 10 ohms for metal to metal connections and less than 10 ohms in other cases, for
example if a product identification/data transfer system conforming to EN 14116 is installed.
10.3 Maximum delivery rates
Systems should be designed such that the required maximum delivery rate can be achieved but not
exceeded.
10.4 Safety precautions
The person responsible for supervising the delivery of product into the site storage tanks should ensure that
any safety precautions required by local regulations are adhered to. Where no local regulations exist, the
following precautions should be observed as a minimum:
 ensure the fill area is free from debris and flammable materials;
 place suitable warning and “No smoking - Flammable liquids” signs around the area;
 ensure the provision nearby of suitable fire fighting equipment;
 ensure that persons and/or vehicles not involved in the discharge operation are kept clear of the
immediate area;
 ensure that the exit route for the tank truck is clear to allow exit in the event of an emergency.
10.5 Checks prior to discharge
Means should be provided to ascertain the ullage of an underground storage tank to ensure that it is greater
than the quantity of product to be delivered into it. Where it is not, the delivery should not be started.
Tanks should be clearly labelled at the point of filling to show:
 the tank capacity;
 the tank number;
 the product contained.
Checks should be carried out on the condition of all connections, hoses and seals.
10.6 Discharge procedure
10.6.1 Operational considerations
The person responsible for the discharge of the tank truck should check whether any site-specific procedures
need to be followed.
NOTE The site-specific procedures will have been identified during the site inspection (see 10.1).
The vapour hose connection should be made prior to the opening of the vapour transfer valves on the tank
truck.
All connections and hoses should be checked for leakage throughout the delivery.
In the event of a spillage or other irregular occurrence, the delivery should be stopped and the situation
assessed prior to continuation of the delivery.
10.6.2 Pumped discharge
Generally only gas oil (heating oil, light fuel oil) and diesel oil may be delivered by pumped discharge.
Petrol should be delivered by pumped discharge only in exceptional circumstances. Pumped discharge of
petrol into underground storage tanks should be avoided. Petrol stored in an above ground storage tank may
require pumped discharge in which case it should be equipped with an overfill prevention system, earth
bonding and a vent pipe at least 4 m in height.
NOTE 1 Pumping of petrol can extend the hazardous area.
NOTE 2 Local regulations might require a written permit to allow the driver to carry out a pumped discharge.
For delivery to static tanks, an overfill prevention system conforming to EN 13616 should be fitted.
If petrol has been delivered by pumped discharge, procedures should exist to avoid contamination of the
following delivery.
10.7 Frustrated deliveries
Procedures should be established to deal with frustrated deliveries including determination of the volume
remaining on the tank truck and action to be taken.

Annex A
(normative)
Tank connection envelope
The tank connection envelope should be located as shown in Figure A.1 a) for tank-vehicles with the
connection on the left-hand side and as shown in Figure A.1 b) for tank-vehicles with the connection envelope
on the right-hand side.
The adaptors for bottom loading, vapour recovery adaptor and overfill prevention system plug should be
arranged in one of the following methods:
a) where the adaptors for bottom loading, vapour recovery adaptor and overfill prevention system plug are
fitted inside the cabinet, or where there is no cabinet, they should be arranged as shown in Figure A.2 a);
b) where only the adaptors for bottom loading are fitted within the cabinet, adaptors for bottom loading,
vapour recovery adaptor and overfill prevention system plug should be arranged as shown in
Figure A.2 b).
The arrangement of the adaptors for bottom loading and vapour recovery adaptor should conform to the
dimensions shown in Figure A.3.
The adaptor face, as shown in Figure A.3, should be substantially vertical.
The distance between the vertical centre line of adjacent loading adaptors should be a minimum of 250 mm.
The height from the ground of the centre line of the bottom loading adaptors should be: maximum 1,4 m
(unladen), minimum 0,5 m (laden), the preferred height being between 0,7 m to 1,0 m.
The vapaour collection adaptor and earth/overfill connection should generally be to the right of the loading
adaptors and height from the ground should be: maximum 1,5 m (unladen), minimum 0,5 m (laden), the
preferred height being between 0,7 m to 1,0 m.
NOTE The tank connection envelope described in this annex is applicable to rigid tank trucks, tank trailers and tank
semi-trailers.
The loading and vapour arms in terminal gantries should be capable of connecting to adaptors at the
maximum and minimum heights described above.
Dimensions in millimetres
Key
H height
Figure A.1 a) — Tank connection envelope — Left hand side

Key
H height
Figure A.1 b) — Tank connection envelope — Right hand side
Dimensions in millimetres
Key
1 bottom loading adaptor conforming to EN 13083
2 vapour collection adaptor conforming to EN 13081
3 10 pin connector conforming to EN 13922
4 free space
Figure A.2 a) — Tank connections inside cabinet or with no cabinet
Dimensions in millimetres
Key
1 bottom loading adaptor conforming to EN 13083
2 vapour collection adaptor conforming to EN 13081
3 10 pin connector conforming to EN 13922
4 free space
Figure A.2 b) — Tank connections where only bottom-loading adaptors are fitted inside the cabinet
Dimensions in millimetres
Key
1 maximum protrusion of opened cabinet door beyond width of tank truck
2 width of vehicle
3 adaptor face
Figure A.3 — Side view of tank connections
Annex B
(normative)
Vapour flow performance test
B.1 General
This test replicates the recovery of petrol vapour from a tank truck during loading by blowing air into its
compartments through a manifold under controlled conditions, and includes the measurement of air flow rates
and pressures, in order to determine the maximum number of compartments that may be permitted to load
simultaneously.
In order to take account of the differences in the physical properties of petrol vapour and air, a conversion
factor of 2,0 times the volume (and flow rate) of petrol vapour should be employed to determine the flow rate
of air to be used.
For type 1 tank trucks, the test should be carried out on each tank truck variant produced by a manufacturer,
unless a variant presents only minor changes (see 5.4.8) from a previously tested tank truck, in which case a
calculation method may alternatively be used.
For type 2 tank trucks, either the test method given in this annex or a calculation method may be used.
B.2 Health and safety
The process of testing the tank truck involves operations and equipment covered by Health and Safety
legislation, of which all personnel involved in the test should be aware.
A risk assessment should be carried out, with particular attention given to:
 the design, testing and operation of equipment falling within the scope of the Pressure Equipment
Directive 97/23/EC;
 the layout of the test site and its security against unauthorised personnel entering;
 the safety of personnel carrying out and observing the test.
A tank truck which has been in service should be gas-freed, leakproof tested in accordance with EN 12972
and certified gas-free before testing is carried out according to this Annex. During testing, the tank truck
should be monitored for vapour presence under the tester’s scheme for monitoring tank trucks that have been
in service carrying dangerous goods.
B.3 Facilities and apparatus
B.3.1 Test location
The site chosen for carrying out the testing should provide the controlled conditions essential for achieving
satisfactory test results as well as adequate security for personnel (see B.3.1).
Testing of the tank truck requires the monitoring of a number of flow meters and pressure gauges; the test
location should accommodate their mounting at a single, easily visible and unobstructed position.
B.3.2 Apparatus
B.3.2.1 Air supply
A suitable air supply should be provided, capable of achieving a flow rate of 300 m /h for the simulation of
each tank compartment being loaded simultaneously, at a pressure up to the setting of the pressure and
vacuum breather vents (typically, 7 kPa to 12 kPa (70 mbar to 120 mbar)).
The air supply system should include:
 an intercooler;
 a pressure reduction valve, if necessary;
 a suitable air control valve between the air supply and the intercooler;
 an air receiver.
Where the piping from the air supply to the air d
...
