EN 12620:2013
(Main)Aggregates for concrete

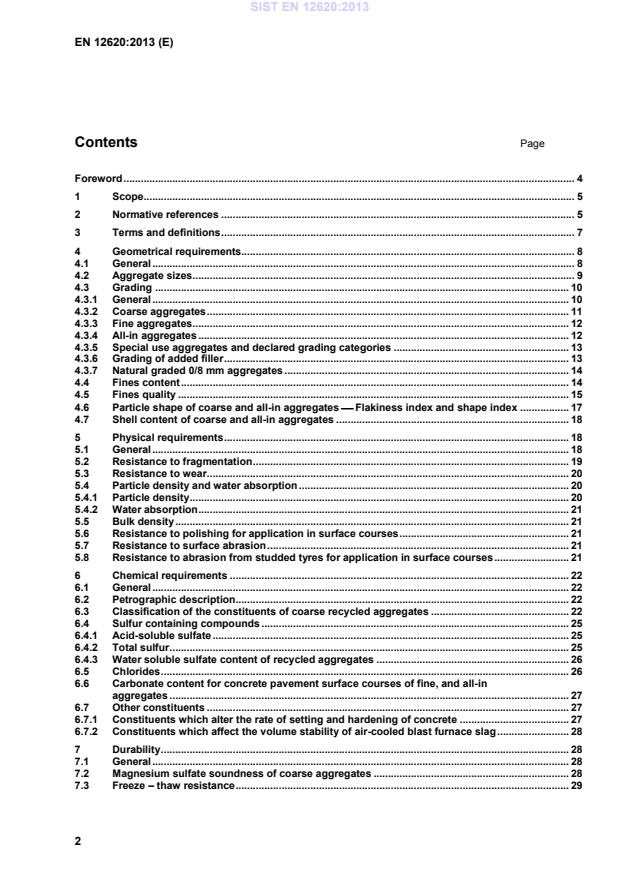

Aggregates for concrete
This European Standard specifies the properties of aggregates and filler aggregates obtained by processing natural, manufactured or recycled materials and mixtures of these aggregates for use in concrete in conformity with EN 206-1 and concrete used in roads and other pavements and for use in precast concrete products.
It covers aggregates having an oven dried particle density greater than 2,0 Mg/m3 (2000 Kg/m3). It also covers recycled aggregate with particle densities greater than 1,50 Mg/m3 (1 500 kg/m3) with appropriate caveats and recycled fine aggregate with appropriate caveats.
A list of the source materials that have been considered and indicating those which are within the scope of this standard is given in Annex A (normative).
Requirements are given in EN 16236.
It incorporates a general requirement that aggregates shall not release any dangerous substances in excess of the maximum permitted levels specified in a relevant European Standard for the material or permitted in the national regulations of the member state of destination.
The tables in this standard include categories which are common across the four main aggregate standards: EN 12620, EN 13043, EN 13139 and EN 13242. Not all of these categories are appropriate for aggregates for use in concrete.
Categories, notes, comments etc, which are grey shaded, should not be used in concrete.
Aggregates used in construction should comply with all the requirements of the relevant European Standards. These standards include comprehensive and specific requirements for natural aggregates, iron and steel making slag and recycled aggregates, dealing with, for example, the stability of certain basalts, the expansion of certain slags and the constitution of recycled aggregates.
For materials from some other secondary sources however, work is ongoing and the requirements are incomplete. In the meantime, such materials, when placed on the market as aggregates, should conform fully to this standard but may also be required to conform to specific relevant additional requirements at the place of use. Additional characteristics and requirements may be specified on a case by case basis depending upon experience of use of the product, and defined in specific contractual documents.
NOTE Requirements for lightweight aggregates are specified in EN 13055-1.
Requirements for the declaration of the potential of aggregates to release regulated dangerous substances are currently under development. Until such time as these are finalised, attention should be paid to requirements at the place of use.
Gesteinskörnungen für Beton
Diese Europäische Norm legt die Eigenschaften von Gesteinskörnungen und Füllern fest, die durch Aufbereitung natürlicher, industriell hergestellter oder rezyklierter Materialien und Mischungen daraus für die Verwendung in Beton nach EN 206 1 und in Beton zur Verwendung in Straßen, anderen Deckschichten und in Betonfertigteilen gewonnen werden.
Sie deckt Gesteinskörnungen mit einer Kornrohdichte nach Trocknung im Wärmeschrank größer als 2,00 Mg/m3 (2 000 kg/m3) ab. Die Norm deckt ebenfalls rezyklierte Gesteinskörnungen mit einer Rohdichte größer als 1,50 Mg/m3 (1 500 kg/m3) und rezyklierte feine Gesteinskörnungen ab, jeweils mit den entsprechenden Einschränkungen.
Anhang A (normativ) enthält ein Verzeichnis der berücksichtigten Ausgangsmaterialien, die im Anwen-dungsbereich dieser Europäischen Norm liegen.
Anforderungen an die Bewertung der Konformität von Produkten nach dieser Europäischen Norm sind in EN 16236 enthalten.
Die Norm enthält die allgemeine Anforderung, dass die Freisetzung gefährlicher Stoffe aus Gesteinskörnungen die maximal zulässigen Grenzwerte, die in der einschlägigen Europäischen Norm für das Material festgelegt sind bzw. die nach den nationalen Bestimmungen des Bestimmungsmitgliedstaats zulässig sind, nicht übersteigen darf.
Die Tabellen in dieser Norm enthalten Kategorien, die in allen vier Hauptnormen für Gesteinskörnungen festgelegt sind: EN 12620, EN 13043, EN 13139 und EN 13242. Nicht alle Kategorien sind für Gesteinskörnungen zur Verwendung in Beton geeignet.
Die grau hinterlegten Kategorien, Anmerkungen, Kommentare, usw. sollten nicht für Gesteinskörnungen in Beton verwendet werden.
Gesteinskörnungen im Bauwesen sollten mit allen einschlägigen Anforderungen der jeweiligen Europäischen Normen für Gesteinskörnungen übereinstimmen. Diese Normen enthalten umfassende und spezifische Anforderungen an natürliche Gesteinskörnungen, Hochofenstück- und Stahlwerksschlacken und rezyklierte Gesteinskörnungen, die sich zum Beispiel mit der Raumbeständigkeit bestimmter Basalte, der Volumenzunahme bestimmter Schlacken und der Zusammensetzung von rezyklierten Gesteinskörnungen befassen.
Die Arbeiten an Festlegungen für Materialien aus weiteren sekundären Quellen sind jedoch noch nicht abgeschlossen und die Anforderungen sind unvollständig. In der Zwischenzeit sollten solche Materialien, sofern sie als Gesteinskörnungen in Verkehr gebracht werden, den Anforderungen dieser Norm voll entsprechen. Unter Umständen müssen sie aber auch zusätzliche spezifische Anforderungen, die am Verwendungsort gelten, erfüllen. Abhängig von den Erfahrungen mit der Anwendung des Produkts dürfen im Einzelfall zusätzliche Eigenschaften und Anforderungen festgelegt werden und in den spezifischen Vertragsunterlagen definiert werden.
ANMERKUNG Anforderungen an leichte Gesteinskörnungen sind in prEN 13055 festgelegt.
Zurzeit werden Anforderungen an die Angabe des Potenzials von Gesteinskörnungen, gesetzlich geregelte gefährliche Stoffe freizusetzen, erarbeitet. Bis zur Fertigstellung dieser Anforderungen sollten die Anforderungen am Verwendungsort beachtet werden.
Granulats pour béton
La présente Norme européenne spécifie les caractéristiques des granulats, y compris celles des fillers, élaborés à partir de matériaux naturels, artificiels ou recyclés et des mélanges de ces granulats destinés à être utilisés dans la fabrication :
- des bétons selon les prescriptions de l'EN 206-1
- des bétons utilisés dans la construction des routes et chaussées,
- des produits préfabriqués en béton.
Elle s'applique aux granulats dont la masse volumique réelle des particules séchées à l’étuve est supérieure à 2,00 Mg/m3 (2 000 kg/m3). Elle s'applique également aux granulats recyclés dont la masse volumique réelle est supérieure à 1,50 Mg/m3 (1 500 kg/m3), avec les mises en garde appropriées, ainsi qu’au sable recyclé, avec les mises en garde appropriées.
Une liste des origines des matériaux qui ont été prises en considération et relèvent du domaine d'application de la présente norme est donnée à l'Annexe A (normative).
Les exigences relatives à l’évaluation de la conformité sont spécifiées dans l’EN 16236.
La présente norme intègre une exigence générale stipulant que les granulats ne doivent dégager aucune substance dangereuse dont les valeurs d'émission dépassent les niveaux maximaux admissibles spécifiés dans une Norme européenne pertinente pour le matériau ou dans la réglementation nationale de l'Etat membre de destination.
Les tableaux de la présente norme contiennent des catégories qui sont communes aux quatre principales normes relatives aux granulats : EN 12620, EN 13043, EN 13139 et EN 13242. Ces catégories ne sont pas toutes appropriées pour un usage des granulats dans les bétons.
Les catégories, notes, commentaires, etc. qui sont grisés ne devraient pas être utilisées pour les applications dans les bétons.
Les granulats utilisés dans la construction doivent respecter toutes les exigences des Normes européennes concernées. Ces dernières contiennent les exigences générales et particulières relatives aux granulats naturels, au laitier de haut fourneau et d'aciérie et aux granulats recyclés, et traitent par exemple de la stabilité de certains basaltes, de l'expansion de certains laitiers et de la composition des granulats recyclés.
Cependant, pour les matériaux provenant d’autres sources secondaires, les travaux sont en cours et les exigences sont incomplètes. En attendant, il convient que ces matériaux, lorsqu'ils sont mis sur le marché en tant que granulats, respectent pleinement la présente norme, mais ils peuvent aussi devoir se conformer à des exigences complémentaires spécifiques pertinentes sur le lieu d'utilisation. Des caractéristiques et des exigences complémentaires peuvent être spécifiées au cas par cas, en fonction de l'expérience acquise à l'usage du produit, et définies dans des documents contractuels spécifiques.
NOTE Les caractéristiques des granulats légers sont spécifiées dans le prEN 13055.
Les exigences relatives à la déclaration du potentiel des granulats à relarguer des substances dangereuses réglementées sont actuellement en cours d'élaboration. Tant qu'elles ne sont pas finalisées, il convient de tenir compte des exigences en vigueur sur le lieu d'utilisation.
Agregati za beton
Ta evropski standard določa lastnosti agregatov in kamene moke, pridobljenih z obdelavo naravnih, umetnih ali recikliranih materialov in zmesi teh agregatov, za uporabo v betonu v skladu s standardom EN 206-1 in betonu za ceste in druga vozišča ter za uporabo pri montažnih betonskih izdelkih. Zajema agregate s prostorninsko maso sušenih zrn, večjo od 2,0 mg/m3 (2000 kg/m3). Prav tako zajema reciklirane agregate s prostorninsko maso zrn, večjo od 1,50 mg/m3 (1500 kg/m3), v skladu z ustreznimi pogoji in reciklirane fine agregate v skladu z ustreznimi pogoji. Seznam obravnavanih izvornih materialov, ki določa materiale, vključene v predmet tega standarda, je naveden v dodatku A (normativni). Zahteve za vrednotenje skladnosti izdelkov s tem evropskim standardom so navedene v standardu EN 16236.
Vključuje splošno zahtevo o tem, da agregati ne smejo oddajati nobenih nevarnih snovi v količinah, ki so večje od največjih dovoljenih količin v ustreznem evropskem standardu za materiale ali v nacionalni zakonodaji države članice. Razpredelnice v tem standardu vključujejo kategorije, ki so skupne vsem štirim glavnim standardom za agregate: EN 12620, EN 13043, EN 13139 in EN 13242. Nekatere od teh kategorij niso primerne za agregate za uporabo v betonu. Kategorije, opombe, komentarji itd. v sivi barvi se ne smejo uporabljati v betonu.
Agregati, ki se uporabljajo pri konstrukcijah, morajo izpolnjevati zahteve ustreznih evropskih standardov. Ti standardi vključujejo celovite in posebne zahteve za naravne agregate, žlindro, nastalo pri pridobivanju železa in jekla, in reciklirane agregate ter obravnavajo na primer stabilnost nekaterih bazaltov, raztezek nekaterih vrst žlindre in sestavo recikliranih agregatov.
