CEN/TS 16794-1
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
July 2017
TECHNISCHE SPEZIFIKATION
ICS 35.240.15; 35.240.60 Supersedes CEN/TS 16794-1:2015
English Version
Public transport - Communication between contactless
readers and fare media - Part 1: Implementation
requirements for ISO/IEC 14443
Transport Public - Système billettique interopérable - Öffentlicher Verkehr - Kommunikation zwischen
Communication entre terminaux et objets sans contact berührungslosen Lesegeräten und Fahrscheinmedien -
- Partie 1: Exigences d'implémentation pour l'ISO/IEC Teil 1: Implementierungsanforderungen zur ISO/IEC
14443 14443
This Technical Specification (CEN/TS) was approved by CEN on 17 April 2017 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 16794-1:2017 E
worldwide for CEN national Members.

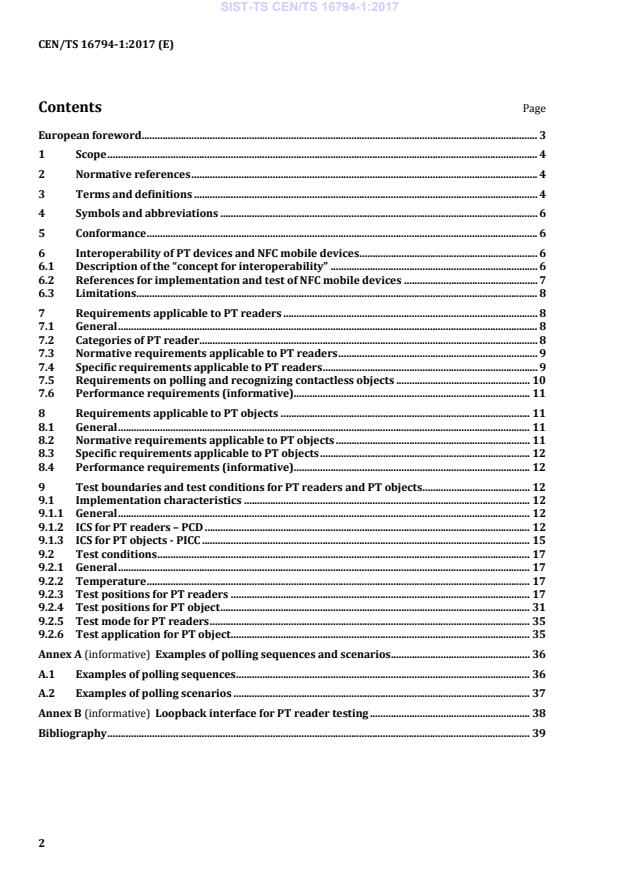

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Symbols and abbreviations . 6
5 Conformance . 6
6 Interoperability of PT devices and NFC mobile devices . 6
6.1 Description of the “concept for interoperability” . 6
6.2 References for implementation and test of NFC mobile devices . 7
6.3 Limitations . 8
7 Requirements applicable to PT readers . 8
7.1 General . 8
7.2 Categories of PT reader. 8
7.3 Normative requirements applicable to PT readers . 9
7.4 Specific requirements applicable to PT readers . 9
7.5 Requirements on polling and recognizing contactless objects . 10
7.6 Performance requirements (informative) . 11
8 Requirements applicable to PT objects . 11
8.1 General . 11
8.2 Normative requirements applicable to PT objects . 11
8.3 Specific requirements applicable to PT objects . 12
8.4 Performance requirements (informative) . 12
9 Test boundaries and test conditions for PT readers and PT objects . 12
9.1 Implementation characteristics . 12
9.1.1 General . 12
9.1.2 ICS for PT readers – PCD . 12
9.1.3 ICS for PT objects - PICC . 15
9.2 Test conditions . 17
9.2.1 General . 17
9.2.2 Temperature . 17
9.2.3 Test positions for PT readers . 17
9.2.4 Test positions for PT object . 31
9.2.5 Test mode for PT readers . 35
9.2.6 Test application for PT object . 35
Annex A (informative) Examples of polling sequences and scenarios . 36
A.1 Examples of polling sequences . 36
A.2 Examples of polling scenarios . 37
Annex B (informative) Loopback interface for PT reader testing . 38
Bibliography . 39

European foreword
This document (CEN/TS 16794-1:2017) has been prepared by Technical Committee CEN/TC 278
“Intelligent transport systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document supersedes CEN/TS 16794-1:2015.
This version updates the requirements applicable to the contactless interface of PT readers and objects
to introduce interoperability with NFC mobile devices compliant to NFC Forum specifications.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This Technical Specification constitutes the 2nd edition of CEN/TS 16794-1. It sets out the technical
requirements to be met by contactless Public Transport (PT) devices in order to be able to interface
together using the ISO/IEC 14443 standard contactless communications protocol.
This Technical Specification applies to PT devices:
PT readers which are contactless fare management system terminals acting as a PCD contactless reader
based on ISO/IEC 14443 standard series;
PT objects which are contactless fare media acting as a PICC contactless object based on ISO/IEC 14443
standard series.
This new version also addresses interoperability of consumer-market NFC mobile devices, compliant to
NFC Forum specifications, with above mentioned PT devices.
An interface–oriented test approach is used to evaluate the conformity of PT devices and is defined in
CEN/TS 16794-2.
Application-to-application exchanges executed once contactless communication has been established at
RF level fall outside the scope of this document. In line with the rules on independency between OSI
protocol layers, this document works on the assumption that application-to-application exchanges are
not contingent on the type of contactless communication established or by the parameters used for the
low-level protocol layers that serve as the platform for these application-to-application exchanges.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
CEN/TS 16794-2, Public transport - Communication between contactless readers and fare media - Part 2:
Test plan for ISO/IEC 14443
ISO/IEC 10373-6, Identification cards - Test methods - Part 6: Proximity cards
ISO/IEC 14443 (all parts), Identification cards - Contactless integrated circuit cards - Proximity cards
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14443-1,
ISO/IEC 14443-2, ISO/IEC 14443-3, ISO/IEC 14443-4, ISO/IEC 10373-6 and the following apply.
3.1
common reader
PT reader used in interoperable fare management system terminals with reduced performance
requirements
Note 1 to entry: See 8.2.
3.2
IFM reader
PT reader used in interoperable fare management system terminals
Note 1 to entry: See 8.2.
3.3
NFC mobile device
mobile device capable of near field communication that is offered in the consumer market and is used
by PT customers as a contactless object or a contactless reader
3.4
NFC mobile device in card emulation mode
mobile device used as a PT object
3.5
NFC mobile device in reader/writer mode
mobile device used as a PT reader
3.6
non ISO/IEC 14443-3 frame coding
frame using either:
ISO/IEC 14443-2 Type A modulation, with coding different from REQA or WUPA; or
ISO/IEC 14443-2 Type B modulation, with coding different from REQB or WUPB; or
ISO/IEC 18092 modulation; or
ISO/IEC 15693-2 modulation
3.7
Test PCD assembly
Test PCD assembly (test reader) as defined in test method ISO/IEC 10373-6
3.8
PT device
PT reader or PT object
3.9
PT object
ISO/IEC 14443 PICC specifically designed for the use in PT systems
3.10
PT reader
ISO/IEC 14443 PCD specifically designed for the use in PT systems
3.11
Reference PICC
Reference PICC (test card) as defined in test method ISO/IEC 10373-6
4 Symbols and abbreviations
For the purposes of this document, the abbreviations given in ISO/IEC 14443, ISO/IEC 10373-6 and the
following apply.
ICS Implementation Conformance Statements
NFC Near Field Communication
PT Public Transport
t Maximum Reference PICC time-to-detection
detect
5 Conformance
Conformance to this document carries a number of requisites:
— For a PT reader, to meet all the [Rdrnn] requirements listed herein that are applicable according to
the applicant's stated implementation characteristics (ICS), under the test conditions stipulated in
Clause 9 and following the PCD test plan set out in CEN/TS 16794-2.
— For a PT object, to meet all the [Objnn] requirements listed herein that are applicable according to
the applicant's stated implementation characteristics (ICS), under the test conditions stipulated in
Clause 9 and following the PICC test plan set out in CEN/TS 16794-2.
Conformance of NFC mobile devices is tested according to NFC Forum specifications and is out of scope
of this document.
The description of the certification or qualification processes to be carried out for demonstrating the
conformance of PT devices to CEN/TS 16794-1 is out of scope of this document.
6 Interoperability of PT devices and NFC mobile devices
6.1 Description of the “concept for interoperability”
The contactless interface for NFC mobile devices follows the implementation and test specifications of
the NFC Forum as specified by the NFC Forum and referenced in GSMA TS.26 and TS.27.
The ISO/IEC 14443 conformant contactless interface of PT devices is designed and tested according to
the rules set out in this technical specification.
The concept for interoperability was established to synchronise the specifications for the contactless
interface of NFC mobile devices and those for the contactless interface of PT devices in order to:
— ensure the interoperablitity between NFC mobile devices and PT devices; and
— avoid unnecessary test and certification effort.
The NFC Forum conducted a comparison of NFC Forum Analog and Digital specifications with
ISO/IEC 14443 and ISO/IEC 10373-6 standards. Procedures that support correlation between results
from tests according to NFC Forum specifications and those according to ISO/IEC 10373-6 have been
defined.
The correlation is used to translate test results from the NFC Forum’s terminology into
ISO/IEC 10373-6’s method for describing the relevant parameters. This is the foundation for the
following characteristics of the concept for interoperability:
1. Development of PT devices and NFC mobile devices
Despite the fact that different methods for describing the relevant parameters are used, this technical
specification and the relevant implementation specifications from the NFC Forum can be synchronised.
The necessary alignment is conducted by a liaison between CEN TC278 and the NFC Forum. By
synchronising the implementations’ specifications, interoperability is integrated in the design processes
of NFC mobile devices and PT devices and makes it a common feature for both types of devices.
2. Test and certification of PT devices and NFC mobile devices
Based on the concept for interoperability it is possible to judge if an NFC mobile device that went
through NFC Forum testing is interoperable with a PT device that complies with the ISO/IEC 14443
requirements set-out in this document. Therefore, it will be sufficient evidence of interoperability to
test and certify ISO/IEC 14443 conformant PT devices according to CEN/TS 16794-2 and to test and
certify NFC mobile devices according to NFC Forum’s test and certification procedures.
The detailed methodology used to demonstrate the concept of interoperatbility between NFC Forum
compliant devices and ISO/IEC 14443 compliant devices is described in [NFC Forum™ - Document
describing the methodology used to demonstrate the concept of interoperability].
Table 1 summarizes how contactless communication can be ensured either via conformity testing
between PT readers and PT objects or via interoperability testing between PT devices and NFC mobile
devices.
Table 1 — Conformity and interoperability matrix
Contactless Objects
NFC mobile devices in
PT Objects
card emulation mode
Specified and tested
Specified and tested
according to
according to NFC
CEN/TS 16794
Forum specifications
PT readers
IFM reader
Conformity based on
Specified and tested
Interoperability
CEN/TS 16794
according to
Common
CEN/TS 16794
reader
Contactless
readers
NFC mobile devices in
Conformity based on
reader/writer mode
Interoperability NFC Forum
Specified and tested according to
specifications
NFC Forum specifications
6.2 References for implementation and test of NFC mobile devices
The applicable NFC Forum specifications for designing and testing the contactless communication of
NFC mobile devices are listed in the bibliography.
Conformance of NFC mobile devices to these specifications is a mandatory prerequisite to ensure
interoperability of NFC mobile devices with PT devices as presented in Table 1.
6.3 Limitations
Only parameters, parameter settings or modes of operations that are relevant for PT use cases have
been regarded and synchronized for both NFC mobile and PT devices. These use cases are described in
the STA document "Documentation of Use Cases for NFC Mobile Devices in Public Transport" [2].
The following parameters, settings or modes are currently not covered by the synchronisation of
specifications according to the concept for interoperability described in 6.1:
1. communication bit rates higher than 106 kbit/s;
2. peer-to-peer mode according to NFC Forum specifications;
3. ISO/IEC 18092 mode of communication;
4. ISO/IEC 15693 mode of communication.
7 Requirements applicable to PT readers
7.1 General
This clause sets out the requirements applicable to PT readers.
Requirements described in 7.3, 7.4 and 7.5 are normative and mandatory to achieve interoperability.
Requirement described in 7.6 is informative only, hence not necessary to achieve interoperability.
Requirements on PT readers are identified by a numbering format that reads [Rdrnn] where nn is the
number of the requirement.
PT readers shall be able to read contactless objects, i.e. PT objects or NFC mobile devices in card
emulation mode.
This clause does not set out the requirements applicable to consumer market NFC mobile devices which
follow NFC Forum specifications and certification.
7.2 Categories of PT reader
This Technical Specification reflects that PT readerOT requirements depend on particular use cases.
Those for mobile devices are documented in the STA document “Documentation of Use Cases for NFC
Mobile Devices in Public Transport”.
Therefore, two categories of PT readers are introduced:
— The first category, the “IFM reader”, covers use cases where performance (i.e. operating distance,
transaction time, etc) is key.
— The second category, the “Common reader“, is defined for scenarios that impose requirements on
the contactless interface such as minimization of cost or maximization of battery life of the PT
reader. These requirements have been derived from use cases from the following parts of the PT
Operator’s system implementation which are described in the STA document “Documentation of
Use Cases for NFC Mobile Devices in Public Transport”:
a) sales infrastructure;
b) customer’s home infrastructure;
c) mobile inspection terminals.
Some requirements given in this specification are adapted for Common readers.
There is no compromise against the cost of interoperability as all implementation requirements and
tests that are necessary to achieve interoperability between PT readers and PT objects are mandatory
for both PT reader categories.
7.3 Normative requirements applicable to PT readers
[Rdr1] The PT reader shall meet the mandatory normative requirements for PCD defined in the
ISO/IEC 14443 standard series and associated ISO/IEC 10373-6 test methods standard.
NOTE 1 The PT reader is tested against the Reference PICCs 1, 2 and 3 only, corresponding to mandatory
classes 1, 2 and 3. No test is required with Reference PICCs 4, 5 and 6 corresponding to optional classes 4, 5 and 6.
NOTE 2 There are no particular restrictions to PT readers for accepting contactless objects using the UID
values (Type A) or PUPI values (Type B) stipulated in the standard, including random UID/PUPI values.
NOTE 3 There are no particular restrictions to PT readers for accepting contactless objects using any value for
Application data field (Type B).
EMV Contactless Specifications for Payment Systems — Book D imposes that the extended ATQB option
shall not be supported. ISO/IEC 14443-3 considers that the support of this feature is optional.
NOTE 4 This document makes it possible for the PT reader to accept a broad spectrum of contactless objects,
without distinction between form factors, but not smaller than Class 3, such as: contactless smartcards in ID-1
format (as defined in ISO/IEC 7810), contactless tickets, contactless USB keys and NFC mobile devices, or any
other contactless fare media that is a PICC and is in conformance with the requirements stipulated in this
document.
7.4 Specific requirements applicable to PT readers
[Rdr2] All the [Rdr1] requirements tested with the Reference PICCs 1, 2 and 3 shall be complied with
within the operating distance range A.
For Common readers, the range A required is limited to positions A1 to A2. If those positions cannot be
applied, because e.g. the fare media object shall be inserted into a card slot, a single position needs to be
defined by the manufacturer of the Common reader and tested accordingly. This single position shall be
either marked in such way that a user can clearly position his contactless object in this position or the
mechanical construction shall control the positioning of the contactless object in this position.
[Rdr3] When tested with Reference PICC 3 all the [Rdr1] requirements tested shall be complied with
within the operating distance range B. In addition, the PT reader shall provide a field strength of at least
2 A/m on all positions in this range B.
For Common readers, the range B required is limited to positions B1 to B2. If those positions cannot be
applied, because e.g. the fare media object shall be inserted into a card slot, a single position needs to be
defined by the manufacturer of the Common reader and tested accordingly. This single position shall be
either marked in such way that a user can clearly position his contactless object in this position or the
mechanical construction shall control the positioning of the contactless object in this position.
NOTE 1 These minimum operating distance ranges are added as complementary requirements to
ISO/IEC 14443-2. Operating distance ranges A and B are defined in 9.2.3.
NOTE 2 The minimum field strength requirement in range B is necessary to ensure the interoperability with
NFC mobile devices with antenna smaller than Class 3 which are compliant with NFCForum-TS-Analog-2.0
specification. A convergence with ISO/IEC 14443 minimum field strength value (to 1,5 A/m) is anticipated in a
future edition of this document.
[Rdr4] The PT reader shall use an AFI of 00h (applicable to Type B only).
[Rdr5] The PT reader shall comply with ISO/IEC 14443 recommendations on reception of bits and
values reserved for future use.
NOTE 3 This requirement is intended to offer future proofed implementation that will allow the same
behaviour to remain valid when new options in the ISO/IEC 14443 standard series use any of the currently RFU
bits and/or values.
7.5 Requirements on polling and recognizing contactless objects
This subclause describes the “listen” strategy for polling contactless objects found present in the
operational field but does not address how they are handled once detected.
EMV Contactless Specifications for Payment Systems — Book D stipulates that for EMVCo L1
certification, once a contactless object has been detected, polling shall continue for the other RF type
and possible other contactless modulation schemes, codings and protocols on the same carrier
frequency that the PT reader supports before opening a dialogue with the object first detected. This
constraint slows the all-round transaction time, and consequently certain transport networks may
prefer a response behaviour wherein the first object detected gets immediately treated rather than
keep their terminal eligible for EMVCo L1 certification and thereby eligible for accepting payment cards.
[Rdr6] The time-to-detection of a Reference PICC requiring minimum SFGT (no SFGI or SFGI = 0) by
= 250 ms. This remains a valid requirement regardless of the
the PT reader shall be less than tdetect
moment when the Reference PICC is placed within range A or B of the PT reader. The Reference PICC
time-to-detection is defined between the moment when the Reference PICC is placed into the field and
the send-out of the first I-block sent by the PT reader. The Reference PICC time-to-detection shall be the
average value measured on 10 consecutive measurements and shall be provided by the testing
laboratory as part of the result report.
NOTE 1 For PT readers that don't keep their field continuously active, the Reference PICC time-to-detection is
counted from the moment when the field is started and assumes that the PICC is already in the operating volume.
NOTE 2 While complying with the full set of requirements stipulated in ISO/IEC 14443-3 using the commands
of (REQA and/or WUPA) and of (REQB and/or WUPB) specified in ISO/IEC 14443-3, the polling sequence may
also poll for other objects non compliant with ISO/IEC 14443-3 using non ISO/IEC 14443-3 frame coding.
NOTE 3 In cases where objects non compliant with ISO/IEC 14443-3 are also polled for, it is possible to extend
the polling window for a given type to longer times (up to the maximum time to detection defined in [Rdr6])
rather than go for performance speeds. This application-layer option to extend the polling time for a different type
may be dependent on the number of cards of each type deployed locally at street-level.
When inserting field shut-offs in the polling sequence, the PT reader should take care that contactless
objects using a random identifier will respond with a different identifier and therefore should not
consider such an object as two different objects.
When getting no response from a contactless object despite error detection and recovery defined in
ISO/IEC 14443-4, PT readers not using any field shut-off in their polling sequence should use a field
shut-off to put the silent contactless object in IDLE state, allowing it to receive and answer request
commands without need to manually remove it from the field.
NOTE 4 PT readers implementing a B-then-A polling subsequence immediately followed by a field shut-off, will
not comply with EMV Contactless Specifications for Payment Systems — Book D requirements and thereby cannot
be eligible for EMVCo L1 certification.
[Rdr7] The PT reader shall resume its polling sequence after the removal of any contactless device
causing any disturbance.
[Rdr8] The PT reader may give priority to applications using a proprietary protocol initiated by
ISO/IEC 14443-3 polling commands (REQA/WUPA and/or REQB/WUPB), but shall come back to
applications using the ISO/IEC 14443-4 protocol when no suitable application using such a proprietary
protocol is found.
NOTE 5 This requirement is intended to ensure that the PT reader will not lock on a proprietary protocol when
processing contactless objects supporting one or several other proprietary protocols initiated by ISO/IEC 14443-3
polling commands (REQA/WUPA and/or REQB/WUPB), in addition to ISO/IEC 14443-4 protocol.
The PT reader may give priority to applications using a proprietary protocol initiated by a non
ISO/IEC 14443-3 polling command (see A.1.1). When no suitable application using such a proprietary
protocol is found, the PT reader should continue its polling cycle until it sends the ISO/IEC 14443-3
polling commands (REQA/WUPA and REQB/WUPB), preferably after a field shut-off as the object may
have locked in one of its proprietary protocols initiated by a non ISO/IEC 14443-3 polling command.
[Rdr8] then applies so that the PT reader returns to seek applications using the ISO/IEC 14443-4
protocol when no suitable application using a proprietary protocol is found.
Annex A (informative) gives examples of polling sequences and scenarios for PT readers.
7.6 Performance requirements (informative)
The following requirement is providing performance indications and is informative only.
[Rdr9] The frame size supported by the PT reader in receiver mode should be at least 256 bytes.
Consequently, the PT reader should indicate an FSDI (Type A) or a Maximum Frame Size Code in
ATTRIB (Type B), greater than or equal to 8.
NOTE The aim of this requirement is to avoid forcing the contactless object to segment its long answers into
small frames, which would slow the transaction.
8 Requirements applicable to PT objects
8.1 General
This clause sets out the requirements applicable to PT objects.
Requirements described in 8.2 and 8.3 are normative and mandatory for achieving interoperability.
Requirement described in 8.4 is informative only, hence not necessary to achieve interoperability.
Requirements on PT objects are identified by a numbering format that reads [Objnn] where nn is the
number of the requirement.
PT objects shall be readable from contactless readers, i.e. PT readers or NFC mobile devices in
reader/writer mode.
This clause does not set out the requirements applicable to consumer market NFC mobile devices which
follow NFC Forum specifications and certification.
8.2 Normative requirements applicable to PT objects
[Obj1] The PT object shall meet the mandatory normative requirements for PICC defined in the
ISO/IEC 14443 standard series and associated ISO/IEC 10373-6 test methods standard.
NOTE 1 PT object manufacturers are free to opt to conform or not to the EMV Contactless Specifications for
Payment Systems — Book D requirements (which cap the bit rates capabilities indicated during the initialisation
at 106 kbit/s in both directions).
NOTE 2 This document does not deal with PT objects that do not comply with ISO/IEC 14443-4, such as
contactless tickets (or emulators thereof). This case is excluded from the scope of application of this document.
8.3 Specific requirements applicable to PT objects
[Obj2] The PT object shall meet the “Class 1”, “Class 2” or “Class 3” requirements defined in the
ISO/IEC 14443 standard series and ISO/IEC 10373-6 test methods standard or shall not claim to meet
the requirements of one particular class.
NOTE 1 If the PT object does not meet the requirements of one particular class, it will be declared as
unclassified and tested as specified in ISO/IEC 14443 standard series and ISO/IEC 10373-6 test methods
standard.
The FWI limit should be optimized for any PT object in order to avoid over-slow reaction times when
withdrawing a PT object or in response to communication bugs. This leaves, e.g. PT object
manufacturers free to opt to conform to the EMV Contactless Specifications for Payment Systems —
Book D requirements, which limits the FWI to 7.
[Obj3] The PT object shall comply with the recommendations defined in the ISO/IEC 14443 standard
series on reception of bits and values reserved for future use.
NOTE 2 This requirement is intended to offer future proofed implementation that will allow the same
behaviour to remain valid once new options in the ISO/IEC 14443 may use any of the RFU bits and/or values.
8.4 Performance requirements (informative)
The following requirement is providing performance indications and is informative only.
[Obj4] The frame size supported by the PT object in receiver mode should be at least 64 bytes.
Consequently, the PT object should indicate an FSCI (Type A) or a Maximum Frame Size Code (Type B)
greater than or equal to 5.
NOTE The aim of this requirement is to avoid forcing the PT reader to segment its long commands into small
frames, which would slow the transaction.
9 Test boundaries and test conditions for PT readers and PT objects
9.1 Implementation characteristics
9.1.1 General
This clause describes the ICS that manufacturers need to provide, and lists the characteristics of the
hardware to be tested:
— The ICS for PT readers – PCD;
— The ICS for PT objects – PICC.
NOTE 1 If a contactless device supports both modes (PCD and PICC) and the aim is to check its conformance
under both these modes, the manufacturer will need to run through two separate test campaigns and complete
two ICSs.
NOTE 2 This document is focused solely on the protocol conformance and interoperability aspects. It does not
describe performance tests or tests on the transaction times achieved with the PT reader or PT object under test.
9.1.2 ICS for PT readers – PCD
This clause sets out the information that needs to be provided by PT reader manufacturers when filing a
product validation request.
On top of the ICS describing the characteristics of the PT reader to be tested, the manufacturer shall also
provide the test laboratories with the additional tools that enable the tests to be executed.
This ICS is referencing some technical characteristics for PCD defined in 9.2.3.
[PCD1] Administrative data
[PCD1.1] Brand name:
[PCD1.2] Trade name:
[PCD1.3] Serial number:
[PCD1.4] Hardware/Software version:
[PCD.2] General technical characteristics
[PCD2.1] PT reader type: IFM reader (full range A and B) ☐
or Common reader (limited range A and B) ☐
[PCD2.2] Operating mode supported: PCD ⌧
[PCD2.3] PT readers with a continuously active RF field: Yes ☐ No ☐
If no, precise event triggering field activation: ………….
[PCD2.4] Antenna diagram and position on the PT reader under test:
Range A:
[PCD2.5] Reference of PCD Zero Point – Range A (target ID marked on sample or photo
or diagram):
[PCD2.6] Orientation of the Z-axis – Range A (photo or diagram):
[PCD2.7] Height of PCD Zero Point – Range A in relation to reader surface in the Z-axis – Range A
(where applicable): …. mm
[PCD2.8] Positions of the X-axis and Y-axis of the Reference PICC above PCD Zero Point –
Range A (photo or diagram)
Range B:
[PCD2.9] Reference of PCD Zero Point – Range B (target ID-marked on sample or photo
or diagram):
[PCD2.10] Orientation of the Z-axis – Range B (photo or diagram):
[PCD2.11] Height of PCD Zero Point – Range B in relation to reader surface in the Z-axis – Range A
(where applicable): …. mm
[PCD2.12] Positions of the X-axis and Y-axis of the Reference PICC above PCD Zero Point –
Range B (photo or diagram)
[PCD2.13] Operational temperature range supported:
Class A (Ambient) ☐
Class B (−25°C to + 55°C) ☐
[PCD2.14] List of supported PICC classes according to ISO/IEC 14443:
“Class 1” ⌧ “Class 2” ⌧ “Class 3” ⌧
[PCD.3] PCD Technical characteristics
[PCD3.1] Protocols supported: Type A ⌧ and Type B ⌧ Other: _________
[PCD3.2] CID support:   YES ☐ NO ☐
[PCD3.3] NAD support: YES ☐ NO ☐
The types supported by the PT reader under test shall compulsorily be Type A and Type B. The only
informal requirement shall be the option to indicate whether other protocols on top of A and B are also
supported.
[PCD.4] Type A
[PCD4.1] PCD- > PICC bit rates supported: fc/128 (~106 kbit/s) ⌧
Other supported bit rates: …
[PCD4.2] PICC- > PCD bit rates supported: fc/128 (~106 kbit/s) ⌧
Other supported bit rates: …
[PCD4.3] FSDI:
PCD.5] Type B
[PCD5.1] PCD- > PICC bit rates supported: fc/128 (~106 kbit/s) ⌧
Other supported bit rates: …
[PCD5.2] PICC- > PCD bit rates supported: fc/128 (~106 kbit/s) ⌧
Other supported bit rates: …
[PCD5.3] Maximum Frame Size Code in ATTRIB:
[PCD5.4] Extended ATQB support YES ☐ NO ☐
[PCD.6] Test parameters
[PCD6.1a] UT_TEST_COMMAND1 APDU definition: … (hexadecimal value)
[PCD6.1b] UT_TEST_COMMAND1 Answer to ADPU definition: … (hexadecimal value)
[PCD6.2a] UT_TEST_COMMAND2 APDU definition: … (hexadecimal value)
[PCD6.2b] UT_TEST_COMMAND2 Answer to ADPU definition: … (hexadecimal value)
[PCD.7] Proprietary test parameters
[PCD7.1] PROPRIETARY_COMMAND APDU(S) definition: … (hexadecimal value)
[PCD7.2] PROPRIETARY_COMMAND Answer to ADPU(S) definition: … (hexadecimal value)
NOTE Usages of UT_TEST_COMMAND1 and UT_TEST_COMMAND2 for PCD tests are defined in
ISO/IEC 10373-6.
When the support of proprietary protocol initiated by ISO/IEC 14443-3 polling commands is indicated
in [PCD3.1] and when the PT reader may give priority to applications using such proprietary protocol
compared to applications using Type A or Type B, in order to perform the testing of [Rdr8], the PT
reader manufacturer shall describe:
— in [PCD7.1], the proprietary command(s) used to select an application using a proprietary protocol
initiated by ISO/IEC 14443-3 polling commands:
a) for ISO/IEC 14443-3 fully compliant products, the command(s) following the anticollision
procedure;
b) for ISO/IEC 14443-3 partially compliant products, the command(s) following the request
command.
— in [PCD7.2] the expected response(s) to these commands:
a) compliant with the proprietary protocol;
b) indicating that no suitable application is available.
9.1.3 ICS for PT objects - PICC
This clause sets out the information that needs to be provided by PT object manufacturers when filing a
product validation request.
This ICS is referencing some technical characteristics for PICC defined in 9.2.4.
[PICC1] Administrative data
[PICC1.1] Brand name:
[PICC1.2] Trade name:
[PICC1.3] Serial number:
[PICC1.4] Hardware/Software version:
[PICC.2] General technical characteristics
[PICC2.1] Operating mode supported: PICC ⌧
[PICC2.2] Antenna diagram and position on the PT object under test:
[PICC2.3] Reference of PICC Zero Point (target ID-marked on sample or photo or diagram):
[PICC2.4] Operational temperature range supported:
Class A (Ambient) ☐
Class B (−25°C to + 55°C) ☐
[PICC2.5] Antenna class according to ISO/IEC 14443:
Unclassified ☐ “Class 1” ☐ “Class 2” ☐ “Class 3” ☐
[PICC.3] Protocol characteristics
[PICC3.1] Protocols supported: Type A ☐ and Type B ☐ Other: _________
[PICC3.2] CID support:   YES ☐ NO ☐
[PICC3.3] NAD support: YES ☐ NO ☐
[PICC.4] Type A (where applicable)
[PICC4.1] PCD- > PICC bit rates supported: fc/128 (~106 kbit/s) ⌧ Other supported bit rates:
…
[PICC4.2] PICC- > PCD bit rates supported: fc/128 (~106 kbit/s) ⌧ Other supported bit rates:
…
[PICC4.3] UID: Single size (4 bytes) ☐ Double Size (7 bytes) ☐ Triple size (10 bytes)☐
[PICC4.4] UID value: fixed number ☐ random number ☐
[PICC4.5] FWI:
[PICC4.6] SFGI:
[PICC4.7] FSCI:
[PICC4.8] CID support: YES ☐ NO ☐
[PICC4.9] NAD support: YES ☐ NO ☐
[PICC.5] Type B (where applicable)
[PICC5.1] PCD- > PICC bit rates supported: fc/128 (~106 kbit/s) ⌧ Other supported bit rates:
…
[PICC5.2] PICC- > PCD bit rates supported: fc/128 (~106 kbit/s) ⌧ Other supported bit rates:
…
[PICC5.3] PUPI value: fixed number ☐ random number ☐
[PICC5.4] FWI:
[PICC5.5] Maximum Frame Size Code in ATQB:
[PICC5.6] CID support: YES ☐ NO ☐
[PICC5.7] NAD support: YES ☐ NO ☐
[PICC5.8] Extended ATQB support: YES ☐ NO ☐
If yes, SFGI:
[PICC.6] Test parameters
[PICC6.1a] TEST_COMMAND1 APDU definition: … (hexadecimal value)
[PICC6.1b] TEST_COMMAND1 Answer to ADPU definition: … (hexadecimal value)
[PICC6.1c] Precondition sequence for TEST_COMMAND1: …
[PICC6.2a] TEST_COMMAND2 APDU definition: … (hexadecimal value)
[PICC6.2b] TEST_COMMAND2 Answer to ADPU definition: … (hexadecimal value)
[PICC6.2c] Precondition sequence for TEST_COMMAND2: …
[PICC6.3a] TEST_COMMAND3 APDU definition: … (hexadecimal value)
[PICC6.3b] TEST_COMMAND3 Answer to ADPU definition: … (hexadecimal value)
[PICC6.3c] Precondition sequence for TEST_COMMAND3: …
[PICC6.4] TEST_COMMAND_SEQUENCE: …
NOTE 1 Usages of TEST_COMMAND1, TEST_COMMAND2 and TEST_COMMAND3 for PICC tests are defined in
ISO/IEC 10373-6.
If the PICC requires additional sequences to be ready to accept TEST_COMMAND1, TEST_COMMAND_2
or TEST_COMMAND_3, those sequences should be described in the precondition sequence fields.
A test sequence (list of APDUs) shall be defined. The list shall contain at minimum 2 APDUs with their
respective expected answer.
Since the use of cryptographic functions have strong influence on the power consumption of the carrier
medium and therefore on the parameters of its contactless interface, testing of the RF interface shall be
conducted with those cryptographic functions that are employed by the specific application-to-
application transactions.
...
