EN 13814-2:2019+A1:2024
(Main + Amendment)Safety of amusement rides and amusement devices - Part 2: Operation, maintenance and use
Safety of amusement rides and amusement devices - Part 2: Operation, maintenance and use
This document specifies the minimum requirements necessary to ensure the safe maintenance, operation, inspection and testing of amusement ride and amusement devices which are intended to be installed both repeatedly without degradation or loss of integrity, and temporarily or permanently in fairgrounds and amusement parks or any other locations.
Grandstands, construction site installations, scaffolding, removable agricultural structures, simple coin operated children's amusement devices, carrying up to three children, and recreational devices like waterslides or summer toboggan runs, playground equipment, rope courses, climbing wall, inflatable, trampolines, swimming pool equipment (this list is not exhaustive) are not covered by this document.
In terms of workers’ health and safety, national regulations apply.
Sicherheit von Fahrgeschäften und Vergnügungsanlagen - Teil 2: Betrieb, Instandhaltung und Gebrauch
Dieses Dokument legt grundlegende Anforderungen fest, um die sichere Wartung, den sicheren Betrieb, die sichere Inspektion und Prüfung von Fahrgeschäften und Vergnügungsanlagen, die sowohl zu einem wieder¬holten Aufbau ohne Substanzverlust als auch vorübergehend oder dauerhaft auf Veranstaltungsplätzen, in Vergnügungsparks oder anderen Örtlichkeiten vorgesehen sind, sicherzustellen.
Feste Tribünen, Bau und andere Gerüste sowie entfernbare landwirtschaftliche Konstruktionen und einfache münzbetriebene Vergnügungsanlagen für Kinder, die bis zu drei Kinder tragen sowie Sport und Freizeitanlagen, wie Wasserrutschen oder Sommerrodelbahnen, Spielplatzgeräte, Seilgärten, Kletterwände, Hüpfburgen, Trampoline, Schwimmbadgeräte (diese Liste ist nicht vollständig) sind nicht Gegenstand dieses Dokumentes.
Für Belange des Arbeits- und Gesundheitsschutzes gelten nationale Vorschriften.
Sécurité des manèges et des dispositifs de divertissement - Partie 2 : Installation, maintenance et exploitation
Le présent document spécifie les exigences minimales requises pour assurer la sécurité de la maintenance, de l’exploitation, du contrôle et des essais des manèges et dispositifs de divertissement destinés à être installés de manière répétitive sans dégradation ni perte d’intégrité, que ce soit provisoirement ou définitivement, dans des fêtes foraines, des parcs d’attractions ou d’autres emplacements.
Les tribunes, les installations des chantiers de construction, les échafaudages et les structures agricoles amovibles, les dispositifs de divertissement pour enfants actionnés par un simple jeton ne transportant pas plus de trois enfants, ainsi que les dispositifs de divertissement comme les toboggans aquatiques ou les pistes de luge d’été, les équipements pour aires de jeux, les parcours accrobranches, les murs d’escalade, les équipements gonflables, les trampolines, les équipements de piscine (cette liste n’est pas exhaustive) ne sont pas couverts par le présent document.
En matière de santé et de sécurité des ouvriers, les réglementations nationales s’appliquent.
Varnost naprav in opreme v zabaviščnih parkih - 2. del: Delovanje, vzdrževanje in uporaba (vključno z dopolnilom A1)
Ta dokument določa minimalne zahteve, ki so potrebne za zagotavljanje varnega vzdrževanja, delovanja, nadzorovanja in preskušanja naprav ter opreme v zabaviščnih parkih, ki je namenjena tako za večkratno nameščanje brez degradacije ali izgube celovitosti kot tudi za začasno ali stalno nameščanje v zabaviščih in zabaviščnih parkih ali na kateri koli drugi lokaciji.
Tribune, gradbiščne konstrukcije, odri, odstranljive kmetijske konstrukcije, preproste naprave na kovance v zabaviščnih parkih, ki so namenjene za največ tri otroke, in rekreacijske naprave, kot so vodni tobogani ali poletna sankališča, oprema otroških igrišč, vrvni plezalni parki, plezalne stene, napihljiva igrala, trampolini in oprema bazenov (ta seznam ni popoln), niso zajeti v tem dokumentu.
V zvezi z zdravjem in varnostjo delavcev veljajo nacionalni predpisi.
General Information
Relations
Standards Content (Sample)

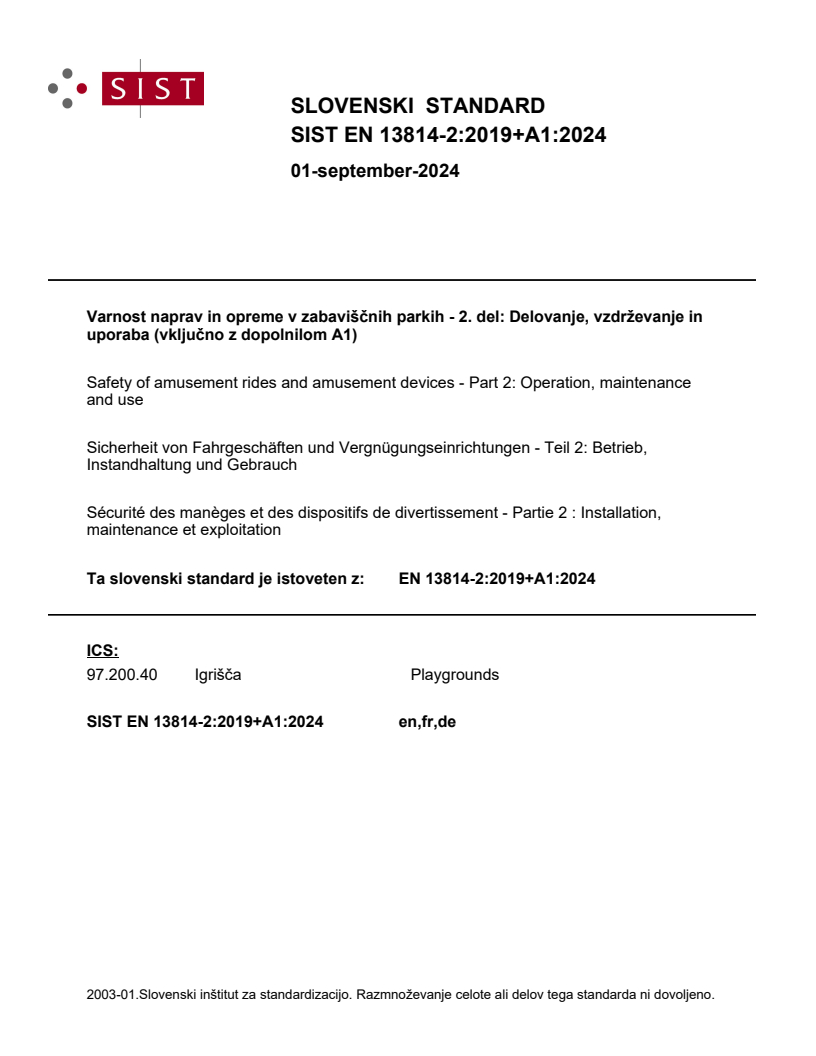

SLOVENSKI STANDARD
01-september-2024
Varnost naprav in opreme v zabaviščnih parkih - 2. del: Delovanje, vzdrževanje in
uporaba (vključno z dopolnilom A1)
Safety of amusement rides and amusement devices - Part 2: Operation, maintenance
and use
Sicherheit von Fahrgeschäften und Vergnügungseinrichtungen - Teil 2: Betrieb,
Instandhaltung und Gebrauch
Sécurité des manèges et des dispositifs de divertissement - Partie 2 : Installation,
maintenance et exploitation
Ta slovenski standard je istoveten z: EN 13814-2:2019+A1:2024
ICS:
97.200.40 Igrišča Playgrounds
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

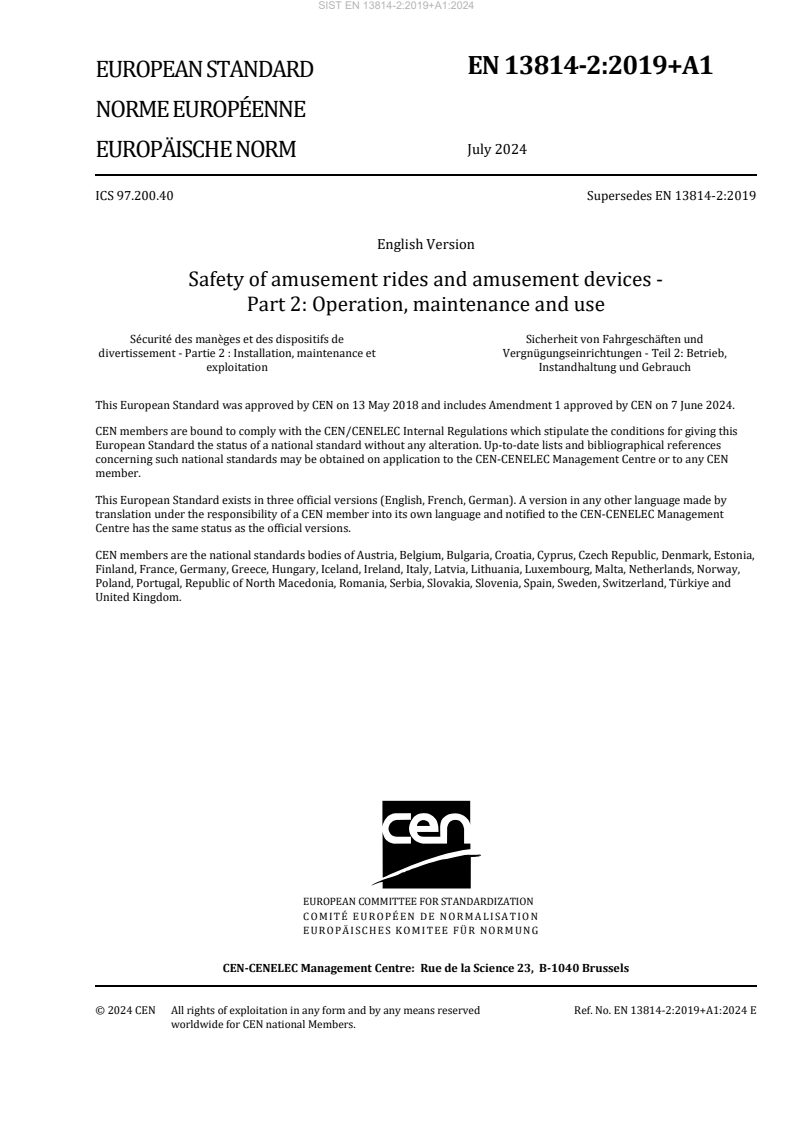

EN 13814-2:2019+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2024
EUROPÄISCHE NORM
ICS 97.200.40 Supersedes EN 13814-2:2019
English Version
Safety of amusement rides and amusement devices -
Part 2: Operation, maintenance and use
Sécurité des manèges et des dispositifs de Sicherheit von Fahrgeschäften und
divertissement - Partie 2 : Installation, maintenance et Vergnügungseinrichtungen - Teil 2: Betrieb,
exploitation Instandhaltung und Gebrauch
This European Standard was approved by CEN on 13 May 2018 and includes Amendment 1 approved by CEN on 7 June 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N
EUROPÄISCHES KOMITEE FÜR NORMUN G
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13814-2:2019+A1:2024 E
worldwide for CEN national Members.

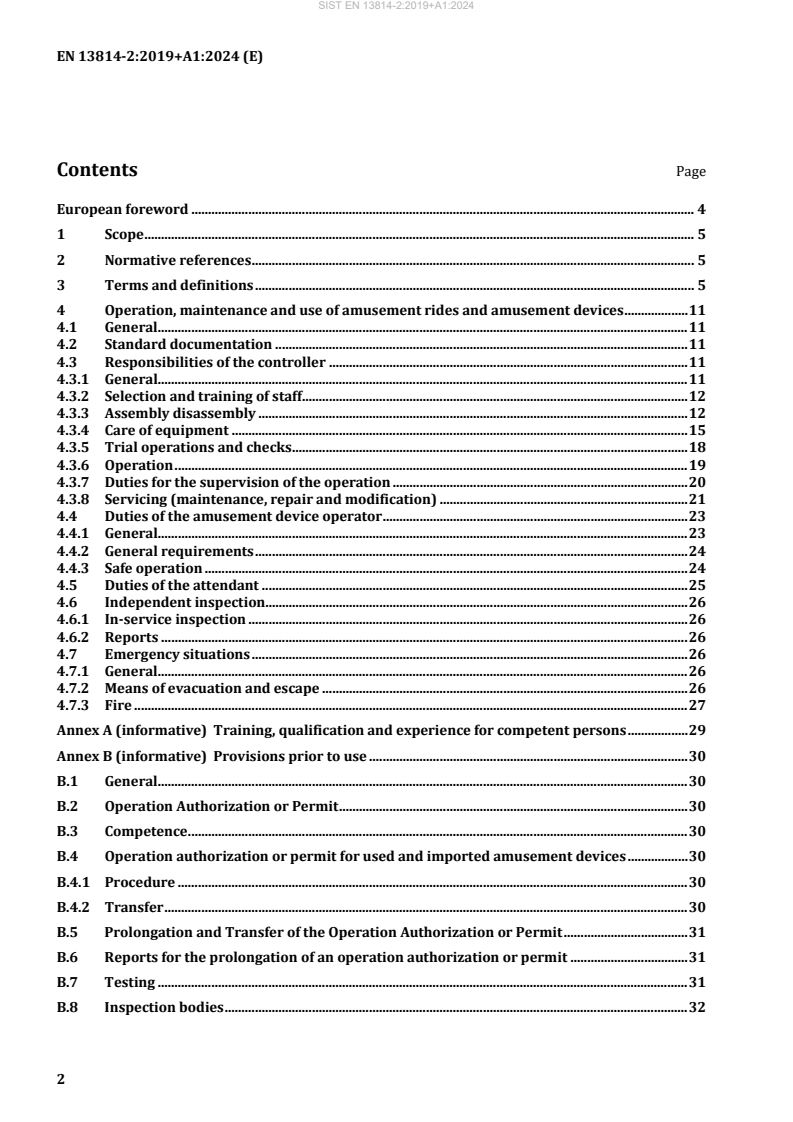

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Operation, maintenance and use of amusement rides and amusement devices . 11
4.1 General. 11
4.2 Standard documentation . 11
4.3 Responsibilities of the controller . 11
4.3.1 General. 11
4.3.2 Selection and training of staff . 12
4.3.3 Assembly disassembly . 12
4.3.4 Care of equipment . 15
4.3.5 Trial operations and checks . 18
4.3.6 Operation . 19
4.3.7 Duties for the supervision of the operation . 20
4.3.8 Servicing (maintenance, repair and modification) . 21
4.4 Duties of the amusement device operator . 23
4.4.1 General. 23
4.4.2 General requirements . 24
4.4.3 Safe operation . 24
4.5 Duties of the attendant . 25
4.6 Independent inspection. 26
4.6.1 In-service inspection . 26
4.6.2 Reports . 26
4.7 Emergency situations . 26
4.7.1 General. 26
4.7.2 Means of evacuation and escape . 26
4.7.3 Fire . 27
Annex A (informative) Training, qualification and experience for competent persons . 29
Annex B (informative) Provisions prior to use . 30
B.1 General. 30
B.2 Operation Authorization or Permit . 30
B.3 Competence . 30
B.4 Operation authorization or permit for used and imported amusement devices . 30
B.4.1 Procedure . 30
B.4.2 Transfer . 30
B.5 Prolongation and Transfer of the Operation Authorization or Permit . 31
B.6 Reports for the prolongation of an operation authorization or permit . 31
B.7 Testing . 31
B.8 Inspection bodies . 32
B.9 Installation Examination . 32
B.10 Examples of examination intervals used by member states' regulations . 32
B.10.1 General . 32
B.10.2 Germany . 32
B.10.3 United Kingdom . 36
B.10.4 Netherlands . 36
B.10.5 Italy . 36
Bibliography . 37
European foreword
This document (EN 13814-2:2019+A1:2024) has been prepared by Technical Committee
CEN/TC 152 “Fairground and amusement park machinery and structures – Safety”, the secretariat of
which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2025, and conflicting national standards shall
be withdrawn at the latest by July 2027.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 7 June 2024.
This document !supersedes EN 13814-2:2019".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
EN 13814 consists of the following parts, under the general title Safety of amusement rides and
amusement devices:
— Part 1: Design and manufacture
— Part 2: Operation, maintenance and use
— Part 3: Requirements for inspection during design, manufacture, operation and use
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This document specifies the minimum requirements necessary to ensure the safe maintenance,
operation, inspection and testing of amusement ride and amusement devices which are intended to be
installed both repeatedly without degradation or loss of integrity, and temporarily or permanently in
fairgrounds and amusement parks or any other locations.
Grandstands, construction site installations, scaffolding, removable agricultural structures, simple coin
operated children's amusement devices, carrying up to three children, and recreational devices like
waterslides or summer toboggan runs, playground equipment, rope courses, climbing wall, inflatable,
trampolines, swimming pool equipment (this list is not exhaustive) are not covered by this document.
In terms of workers’ health and safety, national regulations apply.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12385 (all parts), Steel wire ropes — Safety
EN 13814-1:2019, Safety of amusement rides and amusement devices — Part 1: Design and Manufacture
EN 13814-3:2019, Safety of amusement rides and amusement devices — Part 3: Requirements for
inspection during design, manufacture, operation and use
EN 60947-3, Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-
disconnectors and fuse-combination units (IEC 60947-3)
EN ISO 2307, Fibre ropes - Determination of certain physical and mechanical properties (ISO 2307)
EN ISO 9554, Fibre ropes - General specifications (ISO 9554)
EN ISO 13857, Safety of machinery - Safety distances to prevent hazard zones being reached by upper and
lower limbs (ISO 13857)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
amusement device
arrangement of equipment that produces the desire
...
