EN 14075:2002

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ortsfeste, geschweißte zylindrische Behälter aus Stahl, die serienmäßig für die Lagerung von Flüssiggas (LPG) hergestellt werden, mit einem Fassungsvermögen bis 13 m3 für erdgedeckte Aufstellung - Gestaltung und HerstellungRéservoirs cylindriques fixes en acier, soudés, fabriqués en série, d'un volume inférieur ou égal a 13 m3, destinés au stockage enterré des gaz de pétrole liquéfiés (GPL) - Conception et fabricationStatic welded steel cylindrical tanks, serially produced for the storage of Liquefied Petroleum Gas (LPG) having a volume not greater than 13 m3 and for installation underground - Design and manufacture23.020.10UH]HUYRDUMLStationary containers and tanksICS:Ta slovenski standard je istoveten z:EN 14075:2002SIST EN 14075:2003en01-december-2003SIST EN 14075:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14075October 2002ICS 23.020.30English versionStatic welded steel cylindrical tanks, serially produced for thestorage of Liquefied Petroleum Gas (LPG) having a volume notgreater than 13 m³ and for installation underground - Design andmanufactureRéservoirs cylindriques fixes en acier, soudés, fabriqués ensérie, d'un volume inférieur ou égal à 13 m³, destinés austockage enterré des gaz de pétrole liquéfiés (GPL) -Conception et fabricationOrtsfeste, geschweißte zylindrische Behälter aus Stahl, dieserienmäßig für die Lagerung von Flüssiggas (LPG)hergestellt werden, mit einem Fassungsvermögen bis 13m3 für erdgedeckte Aufstellung - Gestaltung undHerstellungThis European Standard was approved by CEN on 14 July 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

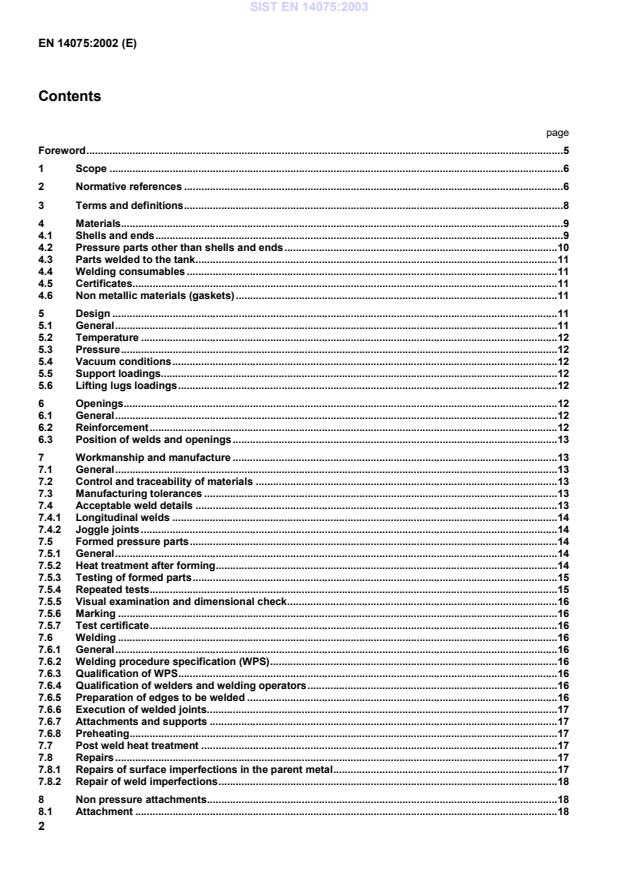

B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14075:2002 ESIST EN 14075:2003

Design pressure.26Annex B (normative)
Tolerances on tanks.27B.1Mean external diameter.27B.2Out of roundness.27B.3Deviation from the straight line.27B.4Irregularities in circular profile.27B.5Dished end tolerance.28B.6Profile.28B.7Surface alignment.29B.8Attachments, nozzles and fittings.29Annex C (normative)
Hydraulic pressure test.30C.1Temporary fittings.30C.2Pressure gauges.30C.3Pressurising agent.30C.4Avoidance of shocks.30C.5Test pressure.30Annex D (normative)
Imperfections.31Annex E (normative)
Design formulae for tanks.34E.1Allowable stresses.34E.2Design formulae.34E.2.1General.34E.2.2Cylindrical shell calculation.34E.2.3Torispherical end calculation.34E.2.4Ellipsoidal end calculation.36E.2.5Formulae for calculating C.37E.3Nozzle re-enforcement.37E.3.1General.37E.3.2Size of openings.37E.3.3Distance between openings or branches.38E.3.4Openings and branches.38E.3.5Cylindrical shells and dished ends with openings.38SIST EN 14075:2003

Measurement of shell peaking.45F.1Profile gauge.45F.2Peaking survey.45Annex G (informative)
Examples of joints.48Annex H (normative)
External protection of underground tanks.52H.1General.52H.2Unmonitored protection systems.52H.3Monitored protection systems.52H.3.1Systems incorporating cathodic protection.52H.3.2Systems incorporating a protective envelope.53H.3.3Other systems.53Annex ZA (informative)
Clauses of this European Standard addressing essential requirements orother provisions of EU Directives.54Bibliography.55SIST EN 14075:2003

In accordance with the specification of the steel product standards, ReH may be replaced by Rp0,2.b
A higher value is accepted provided that Cr + Mo + Ni + Cu + V < 0,75 %.4.2 Pressure parts other than shells and endsMaterials for pressure parts other than shells and ends shall comply with the appropriate harmonised EuropeanStandard for the material or a similar specification, which has European materials approval, or particular materialapproval.SIST EN 14075:2003

Suitabilityof the chosen consumables shall be demonstrated in accordance with 7.6.3.4.5 CertificatesThe tank manufacturer shall obtain certificates showing the chemical analysis and details of the mechanicalproperties of the steel supplied for the construction of the pressure retaining parts of the tank. The certificates shallbe in accordance with EN 10204, certificate Type 3.1.B.4.6 Non metallic materials (gaskets)Non metallic materials shall be compatible with both phases of LPG over the full range of pressures andtemperatures anticipated in service.5 Design5.1 GeneralTank thicknesses shall be calculated in accordance with annex E.For tanks intended to contain LPG which complies with ISO 9162 supplied to a national or international standard orother equivalent specification, no internal corrosion allowance is required.For tanks protected against external corrosion in accordance with 10.1, no external corrosion allowance is required.The appropriate weld joint coefficient for the material used and the level of non-destructive testing to be adoptedshall be selected in accordance with Table 2.The tank shall be designed to withstand the forces of pressure, vacuum conditions, weight of the surroundingground in operating condition, anti flotation devices and liquid load in accordance with 5.3, 5.4 and 5.5.Where necessary, attachments to the tank shall be welded using a backing plate.A fully detailed, dimensional drawing shall be produced.SIST EN 14075:2003
...
