EN 13566-4:2002

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cevni sistemi iz polimernih materialov za obnovo podzemnih
omrežij za odvodnjavanje
in kanalizacijo - Obratovanje brez '' tlaka (vodi s prosto gladino) – 4. del: Oblaganje s cevmi, ki se utrdijo na mestu
vgradnjeKunststoff-Rohrleitungssysteme für die Renovierung von erdverlegten drucklosen Entwässerungsnetzen (Freispiegelleitungen) - Teil 4: Vor ort härtendes SchlauchliningSystemes de canalisations plastiques pour la rénovation des réseaux d'assainissement enterrés sans pression - Partie 4: Chemisage continu polymérisé en placePlastics piping systems for renovation of underground non-pressure drainage and sewerage networks - Part 4: Lining with cured-in-place pipes93.030Zunanji sistemi za odpadno vodoExternal sewage systems23.040.20Cevi iz polimernih materialovPlastics pipesICS:Ta slovenski standard je istoveten z:EN 13566-4:2002SIST EN 13566-4:2003en01-oktober-2003SIST EN 13566-4:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13566-4December 2002ICS 93.030English versionPlastics piping systems for renovation of underground non-pressure drainage and sewerage networks - Part 4: Lining withcured-in-place pipesRénovation des réseaux d'assainissement gravitairesenterrés par canalisations plastiques - Partie 4: Chemisagecontinu polymérisé en placeKunststoff-Rohrleitungssysteme für die Renovierung vonerdverlegten drucklosen Entwässerungsnetzen(Freispiegelleitungen) - Teil 4: Vor ort härtendesSchlauchliningThis European Standard was approved by CEN on 4 November 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13566-4:2002 ESIST EN 13566-4:2003

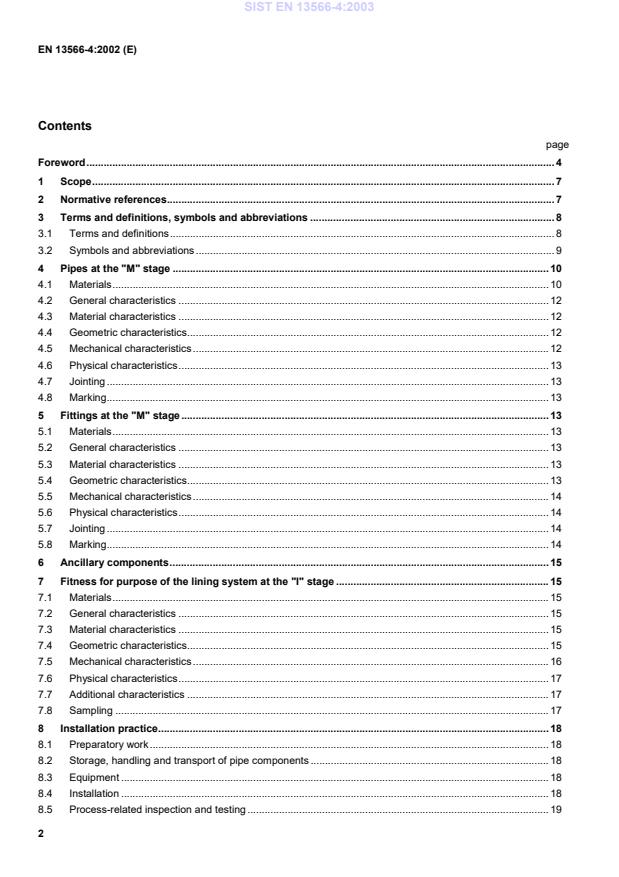

Recommended scheme for assessment of conformity.21A.1Scope.21A.2General.21A.3Testing and Inspection.21Annex B (informative)
CIPP components and their functions.25Annex C (normative)
Cured-in-place pipes – Modifications to
EN ISO 178 for flexural testing.26C.1General.26C.2Apparatus.26C.3Test piece shape and dimensions.26C.4Procedure.27C.5Calculation and expression of results.28C.6Test report.28Annex D (normative)
Cured-in-place pipes - Test method for the determination of
long-term flexuralmodulus under wet conditions.32D.1Scope.32D.2Principle.32D.3Apparatus.32D.4Sample preparation.32D.5Preparation of test pieces.33D.6Procedure.33D.7Test report.34Bibliography.35SIST EN 13566-4:2003

Thisis in addition to verification of characteristics of plastics piping systems as manufactured.The system standard EN 13566 comprises six parts, as follows:— Part 1: General— Part 2: Lining with continuous pipes— Part 3: Lining with close-fit pipes— Part 4: Lining with cured-in-place pipes (this standard)— Part 5: Lining with discrete pipes— Part 7: Lining with spirally wound pipesA consistent structure of clause headings has been adopted for all parts to facilitate direct comparisons acrosstechnique families.Figure 1 shows the common Part and clause structure and the relationship between EN 13566 and systemstandards for other applications.Annexes A and B are informative. Annexes C and D are normative.This document includes a bibliography.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard : Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,Sweden, Switzerland and the United Kingdom.SIST EN 13566-4:2003

Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes and fittings — Methodsfor regression analysis and their use.EN 761,
Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determination of thecreep factor under dry conditions.EN 1120,
Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes and fittings —Determination of the resistance to chemical attack from the inside of a section in a deflected condition.EN 1228:1996,
Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determinationof initial specific ring stiffness.EN 1393:1996,
Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Determinationof initial longitudinal tensile properties.EN 1401-1,
Plastics piping systems for non-pressure underground drainage and sewerage — Unplasticizedpoly(vinyl chloride) (PVC-U) — Part 1: Specifications for pipes, fittings and the system.EN 1852-1,
Plastics piping systems for non-pressure underground drainage and sewerage — Polypropylene (PP)— Part 1: Specifications for pipes, fittings and the system.EN 13566-1:2002,
Plastics piping systems for renovation of underground non-pressure drainage and seweragenetworks — Part 1: General.prEN 14364:2002,
Plastics piping systems for drainage and sewerage with or without pressure
— Glass-reinforced thermosetting plastics (GRP) based on unsaturated polyester resin (UP) — Specification for pipes,fittings and joints.EN ISO 75-2,
Plastics — Determination of temperature of deflection under load — Part 2: Plastics and ebonite(ISO 75-2:1993).EN ISO 178:1996,
Plastics — Determination of flexural properties (ISO 178:1993).EN ISO 527-2,
Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and extrusionplastics (ISO 527-2:1993 including Corr 1:1994).EN ISO 899-2, Plastics — Determination of creep behaviour — Part 2: Flexural creep by three-point loading(ISO 899-2:1993).prEN ISO 3126,
Plastics piping systems — Plastics piping components — Measurement and determination ofdimensions (ISO/DIS 3126:1999).SIST EN 13566-4:2003

membranemembrane which forms the outside surface of the pipe after installation3.1.1.11lateral connection collarfitting for reconnecting a lined main pipe to an existing or renovated lateral pipeSIST EN 13566-4:2003

The reinforcement may be incorporated in the carrier material, may constitute the carriermaterial, or be a separate layer3.1.1.16resin systemthermosetting resin including the curing agent(s) and any fillers or other additives, in specified proportions3.1.2 Techniques3.1.2.1eversionprocess of turning a flexible tube or hose inside out by the use of fluid (water or air) pressure3.1.2.2everted-in-place insertionmethod whereby the impregnated liner is introduced by eversion to achieve simultaneous insertion and inflation3.1.2.3winched-in-place insertionmethod whereby the flat impregnated liner is first pulled into the pipe to be lined and then inflated to bring it up tosizeNOTEInflation can be achieved by means of a separate pressurised tube or hose inside the liner which is either withdrawn after resin cureor left in place as a permanent internal membrane.3.1.2.4temporary membraneinternal membrane used to separate process fluid from the resin system during liner insertion which is withdrawnafter resin cure3.2 Symbols and abbreviationsThe following symbols and abbreviations apply in addition to those listed in EN 13566-1:2002.3.2.1 Symbolsb: width of test piecedm: mean diameter of pipeE0: short-term flexural modulusEx: long-term flexural modulus at x yearsEt: flexural creep modulus at time tSIST EN 13566-4:2003

Thepossible functions of components are described in Table B.1 of informative annex B.NOTE 2The carrier material can itself have a reinforcing effect.KeyaInternal or temporary membranebComposite (resin in carrier material/reinforcement)cExternal membranedExisting pipelineFigure 2 — Typical wall construction of lining tubeLining tube components shall comprise materials conforming to Table 1, and the material used for each componentshall be declared.SIST EN 13566-4:2003

Resin type
Filler type
Curing systemUP, VE or EPNone, inorganic or organicHeat-initiated, light-initiated or ambient cureCarrier material/ reinforcementPolymeric fibres: PA, PAN, PET or PP.Glass fibres conforming to 5.2 of prEN 14364:2002.Combinations of the above fibres a.Membranes (internal, external ortemporary)Unrestricted baWhere a combination of fibres is used, the proportions by mass of each fibre type shall be declared to within5 %.bAs there are no requirements for membranes, there are also no restrictions on the choice of materials usedfor membranes.4.2 General characteristicsColoration used for resin mix and/or impregnation control is permitted.4.3 Material characteristicsWhen tested in accordance with the methods given in Table 2, the resin system, when cast singly without carriermaterial or reinforcement, shall after cure conform to the mechanical requirements specified in Table 2, accordingto resin type.Table 2 — Material characteristics of resin systemsTest parametersCharacteristicRequirementParameterValueTest methodFlexural stress atfirst breakFor UP and VE resins:³ 100 MPaFor EP resins: ³ 80 MPaSpeed of testingNumber of test piecesDimensions of test piece:
thickness h
width b2 mm/min33 £ h £ 6 mm(15 ± 0,5) mmEN ISO 178Tensileelongation atbreakFor UP and VE resins:³ 2 %For EP resins: ³ 2.5 %Speed of testingNumber of test piecesTest piece shape andinitial gauge length5 mm/min3Specimen type 1BEN ISO 527-2Temperature ofdeflection underloadFor UP and VE resins: ³85 °CFor EP resins: ³ 70 °COrientation of test pieceNumber of test piecesEdgewise3Method A ofEN ISO 75-24.4 Geometric characteristicsNo geometric requirements apply at the ‘M’ stage.NOTEThe perimeter of the lining tube should be dimensioned such that when installed it forms a close fit to the existing sewer wall, or asotherwise required by the design. The manufactured length and thickness of the lining tube should include allowances for any longitudinal andcircumferential stretch during installation.4.5 Mechanical characteristicsNo mechanical requirements apply at the ‘M’ stage.SIST EN 13566-4:2003

“I” stage requirements are specified in clause 7.NOTE 3The only cured-in-place fittings covered by this standard are lateral connections collars.
Such collars can be an integral part of acomplete lining of a lateral pipe.
External saddle connections between cured-in-place main pipes and lateral pipes can also be made withstandard thermoplastic or GRP fittings.5.1 MaterialsLateral connection collars shall comprise cured-in-place components conforming to 4.1, but may also includeadditional thermoplastic components of declared composition.External saddles shall be of PP, PVC-U or GRP-UP conforming to EN 1852-1, EN 1401-1, or 6.5 ofprEN 14364:2002, as applicable.5.2 General characteristicsNo general requirements apply.5.3 Material characteristicsThe resin system of cured-in-place fittings shall conform to 4.3.5.4 Geometric characteristicsCured-in-place lateral connection collars shall be classified as indicated in Table 3 according to the minimumdistance extended into the lateral pipe.SIST EN 13566-4:2003

At bends and atirregularities in the host pipe, including local reductions of internal perimeter, folding will generally occur.7.3 Material characteristicsResin cure shall be demonstrated by conformity to 7.5.7.4 Geometric characteristicsNOTEWhen assessing minimum free bore attainable after CIPP installation at bends, changes of cross section or stepped joints in theexisting pipe, the likelihood of local folding should be taken into account (see 7.2).7.4.1 CIPP wall structureThe thicknesses and relative positions of each component layer of the CIPP wall, including tolerances, shall bespecified as declared values. The maximum proportional volume of any entrained air shall likewise be specified.The wall structure shall be verified by visual examination of the edge of a cut section of pipe, with magnification asnecessary, and use of a scale or caliper capable of measuring to within 0,1 mm.NOTEFor the purposes of verifying that any entrained air does not exceed the declared maximum proportional volume, microscopicexamination of a thin section can be necessary.7.4.2 Wall thicknessWhen measured in accordance with prEN ISO 3126 at a temperature of (23 ± 2) °C, the wall thickness of theinstalled pipe shall conform to Table 4.NOTEThe cut edge of the CIPP at manholes and lateral openings might possibly have not a thickness representative of the main body ofthe pipe.SIST EN 13566-4:2003

dn £ 300 mm:
dn > 300 mm:TemperatureFor method B:
relative deflection2dn mm ± 5 %300 mm ± 5 %(23 ± 2) °C(3 ± 0,5) %Method Aor aMethod BofEN 1228: 1996Dry creep factor(ax,dry)Declared value but notless than 0,2Number of test piecesTest piece length for
dn £ 300 mm:
dn > 300 mm:Test periodTime to which values are to be
extrapolatedTemperatureRelative humidity2dn ± 5 %300 mm ± 5 %10 000 h50 years(23 ± 2) °C(50 ± 5) %EN 761Long-term flexuralmodulus under wetconditions (Ex)Declared value but notless than 300 MPa at50 yearsNumber of test pieces3Annex DUltimate longitudinaltensile stress (sl)Declared value but notless than 15 MPaUltimate elongationDeclared value but notless than 0,5 %TemperatureNumber of test piecesSpeed of testing23 ± 2) °C55 mm/minMethod Aor aMethod BofEN 1393: 1996Short-term flexuralmodulus
(E0)Declared value but notless than 1500 MPaFlexural stress at firstbreak (sfb)Declared value but notless than 25 MPaFlexural strain at firstbreak (efb)Declared value but notless than 0,75 %Number of test piecesSpeed of testingSample orientationTemperature510 mm/minShall conform to 7.8(23 ± 2) °CEN ISO178as modified byannex CAIn case of dispute, Method A applies.SIST EN 13566-4:2003

If however any one of the test pieces subject to strain of 0,9efb,mean fails within 1000 hours, the fullprocedure of EN 1120 shall be followed.If a test piece fails due to the imposition of ring deflection alone, before the test fluid is applied, this shall not beconsidered a strain corrosion failure.NOTE 1Where the carrier material/reinforcement consists entirely of fibres of PET, testing experience indicates that no strain corrosionfailure occurs.NOTE 2Where tests are carried out at high values of flexural strain, it is recommended that samples of pipe having the lowest availablevalue of diameter/thickness ratio are used in order to limit the imposed ring deflection, if possible to less than 10 %.Table 6 — Additional characteristicsTest parameterCharacteristicRequirementParameterValueTestmethodResistance tochemical attack in adeflected conditionMinimum extrapolatedfailure strain at 50 years:³ 0,45 %Composition of test liquidNumber of test piecesTest piece length for
dn £ 300 mm:
dn > 300 mm:Test piece diameterTest temperatureTime to which the extrapolated
value is to be calculated0,5M sulphuric acid18dn mm ± 5 %300 mm ± 5 %150 £ dn £ 400(23 ± 2) °C50 yearsEN 11207.8 SamplingSimulated installations used to produce samples for type testing shall be executed in accordance with 8.4.3.Off-cut samples for installation quality control should preferably be formed by confining an otherwise free section ofliner during inflation and cure to the same perimeter as the pipe being lined.
Wherever possible such supportedsamples shall be formed at an intermediate manhole in preference to one or other end of the overall installation.For the purposes of three-point flexural testing to EN ISO 178 in accordance with Table 5 and annex C, theorientation of samples shall be as follows:a)
For CIPP products in which the mean hoop and longitudinal flexural properties can be shown by tests on flatplates to differ by no more than ± 10 %, either longitudinal or hoop samples may be used. The sampleorientation chosen for type testing shall however become the sample orientation requirement for all furtherflexural testing.b)
For CIPP products of anisotropic wall construction, hoop samples only shall be used.In all cases test pieces shall be placed in the testing machine such that the inside surface of the CIPP is in contactwith the supports and therefore subject to tension.SIST EN 13566-4:2003

Resin storage, mixing and impregnation equipment (where impregnation takes place at the installation site);b)
Insertion equipment:1) winch and controls for winched-in-place insertion;2) inversion collars or elbows for everted-in-place insertion;3) water column, or air/water pressure vessel for inflation or eversion;4) equipment for maintaining and/or monitoring pressure;c)
Curing equipment:1) boiler or steam generator;2) recording equipment for time, temperature and pressure;3) for light cure systems: UV source, winch for lights and equipment to record electric power delivered to thelights and their speed of advance along the pipe;4) for electrical cure systems: power supply and associated metering equipment;d)
Finishing equipment: manual or robotic cutters and/or grinders for trimming ends and reopening lateralconnections.8.4 Installation8.4.1 Environmental precautionsThe installation manual shall describe any measures necessary to prevent liquid resin from contaminating theenvironment and to reduce the accumulation of volatile materials in the atmosphere. Where hot processing fluidsare used they shall not be disposed of into the sewer network at temperatures and/or release rates which couldcause damage.NOTEAny local regulations specifying maximum fluid release temperatures should be taken into account.Any lubricant used to reduce friction during installation shall be declared. The installation manual shall describe anyprecautions necessary to prevent possible adverse effects of such lubricant on the CIPP or the environment.SIST EN 13566-4:2003

The temperature at the interface of the lining tube withthe existing pipeline shall be continuously monitored during the curing process by means of sensors located aroundthe invert of the pipe at the downstream end and at other appropriate locations.Where UV systems are used for curing, the light source shall be fitted with means for continuous monitoring of thespeed of advance inside the pipe, radiation intensity and/or electric power. Where electric heating systems areused for curing, the power delivered and temperature at the interface of the lining tube with the existing pipelinereally should likewise be monitored.All monitored process parameters shall be recorded at intervals of sufficient frequency to capture possible events ofshort duration, such as for example pressure surges or peak exotherm temperatures, which could have an impacton performance of the finished product.8.4.3 Simulated installationsSince the processing of CIPP, irrespective of curing system, is sensitive to heat loss to the existing pipeline andsurround, it is necessary to control the thermal environment of simulated installations used to producerepresentative samples for type testing.Unless otherwise prescribed, simulated installations shall be executed in clay or concrete pipe, which is completelysurrounded by at least 300 mm of wet sand, at an initial temperature of not greater than 15 °C. During the curingprocess the temperature at points in the sand 300 mm above the outside of the
...
