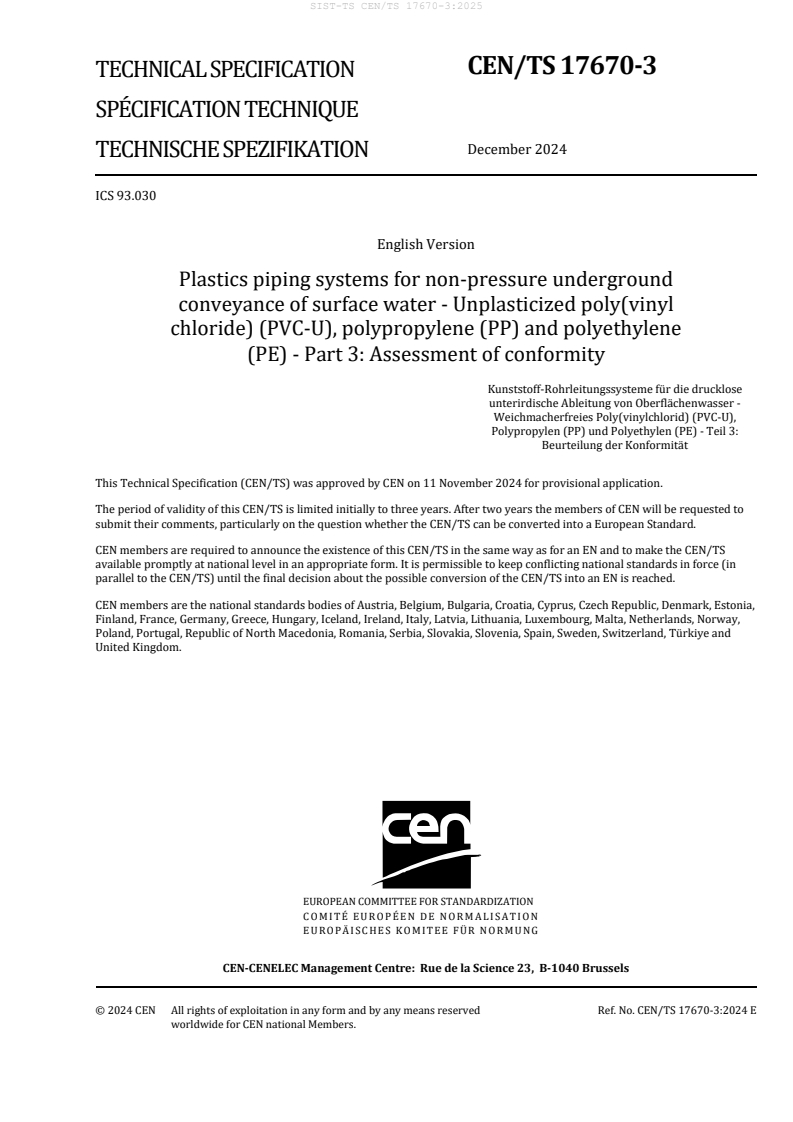

CEN/TS 17670-3
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
December 2024
TECHNISCHE SPEZIFIKATION
ICS 93.030
English Version
Plastics piping systems for non-pressure underground
conveyance of surface water - Unplasticized poly(vinyl
chloride) (PVC-U), polypropylene (PP) and polyethylene
(PE) - Part 3: Assessment of conformity
Kunststoff-Rohrleitungssysteme für die drucklose
unterirdische Ableitung von Oberflächenwasser -
Weichmacherfreies Poly(vinylchlorid) (PVC-U),
Polypropylen (PP) und Polyethylen (PE) - Teil 3:
Beurteilung der Konformität
This Technical Specification (CEN/TS) was approved by CEN on 11 November 2024 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17670-3:2024 E
worldwide for CEN national Members.

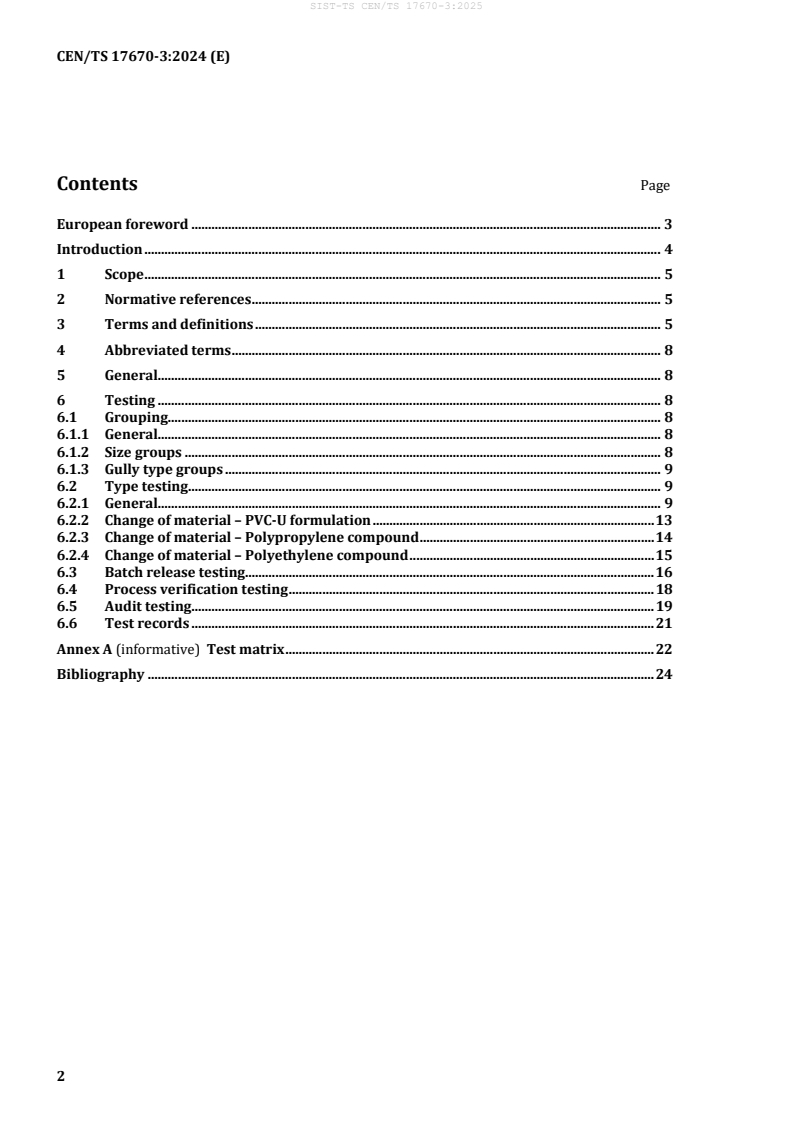

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Abbreviated terms . 8
5 General. 8
6 Testing . 8
6.1 Grouping. 8
6.1.1 General. 8
6.1.2 Size groups . 8
6.1.3 Gully type groups . 9
6.2 Type testing . 9
6.2.1 General. 9
6.2.2 Change of material – PVC-U formulation . 13
6.2.3 Change of material – Polypropylene compound . 14
6.2.4 Change of material – Polyethylene compound . 15
6.3 Batch release testing . 16
6.4 Process verification testing . 18
6.5 Audit testing . 19
6.6 Test records . 21
Annex A (informative) Test matrix . 22
Bibliography . 24

European foreword
This document (CEN/TS 17670-3:2024) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
EN 17670 consists of the following parts, under the general title “Plastics piping systems for non-pressure
underground conveyance of surface water — Unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP)
and polyethylene (PE)”:
— Part 1: Specifications for manholes and inspection chambers (under development);
— Part 2: Specification for road gullies;
— Part 3: Assessment of conformity (this document).
This version of Part 3 covers products according to Part 2. Part 1 is still under development and will be
included if/when available.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
This document details the applicable characteristics to be assessed for type testing (TT), batch release
test (BRT), process verification test (PVT), and audit test (AT), as well as the frequency and sampling for
testing.
The concept of testing and organization of those tests used for the AoC is shown, without or with
certification, in Figures 1 and 2.

Figure 1 — Typical scheme for the AoC by a manufacturer, without certification

Figure 2 — Typical scheme for the AoC by a manufacturer, including certification
1 Scope
This document gives guidance and requirements for the assessment of conformity of materials
(compounds/formulations), products, joints and assemblies in accordance with EN 17670-2 intended to
be included in the manufacturer’s quality plan as part of the quality management system and for the
establishment of certification procedures.
NOTE 1 A test matrix provides an overview of the testing scheme in Annex A, Table A.1.
NOTE 2 If certification is involved, the certification body operating in accordance with EN ISO/IEC 17065 [1] and
EN ISO/IEC 17020 [2] is considered to be competent.
In conjunction with EN 17670-2 this document is applicable to road gullies.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 17670-2, Plastics piping systems for non-pressure underground conveyance of surface water —
Unplasticized poly(vinyl chloride) (PVC-U), polypropylene (PP) and polyethylene (PE) — Part 2:
Specification for road gullies
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 17670-2 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
certification body
third-party conformity assessment body operating certification schemes
Note 1 to entry: A certification body can be non-governmental or governmental (with or without regulatory
authority).
[SOURCE: EN ISO/IEC 17065:2012 [1], definition 3.12]
3.2
laboratory
body that performs one or more of the following activities:
— testing;
— calibration;
— sampling, associated with subsequent testing or calibration
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing, batch
release testing, process verification testing and audit testing, as applicable.
[SOURCE: EN ISO/IEC 17025:2017 [3], definition 3.6, modified — Note 1 to entry is changed here]
3.3
quality management system
part of a management system with regard to quality
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [4].
[SOURCE: EN ISO 9000:2015 [5], definition 3.5.4, modified — Note 1 to entry is added here]
3.4
quality plan
document setting out the specific quality practices, responsibilities, resources and sequence of activities
relevant to a particular product or range of products
3.5
type test
TT
test performed to prove that the material, component, product, joint or assembly is capable of conforming
to the requirement(s) given in the relevant standard or if applicable to determine the manufacturer’s
declared values
3.6
batch release test
BRT
test performed on a batch of material, components, products, joints or assemblies which has to be
satisfactorily completed before the batch can be released
Note 1 to entry: A batch release test can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.7
process verification test
PVT
test performed on material, component, product, joint or assembly by or on behalf of the manufacturer
on compound or products or joints or assemblies at specific intervals to confirm that type tests originally
performed continue to be valid
Note 1 to entry: Process verification tests can be performed by the manufacturer or outsourced on behalf of the
manufacturer.
3.8
audit test
AT
test performed on behalf of a certification body
Note 1 to entry: Audit tests are generally required to confirm that the material (formulation/compound), product,
joint or assembly continues to conform to the requirements given in the relevant standard and to provide
information to assess the effectiveness of the quality management system.
3.9
indirect test
batch release test performed which differs from that specified test for that particular characteristic,
having previously verified its correlation with the specified test
Note 1 to entry: Indirect tests can be performed by the manufacturer or outsourced on behalf of the manufacturer.
3.10
witness test
type test or audit test which is performed in the presence of a representative of the certification body
3.11
material
generic term for compounds/formulations grouped by families, expressed by generic names
Note 1 to entry: Examples of generic names are PVC-U, polypropylene and EPDM.
3.12
substance
polymer, additive, element or chemical compound as used in compounds/formulations
3.13
compound/formulation
homogenous mixture of substances used for the manufacture of the product as defined in the referring
product standard
Note 1 to entry: In general, the term “compound” is used for polyolefins and the term “formulation” for PVC.
Note 2 to entry: The term “composition” is often used instead of compound/formulation for metals and when
dealing with water and food contact regulations.
3.14
material batch
quantity of a given homogeneous compound/formulation manufactured under uniform conditions
defined and identified by the compound/formulation manufacturer
3.15
product
item as defined in the scope of the standard, e.g. [road gully], [manhole], [inspection chamber]
3.16
product batch
clearly identified collection of products, manufactured consecutively or continuously under the same
conditions, using the same compound/formulation conforming to the same specification
3.17
sample
one or more components or products drawn from the same production batch, selected at random without
regard to their quality
3.19
sampling group
defined collection of similar components/products from which samples are selected for testing purposes
3.20
component
item manufactured or supplied as part of a product or as a spare part for that product
3.21
joint
connection between two products
3.23
fabricated fitting
fitting produced by welding, thermoforming or adhesive joint from pipes and/or from injection-moulded
[or rotomoulded] fittings
3.24
assembly
set of components that forms a product or a test piece
4 Abbreviated terms
To avoid misunderstanding, the abbreviated terms in this clause are defined as being the same in each
language. For the same reason, the terms are given in the three languages, English, French and German.
EN FR DE
AoC assessment of évaluation de la conformité Beurteilung der
conformity Konformität
AT audit test essai d’audit Überwachungsprüfung
BRT batch release test essai de libération de campagne de Freigabeprüfung einer
fabrication Charge
PVT process verification essai de vérification du procédé de Prozessüberprüfung
test fabrication
TT type test essai de type Typprüfung
5 General
Materials, products and fitness for purpose shall conform to the requirements given in EN 17670-2.
Materials and products shall be produced by the manufacturer under a quality management system
which includes a quality plan.
6 Testing
6.1 Grouping
6.1.1 General
For the purpose of this document, when applicable, the sampling groups specified below apply:
6.1.2 Size groups
For road gullies, the size groups are defined in Table 1.
Table 1 — Size groups
Size group Access diameter, DN
mm
1 200 ≤ DN ≤ 500
2 DN > 500
6.1.3 Gully type groups
For road gullies, the groups are defined in Table 2.
Table 2 — Gully type groups
Gully type group Gully type
1 Indirect loaded road
gully (IRG)
2 Direct loaded road
gully (DRG)
6.2 Type testing
6.2.1 General
Type testing shall be performed as described in Table 3 and Table 4 whenever there is:
a. a new system or product (N);
b. a change in design (D);
c. a change of material, (compound/formulation) (M);
d. a change in production processing method (P), other than routine in-process adjustments;
e. an extension of the product range (E), except the products already covered by the scheme of sampling
procedure.
An example of a new system or product (N) would be understood as a manufacturers first application for
a new group in accordance with EN 17670-2 or a change to more than one of the other categories,
e.g. “D and E”
An example of a change in design (D) would be understood as changes that only have an influence on the
jointing and/or performance characteristics of the road gully.
An example of a change in production processing method (P) would be understood as a change in
production method from e.g. injection moulding to rotational moulding.
An example of an extension of the product range (E) would be understood as an extension with a new
group.
For a change of material (compound/formulation) (M), 6.2.2 to 6.2.4 apply. A change of generic material
(e.g. PP to PE) is considered as a new system (N)
When a change of production site occurs, the manufacturer shall determine which type tests need to be
revalidated.
Unless any of the conditions a) to e) above occurs, the type test results remain valid.
A type test may be performed by the manufacturer or outsourced on behalf of the manufacturer.
A type test can be performed as a witness test if accepted by the certification body.
Table 3 — Characteristics of products that require type testing
Reference to a
Sampling procedure
Conditions requiring test
clause or
Characteristic subclause of
b
EN 17670-2:2 N D M P E Manufacturer
Certification body
Material -
Compound/formulation
(for road gully bases, road 5.1; 5.2; 5.3; Once per Once per
+ - + - -
gully risers, transition 5.4; 5.5 compound/formulation compound/formulation
pieces, telescopic
adaptors)
Use of reworked material
Once per Once per
5.6 + - + + -
c
compound/formulation compound/formulation
and recyclates
Verify documentation
Once per material and type
Sealing rings 5.7 and 11 + - + - - from the sealing ring
of sealing ring
supplier
Once per size group and
Appearance 6.1 + - + + + Once per gully
gully type group
Once per size group and
Colour 6.2 + - + + + Once per gully
gully type group
Geometrical Once per size group and
7.1, 7,2, 7.3 + + + + + Once per gully
characteristics gully type group
Once per size group and
Depth of water seal 7.4 + + - + + Once per gully
gully type group
Once per size group and
Sand trap volume 7.5 + + - + + Once per gully
gully type group
Characterization of
rotationally moulded Once per size group and
10.2 + + + - + Once per gully
product submitted for gully type group
performance testing
f
Adhesives 12 + - + - - Once per adhesive type
Once per adhesive type
Once per gully top type f
Gully tops 13 and 14.4 + + - - +
Once per gully top type
Marking and additional Once per gully Once per size group and
14 + + - + +
documentation gully type group
Mechanical characteristics of indirect loaded road gullies (IRG's)
Structural integrity (base) 8, Table 6 + + + + + once per size Once per size group
e Once per size Once per size group
8, Table 6 + + + + -
Ring stiffness (riser)
Impact resistance (base) 8, Table 6 + + + + - Once per gully Once per size group
Impact Strength Once per gully Once per size group
8, Table 6 + + + + -
d
(Drop test-base)
Mechanical characteristics of direct loaded road gullies (DRG's)
Structural integrity (gully Once per size Once per size group
8, Table 7 + + + + +
assembly)
Impact resistance (gully Once per gully Once per size group
8, Table 7 + + + + -
assembly)
Impact Strength Once per gully Once per size group
(Drop test-gully assembly)
8, Table 7 + + + + -
d
Reference to a
Sampling procedure
Conditions requiring test
clause or
Characteristic subclause of
b
N D M P E Manufacturer
EN 17670-2:2
Certification body
Physical characteristics
Once per size group and
+ + - + + Once per gully
Effects of heating
gully type group
(Injection moulded 9.1
Once per Once per
components)
- - + - -
compound/formulation compound/formulation
Vicat softening
temperature (VST – 9.1 + - + - - Once per formulation Once per formulation
PVC-U only)
Water tightness (Factory Once per size group and
9.2 + + - + + Once per gully
fabricated components) gully type group
a
+: test to be carried out.
b
Recommended sampling procedure for a laboratory working for a certification body.
c
The documented agreed specification and the maximum content of reworked material and recyclates material in the
compound/formulation shall be declared and verified
d
Optional test, for bases intended to be used in areas where installation is usually carried out at temperatures below −10 °C.
e
This test is not required for road gully risers manufactured from pipes that comply with the standards listed in Table 2 of
EN 17670-2:2023.
f
Verify documentation for compliance.
Table 4 — Characteristics fitness for purpose of the system that require type testing
Conditi
...
