EN 13218:2002+A1:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Obdelovalni stroji - Varnost - Stacionarni brusni strojiWerkzeugmaschinen - Sicherheit - Ortsfeste SchleifmaschinenMachines-outils - Sécurité - Machines à meuler fixesMachine tools - Safety - Stationary grinding machines25.080.50Brusilni in polirni strojiGrinding and polishing machinesICS:Ta slovenski standard je istoveten z:EN 13218:2002+A1:2008SIST EN 13218:2003+A1:2008en,fr,de01-oktober-2008SIST EN 13218:2003+A1:2008SLOVENSKI
STANDARDSIST EN 13218:20031DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13218:2002+A1
July 2008 ICS 25.080.50 Supersedes EN 13218:2002English Version
Machine tools - Safety - Stationary grinding machines
Machines-outils - Sécurité - Machines à meuler fixes
Werkzeugmaschinen - Sicherheit - Ortsfeste Schleifmaschinen This European Standard was approved by CEN on 26 August 2001 and includes Amendment 1 approved by CEN on 29 June 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2008 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13218:2002+A1:2008: ESIST EN 13218:2003+A1:2008

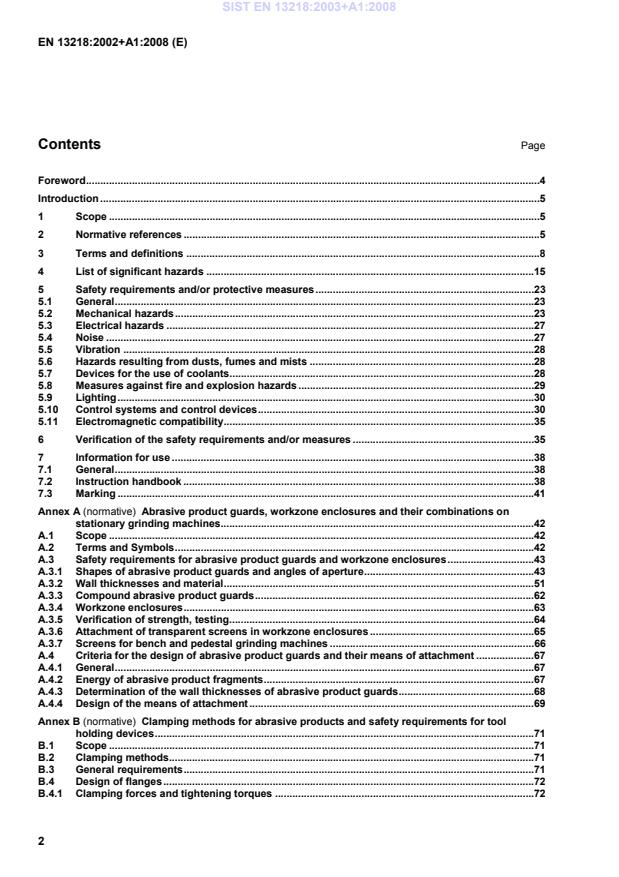

Abrasive product guards, workzone enclosures and their combinations on stationary grinding machines.42 A.1 Scope.42 A.2 Terms and Symbols.42 A.3 Safety requirements for abrasive product guards and workzone enclosures.43 A.3.1 Shapes of abrasive product guards and angles of aperture.43 A.3.2 Wall thicknesses and material.51 A.3.3 Compound abrasive product guards.62 A.3.4 Workzone enclosures.63 A.3.5 Verification of strength, testing.64 A.3.6 Attachment of transparent screens in workzone enclosures.65 A.3.7 Screens for bench and pedestal grinding machines.66 A.4 Criteria for the design of abrasive product guards and their means of attachment.67 A.4.1 General.67 A.4.2 Energy of abrasive product fragments.67 A.4.3 Determination of the wall thicknesses of abrasive product guards.68 A.4.4 Design of the means of attachment.69 Annex B (normative)
Clamping methods for abrasive products and safety requirements for tool holding devices.71 B.1 Scope.71 B.2 Clamping methods.71 B.3 General requirements.71 B.4 Design of flanges.72 B.4.1 Clamping forces and tightening torques.72 SIST EN 13218:2003+A1:2008

Calculation of the clamping force and the tightening torque for the mounting of abrasive products by means of flanges.83 C.1 Symbols.83 C.2 Operating forces.84 C.3 Necessary clamping force.86 C.4 Tightening torque of the screws.88 C.5 Surface pressure.89 Annex D (informative)
Noise reduction.90 D.1 Measures for the reduction of noise emission.90 Annex E !(normative)"
Noise emission determination, declaration and verification.91 E.1 Measuring procedure.91 E.2 Operating conditions.91 E.3 Declaration and verification of noise emission values.91 Annex F (normative)
Requirements for grinding machines for the machining of materials generating flammable and explosive dusts.93 F.1 Devices for wet grinding.93 F.2 Devices for dry grinding with wet precipitation by means of instantaneous moistening.93 F.3 Devices for dry grinding with precipitation by means of a wet-type cyclone.94 F.4 Additional requirements, dry grinding.95 Annex G (informative)
Relevant and special clauses for different types of stationary grinding machines.96 Annex ZA (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directives 98/37/EC amended by Directive 98/79/EC, 89/336/EEC and 73/23/EEC".99 Annex ZB (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC".100 Bibliography.101
for access openings EN 614-1, Safety of machinery - Ergonomic design principles – Part 1: Terminology and general principles EN 626-1, Safety of machinery - Reduction of risks to health from hazardous substances emitted by machinery – Part 1: Principles and specifications for machinery manufacturers EN 729-1, Quality requirements for welding – Fusion welding of metallic materials – Part 1: Guidelines for selection and use EN 953, Safety of machinery – Guards – General requirements for the design and construction of fixed and movable guards EN 954-1, Safety of machinery – Safety related parts of control systems – Part 1: General principles for design EN 982, Safety of machinery – Safety requirements for fluid power systems and their components – Hydraulics EN 983, Safety of machinery – Safety requirements for fluid power systems and their components – Pneumatics EN 1033, Hand arm vibration – Laboratory measurement of vibration at the grip surface of hand guided machinery – General EN 1037, Safety of machinery – Prevention of unexpected start-up EN 1050:1996, Safety of machinery – Principles for risk assessment EN 1070, Safety of machinery – Terminology EN 1088:1995, Safety of machinery – Interlocking devices associated with guards – Principles for design and selection EN 1127-1:1997, Explosive atmospheres – Explosion prevention and protection – Part 1: Basic concepts and methodology EN 1837, Safety of machinery - Integral lighting of machines
EN 10025, Hot rolled products of non-alloy structured steels - Technical delivery conditions EN 10130:1991+A1, Cold-rolled low carbon steel flat products for cold forming – Technical delivery conditions EN 12096, Mechanical vibration – Declaration and verification of vibration emission values EN 12413, Safety requirements for bonded abrasive products EN 13236, Safety requirements for superabrasives EN 13478, Safety of machinery – Fire prevention and protection EN 22553, Welded, brazed and soldered joints – Symbolic representation on drawings (ISO 2553:1992) EN 25817:1992, Arc welded joints in steel – Guidance on quality levels for imperfections (ISO 5817:1992) SIST EN 13218:2003+A1:2008

de:
Außenrundschleif- maschine
en:
External cylindrical
grinding machine
fr:
Rectifieuse cylindrique extérieure External cylindrical grind-ing
The grinding of the external surface of a rotating workpiece.
The workpiece and the grinding wheel are mechanically guided. 1.2
de:
Spitzenlose Außen rundschleifmaschine
en:
Centreless external
cylindrical grinding machine
fr:
Rectifieuse cylindrique sans centre Centreless grinding
The grinding of the external surface of a rotating workpiece.
The workpiece is rotated mechanically guided with reference to the grinding wheel by means of a control-wheel and rests on a straight-edge placed between the two wheels. 1.3
de:
Innenrundschleif maschine
en:
Internal cylindrical
grinding machine
fr:
Rectifieuse cylindrique intérieure Internal grinding
The grinding of the internal surface of a rotating work-piece.
The workpiece and the grinding wheel are mechanically guided. 1.4
de:
Planschleifmaschine,
Rechtecktisch, waage rechte Spindel
en:
Surface grinding
machine, reciprocating
table, horizontal spindle
fr:
Rectifieuse plane à table a déplacement rectiligne – broche horizontale Surface grinding-peripheral grinding
The grinding of plane
surfaces of a workpiece. The workpiece is secured to a reciprocating table. The workpiece and the grinding wheel are mechanically guided. (continued)
de:
Planschleifmaschine,
Rundtisch, waagerechte
Spindel
en:
Surface grinding
machine, rotary table
horizontal spindle
fr:
Rectifieuse plane à table rotative – broche hori-zontale Surface grinding – peripheral grinding
The grinding of plane
surfaces of a workpiece. The workpiece is secured to a rotary table. The workpiece and the grinding wheel are mechanically guided. 1.6
de:
Planschleifmaschine,
Rechtecktisch, senk-rechte Spindel
en:
Surface grinding
machine, reciprocating
table, vertical spindle
fr:
Rectifieuse plane à table a déplacement rectiligne
– broche verticale Surface grinding – face grinding
The grinding of plane surfaces of a workpiece. The workpiece is secured to a reciprocating table. The workpiece and the grinding wheel are mechanically guided. 1.7
de:
Planschleifmaschine,
Rundtisch, senkrechte
Spindel
en:
Surface grinding
machine, rotary table
vertical spindle
fr:
Rectifieuse plane à table a déplacement rota-
tive – broche verticale Surface grinding – face grinding
The grinding of plane surfaces of a workpiece. The workpiece is secured to a rotary table. The workpiece and the grinding wheel are mechanically guided. 1.8
de:
Doppelspindel-Plan schleifmaschine, waage rechte oder senkrechte
Spindeln
en:
Surface grinding
machine, double spindle
horizontal or vertical
fr: Rectifieuse plane à deux Surface grinding – face grinding
The grinding of a workpiece by passing it between two disc or cylinder wheels or segments. The workpiece and the grinding wheels are mechanically guided. (continued) SIST EN 13218:2003+A1:2008

de:
Werkzeugschleif maschine
en:
Tool grinding machine
fr:
Affûteuse Peripheral and face grind-ing
The grinding or regrinding of cutting faces and edges of tools (workpiece). The workpieces and the grinding wheels are mechanically guided. 1.10
de:
Trennschleifmaschine
en:
Cutting-off machine
fr:
Tronçonneuse Cutting-off
The grinding of workpieces for slotting or cutting-off. The workpiece is firmly fixed and the cutting-off wheel is mechanically guided. 1.11
de:
Trennschleifmaschine
en:
Cutting-off machine
fr:
Tronçonneuse Cutting-off
The grinding of workpieces for cutting-off. The workpiece is firmly clamped, the cutting-off wheel is guided by hand. 1.12
de:
Trennschleifmaschine
en:
Cutting-off machine
fr:
Tronçonneuse Cutting-off
The grinding of workpieces for slotting or cutting-off. The workpiece is guided by hand. The cutting-off wheel is mechanically guided. (continued) SIST EN 13218:2003+A1:2008

de:
Tisch- oder
Ständer schleifmaschine
en:
Bench or pedestal
grinding machine
fr:
Touret pour établi ou sur Peripheral grinding
The grinding of a surface of a workpiece using the wheel periphery. 1.14
de:
Ständerschleifmaschine
en:
Pedestal grinding
machine
fr:
Lapidaire Face grinding
The grinding of a surface of a workpiece using the wheel face. The workpiece is guided by hand. 1.15
de:
Pendelschleifmaschine
en:
Swing frame grinding
machine
fr:
Meulage et tronçonnage avec machine suspendue Peripheral grinding/cutting-off
The grinding or cutting of a workpiece using the wheel periphery. The workpiece is firmly clamped or stabilized by its own weight. The grinding machine is suspended and guided by hand. 1.16
de:
Hochdruckschleif-
maschine
en:
High pressure grinding
machine
fr:
Machine pour meulage à Surface grinding
High pressure grinding where the workpiece is secured to a table. The workpiece and the grinding wheel are mechanically guided.
3.3 abrasive product cutting tools of varied shapes with geometrically unspecified cutting edges. They are made from abrasive grains and bond. There is a distinction between bonded abrasive products and superabrasives, see EN 12413 and EN 13236 3.4 dressing tool fixed or rotary tool for the generation or reproduction of the grinding capacity (sharpening) and/or the geometry (truing) of abrasive products SIST EN 13218:2003+A1:2008

n is the speed of rotation in rotations per minute ; v is the peripheral speed in metres per second; D is the outside diameter of the abrasive product in millimetres. 3.6 maximum operating speed maximum permissible peripheral speed of a rotating abrasive product 3.7 maximum rotational speed maximum rotational speed of a grinding wheel spindle under all operating conditions. Rotational speed of a new abrasive product at maximum operating speed 3.8 type of application
see Table 2 Table 2 — Type of application
Grinding method Type of application Abrasive product Workpiece Grinding Mechanically guided grinding Fixed Guided mechanically
Guided mechanically Fixed
Guided mechanically Guided mechanically
Manually guided grinding Guided by hand Fixed
Fixed Guided by hand Cutting-off Mechanically guided cutting-off Fixed Guided mechanically
Guided mechanically Fixed
Guided mechanically Guided mechanically
Manually guided cutting-off Guided by hand Fixed
Fixed Guided by hand
Figure 1 Peripheral grinding Figure 2 Face grinding
Figure 3 Side grinding
3.17 abrasive product guard guard which encloses the abrasive product exposing only the part necessary for grinding and which is designed and constructed in such a way that it retains fragments in the guarded area in the event of breakage of the abrasive product 3.18 work zone enclosure guard enclosing the working area and retaining any parts which may be ejected during processing 3.19 tool holding device device intended to secure the abrasive product to the grinding wheel spindle 3.20 extraction system system for removal of the dusts, fumes and mists released during the grinding process 4 List of significant hazards Significant hazards associated with the machine have been identified in accordance with the procedures described in !EN ISO 12100-1:2003", clause 5 and in EN 1050 (see Table 3). 4.1 The list of hazards contained in Table 3 is the result of a hazard identification and risk assessment carried out as described in EN 1050, for the wide range of stationary grinding machines covered by the scope of this standard. The safety requirements and/or protective measures and information for use contained in clauses 5 and 7 are based on the risk assessment and deal with the identified hazards by either eliminating them or reducing the effects of the risks they generate. 4.2 The risk assessment assumes foreseeable access from all directions, as well as unexpected start-up. Risks to both the operators and other persons who can have access to the hazard zones are identified, taking into account hazards which can occur under various conditions (e.g. commissioning, set-up, production, maintenance, repair, decommissioning) during the life of the machine. The assessment includes an analysis of the effect of failure in the control system. 4.3 In addition, the user of this standard (e.g. the designer, manufacturer, supplier) shall validate that the risk assessment is complete for the machine under consideration with particular attention to: – the intended use of the machine including maintenance, setting and cleaning and its reasonably foreseeable misuse; SIST EN 13218:2003+A1:2008

!EN ISO 12100" Relevant Type B standard Relevant clauses in this standard No Designation
Part 1 Part 2 Annex A
1 Mechanical hazards
due to:
4.2
1.1 1.2 Crushing/ Shearing Operator Manual or automatic workpiece clamping, manual or automatic toolchanging Work zone 4.2.1 4.2.2 3.2 4.1.1 1.3, 1.4 EN 294 EN 349 EN 953 EN 1088 5.2.4 5.2.7 5.2.10 1.4 Entanglement Operator Manual operations close to the grinding wheel or the spindle of the machine Work zone 4.2.1 4.2.2
EN 953 EN 1088 5.2.4 5.2.5 1.5 Drawing-in or trapping Operator Manual operations between the grinding wheel and parts of the machine, particularly the work rest, or between the grinding wheel and the workpiece Work zone 4.2.1 3.11 4.1.1 6.1.2
EN 953 EN 1088 5.2.4 5.2.5 5.2.7 1.6 Impact Operator Operation in the area of travelling axes and in the area of automatic loading devices Work zone 4.2.1
EN 294 EN 953 EN 1088 5.2.4 5.2.10 1.8
Friction or abrasion Operator Unintentional contact with the rotating abrasive product during loading, unloading and/or measuring Work zone 4.2.1 3.3.b 3.11
EN 953 EN 1088 5.2.1 5.2.5 Annex A (continued)
standard No Designation
Part 1 Part 2 Annex A
2 Electrical hazards due to:
2.1 Contact of persons with live parts (direct contact) Operator,
maintenance personnel Work on electrical equipment, contact with live parts, connections during commissioning, maintenance, trouble-shooting Electrical cabinet, terminal boxes, control panel 4.3 3.9 6.2.2 1.5.1 1.6.3 EN 60204-1 5.3.1 2.2 Contact of persons with parts which have
become live under faulty conditions (indirect contact) Operator, maintenance personnel Work on electrical equipment, contact with live parts, connections during commissioning, maintenance, trouble-shooting Whole machine or faulty parts 4.3 3.9 1.5.1 EN 60204-1:1997 5.3.2 4 Hazards generated by noise resulting in
4.1 Hearing loss (deafness); other physiological
disorders (e.g. loss of balance, loss of awareness) Operator and other persons having access to the area around the machine Power generation and
transmission elements, grinding processes, audible
resonance of workpieces Area around the machine 4.5 3.2 4 1.5.8 EN ISO 11688-1 EN ISO 4871 EN ISO 3744
EN ISO 3746 EN ISO 11201 EN ISO 11202 EN ISO 11204 ISO 230-5 5.4 5.3 clause 7 Annex D Annex E (continued)
standard No Designation
Part 1 Part 2 Annex A
5 Hazards generated by vibrations
5.1 Use of manually guided tools resulting in nervous and vascular disorders Operator Transmission of vibrations from the grinding process to the operator in the case of machines for manually guided grinding Handles for the guiding of tools 4.6 3.2 1.5.9 CR 1030-1 EN 1033 EN 12096 5.5 clause 7 7 Hazards generated by materials and substances (and their constituent elements) processed or used by the machinery
7.1 Contact with or inhalation of harmful fluids, mists, fumes and dusts Operator and persons having access to the area around the machine Inhalation of or contact with dust or vapour released by the grinding wheel, particles of workpieces or by coolants applied Work zone, area around the machine 4.8 3.3b 3.4 1.1.3 1.5.13 1.6.5 EN 626-1 5.7.2 7.2 Fire or explosion Persons having access to the area around the machine Fire or explosion from dusts or chips generated during grinding of e.g. aluminium, magnesium or by the use of flammable fluids Area around the machine 4.8 3.4 1.5.6 1.5.7 EN 1127-1 prEN 13478:1999 5.8 clause 7 Annex F (continued)
standard No Designation
Part 1 Part 2 Annex A
7.3 Biological and microbiological (viral or bacterial) hazards Operator, maintenance personnel Contact with hydraulic or
cutting fluid as liquid or mist containing detritus and bacteria during loading/ unloading, process control, and maintenance Work zone, coolant supply system 4.8
1.1.3 1.6.5 2.1
5.7.3 clause 7 8 Hazards generated by neglecting ergonomic principles in machinery design, as e.g. hazards from:
8.1 Unhealthy postures or
excessive efforts Operator Handling of workpieces,
abrasive products and machine parts Work zone, area around the machine 4.9 3.6.1 6.2.1 6.2.3 6.2.4 6.2.6 1.1.2d, e 1.1.5 1.6.2 1.6.4 ENV 26385 EN 547-1 EN 547-2 EN 614-1 5.2.9 clause 7 8.4 Inadequate local lighting Operator Judgement and accuracy of manual actions impaired
during setting, handling and positioning of workpieces Work zone
3.6.5 1.1.4 EN 1837 5.9 (continued)
standard No Designation
Part 1 Part 2 Annex A
10 Hazards caused by unexpected start-up, unexpected overrun/ overspeed (or any similar malfunction) from:
10.1 Failure/disorder of the control system Operator, maintenance personnel Undetected failures in the control system leading to malfunctions, unexpected movements, overrun Work zone
3.7 6.2.2 1.2.7 1.6.3 EN 60204-1 EN 954-1 EN 982 EN 983 5.3 5.10 10.2 Restoration of energy supply after an interruption Operator, maintenance personnel Unexpected movements of the machine Work zone
3.7.2 1.2.6 EN 60204-1:1997 EN 1037 5.10.2 10.3 External influences on the electrical equipment Operator, maintenance personnel Unpredictable behaviour of electronic controls due to electromagnetic interference Work zone
3.7.11 1.2.1 1.5.11 4.1.2.8 EN 50082-2 EN 50081-2 5.11 13 Hazards due to failure of power supply: Operator Malfunctions of the control with consequent misapplication of stored energy or power, e.g. power workholding fails, motor overspeed Work zone
3.7 3.7.2 1.2.6 EN 60204-1:1997 5.2.8 5.3 5.10 (continued)
!EN ISO 12100" Relevant Type B standard Relevant clauses in this standard No Designation
Part 1 Part 2 Annex A
14 Hazards due to failure of the control circuit: Operator Unexpected movements and speed variations, loss of clamping energy Work zone
3.7 6.2.2 1.2.1 1.2.3 1.2.4 1.2.5 1.2.7 1.6.3 EN 954-1 5.10 17 Hazards due to falling or ejected objects or fluids: Operator and other persons having access to the area around the machine Ejections of
– parts of the abrasive product
– workpieces or other machine parts
– dust or coolant Work zone, area around the machine 4.2.2 3.3 3.8 1.3.2 1.3.3 EN 953 EN 1088 5.2.1 5.2.2 5.2.3 5.2.8 5.2.9 Annex A Annex B Annex C 18 Loss of stability Operator and other persons having access to the area around the machine Unrestrained machine or machine parts, falls or overturns Work zone, area around the machine 4.2.2 6.2.5 1.3.1
5.2.9 clause 7
!EN ISO 12100" for hazards relevant but not significant which are not dealt with by this standard. 5.2 Mechanical hazards 5.2.1 Guards to prevent ejection in the event of abrasive product breakage 5.2.1.1 Abrasive product guards Grinding machines shall be equipped with abrasive product guards able to contain the fragments effectively in the event of an abrasive product breakage. The wall thicknesses of these guards shall be specified in relation to the type of material used and the maximum operating speed and the mass of the abrasive products. The guard shall enclose the abrasive product to the greatest extent practicable, see A.3.1 to A.3.3. Where parts of the abrasive product guard are connected to each other by welding or other means, the connection shall be strong enough to ensure that parts will not separate when subjected to the impact of fragments. Requirements for abrasive product guards, see A.3.1 to A.3.3. The abrasive product guards shall be attached to the grinding machines so that they will not loosen or move in an uncontrolled way in the case of an abrasive product breakage. For requirements for the attachment of the abrasive product guards, see A.4. An abrasive product guard is not required.  for internal grinding machines (No 1.3, Table 1), where abrasive products are used with D ≤ 80 mm and a peripheral speed up to 50 m/s.  on grinding machines where abrasive products are used with D ≤ 1 000 mm and a maximum operating speed of vs ≤ 16 m/s. In circumstances/situations where an abrasive product guard cannot be provided, a guard enclosing the workzone or other measures leading to the required protection shall be provided. The guard enclosing the workzone shall comply with the requirements of A.3.4.2.2 in relation to the wall thickness and material. Where rotating dressing tools generate the same hazards as rotating abrasive products, relevant protective measures for these tools shall also be provided. 5.2.1.2 Additional guards Grinding machines on which abrasive products with maximum operating speeds vs > 50 m/s are operated shall be equipped with an additional guard, retaining the fragments ejected from the aperture of the abrasive product guard in the machining area (totally enclosed working area). The additional guarding provision may include:  a guard in accordance with A.3.4 SIST EN 13218:2003+A1
...
