EN 13383-1:2013

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kamen za obloge pri vodnih zgradbah in drugih gradbenih delih - 1. del: SpecifikacijaWasserbausteine - Teil 1: AnforderungenEnrochements - Partie 1: SpécificationsArmourstone - Part 1: Specification91.100.15Mineralni materiali in izdelkiMineral materials and productsICS:Ta slovenski standard je istoveten z:EN 13383-1:2013SIST EN 13383-1:2013en,fr,de01-julij-2013SIST EN 13383-1:2013SLOVENSKI
STANDARDSIST EN 13383-1:2002/AC:2004SIST EN 13383-1:20021DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13383-1
May 2013 ICS 91.100.15 Supersedes EN 13383-1:2002English Version
Armourstone - Part 1: Specification
Enrochements - Partie 1: Spécifications
Wasserbausteine - Teil 1: Anforderungen This European Standard was approved by CEN on 29 July 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13383-1:2013: ESIST EN 13383-1:2013

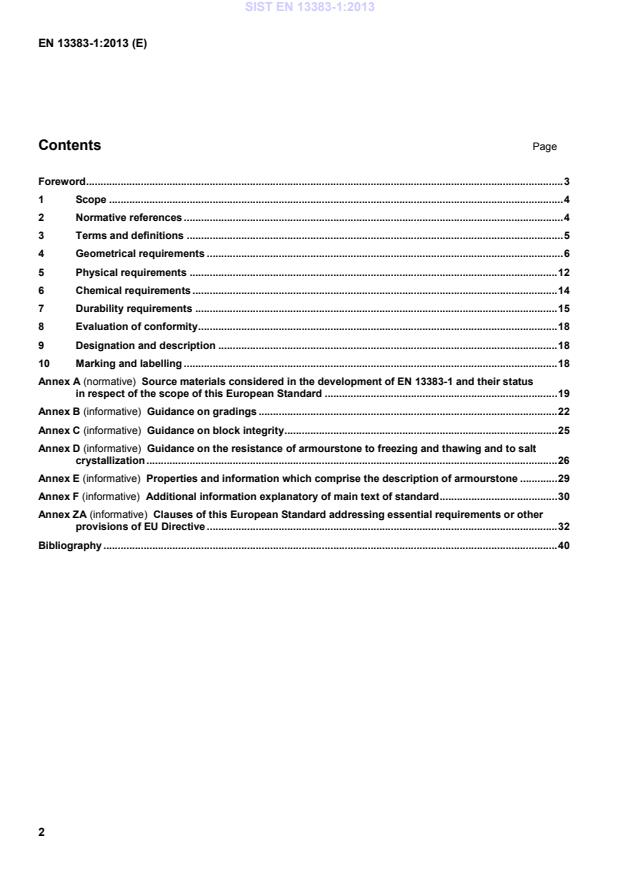

Source materials considered in the development of EN 13383-1 and their status in respect of the scope of this European Standard . 19 Annex B (informative)
Guidance on gradings . 22 Annex C (informative)
Guidance on block integrity . 25 Annex D (informative)
Guidance on the resistance of armourstone to freezing and thawing and to salt crystallization . 26 Annex E (informative)
Properties and information which comprise the description of armourstone . 29 Annex F (informative)
Additional information explanatory of main text of standard . 30 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directive . 32 Bibliography . 40
EN 13383-2. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Requirements for initial type testing and factory production control (previously specified in a normative annex to this standard) are now given in a new standard EN 16236: on Evaluation of conformity of aggregates. EN 13383 Armourstone consists of the following parts: Part 1: Specifications Part 2: Test methods Requirements for other end uses of aggregates are specified in the following European Standards: EN 12620 Aggregates for concrete EN 13043 Aggregates for bituminous mixtures and surface dressings for roads, airfields and other trafficked areas EN 13055 Lightweight aggregates EN 13139 Aggregates for mortar EN 13242 Aggregates for unbound and hydraulically bound materials for use in civil engineering work and road
construction EN 13450 Aggregates for railway ballast According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13383-1:2013

- 22,4 - 0 to 5 b - - 0 to 5 b - 16 0 to 5 b - - - - - a The fraction between the 90 mm and 180 mm sieves of the 90/180 mm grading shall be ≥ 80 % by mass. b Fragments. c
See Annex F.
4.2.2 Light gradings The mass distribution of light gradings shall be determined in accordance with EN 13383-2:2013, Clause 6. The mass distribution shall conform to: a) Table 2 for categories LMA15/120, LMA5/40, LMA10/60, LMA40/200, LMA60/300 and LMA15/300; or b) Table 3 for categories LMB15/120, LMB5/40, LMB10/60, LMB40/200, LMB60/300 and LMB15/300; or c) the mass distribution and, where appropriate, the average mass (excluding fragments) as declared by the producer for category LMDeclared. SIST EN 13383-1:2013

Fragments.
Fragments.
4.2.3 Heavy gradings The mass distribution of heavy gradings shall be determined in accordance with EN 13383-2:2013, Clause 6. The mass distribution shall conform to: a) Table 4 for categories HMA300/1000, HMA1000/3000, HMA3000/6000, HMA6000/10000, and HMA10000/15000; or b) Table 5 for categories HMB300/1000, HMB1000/3000, HMB3000/6000, HMB6000/10000, and HMB10000/15000; or c) the mass distribution and, where appropriate, the average mass (excluding fragments) as declared by the producer for category HMDeclared. SIST EN 13383-1:2013

a
Fragments.
a
Fragments.
4.3 Shape 4.3.1 Length-to-thickness ratio The percentage of pieces of armourstone with a length to thickness ratio greater than 3 shall be determined in accordance with EN 13383-2:2013, Clause 7. NOTE Guidance on the determination of shape information required for design is given in Annex F. 4.3.2 Coarse gradings The percentage of pieces of armourstone with a length to thickness ratio greater than 3 shall conform to the relevant requirements (or the producer's declaration for category LTDeclared) specified in Table 6 for the selected category, when tested as specified in 4.3.1. 4.3.3 Light gradings The percentage of pieces of armourstone with a length to thickness ratio greater than 3 shall conform to the relevant requirements (or the producer's declaration for category LTDeclared) specified in Table 6 for the selected category, when tested as specified in 4.3.1. SIST EN 13383-1:2013

LTDeclared No requirement No requirement No requirement LTNR
4.4 Proportion of crushed or broken surfaces When required, the proportion of pieces of armourstone (excluding fragments), with less than 50 % crushed or broken surfaces (rounded pieces) shall conform to the relevant requirement (or the producer's declaration for category RODeclared) specified in Table 7 for the selected category. The sample tested shall be the sample used for the determination of shape, see 4.3. The sample shall be examined by visual inspection and counting of pieces of armourstone. When examining pieces of armourstone, surfaces arising from discontinuities in the rock formation such as bedding planes or joints shall be included in the percentage of broken surfaces. Table 7 — Categories for crushed or broken surfaces Pieces of armourstone with less than 50 % crushed or broken surfaces Percentage by number Category
RO ≤ 5 > 5 RO5
RODeclared No requirement RONR
NOTE Guidance on the selection of RO category is given in Annex F. 5 Physical requirements 5.1 General The necessity for testing and declaring all properties in this clause is limited according to the particular application at end use or origin of the armourstone. When required, the tests specified in Clause 5 shall be carried out to determine appropriate physical properties. When the value of a property is required but not defined by specified limits the value should be declared by the producer as an XXDeclared category. For example, in Table 9 a value of a micro-Deval coefficient of less than or equal to 40 corresponds to MDE40. SIST EN 13383-1:2013

MPa Category CS ≥ 80 ≥ 60 < 60 < 60 < 40 No requirement CS80 CS60
CSDeclared No requirement No requirement CSNR NOTE Block integrity is also of particular importance. Guidance on block integrity is given in Annex C. 5.4 Resistance to wear When required, the resistance to wear of armourstone (excluding fragments), determined in accordance with
EN 1097-1:2011, Clause 7, shall conform to the relevant requirement (or the producer's declaration for category MDEDeclared) specified in Table 9 for the selected category. SIST EN 13383-1:2013

≤ 15 ≤ 20 ≤ 30 > 30 MDE10
MDE15 MDE20 MDE30
MDEDeclared No requirement MDENR
NOTE Guidance on the selection of wear categories is given in Annex F. The test portion shall be prepared in accordance with EN 1097-1:2011, Clause 6. Where suitable aggregate from a source representative of the armourstone is not available, the test portion shall be prepared in accordance with
EN 13383-2:2013, 4.7. 5.5 Requirement associated with grouting Armourstone intended for use in a layer to be grouted with bituminous or cement mortar shall not be covered with observable clayey or other adhesive soil. 5.6 Colour Natural variation in colour supplied from a quarry (or distinct part of a quarry) with an established pattern of supply shall not be grounds for rejection of any material. The purchaser should advise the supplier of any preference for a particular general colour for the armourstone. 6 Chemical requirements 6.1 General The necessity for testing and declaring all properties in this clause shall be limited according to the particular application at end use or origin of the aggregate. When required, the tests specified in Clause 6 shall be carried out to determine appropriate chemical properties. NOTE This clause generally applies to natural and manufactured armourstone. However, some recycled materials could have other chemical characteristics that do not apply to the generality of armourstone with an established pattern of use and when required, provisions valid at the place of use can be used to assess its suitability. Sampling shall be carried out as specified in EN 13383-2:2013, Clause 4. 6.2 Impurities Armourstone shall not contain any foreign matter such as scrap metal, wood and plastic in a quantity that will cause damage to the structure or the environment in which it is used (see EN 16236:2013, Table 3). 6.3 Water soluble constituents When a determination of water soluble constituents is required, an eluate shall be prepared from a representative sample of armourstone as specified in EN 1744-3. Where suitable aggregate representative of the armourstone is SIST EN 13383-1:2013

DSDeclared No requirement DSNR
For categories DSA and DSB of Table 10, if one of the 20 pieces shows either cracks or more than 20 % loss of mass, another 20 pieces of steel slag shall be tested. None of these additional pieces shall show either cracks or more than 20 % loss of mass. 7.3 Water absorption as a screening test for resistance to freezing and thawing and to salt crystallization When required, the water absorption of armourstone (excluding fragments) shall be determined in accordance with EN 13383-2:2013, Clause 8. At least 10 Pieces of armourstone shall be tested and the average absorption declared. If the average water absorption is not greater than the value selected as category WA0,5 specified in Table 11, the armourstone shall be assumed to be resistant to freezing and thawing and to salt crystallization. Table 11 — Categories for water absorption Water absorption Percentage by mass Category WA Average absorption ≤ 0,5 WA0,5
7.4 Resistance to freezing and thawing When required, the resistance to freezing and thawing of armourstone (excluding fragments) shall be determined in accordance with EN 13383-2:2013, Clause 9. The resistance to freezing and thawing shall conform to the relevant requirements (or the producer's declaration for category FTDeclared) specified in Table 12 for the selected category. 10 pieces of armourstone shall be tested initially. If one of the tested pieces shows more than 0,5 % loss of mass or formation of open cracks, another 10 pieces of armourstone shall be tested. NOTE 1 The pieces tested in conformity with 7.3 and showing maximum 0,5 % water absorption are excluded from further testing. NOTE 2 Guidance on how to specify the resistance of armourstone to freezing and thawing is given in Annex D. SIST EN 13383-1:2013

FTDeclared No requirement FTNR
7.5 Resistance to salt crystallization When required, the resistance to salt crystallization of armourstone (excluding fragments) shall be determined in accordance with EN 1367-2:2009, Clause 9. The resistance to salt crystallization shall conform to the relevant requirement (or the producer's declaration for category MSDeclared) specified in Table 13 for the selected category.
Where suitable aggregate representative of the armourstone is not available, the test portion shall be obtained by crushing, using a laboratory jaw crusher, at least six separate pieces of armourstone for which the masses do not differ by more than 25 %. Table 13 — Categories for resistance to salt crystallization Magnesium sulfate value Percentage loss of mass Category MS ≤ 25 > 25 MS25
MSDeclared No requirement MSNR
NOTE Guidance on how to specify the resistance of armourstone to salt crystallization is given in Annex D. 7.6 Sonnenbrand When required, the presence of signs of Sonnenbrand in armourstone (excluding fragments) from volcanic rock sources like some basalts, shall be determined in accordance with EN 13383-2:2013, Clause 10. The presence of signs of Sonnenbrand shall conform to the relevant requirement (or the producer's declaration for category SBDeclared) specified in Table 14 for the selected category. 20 pieces of armourstone shall be tested initially. If one piece shows signs of Sonnenbrand, another 20 pieces of armourstone shall be tested. SIST EN 13383-1:2013

SBDeclared No requirement SBNR
8 Evaluation of conformity The producer shall undertake initial type tests and factory production control in accordance with EN 16236 to ensure that the product conforms to this European Standard and to declared values as appropriate. 9 Designation and description 9.1 Designation Armourstone shall be identified in the following terms: a) source and producer - if the material has been rehandled in a depot both source and depot shall be given; b) type of armourstone (see Annex A); c) designation of the grading. 9.2 Additional information for the description of armourstone The necessity for other information depends on the situation and end use. The purchaser should inform the supplier at the time of order of any special requirements associated with a particular end use and of his requirements for extra information not covered in Table ZA.1a. 10 Marking and labelling The delivery ticket shall contain at least the following information: a) designation; b) date of despatch; c) serial number of the ticket; d) number of this European Standard. It can be a requirement of the supply agreement to have additional information included on the delivery ticket. NOTE For CE marking and labelling see ZA.3 in Annex ZA. SIST EN 13383-1:2013

(normative)
Source materials considered in the development of EN 13383-1 and their status in respect of the scope of this European Standard The source types listed in this annex have been considered in the preparation of this European Standard. Their status within the standard is indicated in Table A. Source materials not described here are outside the scope of EN 13383-1. Sources with no history of use as armourstone are outside the scope of the standard and should not be used as armourstone in conformity with this standard and are therefore gray shaded in Table A.1. Sources with positive history of use and no identification of the need for additional requirements are fully within the scope of the standard. Sources with a positive history of use and where the need for additional requirements has been identified are provisionally within scope pending the inclusion of suitable test methods and requirements. In all cases there is an obligation to control the potential release of regulated dangerous substances (RDS) in accordance with Member State requirements at the place of use. The information in this annex is based on a comprehensive survey of the use of armourstone from secondary sources in European member states undertaken between 2000 and 2005 and subsequent corrections identified by CEN/TC 154. CEN/TC 154 intends to keep this inventory under continual review. Any relevant information to assist in the updating of this annex including any proposal for the inclusion of new source types should be submitted to the secretariat of CEN/TC 154. In situations where the need for additional requirements has been identified, such materials, when placed on the market as aggregates, shall comply fully with this European Standard but may also be required to comply with specific relevant additional requirements at the place of use. Additional characteristics and requirements may be specified on a case by case basis depending upon experience of use of the product, and defined in specific contractual documents. Under an extension to its Mandate, CEN/TC 154 is currently developing requirements for the declaration of the potential of aggregates to release regulated dangerous substances under Essential Requirement 3. It is anticipated that the source classifications in this annex will be used as the basis of families for the collation of data and the development of source specific requirements for regulated dangerous substances. Any input to this process should be made through the secretariat of CEN/TC 154.
P All petrographic types included in EN 932-3 Yes Yes No A Construction and demolition recycling industries A1 Reclaimed asphalt No - - A2 Crushed concrete Yes
No Yes A3 Crushed bricks, masonry
No
– – A4 Mix of A1, A2 and A3 Yes (A2 and A3) No Yes B Municipal solid waste incineration industry
B1 Municipal incinerator bottom ash b (excluding fly ash) (MIBA) No – – B2 Municipal incinerator fly ash (MIFA) No – – C Coal power generation industry C1 Coal fly ash No – – C2 Fluidized bed combustion fly ash (FBCFA) No – – C3 Boiler slag No – – C4 Coal bottom ash No – – C5 Fluidized bed combustion bottom ash (FBC bottom ash) No – – D Iron and steel industry D1 Granulated blast furnace slag (GBS) (vitrified) No – – D2 Air-cooled blast furnace slag (ABS) (crystallized) Yes Yes No D3 Basic oxygen furnace slag (converter slag, BOS) Yes Yes No D4 Electric arc furnace slag (from carbon steel production, EAF C)
Yes Yes No D5 Electric arc furnace slag (from stainless/high alloy steel production, EAF S) No – –
No – – E3 Zinc slag No – – E4 Phosphorus slag Yes No No F Foundry industry F1 Foundry sand No – – F2 Foundry cupola furnace slag No – – G Mining and quarry industry G1 Red coal shale No – – G2 Refuse from hard coal mining (black coal shale) Yes No No G3 Pre-selected all-in from quarry/mining No – – G4 Spent oil shale No – – H Maintenance dredging works H1 Dredge spoil sand No – – H2 Dredge spoil clay No – – I Miscellaneous I1 Excavated soil
No – – I2 Paper sludge ash
No – – I3 Sewage sludge incineration ash (municipal) No – – I4 Biomass ash No – – I5 Crushed glass No – – I6 Expanded clay No – – a Additional requirements noted in this column exclude those to control the potential release of regulated dangerous substances (RDS) in accordance with Member State requirements at the place of use. b Requirements on MSWI bottom ash are based on experience with grated installations.
(informative)
Guidance on gradings B.1 Limits of coarse, light and heavy gradings
Key 1 grading requirement 2 fragments X mass, kilograms/sieve aperture, millimetres Y % by mass less than (passing) Coarse grading : a/b mm Light and heavy grading : a to b kg
ELL
: Extreme lower limit NLL
: Nominal lower limit, a NUL
: Nominal upper limit, b EUL
: Extreme upper limit NOTE See Tables 1, 2 and 4 for values of grading requirements. Figure B.1 — Limits of coarse, light and heavy gradings SIST EN 13383-1:2013

Keys 1
lower boundary 2
upper boundary X
mass (kg) Y
% by mass less than (passing) Figure B.2 — Setting grading limits for non-standard gradings B.2.2 Category B heavy gradings Step 1: Set NUL and NLL in such a way that their mean is close to the design M50 (the median mass, being the mass of the piece or armourstone below which 50 % by mass of the grading lies) derived from hydraulic stability calculation, i.e. 0,5 × (NUL+NLL) ≅ M50. The ratio NUL/NLL should be similar to those of standard heavy gradings of similar M50 (see Table 5 in Clause 4). Step 2: Set ELL = 0,7 × NLL and EUL = 1,5 × NUL (see Figure above). Step 3: Declare the grading as HMBDeclaredNLL/NUL and provide a table similar to Table 5 giving: SIST EN 13383-1:2013

 the class limits NUL, EUL to definitions based on minima of 70 % and 97 % (less than by mass) respectively. B.2.3 Category A heavy gradings Steps 1 and 2: Set NLL, NUL, ELL and EUL as given in B.2.1 for a category B grading. Step 3: Set the average mass (excluding fragments), Mem, between a lower limit of 0,8 × (NLL + NUL)/2 and an upper limit of (NLL + NUL)/2. Step 4: Declare the grading as HMADeclaredNLL/NUL and provide a table similar to Table 4 giving the range on average mass (excluding fragments) and:  the class limits ELL, NLL to definitions based on maxima of 5 % and 10 % (less than by mass) respectively and
 the class limits NUL, EUL to definitions based on minima of 70 % and 97 % (less than by mass) respectively.
(informative)
Guidance on block integrity C.1 General “Block integrity” is the name given to the property of each block or piece of armourstone indicating its wholeness or, in practical terms, its resistance to breaking apart along flaws or fissures during routine handling, placement and under wave loading in the works. The importance of block integrity increases with the size of the armourstone, becoming the most important mechanical property for heavy armourstone. This annex provides information on methods for the control of block breakage resulting from the presence of significant flaws within pieces of armourstone. As a result of its geological origin and the range in possible methods of extraction, pieces of armourstone may contain natural or blast-in
...
