EN ISO 18497-2:2024
(Main)Agricultural machinery and tractors - Safety of partially automated, semi-autonomous and autonomous machinery - Part 2: Design principles for obstacle protection systems (ISO 18497-2:2024)
Agricultural machinery and tractors - Safety of partially automated, semi-autonomous and autonomous machinery - Part 2: Design principles for obstacle protection systems (ISO 18497-2:2024)
This document specifies principles for the design of obstacle protective systems used in agricultural machinery and tractors that are used in agricultural applications and that have partially automated, semi-autonomous and autonomous functions. Additionally, it provides guidance on the type of information to be provided by the manufacturer on safe working practices (including information about residual risks).
The purpose of this document is to assist in the provision of more specific safety requirements, means of verification and information for use to ensure an appropriate level of safety for agricultural machinery and tractors with partially automated, semi-autonomous and autonomous functions used in a specified way.
This document deals with the significant hazards relevant to agricultural machinery and tractors with partially automated, semi-autonomous and autonomous functions when used as intended and under the conditions of misuse reasonably foreseeable by the manufacturer during normal operation and service.
Applicability of the design principles and any additional detailed requirements for design, verification, validation or information for use are outside the scope of this document. When risk assessment concludes that hazards are not significant hazards, the principles of this document do not apply.
NOTE Safety requirements for specific non-automated functions of agricultural machinery and tractors can be available in machine-specific type-C standards.
This document is not applicable to:
— forestry applications;
— operations on public roads including relevant requirements for braking and steering systems.
This document is not applicable to agricultural machinery and tractors which are manufactured before the date of its publication, or to systems applied to agricultural machinery and tractors put into use before the date of its publication.
Landmaschinen und Traktoren - Sicherheit von teilautomatisierten, halbautonomen und autonomen Maschinen - Teil 2: Gestaltungsleitsätze für Hindernisschutzsysteme (ISO 18497-2:2024)
Dieses Dokument legt Gestaltungsgrundlagen für die Auslegung von Hindernis-Schutzsystemen fest, die in Landmaschinen und Traktoren für landwirtschaftliche Anwendungen verwendet werden und die über teilautomatisierte, halbautonome und autonome Funktionen verfügen. Zudem liefert es einen Leitfaden zu der Art von Informationen, die der Hersteller zu sicheren Arbeitspraktiken (einschließlich Informationen zu Restrisiken) angeben muss.
Zweck dieses Dokuments ist es, bei der Bereitstellung spezifischerer Sicherheitsanforderungen, Mitteln zur Verifizierung und Benutzerinformationen zu helfen, um ein angemessenes Sicherheitsniveau für Landmaschinen und Traktoren mit auf bestimmte Weise verwendeten teilweise automatisierten, halbautonomen und autonomen Funktionen zu liefern.
Dieses Dokument behandelt für Landmaschinen und Traktoren mit teilweise automatisierten, halbautonomen und autonomen Funktionen, wenn diese wie vernünftigerweise vorgesehen und unter den im Normalbetrieb und der Wartung vom Hersteller vorhersehbaren Missbrauchsbedingungen verwendet werden, relevanten signifikanten Gefährdungen.
Die Anwendbarkeit der Gestaltungsgrundsätze sowie jegliche zusätzlichen detaillierten Anforderungen an Gestaltung, Verifizierung, Validierung oder Benutzerinformationen liegen außerhalb des Anwendungsbereichs dieses Dokuments. Wenn durch eine Risikobeurteilung festgestellt wird, dass Gefährdungen keine signifikanten Gefährdungen sind, sind die Grundsätze dieses Dokuments nicht anwendbar.
ANMERKUNG Sicherheitsanforderungen an spezifische nicht automatisierte Funktionen von Landmaschinen und Traktoren können in maschinenspezifischen Typ C Normen verfügbar sein.
Dieses Dokument ist nicht anwendbar auf:
- forstwirtschaftliche Anwendungen;
- Tätigkeiten auf öffentlichen Straßen einschließlich geltender Anforderungen an Brems- und Lenkeinrichtungen.
Dieses Dokument gilt nicht für Landmaschinen und Traktoren, die vor dem Veröffentlichungsdatum hergestellt wurden oder für Systeme, die vor dem Veröffentlichungsdatum an Landmaschinen und Traktoren in Betrieb genommen wurden.
Tracteurs et matériels agricoles - Sécurité des machines partiellement automatisées, semi-autonomes et autonomes - Partie 2: Principes de conception pour la protection contre les obstacles (ISO 18497-2:2024)
Le présent document spécifie les principes de conception des systèmes de protection contre les obstacles utilisés sur les tracteurs et matériels agricoles qui sont utilisés dans les applications agricoles et qui possèdent des fonctions partiellement automatisées, semi-autonomes et autonomes. En outre, il fournit des recommandations sur le type d'informations relatives aux pratiques d'utilisation sûres (y compris les informations relatives aux risques résiduels) que le fabricant est tenu de fournir.
L’objectif du présent document est d’aider à fournir des exigences de sécurité plus spécifiques, des moyens de vérification et des informations pour l’utilisation afin d’assurer un niveau de sécurité approprié pour les tracteurs et matériels agricoles équipés de fonctions partiellement automatisées, semi-autonomes et autonomes utilisées de façon spécifiée.
Le présent document traite des phénomènes dangereux significatifs applicables aux tracteurs et matériels agricoles équipés de fonctions partiellement automatisées, semi-autonomes et autonomes, lorsqu'ils sont utilisés tel que prévu et dans les conditions de mauvais usage raisonnablement prévisibles par le fabricant pendant des conditions normales d'utilisation et d'entretien.
L’applicabilité des principes de conception et toute exigence détaillée supplémentaire pour la conception, la vérification, la validation ou les informations pour l’utilisation ne relèvent pas du domaine d’application du présent document. Lorsque l'appréciation du risque conclut que les phénomènes dangereux ne sont pas significatifs, les principes du présent document ne s'appliquent pas.
NOTE Les exigences de sécurité pour les fonctions non automatisées spécifiques des tracteurs et matériels agricoles peuvent être disponibles dans des normes de type C spécifiques aux machines.
Le présent document ne s’applique pas aux:
— applications de sylviculture;
— opérations sur voies publiques, y compris les exigences pour le freinage et la direction.
Le présent document ne s’applique pas aux tracteurs et matériels agricoles fabriqués avant la date de sa publication ni aux systèmes appliqués aux tracteurs et matériels agricoles mis en service avant la date de sa publication.
Kmetijski stroji in traktorji - Varnost delno avtomatiziranih, polavtonomnih in avtonomnih strojev - 2. del: Načela načrtovanja sistemov za zaščito pred ovirami (ISO 18497-2:2024)
Ta dokument določa načela za načrtovanje sistemov za zaščito pred ovirami za delno avtomatizirane, polavtonomne in avtonomne kmetijske stroje in traktorje, ki se uporabljajo v kmetijstvu. Podaja tudi smernice glede vrste informacij, ki jih mora predložiti proizvajalec v zvezi z varnimi delovnimi postopki (vključno z informacijami o ostalih tveganjih).
Dokument je namenjen kot pomoč pri zagotavljanju natančnejših varnostnih zahtev, načinov preverjanja in informacij za uporabo, s čimer se zagotovi ustrezna stopnja varnosti delno avtomatiziranih, polavtonomnih in avtonomnih kmetijskih strojev in traktorjev, ki se uporabljajo na določen način.
Ta dokument obravnava večja tveganja v zvezi z delno avtomatiziranimi, polavtonomnimi in avtonomnimi kmetijskimi stroji in traktorji, kadar se med normalnim delovanjem in vzdrževanjem uporabljajo v skladu s predvidenim namenom in pod pogoji pričakovane nepravilne uporabe, ki jih določa proizvajalec.
Uporabnost načel oblikovanja in morebitne dodatne podrobne zahteve za oblikovanje, preverjanje, validacijo ali informacije za uporabo ne spadajo na področje uporabe tega dokumenta. Če ocena tveganja pokaže, da tveganja ne spadajo med večja tveganja, se načela tega dokumenta ne uporabljajo.
OPOMBA: Varnostne zahteve za posebne neavtomatizirane funkcije kmetijskih strojev in traktorjev so lahko na voljo v standardih tipa C za posamezne stroje.
Ta dokument se ne uporablja za:
– gozdarstvo;
– dejavnosti na javnih cestah, vključno z ustreznimi zahtevami za zavorne in krmilne sisteme.
Ta dokument se ne uporablja za kmetijske stroje in traktorje, ki so bili izdelani pred datumom njegove objave, ali za sisteme, ki se uporabljajo za kmetijske stroje in traktorje, dane v uporabo pred datumom njegove objave.
General Information
Relations
Standards Content (Sample)

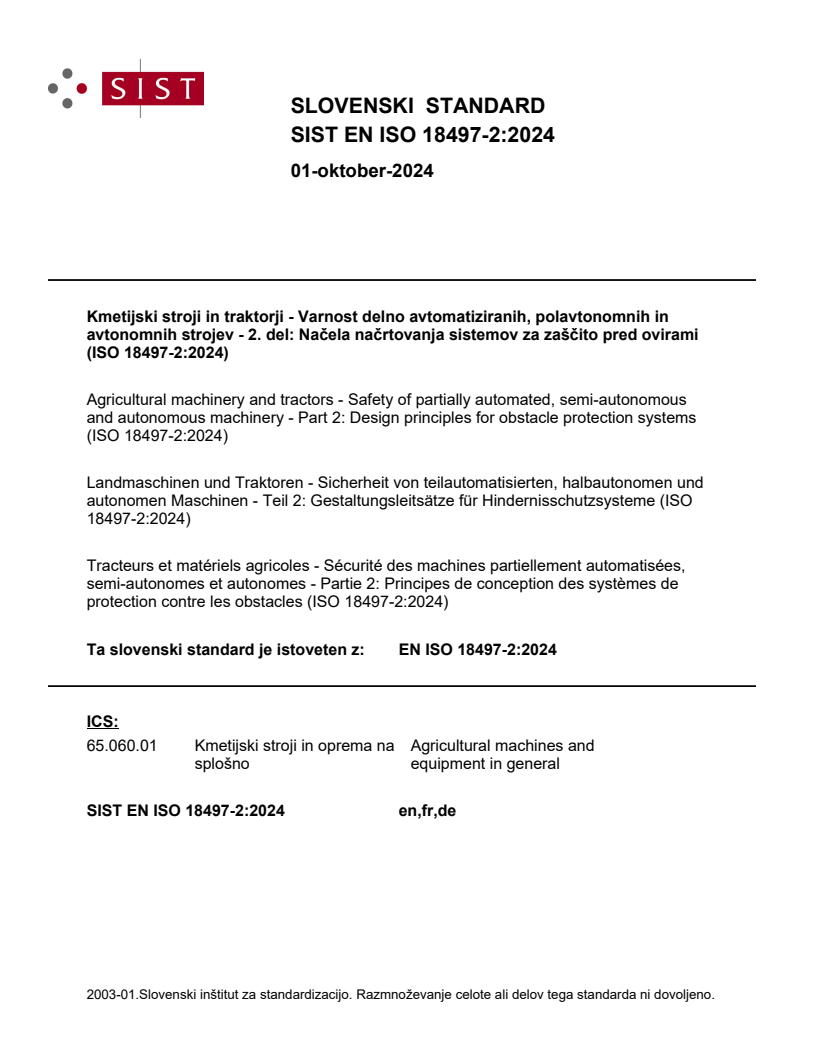

SLOVENSKI STANDARD
01-oktober-2024
Kmetijski stroji in traktorji - Varnost delno avtomatiziranih, polavtonomnih in
avtonomnih strojev - 2. del: Načela načrtovanja sistemov za zaščito pred ovirami
(ISO 18497-2:2024)
Agricultural machinery and tractors - Safety of partially automated, semi-autonomous
and autonomous machinery - Part 2: Design principles for obstacle protection systems
(ISO 18497-2:2024)
Landmaschinen und Traktoren - Sicherheit von teilautomatisierten, halbautonomen und
autonomen Maschinen - Teil 2: Gestaltungsleitsätze für Hindernisschutzsysteme (ISO
18497-2:2024)
Tracteurs et matériels agricoles - Sécurité des machines partiellement automatisées,
semi-autonomes et autonomes - Partie 2: Principes de conception des systèmes de
protection contre les obstacles (ISO 18497-2:2024)
Ta slovenski standard je istoveten z: EN ISO 18497-2:2024
ICS:
65.060.01 Kmetijski stroji in oprema na Agricultural machines and
splošno equipment in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 18497-2
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2024
EUROPÄISCHE NORM
ICS 65.060.01 Supersedes EN ISO 18497:2018
English Version
Agricultural machinery and tractors - Safety of partially
automated, semi-autonomous and autonomous machinery
- Part 2: Design principles for obstacle protection systems
(ISO 18497-2:2024)
Tracteurs et matériels agricoles - Sécurité des Landmaschinen und Traktoren - Sicherheit von
machines partiellement automatisées, semi-autonomes teilautomatisierten, halbautonomen und autonomen
et autonomes - Partie 2: Principes de conception pour Maschinen - Teil 2: Gestaltungsleitsätze für
la protection contre les obstacles (ISO 18497-2:2024) Hindernisschutzsysteme (ISO 18497-2:2024)
This European Standard was approved by CEN on 21 July 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18497-2:2024 E
worldwide for CEN national Members.

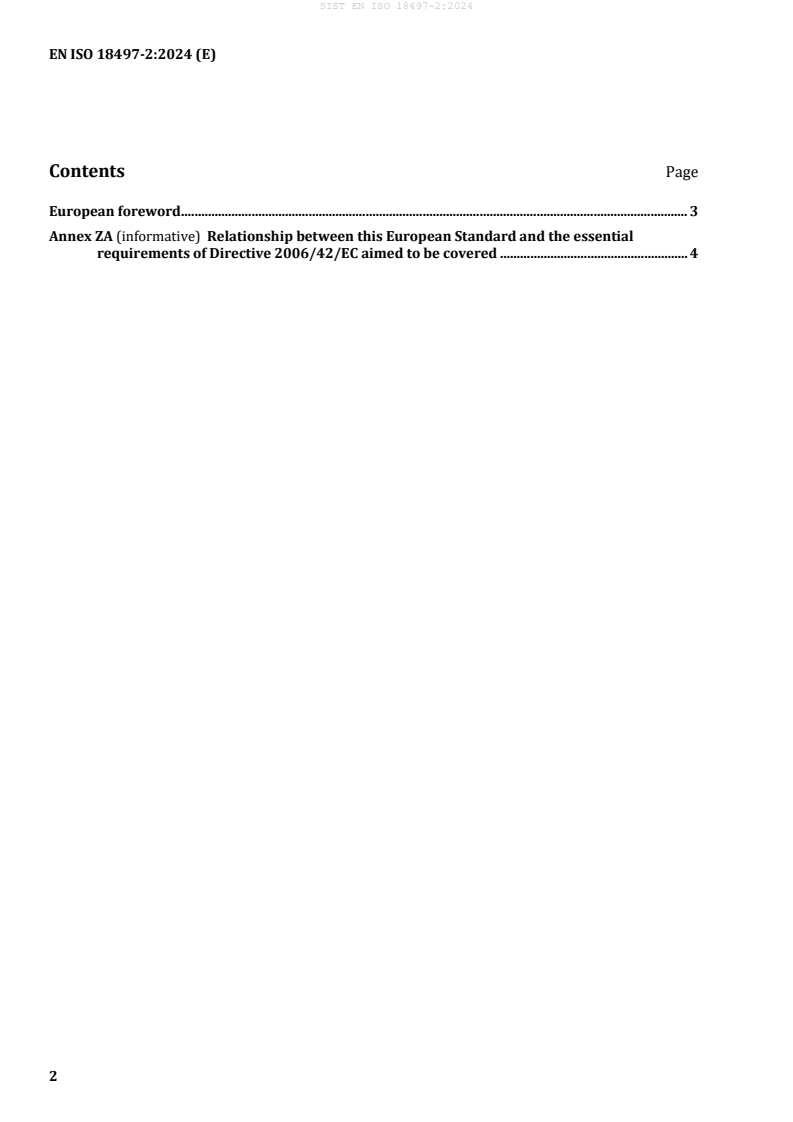

Contents Page
