Basket trolleys - Part 2: Requirements, tests and inspection for basket trolleys with or without a child carrying facility, intended to be used on passenger conveyors

This document specifies requirements for the construction, performance, testing and safety specifications for general purpose self service basket trolleys, with or without a child carrying facility, intended to be used on passenger conveyors, accompanied by a user.

Einkaufswagen - Teil 2: Anforderungen, Prüfungen und Instandhaltung für Einkaufswagen mit oder ohne Kindersitz, geeignet für den Gebrauch auf Personenfahrsteigen

Dieser Entwurf einer Europäischen Norm legt Anforderungen für die Konstruktion, Ausführung, Prüfung und Sicherheitsangaben von allgemeinen Einkaufswagen, mit oder ohne Kindersitz, fest, die bei Begleitung durch einen Benutzer für den Gebrauch auf Fahrsteigen entsprechend EN 115:1995 geeignet sind.
Einkaufswagen, die durch diesen Entwurf einer Europäischen Norm betroffen sind, müssen der EN 1929-1:1998 entsprechen, mit Ausnahme von 5.4, 6 und 4.2.2 nur bezüglich des Rollendurchmessers.

Chariots d'achat à corbeille - Partie 2 : Prescriptions, essais et inspection pour les chariots d'achat à corbeille, avec ou sans siège pour enfant, destinés à être utilisés sur les trottoirs roulants

Le présent document spécifie les exigences pour la construction, les performances, les essais et les spécifications
de sécurité applicables aux chariots d�achat à corbeille pour libre-service, avec ou sans siège pour enfant, destinés
à être utilisés sur les trottoirs roulants, accompagnés par un utilisateur.

Vozički s košaro – 2. del: Zahteve, preskusi in nadzor za vozičke s košaro z otroškim sedežem ali brez njega, namenjene uporabi na tekočih trakovih za osebe (stezah)

General Information

Status
Published
Publication Date
30-Nov-2004
Withdrawal Date
29-Jun-2005
ICS
97.130.30 - Trolleys for supermarket use
Technical Committee
CEN/TC 291 - Self-Service shopping trolleys
Drafting Committee
CEN/TC 291 - Self-Service shopping trolleys
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
15-Jun-2022
Completion Date
14-Apr-2025
Ref Project
SIST EN 1929-2:2005 - Basket trolleys - Part 2: Requirements, tests and inspection for basket trolleys with or without a child carrying facility, intended to be used on passenger conveyors

Overview

EN 1929-2:2004 - "Basket trolleys - Part 2: Requirements, tests and inspection for basket trolleys with or without a child carrying facility, intended to be used on passenger conveyors" is a CEN European standard that defines safety, construction, performance, testing and inspection requirements for self‑service basket trolleys intended to be used on passenger conveyors (escalator-type moving walkways). It complements EN 1929-1 and links to escalator safety requirements in EN 115.

Key topics and technical requirements

This part of EN 1929 specifies practical, testable requirements for safe use of basket trolleys on passenger conveyors:

  • Maximum total loading mass: 160 kg when used on passenger conveyors.
  • Wheel size: wheel diameter shall not be less than 120 mm.
  • Conveyor width compatibility: passenger conveyor nominal width must be at least 400 mm greater than the overall trolley width.
  • Maintaining device: trolleys must have a device that keeps them stopped on the conveyor when unattended.
  • Stability tests:
    • Longitudinal stability: trolley must not overturn to an angle of up to 16° (ascending/descending).
    • Lateral stability: trolley must not overturn to an angle of up to 10° sideways.
  • Exit/topple test: trolley must not topple when passing the comb at the conveyor exit (see specific test 7.3).
  • Test for maintaining on conveyor: evaluated on a 12° slope using aluminium support strips with surface roughness 0.4 µm < Ra < 1.6 µm. Load to manufacturer’s maximum and hold for at least 3 minutes.
  • Passenger conveyor interface parameters: compatible conveyors typically have max speed 0.5 m/s; comb geometry limits include comb tooth slant β ≤ 15°, height H ≤ 55 mm, and transition length L ≥ 500 mm.
  • Signage and marking: visible pictogram at entrance (minimum 80×80 mm) and on handle (≥ 20×20 mm), clear instruction "Hold the handle continuously", maximum basket load and trolley identification plate (manufacturer, model, volume, max load, manufacture date, EN reference).
  • Inspections & maintenance: delivery checks, repeated acceptance after major modifications, and periodic inspections at least every six months; maintain a register of technical characteristics, inspections, modifications and accidents.

Applications and users

EN 1929-2:2004 is used to ensure safe integration of basket trolleys with passenger conveyors in:

  • Supermarkets, retail chains and DIY stores using moving walkways or short escalator links
  • Trolley manufacturers and designers specifying conveyor‑compatible trolleys
  • Facility managers, safety officers and maintenance teams responsible for conveyor/trolley interface and periodic inspections
  • Escalator/passenger conveyor installers and maintenance contractors verifying safe trolley use on-site

Related standards

  • EN 1929-1:1998 - Basket trolleys - Part 1 (general requirements and tests)
  • EN 115 - Safety rules for construction and installation of escalators and passenger conveyors
  • ISO 3864 - Safety colours and safety signs
  • Other parts in the EN 1929 series (prEN 1929-3 to prEN 1929-7) cover trolleys with additional goods carrying facilities and baby/child carrying features.

This standard is essential for compliance-driven product design, safe operation, and risk reduction where basket trolleys interact with passenger conveyors.

Frequently Asked Questions

EN 1929-2:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Basket trolleys - Part 2: Requirements, tests and inspection for basket trolleys with or without a child carrying facility, intended to be used on passenger conveyors". This standard covers: This document specifies requirements for the construction, performance, testing and safety specifications for general purpose self service basket trolleys, with or without a child carrying facility, intended to be used on passenger conveyors, accompanied by a user.

This document specifies requirements for the construction, performance, testing and safety specifications for general purpose self service basket trolleys, with or without a child carrying facility, intended to be used on passenger conveyors, accompanied by a user.

EN 1929-2:2004 is classified under the following ICS (International Classification for Standards) categories: 97.130.30 - Trolleys for supermarket use. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN 1929-2:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

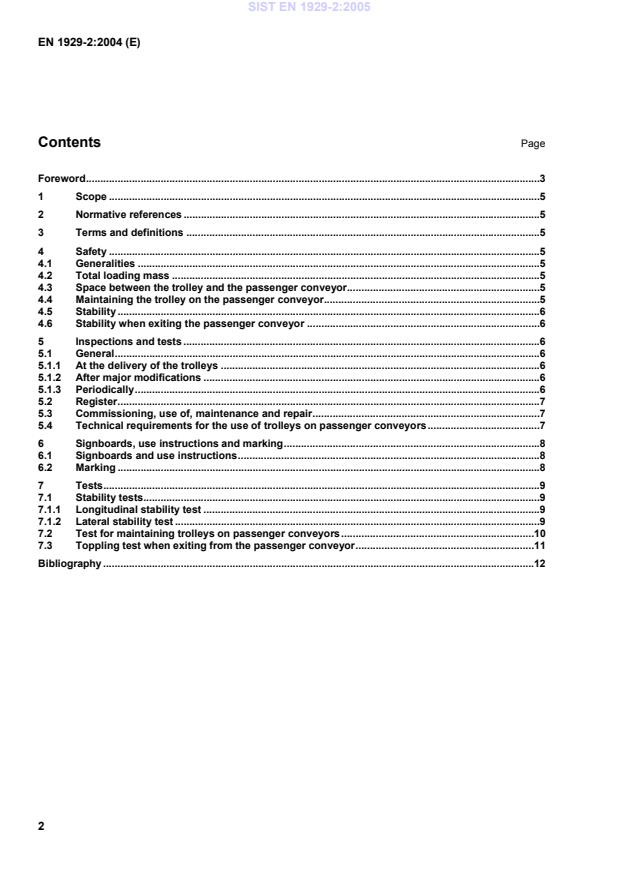

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VWH]DKEinkaufswagen - Teil 2: Anforderungen, Prüfungen und Instandhaltung für Einkaufswagen mit oder ohne Kindersitz, geeignet für den Gebrauch auf PersonenfahrsteigenChariots d'achat a corbeille - Partie 2 : Prescriptions, essais et inspection pour les chariots d'achat a corbeille, avec ou sans siege pour enfant, destinés a etre utilisés sur les trottoirs roulantsBasket trolleys - Part 2: Requirements, tests and inspection for basket trolleys with or without a child carrying facility, intended to be used on passenger conveyors97.130.30Trolleys for supermarket useICS:Ta slovenski standard je istoveten z:EN 1929-2:2004SIST EN 1929-2:2005en01-marec-2005SIST EN 1929-2:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1929-2December 2004ICS 97.130.30English versionBasket trolleys - Part 2: Requirements, tests and inspection forbasket trolleys with or without a child carrying facility, intended tobe used on passenger conveyorsChariots d'achat à corbeille - Partie 2 : Prescriptions, essaiset inspection pour les chariots d'achat à corbeille, avec ousans siège pour enfant, destinés à être utilisés sur lestrottoirs roulantsEinkaufswagen - Teil 2: Anforderungen, Prüfungen undInstandhaltung für Einkaufswagen mit oder ohne Kindersitz,geeignet für den Gebrauch auf PersonenfahrteigenThis European Standard was approved by CEN on 16 August 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1929-2:2004: ESIST EN 1929-2:2005
...
