EN 13807:2003

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ortsbewegliche Gasflaschen - Batterie-Fahrzeuge - Konstruktion, Herstellung, Kennzeichnung und PrüfungBouteilles a gaz transportables - Véhicules-batteries - Conception, fabrication, identification et essaiTransportable gas cylinders - Battery vehicles - Design, manufacture, identification and testing23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 13807:2003SIST EN 13807:2004en01-junij-2004SIST EN 13807:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13807September 2003ICS 23.020.30English versionTransportable gas cylinders - Battery vehicles - Design,manufacture, identification and testingBouteilles à gaz transportables - Véhicules-batteries -Conception, fabrication, identification et essaiOrtsbewegliche Gasflaschen - Batterie-Fahrzeuge -Konstruktion, Herstellung, Kennzeichnung und PrüfungThis European Standard was approved by CEN on 1 September 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13807:2003 ESIST EN 13807:2004

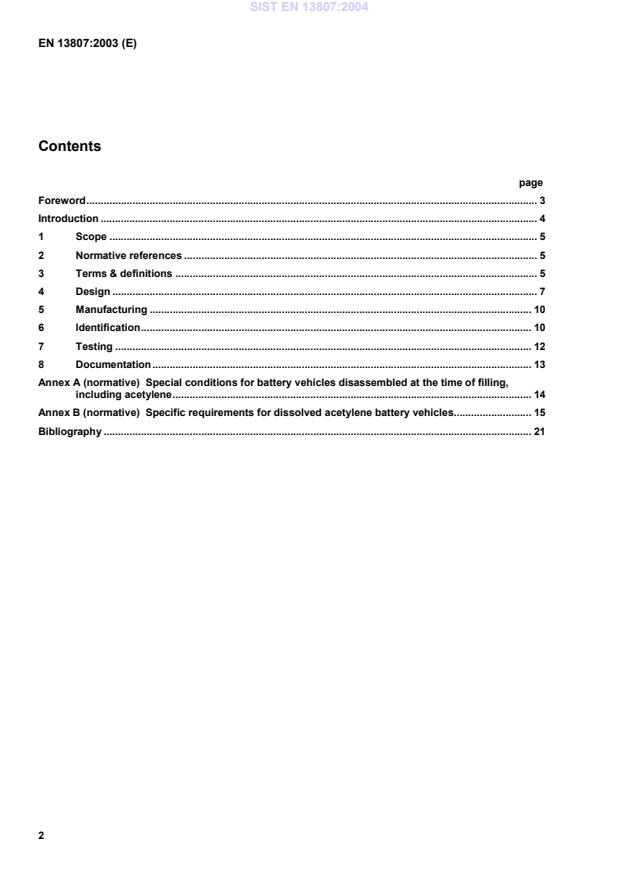

Special conditions for battery vehicles disassembled at the time of filling,including acetylene.14Annex B (normative)
Specific requirements for dissolved acetylene battery vehicles.15Bibliography.21SIST EN 13807:2004

Thesenormative references are cited at the appropriate places in the text and the publications are listed hereafter.
Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision.
For undated references the latest edition of thepublication referred to applies (including amendments).EN 287-1, Approval testing of welders — Fusion welding — Part 1: Steels.EN 288-1, Specification and qualification of welding procedures for metallic materials — Part 1: General rules forfusion welding.EN 1089-2, Transportable gas cylinders — Gas cylinder identification (excluding LPG) — Part 2: Precautionarylabels.EN 1089-3, Transportable gas cylinders — Cylinder identification (excluding LPG) — Part 3: Colour coding.EN 1800, Transportable gas cylinders — Acetylene cylinders — Basic requirements and definitions.EN 12755, Transportable gas cylinders — Filling conditions for acetylene bundles.EN 13133, Brazing — Brazer approval.EN 13134, Brazing — Procedure approval.prEN 13769, Transportable gas cylinders — Cylinder bundles — Design, manufacture, identification and testing.EN ISO 14113, Gas welding equipment — Rubber and plastic hoses assembled for compressed or liquefied gasesup to a maximum design pressure of 450 bar (ISO 14113 :1997).ISO 13769, Gas cylinders -- Stamp marking3 Terms & definitionsFor the purposes of this European Standard, the following terms and definitions apply. Definitions specific toacetylene are included in annex B.SIST EN 13807:2004

connected to a manifold by cylindervalves or fittings such that the cylinders are filled, transported and emptied without disassembly3.6element valvevalve which is fitted into an element and to which a manifold is connected3.7element fittingdevice with no gas shut-off capability which serves to connect a battery vehicle's manifold to its individual element,where an element valve is not fitted3.8manifoldsystem for connecting a battery vehicle's element valves or element fittings to the main valve(s) or mainconnection(s)3.9main valvevalve which is fitted to a battery vehicle's manifold isolating it from the main connection(s)3.10main connectionmeans of making a gas connection to a battery vehicle3.11tare weightweight of the battery vehicle when empty of gas product3.12maximum gross weighttare weight of the battery vehicle plus the maximum weight of the gas products contained within the battery vehicle3.13compressed gasgas which when packaged under pressure for transport is entirely gaseous at – 50 °C, this category includes allgases with a critical temperature less than or equal to – 50 °CSIST EN 13807:2004

The arrangement shall meet atleast the impact requirements for a rear under-run protective device required by EU directives (see 79/490/EEC[1]).
The width of this arrangement shall be not less than that of the rear under-run protective device and not lessthan that of the pipework and fittings. There shall be a clearance of at least 100 mm between the arrangement andthe rearmost point of the piping, fittings and valves under gas pressure during transport.SIST EN 13807:2004

Flexible hoses or non-metallic pipework should only be used as part of the fixed pipework on the batteryvehicle after trials have proved their acceptability and compatibility. The length of such hoses and pipework shouldbe kept to a minimum.4.5.6Joints shall not decrease the strength of tubing as can happen when cutting threads.4.6 Main valve(s)/connection(s)4.6.1The main connection shall be compatible with the gas and the pressure for which the battery vehicle isintended.SIST EN 13807:2004

Flexible hosesshall have electrical continuity with a resistance not exceeding 106 W.4.7.2A means of immobilising the battery vehicle whilst it is connected for filling or emptying shall be provided.5 ManufacturingA battery vehicle shall be manufactured in accordance with the design criteria listed in clause 4.For this condition to be satisfied the manufacturers shall:—use welding procedures in accordance with EN 288-1;—use approved welders in accordance with EN 287-1;—use brazing procedures in accordance with EN 13134;—use approved brazers in accordance with EN 13133.6 Identification6.1 GeneralA battery vehicle design can include components which protect the manifold and which cause an obstruction to theview of the shoulders of the elements. Therefore the requirements for labelling and colour coding of batteryvehicles differ from those for individual cylinders given in EN 1089-2 and EN 1089-3.Additionally, markings on the individual elements can also be obscured, therefore certain information which shouldbe checked at the time of filling shall be duplicated on the outside of the battery vehicle.For acetylene see annex B.6.2 Product and hazard identification6.2.1 Precautionary labelsIt is not necessary to attach labels to individual elements within a battery vehicle.SIST EN 13807:2004
...
