EN 13165:2012+A1:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz trde poliuretanske pene (PUR) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Polyurethan-Hartschaum (PU) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en mousse rigide de polyuréthane (PU) - SpécificationThermal insulation products for buildings - Factory made rigid polyurethane foam (PU) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13165:2012+A1:2015SIST EN 13165:2013+A1:2015en,fr,de01-april-2015SIST EN 13165:2013+A1:2015SLOVENSKI
STANDARDSIST EN 13165:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13165:2012+A1
February 2015 ICS 91.100.60 Supersedes EN 13165:2012English Version
Thermal insulation products for buildings - Factory made rigid polyurethane foam (PU) products - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en mousse rigide de polyuréthane (PU) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Polyurethan-Hartschaum (PU) - SpezifikationThis European Standard was approved by CEN on 6 October 2012 and includes Amendment 1 approved by CEN on 15 December 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13165:2012+A1:2015 ESIST EN 13165:2013+A1:2015

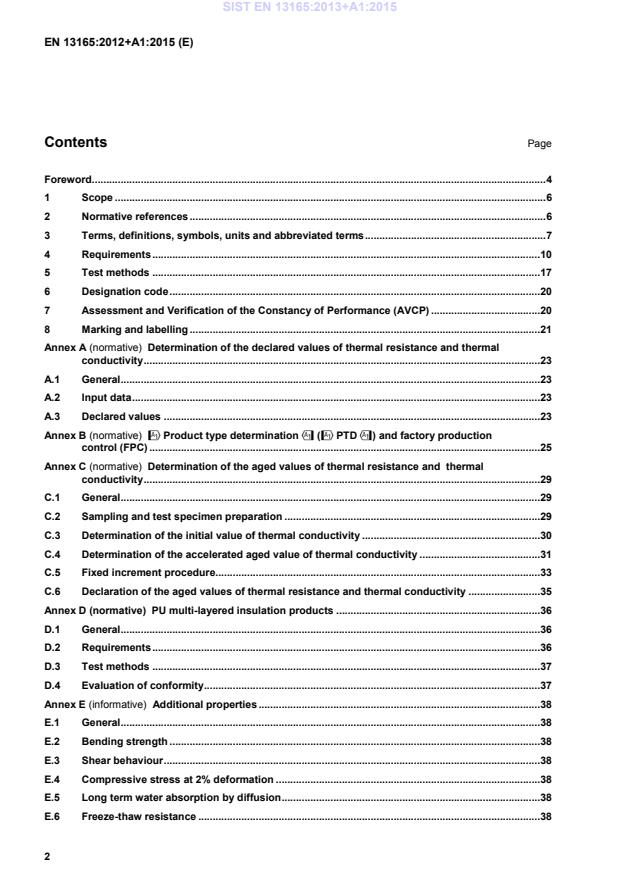

2 Contents
Page Foreword . 4 1 Scope . 6 2 Normative references . 6 3 Terms, definitions, symbols, units and abbreviated terms . 7 4 Requirements . 10 5 Test methods . 17 6 Designation code . 20 7 Assessment and Verification of the Constancy of Performance (AVCP) . 20 8 Marking and labelling . 21 Annex A (normative)
Determination of the declared values of thermal resistance and thermal conductivity . 23 A.1 General . 23 A.2 Input data . 23 A.3 Declared values . 23 Annex B (normative)
!Product type determination" (!PTD") and factory production control (FPC) . 25 Annex C (normative)
Determination of the aged values of thermal resistance and
thermal conductivity . 29 C.1 General . 29 C.2 Sampling and test specimen preparation . 29 C.3 Determination of the initial value of thermal conductivity . 30 C.4 Determination of the accelerated aged value of thermal conductivity . 31 C.5 Fixed increment procedure . 33 C.6 Declaration of the aged values of thermal resistance and thermal conductivity . 35 Annex D (normative)
PU multi-layered insulation products . 36 D.1 General . 36 D.2 Requirements . 36 D.3 Test methods . 37 D.4 Evaluation of conformity . 37 Annex E (informative)
Additional properties . 38 E.1 General . 38 E.2 Bending strength . 38 E.3 Shear behaviour . 38 E.4 Compressive stress at 2% deformation . 38 E.5 Long term water absorption by diffusion . 38 E.6 Freeze-thaw resistance . 38 SIST EN 13165:2013+A1:2015

3 E.7 Apparent density . 39 Annex ZA (informative)
!Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 40 ZA.1 Scope and relevant characteristics . 40 ZA.2 Procedures for AVCP of factory made rigid polyurethane foam products . 42 ZA.3 CE Marking and labelling . 48 Bibliography . 50
Tables Table 1 — Tolerances on length and width . 11 Table 2 — Classes for thickness tolerances . 12 Table 3 — Deviation from flatness . 12 Table 4 — Test conditions for dimensional stability under specified temperature and humidity conditions . 13 Table 5 — Levels for dimensional stability for test conditions 1, 2, 3 . 13 Table 6 — Levels for dimensional stability for test condition 4 . 14 Table 7 — Levels for deformation under specified compressive load and temperature conditions . 14 Table 8 — Levels for compressive stress or compressive strength . 15 Table 9 — Levels for tensile strength perpendicular to faces . 15 Table 10 — Levels for one sided wetting behaviour . 16 Table 11 — Test methods, test specimens and conditions . 19 Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 24 Table B.1 — Minimum number of tests for !PTD" and minimum product testing frequencies . 25 Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics. 27 Table C.1 — Safety increments to be added to the measured accelerated aged value of thermal conductivity . 32 Table C.2 — Increments for calculating the aged value of thermal conductivity . 34 Table E.1 — Test methods, test specimens, conditions and minimum testing frequencies. 39 Table ZA.1 — Relevant clauses for factory made rigid polyurethane foam and intended use . 41 Table ZA.2 — Systems of AVCP. 42 Table ZA.3.1 — Assignment of AVCP tasks for factory made rigid polyurethane foam products under system 1 for reaction to fire and system 3 (see Table ZA.2) . 43 Table ZA.3.2 — Assignment of AVCP tasks for factory made rigid polyurethane foam products under system 3 (see Table ZA.2). 44 Table ZA.3.3 — Assignment of AVCP tasks for factory made rigid polyurethane foam products under combined system 4 for reaction to fire and system 3 (see Table ZA.2) . 44
Figures Figure C.1 — Flow chart of the alternative ageing procedures . 30 Figure ZA.1 — Example CE marking information of products under AVCP system 1 and system 3 . 49
4 Foreword This document (EN 13165:2012+A1:2015) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2015, and conflicting national standards shall be withdrawn at the latest by November 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes !EN 13165:2012". This document includes Amendment 1 approved by CEN on 2014-12-15. The start and finish of text introduced or altered by amendment is indicated in the text by tags !". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). !For relationship with EU Construction Products Regulation (CPR), see informative Annex ZA, which is an integral part of this standard." Compared with EN 13165:2008, the main changes are: a) better harmonisation between the different standards of the package (EN 13162 to EN 13171) on definitions, requirements, classes and levels; b) new normative annex on multi-layered products; c) changes on some editorial and technical content and addition of information on some specific items for PU products such as: PU product term, dimensional stability, point load (cancelled), water absorption, water vapour transmission; d) addition of links to EN 15715, Thermal insulation products – Instructions for mounting and fixing for reaction to fire testing – Factory made products; e) changes to the Annex ZA. !Amendment 1 modifies EN 13165:2012 identifying those clauses of the standard which are needed for the compliance of the European Standard with the Construction Products Regulation (CPR). This amendment introduces
f) an addition to the foreword; g) an addition in 3.2; h) a new subclause 4.3.11; i) modification of Clause 7; j) modification of Clause 8; k) modification of Annex B; l) a new Annex ZA." SIST EN 13165:2013+A1:2015

5 This standard is one of a series of standards for thermal insulation products used in buildings, but this standard may be used in other areas where appropriate. In pursuance of Resolution BT 20/1993 Revised, CEN/TC 88 has proposed defining the standards listed below as a package of documents. The package of standards comprises the following group of interrelated standards for the specifications of factory made thermal insulation products, all of which come within the scope of CEN/TC 88: EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products — Specification EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS) products — Specification EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS) products — Specification EN 13165, Thermal insulation products for buildings — Factory made rigid polyurethane foam (PU) products — Specification EN 13166, Thermal insulation products for buildings — Factory made phenolic foam (PF) products — Specification EN 13167, Thermal insulation products for buildings — Factory made cellular glass (CG) products — Specification EN 13168, Thermal insulation products for buildings — Factory made wood wool (WW) products — Specification EN 13169, Thermal insulation products for buildings — Factory made expanded perlite board (EPB) products — Specification EN 13170, Thermal insulation products for buildings — Factory made products of expanded cork (ICB) — Specification EN 13171, Thermal insulation products for buildings — Factory made wood fibre (WF) products — Specification The reduction in energy used and emissions produced during the installed life of insulation products exceeds by far the energy used and emissions made during the production and disposal processes. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13165:2013+A1:2015

6 1 Scope This European Standard specifies the requirements for factory made rigid polyurethane foam (PU) products, with or without facings or coatings, which are used for the thermal insulation of buildings. PU includes both PIR and PUR products. The products are manufactured in the form of boards. !This European Standard includes PU multi-layered insulation products, see Annex D." Products covered by this standard are also used in prefabricated thermal insulation systems and !composite insulation products"; the performance of systems incorporating these products is not covered. This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling. This standard does not specify the required level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal resistance lower than 0,25 m2„K/W or a declared thermal conductivity greater than 0,060 W/(m„K) at 10 °C are not covered by this European Standard. This standard does not cover in situ insulation products and products intended to be used for the insulation of building equipment and industrial installations (covered by EN 14308). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086:1997, Thermal insulating products for building applications — Determination of water vapour transmission properties SIST EN 13165:2013+A1:2015

7 EN 12087, Thermal insulating products for building applications — Determination of long term water absorption by immersion EN 12667:2001, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Products of high and medium thermal resistance EN 12939, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Thick products of high and medium thermal resistance EN 13172:2012, Thermal insulating products — Evaluation of conformity EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using data from reaction to fire tests EN 13820, Thermal insulating materials for building applications — Determination of organic content EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the thermal attack by a single burning item EN 15715:2009, Thermal insulation products — Instructions for mounting and fixing for reaction to fire testing - Factory made products EN ISO 354, Acoustics — Measurement of sound absorption in a reverberation room (ISO 354) EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182) EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific value) (ISO 1716) EN ISO 4590, Rigid cellular plastics — Determination of the volume percentage of open cells and closed cells(ISO 4590) EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007) EN ISO 11654, Acoustics — Sound absorbers for use in buildings — Rating of sound absorption (ISO 11654) EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO 11925-2) ISO 16269-6:2005, Statistical interpretation of data — Part 6: Determination of statistical tolerance intervals 3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 apply with exception or in addition of the following: 3.1.1 rigid polyurethane foam (PU) family of rigid cellular thermoset polymeric insulation products with a substantially closed cell structure including both polymer types based on PIR and PUR SIST EN 13165:2013+A1:2015

8 3.1.1.1 PIR rigid cellular thermoset polymeric insulation product with a substantially closed cell structure based on polymers mainly of polyisocyanurate groups 3.1.1.2 PUR rigid cellular thermoset polymeric insulation product with a substantially closed cell structure based on polymers mainly of polyurethane groups Note 1 to entry: Regarding the properties described in this standard, PIR and PUR types are not distinguished between. 3.1.2 level value which is the upper or lower limit of a requirement and given by the declared value of the characteristic concerned 3.1.3 class combination of two levels of the same property between which the performance shall fall 3.1.4 board; slab rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry: Boards are usually thinner than slabs. They may also be supplied in tapered form. 3.1.5 facing functional or decorative surface layer with a thickness of less than 3mm, e.g. paper, plastic film, fabric or metal foil, which are not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.6 coating functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting, spraying, pouring or trowelling, which is not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.7 composite insulation product product which can be faced or coated made from two or more layers bonded together by chemical or physical adhesion consisting of at least one factory made thermal insulation material layer 3.1.8 multi-layered insulation product product which can be faced or coated made from two or more layers of a thermal insulation material from the same European Standard, which are bonded together by chemical or physical adhesion 3.2 Symbols, units and abbreviated terms For the purposes of this document, the following symbols and units apply. .p is the practical sound absorption coefficient – .w is the weighted sound absorption coefficient – b is the width mm d is the thickness mm SIST EN 13165:2013+A1:2015

9 dN is the nominal thickness of the product mm dS is the thickness of the test specimen mm û0b is the relative change in width % û0d is the relative change in thickness % û0l is the relative change in length % Xct is the compressive creep % 0t is the total thickness reduction % k is a factor related to the number of test results – ka is a factor related to the number of aged test results – ki is a factor related to the number of initial test results – l is the length mm 90/90 is the 90 % fractile with a confidence level of 90 % for the thermal conductivity W/(m„K) D is the declared thermal conductivity W/(m„K) i is one test result of thermal conductivity W/(m„K) mean is the mean thermal conductivity W/(m„K) mean,a is the mean thermal conductivity of aged values W/(m„K) mean,i is the mean thermal conductivity of initial values W/(m„K) U is the design thermal conductivity W/(m„K) ûa is the ageing increment from measured aged values of thermal conductivity W/(m„K) ûf is the fixed ageing increment W/(m„K)
is the water vapour diffusion resistance factor – n is the number of test results – R90/90 is the 90 % fractile with a confidence level of 90 % for the thermal resistance m2„K/W RD is the declared thermal resistance m2„K/W Ri is one test result of thermal resistance m2„K/W Rmean is the mean thermal resistance m2„K/W RU is the design thermal resistance m2„K/W Sb is the deviation from squareness on length and width mm/m Smax is the deviation from flatness mm sR is the estimate of the standard deviation of the thermal resistance m2„K/W s is the estimate of the standard deviation of the thermal conductivity W/(m„K) s is the estimate of the standard deviation of the aged values of the thermal conductivity W/(m„K) s is the estimate of the standard deviation of the initial values of the thermal conductivity W/(m„K) 1c is the declared compressive stress kPa 110 is the compressive stress at 10 % deformation kPa 1m is the compressive strength kPa 1mt is the tensile strength perpendicular to faces kPa Wlt is the long term water uptake by total immersion % Vol. SIST EN 13165:2013+A1:2015

10 Wsp Wlp is the short term water uptake by partial immersion is the long term water uptake by partial immersion kg/m2 kg/m2 Z is the water vapour resistance m2„h„Pa/mg
AP is the symbol of the declared value of practical sound absorption coefficient AW is the symbol of the declared value of weighted sound absorption coefficient CC(i1/i2/yc1c is the symbol of the declared level for compressive creep CS(10\Y) is the symbol of the declared level for compressive stress or strength DLT(i)5 DS(23,90)or DS(70,90) is the symbol of the declared level for deformation under load and temperature at conditions set with a maximum of 5 % deformation is the symbol of the declared level for dimensional stability under specified temperature and humidity DS(70,-)or DS(20,-) is the symbol of the declared level for dimensional stability under specified temperature MU is the symbol of the declared value for the water vapour diffusion resistance factor FW is the symbol of the declared level for change in deviation from flatness after one-sided wetting T is the symbol of the declared class for thickness tolerances TR is the symbol of the declared level for tensile strength perpendicular to faces WL (T) is the symbol of the declared value for long term water absorption by total immersion WS (P) WL (P) is the symbol of the declared value for short term water absorption by partial immersion is the symbol of the declared value for long term water absorption by partial immersion Z is the symbol of the declared value for water vapour resistance
Abbreviated terms used in this standard PU is rigid PolyUrethane foam including PIR and PUR !PTD is Product Type Determination (previously named ITT for Initial Type Test)" FPC is Factory Production Control MLn is Multi-Layered product (n for number of layers) RtF is Reaction to Fire !AVCP is Assessment and Verification of Constancy of Performance (previously named attestation of conformity) DoP is Declaration of Performance ThIB is Thermal Insulation for Buildings VCP is Verification of Constancy of Performance (previously named evaluation of conformity)" 4 Requirements 4.1 General Product properties shall be assessed in accordance with Clause 5. To comply with this standard, products shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate. One test result for a product property is the average of the measured values on the number of test specimens given in Table 11. SIST EN 13165:2013+A1:2015

11 For multi-layered products, additional requirements are given in Annex D. NOTE Information on additional properties is given in Annex E. 4.2 For all applications 4.2.1 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be based upon measurements carried out in accordance with EN 12667 or EN 12939 for thick products. The thermal resistance and thermal conductivity shall be determined in accordance with Annex A and Annex C and declared by the manufacturer according to the following: — the reference mean temperature shall be 10 °C; — the measured values shall be expressed with three significant figures; — for products of uniform thickness, the thermal resistance, RD, shall always be declared. The thermal conductivity, D, shall be declared where possible. Where appropriate, for products of non-uniform thickness (e.g. for sloped and tapered products) only the thermal conductivity, D, shall be declared; — the declared thermal resistance, RD, and the declared thermal conductivity, D, shall be given as limit values representing at least 90 % of the production, determined with a confidence level of 90 %; — the statistical value of thermal conductivity, 90/90, shall be rounded upwards to the nearest 0,001 W/(m„K) and declared as D in levels with steps of 0,001 W/(m„K); — the declared thermal resistance, RD, shall be calculated from the nominal thickness, dN, and the corresponding thermal conductivity 90/90, unless measured directly; — the statistical value of thermal resistance, R90/90, when calculated from the nominal thickness, dN, and the corresponding thermal conductivity, 90/90, shall be rounded downwards to the nearest 0,05 m2„K/W, and declared as RD in levels with steps of 0,05 m2„K/W; — the statistical value of thermal resistance R90/90, for those products for which only the thermal resistance is measured directly, shall be rounded downwards to the nearest 0,05 m2„K/W and declared as RD in levels with steps of 0,05 m2„K/W. NOTE U and RU (design values) may be determined with reference to EN ISO 10456. 4.2.2 Length and width Length, l, and width, b, shall be determined in accordance with EN 822. No test result shall deviate from the nominal values by more than the tolerances given in Table 1. Table 1 — Tolerances on length and width Dimensions mm Tolerances mm < 1 000 ± 5 1 000 to 2 000 ± 7,5 2 001 to 4 000 ± 10 > 4 000 ± 15 SIST EN 13165:2013+A1:2015

12 4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823. No test result shall deviate from the nominal thickness, dN, by more than the tolerances given in Table 2 for the declared class. Table 2 — Classes for thickness tolerances Class Nominal thickness mm < 50 50 to 75 > 75 Tolerance mm T1 ± 3 ± 4 + 6, – 4 T2 ± 2 ± 3 + 5, – 3 T3 ± 1,5 ± 1,5 ± 1,5 4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 5 mm/m. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, shall not exceed the values given in Table 3. Table 3 — Deviation from flatness Full-size product Deviation from flatness Length m Area m2 mm ≤ 2,50 ≤ 0,75 ≤ 5 > 0,75 ≤ 10 A specimen of maximum 2,50 m length shall be cut from longer products. 4.2.6 Reaction to fire of the product as placed on the market Reaction to fire classification of the product as placed on the market shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715. NOTE This classification is compulsory and always included in the CE Marking label. Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer’s literature. 4.2.7 Durability characteristics 4.2.7.1 General The appropriate durability characteristics have been considered and are covered in 4.2.7.2, 4.2.7.3 and where appropriate in 4.3.6 on compressive creep. SIST EN 13165:2013+A1:2015

13 4.2.7.2 Durability of reaction to fire of the product as placed on the market against ageing/degradation The reaction to fire performance of PU products as declared by 4.2.6 does not change with time. 4.2.7.3 Durability of thermal resistance and thermal conductivity against ageing/degradation Any change in thermal conductivity of the PU product with time is covered and considered for declaration by 4.2.1 together with Annex C for thermal conductivity and any change in thickness is covered by at least one of the dimensional stability tests in 4.3.2 as relevant, or the deformation test in 4.3.3. 4.3 For specific applications 4.3.1 General If there is no requirement for a property described in 4.3 for a product in use, then the property does not need to be determined and declared by the manufacturer. 4.3.2 Dimensional stability Dimensional stability under specified temperature or under specified temperature and humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out for the conditions given in Table 4. qhe relative changes in length, û0l, width, û0b and thickness, û0d , shall not exceed the values given in Tables 5 and 6 for the declared level. Table 4 — Test conditions for dimensional stability under specified temperature and humidity conditions No. Designation Test condition Test method 1 DS (70,-) 48 h, 70 ºC EN 1604 2 DS (23,90) 48 h, 23 ºC, 90 % R.H. EN 1604 3 DS (70,90) 48 h, 70 ºC, 90 % R.H. EN 1604 4 DS (-20,-) 48 h, -20 ºC EN 1604 The test DS(70,-) and DS (23,90) need not be performed when the test DS(70,90) is used. Table 5 — Levels for dimensional stability for test conditions 1, 2, 3 Test conditions Relative changes Level DS(TH)
1 2 3 4 No.1, 2, 3 û0l, û0b % ≤5 ≤3 ≤2 ≤1
û0d % ≤10 ≤8 ≤6 ≤4 SIST EN 13165:2013+A1:2015

14 Table 6 — Levels for dimensional stability for test condition 4 Test condition Relative changes Level DS (-20,-)
1 2
No. 4 û0l, û0b % ≤1 ≤0,5
û0d % ≤2 ≤2 4.3.3 Deformation under specified compressive load and temperature conditions Deformation under specified compressive load and temperature conditions shall be determined in accordance with EN 1605. qhe relative change in thickness, û0d, shall not exceed the values, given in Table 7, for the declared level. Table 7 — Levels for deformation under specified compressive load and temperature conditions Level Test conditions Requirement % DLT(1)5 load: 20 kPa ≤ 5 temperature: (80 ± 1) °C time: (48 ± 1) h DLT(2)5 load: 40 kPa temperature: (70 ± 1) °C time: (168 ± 1) h DLT(3)5 load: 80 kPa temperature: (60 ± 1) °C time: (168 ± 1) h 4.3.4 Compressive stress or compressive strength Compressive stress at 10 % deformation, 110, or the compressive strength, 1m, shall be determined in accordance with EN 826. No test result for either the compressive stress at 10 % deformation or the compressive strength, whichever is the smaller, shall be less than the value, given in Table 8, for the declared level. SIST EN 13165:2013+A1:2015

15 ! Table 8 — Levels for compressive stress or compressive strength Level Requirement kPa CS(10\Y)25
≥ 25 CS(10\Y)50
≥ 50 CS(10\Y)100 ≥ 100 CS(10\Y)120 ≥ 120 CS(10\Y)130 ≥ 130 CS(10\Y)140 ≥ 140 CS(10\Y)150 ≥ 150 CS(10\Y)175 ≥ 1q5 CS(10\Y)200 ≥ 200 CS(10\Y)225 ≥ 225 CS(10\Y)250 ≥ 250 Values higher than 250 kPa can be declared in steps of 50 kPa. " 4.3.5 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, 1mt, shall be determined in accordance with EN 1607. No test result shall be less than the value, given in Table 9, for the declared level. Table 9 — Levels for tensile strength perpendicular to faces Level Requirement kPa TR40 ≥ 40 TR50 ≥ 50 TR60 ≥ 60 TR70 ≥ q0 TR80 ≥ 80 TR90 ≥ 90 TR100 ≥ 100 TR150 ≥ 150 4.3.6 Compressive creep Compressive creep, Xct, and total thickness reduction, 0t, shall be determined after at least one hundred twenty two days of testing at a declared compressive stress, 1c, given in steps of at least 1 kPa, and the results extrapolated thirty times, corresponding to ten years, to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels i1, with steps of 0,5 %, at the declared stress. No test result shall exceed the declared levels at the declared stress. SIST EN 13165:2013+A1:2015

16 NOTE 1 Referring to the designation code CC(i1/i2/y)1c, according to Clause 6, a declared level CC(3/2/25)40, for example, indicates a value not exceeding 2 % for compressive creep and 3 % for total thickness reduction after extrapolation at 25 years (i.e. 30 times three hundred and four days of testing) under a declared stress of 40 kPa. NOTE 2 Testing times. According to EN 1606, the procedure at 10, 25 and 50 years respectively requires the following testing times: Extrapolation time years Minimum testing time days 10 122 25 304 50 608 4.3.7 Water absorption 4.3.7.1 Short term water absorption Short term water absorption by partial immersion, Wsp, shall be determined in accordance with EN 1609. No test result shall exceed the declared value. 4.3.7.2 Long term water absorption Long term water absorption by partial immersion, Wlp, and/or by total immersion, Wlt, shall be determined in accordance with EN 12087. No test result shall exceed the declared value. 4.3.8 Flatness after one-sided wetting Change in deviation from flatness after one-sided wetting shall be determined from measurements of flatness made in accordance with EN 825 before and after conditioning the specimen in accordance with 5.3.3. Both sides of the specimen shall be tested. The change in deviation from flatness for each side shall not exceed the value, given in Table 10, for the declared level. Table 10 — Levels for one sided wetting behaviour Level Change in deviation from flatness mm FW1 ≤ 20 FW2 ≤ 10 4.3.9 Water vapour transmission Water vapour transmission properties of the product including facings or coatings shall be determined in accordance with EN 12086 and declared as the water vapour diffusion resistance factor, , for homogeneous products and as the water vapour resistance, Z, for faced or non-homogeneous products. All test results of
and/or all test results of Z shall be within the range declared by the manufacturer. Alternatively, for the declaration of the water vapour diffusion resistance factor,
of PU products, the value quoted in EN ISO 10456 may be used. 4.3.10 Sound absorption Sound absorption coefficient shall be determined in accordance with EN ISO 354. The sound absorption characteristics shall be calculated in accordance with EN ISO 11654 using the values for the practical sound absorption coefficient, .p, at the frequencies: 125 Hz, 250 Hz, 500 Hz, 1 000 Hz, 2 000 Hz and 4 000 Hz and the single number value for the weighted sound absorption coefficient, .w. SIST EN 13165:2013+A1:2015

17 .p and .w shall be rounded to the nearest 0,05 (.p larger than 1 shall be expressed as .p = 1) and declared in levels with steps of 0,05. No result of .p and .w shall be lower than the declared level. 4.3.11 Release of dangerous substances !National regulations on dangerous substances may require verification and declaration on release, and sometimes content, when construction products covered by this standard are placed on those markets. In the absence of European harmonized test methods, verification and declaration on release/content should be done taking into account national provisions in the place of use. NOTE An informative database covering European and national provisions on dangerous substances is available at the Construction web site on EUROPA accessed through: http://ec.europa.eu/enterprise/construction/cpd-ds/." 4.3.12 Reaction to fire of the product in standardized assemblies simulating end-use applications Reaction to fire classification of products in standardized assemblies simulating end-use applications excluding pipe insulation, shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715. This classification offers the opportunity to give a complementary and optional declaration on reaction to fire for standard test configurations of assemblies, which include the insulation product. The number of the selected test configuration of assembly (Table 5 of EN 15715:2009), which is used in the test, shall be quoted with the Euroclass. Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer’s literature. 4.3.13 Continuous glowing combustion NOTE A test method is under development and the standard will be amended when this is available. 5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area not less than 1 m2 and sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product, whichever is the smaller. 5.2 Conditioning Conditioning of the test specimens shall be at least 6 h at (23 ± 5) °C unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for 7 days prior to testing. For FPC no special conditioning of the test specimens is needed. 5.3 Testing 5.3.1 General Table 11 gives the dimensions of the test specimens, the minimum number of measurements required to get one test result and any specific conditions, which are necessary. The test may be performed on the unfaced/uncoated product, if the facing/coating is known to have no relevance to the test result. SIST EN 13165:2013+A1:2015

18 5.3.2 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be determined in accordance with EN 12667 or EN 12939 for thick products and under the following conditions: — at a mean temperature of (10 ± 0,3) °C; — after conditioning in accordance with 5.2; — taking into account the effect of ageing according to Annex C. Thermal resistance and thermal conductivity may also be measured at mean temperatures other than 10 °C, providing that the accuracy of the relationship between temperature and thermal properties is well documented. Thermal resistance and thermal conductivity shall be determined directly at measured thickness. In the event that this is not possible, they shall be determined by measurements on other thicknesses of the product providing that: — the product is of similar chemical and physical characteristics and is produced on the same production unit, — and it can be demonstrated in accordance with EN 12939 that the thermal conductivity does not vary more than 2 % over the range of thicknesses where the calculation is applied. When measured thickness is used for testing of thermal resistance and thermal conductivity, the test thickness should be the smallest of the measured points on the test specimen (and not the mean) as far as possible to avo
...
