EN 13165:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz trde poliuretanske pene (PUR) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Polyurethan-Hartschaum (PU) – SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en mousse rigide de polyuréthane (PU) - SpécificationThermal insulation products for buildings - Factory made rigid polyurethane foam (PU) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13165:2012SIST EN 13165:2013en,fr,de01-marec-2013SIST EN 13165:2013SLOVENSKI
STANDARDSIST EN 13165:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13165
November 2012 ICS 91.100.60 Supersedes EN 13165:2008English Version
Thermal insulation products for buildings - Factory made rigid polyurethane foam (PU) products - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en mousse rigide de polyuréthane (PU) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Polyurethan-Hartschaum (PU) - SpezifikationThis European Standard was approved by CEN on 6 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13165:2012: ESIST EN 13165:2013

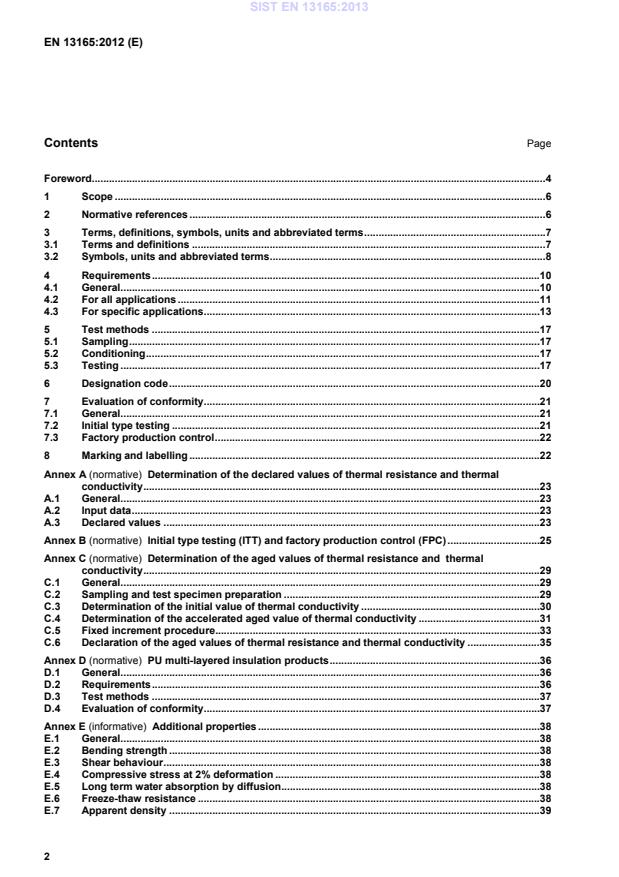

2Contents
Page Foreword . 41Scope . 62Normative references . 63Terms, definitions, symbols, units and abbreviated terms . 73.1Terms and definitions . 73.2Symbols, units and abbreviated terms . 84Requirements . 104.1General . 104.2For all applications . 114.3For specific applications . 135Test methods . 175.1Sampling . 175.2Conditioning . 175.3Testing . 176Designation code . 207Evaluation of conformity . 217.1General . 217.2Initial type testing . 217.3Factory production control . 228Marking and labelling . 22Annex A (normative)
Determination of the declared values of thermal resistance and thermal conductivity . 23A.1General . 23A.2Input data . 23A.3Declared values . 23Annex B (normative)
Initial type testing (ITT) and factory production control (FPC) . 25Annex C (normative)
Determination of the aged values of thermal resistance and
thermal conductivity . 29C.1General . 29C.2Sampling and test specimen preparation . 29C.3Determination of the initial value of thermal conductivity . 30C.4Determination of the accelerated aged value of thermal conductivity . 31C.5Fixed increment procedure . 33C.6Declaration of the aged values of thermal resistance and thermal conductivity . 35Annex D (normative)
PU multi-layered insulation products . 36D.1General . 36D.2Requirements . 36D.3Test methods . 37D.4Evaluation of conformity . 37Annex E (informative)
Additional properties . 38E.1General . 38E.2Bending strength . 38E.3Shear behaviour . 38E.4Compressive stress at 2% deformation . 38E.5Long term water absorption by diffusion . 38E.6Freeze-thaw resistance . 38E.7Apparent density . 39SIST EN 13165:2013

3Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 40ZA.1Scope and relevant characteristics . 40ZA.2Procedures for attestation of conformity of factory made rigid polyurethane foam products . 42ZA.3CE Marking and labelling . 46Bibliography . 48 Tables Table 1 — Tolerances on length and width . 11Table 2 — Classes for thickness tolerances . 12Table 3 — Deviation from flatness . 12Table 4 — Test conditions for dimensional stability under specified temperature and humidity conditions . 13Table 5 — Levels for dimensional stability for test conditions 1, 2, 3 . 13Table 6 — Levels for dimensional stability for test condition 4 . 14Table 7 — Levels for deformation under specified compressive load and temperature conditions . 14Table 8 — Levels for compressive stress or compressive strength . 15Table 9 — Levels for tensile strength perpendicular to faces . 15Table 10 — Levels for one sided wetting behaviour . 16Table 11 — Test methods, test specimens and conditions . 19Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 24Table B.1 — Minimum number of tests for ITT and minimum product testing frequencies . 25Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 27Table C.1 — Safety increments to be added to the measured accelerated aged value of thermal conductivity . 32Table C.2 — Increments for calculating the aged value of thermal conductivity . 34Table E.1 — Test methods, test specimens, conditions and minimum testing frequencies . 39Table ZA.1 — Relevant clauses for factory made rigid Polyurethane foam products and intended use . 41Table ZA.2 — Systems of attestation of conformity . 42Table ZA.3.1 — Assignment of evaluation of conformity tasks for products under system 1 for reaction to fire and system 3 for other characteristics . 43Table ZA.3.2 — Assignment of evaluation of conformity tasks for products under system 3 or system 3 combined with system 4 for reaction to fire . 44 Figures Figure C.1 — Flow chart of the alternative ageing procedures . 30Figure ZA.1 — Example CE marking information . 47
4Foreword This document (EN 13165:2012) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2013, and conflicting national standards shall be withdrawn at the latest by May 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13165:2008. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Compared with EN 13165:2008, the main changes are: a) better harmonisation between the different standards of the package (EN 13162 to EN 13171) on definitions, requirements, classes and levels; b) new normative annex on multi-layered products; c) changes on some editorial and technical content and addition of information on some specific items for PU products such as: PU product term, dimensional stability, point load (cancelled), water absorption, water vapour transmission; d) addition of links to EN 15715, Thermal insulation products – Instructions for mounting and fixing for reaction to fire testing – Factory made products; e) changes to the Annex ZA. This standard is one of a series of standards for thermal insulation products used in buildings, but this standard may be used in other areas where appropriate. In pursuance of Resolution BT 20/1993 Revised, CEN/TC 88 has proposed defining the standards listed below as a package of documents. The package of standards comprises the following group of interrelated standards for the specifications of factory made thermal insulation products, all of which come within the scope of CEN/TC 88: EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products — Specification EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS) products — Specification EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS) products — Specification EN 13165, Thermal insulation products for buildings — Factory made rigid polyurethane foam (PU) products — Specification SIST EN 13165:2013

5EN 13166, Thermal insulation products for buildings — Factory made phenolic foam (PF) products — Specification EN 13167, Thermal insulation products for buildings — Factory made cellular glass (CG) products — Specification EN 13168, Thermal insulation products for buildings — Factory made wood wool (WW) products — Specification EN 13169, Thermal insulation products for buildings — Factory made expanded perlite board (EPB) products — Specification EN 13170, Thermal insulation products for buildings — Factory made products of expanded cork (ICB) — Specification EN 13171, Thermal insulation products for buildings — Factory made wood fibre (WF) products — Specification The reduction in energy used and emissions produced during the installed life of insulation products exceeds by far the energy used and emissions made during the production and disposal processes.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13165:2013

61 Scope This European Standard specifies the requirements for factory made rigid polyurethane foam (PU) products, with or without facings or coatings, which are used for the thermal insulation of buildings. PU includes both PIR and PUR products. The products are manufactured in the form of boards.
Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered. This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling. This standard does not specify the required level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal resistance lower than 0,25 m2⋅K/W or a declared thermal conductivity greater than 0,060 W/(m⋅K) at 10 °C are not covered by this European Standard. This standard does not cover in situ insulation products and products intended to be used for the insulation of building equipment and industrial installations (covered by EN 14308).
2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086:1997, Thermal insulating products for building applications — Determination of water vapour transmission properties EN 12087, Thermal insulating products for building applications — Determination of long term water absorption by immersion SIST EN 13165:2013

7EN 12667:2001, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Products of high and medium thermal resistance EN 12939, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Thick products of high and medium thermal resistance EN 13172:2012, Thermal insulating products — Evaluation of conformity EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using data from reaction to fire tests EN 13820, Thermal insulating materials for building applications — Determination of organic content
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the thermal attack by a single burning item EN 15715:2009, Thermal insulation products — Instructions for mounting and fixing for reaction to fire testing — Factory made products EN ISO 354, Acoustics — Measurement of sound absorption in a reverberation room (ISO 354) EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182) EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific value) (ISO 1716) EN ISO 4590, Rigid cellular plastics — Determination of the volume percentage of open cells and closed cells (ISO 4590) EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007) EN ISO 11654, Acoustics — Sound absorbers for use in buildings — Rating of sound absorption (ISO 11654) EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame – Part 2: Single-flame source test (ISO 11925-2) ISO 16269-6:2005, Statistical interpretation of data — Part 6: Determination of statistical tolerance intervals 3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 apply with exception or in addition of the following: 3.1.1 rigid polyurethane foam (PU) family of rigid cellular thermoset polymeric insulation products with a substantially closed cell structure including both polymer types based on PIR and PUR 3.1.1.1 PIR rigid cellular thermoset polymeric insulation product with a substantially closed cell structure based on polymers mainly of polyisocyanurate groups SIST EN 13165:2013

83.1.1.2 PUR rigid cellular thermoset polymeric insulation product with a substantially closed cell structure based on polymers mainly of polyurethane groups Note 1 to entry: Regarding the properties described in this standard, PIR and PUR types are not distinguished between. 3.1.2 level value which is the upper or lower limit of a requirement and given by the declared value of the characteristic concerned 3.1.3 class combination of two levels of the same property between which the performance shall fall 3.1.4 board; slab rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry: Boards are usually thinner than slabs. They may also be supplied in tapered form. 3.1.5 facing functional or decorative surface layer with a thickness of less than 3mm, e.g. paper, plastic film, fabric or metal foil, which are not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.6
coating functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting, spraying, pouring or trowelling, which is not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.7 composite insulation product product which can be faced or coated made from two or more layers bonded together by chemical or physical adhesion consisting of at least one factory made thermal insulation material layer 3.1.8 multi-layered insulation product product which can be faced or coated made from two or more layers of a thermal insulation material from the same European Standard, which are bonded together by chemical or physical adhesion
3.2 Symbols, units and abbreviated terms For the purposes of this document, the following symbols and units apply. αp is the practical sound absorption coefficient
– αw is the weighted sound absorption coefficient – b is the width mm d is the thickness mm dN is the nominal thickness of the product mm dS is the thickness of the test specimen mm ∆εb is the relative change in width % SIST EN 13165:2013

9∆εd is the relative change in thickness % ∆εl is the relative change in length % Xct is the compressive creep % εt is the total thickness reduction % k is a factor related to the number of test results – ka is a factor related to the number of aged test results – ki is a factor related to the number of initial test results – l is the length mm λ90/90 is the 90 % fractile with a confidence level of 90 % for the thermal conductivity W/(m⋅K) λD is the declared thermal conductivity W/(m⋅K) λi is one test result of thermal conductivity W/(m⋅K) λmean is the mean thermal conductivity W/(m⋅K) λmean,a is the mean thermal conductivity of aged values W/(m⋅K) λmean,i is the mean thermal conductivity of initial values W/(m⋅K) λU is the design thermal conductivity W/(m⋅K) ∆λa is the ageing increment from measured aged values of thermal conductivity W/(m⋅K) ∆λf is the fixed ageing increment W/(m⋅K) µ is the water vapour diffusion resistance factor – n is the number of test results – R90/90 is the 90 % fractile with a confidence level of 90 % for the thermal resistance m2⋅K/W RD is the declared thermal resistance m2⋅K/W Ri is one test result of thermal resistance m2⋅K/W Rmean is the mean thermal resistance m2⋅K/W RU is the design thermal resistance m2⋅K/W Sb is the deviation from squareness on length and width mm/m Smax is the deviation from flatness mm sR is the estimate of the standard deviation of the thermal resistance m2⋅K/W sλ is the estimate of the standard deviation of the thermal conductivity W/(m⋅K) sλ,a is the estimate of the standard deviation of the aged values of the thermal conductivity W/(m⋅K) sλi is the estimate of the standard deviation of the initial values of the thermal conductivity W/(m⋅K) σc is the declared compressive stress kPa σ10 is the compressive stress at 10 % deformation kPa σm is the compressive strength kPa σmt is the tensile strength perpendicular to faces kPa Wlt is the long term water uptake by total immersion % Vol. Wsp Wlp is the short term water uptake by partial immersion is the long term water uptake by partial immersion kg/m2kg/m2 Z is the water vapour resistance m2⋅h⋅Pa/mg SIST EN 13165:2013

10 AP is the symbol of the declared value of practical sound absorption coefficient AW is the symbol of the declared value of weighted sound absorption coefficient CC(i1/i2/y)σc is the symbol of the declared level for compressive creep CS(10\Y) is the symbol of the declared level for compressive stress or strength DLT(i)5
DS(23,90)or DS(70,90) is the symbol of the declared level for deformation under load and temperature at conditions set with a maximum of 5 % deformation is the symbol of the declared level for dimensional stability under specified temperature and humidity DS(70,-)or
DS(20,-) is the symbol of the declared level for dimensional stability under specified temperature MU is the symbol of the declared value for the water vapour diffusion resistance factor FW is the symbol of the declared level for change in deviation from flatness after one-sided wetting T is the symbol of the declared class for thickness tolerances TR is the symbol of the declared level for tensile strength perpendicular to faces WL (T) is the symbol of the declared value for long term water absorption by total immersion WS (P) WL (P) is the symbol of the declared value for short term water absorption by partial immersion is the symbol of the declared value for long term water absorption by partial immersion Z is the symbol of the declared value for water vapour resistance Abbreviated terms used in this standard PU is rigid PolyUrethane foam including PIR and PUR ITT is Initial Type Test FPC is Factory Production Control MLn is Multi-Layered product (n for number of layers) RtF is Reaction to Fire 4 Requirements 4.1 General Product properties shall be assessed in accordance with Clause 5. To comply with this standard, products shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate. One test result for a product property is the average of the measured values on the number of test specimens given in Table 11. For multi-layered products, additional requirements are given in Annex D. NOTE Information on additional properties is given in Annex E. SIST EN 13165:2013

114.2 For all applications 4.2.1 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be based upon measurements carried out in accordance with EN 12667 or EN 12939 for thick products. The thermal resistance and thermal conductivity shall be determined in accordance with Annex A and Annex C and declared by the manufacturer according to the following:  the reference mean temperature shall be 10 °C;  the measured values shall be expressed with three significant figures;  for products of uniform thickness, the thermal resistance, RD, shall always be declared. The thermal conductivity, λD, shall be declared where possible. Where appropriate, for products of non-uniform thickness (e.g. for sloped and tapered products) only the thermal conductivity, λD, shall be declared;  the declared thermal resistance, RD, and the declared thermal conductivity, λD, shall be given as limit values representing at least 90 % of the production, determined with a confidence level of 90 %;  the statistical value of thermal conductivity, λ90/90, shall be rounded upwards to the nearest 0,001 W/(m⋅K) and declared as λD in levels with steps of 0,001 W/(m⋅K);  the declared thermal resistance, RD, shall be calculated from the nominal thickness, dN, and the corresponding thermal conductivity λ90/90, unless measured directly;  the statistical value of thermal resistance, R90/90, when calculated from the nominal thickness, dN, and the corresponding thermal conductivity, λ90/90, shall be rounded downwards to the nearest 0,05 m2⋅K/W, and declared as RD in levels with steps of 0,05 m2⋅K/W;  the statistical value of thermal resistance R90/90, for those products for which only the thermal resistance is measured directly, shall be rounded downwards to the nearest 0,05 m2⋅K/W and declared as RD in levels with steps of 0,05 m2⋅K/W. NOTE λU and RU (design values) may be determined with reference to EN ISO 10456. 4.2.2 Length and width Length, l, and width, b, shall be determined in accordance with EN 822. No test result shall deviate from the nominal values by more than the tolerances given in Table 1. Table 1 — Tolerances on length and width Dimensions mm Tolerances mm < 1 000 ± 5 1 000 to 2 000 ± 7,5 2 001 to 4 000 ± 10 > 4 000 ± 15
4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823. No test result shall deviate from the nominal thickness, dN, by more than the tolerances given in Table 2 for the declared class.
12Table 2 — Classes for thickness tolerances Class Nominal thickness mm < 50 50 to 75 > 75 Tolerance mm T1 ± 3 ± 4 + 6, – 4 T2 ± 2 ± 3 + 5, – 3 T3 ± 1,5 ± 1,5 ± 1,5 4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 5 mm/m. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, shall not exceed the values given in Table 3. Table 3 — Deviation from flatness Full-size product Deviation from flatness Length m Area m2
mm ≤ 2,50 ≤ 0,75 ≤ 5 > 0,75 ≤ 10 A specimen of maximum 2,50 m length shall be cut from longer products. 4.2.6 Reaction to fire of the product as placed on the market Reaction to fire classification of the product as placed on the market shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715.
NOTE This classification is compulsory and always included in the CE Marking label.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer’s literature. 4.2.7 Durability characteristics 4.2.7.1 General The appropriate durability characteristics have been considered and are covered in 4.2.7.2, 4.2.7.3 and where appropriate in 4.3.6 on compressive creep. 4.2.7.2 Durability of reaction to fire of the product as placed on the market against ageing/degradation The reaction to fire performance of PU products as declared by 4.2.6 does not change with time. SIST EN 13165:2013

134.2.7.3 Durability of thermal resistance and thermal conductivity against ageing/degradation Any change in thermal conductivity of the PU product with time is covered and considered for declaration by 4.2.1 together with Annex C for thermal conductivity and any change in thickness is covered by at least one of the dimensional stability tests in 4.3.2 as relevant, or the deformation test in 4.3.3. 4.3 For specific applications 4.3.1 General If there is no requirement for a property described in 4.3 for a product in use, then the property does not need to be determined and declared by the manufacturer. 4.3.2 Dimensional stability
Dimensional stability under specified temperature or under specified temperature and humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out for the conditions given in Table 4. The relative changes in length, ∆εl, width, ∆εb and thickness, ∆εd , shall not exceed the values given in Tables 5 and 6 for the declared level. Table 4 — Test conditions for dimensional stability under specified temperature and humidity conditions No. DesignationTest conditionTest method1 DS (70,-)
48 h, 70 ºC EN 1604 2 DS (23,90)
48 h, 23 ºC, 90 % R.H. EN 1604 3 DS (70,90)
48 h, 70 ºC, 90 % R.H. EN 1604 4 DS (-20,-)
48 h, -20 ºC EN 1604 The test DS(70,-) and DS (23,90) need not be performed when the test DS(70,90) is used. Table 5 — Levels for dimensional stability for test conditions 1, 2, 3
Test
conditions Relative changes Level DS(TH)
1 2 3 4
No.1, 2, 3
∆εl, ∆εb
% ≤5 ≤3 ≤2 ≤1
∆εd % ≤10 ≤8 ≤6 ≤4
14Table 6 — Levels for dimensional stability for test condition 4
Test condition Relative changes Level
DS (-20,-)
1 2
No. 4 ∆εl, ∆εb
% ≤1 ≤0,5
∆εd % ≤2 ≤2
4.3.3 Deformation under specified compressive load and temperature conditions Deformation under specified compressive load and temperature conditions shall be determined in accordance with EN 1605. The relative change in thickness, ∆εd, shall not exceed the values, given in Table 7, for the declared level. Table 7 — Levels for deformation under specified compressive load and temperature conditions Level Test conditions Requirement % DLT(1)5 load: 20 kPa ≤ 5 temperature: (80 ± 1) °C time: (48 ± 1) h DLT(2)5 load: 40 kPa temperature: (70 ± 1) °C time: (168 ± 1) h DLT(3)5 load: 80 kPa temperature: (60 ± 1) °C time: (168 ± 1) h 4.3.4 Compressive stress or compressive strength Compressive stress at 10 % deformation, σ10, or the compressive strength, σm, shall be determined in accordance with EN 826. No test result for either the compressive stress at 10 % deformation or the compressive strength, whichever is the smaller, shall be less than the value, given in Table 8, for the declared level. SIST EN 13165:2013

15Table 8 — Levels for compressive stress or compressive strength Level Requirement kPa CS(10\Y)25
≥ 25 CS(10\Y)50
≥ 50 CS(10\Y)100 ≥ 100 CS(10\Y)120 ≥ 120 CS(10\Y)130 ≥ 130 CS(10\Y)140 ≥ 140 CS(10\Y)150 ≥ 150 CS(10\Y)175 ≥ 175 CS(10\Y)200 ≥ 200 CS(10\Y)225 ≥ 225 CS(10\Y)250 ≥ 250 CS(10\Y)350 ≥ 350 CS(10\Y)400 ≥ 400 CS(10\Y)800 ≥ 800
4.3.5 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, σmt, shall be determined in accordance with EN 1607. No test result shall be less than the value, given in Table 9, for the declared level. Table 9 — Levels for tensile strength perpendicular to faces Level Requirement kPa TR40 ≥ 40 TR50 ≥ 50 TR60 ≥ 60 TR70 ≥ 70 TR80 ≥ 80 TR90 ≥ 90 TR100 ≥ 100 TR150 ≥ 150
4.3.6 Compressive creep Compressive creep, Xct, and total thickness reduction, εt, shall be determined after at least one hundred twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa, and the SIST EN 13165:2013

16results extrapolated thirty times, corresponding to ten years, to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels i1, with steps of 0,5 %, at the declared stress. No test result shall exceed the declared levels at the declared stress. NOTE 1 Referring to the designation code CC(i1/i2/y)σc, according to Clause 6, a declared level CC(3/2/25)40, for example, indicates a value not exceeding 2 % for compressive creep and 3 % for total thickness reduction after extrapolation at 25 years (i.e. 30 times three hundred and four days of testing) under a declared stress of 40 kPa. NOTE 2 Testing times. According to EN 1606, the procedure at 10, 25 and 50 years respectively requires the following testing times: Extrapolation timeyears Minimum testing timedays 10 122 25 304 50 608
4.3.7 Water absorption 4.3.7.1 Short term water absorption Short term water absorption by partial immersion, Wsp, shall be determined in accordance with EN 1609. No test result shall exceed the declared value. 4.3.7.2 Long term water absorption Long term water absorption by partial immersion, Wlp, and/or by total immersion, Wlt, shall be determined in accordance with EN 12087. No test result shall exceed the declared value. 4.3.8 Flatness after one-sided wetting Change in deviation from flatness after one-sided wetting shall be determined from measurements of flatness made in accordance with EN 825 before and after conditioning the specimen in accordance with 5.3.3. Both sides of the specimen shall be tested. The change in deviation from flatness for each side shall not exceed the value, given in Table 10, for the declared level. Table 10 — Levels for one sided wetting behaviour Level Change in deviation from flatness mm FW1 ≤ 20 FW2 ≤ 10
4.3.9 Water vapour transmission Water vapour transmission properties of the product including facings or coatings shall be determined in accordance with EN 12086 and declared as the water vapour diffusion resistance factor, µ, for homogeneous products and as the water vapour resistance, Z, for faced or non-homogeneous products. All test results of µ and/or all test results of Z shall be within the range declared by the manufacturer. Alternatively, for the declaration of the water vapour diffusion resistance factor, µ, of PU products, the value quoted in EN ISO 10456 may be used. 4.3.10 Sound absorption Sound absorption coefficient shall be determined in accordance with EN ISO 354. The sound absorption characteristics shall be calculated in accordance with EN ISO 11654 using the values for the practical sound SIST EN 13165:2013

17absorption coefficient, αp, at the frequencies: 125 Hz, 250 Hz, 500 Hz, 1 000 Hz, 2 000 Hz and 4 000 Hz and the single number value for the weighted sound absorption coefficient, αw. αp and αw shall be rounded to the nearest 0,05 (αp larger than 1 shall be expressed as αp = 1) and declared in levels with steps of 0,05. No result of αp and αw shall be lower than the declared level. 4.3.11 Release of dangerous substances Thermal insulation products shall not release any regulated dangerous substances in excess of the maximum permitted levels specified in relevant European or national regulations.
NOTE 1 European test methods are under development. NOTE 2 See Annex ZA. 4.3.12 Reaction to fire of the product in standardized assemblies simulating end-use applications
Reaction to fire classification of products in standardized assemblies simulating end-use applications excluding pipe insulation, shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715.
This classification offers the opportunity to give a complementary and optional declaration on reaction to fire for standard test configurations of assemblies, which include the insulation product.
The number of the selected test configuration of assembly (Table 5 of EN 15715:2009), which is used in the test, shall be quoted with the Euroclass.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer’s literature.
4.3.13 Continuous glowing combustion NOTE A test method is under development and the standard will be amended when this is available.
5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area not less than 1 m2 and sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product, whichever is the smaller. 5.2 Conditioning Conditioning of the test specimens shall be at least 6 h at (23 ± 5) °C unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for 7 days prior to testing. For FPC no special conditioning of the test specimens is needed. 5.3 Testing 5.3.1 General Table 11 gives the dimensions of the test specimens, the minimum number of measurements required to get one test result and any specific conditions, which are necessary.
The test may be performed on the unfaced/uncoated product, if the facing/coating is known to have no relevance to the test result. SIST EN 13165:2013

185.3.2 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be determined in accordance with EN 12667 or EN 12939 for thick products and under the following conditions:  at a mean temperature of (10 ± 0,3) °C;  after conditioning in accordance with 5.2;  taking into account the effect of ageing according to Annex C. Thermal resistance and thermal conductivity may also be measured at mean temperatures other than 10 °C, providing that the accuracy of the relationship between temperature and thermal properties is well documented. Thermal resistance and thermal conductivity shall be determined directly at measured thickness. In the event that this is not possible, they shall be determined by measurements on other thicknesses of the product providing that:  the product is of similar chemical and physical characteristics and is produced on the same production unit,  and it can be demonstrated in accordance with EN 12939 that the thermal conductivity does not vary more than 2 % over the range of thicknesses where the calculation is applied. When measured thickness is used for testing of thermal resistance and thermal conductivity, the test thickness should be the smallest of the measured points on the test specimen (and not the mean) as far as possible to avoid any air gaps during testing. 5.3.3 Flatness after one-sided wetting – Conditioning procedure The conditioning procedure referred to in 4.3.8 is as follows:  place the test specimen in a water tank at (23 ± 5) °C, in such a way that partial immersion is 5 mm;  dispose a load on the test specimen to avoi
...
