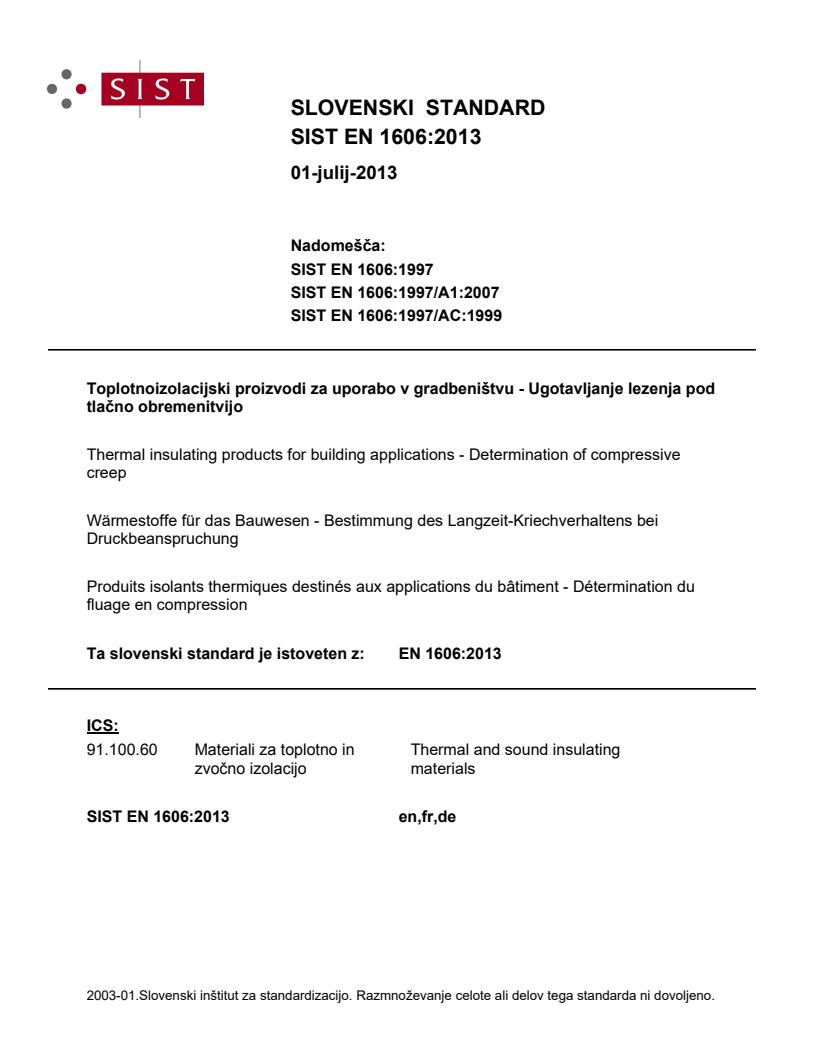

EN 1606:2013

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wärmestoffe für das Bauwesen - Bestimmung des Langzeit-Kriechverhaltens bei DruckbeanspruchungProduits isolants thermiques destinés aux applications du bâtiment - Détermination du fluage en compressionThermal insulating products for building applications - Determination of compressive creep91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 1606:2013SIST EN 1606:2013en,fr,de01-julij-2013SIST EN 1606:2013SLOVENSKI
STANDARDSIST EN 1606:1997/AC:1999SIST EN 1606:1997/A1:2007SIST EN 1606:19971DGRPHãþD

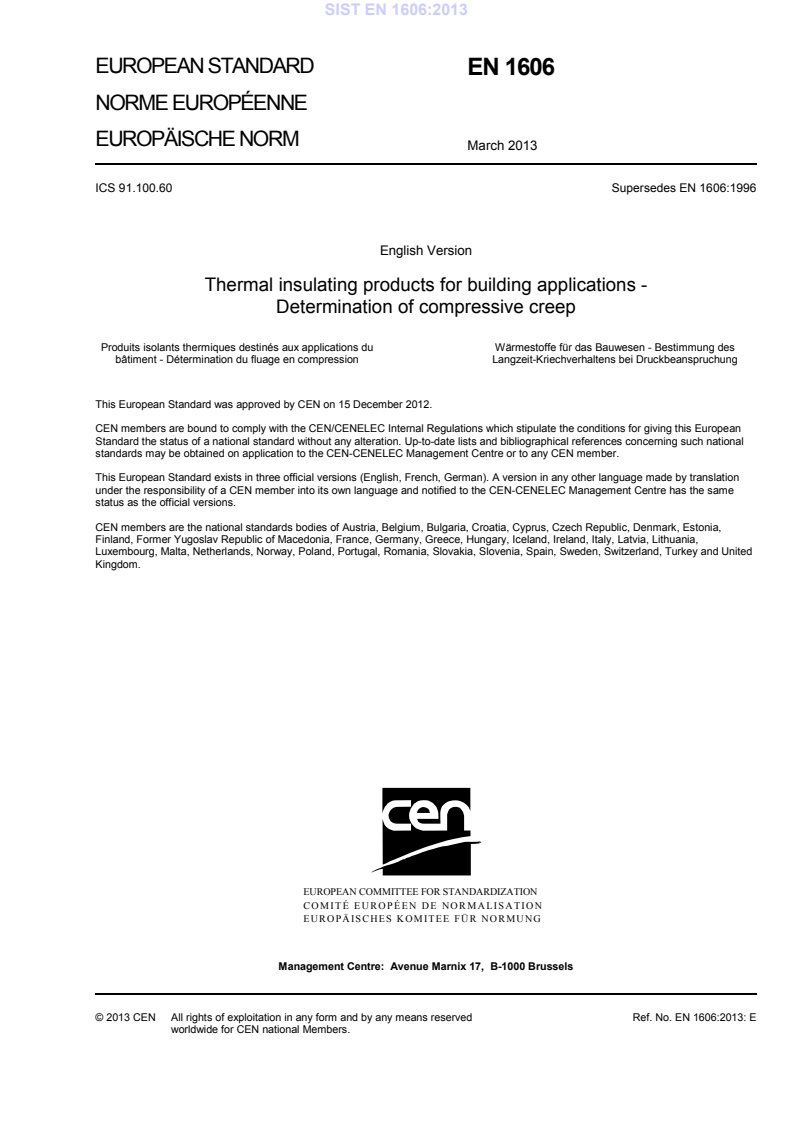

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1606
March 2013 ICS 91.100.60 Supersedes EN 1606:1996English Version
Thermal insulating products for building applications - Determination of compressive creep
Produits isolants thermiques destinés aux applications du bâtiment - Détermination du fluage en compression
Wärmestoffe für das Bauwesen - Bestimmung des Langzeit-Kriechverhaltens bei Druckbeanspruchung This European Standard was approved by CEN on 15 December 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1606:2013: ESIST EN 1606:2013

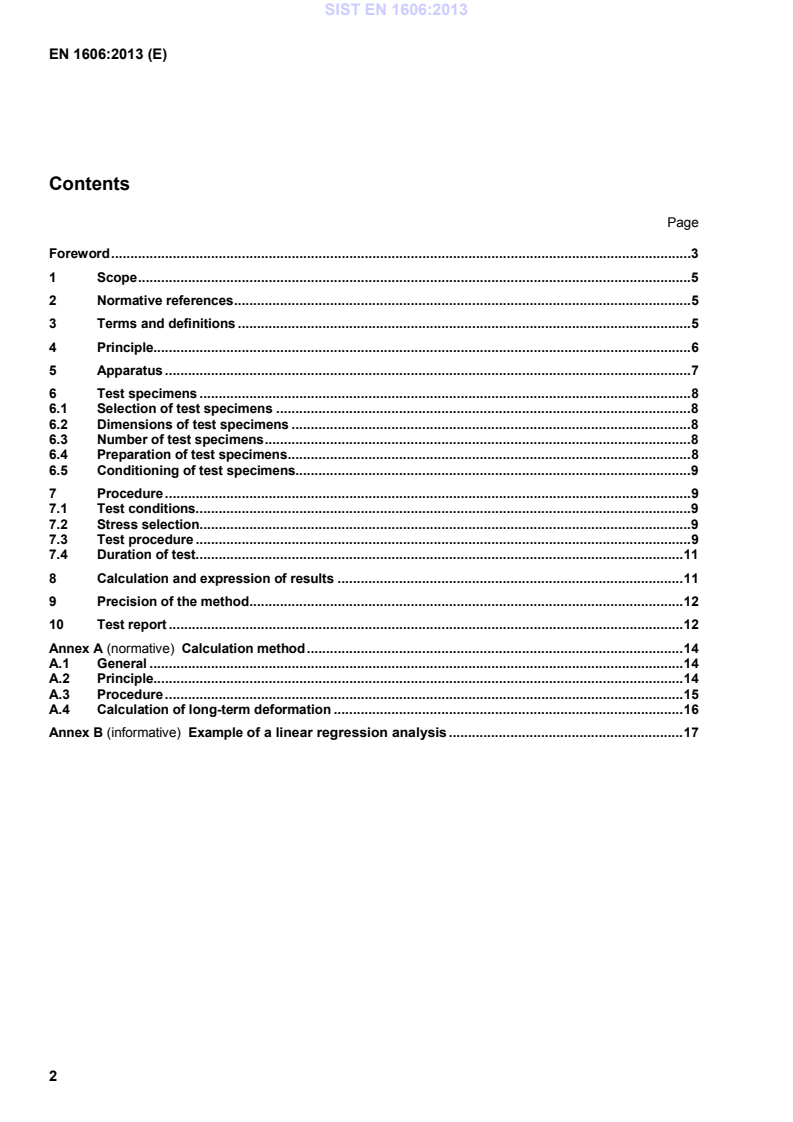

Calculation method . 14 A.1 General . 14 A.2 Principle. 14 A.3 Procedure . 15 A.4 Calculation of long-term deformation . 16 Annex B (informative)
Example of a linear regression analysis . 17
The revision of this standard contains no major changes, only minor corrections and clarifications of an editorial nature. This European Standard is one of a series of standards which specify test methods for determining dimensions and properties of thermal insulating materials and products. It supports a series of product standards for thermal insulating materials and products which derive from the Council Directive of 21 December 1988 on the approximation of laws, regulations and administrative provisions of the Member States relating to construction products (Directive 89/106/EEC) through the consideration of the essential requirements. This European Standard has been drafted for applications in buildings, but it may also be used in other areas where it is relevant. This European test standard is one of the following group of interrelated standards on test methods for determining dimensions and properties of thermal insulation materials and products, all of which fall within the scope of CEN/TC 88:  EN 822, Thermal insulating products for building applications — Determination of length and width  EN 823, Thermal insulating products for building applications — Determination of thickness  EN 824, Thermal insulating products for building applications — Determination of squareness  EN 825, Thermal insulating products for building applications — Determination of flatness  EN 826, Thermal insulating products for building applications — Determination of compression behaviour  EN 1602, Thermal insulating products for building applications — Determination of the apparent density  EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity)  EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions  EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions  EN 1606, Thermal insulating products for building applications — Determination of compressive creep SIST EN 1606:2013

is the original product thickness; dS is the thickness of the specimen; dL
is the thickness of the specimen under the basic compressive stress of the loading device ('dead weight'); d0 is the thickness of the specimen 60 s after the beginning of the loading process; dt is the thickness of the specimen at a given time, t
3.2 compressive stress σc ratio of the compressive force to the initial surface area of the cross section of the specimen 3.3 deformation X reduction in thickness of the specimen 3.4 relative deformation ε ratio of the deformation of the specimen, X, and its thickness dS, measured in the direction of loading SIST EN 1606:2013

Key dL reference value for deformation measurements t time 1 'dead weight' of the loading device (< 10 % of the smallest stress chosen for the creep test) 2 load applied in the compressive creep test 3 deformation curve In this figure, dL is used as a reference value for deformation measurements. If dS is used as the reference value, the figure can be used, omitting the column for dL (see 7.3). Figure 1 — Illustration of the different thicknesses and deformations 4 Principle The compressive creep is determined by measuring the increase in deformation of a specimen under constant compressive stress and specified conditions of temperature, humidity and time. SIST EN 1606:2013

The movable platen shall be guided in such a manner as to be self-aligning. The platens shall be capable of being loaded smoothly and without distortion so that, during the test, the static stress does not change by more than ± 5 %. 5.2 Measuring device (e.g. dial gauge), capable of determining the distance between the two platens, i.e. the deformation of the specimen, to an accuracy of 0,01 mm. 5.3 Suitable damping measures, to minimise the effects of external vibration (e.g. substantial foundation of the apparatus support). Examples of the testing apparatus are given in Figure 2.
a) b) Key 1 displacement transducer or dial gauge 2 loading bridge 3 load distribution plate (movable, self-aligning) 4 test specimen 5 support beam 6 loading by weights Figure 2 — Examples of test apparatus SIST EN 1606:2013
...
