EUROPEAN STANDARD
EN 469
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2005
ICS 13.340.10 Supersedes EN 469:1995
English Version
Protective clothing for firefighters - Performance requirements
for protective clothing for firefighting
Vêtements de protection pour sapeurs pompiers - Schutzkleidung für die Feuerwehr -
Exigences de performance pour les vêtements de Leistungsanforderungen für Schutzkleidung für die
protection pour la lutte contre l'incendie Brandbekämpfung
This European Standard was approved by CEN on 22 July 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 469:2005: E
worldwide for CEN national Members.

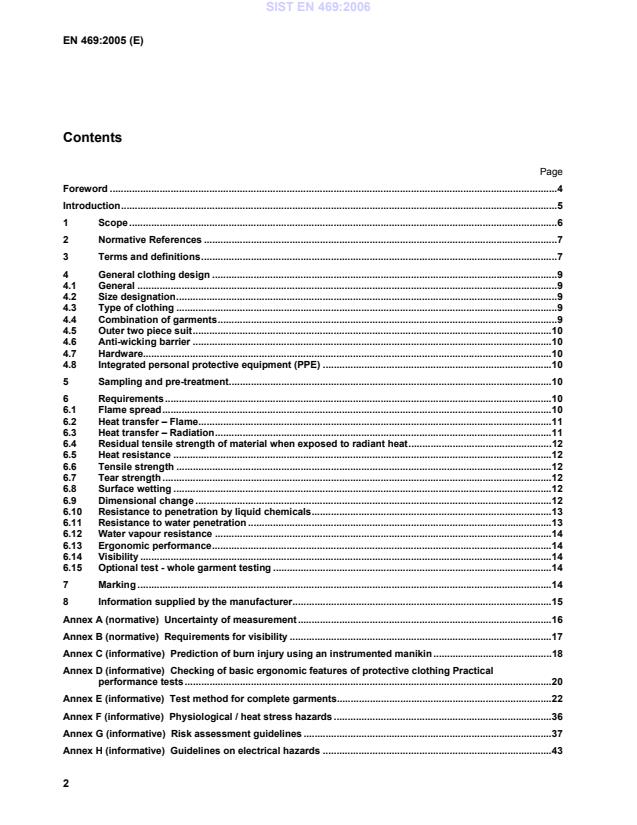

Contents
Page
Foreword .4
Introduction.5
1 Scope .6
2 Normative References .7
3 Terms and definitions.7
4 General clothing design .9
4.1 General .9
4.2 Size designation.9
4.3 Type of clothing .9
4.4 Combination of garments.9
4.5 Outer two piece suit.10
4.6 Anti-wicking barrier .10
4.7 Hardware.10
4.8 Integrated personal protective equipment (PPE) .10
5 Sampling and pre-treatment.10
6 Requirements .10
6.1 Flame spread.10
6.2 Heat transfer – Flame.11
6.3 Heat transfer – Radiation.11
6.4 Residual tensile strength of material when exposed to radiant heat.12
6.5 Heat resistance .12
6.6 Tensile strength .12
6.7 Tear strength .12
6.8 Surface wetting .12
6.9 Dimensional change .12
6.10 Resistance to penetration by liquid chemicals.13

6.11 Resistance to water penetration .13
6.12 Water vapour resistance .14
6.13 Ergonomic performance.14
6.14 Visibility .14
6.15 Optional test - whole garment testing .14
7 Marking .14
8 Information supplied by the manufacturer.15
Annex A (normative) Uncertainty of measurement.16
Annex B (normative) Requirements for visibility .17
Annex C (informative) Prediction of burn injury using an instrumented manikin .18
Annex D (informative) Checking of basic ergonomic features of protective clothing Practical
performance tests.20
Annex E (informative) Test method for complete garments.22
Annex F (informative) Physiological / heat stress hazards .36
Annex G (informative) Risk assessment guidelines .37
Annex H (informative) Guidelines on electrical hazards .43
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC.44

Bibliography.46

Foreword
This European Standard (EN 469:2005) has been prepared by Technical Committee CEN/TC 162 “Protective
clothing including hand and arm protection and lifejackets”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by March 2006, and conflicting national standards shall be withdrawn at the latest by
March 2006.
This European Standard supersedes EN 469:1995.
This European Standard has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this European
Standard.
It is one of several standards for clothing that have been developed to protect persons against heat and/or flames.
Some examples of other European Standards include:
 prEN ISO 11611:2003, Protective clothing for use in welding and allied processes (ISO/DIS 11611:2003);
 prEN ISO 11612:2003, Clothing to protect against heat and flame (ISO/DIS 11612:2003);
 ISO 11613:1999, Protective clothing for firefighters — Laboratory test methods and performance requirements;
 EN 1486:1996, Protective clothing for firefighters — Test methods and requirements for reflective clothing for
specialized fire fighting;
 EN ISO 14460:1999 (and EN ISO 14460/A1:2002), Protective clothing for automobile racing drivers —
Protection against heat and flame — Performance requirements and test methods (ISO 14460:1999);
 ISO 15384:2003, Protective clothing for firefighters — Laboratory test methods and performance requirements
for wildland firefighting clothing;
 ISO 15538:2001, Protective clothing for firefighters — Laboratory test methods and performance requirements
for protective clothing with a reflective outer surface;
 EN 13911:2004, Protective clothing for firefighters — Requirements and test methods for fire hoods for
firefighters.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Introduction
The purpose of this European Standard is to provide minimum performance requirements for protective clothing for
firefighters, whilst fighting fires. Within this European Standard, two performance levels are given for performance
requirements 6.2, 6.3, 6.11 and 6.12 - level 1 is the lower level, level 2, the higher level. The level of personal
protection chosen should be based on the outcome of a risk assessment. Annex G lists many of the hazards that may
be encountered by firefighters and sets out guidelines for carrying out a risk assessment analysis.
During an incident, hazards other than those against which clothing to this European Standard is intended to protect
may be encountered e.g. chemical, biological, radiological, and electrical. If the risk assessment identifies that
exposure to such hazards is likely, protection by more appropriate personal protective equipment may be required
either instead of or in addition to the protective clothing covered by this European Standard.
In this European Standard, some requirements have an influence on ergonomics and additional informative annexes
on ergonomic features and physiological / heat stress hazards are included in the form of guidelines because suitable
tests for these requirements have not yet been validated internationally. It is important that further requirements for
ergonomic aspects of protective clothing become integrated normative parts of European standards such as this and
currently work on this is taking place.
The requirement regarding water vapour resistance in 6.12, level 1, is proposed for an amendment (procedure).
For adequate overall protection against the risks to which firefighters are likely to be exposed, additional personal
protective equipment to protect the head, face, hands and feet should also be worn, along with appropriate respiratory
protection where necessary.
The specified controlled laboratory tests used to determine compliance with the performance requirements of this
European Standard do not replicate the situations to which firefighting personnel may be exposed.
This European Standard sets minimum levels of performance requirements. Nothing in this European Standard is
intended to restrict any jurisdiction, purchaser or manufacturer from exceeding these minimum requirements.
NOTE It is essential that firefighters are trained in the selection, use, care and maintenance of all personal protective
equipment. Attention is drawn to CEN/TR 14560:2003, which sets out guidelines for selection, use, care and maintenance of
protective clothing against heat and flame.
1 Scope
This European Standard specifies minimum levels of performance requirements for protective clothing to be worn
during firefighting operations and associated activities such as e.g. rescue work, assistance during disasters. The
described clothing is not meant to protect against deliberate chemical and/or gas cleaning operations.
This European Standard covers the general clothing design, the minimum performance levels of the materials used,
and the methods of test to be used to determine these performance levels. The required performance levels may be
achieved by the use of one or more garments.
This European Standard covers the event of an accidental splash of chemical or flammable liquids but does not cover
special clothing for use in other high-risk situations e.g. reflective protective clothing. It does not cover protection for
the head, hands and feet or protection against other hazards e.g. chemical, biological, radiological and electrical
hazards. These aspects may be covered in other European Standards.
2 Normative References
The following referenced documents are indispensable for the application of this European Standards For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
EN 340, Protective Clothing — General requirements
EN 367, Protective clothing — Protection against heat and fire — Method of determining heat transmission on
exposure to flame
EN 471:2003, High-visibility warning clothing for professional use — Test methods and requirements
EN 533:1997, Protective clothing — Protection against heat and flame — Limited flame spread materials and
material assemblies
EN 20811, Textiles — Determination of resistance to water penetration — Hydrostatic pressure test
EN 24920:1992, Textiles — Determination of resistance to surface wetting (spray test) of fabrics
EN 31092, Textiles — Determination of physiological properties — Measurement of thermal and water-vapour
resistance under steady-state conditions (sweating guarded - hotplate test) (ISO 11092:1993)
EN ISO 1421:1998, Rubber- or plastics — Determination of tensile strength and elongation at break
(ISO 1421:1998)
EN ISO 4674-1:2003, Rubber- or plastics-coated fabrics - Determination of tear resistance - Part 1: Constant rate of
tear methods (ISO 4674-1:2003)
EN ISO 6530:2005, Protective clothing — Protection against liquid chemicals — Test method for resistance of
materials to penetration by liquids (ISO 6530:2005)
EN ISO 6942:2002, Protective clothing — Protection against heat and fire — Method of test: Evaluation of
materials and material assemblies when exposed to a source of radiant heat (ISO 6942:2002)
EN ISO 13934-1:1999, Textiles — Tensile properties of fabrics — Part 1: Determination of maximum force and
elongation at maximum force using the strip method (ISO 13934-1:1999)
EN ISO 13937-2:2000, Textiles - Tear properties of fabrics - Part 2: Determination of tear force of trouser-shaped
test specimens (Single tear method) (ISO 13937-2:2000)
EN ISO 15025:2002, Protective clothing — Protection against heat and flame — Method of test for limited flame
spread (ISO 15025:2000)
ISO 5077, Textiles — Determination of dimensional change in washing and drying
ISO 7941, Commercial propane and butane — Analysis by gas chromatography
ISO 17493:2000, Clothing and equipment for protection against heat — Test method for convective heat resistance
using a hot air circulating oven
CIE 54.2:2001, Retroreflection — Definition and measurement
3 Terms and definitions
For the purposes of this European Standard, the following definitions apply.
3.1
anti-wicking barrier
material used to prevent the transfer of liquid from outside the garment to inside the garment, usually in addition to or
replacing part of the moisture barrier at the edge(s)
3.2
closure system
method of fastening openings in the garment including combinations of more than one method of achieving a secure
closure
NOTE This term does not cover seams.
3.3
complete garment assembly
all materials that form the complete garment
3.4
component assembly
combination of all materials of a multi-layer garment presented exactly as the finished garment construction
3.5
firefighters’ protective clothing
specific garments providing protection for the firefighter's torso, neck, arms, and legs, but excluding the head, hands,
and feet
3.6
garment
single item of clothing which may consist of single or multiple layers
3.7
hardware
non-fabric items used in protective clothing including those made of metal or plastic, e.g. fasteners, rank markings,
buttons, zippers
3.8
innermost layer
innermost material of the complete garment assembly which is intended to be nearest to the wearers skin
3.9
innermost lining
lining on the innermost face of a component assembly which is intended to be nearest to the wearers skin. Where
the innermost lining forms part of a material combination, the material combination shall be regarded as the
innermost lining
3.10
interlining
layer between the outermost layer and the innermost lining in a multilayer garment
3.11
material
substances excluding hardware, of which an item of clothing is made
3.12
material combination
material produced from a series of separate layers, intimately combined prior to the garment manufacturing stage,
e.g. a quilted fabric
3.13
moisture barrier
fabric or membrane used in a complete garment assembly to achieve the properties of hydrostatic pressure and
water vapour permeability
NOTE Moisture barriers might not prevent the passage of some chemical, biological or radiological agents and appropriate
personal protective equipment (PPE) should be provided to protect the wearer in such incidents.
3.14
multilayer clothing assembly
series of garments arranged in the order as worn. It may contain multilayer materials, material combinations or a
series of separate garments in single layers
3.15
outer garment
outermost part of the clothing that will be exposed to the hazard(s)
3.16
outer material
outermost material of which the item of protective clothing is made
3.17
seam
permanent fastening between two or more pieces of material
3.18
structural seam
seam which holds the outer garment together and which if broken would expose the under garments and reduce
protection
3.19
torso
trunk of the human body, i.e. without arms, legs and head
3.20
wristlet
elastic part of the sleeves that covers the wrist tightly
4 General clothing design
4.1 General
The levels of performance specified in this European Standard may be achieved by the use of a garment or a
multilayer clothing assembly, which may contain material combinations, or component assemblies.
4.2 Size designation
Size designation shall be in accordance with the requirements of EN 340.
4.3 Type of clothing
Protective clothing for firefighters shall provide protection for the firefighters torso, neck, arms to the wrists, and
legs to the ankles during firefighting activities. It does not cover protection for the head, hands and feet or protection
against other hazards e.g. chemical, biological, radiological and electrical hazards.
4.4 Combination of garments
Where protection to the requirements of this European Standard is provided by more than one garment, each
garment in the clothing assembly shall be marked in accordance with the requirements of this European
Standard(see 7.3).
4.5 Outer two piece suit
Where protection to the requirements of this European Standard is provided by an outer two piece suit, it shall be
determined that an overlap between the jacket and trouser shall always remain whilst carrying out the job related
exercises during ergonomic and practical performance testing (see e.g. EN 340 and Annex D) whatever the
position of the body parts or the movements are during those exercises.
4.6 Anti-wicking barrier
Where an anti-wicking barrier is used in a garment either as part of an interlining at the edge part of a moisture
barrier or as the edge part of an innermost lining e.g. at the end of the sleeves, the trouser legs or bottom of a
jacket, the material shall at least meet the requirements of the moisture barrier according to 6.11. Further the
component assembly including the anti-wicking barrier shall meet the requirements of 6.1, 6.2, and 6.3.
4.7 Hardware
Hardware penetrating the outer material shall not be exposed on the innermost surface of the component
assembly.
4.8 Integrated personal protective equipment (PPE)
When PPE for other type of protection (e.g. against falls from a height) is integrated in the clothing assembly they
shall meet the requirements set for these type of PPE. The interface shall not decrease the protection level
achieved by the clothing assembly.
5 Sampling and pre-treatment
5.1 The number and size of specimens for the different tests shall be in accordance with the respective European
Standards.
5.2 Before testing for the requirements in Clause 6, except for the tests in 6.5, 6.6, 6.7, 6.13, 6.14, and 6.15, the
test materials shall be washed and dried or dry-cleaned according to the instructions of the care labelling and the
manufacturer's instructions. Materials shall be conditioned for 24 h at (20 ± 2) ºC and (65 ± 5) % relative humidity
before testing. Testing shall begin within 10 min after removing the specimen from the standard atmosphere.
5.3 Component assembly or multilayer component assembly are tested with the outermost surface exposed,
except for flame spread testing of innermost lining (6.1). Unless otherwise specified in the test standard, the test
shall be carried out in laboratory conditions at a temperature of (20 ± 3) ºC and a (65 ± 5) % relative humidity.
5.4 Pre-treatment of testing of water vapour resistance (see 6.12) shall be in accordance with EN 31092 on the
whole component assembly.
6 Requirements
6.1 Flame spread
6.1.1 Materials and seams shall be tested according to EN ISO 15025:2002, procedure A, and they shall achieve
flame spread index 3 of EN 533:1997. Results are evaluated when the samples are on the test frame.
6.1.1.1 For materials, 3 specimens in machine direction and 3 specimens in cross direction shall be tested
according to EN ISO 15025:2002, procedure A, and they shall achieve flame spread index 3 of EN 533:1997.
6.1.1.2 For seams, 3 specimens containing a structural seam shall be tested according to EN ISO 15025:2002,
procedure A, and they shall achieve flame spread index 3 of EN 533:1997 and shall not open. Specimens shall be
oriented with the seam running up the centre line of the test specimen so that the burner flame impinges directly
upon the seam.
6.1.2 No specimen shall give hole formation in any layer except for a layer other than the outer material or
innermost lining when tested according to 6.1.1, which is used for specific protection other than heat protection, for
example a layer which provides protection against liquid penetration etc.
6.1.3 The component assembly of the outer garment shall be tested according to 6.1.1 by applying the test flame
to the surface of the outer material and to the surface of the innermost lining.
6.1.4 If the levels of protection are achieved by multilayer clothing assemblies which are separate garments, the
outer surface and innermost lining of each garment used in the assembly shall be tested according to 6.1.1.
6.1.5 If the clothing assembly incorporates wristlet materials these shall be tested separately applying the flame
to the outer surface of the wristlet material according to EN ISO 15025:2002, procedure A, and they shall achieve
flame spread index 3 of EN 533:1997.
6.1.6 If hardware is used in protective clothing this shall be tested separately applying the flame to the outer
surface of the hardware items, according to EN ISO 15025. The hardware shall remain functioning after the test.
6.2 Heat transfer – Flame
The component assembly or multilayer clothing assembly when tested according to EN 367 shall achieve the
following performance levels and be classified accordingly:

Table 1 — Heat transfer (flame)
Heat transfer Performance Performance
index
level 1 level 2
HTI ≥ 9,0 ≥ 13,0
HTI – HTI
≥ 3,0 ≥ 4,0
24 12
The number of samples indicated in the standard shall be tested and the performance classified according to the
lowest single result, rounded to one decimal place. Where performance levels 1 and 2 exist in the same garment or
multilayer clothing assembly, it shall be classified as level 1 (see Clause 7, Marking).
6.3 Heat transfer – Radiation
The component assembly or multilayer clothing assembly when tested according to EN ISO 6942 at a heat flux
density of 40 kW/m² shall achieve the following performance levels and be classified accordingly:
Table 2 — Heat transfer (radiation)
Heat transfer factor
Performance
Performance
index
level 1 level 2
RHTI 24
≥ 10,0 ≥ 18,0
RHTI 24 - RHTI 12
≥  3,0 ≥ 4,0
The number of samples indicated in the standard shall be tested and the performance classified according to the
lowest single result, rounded to one decimal place. Where performance levels 1 and 2 exist in the same garment or
multilayer clothing assembly, it shall be classified as level 1 (see Clause 7, Marking).
6.4 Residual tensile strength of material when exposed to radiant heat
Three specimens in the machine direction and three in the cross direction of the outer material shall be tested by
EN ISO 13934-1 or EN ISO 1421:1998, method 1, after pre-treatment of the complete assembly or multilayer
clothing assembly by EN ISO 6942:2002, method A, at a heat flux density of 10 kW/m². Each specimen shall have
a tensile strength ≥ 450 N.
The sample used after exposure at 10 kW/m² according to EN ISO 6942 shall be stripped in order to obtain 50 mm
width. This width shall contain the exposed surface.
6.5 Heat resistance
When tested according to ISO 17493 at a temperature of (180 ± 5) ºC for an exposure time of 5 min, each material
used in the clothing assembly shall not ignite or melt and shall not shrink more than 5 % in either machine or cross
direction. Each material shall be tested separately. If a specimen of sufficient size cannot be taken it may be sewn
on the carrying material as used in the garment. Hardware of the type(s) intended to be used in the finished
garment, shall function after this test.
6.6 Tensile strength
6.6.1 The outer material when tested in accordance with EN ISO 13934-1 or EN ISO 1421:1998, method 1, shall
give a breaking load in both machine and cross direction ≥ 450 N.
6.6.2 The main seams of the outer material when tested in accordance with EN ISO 13935-2:1999 shall give a
breaking load ≥ 225 N.
6.7 Tear strength
The outer material shall give a tear strength in both machine and cross direction ≥ 25 N. Coated fabrics shall be
tested in accordance with EN ISO 4674-1:2003, method B, non-coated fabrics in accordance with
EN ISO 13937-2:2000.
6.8 Surface wetting
6.8.1 Pre-treatment
Before testing the test materials shall be washed and dried according to 5.2 as indicated by the manufacturer.
6.8.2 Testing procedure
The outer material when tested according to EN 24920 at 20 °C shall give a spray rate of ≥ 4. The evaluation
criterion shall be the lowest value.
This test is to be carried out, even if the garment has a moisture barrier.
6.9 Dimensional change
The dimensional change shall be equal to or less than ± 3 % in both directions when tested in accordance with ISO
5077 using the pre-treatment specified in 5.2.
Each single layer material or component assembly of a multilayer clothing assembly shall be tested separately.
The combination of materials in a component assembly shall be prepared so that the layers of material are sewn
together around all four sides of the test sample. One sample only shall be tested.
This test does not apply to wristlet material.
6.10 Resistance to penetration by liquid chemicals
6.10.1 Pre-treatment
Before testing the test materials shall be washed and dried according to 5.2 as indicated by the manufacturer.
6.10.2 Testing procedure
The component assembly or multilayer clothing assembly shall be tested in accordance with EN ISO 6530 using a
chemical application time of 10 s using the following liquid chemicals and in each case, shall give no penetration to
the innermost surface and a repellency rate of more than 80 %.
Table 3 — Chemical penetration testing
Chemical Concentration Temperature of chemical
Weight (%) ± 2 (°C)
NaOH 40 20
HCl 36 20
H SO 30 20
2 4
o-xylene 100 20
This test is to be carried out, even if the garment has a moisture barrier.
6.11 Resistance to water penetration
The layer (including seams) providing the resistance of water entry, when tested in accordance with EN 20811 using
a rate of increase in pressure of (0,98 ± 0,05) kPa/min shall achieve one of the following:
Level 1 < 20 kPa, for garments without a moisture barrier.
Level 2 ≥ 20 kPa, for garments with a moisture barrier.
Test samples shall be taken from critical areas like e.g. shoulder seams.
6.12 Water vapour resistance
The requirements for water vapour resistance shall be achieved by testing either the complete component
assembly or the multilayer clothing assembly. Anti-wicking barriers are excluded from this requirement. Testing shall
be in accordance with EN 31092 and one of the following shall be achieved:
Level 1 > 30 m² Pa/W, but not exceeding 45 m² Pa/W.
Level 2 < 30 m² Pa/W.
NOTE High water vapour resistance can lead to a higher risk of steam burns.
6.13 Ergonomic performance
Ergonomic assessment of clothing covered by this European Standard should be carried out by practical
performance testing. Suitable tests for these requirements have not yet been validated internationally but guidance
is included in Annex D.
Also additional integrated devices to be used with the protective clothing should be included in this testing.
6.14 Visibility
Any optional retro-reflective/fluorescent material shall conform to those requirements given in Annex B. Colour
requirements of the fluorescent material shall be in accordance with 5.1 of EN 471:2003.
6.15 Optional test - whole garment testing
In addition to the tests on materials, the complete component assembly or multilayer clothing assembly that is
intended to be used to provide protection according to the requirements of this European Standard can be
optionally tested. If this optional test is performed, it shall be done on an instrumented manikin and never on
subjects using the following exposure conditions:
8 s 84 kW/m²
Also additional integrated devices to be used with the protective clothing should be included in this testing.
The test method described in Annex E is able to provide the information as required in 8.5.
7 Marking
7.1 Marking requirements shall be as specified in EN 340 and in this clause.
7.2 Firefighters’ protective clothing complying with this European Standard shall be marked with the number and
date of this European Standard, i.e. EN 469:2005, on or adjacent to the pictogram attached to the garment.
7.3 If the requirements of this European Standard are met by the use of a combination of garments (see 4.4) this
shall be declared on the labels of all pieces of the combination of the garments used and indicating that they shall
be worn together.
7.4 The level of performance achieved, when tested in accordance with 6.2, 6.3, 6.11, and 6.12 shall be stated
on the pictogram attached to the garment.
7.4.1 The pictogram shall be as given in Figure 1.
7.4.2 Four performance levels shall be shown on the pictogram – for heat protection (see 6.2 and 6.3, flame and
radiation) and applies to the whole garment; for resistance to water penetration (see 6.11) and for water vapour
resistance (see 6.12). The lowest level achieved in the garment or multilayer clothing assembly for the particular
performance test concerned, shall apply.
NOTE For a jacket and trousers designed to be worn together either the jacket or the trousers can be level 1 or level 2.
7.4.2.1 Xf1 or Xf2 and Xr1 or Xr2. These are the levels achieved for heat protection (flame and radiation).
The lowest level of 6.2 and 6.3 dictates the performance rating for heat protection.
7.4.2.2 Y1 or Y2. This is the level achieved for resistance to water penetration.
7.4.2.3 Z1 or Z2. This is the level achieved for water vapour resistance.
7.5 If re-impregnation of the outer material is required, the number of washes before re-impregnation shall be
clearly stated on the marking and may be carried out before inspection and discarding the equipment.

Figure 1 — Pictogram ISO 7000 – 2418
8 Information supplied by the manufacturer
8.1 Firefighters' protective clothing shall be supplied to the customer with information written at least in the
official language(s) of the state of destination.
The manufacturer shall add information about the use of integrated devices.
8.2 The information to be supplied by the manufacturer shall be as specified in EN 340.
8.3 The manufacturer shall include a note in the information that in order to comply with the requirements of this
European Standard, the upper and lower body including the neck, arms to the wrists and legs to the ankles, are
protected and covered by the clothing described in this European Standard, but other parts of the body are not and
need essential means in order to be fully protected.
8.4 The manufacturer shall include a note in the information to the effect that in the event of an accidental splash
of chemical or flammable liquids on clothing covered by this European Standard, the wearer should immediately
withdraw and remove the garments, which shall then be cleaned or removed from service.
8.5 If the optional whole garment test in 6.15 has been performed, the manufacturer shall provide a report in the
information on the result, as given in Annex C.
8.6 The manufacturer shall include a note in the information to the effect that garments that have reached level 1
in resistance to water penetration should not be used when there is risk of water penetration.
Annex A
(normative)
Uncertainty of measurement
The uncertainty associated with most of the test methods specified in this European Standard (EN 469:2005)
cannot be determined until interlaboratory trials have been completed and the test methods have been amended
appropriately. In this transitional period the results obtained from all tests specified in EN 469:2005 shall be
interpreted without taking uncertainty into account.
Annex B
(normative)
Requirements for visibility
Retroreflective/fluorescent/combined performance material shall conform to EN 471 as per the following:
B.1 Separate performance retroreflective material shall be attached to the outermost surface of the protective
clothing with a minimum area of not less than 0,13 m² and give all round visibility by encircling the arms, legs and
torso regions of the garment(s).
B.2 If non-reflective fluorescent or combined performance material is applied, the minimum area of fluorescent
material shall be not less than 0,2 m².
B.3 Photometric requirements of the retroreflective material shall be determined according to test method
CIE 54.2:2001. The minimum coefficient of retroreflection for new retroreflective or combined performance material
shall be in accordance with EN 471:2003, Table 5 or Table 7.
The retroreflective/fluorescent/combined performance materials, in order not to affect the performance of the
protective clothing, shall comply with the following test requirements, after the pre-treatment specified in 5.3:
B.3.1 Heat resistance: The retroreflective/fluorescent/combined performance materials exposed for 5 min.
according to the requirements of 6.5 of this European Standard shall be in accordance with 6.2 of EN 471:2003
(coefficient of retroreflection after test exposure) and the retroreflective/fluorescent/combined performance
materials shall not drip, ignite, melt or shrink more than 5 %.
B.3.2 Flame spread: All materials used for visibility shall be tested as specified in 6.1 in combination with the
outer layer to make it possible to take samples with the dimensions as indicated in EN ISO 15025:2002, procedure
A. No hole formation is allowed in the materials.
Annex C
(informative)
Prediction of burn injury using an instrumented manikin
The given information about the results of the test shall at least contain the following:
a) name and address of the laboratory in which the test of 6.15 was carried out;
b) statement confirming the following:
1) that the test was carried out for garment evaluation;
2) that the component or clothing assembly that was tested to 6.15 was manufactured from the same
materials that were used to achieve certification to this European Standard and was designed and
manufactured according to the requirements of this European Standard;
c) following information:
1) describing any special pre-treatment of any part of the component or clothing assembly prior to the test in
6.15 or alternatively a statement that the garment ensemble did not have any special pre-treatment;
2) describing any holes or cuts that were necessary to be made in the component or clothing assembly to
accommodate cable connections or other necessary parts of the test manikin;
3) stating the total number and general arrangement of the burners used to create the flash fire exposure;
4) stating the nominal heat flux density level, the duration of the exposure and the duration of the data
acquisition time for the test;
d) results of the test as follows:
1) predicted manikin area of second-degree burn injury (%);
2) predicted manikin area of third-degree burn injury (%);
3) predicted total manikin area of burn injury (sum of the second degree and third degree burn injury % and
associated variation statistics such as standard deviation);
e) comments on the:
1) intensity and duration of afterflame;
2) amount of smoke generated during and after the test, if measured;
3) stability of the component or clothing assembly during and after the test with particular reference to the
amount of dimensional change, which shall be listed in Table C.1:

Table C.1 — Test results of the optional test in 6.15
Dimensions in cm
Column 1 Column 2 Column 3 Column 4 Column 5 Column 6

Location Specimen Difference Specimen Difference -
Instrumented before - after testing
Column 3
manikin testing to to 6.15
(Column 3 minus
measurements 6.15 (Notes 1 and
minus column 5
(Note 1) 2)
column 2) (Note 2)
Chest width
Waist width (jacket)
Arm length
Arm width
Jacket length
Inside leg length
Leg width
Waist width
(trousers)
Measurements shall be taken from the innermost and outermost layers;
NOTE 1 After test, it is possible that the materials in the specimen may be so badly damaged that accurate measurement is
not possible. In this case, it is not necessary to fill in columns 5 and 6 and instead, observations shall be made with regard to
the amount of change in dimensional stability seen as a result of the test.
NOTE 2 Results of the whole garment testing performed by different laboratories cannot be compared directly because there
is too much variation in results between different laboratories at the moment.
f) Any other information relating to the test may be included to assist in interpretation of the test results.

Annex D
(informative)
Checking of basic ergonomic features of protective clothing
Practical performance tests
This annex informs how some basic ergonomic features can be checked for many types of protective clothing in a
pragmatic way. This annex is not intended to replace specific ergonomic testing required by the user for the
individual assessment of protective clothing at a specific workplace. In general carrying out ergonomic
assessments can help to improve protective clothing and detect major deficiencies.
In principle, one or more experienced assessors should examine the protective clothing after reading the
information supplied from the manufacturer. The test clothing of a suitable
...
