EN ISO 15025:2002

SLOVENSKI STANDARD
01-april-2003
1DGRPHãþD
SIST EN 532:1996
9DURYDOQDREOHND=DãþLWDSUHGXþLQNLWRSORWHLQSODPHQD3UHVNXVQDPHWRGD]
RPHMHQLPãLUMHQMHPSODPHQD,62
Protective clothing - Protection against heat and flame - Method of test for limited flame
spread (ISO 15025:2000)
Schutzkleidung - Schutz gegen Hitze und Flammen - Prüfverfahren für die begrenzte
Flammenausbildung (ISO 15025:2000)
Vetements de protection - Protection contre la chaleur et les flammes - Méthode d'essai
pour la propagation de flamme limitée (ISO 15025:2000)
Ta slovenski standard je istoveten z: EN ISO 15025:2002
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
13.340.10 Varovalna obleka Protective clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 15025
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2002
ICS 13.340.10 Supersedes EN 532:1994
English version
Protective clothing - Protection against heat and flame - Method
of test for limited flame spread (ISO 15025:2000)
Vêtements de protection - Protection contre la chaleur et Schutzkleidung - Schutz gegen Hitze und Flammen -
les flammes - Méthode d'essai pour la propagation de Prüfverfahren für die begrenzte Flammenausbildung (ISO
flamme limitée (ISO 15025:2000) 15025:2000)
This European Standard was approved by CEN on 11 April 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15025:2002 E
worldwide for CEN national Members.

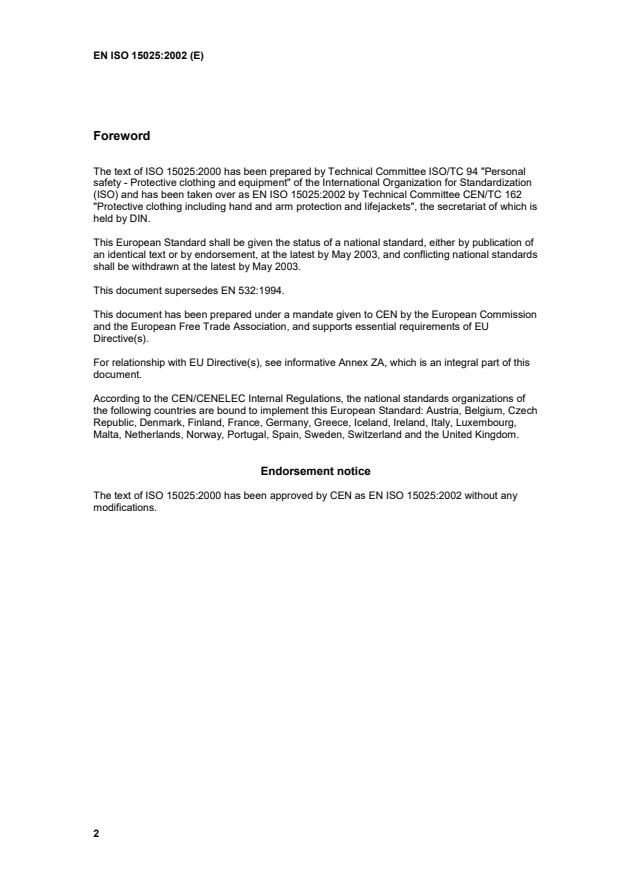

Foreword
The text of ISO 15025:2000 has been prepared by Technical Committee ISO/TC 94 "Personal
safety - Protective clothing and equipment" of the International Organization for Standardization
(ISO) and has been taken over as EN ISO 15025:2002 by Technical Committee CEN/TC 162
"Protective clothing including hand and arm protection and lifejackets", the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by May 2003, and conflicting national standards
shall be withdrawn at the latest by May 2003.
This document supersedes EN 532:1994.
This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU
Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,
Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 15025:2000 has been approved by CEN as EN ISO 15025:2002 without any
modifications.
Annex ZA
(informative)
Clauses of this European Standard addressing essential requirements or other
provisions of EU Directives
This European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association and supports essential requirements of
EU Directive 89/686/EEC.
WARNING Other requirements and other EU Directives may be applicable to the
product(s) falling within the scope of this standard.
”The clauses of this European Standard specify test methods for the relevant requirements of
protective clothing to support the essential requirements of Directive 89/686/EEC, Annex II,
clause 3.6.1”
Compliance with these clauses of this standard provides one means of conforming with the
specific essential requirements of the Directive concerned and associated EFTA regulations.
INTERNATIONAL ISO
STANDARD 15025
First edition
2000-05-01
Protective clothing — Protection against
heat and flame — Method of test for limited
flame spread
Vêtements de protection — Protection contre la chaleur et les flammes —
Méthode d'essai pour la propagation de flamme limitée
Reference number
ISO 15025:2000(E)
©
ISO 2000
ISO 15025:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading
this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in
this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

ISO 15025:2000(E)
Contents Page
Foreword.iv
Introduction.v
1 Scope .1
2 Terms and definitions .1
3 Principle.2
4 Health and safety of test operators.2
5 Reagents.2
6 Apparatus .2
7 Sampling and sample preparation .7
7.1 Sampling.7
7.2 Conditioning atmosphere of the test sample.8
8 Procedure .8
8.1 Installation of the test apparatus .8
8.2 Test.10
9 Precision.11
10 Test report .11
Annex A (normative) Description and construction of the burner.13
Annex B (informative) Experimental techniques.14
Annex C (normative) Measurement of char length .15
Bibliography .16
ISO 15025:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 15025 was prepared by Technical Committee ISO/TC 94, Personal safety — Protective
clothing and equipment, Subcommittee SC 13, Protective clothing.
Annexes A and C form a normative part of ISO 15025. Annex B is for information only.
iv © ISO 2000 – All rights reserved

ISO 15025:2000(E)
Introduction
This International Standard was initially prepared by Technical Committee ISO/TC38/SC19 as part of the revision of
ISO 6940 and ISO 6941. This specific work item was transferred to Technical Committee ISO/TC 94/SC 13 in April
1997.
This method of test is closely related to the method of test specified in ISO 6941. It uses the same basic equipment
but a smaller specimen holder and template. Materials which do not burn to the upper or vertical edges of the
smaller test specimen used in this test may be classified as producing limited flame spread.
This method assesses the properties of textile fabrics in response to a short contact with a small igniting flame
under controlled conditions. Results may not apply to situations where there is restricted air supply or exposure to
large sources of intense heat.
The influence of seams on the behaviour of fabrics can be determined by this method, the seam being positioned
within the test specimen so as to be subjected to the test flame.
Whenever practicable, trimmings should be tested as part of the fabric assembly on which they are or will be used.
A list of standards related to ISO 15025 is given in the Bibliography.
INTERNATIONAL STANDARD ISO 15025:2000(E)
Protective clothing — Protection against heat and flame — Method
of test for limited flame spread
1 Scope
This International Standard specifies a method for the measurement of limited flame spread properties of vertically
oriented textile fabrics and industrial products in the form of single or multi-component fabrics (coated, quilted,
multilayered, sandwich constructions, and similar combinations), when subjected to a small defined flame.
This test method is not appropriate for materials that demonstrate extensive melting or shrinkage.
2 Terms and definitions
For the purposes of this International Standard the following terms and definitions apply.
2.1
flame application time
time for which the ignition flame is applied to the test specimen
2.2
afterflame time
duration of flame
length of time for which a material continues to flame, under the specified test conditions, after the ignition source
has been removed
NOTE Afterflame time is measured to the nearest second and afterflame times of less than 1,0 s should be recorded as
zero.
2.3
afterglow
persistence of glowing combustion of a material under specified test conditions, after cessation of flaming or, if no
flaming occurs, after removal of the ignition source
NOTE Afterglow is a continuation of combustion with the evolution of heat and light but without flame. Some materials
absorb heat during the flame application and continue to emit this absorbed heat after removal of the igniting flame. This
glowing without combustion should not be recorded as afterglow.
2.4
afterglow time
durat
...
