EN ISO 6530:2005

SLOVENSKI STANDARD
01-april-2005
1DGRPHãþD
SIST EN 368:1996
9DURYDOQDREOHND±9DURYDQMHSUHGWHNRþLPLNHPLNDOLMDPL±0HWRGD]DSUHVNXãDQMH
RGSRUQRVWLPDWHULDORYSURWLSUHSXãþDQMXWHNRþLQ,62
Protective clothing - Protection against liquid chemicals - Test method for resistance of
materials to penetration by liquids (ISO 6530:2005)
Schutzkleidung - Schutz gegen flüssige Chemikalien - Prüfverfahren zur Bestimmung
des Widerstands von Materialien gegen die Durchdringung von Flüssigkeiten (ISO
6530:2005)
Vetements de protection - Protection contre les produits chimiques liquides - Méthode
d'essai pour la résistance des matériaux a la pénétration par des liquides (ISO
6530:2005)
Ta slovenski standard je istoveten z: EN ISO 6530:2005
ICS:
13.340.10 Varovalna obleka Protective clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 6530
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2005
ICS 13.340.10 Supersedes EN 368:1992
English version
Protective clothing - Protection against liquid chemicals - Test
method for resistance of materials to penetration by liquids (ISO
6530:2005)
Vêtements de protection - Protection contre les produits Schutzkleidung - Schutz gegen flüssige Chemikalien -
chimiques liquides - Méthode d'essai pour la résistance Prüfverfahren: Bestimmung des Widerstands von
des matériaux à la pénétration par des liquides (ISO Materialien gegen die Durchdringung von Flüssigkeiten
6530:2005) (ISO 6530:2005)
This European Standard was approved by CEN on 24 December 2004.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 6530:2005: E
worldwide for CEN national Members.

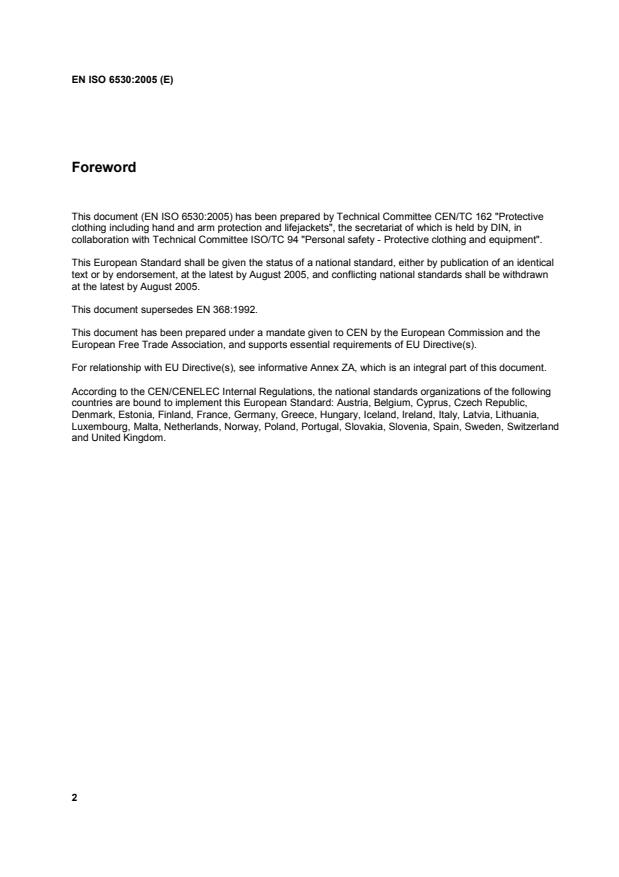

Foreword
This document (EN ISO 6530:2005) has been prepared by Technical Committee CEN/TC 162 "Protective
clothing including hand and arm protection and lifejackets", the secretariat of which is held by DIN, in
collaboration with Technical Committee ISO/TC 94 "Personal safety - Protective clothing and equipment".

This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2005, and conflicting national standards shall be withdrawn
at the latest by August 2005.
This document supersedes EN 368:1992.

This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and United Kingdom.
ANNEX ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686 EEC

This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of
the New Approach Directive 89/686 EEC.

Once this standard is cited in the Official Journal of the European Communities under that Directive and has
been implemented as a national standard in at least one Member State, compliance with the normative
clauses of this standard given in Table ZA. confers, within the limits of the scope of this standard, a
presumption of conformity with the corresponding Essential Requirements of that Directive and associated
EFTA regulations.
WARNING: Other requirements and other EU Directives may be applicable to the product(s) falling within
the scope of this standard.
INTERNATIONAL ISO
STANDARD 6530
Third edition
2005-02-01
Protective clothing — Protection against
liquid chemicals — Test method for
resistance of materials to penetration by
liquids
Vêtements de protection — Protection contre les produits chimiques
liquides — Méthode d'essai pour la résistance des matériaux à la
pénétration par des liquides
Reference number
ISO 6530:2005(E)
©
ISO 2005
ISO 6530:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

ISO 6530:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6530 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 162, Protective clothing including hand and arm protection and lifejackets, in collaboration with
Technical Committee ISO/TC 94, Personal safety — Protective clothing and equipment, Subcommittee SC 13,
Protective clothing, in accordance with the Agreement on technical cooperation between ISO and CEN
(Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 6530:1990), which has been technically
revised.
ISO 6530:2005(E)
Introduction
This International Standard specifies a test method for measuring indices of penetration, absorption and
repellency for protective clothing materials against low-volume, low-pressure splashes of liquid chemicals,
usually chemicals of low volatility. ISO 13994 may be used for determining the penetration resistance of
protective clothing materials against chemicals in larger volume and higher pressure splashes.
Clothing made of these materials should not be used as the sole means of protection where resistance to
permeation by chemicals at the molecular level (see ISO 6529) is essential and where a complete barrier to
liquid (or gaseous) chemicals is required (e.g. risk of exposure to massive and forceful discharges of
concentrated liquid chemicals).
Data obtained by this test method may be used as a guide for screening protective clothing materials. Clothing,
which has been developed from materials selected by this method of test should be used, therefore, only in
well-defined circumstances when an evaluation of the finished item has indicated an acceptable level of
performance (in laboratory and field-testing of a garment, consideration of exposure levels to specified
chemicals, etc.).
In interpreting the results of the test method, the influences of the physical properties of the test chemical (e.g.
volatility) should also be taken into consideration.

iv © ISO 2005 – All rights reserved

INTERNATIONAL STANDARD ISO 6530:2005(E)

Protective clothing — Protection against liquid chemicals —
Test method for resistance of materials to penetration by
liquids
1 Scope
This International Standard specifies a test method for the measurement of indices of penetration, absorption
and repellency for protective clothing materials against liquid chemicals, mainly chemicals of low volatility.
Two levels of the potential performance of materials are assessed by this method of testing to meet with
possible requirements for protection against
a) deposition on the surface of a material, at minimal pressure, of spray droplets up to coalescence or
occasional small drips;
b) contamination by a single low-volume splash or low-pressure jet, allowing sufficient time to divest the
clothing or take other action as necessary to eliminate any hazard to the wearer from chemical retained
by the protective garment, or, in circumstances where pressure is applied to liquid contaminants on the
surface of the clothing material, as a result of natural movements of the wearer (flexing of contaminated
areas of clothing at arms, knees, shoulders) and contact with contaminated surfaces (e.g. walking
through sprayed foliage).
2 Definitions
For the purpose of this document, the following terms and definitions apply.
2.1
penetration
process by which a chemical moves through pores, apertures or essential openings in a material or finished
item of clothing
NOTE The apertures can be the result of mechanical damage.
2.2
permeation
process by which a chemical moves through a protective clothing material on a molecular level
NOTE Permeation involves the following:
a) sorption of the molecules of the chemical onto the contact surface (outer surface) of the material;
b) diffusion of the sorbed molecules into the material;
c) desorption of the molecules from the opposite (inner) surface of the material.
2.3
repellency
ability of a material to shed liquid that is applied to its surface
ISO 6530:2005(E)
3 Principle
A measured volume of a test liquid is applied in the form of a fine stream or jet to the surface of a clothing
material resting in an inclined gutter.
Determination of the respective proportions of the applied liquid which penetrate a test specimen and which
are repelled by its surface indicates the potential of the material for use in the described field of application.
4 Method
4.1 Apparatus
The apparatus, as assembled (see Figure 1), shall comprise the following:
 rigid transparent gutter, of semi-cylindrical shape, with an internal diameter (125 ± 5) mm, length
(300 ± 2) mm and inclination 45°;
 rigid cover (not shown in Figure 1), semi-cylindrical in shape, length 270 mm, external diameter
(105 ± 5) mm and an evenly distributed mass of (140 ± 7) g;
 hypodermic needle, bore (0,8 ± 0,02) mm; length is not critical but the pointed tip shall be removed and
the end ground flat;
 syringe or other leak-free attachment to the needle, capable of delivering (10 ± 0,5) cm of test liquid;
 motorized syringe-drive unit or a hydraulic pump or other pressurized system, to deliver the correct
volume of test liquid [(10 ± 0,5) cm ] in an unbroken stream or jet via the needle within (10 ± 1) s; manual
delivery or gravity shall not be used;
WARNING — Appropriate precautions applicable to the use of equipment under pressure and the
forceful discharge of liquid chemicals should be taken.
 mounting device, for maintaining the hypodermic needle and attachments in their required positions
(see Figure 1);
 small beaker;
 balance, accurate to 0,01 g;
 transparent film, resistant to the test liquid;
1)
 absorbent paper , 0,15 mm to 0,2 mm thick;
 stopwatch, accurate to 0,1 s;
 temperature controlled room or cabinet, to enable tests to be carried out at temperatu
...
