EN ISO 25119-4
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2018
EUROPÄISCHE NORM
ICS 35.240.99; 65.060.01 Supersedes EN 16590-4:2014
English Version
Tractors and machinery for agriculture and forestry -
Safety-related parts of control systems - Part 4:
Production, operation, modification and supporting
processes (ISO 25119-4:2018)
Tracteurs et matériels agricoles et forestiers - Parties Traktoren und Maschinen für die Land- und
des systèmes de commande relatives à la sécurité - Forstwirtschaft - Sicherheitsbezogene Teile von
Partie 4: Procédés de production, de fonctionnement, Steuerungen - Teil 4: Fertigung, Betrieb, Modifikation
de modification et d'entretien (ISO 25119-4:2018) und unterstützende Prozesse (ISO 25119-4:2018)
This European Standard was approved by CEN on 15 October 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 25119-4:2018 E
worldwide for CEN national Members.

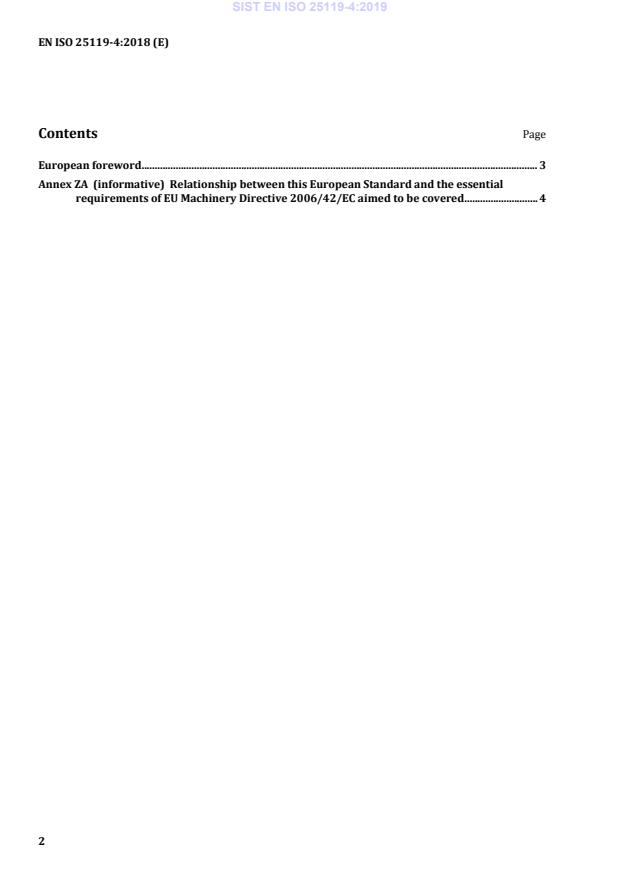

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of EU Machinery Directive 2006/42/EC aimed to be covered . 4

European foreword
This document (EN ISO 25119-4:2018) has been prepared by Technical Committee ISO/TC 23 "Tractors
and machinery for agriculture and forestry" in collaboration with Technical Committee CEN/TC 144
“Tractors and machinery for agriculture and forestry” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2019, and conflicting national standards shall be
withdrawn at the latest by June 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16590-4:2014.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 25119-4:2018 has been approved by CEN as EN ISO 25119-4:2018 without any
modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of EU Machinery Directive 2006/42/EC aimed to be covered
This European Standard has been prepared under a Commission’s standardization request M/396 to
provide one voluntary means of conforming to essential requirements of the Directive 2006/42/EC on
Machinery.
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirement
of that Directive, and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Annex I of Directive
2006/42/EC
Essential requirements of EU
Clause(s)/sub-clause(s) of this
Machinery Directive Remarks/Notes
EN
2006/42/EC
Annex I, 1.2.1 All normative clauses and sub- Compliance with the
clauses requirements of EN ISO 25119-
1:2018, EN ISO 25119-2:2018,
EN ISO 2519-3:2018 and EN
ISO 25119-4:2018 is required to
achieve conformity with
essential requirement 1.2.1,
paragraph 1, of Directive
2006/42/EC within the limits of
the scope of these standards.
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
INTERNATIONAL ISO
STANDARD 25119-4
Second edition
2018-10
Tractors and machinery for
agriculture and forestry — Safety-
related parts of control systems —
Part 4:
Production, operation, modification
and supporting processes
Tracteurs et matériels agricoles et forestiers — Parties des systèmes
de commande relatives à la sécurité —
Partie 4: Procédés de production, de fonctionnement, de modification
et d'entretien
Reference number
ISO 25119-4:2018(E)
©
ISO 2018
ISO 25119-4:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO 25119-4:2018(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Abbreviated terms . 2
5 Quality management system . 3
6 Safety validation and verification . 3
6.1 Objectives. 3
6.2 General . 3
6.3 Prerequisites . 3
6.4 Requirements . 4
6.4.1 SRP/CS design validation and verification . 4
6.4.2 Scope of safety validation and verification. 4
6.4.3 Activities. 4
6.4.4 Validation and verification plan . 4
6.4.5 Validation and verification test specification . 5
6.5 Work products . 5
7 Configuration management . 5
7.1 Objectives. 5
7.2 Prerequisites . 5
7.3 Requirements . 5
7.4 Work products . 6
8 Product release . 6
8.1 Objectives. 6
8.2 General . 6
8.3 Prerequisites . 7
8.4 Requirements . 7
8.4.1 Conditions for product release . 7
8.4.2 Documentation of product release . 7
8.5 Work products . 7
9 Production planning, production and production testing . 7
9.1 Objectives. 7
9.2 General . 7
9.3 Prerequisites . 8
9.4 Requirements . 8
9.4.1 Production plan . 8
9.4.2 Production test plan . . 8
9.4.3 Personnel . 8
9.4.4 Process capability . 8
9.4.5 Documentation . 8
9.4.6 Non-compliance . . . 8
9.4.7 Storage and transport conditions . 9
9.5 Work products . 9
10 Operation planning and maintenance (instructions for operating, servicing, repair
and decommissioning) . 9
10.1 Objectives. 9
10.2 General . 9
10.3 Prerequisites . 9
10.4 Requirements . 9
ISO 25119-4:2018(E)
10.4.1 General. 9
10.4.2 Servicing schedule . 9
10.4.3 Repair instructions .10
10.4.4 Service technician instructions .10
10.4.5 User information .10
10.4.6 Field observation .10
10.4.7 Storage and transport information .10
10.4.8 Decommissioning and disassembling .10
10.5 Work products .11
11 Modifications (change management) .11
11.1 Objective .11
11.2 General .11
11.3 Prerequisites .11
11.4 Requirements .11
11.4.1 Product modification and improvement procedures .11
11.4.2 Modification request .13
11.4.3 Assessing impact of modification .14
11.4.4 Modification authorization .14
11.5 Work products .14
12 Procedure for suppliers of SRP/CS, subsystems and components .15
12.1 Objectives.15
12.2 General .15
12.3 Prerequisites .15
12.4 Requirements .15
12.4.1 General.15
12.4.2 Scope of requirements .15
12.4.3 Supplier selection . .16
12.4.4 Project initiation .16
12.4.5 Project planning .16
12.4.6 Project execution .16
12.4.7 Confirmation measures for the development partners' functional safety .17
12.4.8 System validation .17
12.5 Work products .17
13 Technical documentation .17
13.1 Objectives.17
13.2 Requirements .17
13.2.1 Document retention .17
13.2.2 Document structure .17
Annex A (informative) Technical documentation checklist .19
Bibliography .22
iv © ISO 2018 – All rights reserved

ISO 25119-4:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 19, Agricultural electronics.
This second edition cancels and replaces the first edition (ISO 25119-4:2010), which has been technically
revised. The main changes compared to the previous edition are as follows:
— the introduction has been modified to add specific information on safety standards;
— the scope has been slightly modified;
— and a new Clause 5 (quality management system) has been added;
— the former Clause 5 (configuration management) has been moved after Clause 6;
— Clause 6 has been revised;
— the example of technical documentation checklist has been modified;
— the document has been editorially revised.
A list of all parts in the ISO 25119 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
ISO 25119-4:2018(E)
Introduction
ISO 25119 (all parts) sets out an approach to the assessment, design and verification, for all safety life
cycle activities, of safety-related parts comprising electrical and/or electronic and/or programmable
electronic systems (E/E/PES) on tractors used in agriculture and forestry, and on self-propelled ride-
on machines and mounted, semi-mounted and trailed machines used in agriculture. It is also applicable
to mobile municipal equipment.
A prerequisite to the application of ISO 25119 (all parts) is the completion of a suitable hazard
identification and risk analysis (e.g. ISO 12100) for the entire machine. As a result, an E/E/PES is
frequently assigned to provide safety-related functions that create safety-related parts of control
systems (SRP/CS). These can consist of hardware or software, can be separate or integrated parts of
a control system, and can either perform solely safety-related functions or form part of an operational
function.
In general, the designer (and to some extent, the user) will combine the design and validation of these
SRP/CS as part of the risk assessment. The objective is to reduce the risk associated with a given hazard
(or hazardous situation) under all conditions of use of the machine. This can be achieved by applying
various measures (both SRP/CS and non-SRP/CS) with the end result of achieving a safe condition.
ISO 25119 (all parts) allocates the ability of safety-related parts to perform a safety-related function
under foreseeable conditions into five performance levels. The performance level of a controlled
channel depends on several factors, including system structure (category), the extent of fault detection
mechanisms (diagnostic coverage), the reliability of components (mean time to dangerous failure,
common-cause failure), design processes, operating stress, environmental conditions and operation
procedures. Three types of failures that can cause E/E/PES malfunctions leading to potential hazardous
situations are considered: systematic, common-cause and random.
In order to guide the designer during design, verification, and to facilitate the assessment of the achieved
performance level, ISO 25119 (all parts) defines an approach based on a classification of architecture
with different design features and specific behaviour in case of a fault.
The performance levels and categories can be applied to the control systems of all kinds of mobile
machines: from simple systems (e.g. auxiliary valves) to complex systems (e.g. steer by wire), as well as
to the control systems of protective equipment (e.g. interlocking devices, pressure sensitive devices).
ISO 25119 (all parts) adopts a risk-based approach for the determination of the risks, while providing a
means of specifying the required performance level for the safety-related functions to be implemented
by E/E/PES safety-related channels. It gives requirements for the whole safety life cycle of E/E/PES
(design, validation, production, operation, maintenance, decommissioning), necessary for achieving the
required functional safety for E/E/PES that are linked to the performance levels.
The structure of safety standards in the field of machinery is as follows.
a) Type-A standards (basic safety standards) give basic concepts, principles for design and general
aspects that can be applied to machinery.
b) Type-B standards (generic safety standards) deal with one or more safety aspect(s), or one or more
type(s) of safeguards that can be used across a wide range of machinery:
— type-B1 standards on particular safety aspects (e.g. safety distances, surface temperature, noise);
— type-B2 standards on safeguards (e.g. two-hand controls, interlocking devices, pressure
sensitive devices, guards).
c) Type-C standards (machinery safety standards) deal with detailed safety requirements for a
particular machine or group of machines.
This document is a type-B1 standard as stated in ISO 12100.
vi © ISO 2018 – All rights reserved

ISO 25119-4:2018(E)
This document is of relevance, in particular, for the following stakeholder groups representing the
market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance, etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
In addition, this document is intended for standardization bodies elaborating type-C standards.
The requirements of this document can be supplemented or modified by a type-C standard.
For machines which are covered by the scope of a type-C standard and which have been designed and
built according to the requirements of that standard, the requirements of that type-C standard take
precedence.
INTERNATIONAL STANDARD ISO 25119-4:2018(E)
Tractors and machinery for agriculture and forestry —
Safety-related parts of control systems —
Part 4:
Production, operation, modification and supporting
processes
1 Scope
This document sets out general principles for the design and development of safety-related parts of
control systems (SRP/CS) on tractors used in agriculture and forestry and on self-propelled ride-on
machines and mounted, semi-mounted and trailed machines used in agriculture. It can also be applied
to mobile municipal equipment (e.g. street-sweeping machines).
This document is not applicable to:
— aircraft and air-cushion vehicles used in agriculture;
— lawn and garden equipment.
This document specifies the characteristics and categories required of SRP/CS for carrying out their
safety-related functions. It does not identify performance levels for specific applications.
NOTE 1 Machine specific type-C standards can specify performance levels (AgPL) for safety-related functions
in machines within their scope. Otherwise, the specification of AgPL is the responsibility of the manufacturer.
This document is applicable to the safety-related parts of electrical/electronic/programmable
electronic systems (E/E/PES), as these relate to mechatronic systems. It covers the possible hazards
caused by malfunctioning behaviour of E/E/PES safety-related systems, including interaction of these
systems. It does not address hazards related to electric shock, fire, smoke, heat, radiation, toxicity,
flammability, reactivity, corrosion, release of energy, and similar hazards, unless directly caused by
malfunctioning behaviour of E/E/PES safety-related systems. It also covers malfunctioning behaviour
of E/E/PES safety-related systems involved in protective measures, safeguards, or safety-related
functions in response to non-E/E/PES hazards.
Examples included within the scope of this document:
— SRP/CS limiting current flow in electric hybrids to prevent insulation failure/shock hazards;
— electromagnetic interference with the SRP/CS;
— SRP/CS designed to prevent fire.
Examples not included in the scope of this document:
— insulation failure due to friction that leads to electric shock hazards;
— nominal electromagnetic radiation impacting nearby machine control systems;
— corrosion causing electric cables to overheat.
This document is not applicable to non-E/E/PES systems (e.g. hydraulic, mechanic or pneumatic).
NOTE 2 See also ISO 12100 for design principles related to the safety of machinery.
ISO 25119-4:2018(E)
This document is not applicable to safety related parts of control systems manufactured before the
date of its publication.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3600, Tractors, machinery for agriculture and forestry, powered lawn and garden equipment —
Operator's manuals — Content and format
ISO 25119-1:2018, Tractors and machinery for agriculture and forestry — Safety-related parts of control
systems — Part 1: General principles for design and development
ISO 25119-2:2018, Tractors and machinery for agriculture and forestry — Safety-related parts of control
systems — Part 2: Concept phase
ISO 25119-3:2018, Tractors and machinery for agriculture and forestry — Safety-related parts of control
systems — Part 3: Series development, hardware and software
3 Terms and definitions
For the purposes of this document, the terms and definitions in ISO 25119-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Abbreviated terms
For the purposes of this document, the following abbreviated terms apply.
AgPL agricultural performance level
AgPL required agricultural performance level
r
CAD computer-aided design
Cat hardware category
CCF common-cause failure
DC diagnostic coverage
DC average diagnostic coverage
avg
ECU electronic control unit
ETA event tree analysis
E/E/PES electrical/electronic/programmable electronic systems
EMC electromagnetic compatibility
FMEA failure mode and effects analysis
2 © ISO 2018 – All rights reserved

ISO 25119-4:2018(E)
FSM functional safety management
FTA fault tree analysis
HARA hazard analysis and risk assessment
HIL hardware in the loop
MTTF mean time to failure
MTTF mean time to dangerous failure
d
PES programmable electronic system
QM quality measures
RAM random-access memory
SOP start of production
SRL software requirement level
SRP/CS safety-related parts of control systems
UoO unit of observation
5 Quality management system
A quality management system is an important part of functional safety. Users of this document shall
demonstrate conformance to Clauses 7, 8, 9 and 11 by
— applying quality management principles, for example, those found in ISO 9001, using Clauses 7, 8, 9,
and 11 as guidance, or
— applying the requirements in Clauses 7, 8, 9, and 11 as they are written in this document.
6 Safety validation and verification
6.1 Objectives
One objective is to provide proof that each functional safety requirement has been duly met and is
appropriate for the safety goals of the UoO.
A further objective is to provide proof that each safety goal has been realized as initially desired and
specified and is appropriate for the functional safety of the UoO.
6.2 General
The purpose of the preceding verification and validation stages (e.g. reviews, safety analyses,
component integration tests) is to demonstrate that the results of each particular phase conforms with
the relevant design and implementation safety requirements described in ISO 25119-3.
6.3 Prerequisites
The following are the prerequisites for this phase:
— safety plan according to ISO 25119-1:2018, 6.4.6.3 — deadlines, resources, equipment, degree of
maturity, etc.;
ISO 25119-4:2018(E)
— machine test plan — part of the existing quality assurance process;
— HARA according to ISO 25119-2:2018, Clause 6 — identification of potential hazards;
— functional safety concept according to ISO 25119-2:2018, Clause 7 — safety goals, as well as safe
states, and functional safety requirements;
— technical safety concept according to ISO 25119-3:2018, Clause 5 — technical safety requirements.
6.4 Requirements
6.4.1 SRP/CS design validation and verification
The design of the SRP/CS shall be validated and verified (see ISO 25119-1:2018, Figure 1).
The validation and verification shall demonstrate that each SRP/CS meets:
— the requirements of the specified AgPL including as appropriate:
a) hardware category, MTTF , DC, CCF (see ISO 25119-2:2018, Annexes A, B, C, D);
DC
b) SRL (see ISO 25119-3:2018, Clause 7);
— the safety goals, safe states and remaining functional and technical safety requirements;
— the fulfilment of the assigned safety-related functions.
6.4.2 Scope of safety validation and verification
Within the safety life cycle, validation and verification of safety requirements shall be carried out for
the following:
— complete system at machine level (e.g. bench testing, hardware in the loop testing, test machine);
— hardware;
— software.
6.4.3 Activities
The following sequence shall be followed for a structured safety validation and verification:
— validation and verification planning;
— validation and verification specification;
— validation and verification execution;
— documentation of validation and verification result.
6.4.4 Validation and verification plan
A validation and verification plan shall be developed for the safety goals, safe states, functional and
technical safety requirements, and shall include the following items:
— validation and verification and possible variants;
— degree of maturity of the system;
— validation and verification goals;
— validation and verification techniques;
4 © ISO 2018 – All rights reserved

ISO 25119-4:2018(E)
— statement of independence between the person in charge of validation and verification and the
developer;
— equipment and environmental conditions required, including calibration specifications for tools;
— specified reference to the overall safety plan;
— pass/fail criteria for all tests.
6.4.5 Validation and verification test specification
The following methods and measures as appropriate shall be used and specified:
— tests (e.g. black-box, HIL, machine testing, field testing);
— analysis (e.g. simulation);
— reviews of relevant documents (input from hardware/software, e.g. FMEA, circuit diagram).
6.5 Work products
The following work products shall be provided for this phase:
a) detailed validation and verification plan;
b) test specification;
c) validation and verification documentation that shall include proof that validation and verification
goals have been met for
1) the complete sy
...
