Plastics piping systems for water supply, and for drains and sewers under pressure - Polyethylene (PE) - Part 5: Fitness for purpose of the system

This document specifies the requirements of fitness for purpose of assembled polyethylene (PE) piping systems intended for the conveyance of water intended for human consumption, raw water prior to treatment, drains and sewers under pressure, vacuum sewer systems, and water for other purposes, with the exception of industrial application.
It specifies the requirements for electrofusion, socket fusion, butt fusion and mechanical joints.
It specifies the method of preparation of test piece joints, and the tests to be carried out on these joints for assessing the fitness for purpose of the system under normal and extreme conditions.
NOTE 1   For PE components intended for the conveyance of water for human consumption and raw water prior to treatment attention is drawn to the introduction of this document. Components manufactured for water for other purposes, drains and sewers, and vacuum systems, are possibly not suitable for water supply for human consumption.
NOTE 2   Industrial application is covered by EN ISO 15494 [2].
The intended use includes sea outfalls, laid in water and pipes suspended below bridges.
It also specifies the test parameters for the test methods referred to in this document.
This document is intended to only be used by the product manufacturer to assess the performance of components in accordance with EN 12201 2, EN 12201 3, or EN 12201 4 when joined together under normal and extreme conditions in accordance with this document. It is not intended for on-site testing of pipe systems.
In conjunction with EN 12201-1, EN 12201 2, EN 12201 3 and EN 12201 4 this document is applicable to PE pipes, fittings and valves, their joints and joints with components of PE and other materials intended to be used under the following conditions:
a)   allowable operating pressure, PFA, up to 25 bar ;
b)   an operating temperature of 20 °C as a reference temperature for design purposes.
NOTE 3   For applications operating at constant temperatures greater than 20 °C up to and including 50 °C, see EN 12201-1:2024, Annex A.
The EN 12201 series covers a range of allowable operating pressures and gives requirements concerning colours.
NOTE 4   It is the responsibility of the purchaser or specifier to make the appropriate selections from these aspects, taking into account their particular requirements and any relevant national guidance or regulations and installation practices or codes.

Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und Abwasserdruckleitungen - Polyethylen (PE) - Teil 5: Gebrauchstauglichkeit des Systems

Dieses Dokument legt die Anforderungen an die Gebrauchstauglichkeit von montierten Polyethylen (PE) Rohrleitungssystemen fest, die für den Transport von Trinkwasser, des zur Aufbereitung vorgesehenen Rohwassers, für Entwässerungs- und Abwasserdruckleitungen, Unterdruck¬entwässerungssysteme sowie für den Transport von Brauchwasser vorgesehen sind, mit Ausnahme von industriellen Anwendungen.
Es legt die Anforderungen für Heizwendelschweißverbindungen, Muffenschweißverbindungen, Stumpf¬schweißverbindungen und mechanische Verbindungen fest.
Es legt das Verfahren für die Herstellung von Probekörperverbindungen sowie die daran durchzuführenden Prüfungen zur Bewertung der Gebrauchstauglichkeit des Rohrleitungssystems unter üblichen und extremen Bedingungen fest.
ANMERKUNG 1   In Zusammenhang mit Rohrleitungsteilen aus PE für den Transport von Trinkwasser einschließlich des aufzubereitenden Rohwassers wird auf die Einleitung des vorliegenden Dokuments verwiesen. Rohrleitungsteile, die für den Transport von Brauchwasser, für Entwässerungs- und Abwasserleitungen sowie für Unterdrucksysteme gefertigt wurden, sind möglicherweise nicht für die Versorgung mit Trinkwasser geeignet.
ANMERKUNG 2   Industrielle Anwendungen sind durch EN ISO 15494 [2] abgedeckt.
Die bestimmungsgemäße Verwendung umfasst die Entwässerung ins Meer (Siele), in Gewässern verlegte Rohre sowie Düker und Brückenleitungen.
Es legt auch die Prüfparameter für die Prüfverfahren fest, auf die in diesem Dokument verwiesen wird.
Dieses Dokument ist ausschließlich dafür vorgesehen, vom Produkthersteller zur Bewertung der Leistungsfähigkeit von Rohrleitungsteilen nach EN 12201 2, EN 12201 3 oder EN 12201 4, die miteinander unter üblichen Bedingungen und unter extremen Bedingungen nach diesem Dokument verbunden sind, verwendet zu werden. Es ist nicht für die Prüfung von Rohrleitungssystemen auf der Baustelle vorgesehen.
In Verbindung mit EN 12201 1, EN 12201 2, EN 12201 3 und EN 12201 4 ist dieses Dokument anwendbar für Rohre, Formstücke und Armaturen aus PE, deren Verbindungen untereinander mit Rohrleitungsteilen aus PE und aus anderen Werkstoffen, die für die Verwendung unter den folgenden Bedingungen vorgesehen sind:
a)   maximal zulässiger Bauteilbetriebsdruck PFA bis 25 bar ;
b)   eine Betriebstemperatur von 20 °C als Bezugstemperatur für die Bemessung.
ANMERKUNG 3   Für Anwendungsgebiete, in denen konstante Betriebstemperaturen von über 20 °C bis einschließlich 50 °C auftreten, siehe EN 12201 1:2024, Anhang A.
Die Normenreihe EN 12201 deckt einen Bereich von maximal zulässigen Bauteilbetriebsdrücken ab und enthält Anforderungen bezüglich Farben.
ANMERKUNG 4   Es liegt in der Verantwortung des Auftraggebers oder Planers, aus diesen Gesichtspunkten die geeignete Auswahl zu treffen, unter Berücksichtigung ihrer speziellen Anforderungen und jeglicher maßgebenden nationalen Empfehlungen oder Festlegungen und Verfahrensweisen oder Vorschriften für die Verlegung.

Systèmes de canalisations en plastique pour l'alimentation en eau et pour les branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) - Partie 5 : Aptitude à l'emploi du système

Le présent document spécifie les exigences d’aptitude à l’emploi des systèmes de canalisations assemblés en polyéthylène (PE) prévus pour le transport d’eau destinée à la consommation humaine, l’eau brute avant traitement, les branchements et les collecteurs d’assainissement avec pression, les réseaux d’évacuation des eaux usées sous vide et l’eau destinée à d’autres usages, à l’exception des applications industrielles.
Il spécifie les exigences des assemblages par électrosoudage, à emboîtures soudables, par soudage bout à bout et mécaniques.
Il spécifie également la méthode de préparation des assemblages d’éprouvettes, ainsi que les essais à réaliser sur ces assemblages pour évaluer l’aptitude à l’emploi du système dans des conditions normales et extrêmes.
NOTE 1   Pour les composants en PE prévus pour le transport d’eau destinée à la consommation humaine et d’eau brute avant traitement, l’attention est attirée sur l’introduction du présent document. Les composants fabriqués pour l’eau destinée à d’autres usages et pour les branchements et les collecteurs d’assainissement et les réseaux sous vide peuvent s’avérer inaptes pour l’alimentation en eau destinée à la consommation humaine.
NOTE 2   Les applications industrielles sont couvertes par l’EN ISO 15494 [2].
Les utilisations prévues comprennent les émissaires de rejet en mer, posés dans l’eau, et les canalisations suspendues sous des ponts.
Il spécifie également les paramètres d’essai pour les méthodes d’essai référencées dans le présent document.
Le présent document est uniquement destiné à être utilisé par le fabricant du produit pour évaluer la performance des composants conformément à l’EN 12201-2, à l’EN 12201-3 ou à l’EN 12201-4 lorsqu’ils sont assemblés dans des conditions normales et extrêmes conformément au présent document. Il n’est pas destiné à être utilisé pour des essais sur site des systèmes de canalisations.
Conjointement avec l’EN 12201-1, l’EN 12201-2, l’EN 12201-3 et l’EN 12201-4, le présent document s’applique aux tubes, raccords et robinets en PE et à leurs assemblages, ainsi qu’aux assemblages avec des composants en PE et en d’autres matières, destinés à être utilisés dans les conditions suivantes :
a)   une pression de service admissible, PFA, jusqu’à 25 bar  ;
b)   une température de service de 20 °C comme température de référence pour les besoins des calculs.
NOTE 3   Pour les applications à température de service constante supérieure à 20 °C et jusqu’à 50 °C inclus, voir l’EN 12201 1:2024, Annexe A.
La série EN 12201 couvre une gamme de pressions de service admissibles et donne les exigences concernant les couleurs.
NOTE 4   Il est de la responsabilité de l’acheteur ou du concepteur du réseau d’effectuer les choix appropriés à partir de ces données, en tenant compte des exigences particulières et de toute ligne directrice ou toute réglementation nationale applicable, ainsi que des pratiques ou codes de pose.

Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in kanalizacijo pod tlakom - Polietilen (PE) - 5. del: Ustrezanje zahtevam za uporabnost sistema

Ta dokument določa značilnosti ustreznosti za predvidene namene sestavljenih cevnih sistemov za prenos pitne vode, neobdelane vode pred obdelavo, odvodnjavanje in kanalizacijo pod tlakom, vakuumske kanalizacijske sisteme in vode za druge namene.
Prav tako določa metodo za pripravo spojev preskušancev in preskuse, ki se jih opravi na teh spojih za ocenjevanje ustrezanja zahtevam za uporabnost sistema v normalnih in izrednih pogojih.
OPOMBA 1: Za sestavne dele iz polietilena, ki so namenjeni za prenos pitne vode in neobdelane vode pred obdelavo, je treba upoštevati uvod tega dokumenta. Sestavni deli, ki so izdelani za vodo za druge namene, morda niso primerni za oskrbo s pitno vodo.
Določa preskusne parametre za preskusne metode iz tega dokumenta.
OPOMBA 2: Ta dokument je namenjen samo proizvajalcu, da oceni delovanje sestavnih delov v skladu s standardom prEN 12201 2, prEN 12201 3 ali prEN 12201 4, ko so spojeni skupaj pod normalnimi in izrednimi pogoji. Ni namenjen preskušanju cevnih sistemov na kraju samem.
V povezavi z deli od 1 do 4 standarda prEN 12201 se uporablja za cevi, fitinge, ventile in njihove spoje iz polietilena ter spoje s komponentami iz drugih materialov, namenjene uporabi v naslednjih pogojih:
a) dovoljen obratovalni tlak PFA do 25 bar;
b) delovna temperatura 20 °C kot referenčna temperatura za namene projektiranja;
c) položeni v zemljo;
d) izpusti v morje;
e) položeni v vodo;
f) nad tlemi, vključno s cevmi, obešenimi pod mostovi.
OPOMBA 3: V zvezi z napravami, ki delujejo pri stalnih temperaturah od 20 do 40 °C, glej dodatek A k standardu prEN 12201 1:2021.
Skupina standardov EN 12201 zajema razpon najvišjih obratovalnih tlakov in določa zahteve glede barv.
OPOMBA 4: Za ustrezne izbire izdelkov je odgovoren kupec ali specifikator, pri čemer mora upoštevati konkretne zahteve ter vse pomembne nacionalne predpise in prakse ali kodekse vgradnje.

General Information

Status
Published
Publication Date
30-Jan-2024
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
31-Jan-2024
Due Date
15-Mar-2023
Completion Date
31-Jan-2024

Relations

Buy Standard

Standard
EN 12201-5:2024
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

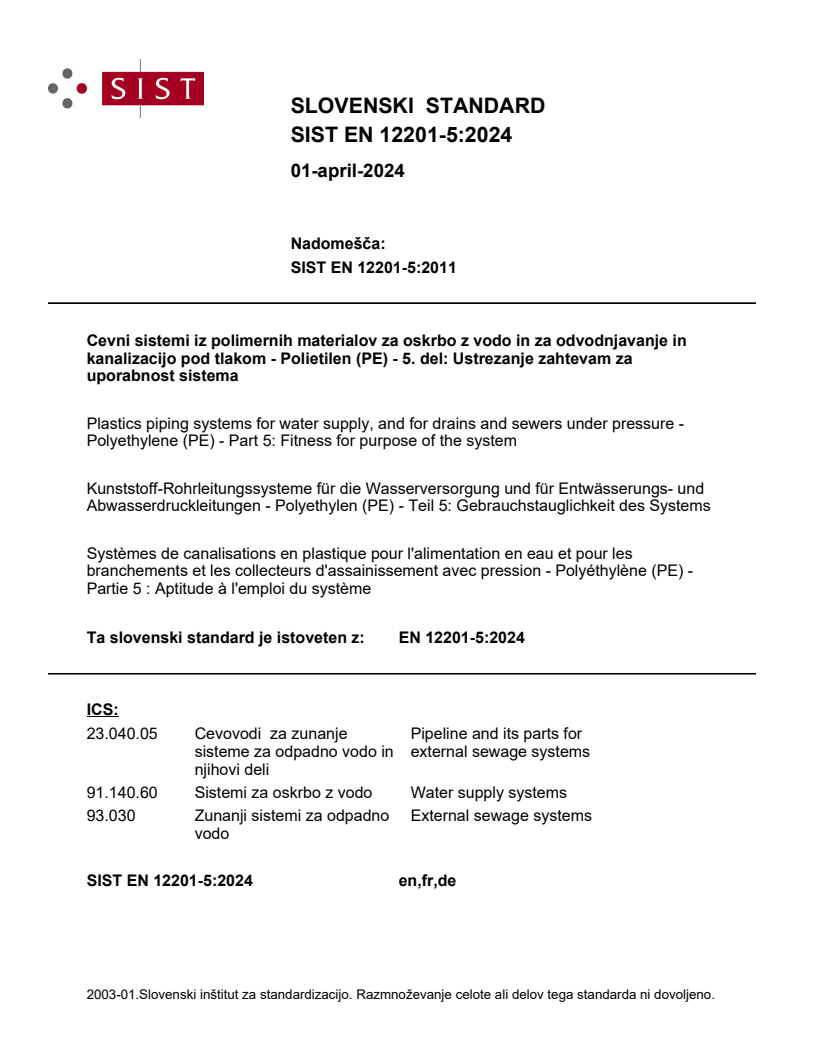

SLOVENSKI STANDARD
01-april-2024
Nadomešča:
SIST EN 12201-5:2011
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za odvodnjavanje in
kanalizacijo pod tlakom - Polietilen (PE) - 5. del: Ustrezanje zahtevam za
uporabnost sistema
Plastics piping systems for water supply, and for drains and sewers under pressure -
Polyethylene (PE) - Part 5: Fitness for purpose of the system
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für Entwässerungs- und
Abwasserdruckleitungen - Polyethylen (PE) - Teil 5: Gebrauchstauglichkeit des Systems
Systèmes de canalisations en plastique pour l'alimentation en eau et pour les
branchements et les collecteurs d'assainissement avec pression - Polyéthylène (PE) -
Partie 5 : Aptitude à l'emploi du système
Ta slovenski standard je istoveten z: EN 12201-5:2024
ICS:
23.040.05 Cevovodi za zunanje Pipeline and its parts for
sisteme za odpadno vodo in external sewage systems
njihovi deli
91.140.60 Sistemi za oskrbo z vodo Water supply systems
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 12201-5
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2024
EUROPÄISCHE NORM
ICS 23.040.20 Supersedes EN 12201-5:2011
English Version
Plastics piping systems for water supply, and for drains
and sewers under pressure - Polyethylene (PE) - Part 5:
Fitness for purpose of the system
Systèmes de canalisations en plastique pour Kunststoff-Rohrleitungssysteme für die
l'alimentation en eau et pour les branchements et les Wasserversorgung und für Entwässerungs- und
collecteurs d'assainissement avec pression - Abwasserdruckleitungen - Polyethylen (PE) - Teil 5:
Polyéthylène (PE) - Partie 5 : Aptitude à l'emploi du Gebrauchstauglichkeit des Systems
système
This European Standard was approved by CEN on 10 December 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12201-5:2024 E
worldwide for CEN national Members.

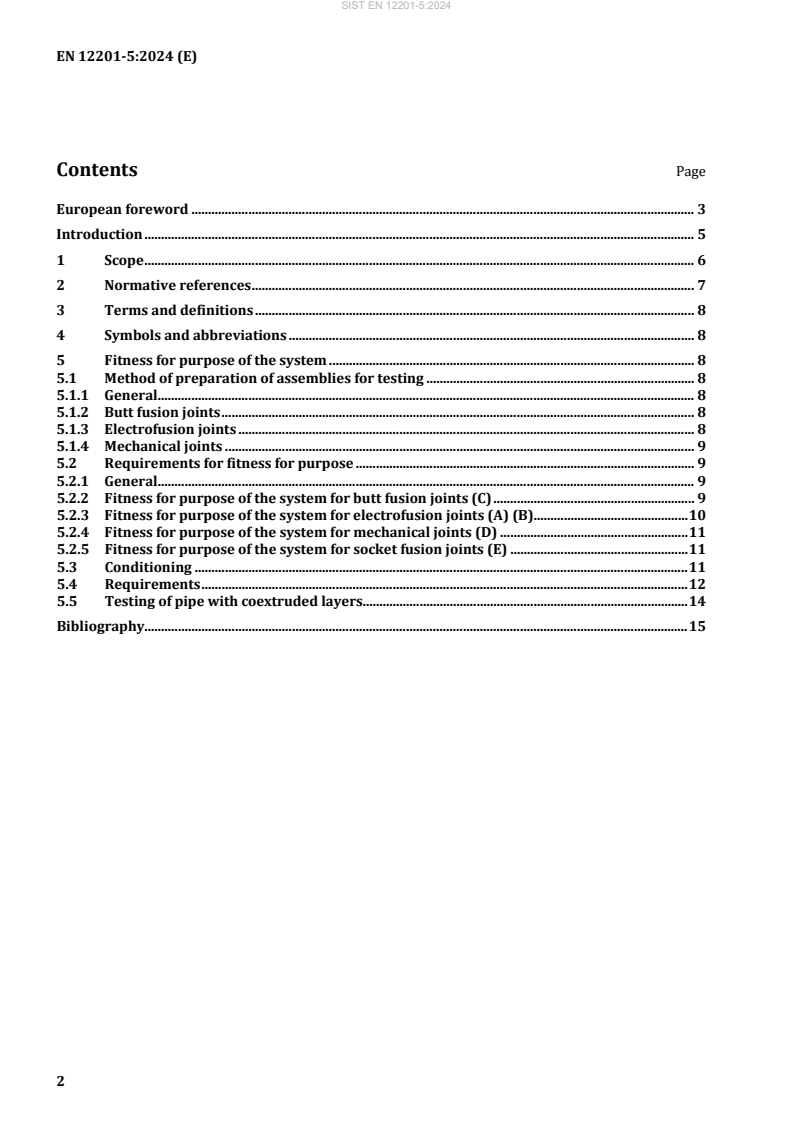

Contents Page

European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 8
4 Symbols and abbreviations . 8
5 Fitness for purpose of the system . 8
5.1 Method of preparation of assemblies for testing . 8
5.1.1 General . 8
5.1.2 Butt fusion joints . 8
5.1.3 Electrofusion joints . 8
5.1.4 Mechanical joints . 9
5.2 Requirements for fitness for purpose . 9
5.2.1 General . 9
5.2.2 Fitness for purpose of the system for butt fusion joints (C) . 9
5.2.3 Fitness for purpose of the system for electrofusion joints (A) (B). 10
5.2.4 Fitness for purpose of the system for mechanical joints (D) . 11
5.2.5 Fitness for purpose of the system for socket fusion joints (E) . 11
5.3 Conditioning . 11
5.4 Requirements . 12
5.5 Testing of pipe with coextruded layers. 14
Bibliography. 15

European foreword
This document (EN 12201-5:2024) has been prepared by Technical Committee CEN/TC 155 “Plastics
piping systems and ducting systems”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2024, and conflicting national standards shall be
withdrawn at the latest by July 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12201-5:2011.
System Standards are based on the results of the work being undertaken in ISO/TC 138 “Plastics pipes,
fittings and valves for the transport of fluids”, which is a Technical Committee of the International
Organization for Standardization (ISO).
They are supported by separate standards on test methods to which references are made throughout the
System Standard.
The System Standards are consistent with general standards on functional requirements and on
recommended practice for installation.
EN 12201 consists of the following parts:
— EN 12201-1, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 1: General;
— EN 12201-2, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 2: Pipes;
— EN 12201-3, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 3: Fittings;
— EN 12201-4, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 4: Valves for water supply systems;
— EN 12201-5, Plastics piping systems for water supply, and for drains and sewers under pressure —
Polyethylene (PE) — Part 5: Fitness for purpose of the system (this document).
In addition, the following document provides guidance on the assessment of conformity:
— CEN/TS 12201-7, Plastics piping systems for water supply, and for drainage and sewerage under
pressure — Polyethylene (PE) — Part 7: Guidance for the assessment of conformity.
The revision of this System Standard has been carried out principally to add the PE 100-RC type materials
with enhanced resistance to slow crack growth. EN 12201-1:2024, Annex C discusses the performance of
this type of material and gives additional information for non-conventional installation techniques. In
addition, test methods have been updated.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document specifies the requirements for a piping system and its components made from
polyethylene (PE). The piping system is intended to be used for water supply intended for human
consumption, including the conveyance of raw water prior to treatment, drains and sewers under
pressure, vacuum sewer systems, and water for other purposes.
In respect of potential adverse effects on the quality of water intended for human consumption, caused
by the product covered by the EN 12201 series:
— this document provides no information as to whether the products may be used without restriction
in any of the Member States of the EU or EFTA;
NOTE Attention is drawn to the presence of national regulations and testing arrangements in relation to
products intended for use in water supply to ensure fitness for contact with drinking water.
Requirements and test methods for components of the piping system are specified in EN 12201-1,
EN 12201-2, EN 12201-3 and EN 12201-4. CEN/TS 12201-7 [1] gives guidance for assessment of
conformity.
This part of EN 12201 covers the characteristics of the fitness for purpose of the system.
1 Scope
This document specifies the requirements of fitness for purpose of assembled polyethylene (PE) piping
systems intended for the conveyance of water intended for human consumption, raw water prior to
treatment, drains and sewers under pressure, vacuum sewer systems, and water for other purposes, with
the exception of industrial application.
It specifies the requirements for electrofusion, socket fusion, butt fusion and mechanical joints.
It specifies the method of preparation of test piece joints, and the tests to be carried out on these joints
for assessing the fitness for purpose of the system under normal and extreme conditions.
NOTE 1 For PE components intended for the conveyance of water for human consumption and raw water prior
to treatment attention is drawn to the introduction of this document. Components manufactured for water for other
purposes, drains and sewers, and vacuum systems, are possibly not suitable for water supply for human
consumption.
NOTE 2 Industrial application is covered by EN ISO 15494 [2].
The intended use includes sea outfalls, laid in water and pipes suspended below bridges.
It also specifies the test parameters for the test methods referred to in this document.
This document is intended to only be used by the product manufacturer to assess the performance of
components in accordance with EN 12201-2, EN 12201-3, or EN 12201-4 when joined together under
normal and extreme conditions in accordance with this document. It is not intended for on-site testing of
pipe systems.
In conjunction with EN 12201-1, EN 12201-2, EN 12201-3 and EN 12201-4 this document is applicable
to PE pipes, fittings and valves, their joints and joints with components of PE and other materials intended
to be used under the following conditions:
a) allowable operating pressure, PFA, up to 25 bar ;
b) an operating temperature of 20 °C as a reference temperature for design purposes.
NOTE 3 For applications operating at constant temperatures greater than 20 °C up to and including 50 °C, see
EN 12201-1:2024, Annex A.
The EN 12201 series covers a range of allowable operating pressures and gives requirements concerning
colours.
NOTE 4 It is the responsibility of the purchaser or specifier to make the appropriate selections from these
aspects, taking into account their particular requirements and any relevant national guidance or regulations and
installation practices or codes.

1 5 2
1 bar = 0,1 MPa. = 10 Pa; 1 MPa = 1 N/mm
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12201-1, Plasti
...
