EN 13163:2012+A1:2015

SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 13163:2013
Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega polistirena
(EPS) - Specifikacija
Thermal insulation products for buildings - Factory made expanded polystyrene (EPS)
products - Specification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem
Polystyrol (EPS) - Spezifikation
Produits isolants thermiques pour le bâtiment - Produits manufacturés en polystyrène
expansé (EPS) - Spécification
Ta slovenski standard je istoveten z: EN 13163:2012+A1:2015
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13163:2012+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2015
ICS 91.100.60 Supersedes EN 13163:2012
English Version
Thermal insulation products for buildings - Factory made
expanded polystyrene (EPS) products - Specification
Produits isolants thermiques pour le bâtiment - Produits Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte
manufacturés en polystyrène expansé (EPS) - Spécification Produkte aus expandiertem Polystyrol (EPS) - Spezifikation
This European Standard was approved by CEN on 6 October 2012 and includes Amendment 1 approved by CEN on 15 December 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13163:2012+A1:2015 E
worldwide for CEN national Members.

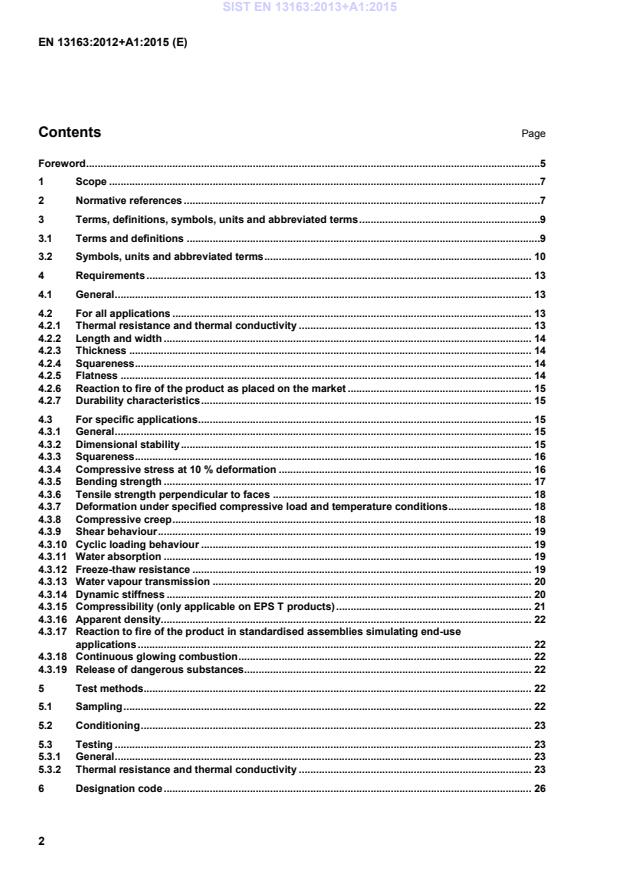

Contents Page
Foreword .5
1 Scope .7
2 Normative references .7
3 Terms, definitions, symbols, units and abbreviated terms .9
3.1 Terms and definitions .9
3.2 Symbols, units and abbreviated terms . 10
4 Requirements . 13
4.1 General . 13
4.2 For all applications . 13
4.2.1 Thermal resistance and thermal conductivity . 13
4.2.2 Length and width . 14
4.2.3 Thickness . 14
4.2.4 Squareness . 14
4.2.5 Flatness . 14
4.2.6 Reaction to fire of the product as placed on the market . 15
4.2.7 Durability characteristics . 15
4.3 For specific applications . 15
4.3.1 General . 15
4.3.2 Dimensional stability . 15
4.3.3 Squareness . 16
4.3.4 Compressive stress at 10 % deformation . 16
4.3.5 Bending strength . 17
4.3.6 Tensile strength perpendicular to faces . 18
4.3.7 Deformation under specified compressive load and temperature conditions . 18
4.3.8 Compressive creep . 18
4.3.9 Shear behaviour . 19
4.3.10 Cyclic loading behaviour . 19
4.3.11 Water absorption . 19
4.3.12 Freeze-thaw resistance . 19
4.3.13 Water vapour transmission . 20
4.3.14 Dynamic stiffness . 20
4.3.15 Compressibility (only applicable on EPS T products) . 21
4.3.16 Apparent density. 22
4.3.17 Reaction to fire of the product in standardised assemblies simulating end-use
applications . 22
4.3.18 Continuous glowing combustion . 22
4.3.19 Release of dangerous substances . 22
5 Test methods . 22
5.1 Sampling . 22
5.2 Conditioning . 23
5.3 Testing . 23
5.3.1 General . 23
5.3.2 Thermal resistance and thermal conductivity . 23
6 Designation code . 26
7 Assessment and Verification of the Constancy of Performance (AVCP) . 27
7.1 General . 27
7.2 Product Type Determination (PTD) . 27
7.3 Factory Production Control (FPC) . 27
8 Marking and labelling . 27
Annex A (normative) Determination of the declared values of thermal resistance and thermal
conductivity . 29
General . 29
A.1
A.2 Input data. 29
A.3 Declared values . 29
Annex B (normative) !Product type determination" (!PTD") and factory production
control (FPC) . 31
!Product type determination" and factory production control . 31
B.1
B.2 Indirect testing for factory production control . 36
Annex C (normative) Product classification . 39
Annex D (normative) Multi layered EPS products . 41
General . 41
D.1
D.2 Requirements . 41
D.3 Test methods . 42
D.4 Evaluation of conformity . 42
Annex E (informative) Verification of the reaction to fire classification of raw materials . 43
General . 43
E.1
E.2 Material covered by this annex . 43
E.3 Preparation of samples . 43
E.4 !Product type determination" for EPS raw material . 43
E.5 Factory Production Control for EPS raw material . 44
E.6 Certification of conformity for EPS raw material . 44
E.7 Continuous surveillance of EPS raw material . 45
E.8 Material certificate for EPS raw material . 45
E.9 Requirement for raw material supply . 46
Annex F (informative) Additional properties . 47
General . 47
F.1
F.2 Long-term compressive behaviour . 47
F.3 Shear behaviour . 47
F.4 Water vapour diffusion resistance factor . 48
F.5 Examples of determination of thermal conductivity . 48
F.6 Additional information . 49
Annex ZA (informative) !Clauses of this European Standard addressing the provisions of the

EU Construction Products Regulation . 50
Bibliography . 61
Tables
Table 1 — Classes of dimensional tolerances . 14
Table 2 — Dimensional stability under specified temperature or specified temperature and
humidity conditions . 16
Table 3 — Levels for compressive stress at 10 % deformation . 17
Table 4 — Levels for bending strength . 17
Table 5 — Levels of deformation under specified compressive load and temperature conditions . 18
Table 6 — Levels for dynamic stiffness . 20
Table 7 — Classes for thickness tolerances . 21
Table 8 — Levels for compressibility . 21
Table 9 — Test methods, test specimens and conditions. 24
Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 30
Table B.1 — Number of tests for !PTD" and minimum product testing frequencies. 31
Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 34
Table C.1 — Classification of EPS products . 39
Table C.2 — Classification EPS products with acoustical properties . 40
Table E.1 — Testing frequency of raw material . 45
Table F.1 — Correlation between bending strength and shear strength . 47
Table F.2 —Tabulated values of water vapour diffusion resistance index and water vapour
permeability . 48
Table ZA.1 — Relevant clauses for factory made expanded polystyrene and intended use . 51
Table ZA.2 — Systems of AVCP . 52
Table ZA.3.1 — Assignment of AVCP tasks for factory made expanded polystyrene products
under system 1 for reaction to fire and system 3 (see Table ZA.2) . 53
Table ZA.3.2 — Assignment of AVCP tasks for factory made expanded polystyrene products
under system 3 (see Table ZA.2) . 54
Table ZA.3.3 — Assignment of AVCP tasks for factory made expanded polystyrene products
under combined system 4 for reaction to fire and system 3 (see Table ZA.2) . 55
Figures
Figure B.1 — Relationship between compressive stress at 10 % deformation and apparent
density for indirect testing . 37
Figure F.1 — Example of a relationship between thermal conductivity (at 50 mm reference
thickness and 10 °C mean temperature) apparent density for indirect testing of non
infrared absorbing EPS . 49
Figure ZA.1 — Example CE marking information of products under AVCP system 3" . 60

Foreword
This document (EN 13163:2012+A1:2015) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2015, and conflicting national standards shall be withdrawn at
the latest by November 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
!For relationship with EU Construction Products Regulation (CPR), see informative Annex ZA, which is an
integral part of this standard."
This document supersedes !EN 13163:2012".
This document includes Amendment 1 approved by CEN on 2014-12-15.
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
The main changes to EN 13163:2008 are:
a) better harmonisation between the individual standards of the package (EN 13162 to EN 13171) on
definitions, requirements, classes and levels;
b) new annex on multi-layered products;
c) new annex on voluntary verification of the reaction to fire classification of raw materials;
d) changes on some editorial and technical content and addition of information on some specific items such
as for EPS dimensional stability, compressibility;
e) addition of links to EN 15715, Thermal insulation products — Instructions for mounting and fixing for
reaction to fire testing — Factory made products;
f) changes to the Annex ZA.
!Amendment 1 modifies EN 13163:2012 identifying those clauses of the standard which are needed for the
compliance of the European Standard with the Construction Products Regulation (CPR).
This amendment introduces
g) an addition to the foreword;
h) an addition in 3.2;
i) a new subclause 4.3.19;
j) modification of Clause 7;
k) modification of Clause 8;
l) modification of Annex B;
m) modification of Annex E;
n) a new Annex ZA."
This standard is one of a series of standards for thermal insulation products used in buildings, but this
standard may be used in other areas where appropriate.
In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards listed
below as a European package of standards.
The package of standards comprises the following group of interrelated standards for the specifications of
factory made thermal insulation products, all of which come within the scope of CEN/TC 88:
EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products —
Specification
EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS) products
— Specification
EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS)
products — Specification
EN 13165, Thermal insulation products for buildings — Factory made rigid polyurethane foam (PU) products
— Specification
EN 13166, Thermal insulation products for buildings — Factory made phenolic foam (PF) products —
Specification
EN 13167, Thermal insulation products for buildings — Factory made cellular glass (CG) products —
Specification
EN 13168, Thermal insulation products for buildings – Factory made wood wool (WW) products –
Specification
EN 13169, Thermal insulation products for buildings — Factory made expanded perlite board (EPB) products
— Specification
EN 13170, Thermal insulation products for buildings — Factory made products of expanded cork (ICB) —
Specification
EN 13171, Thermal insulation products for buildings — Factory made wood fibre (WF) products —
Specification
The reduction in energy used and emissions produced during the installed life of insulation products exceeds
by far the energy used and emissions made during the production and disposal processes.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

1 Scope
This European Standard specifies the requirements for factory made expanded polystyrene products, with or
without rigid or flexible facings or coatings, which are used for the thermal insulation of buildings. The products
are manufactured in the form of boards or rolls or other preformed ware (flat, tapered, tongue and grooves,
shiplap, profiled etc.).
Products covered by this standard are also used for sound insulation and in prefabricated thermal insulation
systems and composite panels; the performance of systems incorporating these products is not covered.
This standard describes product characteristics and includes procedures for testing, evaluation of conformity,
marking and labelling.
This standard does not specify the required class or level of a given property to be achieved by a product to
demonstrate fitness for purpose in a particular application. The classes and levels required for a given
application are to be found in regulations or non-conflicting standards.
Products with a declared thermal resistance lower than 0,25 m²⋅K/W or a declared thermal conductivity at 10
°C greater than 0,060 W/(m⋅K) are not covered by this standard.
This standard does not cover in-situ insulation products (covered by FprEN 16025-1 and -2), products
intended to be used for the insulation of building equipment and industrial installations (covered by EN 14309),
products intended to be used in civil engineering applications (covered by EN 14933) and products intended
to be used in beam and block systems in floors (covered by EN 15037-4).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 822, Thermal insulating products for building applications — Determination of length and width
EN 823, Thermal insulating products for building applications — Determination of thickness
EN 824, Thermal insulating products for building applications — Determination of squareness
EN 825, Thermal insulating products for building applications — Determination of flatness
EN 826, Thermal insulating products for building applications — Determination of compression behaviour
EN 1602, Thermal insulating products for building applications — Determination of the apparent density
EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under
constant normal laboratory conditions (23 °C/ 50 % relative humidity)
EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under
specified temperature and humidity conditions
EN 1605, Thermal insulating products for building applications — Determination of deformation under
specified compressive load and temperature conditions
EN 1606, Thermal insulating products for building applications — Determination of compressive creep
EN 1607, Thermal insulating products for building applications — Determination of tensile strength
perpendicular to faces
EN 12085, Thermal insulating products for building applications — Determination of linear dimensions of test
specimens
EN 12086:1997, Thermal insulating products for building applications — Determination of water vapour
transmission properties
EN 12087, Thermal insulating products for building applications — Determination of long term water
absorption by immersion
EN 12088, Thermal insulating products for building applications — Determination of long term water
absorption by diffusion
EN 12089, Thermal insulating products for building applications — Determination of bending behaviour
EN 12090, Thermal insulating products for building applications — Determination of shear behaviour
EN 12091, Thermal insulating products for building applications — Determination of freeze-thaw resistance
EN 12429, Thermal insulating products for building applications — Conditioning to moisture equilibrium under
specified temperature and humidity conditions
EN 12431, Thermal insulating products for building applications — Determination of thickness for floating floor
insulation products
EN 12667, Thermal performance of building material and products — Determination of thermal resistance by
means of guarded hot plate and heat flow meter methods — Products of high and medium thermal resistance
EN 12939, Thermal performance of building materials and products — Determination of thermal resistance by
means of guarded hot plate and heat flow meter methods — Thick products of high and medium thermal
resistance
EN 13172:2012, Thermal insulation products — Evaluation of conformity
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using
data from reaction to fire tests
EN 13793, Thermal insulating products for building applications — Determination of behaviour under cyclic
loading
EN 13820, Thermal insulating materials for building applications — Determination of organic content
EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the
thermal attack by a single burning item
EN 15715:2009, Thermal insulation products — Instructions for mounting and fixing for reaction to fire testing -
Factory made products
EN 29052-1, Acoustics — Determination of dynamic stiffness — Part 1: Materials used under floating floors in
dwellings (ISO 9052-1)
EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182)
EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific
value) (ISO 1716)
EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007)
EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame —
Part 2: Single-flame source test (ISO 11925-2)
ISO 16269-6:2005, Statistical interpretation of data — Part 6: Determination of statistical tolerance intervals
3 Terms, definitions, symbols, units and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 apply with exception
or in addition of the following:
3.1.1
expanded polystyrene (EPS)
rigid cellular plastic material, manufactured by moulding beads or granules of expandable polystyrene or one
of its copolymers, with an air filled closed cellular structure, which is divided into four types related to the
intended use:
— EPS: for load bearing applications, where i stands for the declared value (expressed in compressive
i
stress at 10 % deformation)
— EPS S: for non load bearing applications
— EPS SD: for non load bearing applications with acoustic properties
— EPS T: for floating floor applications
3.1.2
expanded polystyrene block
rigid insulation product or material generally of rectangular cross section and with a thickness not significantly
smaller than the width, supplied trimmed or untrimmed
3.1.3
expanded polystyrene board
rigid insulation product (cut, moulded, or continuously foamed) of rectangular shape and cross section in
which the thickness is significantly smaller than the other dimensions; it may be of uniform thickness or
tapered and the edges may be of various sorts (e.g. square, half lapped, tongue and groove)
3.1.4
expanded polystyrene roll
boards or strips bonded to a flexible facing, supplied in a wound or folded form, which form a continuous
insulation layer when unrolled
3.1.5
preformed ware
insulation shapes formed by cutting or routing from blocks or boards or by shape moulding
3.1.6
level
value, which is the upper or lower limit of a requirement, and given by the declared value of the characteristic
concerned
3.1.7
class
combination of two levels of the same property between which the performance shall fall
3.1.8
multi-layered insulation product
product which can be faced or coated made from two or more layers of a thermal insulation material from the
same European Standard, which are bonded together either horizontally by chemical or physical adhesion
3.1.9
composite insulation product
product which can be faced or coated, made from two or more layers bonded together by chemical or physical
adhesion consisting of at least one factory made thermal insulation material layer
3.1.10
facing
functional or decorative surface layer with a thickness of less than 3 mm, e.g. paper, plastic film, fabric or
metal foil, which is not considered as separate thermal insulation layer to be added to the thermal resistance
of the product
3.1.11
coating
functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting, spraying,
pouring or trowelling, which is not considered as separate thermal insulation layer to be added to the thermal
resistance of the product
3.2 Symbols, units and abbreviated terms
Symbols and units used in this standard:
1 - α is the prediction interval 1
b is the width mm
b
is a regression coefficient kPa
b is a regression coefficient kPa·m³/kg
c
is the compressibility mm
d is the thickness mm
δ
is the water vapour permeability mg/(Pa⋅h⋅m)
d is the thickness under a load of 2 kPa after removal of an additional load of 48 mm
B
kPa
d is the thickness under a load of 250 Pa mm
L
d is the nominal thickness of the product mm
N
d is the thickness of the test specimen mm
s
Δε is the relative change in width %
b
Δε is the relative change in thickness %
d
Δε is the relative change in length %
l
ε is the deformation after step A in accordance with EN 1605 %
ε is the deformation after step B in accordance with EN 1605 %
ε is the compressive creep %
ct
ε is the maximum relative deformation in accordance with EN 13793 %
l.max
ε is the total relative thickness reduction %
t
E is the dynamic elasticity modulus MN/m²
dyn
G is the shear modulus kPa
i is a counter 1
k
is a factor related to the number of test results available 1
l is the length mm
λ is the 90 % fractile with a confidence level of 90 % for the thermal conductivity
W/(m⋅K)
90, 90
λ is the declared of thermal conductivity W/(m⋅K)
D
λ is one test result of thermal conductivity W/(m⋅K)
i
λ
is the mean thermal conductivity W/(m⋅K)
mean
λ is the predicted thermal conductivity with a prediction interval of 90 %
W/(m⋅K)
pred
λ is the design value of thermal conductivity W/(m⋅K)
U
μ is the water vapour diffusion resistance factor 1
n is the number of test results 1
ρ is the apparent density kg/m³
a
ρ is the mean density kg/m³
mean
R is the 90 % fractile with a confidence level of 90 % for the thermal resistance m²⋅K/W
90/90
R
is the declared thermal resistance m²⋅K/W
D
R is one test result of thermal resistance
m²⋅K/W
i
R is the mean thermal resistance m²⋅K/W
mean
R is the design value of thermal resistance m²⋅K/W
U
s'
is the dynamic stiffness MN/m³
σ is the compressive stress at 10 % deformation kPa
σ
is the mean compressive stress at 10 % deformation kPa
10, mean
σ is the predicted compressive stress at 10 % deformation with a prediction kPa
10, pred
interval of 90 %
σ is the bending strength kPa
b
σ is the compressive stress kPa
c
σ is the compressive stress chosen for testing according to EN 13793 kPa
i
σ is the tensile strength perpendicular to faces kPa
mt
S is the deviation from squareness on length and width mm/m
b
S is the deviation from squareness on thickness mm/m
d
s is the estimate of the standard deviation of the thermal conductivity W/(m⋅K)
λ
S is the deviation from flatness mm
max
s
is the estimate of the standard deviation of the thermal resistance m²⋅K/W
R
s is the estimate of the standard deviation of the compressive stress kPa
σ
t is the testing time d
t is the fractile of the Student distribution (k is the number of freedoms) 1
k,1-α
τ is the shear strength kPa
W is the water absorption by diffusion %
dV
W is the long-term water absorption by partial immersion kg/m²
lp
W is the long-term water absorption by total immersion %
lt
Wv is the additional water absorption %
X
is the initial deformation after 60 s from the beginning of the loading mm
X is the deformation at time t (total thickness reduction) mm
τ
Z
is the water vapour resistance m²⋅h⋅Pa/mg

BS is the symbol of the declared level for bending strength
CC (i /i /y) σ is the symbol of the declared level for compressive creep
1 2 c
CP is the symbol of the declared level for compressibility
CS(10) is the symbol of the declared level for compressive stress at 10 % deformation
DS(N) is the symbol of the declared class for dimensional stability under constant normal
laboratory conditions
DS(23,90); is the symbol of the declared level for dimensional stability under specified temperature
DS(70,-); and humidity conditions
DS(70,90)
DLT(5) is the symbol of the declared level for dimensional stability under load and temperature
conditions
FTCD is the symbol of the declared class for freeze-thaw resistance when using samples
prepared by water absorption by diffusion
FTCI is the symbol of the declared class for freeze-thaw resistance when using samples
prepared by long term water absorption by total immersion
GM is the symbol of the declared level for shear modulus
L is the symbol of the declared class for length tolerances
MU is the symbol of the declared water vapour diffusion behaviour
P is the symbol of the declared class for flatness
S is the symbol of the declared class for squareness
SD is the symbol of the declared level for dynamic stiffness
SS is the symbol of the declared level for shear strength
T is the symbol of the declared class for thickness tolerance
TR is the symbol of the declared level for tensile strength perpendicular to faces
W is the symbol of the declared class for width tolerance
WD(V) is the symbol of the declared level for water absorption by diffusion
WL(P) is the symbol of the declared level for long term water absorption by partial immersion
WL(T) is the symbol of the declared level for long term water absorption by total immersion
Z is the symbol of the declared water vapour resistance value
Abbreviated terms used in this standard:
EPS is Expanded PolyStyrene
!PTD is Product Type Determination (previously named ITT for Initial Type Test)"
FPC is Factory Production Control
RtF is Reaction to Fire
!AVCP is Assessment and Verification of Constancy of Performance (previously named attestation of
conformity)
DoP is Declaration of Performance
is Thermal Insulation for Buildings
ThIB
VCP is Verification of Constancy of Performance (previously named evaluation of conformity)"
4 Requirements
4.1 General
Product properties shall be assessed in accordance with Clause 5. To comply with this standard, products
shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate.
NOTE Information on additional properties is given in Annex F.
For multi-layered products, additional requirements are given in Annex D.
One test result for a product property is the average of the measured values on the number of test specimens
given in Table 9.
4.2 For all applications
4.2.1 Thermal resistance and thermal conductivity
Thermal resistance and thermal conductivity shall be based upon measurements carried out in accordance
with EN 12667 or EN 12939 for thick products.
The thermal resistance and the thermal conductivity shall be determined in accordance with Annex A and
declared by the manufacturer according to the following:
— the reference mean temperature shall be 10 ºC;
— the measured values shall be expressed with three significant figures;
— for products of uniform thickness, the thermal resistance, R , shall always be declared. The thermal
D
conductivity, λ , shall be declared where possible. Where appropriate, for products of non-uniform
D
thickness (i.e. for sloped, tapered or shape moulded non flat products) only the thermal conductivity, λ ,
D
shall be declared;
— the declared thermal resistance, R , and the declared thermal conductivity, λ , shall be given as limit
D D
values representing at least 90 % of the production, determined with a confidence level of 90 %;
— the statistical value of the thermal conductivity, λ , shall be rounded upwards to the nearest
90/90
0,001 W/(m⋅K) and declared as λ in levels with steps of 0,001 W/(m⋅K);
D
— the declared thermal resistance, R , shall be calculated from the nominal thickness, d , or d in case of
D N L
products with declared compressibility (see 4.3.15.4) and the corresponding thermal conductivity, λ ,
90/90
unless measured directly;
— the statistical value of the thermal resistance, R , when calculated from the nominal thickness, d , or d
90/90 N L
in case of products with declared compressibility (see 4.3.15.4) and the corresponding thermal
conductivity, λ , shall be rounded downwards to the nearest 0,05 m²⋅K/W, and declared as R in levels
90/90 D
with steps of 0,05 m²⋅K/W;
— the statistical value of thermal resistance, R , for those products for which only the thermal resistance is
90/90
measured directly, shall be rounded downwards to the nearest 0,05 m²⋅K/W, and declared as R in levels
D
with steps of 0,05 m²⋅K/W.
NOTE λ and R (design values) may be determined with reference to EN ISO 10456 [8].
U U
4.2.2 Length and width
Length, l, and width, b, shall be determined in accordance with EN 822. No test result shall deviate from the
nominal values by more than the tolerances given in Table 1 for the declared class.
4.2.3 Thickness
Thickness, d, shall be determined in accordance with EN 823. No test result shall deviate from the nominal
thickness, d , by more than the tolerances given in Table 1 for the declared class.
N
This test shall not be performed when the tests described in 4.3.15 are used.
4.2.4 Squareness
Squareness, S, shall be determined in accordance with EN 824. The deviation from squareness on length and
width, S , shall not exceed the tolerances given in Table 1, for the declared class.
bi
4.2.5 Flatness
Flatness, P, shall be determined in accordance with EN 825. The maximum deviation from flatness, S , shall
max
not exceed the tolerances given in Table 1 for the declared class. This test is not applicable for EPS T
products.
Table 1 — Classes of dimensional tolerances
Tolerances
Property Class
Boards Rolls
Length L(2) ± 2 mm - 1 %
a
+ unrestricted
L(3) ± 0,6 % or ± 3 mm
Width W(1) ± 1 mm ± 0,6 %
a
or ± 1 mm
W(2) ± 2 mm
a
W(3) ± 0,6 % or ± 3 mm ± 0,6 %
a
or ± 3 mm
b
Thickness T(1) ± 1 mm
T(2) ± 2 mm
Squareness on S(1) ± 1 mm/m
length and width
S(2) ± 2 mm/m
S(5) ± 5 mm/m
c
Flatness P(3) 3 mm
P(5) 5 mm
P(10) 10 mm
P(15) 15 mm
P(30) 30 mm
a
Whichever gives the greatest numerical tolerance.
b
For further classes, see 4.3.15.1.
c
Flatness is expressed per metres run.
4.2.6 Reaction to fire of the product as placed on the market
Reaction to fire classification of the product, as placed on the market, shall be determined in accordance with
EN 13501-1 and the basic mounting and fixing rules given in EN 15715.
...
