EN 2813:2018
(Main)Aerospace series - Aluminium alloy AL-P-6061- - T6 - Drawn tube for pressure applications - 0,6 mm ≤ a ≤ 12,5 mm
Aerospace series - Aluminium alloy AL-P-6061- - T6 - Drawn tube for pressure applications - 0,6 mm ≤ a ≤ 12,5 mm
This document specifies the requirements relating to:
Aluminium alloy AL-P-6061-
T6
Drawn tube for pressure applications
0,6 mm ≤ a ≤ 12,5 mm
for aerospace applications
Luft- und Raumfahrt - Aluminiumlegierung AL-P-6061- - T6 - Kaltgezogene Hydraulikrohre - 0,6 mm ≤ a ≤ 12,5 mm
Série aérospatiale - Alliage d'aluminium AL-P-6061- - T6 - Tubes étirés pour applications sous pression - 0,6 mm ≤ a ≤ 12,5 mm
Le présent document spécifie les exigences relatives à :
Alliage d'aluminium AL-P-6061-
T6
Tubes étirés pour applications sous pression
0,6 mm ≤ a ≤ 12,5 mm
pour applications aérospatiales.
Aeronavtika - Aluminijeva zlitina AL-P-6061- - T6 - Vlečena cev za tlačno uporabo 0,6 mm ≤ a ≤ 12,5 mm
Ta dokument določa zahteve, ki se nanašajo na:
aluminijeve zlitine AL-P-6061-
T6
vlečene cevi za tlačno uporabo
0,6 mm ≤ a ≤ 12,5 mm
za uporabo v aeronavtiki.
General Information
- Status
- Published
- Publication Date
- 27-Nov-2018
- Withdrawal Date
- 30-May-2019
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2024
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2813:2018 (published as SIST EN 2813:2019) is a CEN aerospace material standard that specifies requirements for aluminium alloy AL‑P‑6061‑T6 drawn tube for pressure applications. The standard applies to drawn tubes with wall thickness a in the range 0.6 mm ≤ a ≤ 12.5 mm, intended for aerospace use (for example hydraulic and other fluid pressure systems). EN 2813:2018 was prepared under ASD‑STAN and is part of the EN metallic materials series for aerospace applications.
Key topics and requirements
- Material designation: Aluminium alloy AL‑P‑6061‑T6 (chemical composition limits for Si, Fe, Cu, Mn, Mg, Cr, Zn, Ti and other elements are specified in the standard).
- Form and production: Specifies drawn tube form and related manufacturing controls for pressure-service tubing.
- Dimensional range: Covers specified limit dimensions and thickness range 0.6–12.5 mm.
- Delivery condition: T6 heat treatment; delivery condition code U is used to identify condition on delivery.
- Testing and inspection: Refers to EN 2070‑5 for technical specification and test methods. Key inspections include:
- Mechanical properties (proof stress, tensile strength, elongation)
- Flattening, flarability and deformation-under-pressure tests
- Dimensional and marking inspection
- Batch uniformity and product qualification procedures
- Product qualification: Qualification programme and semi‑finished product requirements follow EN 2043 and the general organization set in EN 4258.
- Standards drafting rules: Prepared in accordance with EN 4500‑2 for aluminium alloy material standards.
Applications
- Designed for aerospace pressure systems, notably hydraulic and pneumatic tubing, fluid conveyance and structural pressure lines where reliable, lightweight aluminium tubing is required.
- Used in aircraft systems engineering, component manufacturing and assemblies that demand certified material, consistent mechanical performance and traceable inspection.
Who should use this standard
- Aerospace materials engineers and designers specifying tubing for pressure systems
- Manufacturers and suppliers of aluminium drawn tubing
- Quality, inspection and test laboratories performing material qualification and acceptance testing
- Procurement professionals and certification authorities ensuring compliance with CEN/ASD‑STAN requirements
Related standards
- EN 2070‑5 - Tube used under pressure: technical specification and test methods
- EN 2043 - General requirements for semi‑finished product qualification
- EN 4258 - Organization of metallic material standards for aerospace
- EN 4500‑2 - Rules for drafting aluminium alloy material standards
Keywords: EN 2813:2018, AL‑P‑6061‑T6, drawn tube, pressure applications, aerospace tubing, T6 heat treatment, EN 2070‑5, aluminium alloy standard.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 2813:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Aluminium alloy AL-P-6061- - T6 - Drawn tube for pressure applications - 0,6 mm ≤ a ≤ 12,5 mm". This standard covers: This document specifies the requirements relating to: Aluminium alloy AL-P-6061- T6 Drawn tube for pressure applications 0,6 mm ≤ a ≤ 12,5 mm for aerospace applications
This document specifies the requirements relating to: Aluminium alloy AL-P-6061- T6 Drawn tube for pressure applications 0,6 mm ≤ a ≤ 12,5 mm for aerospace applications
EN 2813:2018 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2813:2018 has the following relationships with other standards: It is inter standard links to EN 2070-5:1989, EN 2043:2013, EN 4258:2024, EN 3275:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2813:2018 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.]RJHQH49.025.20AluminijAluminiumICS:Ta slovenski standard je istoveten z:EN 2813:2018SIST EN 2813:2019en,fr,de01-februar-2019SIST EN 2813:2019SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2813
November
t r s z ICS
v {ä r t wä t r English Version
Aerospace series æ Aluminium alloy ALæPæ x r x sæ æ T x æ Drawn tube for pressure applications æ
rá x mm ≤ a ≤
s tá w mm Série aérospatiale æ Alliage d 5aluminium ALæPæ x r x sæ æ T x æ Tubes étirés pour applications sous pression æ
rá x mm ≤ a ≤
s tá w mm
Luftæ und Raumfahrt æ Aluminiumlegierung ALæPæ x r x sææ T x æ Kaltgezogene Hydraulikrohre æ
rá x mm ≤ a ≤
s tá w mm This European Standard was approved by CEN on
t v September
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
t z s uã t r s z ESIST EN 2813:2019

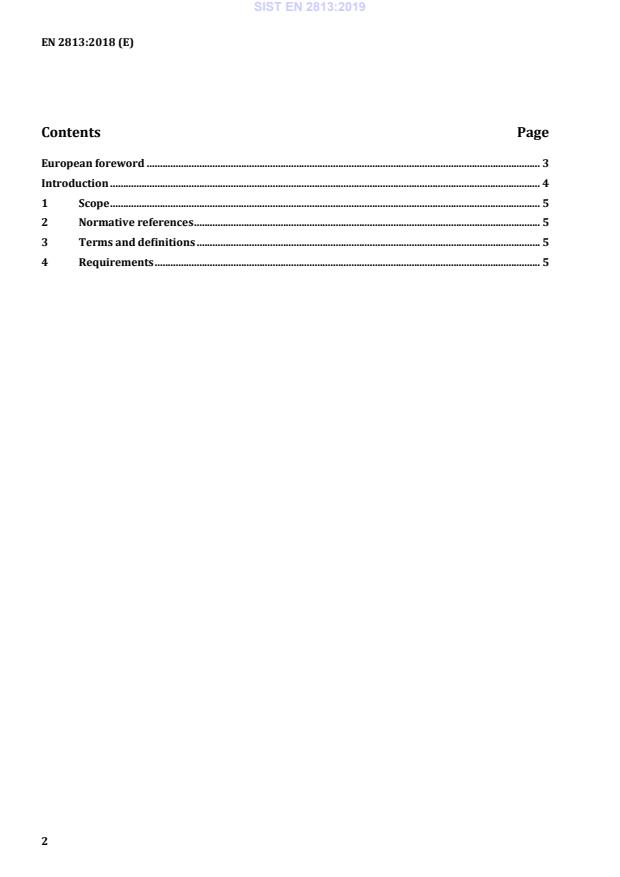

w 2 Normative references .
w 3 Terms and definitions .
w 4 Requirements .
w
...
