Protective helmets - Test methods - Part 5: Retention system strength

This European Standard specifies methods of test for protective helmets. The purpose of these tests is to enable assessment of the performance of the helmet as specified in the appropriate helmet standard.
This European Standard specifies the method of test for retention system strength.

Schutzhelme - Prüfverfahren - Teil 5: Festigkeit des Haltesystems

Die Europäische Norm legt Prüfverfahren für Schutzhelme fest. Zweck dieser Prüfungen ist die Beurteilung der Gebrauchstauglichkeit des Helmes, wie es in der entsprechenden Norm für Helme festgelegt ist.
Diese Europäische Norm legt das Verfahren zur Prüfung der Festigkeit des Haltesystems fest.

Casques de protection - Méthodes d'essai - Partie 5: Résistance du système de rétention

La présente Norme européenne décrit des méthodes d'essai pour les casques de protection. Ces essais sont destinés à permettre l’évaluation de la performance du casque spécifiée dans la norme de casque appropriée.
La présente Norme européenne spécifie la méthode d'essai pour la résistance du système de rétention.

Varovalne čelade - Preskusne metode - 5. del: Čvrstost zadrževalnega sistema

Ta evropski standard določa preskusne metode za varovalne čelade. Namen teh preskusov je omogočiti oceno lastnosti čelade, kot je določeno v ustreznem standardu za čelado. Ta evropski standard določa preskusne metode za čvrstost zadrževalnega sistema.

General Information

Status
Published
Publication Date
07-Feb-2012
Technical Committee
CEN/TC 158 - Head protection
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
18-Dec-2023
Completion Date
14-Apr-2025

Relations

Effective Date
15-Feb-2012

Overview

EN 13087-5:2012 - Protective helmets: Test methods - Part 5: Retention system strength (CEN) specifies standardized laboratory methods to assess the strength and behaviour of helmet retention systems (chinstraps, fastenings and related assemblies). The standard is a supplement to product-specific helmet standards and is intended to support conformity assessment and product development for head protective equipment (PPE) in Europe.

Key topics and technical requirements

  • Scope: Defines methods to measure retention system strength; performance criteria are given in the appropriate helmet standard (not in this test method itself).
  • Three test methods:
    • Headform support, increasing load method (5.2) - applies a slowly increasing tensile force to an artificial jaw fixed to a helmet on a headform. Two variants:
      • Method (a): measures ultimate tensile strength.
      • Method (b): records elongation (positions P0 → P1) and peak force after an intermediate hold.
    • Hook support, dynamic load method (5.3) - helmet on a headform is subjected to a sudden downward impact from a falling mass; records maximum dynamic and residual displacements and, if required, one‑hand release capability. Falling mass = (10 ± 0.1) kg; headform + attachments mass = (15 ± 0.5) kg.
    • Headform support, dynamic load method (5.4) - a falling mass strikes an artificial jaw; measures dynamic and residual jaw displacements. Falling mass = (4 ± 0.1) kg; guidance/mounting mass = (5 ± 0.5) kg.
  • Apparatus elements: certified headforms (EN 960), rigid supports, artificial jaw (two rollers Ø 12.5 ± 0.5 mm, axes 75 ± 2 mm apart), falling mass guidance, displacement and speed measurement (impact speed measured to ±1% during commissioning).
  • Procedural details: ambient conditioning per EN 13087-1; load rates (e.g. 20 ± 2 N/min or 500 ± 50 N/min), timed holds (120 ± 3 s), measurement precision (nearest mm), and reporting requirements (maximum force, elongation, failure mode, dynamic/residual displacement).

Practical applications

  • Product development: validate chinstrap designs and fastening durability under static and dynamic loads.
  • Type testing and certification: used by test labs to demonstrate conformity of helmets to referenced helmet standards and EU PPE requirements.
  • Quality control: periodic batch testing or failure analysis after field returns.
  • Procurement and safety management: specifying tested retention-system performance for occupational, industrial, sports and rescue helmets.

Who uses this standard

  • Helmet manufacturers and R&D teams
  • Accredited testing laboratories and conformity assessment bodies
  • PPE certifiers and regulatory authorities
  • Safety engineers, procurement officers and compliance officers responsible for helmet selection and verification

Related standards

  • EN 13087-1 (Conditions and conditioning) - required environmental/test conditions
  • EN 960 (Headforms for testing) - headform specifications
  • Other parts of EN 13087 (Parts 2–10) cover shock absorption, penetration, retention effectiveness, field of vision, flame resistance, electrical properties, rigidity and radiant heat.

Keywords: EN 13087-5, retention system strength, protective helmet test, chinstrap testing, CEN helmet standard, PPE helmet testing, dynamic load method.

Frequently Asked Questions

EN 13087-5:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Protective helmets - Test methods - Part 5: Retention system strength". This standard covers: This European Standard specifies methods of test for protective helmets. The purpose of these tests is to enable assessment of the performance of the helmet as specified in the appropriate helmet standard. This European Standard specifies the method of test for retention system strength.

This European Standard specifies methods of test for protective helmets. The purpose of these tests is to enable assessment of the performance of the helmet as specified in the appropriate helmet standard. This European Standard specifies the method of test for retention system strength.

EN 13087-5:2012 is classified under the following ICS (International Classification for Standards) categories: 13.340.20 - Head protective equipment. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 13087-5:2012 has the following relationships with other standards: It is inter standard links to EN 13087-5:2000. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 13087-5:2012 is associated with the following European legislation: EU Directives/Regulations: 2016/425, 89/686/EEC; Standardization Mandates: M/031. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

You can purchase EN 13087-5:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schutzhelme - Prüfverfahren - Teil 5: Festigkeit des HaltesystemsCasques de protection - Méthodes d'essai - Partie 5: Résistance du système de rétentionProtective helmets - Test methods - Part 5: Retention system strength13.340.20Varovalna oprema za glavoHead protective equipmentICS:Ta slovenski standard je istoveten z:EN 13087-5:2012SIST EN 13087-5:2012en,fr,de01-julij-2012SIST EN 13087-5:2012SLOVENSKI
STANDARDSIST EN 13087-5:20011DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13087-5
February 2012 ICS 13.340.20 Supersedes EN 13087-5:2000English Version
Protective helmets - Test methods - Part 5: Retention system strength
Casques de protection - Méthodes d'essai - Partie 5: Résistance du système de rétention
Schutzhelme - Prüfverfahren - Teil 5: Festigkeit des Haltesystems This European Standard was approved by CEN on 17 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13087-5:2012: ESIST EN 13087-5:2012

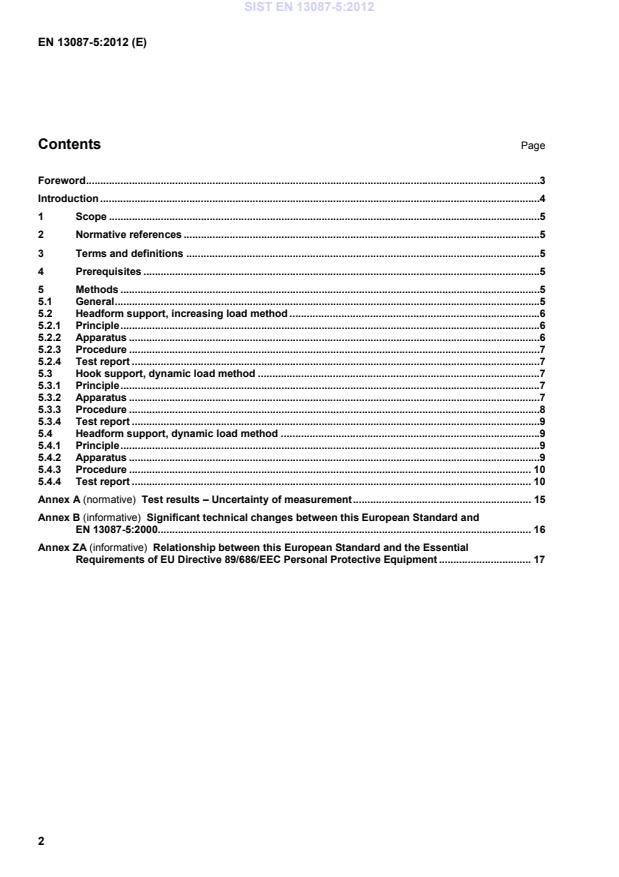

Test results – Uncertainty of measurement . 15Annex B (informative)
Significant technical changes between this European Standard and EN 13087-5:2000. 16Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC Personal Protective Equipment . 17 SIST EN 13087-5:2012

1 To be published. SIST EN 13087-5:2012
...
