EN 12629-5-4:2003+A1:2010
(Main)Machines for the manufacture of constructional products from concrete and calcium-silicate - Safety - Part 5-4: Concrete pipe coating machines
Machines for the manufacture of constructional products from concrete and calcium-silicate - Safety - Part 5-4: Concrete pipe coating machines
This part of EN 12629, taken together with EN 12629-1:2000+A1:2010, applies to concrete pipe coating machines as defined in Clause 3.
EN 12629-1:2000+A1:2010 specifies general requirements applicable to machines for the manufacture of constructional products from concrete and calcium silicate.
This document specifies the additional requirements to and/or the deviations from EN 12629-1:2000+A1:2010 specific to the machines it covers.
1.2 This European Standard deals with all significant hazards pertinent to these machines, when they are used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer (see Clause 4). This European Standard specifies the appropriate technical measures to eliminate or reduce risks arising from the significant hazards.
This standard establishes safety requirements and/or methods of protection which applies to these machines.
1.3 This European standard applies to the concrete pipe coating making machines which may form an integral part of a pipe making process plant.
1.4 This document is not applicable to concrete pipe coating machines, which are manufactured before the date of publication of this document by CEN.
Maschinen für die Herstellung von Bauprodukten aus Beton und Kalksandsteinmassen - Sicherheit - Teil 5-4: Maschinen zum Beschichten von Betonrohren
1.1 Diese Europäische Norm gilt für Maschinen zum Beschichten von Betonrohren.
1.2 Diese Europäische Norm behandelt alle signifikanten Gefährdungen, Gefährdungssituationen und Gefähr-dungsereignisse (siehe Abschnitt 4), die auf diese Maschinen zutreffen, wenn sie bestimmungsgemäß und ent-sprechend den vorhersehbaren Empfehlungen des Herstellers verwendet werden. Diese Europäische Norm spezi-fiziert die entsprechenden technischen Maßnahmen zur Beseitigung oder Verminderung der Risiken, die von die-sen Gefährdungen ausgehen, außer Gefährdungen durch Lärm.
ANMERKUNG Eine Änderung ist in Vorbereitung, die Lärm behandelt sowie insbesondere Maßnahmen zur Lärmminderung an der Quelle und ein Geräuschmessverfahren einschließlich der Angabe von Geräuschemissionswerten.
Diese Norm behandelt Sicherheitsanforderungen und/oder Schutzmaßnahmen, die für diese Maschinen gelten.
1.3 Diese Europäische Norm gilt für Maschinen zum Beschichten von Betonrohren, die als integraler Bestandteil einer Rohrherstellungsanlage dienen können.
1.4 Siehe 1.4 von EN 12629-1:2000.
Machines pour la fabrication de produits de construction en béton et silico-calcaire - Sécurité - Partie 5-4: Machines de revêtement des tuyaux en béton
!La présente partie de l'EN 12629, utilisée avec l'EN 12629-1:2000+A1:2010, s'applique aux machines
de revêtement des tuyaux en béton telles que définies à l'Article 3.
L'EN 12629-1:2000+A1:2010 spécifie les prescriptions générales applicables aux machines pour la fabrication
de produits de construction en béton et silico-calcaire.
Le présent document spécifie les prescriptions supplémentaires et/ou les dérogations à l’EN 12629-1:2000+A1:2010
spécifiques aux machines concernées."
1.2 !La présente Norme européenne traite tous les phénomènes dangereux significatifs spécifiques à ces
machines, lorsqu’elles sont utilisées normalement et dans des conditions de mauvais usage que le fabricant peut
raisonnablement prévoir (voir Article 4). La présente Norme européenne spécifie les mesures techniques appropriées
pour éliminer ou réduire les risques dus aux phénomènes dangereux significatifs."
!texte supprimé"
La présente Norme spécifie les prescriptions de sécurité et/ou méthodes de protection qui s’appliquent à ces
machines.
1.3 La présente Norme européenne s’applique aux pour le revêtement des tuyaux en béton qui peuvent former
partie intégrante d’une installation de fabrication de tuyaux.
1.4 !Le présent document ne s'applique pas aux machines de revêtement des tuyaux en béton fabriquées avant
la date de publication du présent document par le CEN."
Stroji za izdelavo gradbenih proizvodov iz betona in apnenega peščenca - Varnost - 5-4. del: Stroji za nanašanje premazov na betonske cevi
Ta del EN 12629 skupaj z EN 12629-1:2000+A1:2010 velja za stroje za nanašanje premazov na betonske cevi, kot je opredeljeno v Klavzuli 3. EN 12629-1:2000+A1:2010 določa splošne zahteve, ki veljajo za stroje za izdelavo gradbenih proizvodov iz betona in apnenega peščenca. Ta dokument določa dodatne zahteve in/ali odstopanja od EN 12629-1:2000+A1:2010, specifične za stroje, ki jih zajema. Ta evropski standard obravnava vse pomembne nevarnosti, ki se nanašajo na te stroje, kadar se uporabljajo kot predvideno in pod pogoji napačne uporabe, ki jih razumno predvidi proizvajalec (glej Klavzulo 4). Ta evropski standard določa primerne tehnične ukrepe za odpravo ali zmanjšanje tveganj, ki se pojavijo zaradi pomembnih nevarnosti. Ta standard vzpostavlja varnostne zahteve in/ali zaščitne metode, ki veljajo za te stroje. Ta evropski standard velja za stroje za nanašanje premazov na betonske cevi, ki so lahko integralni del predelovalnega obrata za izdelavo cevi. Ta dokument ne velja za stroje za nanašanje premazov na betonske cevi, ki so bili izdelani pred datumom, ko je CEN objavil ta dokument.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2010
- Technical Committee
- CEN/TC 151 - Construction equipment and building material machines - Safety
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 19-May-2021
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 18-Jan-2023
- Effective Date
- 10-Jul-2010
Overview
EN 12629-5-4:2003+A1:2010 is a CEN safety standard that defines additional, machine-specific safety requirements for concrete pipe coating machines. Used together with EN 12629-1:2000+A1:2010 (the common requirements for machines that manufacture constructional products from concrete and calcium‑silicate), this Part 5-4 document addresses hazards, protective measures and verification specific to coating machines that apply concrete or mortar over prestressed wire on concrete pipes. The standard covers machines by deposit‑by‑vibration and deposit‑by‑impact and applies to machines produced after its publication and to coating equipment that may be integral to a pipe production plant.
Key Topics
- Scope and relationship: Supplements EN 12629-1; is a Type C standard intended to take precedence where specific provisions differ from A/B type standards.
- Machine definitions: Clear definitions for coating machine types (deposit by vibration; deposit by impact) and their typical components (hopper, vibrators, turntable, spraying device).
- Hazard identification: Lists significant hazards addressed by the standard, including:
- mechanical hazards (shearing, crushing, drawing‑in/trapping)
- friction/abrasion from rotating pipes
- high‑pressure fluid injection/ejection (mortar penetration)
- impact hazards and moving feeders
- noise from vibrators or spraying devices
- slip, trip and fall risks on gangways and access platforms
- Safety requirements & protective measures: Specifies guarding, access control, guarding of hazard zones, and noise mitigation measures consistent with EN 12629-1 and EN ISO 12100 principles.
- Verification & documentation: Refers to EN 12629-1 for verification of implemented protective measures; requires appropriate markings and user information.
- Regulatory alignment: Provides presumption of conformity with Essential Requirements of EU Directive 2006/42/EC when applied within its scope.
Applications
Who uses EN 12629-5-4:2003+A1:2010:
- Machine manufacturers designing or supplying concrete pipe coating machines (horizontal/vertical, vibration or impact systems).
- Safety engineers & compliance officers responsible for CE marking and conformity with the Machinery Directive.
- Plant operators and integrators when incorporating coating machines into pipe production lines.
- Inspectors and consultants performing risk assessments, machine audits or acceptance testing.
Practical value:
- Reduces risk by identifying machine‑specific hazards and appropriate protective measures.
- Helps manufacturers demonstrate compliance and supports safer machine integration in production plants.
Related Standards (applicable)
- EN 12629-1:2000+A1:2010 - Common requirements for machines making constructional products from concrete and calcium‑silicate
- EN ISO 12100 - Basic concepts and principles for machinery safety
- EN 1050 - Principles for risk assessment
- A/B level standards referenced for specific functions: EN ISO 13850, EN ISO 13857, EN 60204-1 (as relevant per risk assessment)
Keywords: EN 12629-5-4:2003+A1:2010, concrete pipe coating machines, safety standard, CEN, concrete pipe coating, EN 12629-1, Machinery Directive.
Frequently Asked Questions
EN 12629-5-4:2003+A1:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Machines for the manufacture of constructional products from concrete and calcium-silicate - Safety - Part 5-4: Concrete pipe coating machines". This standard covers: This part of EN 12629, taken together with EN 12629-1:2000+A1:2010, applies to concrete pipe coating machines as defined in Clause 3. EN 12629-1:2000+A1:2010 specifies general requirements applicable to machines for the manufacture of constructional products from concrete and calcium silicate. This document specifies the additional requirements to and/or the deviations from EN 12629-1:2000+A1:2010 specific to the machines it covers. 1.2 This European Standard deals with all significant hazards pertinent to these machines, when they are used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer (see Clause 4). This European Standard specifies the appropriate technical measures to eliminate or reduce risks arising from the significant hazards. This standard establishes safety requirements and/or methods of protection which applies to these machines. 1.3 This European standard applies to the concrete pipe coating making machines which may form an integral part of a pipe making process plant. 1.4 This document is not applicable to concrete pipe coating machines, which are manufactured before the date of publication of this document by CEN.
This part of EN 12629, taken together with EN 12629-1:2000+A1:2010, applies to concrete pipe coating machines as defined in Clause 3. EN 12629-1:2000+A1:2010 specifies general requirements applicable to machines for the manufacture of constructional products from concrete and calcium silicate. This document specifies the additional requirements to and/or the deviations from EN 12629-1:2000+A1:2010 specific to the machines it covers. 1.2 This European Standard deals with all significant hazards pertinent to these machines, when they are used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer (see Clause 4). This European Standard specifies the appropriate technical measures to eliminate or reduce risks arising from the significant hazards. This standard establishes safety requirements and/or methods of protection which applies to these machines. 1.3 This European standard applies to the concrete pipe coating making machines which may form an integral part of a pipe making process plant. 1.4 This document is not applicable to concrete pipe coating machines, which are manufactured before the date of publication of this document by CEN.
EN 12629-5-4:2003+A1:2010 is classified under the following ICS (International Classification for Standards) categories: 91.220 - Construction equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12629-5-4:2003+A1:2010 has the following relationships with other standards: It is inter standard links to EN 12629-5-4:2003, EN 12629-5-4:2003/FprA1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 12629-5-4:2003+A1:2010 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC; Standardization Mandates: M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 12629-5-4:2003+A1:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Maschinen für die Herstellung von Bauprodukten aus Beton und Kalksandsteinmassen - Sicherheit - Teil 5-4: Maschinen zum Beschichten von BetonrohrenMachines pour la fabrication de produits de construction en béton et silico-calcaire - Sécurité - Partie 5-4: Machines de revêtement des tuyaux en bétonMachines for the manufacture of constructional products from concrete and calcium-silicate - Safety - Part 5-4: Concrete pipe coating machines91.220Gradbena opremaConstruction equipmentICS:Ta slovenski standard je istoveten z:EN 12629-5-4:2003+A1:2010SIST EN 12629-5-4:2004+A1:2010en,fr01-december-2010SIST EN 12629-5-4:2004+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12629-5-4:2003+A1
September 2010 ICS 91.220 Supersedes EN 12629-5-4:2003English Version
Machines for the manufacture of constructional products from concrete and calcium-silicate - Safety - Part 5-4: Concrete pipe coating machines
Machines pour la fabrication de produits de construction en béton et silico-calcaire - Sécurité - Partie 5-4: Machines de revêtement des tuyaux en béton
Maschinen für die Herstellung von Bauprodukten aus Beton und Kalksandsteinmassen - Sicherheit - Teil 5-4: Maschinen zum Beschichten von Betonrohren This European Standard was approved by CEN on 3 November 2003 and includes Amendment 1 approved by CEN on 5 August 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12629-5-4:2003+A1:2010: ESIST EN 12629-5-4:2004+A1:2010

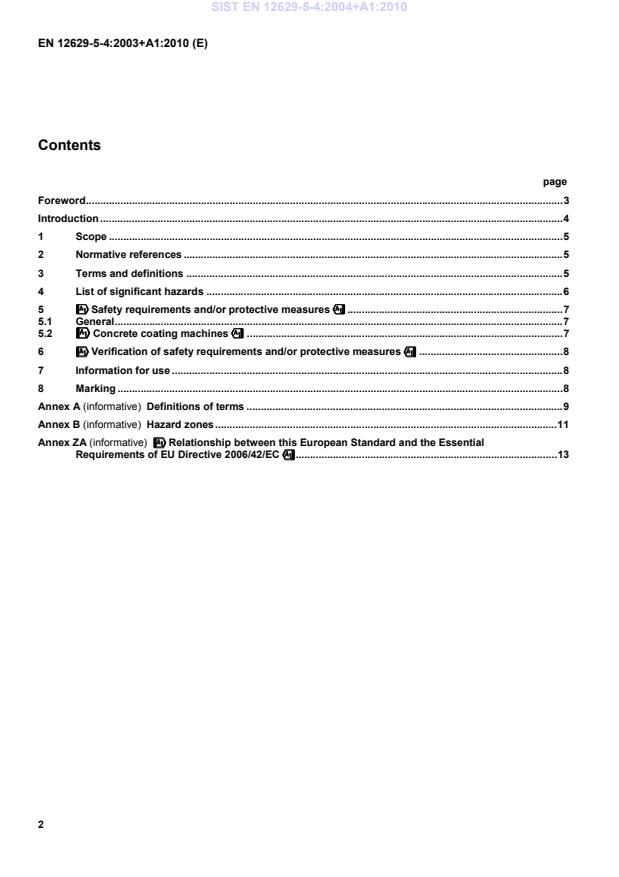

Contents page Foreword . 3Introduction . 41Scope . 52Normative references . 53Terms and definitions . 54List of significant hazards . 65!!!!Safety requirements and/or protective measures"""" . 75.1General . 75.2!!!!Concrete coating machines"""" . 76!!!!Verification of safety requirements and/or protective measures"""" . 87Information for use . 88Marking . 8Annex A (informative)
Definitions of terms . 9Annex B (informative)
Hazard zones . 11Annex ZA (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""" . 13 SIST EN 12629-5-4:2004+A1:2010
Introduction !This European Standard is a Type C-standard as stated in EN ISO 12100. The machinery concerned and the extent to which hazards, hazardous situation and events are covered are indicated in the scope of this document.
When provisions of this type C document are different from those, which are stated in type A or B documents, the provisions of this type C document take precedence over the provisions of the other documents, for machines that have been designed and built according to the provisions of this type C document.
This document specifies the additional requirements to and/or the deviations from EN 12629-1:2000+A1:2010 specific for the concrete pipe coating machines as defined in Clause 3. With the aim of clarifying the intentions of the document it should be noticed that the following assumptions were made when producing it: specific conditions of use or environmental conditions out of the scope of the document shall be the subject of negotiations between the manufacturer and the user/owner, the equipment will only be used by competent and designated persons,
the place of use/installation is adequately lit,
all operations are carried out by specially trained operators."
...
