Piston-operated volumetric apparatus - Part 7: Non-gravimetric methods for the assessment of equipment performance (ISO 8655-7:2005)

ISO 8655-7:2005 specifies the photometric and titrimetric determination of errors of measurement of piston-operated volumetric apparatus. The tests are applicable to complete systems comprising the basic apparatus and all parts selected for use with the apparatus, disposable or reusable, involved in the measurement by delivery process.
These non-gravimetric test methods can be applied: as aids to quality assurance by the supplier; as routine quality assurance and routine calibrations by the user; and as routine and post-repair testing.
The methods described in ISO 8655-7:2005 are not applicable as alternatives to the gravimetric reference test methods specified in ISO 8655-6, which gives the only method suitable as a basis for supplier's declarations or independent certification of conformity.
NOTE 1 Metrological requirements for piston-operated volumetric apparatus, especially maximum permissible errors, are specified in ISO 8655-2 to ISO 8655-5.
NOTE 2 For conformity tests or type tests for declaration and certification of conformity, see the gravimetric reference test methods in ISO 8655-6.

Volumenmessgeräte mit Hubkolben - Teil 7: Nicht-gravimetrische Prüfverfahren zur Bewertung der Geräteeigenschaften (ISO 8655-7:2005)

Dieser Teil von ISO 8655 legt photometrische und titrimetrische Prüfverfahren zur Bestimmung der Messabweichung von Volumenmessgeräten mit Hubkolben fest. Die Prüfungen gelten für vollständige Gerätesysteme, bestehend aus dem Grundgerät und aller für die Verwendung ausgewählten Zubehörteile, die mehrfach verwendbar oder für den einmaligen Gebrauch bestimmt sein können; die Dosierung erfolgt durch Abgabevorgänge.
Diese nicht-gravimetrischen Prüfverfahren können für folgende Zwecke angewendet werden:
-   Unterstützung bei der Qualitätssicherung des Anbieters,
-   routinemäßige Qualitätssicherung und Kalibrierung durch den Anwender,
-   Wiederholungsprüfung und Prüfung nach Reparatur.
Die Prüfverfahren dieses Teils von ISO 8655 gelten nicht als Alternative zum gravimetrischen Prüfverfahren nach ISO 8655-6, wenn es um die Grundlage für Herstellererklärungen oder unabhängige Konformitätsbe-scheinigung geht; hierfür gilt nur das gravimetrische Referenzprüfverfahren nach ISO 8655-6.
ANMERKUNG 1   Messtechnische Anforderungen an Kolbenhubgeräte, insbesondere Fehlergrenzen, sind in ISO 8655-2 bis ISO 8655-5 festgelegt.
ANMERKUNG 2   Konformitätsprüfungen oder Baumusterprüfungen als Grundlage für Konformitätserklärungen und Konformitätsbescheinigungen sind im gravimetrischen Referenzprüfverfahren nach ISO 8655-6 festgelegt.

Appareils volumétriques à piston - Partie 7: Méthodes non gravimétriques pour l'estimation de la performance d'équipement (ISO 8655-7:2005)

L'ISO 8655-7:2005 spécifie la détermination photométrique et titrimétrique d'erreurs de mesure d'appareils volumétriques à piston. Les essais sont applicables à des systèmes complets comprenant l'appareil de base et toutes les parties sélectionnées pour être utilisées avec l'appareil, jetables ou réutilisables, utilisés dans la mesure du procédé de distribution.
Ces méthodes d'essai non gravimétriques peuvent être appliquées pour une aide à l'assurance qualité par le fournisseur, l'assurance qualité et l'étalonnage de routine par l'utilisateur, et les essais de routine et après réparations.
Les méthodes décrites dans l'ISO 8655-7:2005 ne sont pas des variantes de la méthode d'essai gravimétrique de référence spécifiée dans l'ISO 8655-6, qui est la seule méthode appropriée comme référence pour les déclarations des fournisseurs ou pour une certification de conformité indépendante.
Les exigences métrologiques relatives aux appareils volumétriques à piston, en particulier les limites d'erreurs tolérées, sont spécifiées de l'ISO 8655-2 à l'ISO 8655-5.
Pour les essais de conformité ou les essais de type destinés à la déclaration et à la certification de conformité, les méthodes d'essai gravimétriques de référence s'appliquent conformément à l'ISO 8655-6.

Volumetrične naprave, ki delujejo na bat - 7. del: Negravimetrične metode za ocenjevanje tehničnih karakteristik (ISO 8655-7:2005)

General Information

Status
Withdrawn
Publication Date
31-Aug-2005
Withdrawal Date
10-May-2022
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
11-May-2022

Relations

Buy Standard

Standard
EN ISO 8655-7:2006
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2006
9ROXPHWULþQHQDSUDYHNLGHOXMHMRQDEDWGHO1HJUDYLPHWULþQHPHWRGH]D
RFHQMHYDQMHWHKQLþQLKNDUDNWHULVWLN ,62
Piston-operated volumetric apparatus - Part 7: Non-gravimetric methods for the
assessment of equipment performance (ISO 8655-7:2005)
Volumenmessgeräte mit Hubkolben - Teil 7: Nicht-gravimetrische Prüfverfahren zur
Bewertung der Geräteeigenschaften (ISO 8655-7:2005)
Appareils volumétriques a piston - Partie 7: Méthodes non gravimétriques pour
l'estimation de la performance d'équipement (ISO 8655-7:2005)
Ta slovenski standard je istoveten z: EN ISO 8655-7:2005
ICS:
17.060 Merjenje prostornine, mase, Measurement of volume,
gostote, viskoznosti mass, density, viscosity
71.040.20 Laboratorijska posoda in Laboratory ware and related
aparati apparatus
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 8655-7
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2005
ICS 17.060
English Version
Piston-operated volumetric apparatus - Part 7: Non-gravimetric
methods for the assessment of equipment performance (ISO
8655-7:2005)
Appareils volumétriques à piston - Partie 7: Méthodes non Volumenmessgeräte mit Hubkolben - Teil 7: Nicht-
gravimétriques pour l'estimation de la performance gravimetrische Prüfverfahren zur Bewertung der
d'équipement (ISO 8655-7:2005) Geräteeigenschaften (ISO 8655-7:2005)
This European Standard was approved by CEN on 13 August 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 8655-7:2005: E
worldwide for CEN national Members.

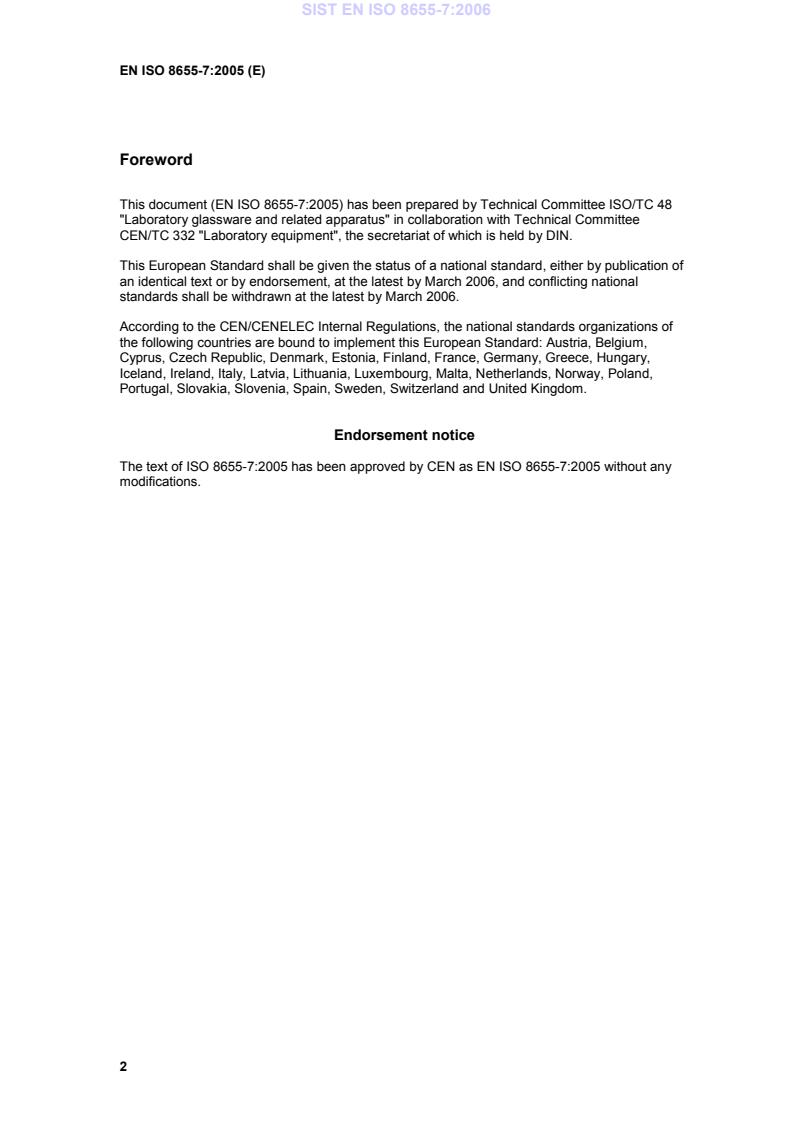

Foreword
This document (EN ISO 8655-7:2005) has been prepared by Technical Committee ISO/TC 48
"Laboratory glassware and related apparatus" in collaboration with Technical Committee
CEN/TC 332 "Laboratory equipment", the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by March 2006, and conflicting national
standards shall be withdrawn at the latest by March 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 8655-7:2005 has been approved by CEN as EN ISO 8655-7:2005 without any
modifications.
INTERNATIONAL ISO
STANDARD 8655-7
First edition
2005-09-01
Piston-operated volumetric apparatus —
Part 7:
Non-gravimetric methods for the
assessment of equipment performance
Appareils volumétriques à piston —
Partie 7: Méthodes non gravimétriques pour l'estimation de la
performance d'équipement
Reference number
ISO 8655-7:2005(E)
©
ISO 2005
ISO 8655-7:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

ISO 8655-7:2005(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Principle. 2
4.1 Photometric method. 2
4.2 Titrimetric method . 2
5 Reagents. 3
5.1 Reagents for photometric method. 3
5.2 Reagents for titrimetric method . 3
6 Apparatus . 4
6.1 Photometric method. 4
6.2 Titrimetric method . 4
7 Test conditions . 5
8 Procedure . 5
8.1 General. 5
8.2 Photometric method. 5
8.3 Titrimetric method . 5
9 Calculation. 6
10 Test report . 6
Annex A (informative) Example 1 for photometric test method . 7
Annex B (informative) Example 2 for photometric test method . 13
Annex C (informative) Example for titration test method. 17
Bibliography . 21

ISO 8655-7:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 8655-7 was prepared by Technical Committee ISO/TC 48, Laboratory glassware and related apparatus,
Subcommittee SC 6, Laboratory and volumetric ware.
ISO 8655 consists of the following parts, under the general title Piston-operated volumetric apparatus:
 Part 1: Terminology, general requirements and user recommendations
 Part 2: Piston pipettes
 Part 3: Piston burettes
 Part 4: Dilutors
 Part 5: Dispensers
 Part 6: Gravimetric methods for the determination of measurement error
 Part 7: Non-gravimetric methods for the assessment of equipment performance
iv © ISO 2005 – All rights reserved

ISO 8655-7:2005(E)
Introduction
The ISO 8655 series was developed in order to specify the differing types of piston-operated volumetric
apparatus and to provide a reference method and alternative test methods for verifying their characteristics
covering the volume range typically from:
 the smallest hand-held pipetting devices, e.g. 1 µl, up to
 the largest laboratory bench-standing volume dispensing instruments, e.g. 100 ml.
ISO 8655-1 provides general requirements and terminology. The detailed volumetric ranges for each type of
apparatus specified in the ISO 8655 series are indicated in the appropriate tables of maximum permissible
error, i.e. for piston pipettes (ISO 8655-2), for piston burettes (ISO 8655-3), for dilutors (ISO 8655-4) and for
dispensers (ISO 8655-5).
ISO 8655-6 is the reference method for type testing and conformity testing. It is gravimetric and contains
precise instructions designed to limit variation in procedure and thereby the potential for sources of error – a
necessity for type and conformity testing.
The photometric and titrimetric methods described in this part of ISO 8655, are deliberately given as outline
methods (see examples in the informative annexes), so that individual laboratories having their own
equipment available, and working to different uncertainty requirements, may adapt either these methods, or
the gravimetric method, accordingly. If the laboratories operate under ISO 9000 series regimes, or have
accreditation to ISO 17025, the individually-adapted methods are usually validated to give results equivalent
to those given by the gravimetric method specified in ISO 8655-6.
This part of ISO 8655 is applicable to the following types of testing:
 of piston-operated volumetric apparatus for purposes other than type testing or the conformity testing
which is required prior to declarations or certification of conformity;
 in user locations, where there may be no suitable balance or facilities to perform the reference method
given in ISO 8655-6, but which may have at their disposal a suitable photometer or automatic titrator.
As users have expressed the wish to have alternative tests available, the following observations are given to
help them select the most appropriate test methods for their purposes.
a) Gravimetric method: Uncertainty values can increase at volumes significantly below 1 µl, due to
increasing balance uncertainty, especially in low humidity areas (where there is increased risk of
evaporation) and due to the effects of static electricity. These effects are compensated for through the
careful design of the test method specified in ISO 8655-6, which applies to the vo
...
