Cold rolled narrow steel strip - Tolerances on dimensions and shape

1.1   This European Standard applies to cold rolled narrow strip in coils and cut lengths, in thicknesses up to 10 mm and of widths less than 600 mm, made from unalloyed and alloyed steels, mainly those specified in EN 10132,
EN 10139 and prEN 10338, with the exception of stainless and heat-resisting steels and the products given in 1.2.
The application of this European Standard to products with other dimensions shall be agreed separately.
1.2   This European Standard does not cover cold rolled flat products for which a separate standard already exists, particularly the following products:
   cold rolled non-oriented magnetic steel sheet and strip (EN 10106);
   grain-oriented magnetic steel sheet and strip (EN 10107);
   semi-processed steel strip for the construction of magnetic circuits (EN 10126 and EN 10165);
   cold rolled uncoated low carbon and high yield strength steel flat products for cold forming (EN 10131);
cold reduced blackplate (EN 10205).

Kaltband - Grenzabmaße und Formtoleranzen

1.1   Diese Europäische Norm gilt für Kaltband in Rollen und für Kaltband in Stäben in Dicken bis zu 10 mm und in Breiten kleiner 600 mm aus unlegierten und legierten Stählen mit Ausnahme der nichtrostenden und hitzebeständigen Stähle sowie der in 1.2 genannten Erzeugnisse.
Die Anwendung dieser Europäischen Norm auf Erzeugnisse mit anderen Nennmaßen muss besonders vereinbart werden.
1.2   Diese Europäische Norm gilt nicht für kaltgewalzte Flacherzeugnisse, für die eigene Normen bestehen, insbesondere für folgende Erzeugnisse:
¾ kaltgewalztes nichtkornorientiertes Elektroblech und - band (EN 10106);
¾ kornorientiertes Elektroblech und -band (EN 10107);
¾ kaltgewalztes nicht schlussgeglühtes Elektroblech und -band (EN 10126 und EN 10165);
¾ kaltgewalzte Flacherzeugnisse ohne Überzug aus weichen Stählen sowie aus Stählen mit höherer Streckgrenze zum Kaltumformen (EN 10131);
¾ kaltgewalztes Feinstblech in Rollen (EN 10205).

Feuillards laminés à froid - Tolérances de dimensions et de forme

Hladno valjani ozki jekleni trakovi – Mejni odstopki mer in tolerance oblik

General Information

Status
Published
Publication Date
11-Jul-2006
Withdrawal Date
30-Jan-2007
ICS
77.140.50 - Flat steel products and semi-products
Technical Committee
ECISS/TC 109 - Coated and uncoated flat products to be used for cold forming
Drafting Committee
ECISS/TC 109 - Coated and uncoated flat products to be used for cold forming
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
15-Dec-2016
Completion Date
15-Dec-2016
Directive
97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
Mandate
M/071 - Mandate to CEN for standardization in the field of Pressure equipment
Ref Project
SIST EN 10140:2006 - Cold rolled narrow steel strip - Tolerances on dimensions and shape

Relations

Replaces
EN 10140:1996 - Cold rolled narrow steel strip - Tolerances on dimensions and shape
Effective Date
22-Dec-2008

Overview

EN 10140:2006 is a CEN European Standard that defines tolerances on dimensions and shape for cold rolled narrow steel strip supplied in coils or cut lengths. It applies to unalloyed and alloyed steels (excluding stainless and heat‑resisting grades) with thicknesses up to 10 mm and widths less than 600 mm (extension to 650 mm by agreement). The standard establishes delivery forms, designation rules, measurement methods and packing requirements to ensure consistent dimensional quality for cold‑rolled narrow strip.

Key topics and technical requirements

  • Scope & exclusions: Covers narrow strip made from steels referenced in EN 10132, EN 10139, EN 10268 and prEN 10338; excludes products covered by separate standards (e.g., EN 10106, EN 10107, EN 10341, EN 10131, EN 10205).
  • Form of delivery: Supplied in coils (preferred internal diameters ~500 mm or 400 mm) or cut lengths; very narrow strip may be bobbin wound.
  • Designation: Standardized product designation includes product type, EN reference, nominal thickness and width, edge type, tolerance class and steel grade.
  • Tolerances on thickness: Three classes - A (normal), B (fine) and C (precision). Specific numeric tolerances are provided in tabulated form (Table 1) for nominal thicknesses from 0.10 mm to 10.00 mm and depend on nominal width.
  • Tolerances on width: Dependent on edge condition (as‑rolled, slit or special) and nominal width. Separate tables define permissible plus/minus ranges for as‑rolled and slit edges.
  • Length tolerances: Cut lengths are supplied with defined plus tolerances that vary with nominal length and tolerance class (A or B).
  • Shape tolerances:
    • Edge camber: Measured over a 1 000 mm gauge length; Class A and Class B limits are given in a table.
    • Flatness: Default maximum deviation 10 mm over 1 000 mm in rolling direction unless otherwise agreed.
    • Out‑of‑squareness: ≤ 1 mm for widths ≤ 100 mm; ≤ 1% of width for greater widths.
  • Measurement rules: Minimum distances from edges for thickness measurement and defined gauge lengths for flatness and camber (usually 1 000 mm).
  • Packing: Coils must be secured to avoid damage or unwinding during handling and transport.

Applications and users

EN 10140 is used by:

  • Steel producers and slitters to specify and verify product quality.
  • Purchasing and procurement teams specifying narrow strip for cold forming, stamping or finishing.
  • Quality control, inspection and testing laboratories for dimensional acceptance criteria.
  • OEMs in automotive, white goods, electrical components, and general engineering that require consistent narrow strip geometry for downstream processing.

Practical benefits include reduced scrap, improved interchangeability, clear contractual specifications and consistent manufacturing tolerances.

Related standards

  • EN 10132, EN 10139, EN 10268, prEN 10338 (material delivery conditions)
  • EN 10106, EN 10107, EN 10341, EN 10131, EN 10205 (products excluded from EN 10140)

Keywords: EN 10140:2006, cold rolled narrow strip, tolerances on dimensions and shape, thickness tolerances, width tolerances, edge camber, flatness, slit edges, coils, cut lengths.

Frequently Asked Questions

EN 10140:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Cold rolled narrow steel strip - Tolerances on dimensions and shape". This standard covers: 1.1 This European Standard applies to cold rolled narrow strip in coils and cut lengths, in thicknesses up to 10 mm and of widths less than 600 mm, made from unalloyed and alloyed steels, mainly those specified in EN 10132, EN 10139 and prEN 10338, with the exception of stainless and heat-resisting steels and the products given in 1.2. The application of this European Standard to products with other dimensions shall be agreed separately. 1.2 This European Standard does not cover cold rolled flat products for which a separate standard already exists, particularly the following products: cold rolled non-oriented magnetic steel sheet and strip (EN 10106); grain-oriented magnetic steel sheet and strip (EN 10107); semi-processed steel strip for the construction of magnetic circuits (EN 10126 and EN 10165); cold rolled uncoated low carbon and high yield strength steel flat products for cold forming (EN 10131); cold reduced blackplate (EN 10205).

1.1 This European Standard applies to cold rolled narrow strip in coils and cut lengths, in thicknesses up to 10 mm and of widths less than 600 mm, made from unalloyed and alloyed steels, mainly those specified in EN 10132, EN 10139 and prEN 10338, with the exception of stainless and heat-resisting steels and the products given in 1.2. The application of this European Standard to products with other dimensions shall be agreed separately. 1.2 This European Standard does not cover cold rolled flat products for which a separate standard already exists, particularly the following products: cold rolled non-oriented magnetic steel sheet and strip (EN 10106); grain-oriented magnetic steel sheet and strip (EN 10107); semi-processed steel strip for the construction of magnetic circuits (EN 10126 and EN 10165); cold rolled uncoated low carbon and high yield strength steel flat products for cold forming (EN 10131); cold reduced blackplate (EN 10205).

EN 10140:2006 is classified under the following ICS (International Classification for Standards) categories: 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 10140:2006 has the following relationships with other standards: It is inter standard links to EN 10140:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 10140:2006 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

You can purchase EN 10140:2006 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

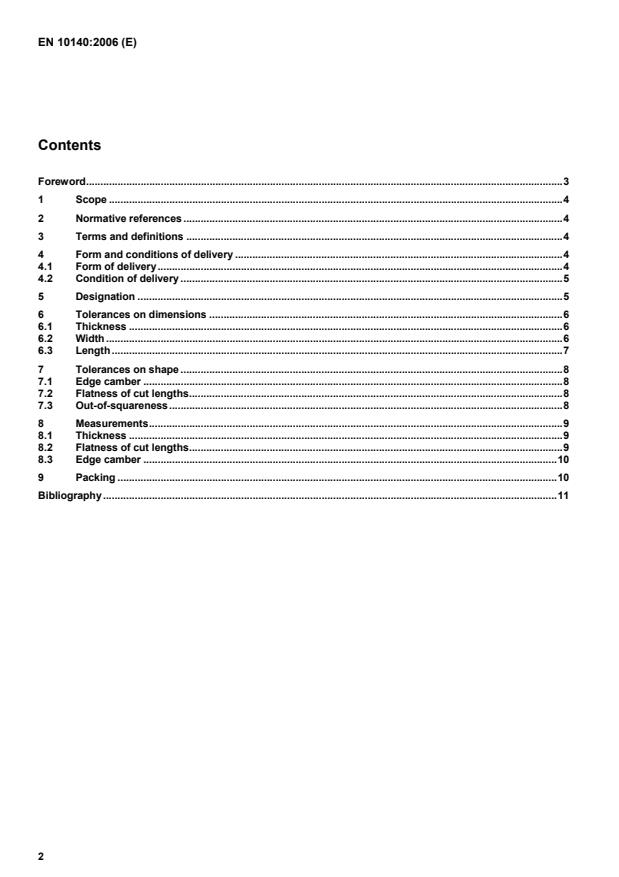

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Cold rolled narrow steel strip - Tolerances on dimensions and shapeHladno valjani ozki jekleni trakovi – Mejni odstopki mer in tolerance oblikFeuillards laminés a froid - Tolérances de dimensions et de formeKaltband - Grenzabmaße und FormtoleranzenTa slovenski standard je istoveten z:EN 10140:2006SIST EN 10140:2006en77.140.50ICS:SIST EN 10140:19981DGRPHãþDSLOVENSKI
STANDARDSIST EN 10140:200601-september-2006

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10140July 2006ICS 77.140.50Supersedes EN 10140:1996
English VersionCold rolled narrow steel strip - Tolerances on dimensions andshapeFeuillards laminés à froid - Tolérances de dimensions et deformeKaltband - Grenzabmaße und FormtoleranzenThis European Standard was approved by CEN on 12 June 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10140:2006: E

Foreword
This document (EN 10140:2006) has been prepared by Technical Committee ECISS/TC 13 “Flat products for cold working - Qualities, dimensions, tolerances and specific tests”, the secretariat of which is held by IBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2007, and conflicting national standards shall be withdrawn at the latest by January 2007. This document supersedes EN 10140:1996. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

those given in EN 10079:1992 shall apply. 4 Form and conditions of delivery 4.1 Form of delivery Cold rolled narrow strip according to this European Standard may be supplied:  in coils, of which the dimensions and weight shall be agreed at the time of ordering; or  in cut lengths (when coils have been unwound and cut into lengths). By agreement at the time of order, the preferred internal coil diameter is approximately 500 mm or 400 mm. For narrow strip in thicknesses of less than 0,5 mm, smaller internal diameters (e.g. 300 mm or 250 mm) may be agreed separately. NOTE In the case of narrow widths, strip conforming to this standard may also be wound in layers and supplied in the form of a bobbin wound coil.
...
