ASTM D4730-13(2020)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

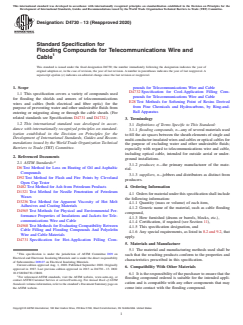

Designation: D4730 −13 (Reapproved 2020)
Standard Specification for
Flooding Compounds for Telecommunications Wire and
Cable
This standard is issued under the fixed designation D4730; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope pounds for Telecommunications Wire and Cable
D4732 Specification for Cool-Application Filling Com-
1.1 This specification covers a variety of compounds used
pounds for Telecommunications Wire and Cable
for flooding the shields and armors of telecommunications
E28 Test Methods for Softening Point of Resins Derived
wires and cables (both electrical and fiber optic) for the
from Pine Chemicals and Hydrocarbons, by Ring-and-
purpose of preventing water and other undesirable fluids from
Ball Apparatus
entering or migrating along or through the cable sheath. (For
related standards see Specifications D4731 and D4732.)
3. Terminology
1.2 This international standard was developed in accor-
3.1 Definitions of Terms Specific to This Standard:
dance with internationally recognized principles on standard-
3.1.1 flooding compounds, n—any of several materials used
ization established in the Decision on Principles for the
to fill the air spaces between the sheath elements of single and
Development of International Standards, Guides and Recom-
multi-conductorinsulatedwiresandcablesoropticalcablesfor
mendations issued by the World Trade Organization Technical
the purpose of excluding water and other undesirable fluids;
Barriers to Trade (TBT) Committee.
especially with regard to telecommunications wire and cable,
including optical cable, intended for outside aerial or under-
2. Referenced Documents
ground installations.
2.1 ASTM Standards:
3.1.2 producer, n—the primary manufacturer of the mate-
D6 Test Method for Loss on Heating of Oil and Asphaltic
rial.
Compounds
3.1.3 suppliers, n—jobbers and distributors as distinct from
D92 Test Method for Flash and Fire Points by Cleveland
producers.
Open Cup Tester
D482 Test Method for Ash from Petroleum Products
4. Ordering Information
D1321 Test Method for Needle Penetration of Petroleum
4.1 Orders for material under this specification shall include
Waxes
the following information:
D3236 Test Method for Apparent Viscosity of Hot Melt
4.1.1 Quantity (mass or volume) of each item,
Adhesives and Coating Materials
4.1.2 Generic name of the material, such as cable flooding
D4565 Test Methods for Physical and Environmental Per-
compound,
formance Properties of Insulations and Jackets for Tele-
4.1.3 How furnished (drums or barrels, blocks, etc.),
communications Wire and Cable
4.1.4 Certification, if required (see Section 11),
D4568 Test Methods for Evaluating Compatibility Between
4.1.5 This specification designation, and
Cable Filling and Flooding Compounds And Polyolefin
4.1.6 Any special requirements, as listed in 8.2 and 9.2, that
Wire and Cable Materials
apply.
D4731 Specification for Hot-Application Filling Com-
5. Materials and Manufacture
5.1 The material and manufacturing methods used shall be
This specification is under the jurisdiction of ASTM Committee D09 on
such that the resulting products conform to the properties and
Electrical and Electronic Insulating Materials and is under the direct responsibility
characteristics prescribed in this specification.
of Subcommittee D09.07 on Electrical Insulating Materials.
Current edition approved Aug. 1, 2020. Published September 2020. Originally
6. Compatibility With Other Materials
approved in 1987. Last previous edition approved in 2013 as D4730 – 13. DOI:
10.1520/D4730-13R20.
6.1 It is the responsibility of the purchaser to ensure that the
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
flooding compound ordered is suitable for the intended appli-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
cation and is compatible with any other components that may
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. come into contact with the flooding compound.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

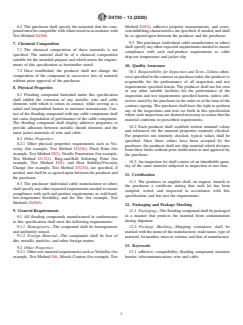

D4730 − 13 (2020)
6.2 The purchaser shall specify the materials that the com- Method D482), adhesive property measurements, and corro-
poundmustbecompatiblewithwhentestedinaccordancewith sion inhibiting characteristics are specified, if needed, and shall
Test Method D4568. be as agreed-upon between the producer and the purchaser.
9.3 The purchaser (individual cable manufacturer or other)
7. Chemical Composition
shall specify any other expected requirements needed to ensure
7.1 The chemical composition of these materials is not
compliance with such end-product requirements as cable
specified. The material shall be of a chemical composition
drip-out temperature and jacket slip.
suitab
...
