Standard Specification for
Austenitic Ductile Iron Castings for Pressure-Containing
Parts Suitable for Low-Temperature Service
This standard is issued under the fixed designation A571/A571M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
ε NOTE—A typo in X1.1 was editorially corrected in November 2023.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This specification covers austenitic ductile iron, Type
A941 Terminology Relating to Steel, Stainless Steel, Related
D-2M, Classes 1 and 2, for compressors, expanders, pumps,
Alloys, and Ferroalloys
valves, and other pressure-containing parts intended primarily
E8/E8M Test Methods for Tension Testing of Metallic Ma-
for low-temperature service.
terials
1.2 These grades of austenitic ductile iron are characterized
E23 Test Methods for Notched Bar Impact Testing of Me-
by having their graphite substantially in a spheroidal form and
tallic Materials
free of flake graphite. They are essentially free of carbides and
E30 Test Methods for Chemical Analysis of Steel, Cast Iron,
contain sufficient alloy content to produce a stable austenitic
Open-Hearth Iron, and Wrought Iron (Withdrawn 1995)
matrix down to −423 °F [−252 °C] (liquid hydrogen).
E59 Practice for Sampling Steel and Iron for Determination
of Chemical Composition (Withdrawn 1996)
1.3 The values stated in either SI units or inch-pound units
are to be regarded separately as standard. The values stated in
3. Ordering Information
each system may not be exact equivalents; therefore, each
3.1 Orders for material under this specification shall include
system shall be used independently of the other. Combining
the following information:
values from the two systems may result in nonconformance
3.1.1 Quantity (weight or number of pieces),
with the standard.
3.1.2 ASTM designation and year of issue,
1.3.1 Within the text, the SI units are shown in brackets.
3.1.3 Material class (Table 1),
1.4 The following precautionary caveat pertains only to the
3.1.4 Impact test temperature requirement (Section 11),
test methods portion, Section 11, of this specification: This
3.1.5 Place of inspection (Section 13), and
standard does not purport to address all of the safety concerns,
3.1.6 Certification requirements (Section 14).
if any, associated with its use. It is the responsibility of the user
4. Materials and Manufacture
of this standard to establish appropriate safety, health, and
environmental practices and determine the applicability of
4.1 Material—The iron shall be made in the electric-arc
regulatory limitations prior to use.
furnace, induction furnace, cupola, or any other furnace which
1.5 This international standard was developed in accor-
is capable of producing castings meeting the chemical compo-
dance with internationally recognized principles on standard-
sitions and mechanical properties in this specification.
ization established in the Decision on Principles for the
4.2 Heat Treatment:
Development of International Standards, Guides and Recom-
4.2.1 All castings shall be heat treated.
mendations issued by the World Trade Organization Technical
4.2.2 Heat treatment shall be performed before machining
Barriers to Trade (TBT) Committee.
except in instances when reheat treating is necessary.
4.2.3 Heat treatment shall consist of annealing. The proce-
dure for this type of treatment shall consist of heating the
This specification is under the jurisdiction of the ASTM Committee A04 on
Iron Castings and is the direct responsibility of Subcommittee A04.02 on Malleable
and Ductile Iron Castings. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Nov. 1, 2023. Published November 2023. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1966. Last previous edition approved in 2019 as A571/ Standards volume information, refer to the standard’s Document Summary page on
A571M – 01 (2019). DOI: 10.1520/A0571_A0571M-01R23E01. the ASTM website.
2 4
For ASME Boiler and Pressure Vessel Code applications, see related Specifi- The last approved version of this historical standard is referenced on
cation SA-571 in Section II of that code. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
´1
A571/A571M − 01 (2023)
A
TABLE 1 Mechanical Property Requirements
Class 1 Class 2 Class 3 Class 4
Tensile Strength, min, ksi [mPa] 65 60 [450] [415]
B
Yield Strength 0.2 % (offset), min, ksi [mPa] 30 25 [205] [170]
Elongation, min, % 30 25 30 25
Brinell Hardness, 3000 kg [kgf] 121–171 111–171 121–171 111–171
Charpy V-notch, ft·lbf [J]
min, average 3 tests 15 20 [20] [27]
C
min, individual test 12 15 [16] [20]
A
Heat-treated condition.
B
Yield Strength shall be determined at 0.2 % offset by the offset method, see Test Methods E8/E8M. Other methods may be agreed upon by mutual consent of
manufacturer and purchaser.
C
Not more than one test in a set of three may be below the minimum average required for the set of three.
casting to a minimum of 1600 °F [870 °C] but not greater than 7. Workmanship, Finish, and Appearance
1800 °F [980 °C], holding at that temperature not less than
7.1 The castings shall conform to the dimensions and
1 h ⁄in. [1 h ⁄25 mm] of section, and furnace cooling. (See
tolerances on the drawings furnished by the purchaser, or if no
Terminology A941.)
drawing has been provided, to the dimensions predicated by
the pattern supplied by the purchaser. The castings shall be free
5. Chemical Requirements
from injurious defects. Surfaces of the castings shall be free of
5.1 Drillings taken from test coupons, broken test
burnt-on sand and shall be reasonably smooth. Runners, risers,
specimens, or castings shall conform to the requirements as to fins, and other useless cast-on pieces shall be removed. In other
chemical composition prescribed in Table 2.
respects, the castings shall conform to whatever points may be
specifically agreed upon between the manufacturer and the
5.2 The chemical analysis for total carbon shall be made on
purchaser.
either chilled cast pencil-type specimens or thin wafers ap-
proximately ⁄32 in. [0.8 mm] thick cut from test coupons.
8. Sampling
Drillings shall not be used because of attendant loss of

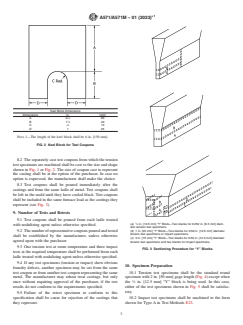

graphite. 8.1 The standard test coupons shall be the 1 in. [25 mm] “Y”
block and 1 in. [25 mm] keel block as shown in Fig. 1 and Fig.
6. Physical Property Requirements
2, respectively.

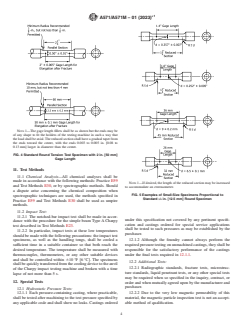

6.1 Tensile Properties—The room temperature mechanical
properties of the two classes of ductile iron used for the casting
shall conform to the requirements for the heat-treated condition
shown in Table 1.
6.2 Impact Properties—The notched-bar impact properties
of the materials shall be determined by testing a set of three
Charpy V-notch impact specimens to the energy absorption
requirements shown in Table 1. The test temperature shall be
agreed upon by the manufacturer and the purchaser. The energy
absorption values shown in Table 1 are applicable at tempera-
tures down to and including −320 °F [−195 °C].
6.3 Brinell Hardness—The room temperature hardness of
test bars and castings shall conform to the requirements of
Table 1.
“Y” Block Size
For Castings For Castings For Castings
of Thickness of Thickness of Thickness
Dimensions
1 1 1 1
Less Than ⁄2 ⁄2 to 1 ⁄2 in. of 1 ⁄2 in. [40 mm]
in. [12.5 mm] [12.5 to 40 mm] and Over
TABLE 2 Chemical Requirements
in. [mm] in. [mm] in. [mm]
Element Composition, %
A ⁄2 [12.5] 1 [25] 3 [75]
A
Total carbon 2.2–2.7 1
B 1 [25] 2 ⁄8 [55] 5 [125]
Silicon 1.5–2.50
C 2 [50] 3 [75] 4 [100]
Manganese 3.75–4.5
D 4 [100] 6 [150] 8 [200]
Nickel 21.0–24.0
E 7 [175] 7 [175] 7 [175]
B
Chromium 0.20 max
approx approx approx
Phosphorus 0.08 max 9 1 1
F ⁄16 [14] 1 ⁄16 [27] 3 ⁄16 [78]
1 1 1
A
1 G 7 ⁄8 [180] 7 ⁄8 [180] 7 ⁄8 [180]
For castings with sections under ⁄4 in. [6 mm], it may be desirable to adjust the
approx approx approx
carbon upwards to a maximum of 2.90 %.
B
Not intentionally added.
FIG. 1 “Y” Blocks for Test Coupons
