ASTM D3150-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D3150 − 18 D3150 − 21
Standard Specification for
Crosslinked and Noncrosslinked Poly(Vinyl Chloride) Heat-
Shrinkable Tubing for Electrical Insulation
This standard is issued under the fixed designation D3150; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification applies to flexible, crosslinked and noncrosslinked poly(vinyl chloride) heat-shrinkable tubing for electrical
insulating purposes. It is supplied in an expanded form and will shrink to its extruded diameter when heated.
NOTE 1—This standard is similar but not identical to IEC 60684–3–201.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.2.1 In some cases (including the title), temperatures are described in degrees Celsius only.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D1711 Terminology Relating to Electrical Insulation
D2671 Test Methods for Heat-Shrinkable Tubing for Electrical Use
D3636 Practice for Sampling and Judging Quality of Solid Electrical Insulating Materials
D8355 Test Methods for Flammability of Electrical Insulating Materials Used for Sleeving or Tubing
E176 Terminology of Fire Standards
2.2 Military Standards:
MIL-STD-104 Limits for Electrical Insulation Color
MIL-H-5606 Hydraulic Fluid, Petroleum Base, Aircraft, Missile, and Ordnance
MIL-T-5624 Turbine Fuel, Aviation, Grades JP-4 and JP-5
MIL-L-7808 Lubricating Oil, Aircraft, Turbine Engine, Synthetic Base
MIL-L-23699 Lubricating Oil, Aircraft, Turbine Engines, Synthetic Base
MIL-A-8243 Anti-Icing and De-Icing Defrosting Fluid
This specification is under the jurisdiction of ASTM Committee D09 on Electrical and Electronic Insulating Materials and is the direct responsibility of Subcommittee
D09.07 on Electrical Insulating Materials.
Current edition approved May 1, 2018Jan. 1, 2021. Published May 2018February 2021. Originally approved in 1973. Last previous edition approved in 20112018 as
D3150 – 11.D3150 – 18. DOI: 10.1520/D3150-18.10.1520/D3150-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from Standardization Documents Order Desk, Bldg. 4 Section D, 700 Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D3150 − 21

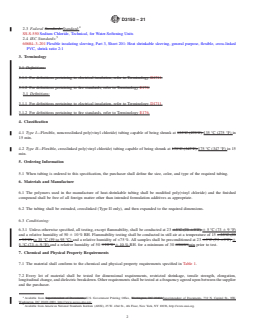

2.3 Federal Standards:Standard:
SS-S-550 Sodium Chloride, Technical, for Water-Softening Units
2.4 IEC Standards:
60684–3–201 Flexible insulating sleeving, Part 3, Sheet 201: Heat shrinkable sleeving, general purpose, flexible, cross-linked
PVC, shrink ratio 2:1
3. Terminology
3.1 Definitions:
3.1.1 For definitions pertaining to electrical insulation, refer to Terminology D1711.
3.1.2 For definitions pertaining to fire standards, refer to Terminology E176.
3.1 Definitions:
3.1.1 For definitions pertaining to electrical insulation, refer to Terminology D1711.
3.1.2 For definitions pertaining to fire standards, refer to Terminology E176.
4. Classification
4.1 Type I—Flexible, noncrosslinked poly(vinyl chloride) tubing capable of being shrunk at 135°C (275°F) 135 °C (275 °F) in
15 min.
4.2 Type II—Flexible, crosslinked poly(vinyl chloride) tubing capable of being shrunk at 175°C (347°F) 175 °C (347 °F) in 15
min.
5. Ordering Information
5.1 When tubing is ordered to this specification, the purchaser shall define the size, color, and type of the required tubing.
6. Materials and Manufacture
6.1 The polymers used in the manufacture of heat-shrinkable tubing shall be modified poly(vinyl chloride) and the finished
compound shall be free of all foreign matter other than intended formulation additives as appropriate.
6.2 The tubing shall be extruded, crosslinked (Type II only), and then expanded to the required dimensions.
6.3 Conditioning:
6.3.1 Unless otherwise specified, all testing, except flammability, shall be conducted at 23 65°C (73 69°F) 6 5 °C (73 6 9 °F)
and a relative humidity of 50 6 10 % RH. Flammability testing shall be conducted in still air at a temperature of 15 – 35°C (59
– 95°C) to 35 °C (59 to 95 °C) and a relative humidity of <75 %. All samples shall be preconditioned at 23 65°C (73 69°F) 6
5 °C (73 6 9 °F) and a relative humidity of 50 610 % 6 10 % RH. for a minimum of 30 minutesmin prior to test.
7. Chemical and Physical Property Requirements
7.1 The material shall conform to the chemical and physical property requirements specified in Table 1.
7.2 Every lot of material shall be tested for dimensional requirements, restricted shrinkage, tensile strength, elongation,
longitudinal change, and dielectric breakdown. Other requirements shall be tested at a frequency agreed upon between the supplier
and the purchaser.
Available from Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402.Superintendent of Documents, 732 N. Capitol St., NW,
Washington, DC 20401-0001, http://www.access.gpo.gov.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
D3150 − 21

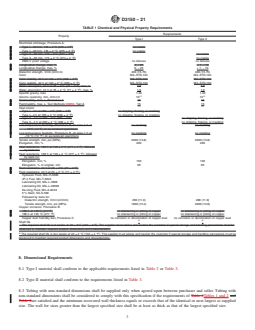

TABLE 1 Chemical and Physical Property Requirements
Requirements
Property
Type I Type II
Restricted shrinkage, Procedure A:
Type I—30 min, 135 ± 2°C (275 ± 4°F) no cracks
Type I—30 min, 135 ± 2 °C (275 ± 4 °F) no cracks
Type II—30 min, 175 ± 2°C (374 ± 4°F) no cracks
Type II—30 min, 175 ± 2 °C (374 ± 4 °F) no cracks
2000-V proof voltage no failures no failures
Longitudinal change, max, % 0, − 25 + 1, − 10
Longitudinal change, max, % 0, − 25 + 1, − 10
Dielectric strength, V/mil (kV/mm) 400 (15.75) 400 (15.75)
Color MIL-STD-104 MIL-STD-104
Color stability, 24 h at 130 ± 2°C (266 ± 4°F) MIL-STD-104 MIL-STD-104
Color stability, 24 h at 130 ± 2 °C (266 ± 4 °F) MIL-STD-104 MIL-STD-104
Water absorption, 24 h at 25 ± 2°C (77 ± 4°F), max, % 1.0 1.0
Water absorption, 24 h at 25 ± 2 °C (77 ± 4 °F), max, % 1.0 1.0
Specific gravity, max 1.40 1.40
11 11
Volume resistivity, min, ohm·cm 10 10
Flammability, max, s, Procedure A 15 15
Flammability, max, s, Test Methods D8355, Test A 15 15
Heat shock:
Type I—4 h at 180 ± 2°C (236 ± 4°F) no dripping, flowing, or cracking
Type I—4 h at 180 ± 2 °C (236 ± 4 °F) no dripping, flowing, or cracking
Type II—4 h at 200 ± 2°C (392 ± 4°F) no dripping, flowing, or cracking
Type II—4 h at 200 ± 2 °C (392 ± 4 °F) no dripping, flowing, or cracking
Low-temperature flexibility, Procedure B, all sizes 1 h at no cracking no cracking
− 10°C (14°F) on as-received specimens
Low-temperature flexibility, Procedure B, all sizes 1 h at no cracking no cracking
−10 °C (14 °F) on as-received specimens
Tensile strength, min, psi (MPa) 2000 (13.8) 2000 (13.8)
Elongation, min, % 200 200
Heat resistance, 168 h at 136 ± 2°C (277 ± 4°F), followed
by tests for:
Heat resistance, 168 h at 136 ± 2 °C (277 ± 4 °F), followed
by tests for:
Elongation, min, % 150 130
Elongation, % of original, min 65 65
Fluid resistance, 24 h at 25 ± 2°C (77 ± 4°F):
Fluid resistance, 24 h at 25 ± 2 °C (77 ± 4 °F):
Hydraulic Fluid, MIL-H-5606
JP-4 Fuel, MIL-T-5624
Lubricating Oil, MIL-L-7808
Lubricating Oil, MIL-L-23699
De-icing Fluid, MIL-A-8243
5 % NaCl, SS-S-550
Followed by tests for:
Dielectric strength, V/mil (kV/mm) 280 (11.0) 280 (11.0)
Tensile strength, min, psi (MPa) 1800 (12.4) 2000 (13.8)
Copper corrosion, Procedure B:
168 h at 136°C (277°F) no blackening or pitting of copper no blackening or pitting of copper
168 h at 136 °C (277 °F) no blackening or pitting of copper no blackening or pitting of copper
Copper dust humidity test, Procedure C no corrosion or discoloration of copper dust no corrosion or discoloration of copper dust
A A
Shelf life
The required shelf life is 2 weeks at 40 ± 2°C (104 ± 4°F). The supplier must advise and caution the custome
...
